Microbial community structure in the biofilm anode of MFC fed with landfill leachate

Abstract

Keywords: Anode respiring bacteria; Biofilm anode; Kinetics; Microbial community; Leachate

Introduction

While all leachate contains high concentrations of organic matter and ammonium nitrogen, its composition depends upon the landfill age, the quality and quantity of waste, biological and chemical processes took place during disposal, rainfall density, and water percolation rate through the waste in the landfill [1]. “Young” leachate is generally produced is the first 1 or 2 years of the landfill’s life, and its organic matter has relatively low molecular weight, such as from volatile organic acids, a high COD concentration (> 10 g/L), and a BOD5-to-COD > 0.6 [2]. “Old” leachates generally come from a landfill after about 10 years; its organic matter has relatively high molecular weight, such as from humic and fulvic

MFC with Ti-TiO2 electrodes emerges as a promising technology for sustainable electricity generation from landfill leachate. The age of leachate establishes a crucial link between microbial ecology, kinetics, and current density output.

substances, a relatively low COD concentration (< 5 g/L), and a BOD5-to COD ratio < 0.3 [2]. Up to now, for an effective leachate treatment, many researchers around the world have intensively focused on the combination of biological and physico-chemical treatment systems that require usage of high energy [3]. After 2000s years, it has been focused on the development of

*Corresponding author. *E-mail address: bozkaya@yildiz.edu.tr Published by Yıldız Technical University Press, İstanbul, Turkey Copyright 2021, Yıldız Technical University. This is an open access article under the CC BY-NC license (http://creativecommons.org/licenses/by-nc/4.0/).

Clean Energy Technol J,, Vol. 1, No. 1, pp. 78−89, December, 2023

innovative technologies to realize energy efficiency in the wastewater treatment sector. To a certain extent, this expenditure using anaerobic digestion can be minimized through energy recovery processes in wastewater treatment plants due to more suitable for concentrated leachate streams, lower operating costs, the production of a useable biogas product (for a review see Renou, et al. [4]). Nowadays, there is ample scope for further innovation in energy recovery processes. For example, a novel technology possibility to use in leachate treatment is microbial fuel cell (MFC) that marries microbial catalysis to electrochemistry [5], but it needs substantially improved the power density to become commercially feasible. However only a handful of reports have investigated the power output in MFC fed with landfill leachate. Several scientists have previously demonstrated the feasibility of using the MFC technology for simultaneous leachate treatment and energy generation [6−10]. In our knowledge there is no report on power generation from leachate in MFC depending on landfill age, which is an important point out that young leachate is a mixture of the most common fermentation products reflecting a real fermentation effluent and old leachate contains humic acids able to be used as artificial electron mediators to carry electrons from inside the cell to an external electrode [11]. We used young (<1 year) and old leachate (>10 years) for generating electricity from continuously flow MFC with Ti-TiO2 anode and cathode electrode to evaluate the effect of substrate concentration on current density by varying concentration of leachate in the reactor. The steady state MFC data was used to estimate important parameters that represent the kinetics for substrate utilization of biofilm anode. Previously, a biofilm model on Nernst-Monod Equation developed by Marcus et al. [12], describing the anode potential losses of anode respiring bacteria that transfer electrons through a solid conductive matrix, which can be facilitated by mathematical models (e.g. Nernst-Monod equation) for understanding and designing of biofilm reactors having the complex inter-related phenomena [13]. That’s why we linked up between kinetics and microbial ecology to explain performance in the MFCs of young and old landfill leachate. Observed high current densities in MFCs generally give low coulombic efficiency because of a three-way syntropy among ethanol fermenters, acetate-oxidizing anode respiring bacteria and a hydrogen scavenger, a hydrogen oxidizing methanogens. On the other hand, some indicator microbes grow at high anode potential and many of which are known to respire the anode using electron shuttles and produce redox mediators [14], which contribute high current output. Therefore, there is a strong linkage between microbial community in MFCs and current density output. Namely, high current density and low anode potential losses, which are the keys of Nernst-Monod equation used in our work, can be only explained by the biofilm anode communities, which are able to transfer electrons from reduced substrate to a solid electrode.

The biofilm anode community can be quite diverse, but MFC must contain anode-respiring bacteria (ARB), which are able to transfer electrons efficiently to the anode by extracellular electron transport (EET) [15]. Many studies that characterized the microbial community of the biofilm anode in MFCs showed a high bacterial diversity in the biofilm anode, but with a general enrichment of Proteobacteria (mainly α-, γ- and δ- proteobacteria), Firmicutes, Bacteriodetes, and Actinobacteria [16−19], as well as Geobacteraceae in some of studies [20] used as inoculum of sediment. Using pyrosequencing targeting the 16S rRNA genes, we analyzed the community structure of biofilm anodes from the continuously fed MFCs to explore if certain microbial types are associated with leachate type or with better vs poorer performance.

Material And Methods

Landfill leachate Leachates were collected from separate drainage pipelines coming from young (<1 year of operation) and old (>10 years of operation) cells of the Odayeri Municipal Landfill in Istanbul. Samples were transferred immediately to the laboratory and kept at 4oC until used for MFC experiments. The leachates were assayed every 15 days for water-quality parameters, and they did not change during storage for 30 days. All water-quality analyses were performed according to Standard Methods [21]. The young leachate contained COD 49,500±500 mg/l, BOD5 28,500±1000 mg/l, TOC 16,800±1000 mg/l, pH 5.5±0.5, conductivity 26±1 ms/cm, nitrate-N 12±2 mg/l, sulfate 900±50 mg/l, ammonia-N 860±50 mg/l, Fe 32 mg/l, Zn 3.5 mg/l, and Ni 1.85 mg/l. Old leachate contained COD 5000±500 mg/l, BOD 1200±500 mg/l, TOC 4200±500 mg/l, pH 7.8±0.2, conductivity 24±1 ms/cm, nitrate-N 8±2 mg/l, sulfate 45±5 mg/l, ammonia-N 920±20 mg/l, Fe 10 mg/l, Zn 6.7 mg/l, and Ni

Results And Discussion

MFC performance The operational conditions during the experimental periods of the MFCs fed with young and old age leachate are summarized in Figure 2. Old and young leachate running MFC have five and six running periods with different substrate concentration and various HRTs. The MFCs were operated in continuous mode for around two months at increasing OLRs achieved by changing hydraulic retention time (HRT) or the feed COD concentration.

Figure 3A and Figure 3B show OLRs during the experimental periods of the MFC system. The OLR was increased up to maximum value of 200 gCOD/l-d for young- and 20 g/l-d for old-landfill leachate. Figure 3C and Figure 3D show how the progressions of current density. In order to compare directly the performance with young versus old leachate, the MFCs fed with young or old leachate were operated with a constant influent COD of 1000 mg/L and an HRT of 2 d, corresponding to organic loading rate (OLR) of 0.5 g COD/d. While current generation was negligible during first one week, it steadily increased to 2 A/m2 and 0.5 A/m2 at 18 days for young and old leachate, respectively. During this period, the COD removals were 5% at one week and 15-20% by 20 days for the MFC fed with old age leachate. The COD removal rose from 5% at one week up to around 20% at 15 days in MFC fed with young landfill leachate. The MFCs were then operated in continuous mode for two months at increasing OLRs achieved by changing hydraulic retention time (HRT) or the feed COD concentration. As the feed COD concentration increased, the current density increased, reaching 9 A/m2 for the young leachate. Decreasing the HRT from 1 d to 0.75 d in MFC with young leachate, corresponding to OLR of 67 g COD/d, did not adversely affect the COD removal efficiency, which remained between 25-30% (Figure 3E and Figure 3F). Similar observation was found in old age leachate and HRTs were decreased 1 d to 0.75 d, corresponding OLR of 6.7 g COD/d. Then, COD removal efficiency had a little change with the value of 15-20% (Figure 3E). The current increased to around 7 mA and 1 mA during this period for MFC fed with young and old age landfill leachates, respectively. Recorded maximum current densities were 11 A/m2 and 6 A/m2 for young and old landfill leachate (Figure 3C and Figure 3D). Thereafter,

Figure 2. Operational conditions during the five (O1-O5) and six (Y1-Y6) experimental periods of the MFC system. HRTs in old and young leachate MFCs are O1: 2 day, O2: 1 day, O3: 0.75 day, O4: 0.5 day, O5: 0.25 day and Y1: 2 day, Y2: 1 day, Y3: 0.75 day, Y4: 0.5 day, Y5: 0.25 day, Y6: 0.5 day.

Clean Energy Technol J,, Vol. 1, No. 1, pp. 78−89, December, 2023

HRT values of both reactors were decreased to 0.5 d corresponding OLR of 100 g COD/d for young leachate and 10 g COD/d for old leachate. The COD removal efficiency averaged around 30% and current increased slightly around 7.7 mA in MFC fed with young leachate, corresponding current density of around 11 A/m2 (Figure 3C). Hence, the reactor performed well even at OLR of 100 g COD/d. Our observation was similar for MFC fed with old age leachate and current density were rinsed 2.2 A/m2 when HRT decreased to 0.5 day (Figure 3D). System performance was adversely while further decreasing HRT to 0.25 day and COD removal efficiency sharply decreased to below 5% and current decreased sharply close to the zero in MFC fed with young leachate (Figure 3E and Figure 3F). Thereafter, HRT was increased back to 0.5 d to recover the process performance. In this case, COD removal efficiency and current density increased again to around 25-30% and 10 A/m2, respectively when HRT of MFC decreased to same value of 0.25 d, the performance of MFC fed with old leachate was not much affected as in young leachate; but its performance decreased with the decreasing rate of 50% (Figure 3D). The initial COD concentrations were 50 g/L and 5 g/L, respectively, for young and old leachate fed MFCs, and these corresponded net COD removal efficiencies of 30% and 20%. Our observations showed that young leachate is the better substrate for MFC than old leachate considering removal efficiency and high current output, but in our case and reported values by other MFC researchers shows that MFCs may require post treatment before effluent discharge to receiving water. Coulombic efficiencies of all runs varied around 2-13% for young leachate and 5-20% for old leachate, whereas three data had high CE of 30-50% for low organic loads. It was observed that the coulombic efficiency decreased with increasing the OLR, but current output increased. Much higher current density values (11 A/ m2) were reached at influent COD of 100 g/L. When we loaded high organic matter to MFCs, CE sharply dropped to minimum value (0.5-5%) especially in young leachate MFC. Thus high current density correlated negatively to high CE. Although COD removal efficiency has constant value during the steady state conditions, CE dropped to low level with incremental OLR. We observed constant COD removal efficiency except for extremely high OLR (100 g/L-d) with young landfill leachate. Although removal efficiency was stable depending on increasing OLR, extremely high OLR significantly affected both current density and COD removal efficiency (Figure 3G and Figure 3H). The reason of constant COD removal but low CD for both reactor is that methane production may not be avoidable in MFCs fed by fermentable substrates, which are inevitable with complex wastewater inputs like landfill leachate besides agricultural residues, activated sludge and anaerobic digestion sludge [26] in case H2 poorly

utilized by anode respiring bacteria [27]. During fermentation H2 will be a considerable electron sink and H2 competition between anode respiring bacteria and other H2 consumers can have a strong impact on the CE. Therefore, methanogenesis is always a possibility with MFC oxidation of complex organic compounds like landfill leachate. Despite all of that observed current density values in this study are among the highest values recorded in the current works (10-15 A/m2; e.g. Catal et al. [28], Torres et al., [29, 30]). Landfill bioreactor works as a real anaerobic digester and produced leachate, especially in initial phase of landfill, includes fermentation products such as complex organic substrates, alcohols, simple acids, and acetate. In addition, fermentation is an important process for the utilization of these substrates. However, significant drops were recorded when fermentable substrates were used at the anode of MFCs [31, 32] and methane was a major electron sink accounting for the decrease in CE. In this study, we had very low CE, especially in MFC fed with young leachate giving high current density. When we consider observed highest current densities MFCs fed with young- (11 A/m2) and old-landfill leachate (5 A/m2), the currents correspond to 950,400 Coulomb/m2 (9.85 eeq/m2) and 482,400 Coulomb/ m2 (5 eeq/m2), respectively. Thereafter, the removed COD per anode surface area by anode respiring bacteria can calculate to be 80 g COD/m2 and 40 g COD/m2. The removed COD per anode surface area under steady state condition giving high current densities were 58,000 g CODremoved/ m2 and 3,600 g CODremoved/m2 in MFCs fed with youngand old-landfill leachate, which indicated that a very low amount of COD were removed by anode respiring bacteria at a rates of %0.15 and %1.1, respectively. The young landfill leachate had a very low CE at high organic loads because of a real fermentation substrate from landfill bioreactor. In addition, young leachate feed may contain possible methanogenesis domain but not identify in this work and no inhibitor was added to inhibit methanogens. Therefore, H2 may route to CH4 by H2 oxidizing methanogens and homo-acetogens became a channel for electron” flow from H2 to current through acetate. In a study, Parameswaran et al. [19] compared the microbial community structure developed in the biofilm anode of two microbial electrolysis cells fed with ethanol one where methanogenesis was allowed and another in which it was completely inhibited. They found that H2 was routed to CH4 by H2 oxidizing methanobacteriales, which resulted in decreasing rate of a CE from 84% to 60%. Another possible way for electron flow is the presence of other electron acceptors such as sulfate and nitrate. The young leachate included around 1000 mg/L sulfate and 12 mg/L nitrate and old leachate had 50 mg/L sulfate and 10 mg/L nitrate, which can be calculated as the COD/SO42ratio of 50 and 100 for the percent electron flow to sulfate reduction, respectively.

Clean Energy Technol J,, Vol. 1, No. 1, pp. 78−89, December, 2023

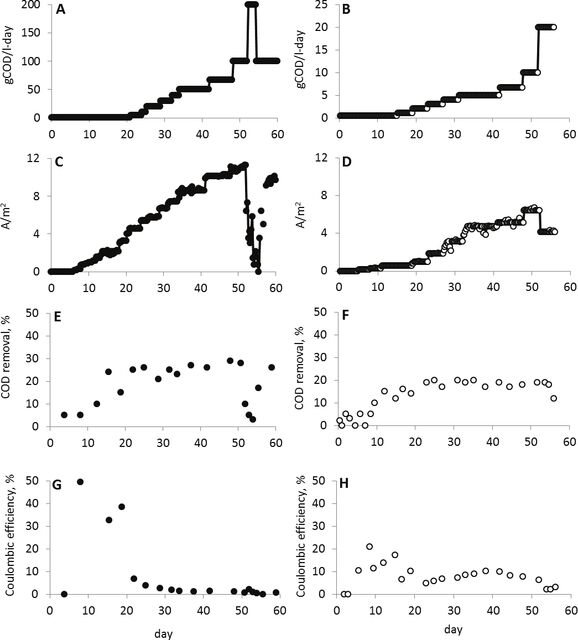

Figure 3. OLRs (A and B), current density outputs (C and D), COD removal efficiency (E and F) coulombic efficiency (G and H), left side and right side of figure show young- and old-landfill leachate, respectively. Microbial community profiles The microbial community profiles works covered a comparison of medium of MFC under different HRTs and biofilm anode after completing MFC works. The changes in DGGE profiles of microbial community in MFC anode chamber and in biofilm on anode electrode are presented in Figure 4 and the closest relatives of each band are given

in Table 1. The first 8 lanes represent the microbial diversity at various HRTs for both young (Figure 4A) and old (Figure 4B) leachate, while Figure 4C and Figure 4D show the bacterial community in biofilm. Microbial dynamics in the figure indicated that abundance of bacteria was considerable depended on the operational conditions. Bands 1 to 6 were observed in all operational conditions

Clean Energy Technol J,, Vol. 1, No. 1, pp. 78−89, December, 2023

of anodic chamber and biofilm. Uncultured Clostridium sp. (Band 8) was only present in the liquid medium at start-up period then it disappeared during the subsequent operation courses while it was also detected in biofilm. Similarly, Pseudomonas sp. (Band 25) and Uncultured bacterium clone (Band 28) were dominant in biofilm and in anode liquid at start-up period while they were not detected at lower HRTs. Conversely, Clostridium sp. (Band 9) was not present at start-up period while it was dominant at lower HRTs and biofilm. Shewanella putrefaciens (Band 10) and Uncultured Firmicutes bacterium (Band26) were only present at HRT 2 days and then they were washout at lower HRTs. Those strains might have no ability to live attached since they were not detected in biofilm. Subramaniam [33] indicated that S. putrefaciens needs time to adapt to the landfill leachate treatment by MFC. The disappearance of Shewanella putrefaciens in our study was probably due to the fact that the operation duration at each HRT was less than its adaptation time and it was easily wash out the MFC reactor. Similar to Clostridium sp. (Band 9), Uncultured Clostridiales bacterium (Band 11), Uncultured Clostridium (Band12), Uncultured Clostridium sp.(Band 13) and Geobacter sp.(Band 14) were not present at HRT 2 days while they were dominant at lower HRTs. Uncultured gamma proteobacterium (Band 15), Uncultured Geobacter sp. (Band 16), Uncultured Clostridium sp. (Band 17) and Uncultured Clostridiales bacterium clone (Band 18), Uncultured Pseudomonas (Band 22) and Uncultured Geobacter sp. (band 23) were dominant in all HRTs and biofilm community. This result indicated that those strains were not affected by the changes in operational conditions. The distribution of bacterial community indicated that MFC anode and biofilm was mainly dominated by Shewanella and Geobacter species. Shewanella and Geobacter species were commonly reported to possess the capability to generate electricity. S. Putrefaciens is a metal reducing bacterium and can produce its own mediators such as soluble qinones during MFC operation [34], [35]. Galvez et al. [8] reported that S. Putrefaciens can consume substrates of lactate and pyruvate while it can not convert complex organics during the electricity production in an MFC. Geobacteraceae can directly transfer electrons to electrodes using electrochemically active redox enzymes, such as cytochromes on their outer membrane [36]. Both young and old landfill leachate did not detected sulphate reducing microbes, and therefore, the electrons did not flow to another electron acceptors, which confirmed with community structure experimental results both in biofilm anode and reactor mixture. The strong way of electron flow signed methanogenesis species considering community structure. Figure 4C and Figure 4D show the DGGE patterns of partial 16 sRNA genes for biofilm anode. We detected relatively more bands representing different communities developed in the biofilm anode of MFC fed with old age leachate. Based on sequencing analysis biofilm samples in

MFC fed with the young leachate, all of the total bacterial 16S rRNA genes belonged to the phylum Proteobacteria, of which 33% were Gammaproteobacteria, 33% Firmicutes, 27% Deltaproteobacteria and 7% Betaproteobacteria (Table 1 and Figure 4). Figure 4 shows phylogenetic tree for anodic biofilm in MFCs. The bacterial population in the biofilm of the old leachate MFC revealed that the almost all of patterns Proteobacteria phylum was a diversity, being distributed among Deltaproteobacteria (20% Proteobacteria), Gammaproteobacteria (44% of Proteobacteria) and Firmicutes (31% Proteobacteria). Deltaproteobacteria was mostly represented by the family of Geobacteraceae representing Uncultured Geobacter sp. with the different accession number in GenBank and band label in DGGE pattern of 2, 7, 9, 12 and II, XI, XVIII (Table 1). The phylum Firmicutes in MFCs accounted for 33% and 25% of the total bacteria in biofilm from young and old leachates, respectively (Figure 4). Compared to anode biofilm in young leachate MFC, the fraction of Geobacter sp., which is a known anode respiring bacteria, was much higher than in biofilm of old leachate MFC; even so this family was among dominant species in both reactors. This explains the true ecological advantage for anode respiring bacteria. The Firmicutes 16s rRNA genes in young leachate MFC were much higher than old leachate MFC. Ishii et al. [37] reported that the origin of Firmicutes characterized filamentous biofilm community in cellulose fed MFC. We found same culture with the DGGE pattern numbers of 3, 4, 6, 8 and VIII, X, XIII. Clostridiales sp. was found in only one band (VI Band) belong to Acetobacterium species. With DGGE analysis, Pseudomonas sp. was detected, as well as Geobacter sp. as a family of Gammaproteobacteria. Only old leachate MFC contained Shewanella sp. (HM589853) belong to family of Shewanellaceae and class of Gammaproteobacter with the band no of III in DGGE pattern (Figure 4). This species transfers electrons to the electrode surfaces via electron transferring proteins, our observation with the accession number of HM589853 in GenBank. The results of community analysis from various studies show that there is no single specific microorganism in the bacterial populations that develop on the anode. Deltaproteobaceria family group found in young landfill leachate biofilm had more fraction than old leachate. This group has been identified as the major bacterial family in acetate enriched MFCs and believed to be responsible for the direct electron transfer to electrode [38], which might be the main reason when considered that young landfill leachate contains more fermentation product like acetate during initial degradation phase of organic fraction of municipal wastes in landfill. We mainly detected that anode respiration was a probable role of predominant bacterial genera in biofilm samples from two MFC reactors fed with young and old leachate. Observed kinetics responses of biofilm anode community gave high current density and low anode potential losses (η=0.24) with low anode potential (~ -400mV vs

Clean Energy Technol J,, Vol. 1, No. 1, pp. 78−89, December, 2023

AgAgCl) in steady-state conditions. Therefore, we should expect anode respiring bacteria in biofilm anode according to these observations. Our anode potential was enough low to healthy grow anode respiring bacteria, but DGGE patterns included some Pseudomonas sp. especially in old landfill leachate, which had more band than young leachate MFC. This strain may grow at lower anode potential during start-up period (~ -120 mV vs AgAgCl) or existed in old

landfill leachate. Because old or stabilized leachate used in this study had over ten years old and may contain more dissolved oxygen because of air diffusion on the surface of landfill. Although the dominant group of bacteria were Gammaproteobacteria (~ 35%), but this group contains mainly members of Pseudomonadeledes. On the other hand, Pseudomonas sp. was found in DGGE pattern of both leachates with more band in old leachate, which grows

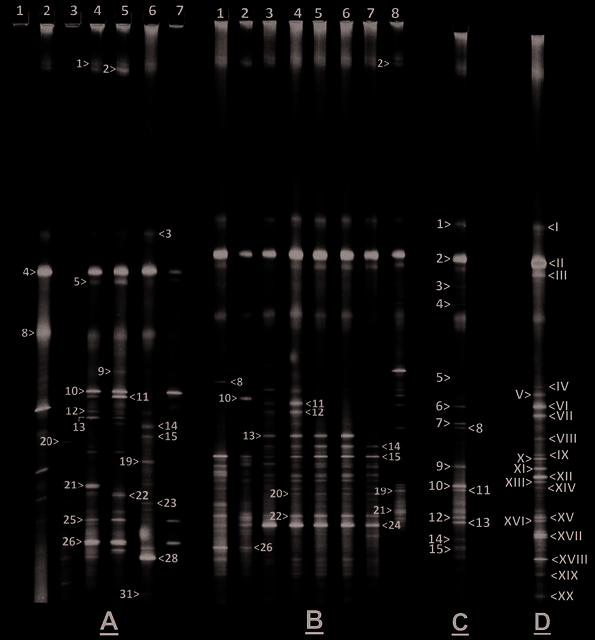

Figure 4. DGGE fingerprint of reactor medium under different conditions (A: young leachate, B: old leachate medium) and anode biofilm (C: young, D: old) see Table 1 for the labeled bands.

Clean Energy Technol J,, Vol. 1, No. 1, pp. 78−89, December, 2023

Table 1. Selected band identities and affiliations of the anode biofilms from DGGE conducted with young leachate samples amplified with the bacterial specific PCR primers BN1

Clean Energy Technol J,, Vol. 1, No. 1, pp. 78−89, December, 2023

Xviii

1:Band numbers in Figure 4, 2:Sequence length, 3:Similarity, 4:Closest species in GenBank database with an accession number

at high anode potential and many of which are known to respire the anode using electron shuttles and Pseudomonas species are known to produce redox mediators as pyocyanin [14], which contribute high current output in our works. We used Nernst-Monod based model as the baseline to distinguish intracellular potential losses from anode potential losses (η). Thus, deviations from the Nernst-Monod model will help us determine extracellular potential losses due to interphase electron transfer and extracellular electron transfer of anode respiring bacteria [30]. Electron transport a solid conductive matrix can explain with the high current densities and low potential losses. The η value shows anode potential losses. We observed this parameter as 0.25 V (η=Eanode - EKA) with the high current density output of 11 A/m2 without any large any potential loss. Direct contact of anode respiring bacteria confirmed in our community structure analysis provided to achieve high current densities in MFCs. Microbial composition in MFC system changed relative to substrate composition and operating conditions. DNA extraction from the biofilm anode and suspended microbial consortia were independently analyzed from these two sources from young and old leachate, and population differences were observed between the biofilm and suspended cultures. Interestingly, Deltaproteobacter in biofilm anode of young landfill leachate was more dominant phylum

than old leachate biofilm anode. Sulphate concentration in young landfill leachate have higher concentration than old leachate because of low pH and solubility of sulphate and other ion. The reason of Deltaproteobacter (Geobacter sp. and Desulfuromonadales) dominancy is that this phylum has ability to reduction of sulphate. The deltaand gamma-proteobacter play an important role during anodic electron transfer in young leachate MFC; however, Gammaproteobacter more active culture in biofilm anode of old leachate MFC not Deltaproteobacter.

Conclusion

Based on the current outputs, microbial community and kinetics performance of microbial fuel cell with Ti-TiO2 electrode, is a promising candidate for electricity generation, the following conclusions can be drawn: 1) The highest current density is around 11 A/m2 in MFC fed with young age landfill leachate at the hydraulic retention time of 0.5 day. Current density is almost 6 A/ m2 for old age leachate with the same HRT. 2) Dominated bacterial groups in anode biofilm are Deltaproteobacteria and Gammaproteobacteria. Deltaproteobacteria family group found in leachate fed MFC.

Clean Energy Technol J,, Vol. 1, No. 1, pp. 78−89, December, 2023

3) The kinetic parameters for young age leachate are computed as η = 0.25 V, Ks=3.4 g sCOD/L, and Jmax = 12 A/m2 and computed values are η = 0.25 V., Ks=1.3 g sCOD/L, and Jmax 8 A/m2 for old leachate substrate. In conclusion, a high current density output achieved with MFC fed with landfill leachate with the low anode potential and potential losses confirming kinetics parameters.

Data Availability Statement

The authors confirm that the data that supports the findings of this study are available within the article. Raw data that support the finding of this study are available from the corresponding author, upon reasonable request.

Conflict Of Interest

The author declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Ethics

There are no ethical issues with the publication of this manuscript.

References

1. Taskan E, Hasar H. Effect of different leachate/acetate anode-respiring bacteria. FEMS Microbiol Rev ratios in a submerged anaerobic membrane biore- 2010;34:3−17. [CrossRef] actor (SAnMBR). Clean (Weinh) 2012;40:487−492. [16] Logan BE, Regan JM. Electricity-producing bac- [CrossRef] terial communities in microbial fuel cells. Trends
2. Zhang H, Choi HJ, Huang C. Landfill leachate Microbiol 2006;14:512−518. [CrossRef] treatment by Fenton's reagent. The variation of [17] Kim JR, Jung SH, Regan JM, Logan BE. Electricity leachate characteristics. Fresenius Environ Bull generation and microbial community analysis of 2005;14:1178−1183. alcohol powered microbial fuel cells. Bioresour
3. Ozkaya B, Demir A, Bilgili MS. Enhanced stabilisa- Technol 2007;98:2568−2577. [CrossRef] tion and methane potential of MSWs in a field-scale [18] Torres CI, Krajmalnik-Brown R, Parameswaran P, landfill with leachate recirculation. Int J Environ Marcus AK, Wanger G, Gorby YA, et al. Selecting Pollut 2004;21:277−292. [CrossRef] anode-respiring bacteria based on anode poten-
4. Renou S, Givaudan JG, Poulain S, Dirassouyan F, tial: phylogenetic, electrochemical, and micro- Moulin P. Landfill leachate treatment: Review and scopic characterization. Environ Sci Technol opportunity. J Hazard Mater 2008;150:468−493. 2009;43:9519−9524. [CrossRef] [CrossRef] [19] Parameswaran P, Torres CI, Lee HS, Krajmalnik‐
5. Rittmann BE. Opportunities for renewable bio- Brown R, Rittmann BE. Syntrophic interac- energy using microorganisms. Biotechnol Bioeng tions among anode respiring bacteria (ARB) and 2008;100:203−212. [CrossRef] Non‐ARB in a biofilm anode: electron balances.
6. You SJ, Zhao QL, Jiang JQ, Zhang JN, Zhao SQ. Biotechnol Bioeng 2009;103:513−523. [CrossRef] Sustainable approach for leachate treatment: elec- [20] Bond DR, Lovley DR. Electricity production by tricity generation in microbial fuel cell. J Environ Geobacter sulfurreducens attached to electrodes. Sci Health A 2006;41:2721−2734. [CrossRef] Appl Environ Microbiol 2003;69:1548−1555. [CrossRef] Clean Energy Technol J,, Vol. 1, No. 1, pp. 78−89, December, 2023 89
7. American Public Health Association. Standard [30] Torres CI, Kato Marcus A, Rittmann BE. Proton Methods for the Examination of Water and transport inside the biofilm limits electrical current Wastewater. American Water Works Association, generation by anode‐respiring bacteria. Biotechnol Water Environmental Federation. 21st ed. Bioeng 2008;100:872−881. [CrossRef] Washington, DC: American Public Health [31] Lee HS, Parameswaran P, Kato-Marcus A, Torres Association; 2005. CI, Rittmann BE. Evaluation of energy-conversion
8. Ozkaya B, Akoğlu B, Karadag D, Acı G, Taksan E, efficiencies in microbial fuel cells (MFCs) utilizing Hasar H. Bioelectricity production using a new fermentable and non-fermentable substrates. Water electrode material in microbial fuel cell. Bioprocess Res 2008;42:1501−1510. [CrossRef] Biosyst Eng 2012;35:1219−1227. [CrossRef] [32] Min B, Logan BE. Continuous electricity generation
9. Logan BE. Microbial Fuel Cells. Hoboken, New from domestic wastewater and organic substrates in Jersey: John Wiley & Sons; 2008. a flat plate microbial fuel cell. Environ Sci Technol
10. Sleutels TH, Darus L, Hamelers HV, Buisman CJ. 2004;38:5809−5814. [CrossRef] Effect of operational parameters on Coulombic [33] Subramaniam PK. Microbial transport and the use of efficiency in bioelectrochemical systems. Bioresour microbial fuel cell technology to prevent iron release Technol 2011;102:11172−11176. [CrossRef] in landfills nearby northwest Florida. Dissertations
11. Muyzer G. Denaturing gradient gel electrophore- Thesis. The Florida State University, 2011. sis of PCR-amplified 16S rDNA-a new molecular [34] Kim HJ, Park HS, Hyun MS, Chang IS, Kim M, approach to analyse the genetic diversity of mixed Kim BH. A mediator-less microbial fuel cell using microbial communities. Mol Microbial Ecol Manual a metal reducing bacterium, Shewanella putrefa- 1996:344-1. ciens. Enzyme Microbial Technol 2002;30:145−152.
12. Kim GT, Hyun MS, Chang IS, Kim HJ, Park HS, [CrossRef] Kim BH, et al. Dissimilatory Fe (III) reduction by [35] Liu H, Ramnarayanan R, Logan BE. Production of an electrochemically active lactic acid bacterium electricity during wastewater treatment using a sin- phylogenetically related to Enterococcus gallinarum gle chamber microbial fuel cell. Environ Sci Technol isolated from submerged soil. J Appl Microbiol 2004;38:2281−2285. [CrossRef] 2005;99:978−987. [CrossRef] [36] Ghangrekar MM, Shinde VB. Wastewater treatment
13. Torres CI, Kato Marcus A, Rittmann BE. Kinetics of in microbial fuel cell and electricity generation: A sus- consumption of fermentation products by anode-re- tainable approach. In 12th International Sustainable spiring bacteria. Appl Microbiol Biotechnol Development Research Conference (Vol. 8, p. 201). 2007;77:689−697. [CrossRef] Princeton, New Jersey: Citeseer; 2006.
14. Catal T, Xu S, Li K, Bermek H, Liu H. Electricity gen- [37] Ishii SI, Watanabe K, Yabuki S, Logan BE, Sekiguchi, eration from polyalcohols in single-chamber micro- Y. Comparison of electrode reduction activities of bial fuel cells. Biosen Bioelectron 2008;24:849−854. Geobacter sulfurreducens and an enriched con- [CrossRef] sortium in an air-cathode microbial fuel cell. Appl
15. Torres CI, Marcus AK, Rittmann BE. Phosphate and Environ Microbiol 2008;74:7348−7355. [CrossRef] Bicarbonate Buffers as Proton Carriers Inside the [38] Lee J, Phung NT, Chang IS, Kim BH, Sung HC. Use Biofilm of Anode-Respiring Bacteria in Microbial of acetate for enrichment of electrochemically active Fuel Cells. In ECS Meeting Abstracts (No. 7, p. 239). microorganisms and their 16S rDNA analyses. Bristol: IOP Publishing; 2008. [CrossRef] FEMS Microbiol Lett 2003;223:185−191. [CrossRef]
