Optimizing power of a variable-temperature heat reservoir Brayton cycle for space nuclear power plant

Order Reprints Cite Share

Tan WANG

* Author to whom correspondence should be addressed.

Seatific 2023, Vol. 3, Issue 1, pp. 3; doi.org/10.14744/seatific.2023.0002

Download PDF View DOI record

Abstract

A variable-temperature heat reservoir endoreversible simple closed Brayton cycle (CBC) model for space nuclear power plant is established. Thermal efficiency (TEF) and power output (POW) are derived. When total heat transfer area of radiator panel and two heat exchangers (HEXs) is fixed, the maximum POW ( ) is obtained by optimizing area distributions ( , and ) among two HEXs and radiator panel, the double maximum POW ( ) is obtained by optimizing inlet temperature ( ) of cooling fluid in low temperature heat sink, and the triple maximum POW ( ) is obtained furtherly by optimizing thermal capacity rate matching ( ) between heat reservoir and working fluid. When , and are optimized, increases by 4.33% compare to initial POW ( ); when is furtherly optimized, increases by 6.33% compare to and increases 1.86% compare to ; and increases 11.76%, 7.13% and 5.17% compare to , and , respectively.

Keywords: space power plant; variable-temperature heat reservoir cycle; endoreversible closed Brayton cycle; power optimization; optimal performance; finite time thermodynamics

1. Introduction

In the face of the requirements of deep space exploration missions, establishing a high-conversion efficiency, reliable, and compact space-based power plant (SPP) that can respond to challenges has become necessary in recent years. Three ways presently exist for an SPP to provide energy: chemical, solar, or nuclear energy. Among these options, nuclear energy appears as a possible alternative for generating large amounts of energy long term and reducing fuel mass. Furthermore, the SPP would require the maximum power-to-mass ratio for space propulsion purposes. Therefore, a practical energy conversion system must strike a compromise between high conversion efficiency and compactness. This relationship

must be balanced during the design process. The main components of SPP are divided into three parts: the reactor, the energy conversion device, and the radiator. The space energy conversion system can be separated into static (thermoelectric converter and thermionic conversion) and dynamic (Stirling, Brayton, and Rankine heat engines) components. Due to the high power density, high conversion efficiency, stability, and reliability, the closed Brayton cycle and its combined cycles have been used in aircraft, the marine industry, power plants, and space-based power plants. Some scholars (Gonca & Sahin, 2016; Gonca, 2017a, 2017b, 2018; Gonca & Genc, 2019;Gonca & Başhan, 2019; Gonca & Guzel, 2022) have optimized gas turbine cycles

*Corresponding author. *E-mail address: lingenchen@hotmail.com, 2506715339@qq.com Published by Yıldız Technical University Press, İstanbul, Türkiye This is an open access article under the CC BY-NC license (http://creativecommons.org/licenses/by-nc/4.0/).

(Gonca & Sahin, 2016; Gonca, 2017a, 2018), gas-mercury cycles (Gonca, 2017b; Gonca & Genc, 2019) and gas-steam combined cycles (Gonca & Başhan, 2019; Gonca & Guzel, 2022) with exergetic (Gonca, 2017a, 2017b; Gonca & Guzel, 2022), exergo-economic (Gonca & Guzel, 2022) and thermo-ecological (Gonca & Sahin, 2016; Gonca, 2017a, 2017b, 2018; Gonca & Genc, 2019;Gonca & Başhan, 2019) performances as the optimization objectives and analyzed the effects of different working fluids, turbine operations, and design parameters on cycle performances. In order to establish a high conversion efficiency, reliable, and compact SPP, some scholars have introduced classical thermodynamics theory into the performance optimization of the closed Brayton cycle for SPPs (El-Genk & Tournier, 2009; Liu et al., 2020; Wang et al., 2021a; Miao et al., 2022; Toro & Lior, 2017). El-Genk and Tournier (2009) established a closed Brayton cycle model for SPP with an inert gas and binary mixture as a coolant and analyzed the influence of the working fluid (WF) on plant performance and turbine size. Their results showed that a cycle with an indirect closed Brayton cycle has higher thermal efficiency (TEF) than one with a single compressor and that the cycle TEF is almost unaffected by the WF’s molecular weight. Liu et al. (2020) took the mass of the HEXs of a closed Brayton cycle for an SPP as the optimization objective, minimizing the total mass of the plant by optimizing the key parameters of the system components with NSGA-II algorithm, thus obtaining a Pareto frontier of key parameters. Wang et al. (2021a) established a closed Brayton cycle model for an SPP with a gas-cooled reactor as the hot side of the heat reservoirs (HRs) and analyzed and optimized the cycle performances. Their results showed the highest temperature that the fuel can reach and how safe the device is under optimal operation. Miao et al. (2022) established a recompressed supercritical N2O-He mixture closed Brayton cycle model for an SPP. They comprehensively studied and optimized important parameters of the plant such as split ratio and pressure ratio and obtained an optimal TEF and closed Brayton cycle rotating unit mass for the cycle. Additionally, Toro and Lior (2017) introduced classical thermodynamics theory into the performance optimization of Stirling cycles for SPPs and analyzed the effects of main cycle parameters on the relationship between TEF and POW for Stirling cycles operating with different WFs. The theory of finite-time thermodynamics (FTT; Andresen, 1983; Bejan, 1996; Chen et al. 1999; Berry et al., 2020; Andresen & Salamon, 2022) is an innovation of classical thermodynamic theory. FTT can consider the effects of heat transfer loss and the limitations of time and heat exchanger (HEX) area between the heat reservoir (HR) and WF which are largely ignored in classical thermodynamics. Many researchers have introduced FTT into the performance optimizations of thermal cycles and processes, including the optimal performances of the Carnot cycles (Curzon & Ahlborn, 1975; Valencia-Ortega et al., 2021), Stirling engines (Xu et al., 2022), diesel engines (Wu, Feng et al., 2021; Ge et al., 2021), dual cycles (Ge et al., 2022), Kalina

cycles (Feng et al., 2020), dual-Miller cycles (Ebrahimi, 2021), organic Rankine cycles (Park & Kim, 2016; Wu, Ge et al., 2020; Feng et al., 2021), combined cycles (Gonca & Guzel, 2022; Wu et al., 2021), thermoelectric devices (Chen et al., 2020a; Chen et al., 2021a; Chen & Lorenzini, 2022a), thermal Brownian cycles (Qi et al., 2021a, 2021b; Chen et al., 2022; Qi et al., 2022a, 2022b), thermoradiative devices (Li & Chen, 2021; Zhang, Yang et al. 2021), blue engines (Lin et al., 2022), electron engines (Ding et al., 2021; Qui et al., 2021a), thermionic devices (Qiu et al., 2021b), methane reforming (Chen et al., 2022b), chemical engines (Chen & Xia, 2022a, 2023a), chemical pumps (Chen et al., 2023a, 2023b), Brayton cycles (Ibrahim et al., 1991; Ust et al., 2006; Chen et al. 2020b, 2020c; Qui et al., 2022; Jin et al, 2022), and refrigeration cycles (Chen & Lorenzini, 2022b), as well as the optimal configurations of refrigeration cycles (Badescu, 2021; Paul & Hoffman, 2022), heat-transfer systems (Badescu, 2022; Chen & Xia, 2022b), variabletemperature-reservoir heat engines (Li & Chen, 2022; Chen & Xia, 2022c), methanol synthesis (Li et al., 2022), variablepotential-reservoir chemical engines (Chen & Xia, 2022d, 2022e, 2023b, 2023c), and commercial engines (Chen, 2011; Chen & Xia, 2022f). Thermal cycles are divided into two types based on the nature of the cycle: steady flow cycles (Chen et al., 1996; Feidt, 2017) and reciprocating cycles (Curzon & Ahlborn, 1975; (Muschik & Hoffman, 2020). For the steady-flow heat engine cycle, considering the variable-temperature HR can have the cycle more closely approach the working state of actual heat engines. Therefore, some scholars have studied the steady-flow cycle under the condition of variable-temperature HRs (Ust et al., 2006; Ibrahim & Bourisli, 2021). Some scholars have introduced FTT into the performance optimization of Stirling and Carnot engine cycles for SPPs (de Moura et al., 2022a, 2022b; Wang et al., 2021b, 2022). De Moura et al. (2022a, 2022b) established a Stirling engine model for an SPP, obtained a compact system with optimal temperature conditions for TEF by optimizing the temperature of the HRs of the system, and analyzed different the effects of the Stirling engine structural parameters on final system performance. Wang et al. (2021b, 2022) respectively established endoreversible and irreversible Carnot cycle models for SPPs and obtained the plant double-maximum POW by optimizing the area distributions of the HEXs and temperature of the low temperature heat sink. Some scholars (Zhang, Liu et al., 2021; Romano & Ribiero, 2021) introduced FTT into the performance optimizations of a closed Brayton cycle for SPPs. Zhang, Liu et al. (2021) established a supercritical CO2 closed Brayton cycle model for an SPP using a sodium-cooled reactor as the hot side of the HR, derived the relationship between TEF and POW, and obtained optimal cycle characteristics and operating parameters. Romano and Ribeiro (2021) established a regenerative closed Brayton cycle model for an SPP, obtained the optimal inlet temperature for the cold side of the HEX and optimal heat source temperature by minimizing specific mass.

Existing FTT research on closed Brayton cycle models for SPPs have not optimized HEX area or HR temperature, nor have they yet obtained the optimal inlet temperature of a cooling fluid in a low temperature heat sink or optimize thermal capacity rate matching between the HR and WF. Applying FTT to SPPs is crucial for establishing a theoretical system, and based on Ust et al. (2006), this paper will establish a variable temperature HR endoreversible closed Brayton cycle model for an SPP. For a fixed total heat transfer area of the radiator panel and two HEXs, the maximum POW of the plant will be obtained by optimizing the area distributions among the radiator panel and two HEXs, the double-maximum POW will be obtained by optimizing the inlet temperature of the cooling fluid in the low temperature heat sink, and the triple-maximum POW will be obtained by optimizing thermal capacity rate matching between the HR and WF. The study will also investigate the impacts the cycle parameters have on the triple-maximum POW.

Indicators

Figure 1 shows the diagram of the established model. The model consists of two parts: the first part is the ordinary closed Brayton cycle, which includes a compressor, a turbine, and two HEXs between the HRs and WF. This part has isobaric heat absorption and heat release processes involving the temperature drops T3-T2 accompanying QH and T4-T1 accompanying QL (denoted respectively as the processes 2→3 and 4→1 in Fig. 1). This part also undergoes two isentropic processes (denoted as processes 1→2 and 3→4 in Fig. 1). The second part includes a radiator panel that dissipates heat into space. The HEXs between the HRs and WF are assumed to be counter-current. The inlet/ outlet temperatures of the heating and cooling fluids are THin/THout and TLin/TLout, respectively. The constant thermal capacity rate of the WF is Cwf, and the thermal capacity rates of the HRs are CH and CL. The heat conductance of the hot and cold sides of the HEX are UH and UL. UH=K1FH and UL=K2FL, where K is the heat transfer coefficient and F is the HEX area. According to the properties of the WF and HEX theory, the heat flux between the HRs and WF are respectively: QH=Cwf (T3-T2)=CH min EH1 (THin-T2)(1) QL=Cwf (T4-T1)=CL min EL1 (T4-TLin)(2) where the Es are the effectiveness values of the two HEXs: 1-exp[-N (1-CH min/CH max)] EH1= H1 (3) 1-(CH min/CH maxexp[-NH1(1-CH min/CH max)] 1-exp[-N (1-CL min/CL max)] EL1= L1 1-(CL min/CL maxexp[-NL1(1-CL min/CL max)]

NH1=UH/CH min=K1FH/CH min, NL1=UL/CL min/CL max)](5) CH max=max {CH , Cwf}, CH min=min {CH , Cwf}(6) CL max=max {CL, Cwf}, CL min=min {CL, Cwf}(7)

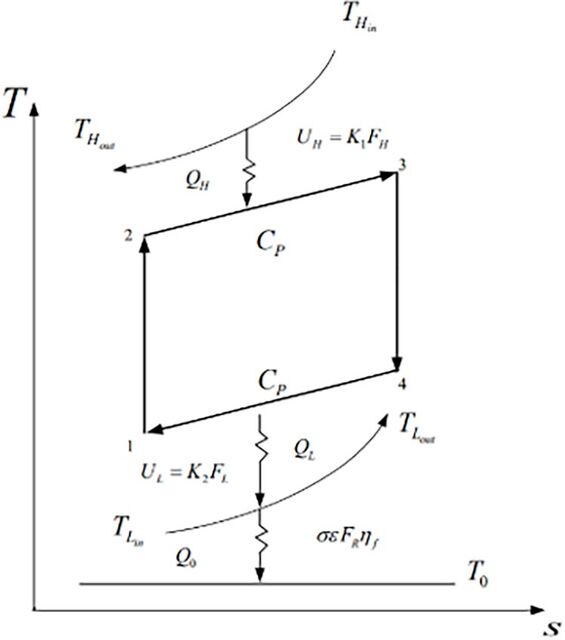

Figure 1. The T-s diagram of a variable temperature HR endoreversible closed Brayton cycle for an SPP. HR: Heat reservoir; SPP: Space power plant.

where CH max and CH min are the respective maximum and minimum thermal capacity rates regarding Cwf and CH, CL and CL min are the respective maximum and minimum max thermal capacity rates regarding Cwf and CL, and NH1 and NLI are the respective number of heat transfer units as defined based on the minimum thermal capacity. According to the endoreversible condition, the relationship between the four temperatures of the cycle is T1T3=T2T4. Defining the isentropic temperature ratio of the compressor as x gives: T T P m=πm x= 2 = 3 = 2 (8) T1 T4 P1

where π is the pressure ratio of the cycle, m=(k-1)/k, and k is the specific heat ratio. The steady-state heat transfer from the radiator panel to the external environment is: 4

Q0=σεFRηf (TLin-T0 )(9) where ηf is fin efficiency, σ is the Boltzmann constant, T0 is the temperature of the space environment, ε is emissivity, and FR is the area of the radiator panel. According to Ust et al. (2006), outlet temperatures T2 and T4 of the compressor and turbine for a conventional variable temperature HR endoreversible closed Brayton cycle model are obtained as: C E (C -C E ) T +xCwf CL min EL1 TLin T2= H min H1 2 wf L min L1 Hin (10) Cwf /Cwf -CH min EH1) (Cwf-CL min EL1)  T4=

x-1 CH min EH1 Cwf THin+ CL min EL1 (Cwf-CH min EH1) TLin Cwf2/Cwf -CH min EH1) (Cwf-CL min EL1)

3.1. Initial design

In accordance with Ust et al. (2006), Wang et al. (2021b, 2022), and Romano & Ribiero (2021), an initial design has been performed with σ=5.67×10-11kW/(m2.K4), ηf=0.9, ε=0.9, Cwf=1.5kW/K, CL=CH=1.2kW/K, K1=K2=0.2kW/(m2.L), THin=1150K, TLin=400K, T0=200K, FH=12.24m2, FL=12.24m2, and FR=122.4m2. The POW of the initial design is P=122.94.

3.2. The maximum and double-maximum POWs

A change in the area of the HEXs will also change and, thus enabling the POW to be maximized. Assuming that the sum of the area of the three HEXs is constant:

CL min EL1 (T4-TLin)=σεFRηf (TLin-T0 )(13) From Eqs. 11 and 13, one gets: 4

σεFRηf (TLin-T0) +TLin= (CL min EL1) x-1 CH min EH1 Cwf THin+ CL min EL1 (Cwf-CH min EH1) TLin Cwf2/Cwf -CH min EH1) (Cwf-CL min EL1)

From Eq. 15, one then gets: x= π =(CH min EH1 Cwf THin)/{[((C -(Cwf-CH min EH1) (Cwf-CL min EL1))] m

From Eqs. 10 and 16, one gets: T2=[((Cwf2-(CH min EH1(Cwf-CL min EL1) THin Cwf2-(Cwf-CH min EH1)) +(CH min EH1 Cwf THin+CL min EL1 (Cwf-CH min EH1)TLin)CwfCL minEL1TLin))] (17) 4

From Eqs. 1, 2, 14, and 17, one then gets: QH=[(CH min EH1(THin-((Cwf2-(CH min EH1(Cwf-CL min EL1)THinCwf2-(Cwf-CH min EH1)) +(CH min EH1 Cwf THin+CL min EL1 (Cwf-CH min EH1)TLin)CwfCL minEL1TLin)))] (18) 4

Thus, the POW and TEF of the plant are respectively: P=QH-QL={[CH min EH1(THin-((Cwf2-(CH min EH1(Cwf-CL min EL1)THinCwf2-(Cwf-CH min EH1)) +(CH min EH1 Cwf THin+CL min EL1 (Cwf-CH min EH1)TLin)CwfCL minEL1TLin))] (20) 4

η=1-(QH /QL)=1-{{[(CH minEH1 (THin-((Cwf2-(CH minEH1 ×(Cwf-CL min EL1)THinCwf2-(Cwf-CH minEH1)) /[(Cwf-CH min EH1)(Cwf-CL min EL1))(Cwf-CL minEL1)( 4

one can perform the POW maximization with respect to the area ratios. The obtained maximum POW is Pmax . Figure 2 reflects P versus fH and fL with FT=153.8 m2, K1=K2=0.2kW/(m2.K), THin=1150K, Cwf=1.5kW/K, TLin=400K, CL=CH=1.2kW/K, and T0=200K. Pmax (the peak of the curve in Fig. 3) is obtained with HEXs’ area allocations fH and fL as optimization variables and the fixed FT, with the corresponding optimal area allocations of the HEXs and radiator panel being fHopt, fLopt, and fRopt, respectively. Pmax is 128.26kW, with Pmax increasng by about 4.33% compared to the POW (P) of the initial design. The double-maximum POW (Pmax,2) is further obtained by optimizing the inlet temperature of the cooling fluid (TLin) based on fHopt, f Lopt, and fRopt. Figure 3 reflects the maximum POW (Pmax) versus TLin. In the calculation, almost all of the parameters are the same as those for Figure 2 except TLin, which is variable. Pmax,2 (the peak of the curve in Fig. 3) is 130.65 ; with Pmax,2 increasing by about 1.86% compared to maximum POW (Pmax), and Pmax,2 increasing by about 6.27% compared to the POW (P) of the initial design. Here the study will perform some parameter analyses regarding the maximum POW and double-maximum POW. Figures 4 and 5 reflect the effects of the thermal capacity rate (Cwf) of the WF and heat transfer coefficients of the HEXs (K1 and K2) on the relationship between Pmax and the corresponding TEF (ηopt), the relationship between Pmax and the inlet temperature of the cooling fluid (TLin), the relationship between Pmax and fHopt (fRopt), as well as the relationship between Pmax and the corresponding pressure ratio (π). Figure 4 reflects Pmax-TLin, Pmax-ηopt, Pmax-fHopt, Pmax-fRopt, and Pmax-π under different Cwf values. When K1=K2=0.2kW/ (m2.K), increasing Cwf also increases the TEF [(ηopt) Pmax,2], radiator area allocation [(fRopt) Pmax,2], and pressure ratio [(πopt) Pmax,2] at double-maximum POW (Pmax,2) while decreasing Pmax,2, the hot side of the HEX area allocation [(fHopt), Pmax,2], and the inlet temperature of the cooling fluid [(TLin) Pmax,2] at Pmax,2. Cwf values of 1.5, 2.0, and 2.5 result in respective Pmax,2 values of 130.65 kW, 126.33 kW, and 123.042

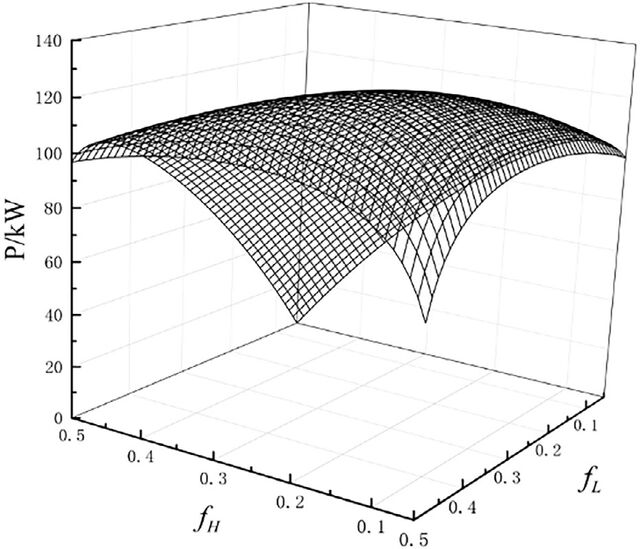

Figure 2. The relations of P versus fH and fL. kW; respective (TLin) Pmax,2 values of 428 K, 419 K, and 413 K; respective values of 0.468, 0.473, and 0.476, respective (ηopt) Pmax,2 values of 9.10, 9.41, and 9.59; respective (fHopt) Pmax,2 values of 0.171, 0.156, and 0.151; and respective (fRopt) Pmax,2 values of 0.658, 0.68, and 0.698. Increasing Cwf from

1.5. to 2.5 decreases Pmax,2 by about 5.82% and (TLin) Pmax,2 by

about 3.50%, increases (ηopt) Pmax,2 by about 1.71%, decreases (fHopt) Pmax,2 by about 11.70%, and increases (fRopt) Pmax,2 by about 5.71% as well as (πopt) Pmax,2 by about 5.49%. The optimal pressure ratio ((πopt) Pmax,2) corresponding to Pmax,2 should be pointed out to have one-to-one correspondence to the optimal inlet temperature of the cooling fluid [(TLin) Pmax,]; namely, only one independent variable is found between the inlet temperature of the cooling fluid (TLin) and the pressure ratio (π).

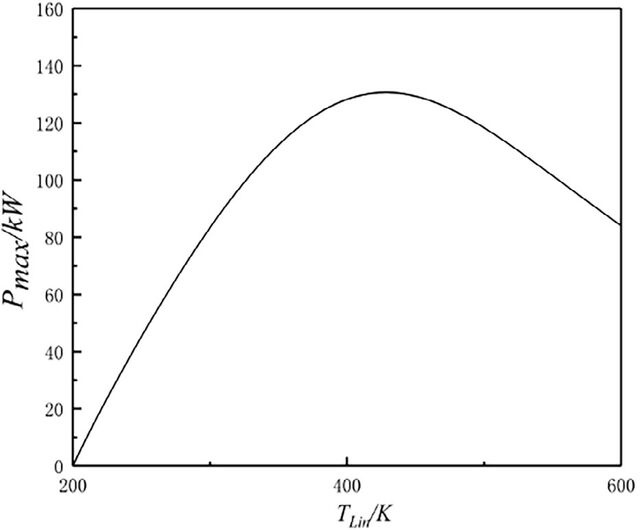

Figure 3. The relations of Pmax versus TLin. Figure 5 reflects the Pmax-TLin, Pmax-ηopt, Pmax-fHopt, PmaxfRopt and Pmax-π values under different K1=K2 and. When Cwf=1.5, increases to K1 and K2 will increase Pmax,2, (TLin) Pmax,2, and (fRopt) Pmax,2 while decreasing (fHopt), Pmax,2, and (ηopt) Pmax,2. When K1 and K2 are 0.1, 0.2, and 0.3, Pmax,2 has respective values of 111.94kW, 130.65kW, and 139.75kW; (TLin) Pmax,2 has respective values of 426 K, 428 K, and 429.8 K; (ηopt) Pmax,2 has respective values of 0.469, 0.468, and 0.467; (πopt) Pmax,2 has respective values of 9.15, 9.10, and 9.08; (fHopt), Pmax,2 has respective values of 0.213, 0.171, and 0.147; and (fRopt), Pmax,2 has respective values of 0.573, 0.658, and 0.706. Increasing K1 and K2 from 0.1 to 0.3 increases Pmax,2 by about 24.84% and (TLin) Pmax,2 by about 0.89%, decreases (ηopt) Pmax,2 by about 0.426% and (fHopt), Pmax,2 by about 30.99%, increases (fRopt), Pmax,2 by about 23.21%, and decreases (πopt) Pmax,2 by about 0.765%.

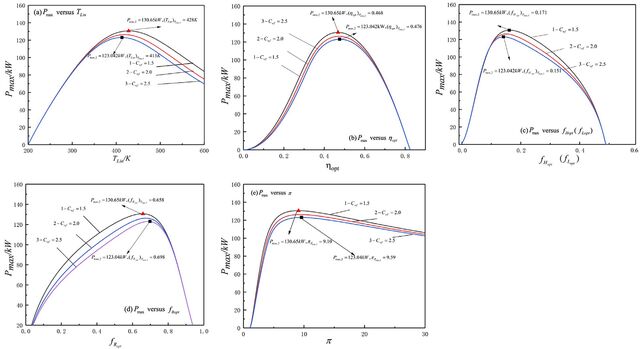

Figure 4. Curves for Pmax versus (a) TLin; (b) ηopt, (c) fHopt, (d) fRopt, and (e) π for various Cwf values.

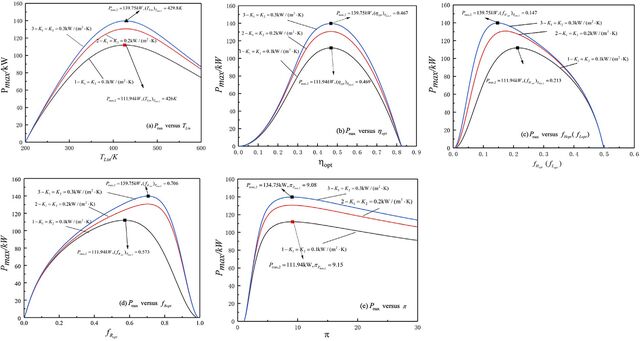

Figure 5. Curves for Pmax versus (a) TLin; (b) ηopt, (c) fHopt, (d) fRopt, and (e) π for different K1 and K2 values.

3.3. The triple-maximum POW

The triple maximum POW (Pmax,3) has been further obtained by optimizing the thermal capacity rate matching (Cwf / CH) between the HRs and WF based on fHopt, fLopt, fRopt, and (TLin) Pmax,2. When almost all of the parameters are the same as those for Figure 3 except for Cwf /CH, which is variable, the optimization shows the triple maximum POW to be Pmax,3=137.40 kW, as shown by the peak of Curve 2 in Figure 6. Pmax,3 increases by about 5.17% compared to the doublemaximum POW (Pmax,2), by about 7.13% compared to the maximum POW (Pmax), and by about 11.76% compared to the POW (P) of the initial design. Now we further study the effects of the thermal capacity ratio (CL/CH) of the HRs and K1 on the triple-maximum POW (Pmax,3). Figures 6 and 7 reflect Pmax,2-Cwf /CH under different CL/CH and K1 values, respectively. One can see that as Cwf /CH increases, Pmax,2-Cwf /CH reflects a stable parabolic-like change, and an optimal Cwf /CH [(Cwf /CH)opt] is found for the cycle to reach triple-maximum POW (Pmax,3; i.e., the peaks of the curves).

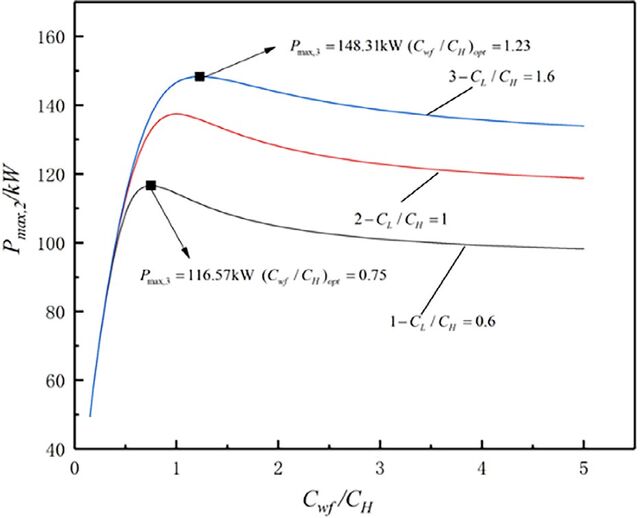

Figure 6. Pmax,2 versus Cwf /CH for different CL /CH values.

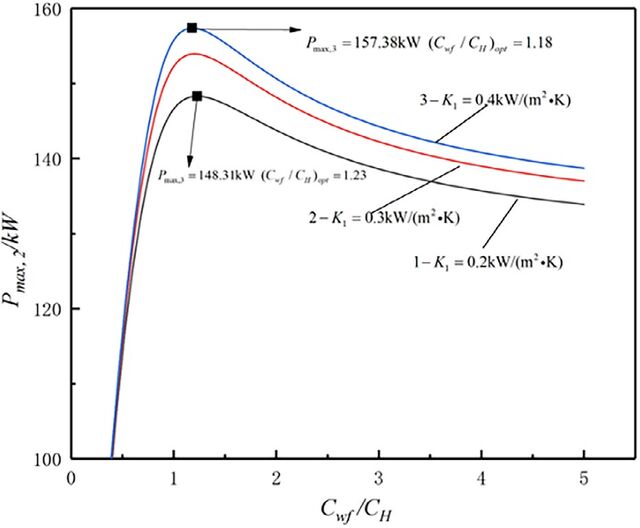

Figure 6 reflects Pmax,2-Cwf /CH under different CL/CH. When K1=K2=0.2kW/(m2.K), increasing CL/CH increases both Pmax,3 and (Cwf /CH)opt. CL/CH values of 0.6, 1.0, and 1.6 result in respective Pmax,3 values of 116.57, 137.40, and 148.31 kW and corresponding (Cwf /CH)opt values of 0.75, 1.0, and 1.23. When CL/CH increases from 0.6 to 1.6, Pmax,3 increases by about 27.23%, while (Cwf /CH)opt increases by about 64%. Figure 7 reflects the Pmax,2-Cwf /CH curve for different K1 values. When K2=0.2kW/(m2.K) and CL/CH=1.6, increasing K1 results in Pmax,3 increasing and (Cwf /CH)opt decreasing. For K1 values of 0.2, 0.3, and 0.4, Pmax,3 has respective values of 148.31, 153.95, and 157.38 kW and corresponding (Cwf / CH)opt values of 1.23, 1.20, and 1.18. When K1 increases from 0.2 to 0.4, Pmax,3 increases by about 6.12%, while (Cwf / CH)opt decreases by about 4.07%.

Acknowledgement

Based on Ust et al. (2006), this study has established a variable temperature HR endoreversible closed Brayton cycle for an SPP and derived the relationships between POW (P) and inlet temperature of the cooling fluid in a low temperature heat sink, as well as between the TEF and inlet temperature of the cooling fluid. For a fixed total heat transfer area of two HEXs and one radiator panel, the maximum POW (Pmax) of the plant is obtained by optimizing the area distributions (fH, fL, and fR) among the two HEXs and the radiator panel; the double-maximum POW (Pmax,2) is obtained by optimizing the inlet temperature of the cooling fluid (TLin), and the triplemaximum POW (Pmax,3) is further obtained by optimizing the thermal capacity rate matching (Cwf/CH) between the HRs and WF. The optimization effects are obvious. This study has researched the impacts of plant parameters on optimal performance, and the main conclusions are as follow:

This work has been supported by the National Natural Science Foundation of China (Project Nos. 52171317 and 51779262) and the Graduate Innovative Fund of Wuhan Institute of Technology (Project No. CX2021043). The authors wish to thank the reviewers for their careful, unbiased, and constructive suggestions, which has led to this revised manuscript.

1. Optimal fHopt, fLopt and fRopt values exist for having the cycle

reach Pmax. Optimal TLin and optimal fHopt, fLopt and fRopt values exist for having the cycle reach Pmax,2. The curve Pmax,2-Cwf /CH reflects a stable parabolic-like change with an (Cwf /CH)opt value that enables the cycle to reach Pmax,3.

2. When fH and fL = 0.1 and TLin =400 K, the POW of the

initial design plan is P=122.94 . When fH, fL, and fR, and TLin are optimized and TLin =400 L, the maximum POW is Pmax=128.26 kW, with Pmax increasing by about 4.33% compared to P. When further optimizing TLin, the double-maximum POW becomes Pmax,2=130.65kW, with Pmax,2 increasing by about 1.86% compared to Pmax and by about 6.27% compared to P. When further optimizing Cwf /CH, the triple-maximum POW becomes Pmax,3=137.40 kW, with Pmax,3 increasing by about 5.17% compared to Pmax,2, by about 7.13% compared to Pmax, and by about 11.76% compared to P.

1.5. to 2.5 decreases Pmax,2 by about 5.82% and (TLin) Pmax,2

by about 3.50%, increases (ηopt) Pmax,2 by about 1.71%, decreases (fHopt) Pmax,2 by about 11.70%, and increases (fRopt) Pmax,2 by about 5.71% and (πopt) Pmax,2 by about 5.49%. Increasing K1 and K2 from 0.1 to 0.3 increases Pmax,2 by about 24.83% and (TLin) Pmax,2 by about 0.89%, decreases (ηopt) Pmax,2 by about 0.426% and (fHopt) Pmax,2 by about 30.99%, increases (fRopt) Pmax,2 by about 23.21%, and decreases (ηopt) Pmax,2 by about 0.765%.

4. When fH, fL, fR, TLin and Cwf /CH are optimized, increasing

CL/CH from 0.6 to 1.6 increases Pmax,3 by about 27.23% and (Cwf /CH)opt by about 64%. Increasing K1 from 0.2 to

5. Using FTT to optimize the closed Brayton cycle for an SPP

has obtained the optimal area distribution and optimal inlet temperature of the cooling fluid. The optimization results provide a theoretical basis for the design of a heat exchanger structure and for the selection of its temperature in a space-based power plant. Therefore, FTT is shown to be an important tool for studying SPPs.

Data Availability Statement

The published publication includes all graphics and data collected or developed during the study.

Conflict Of Interest

The author declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Ethics

There are no ethical issues with the publication of this manuscript.

Financial Disclosure

The authors declared that this study has received no financial support.

Share and Cite

Wang, T.; Chen, L.; Ge, Y.; Shi, S.; Feng, A.H. Optimizing power of a variable-temperature heat reservoir Brayton cycle for space nuclear power plant. Seatific 2023, Vol. 3, pp. 3. https://doi.org/10.14744/seatific.2023.0002
