Numerical Investigation into the Effect of Duct Use on the Performance of Controllable Pitch Propellers

Abstract

Keywords: CPP; spindle torque; Duct; Ducted Propeller; CFD

1. Introduction

Propeller efficiency is the most important parameter affecting propulsion system efficiency in marine vessels. One of the methods applied to increase propeller efficiency is to change the pitch angles of the propeller blades based on vehicle speed while keeping propeller speed constant. Propellers that can perform this maneuver are called controllable pitch propellers (CPP). Another application is to make the propellers work within a non-movable nozzle (duct). These types of propellers are called ducted propellers. Two types of ducted propeller structures are often used on ships (Celik et al., 2011). The first is the accelerating ducted propeller system that accelerates the flow on heavily loaded and diameter-restricted propellers, and the second is the decelerating ducted propeller system, which increases static pressure by slowing down the flow over the propeller to delay propeller cavitation. System efficiency has been

observed to increase with the additional loading of the duct in ducted propellers. However, the additional loading of the duct is limited to the current separation at the duct. Propellers with current accelerating ducts are generally used in tug-like vessels that perform pushing and pulling operations. They are also preferred on research vessels, drilling platforms, and marine vessels that require the ability to hold position (Oosterveld, 1972). Trawlers also use ducted propellers due to the need for a high thrust ratio at a low advance ratio. Methods based on computational fluid dynamics (CFD) can be used for the design and operating parameters of ducted propellers used in these types of boats (Caldas et al., 2019). Some studies are found in the literature on ducted propellers (Bhattacharyya et al., 2015, 2016b; Baltazar et al., 2019; Zhang et al., 2019, 2020; Gong et al., 2021; Zhang et al., 2021; Kim et al., 2022). Celik et al. (2010) developed an iterative design methodology for ducted propellers due

*Corresponding author. *E-mail address: ahmety@yildiz.edu.tr, yurtseven1@gmail.com Published by Yıldız Technical University Press, İstanbul, Türkiye This is an open access article under the CC BY-NC license (http://creativecommons.org/licenses/by-nc/4.0/).

to the insufficient accuracy of classical propeller design methods under heavy loading conditions. Haimov et al. (2011) used several different types of ducts to obtain the combined effect of the Reynolds number and loading on thrust and torque by comparing model and fullscale calculations in turbulent flow, confirming the characteristics and efficiency gains of ducted propellers.

with the continuity and steady state Reynolds averaged Navier-Stokes equations being as follows: дUi =0 (1) дxi

Ducts can be used with fixed pitch propellers as well as with controllable pitch propellers. In particular, the ability to change pitch in case of current separation, which can cause a decrease in thrust, has shown better characteristic values in controllable pitch propellers than in fixed pitch propellers (Elbatran et al., 2014). Very few ducted CPP propeller studies are found in the literature (Arief et al., 2021; Huisman et al., 2022). Panel methods working with potential theory have been used to analyze the performance of CPP propellers with nozzles. However, Liu et al. (2006) realized that viscous solutions should be used for torque values in particular.

where Ui is the average velocity vector, uʹ is the turbulence velocity vector, puiʹujʹ is the turbulence stress tensor, P is average pressure, p is density, and μ is dynamic viscosity. The study uses Simcenter Star CCM+ version 2020.3, a commercial CFD code. The solver applies the finite volume method to discretize the governing equations.

The operating procedures for CPP propellers require the blades to be rotated around their axis to change the pitch angle. This introduces the concept of spindle torque, which is not present in fixed-pitch propellers. A few studies are also found in the literature on the propeller blade spindle torque of CPP propellers (Godjevac et al., 2009; Jessup et al., 2009; Martelli et al., 2013; Tarbiat et al., 2014; Pourmostafaet al., 2021; Yurtseven et al., 2023). Determining blade spindle torques is also very important for aiding the design of CPP propellers and for avoiding excessive blade actuation pressures at the blade hub (Liu et al., 2015). The torque on the blade can be investigated numerically using potential theory verified by a simulation. Studies should also clearly analyze well the complex flow conditions around CPP propeller blades (Funeno et al., 2013).

Scaling effects are also found among studies. The scaling effects of both propellers and ducts have been investigated with regard to performance. Scaling effects were found to have a greater effect on the thrust from ducts than on propeller characteristics. The effect of the design and scale of the ducts on thrust with current separation has been shown to besignificant at high advance ratios. Much better results were obtained in the full-scale analysis of ducted propellers compared to scale models (Bhattacharyya et al., 2016a).

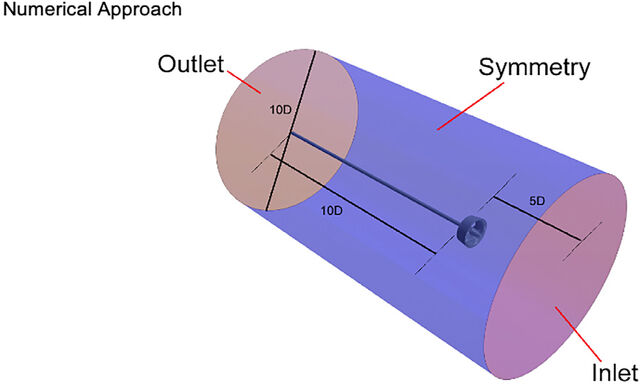

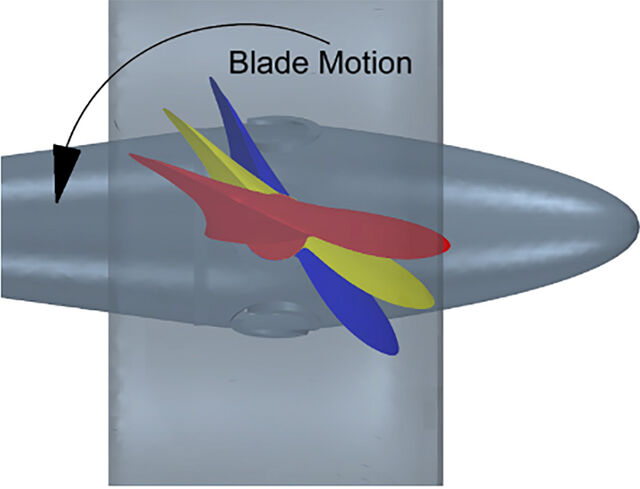

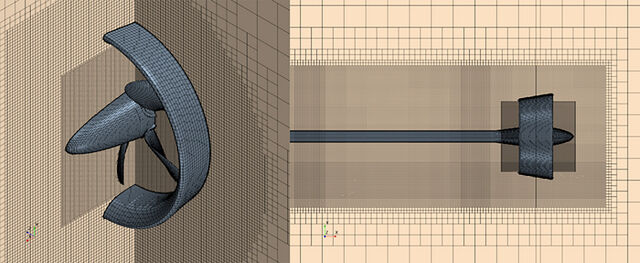

Both spatial and temporal discretization has been done with accurate second-order schemes to improve accuracy. The well-known SIMPLE algorithm is used for pressurevelocity matching. More information about the numerical solution can be found in the solver manual (Siemens, 2021). Figure 1 shows a flow stream volume to represent the flow around the propeller. The dimensions in the figure are defined based on propeller diameter. The following conditions have been defined: uniform velocity inlet for the inlet surface, pressure outlet for the outlet surface, symmetry at the side surface, and no-slip for all other surfaces. This study was carried out by conducting analyses under open water propeller test conditions. As shown in Figure 2, propeller pitch changes

This study uses CFD methods to analyze the complex flow around a ducted CPP propeller and aims to investigate the performance differences between ducted and non-ducted propeller designs. In particular, the values for pitch change and blade spindle torque have been determined at different advance ratios.

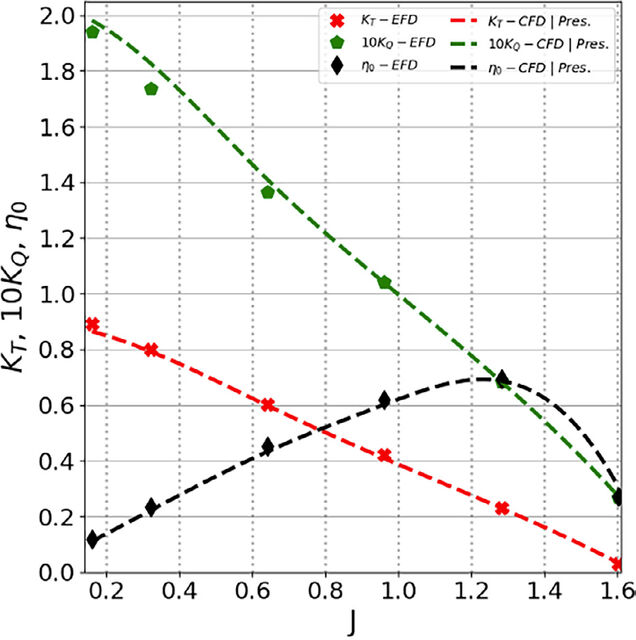

3. Results

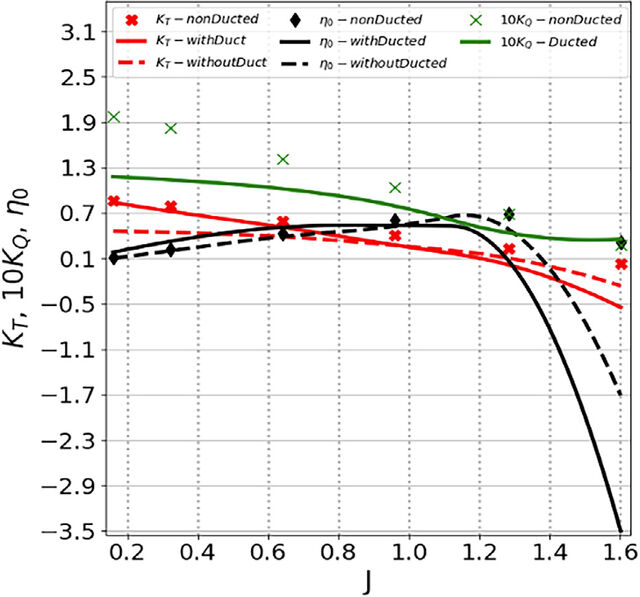

This section presents the numerical simulation results for the VP1304 test propeller and Duct 19A duct. The thrust coefficient, torque coefficient, and propeller efficiency have been analyzed based on the advance ratio, as frequently used in the literature, in order to determine the propeller operating performance. The results are also discussed in terms of the spindle torque coefficient as proposed by Yurtseven and Aktay (2023). Figure 6 shows the propeller performance coefficients for the VP1304 propeller designs with and without Duct

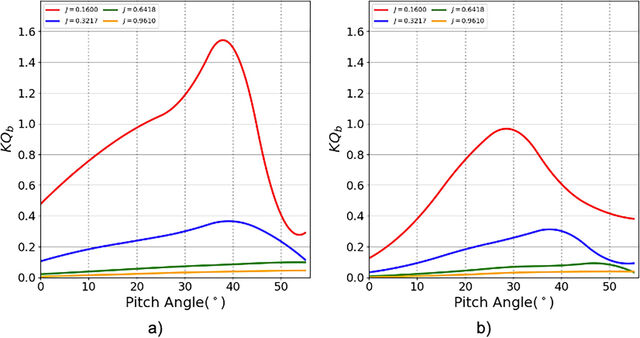

Figure 7. Spindle torque coefficient for (a) non-ducted propeller and (b) ducted propeller.

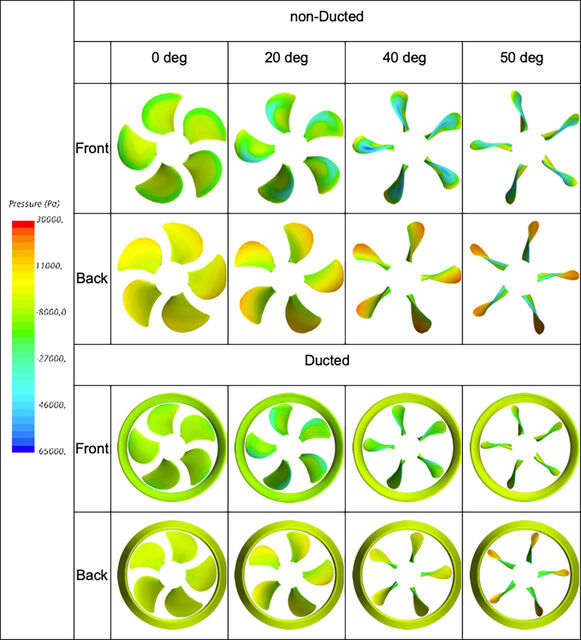

Figure 8. Upstream(front) and downstream(back) pressure distributions for non-ducted and ducted propellers (J=0.16).

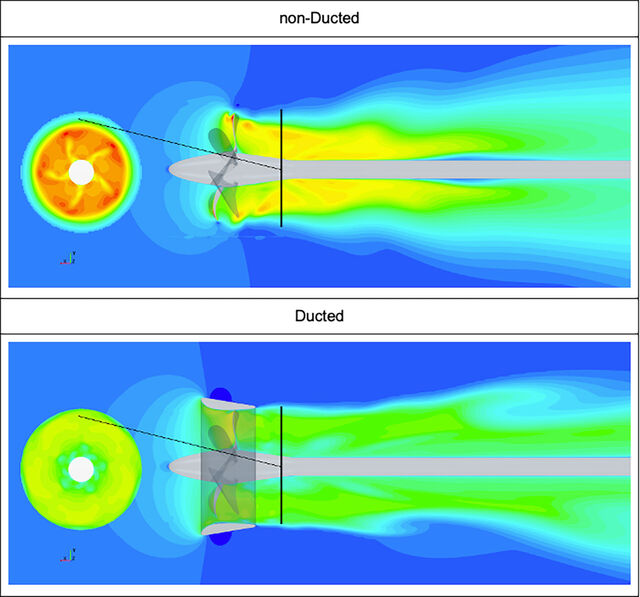

Figure 9. Velocity distributions along the longitudinal center planes of ducted and non-ducted propellers (J=0.16). 19A. In terms of thrust, two cases occur for the ducted propeller design. The ducted case shows the performance changes should be examined separately as those realized on the propeller itself and then the performance change on the propeller group, which can be called the ducted propeller group. An increase in the is known to decrease the propeller loading. For the ducted propeller, the thrust coefficient of the propeller alone gives lower values than the non-ducted propeller for all advance ratios. Although these values converge as the advance ratio increases, no specific high value was found. However, the thrust coefficient of the ducted propeller group gives very similar results to that for the non-ducted propeller at low advance ratios (i.e., under heavy load conditions). However, this similarity deteriorates negatively as the advance ratio increases.

Figure 7a shows the highest value of the blade spindle torque coefficient to be obtained at a low advance ratio. The spindle torque coefficient is seen to decrease as the advance ratio increases. Figure 7b shows the highest spindle torque coefficient in the ducted design to decrease significantly compared to the non-ducted design and to occur at a lower pitch angle. This decrease is practically insignificant after the advance ratio increases to a certain point.

In terms of propeller torque coefficient, the ducted propeller is seen to give significantly lower values, especially at low advance ratios. Therefore, it has a higher propeller efficiency than for the non-ducted propeller. However, this situation again converges to the torque coefficient of the nonducted propeller, with the propeller efficiency decreasing significantly as the advance ratio increases.

Figure 8 shows the pressure distributions at different pitch angles for the front face and back face for the ducted and non-ducted propeller designs at an advance ratio of J=0.16. In Figure 8, the front face shows the upstream region, and the back face shows the downstream region. The ducted propeller achieves a more homogeneous pressure distribution by increasing the pressure on the front face and decreasing the pressure on the back face, especially in the regions close to the blade tips up to a 40° pitch angle. In addition, because the flow is accelerated at all angles, a general reduction in the pressure distribution is obtained on the surfaces. In this case, the ducted design reduces the overall blade spindle torque on the propellers. However, the accelerated flow shows the blades to stall much earlier when changing pitch.

Figure 7 gives thespindle torque coefficients for the VP1304 CPP propeller, ductedin Figure 7a and non-ducted in Figure 7b. The curves are plotted as a function of the change in blade pitch angle, with 0° indicating the design pitch of the propeller at full track and 55° indicating the feathering position.

Figure 9 shows the velocity distributions on the longitudinal center plane for the ducted and non-ducted propeller designs. According to these velocity distributions, the use of a duct increases the current flowing through the propeller to about 3%,thus increasing efficiency and reducing the torque on the

blade shaft axis, which allows the blade to maneuver much more effectively. In addition, the wake zone distributions shown in Figure 9 also reveal the use of the duct to correct the propeller wake, thus contributing to the increase in efficiency.

4. Conclusion

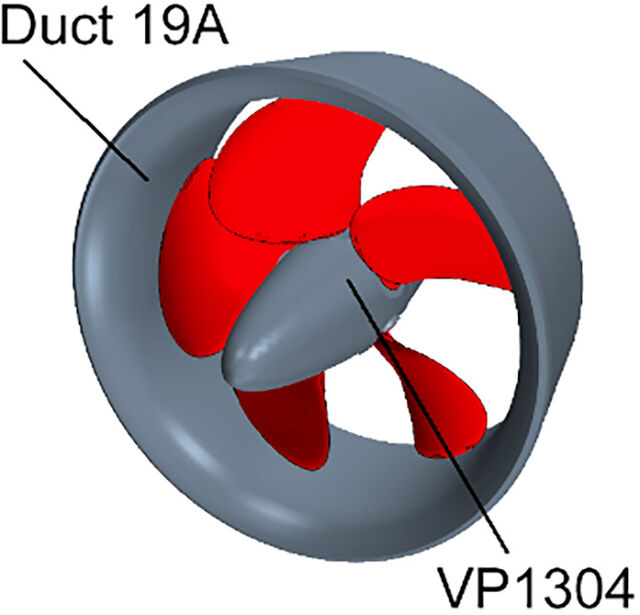

This study placed a standard Duct 19A nozzle as a test duct on the VP1304 propeller, provided experimental data to the VP1304 as a CPP test propeller, and then examined the change in propeller performance. At low advance ratios (i.e., under heavy load conditions), the blade spindle torque was observed to decrease for the ducted propeller compared to the non-ducted propeller. Because the flow is accelerated and a homogeneous distribution of the wake is obtained in the ducted propeller, the thrust values of the ducted propeller group increased at low advance ratios. At the same time, an increase in propeller efficiency was also achieved. The blade spindle torque, which provides the movement of the blades for pitch change in CPP propellers, was observed to besignificantly reduced in the ducted propeller. This reduction was also found to be more pronounced at low advance ratios, with the use of ducts also observed to cause the blades to stall earlier. Future studies should investigate the cavitation behavior and flow-induced noise in ducted and non-ducted CPP propellers.
