Xerogel of fast kinetics and high adsorption capacity for cationic dye removal
Sigma Journal of Engineering and Natural Sciences 2024, Vol. 42, Issue 1, pp. 189-197; doi.org/10.14744/sigma.2022.00019
Abstract
Keywords: Xerogel; Fast Kinetics; High Capacity; Adsorption; Cationic Dye
Introduction
It is estimated that approximately 100.000 various types of dye are used broadly in different fields including paper, textile, leather tanning, printing, cosmetics, and food processing for different purposes [1,2]. The discharge of generated dyestuff effluents from these fields into water resources without any treatment adversely affects the living life and disrupts the ecological system owing to their toxic and carcinogenic contents [3,4]. Furthermore, the effluents containing dyes decrease light penetration, thereby severely influencing the photosynthetic activity of aquatic livings [5]. Methylene blue (MB) is a cationic dye that is widely preferred as a colorant for cotton, wool, and silk [6]. MB
appears considerably in industrial wastewater, and it is recognized that even its presence of much less than 1 ppm may also result in unfavorable impacts on the ecosystem balance [7,8]. Even though it is accepted that MB is not a highly harmful dye, long-term exposure to MB will induce eye irritation, heart rate increase, dizziness, headache, nausea, vomiting, and allergy [9,10]. Therefore, it is crucial to eliminate MB from effluent wastes before their discharge into water resources. Up to the present, different treatment technologies have been developed including adsorption [9,11], electrochemical degradation [12], ion exchange [13], membrane filtration [14], and oxidation [15]. Compared with other removal techniques, adsorption is regarded as an appealing
*Corresponding author. *E-mail address: mugesari@yildiz.edu.tr This paper was recommended for publication in revised form by Regional Editor Azmi Seyhun Kıpçak Published by Yıldız Technical University Press, İstanbul, Turkey Copyright 2021, Yıldız Technical University. This is an open access article under the CC BY-NC license (http://creativecommons.org/licenses/by-nc/4.0/).
approach in terms of its high yield, ease of design, and low process cost [16,17]. For this purpose, numerous adsorbents have been evaluated for the MB adsorption process such as silica-based materials [18–21], activated carbon [22], carbon nanotubes [23], graphene oxide [3,24], and zeolite [25]. Silica-based materials possess large pore volume, adjustable pore size, high mechanical, and thermal stabilities [26,27]. These materials with specific properties have broad applications in catalysis [28], thermal insulation [29], biomedical [30], and adsorption [20,31]. Silica xerogel is one of the silica-based materials frequently preferred in adsorption processes owing to its wide surface area, ease of synthesis, easy chemical functionality, and non-toxic properties in the environment [32,33]. In addition, the reported studies in the literature show that silica xerogel has achieved promising adsorption capacity in dye adsorption. Guzel Kaya et al. synthesized a silica xerogel from volcanic tuff with a high surface area and this material was used to examine its MB adsorption behavior. They observed that synthesized xerogel had a high MB removal capacity and good thermal stability [34]. Hannachi et al. fabricated a novel bi-functionalized xerogel for application as an adsorbent. They reported that the xerogel exhibited high adsorption capacity and regenerable function [35]. The mesoporous silica-based xerogel prepared by Mota et al. showed high MB removal capacity and large specific pore volumes [36]. To the best of the authors’ knowledge, there are not many studies in the literature on the removal of methylene blue by xerogel synthesized from pure silica with a high adsorption capacity as in this study. In the present work, xerogel was synthesized according to the two-step sol-gel method and its MB adsorption performance was examined. For this purpose, removal studies were performed by various parameters (xerogel amount, time, and initial MB concentration). The obtained adsorption data were investigated by Langmuir and Freundlich isotherms. Also, the kinetic mechanism of adsorption was identified by conducting kinetic studies.
Sigma J Eng Nat Sci, Vol. 42, No. 1, pp. 189−197, February, 2024
[37]. In the initial step, certain amounts of TEOS, ethanol, distilled water, and HCl were added in an Erlenmeyer flask. The mixture was exposed to the ultrasonic irradiation in an ultrasonic bath for 5 min and kept at 60 °C for 60 min to form a hydrolysis solution. In the second step, the mixture of the distilled water and NH4OH was dropped in the hydrolysis solution and the obtained silica sol was kept at the ultrasonic bath for 5 min under ultrasonic irradiation. The sol was poured into a Teflon vessel and waited at 50 °C for gelation. The obtained gel was treated with ethanol four times at 50 °C and then the same washing process was repeated with toluene. The final gel was dried at 60 °C until it reaches a constant weight. Adsorption Studies MB aqueous solutions of various concentrations (10 to 100 mg.L-1) were prepared to examine the initial dye concentration effect on silica-based xerogel adsorption. The effects of xerogel amount, contact time, and initial MB concentration on the dye removal efficiency of silica-based xerogel were investigated in the adsorption study. Firstly, the study of the xerogel amount effect on adsorption was carried out by adding various sample dosages starting from 0.02 to 0.25 g to each Erlenmeyer flasks containing 50 mL MB solution. The Erlenmeyer flasks containing dye-adsorbent mixture were shaken for 1 h at 25 °C using a shaking incubator. At the end of the time, the mixtures were filtered and the dye concentrations in the obtained filtrates were measured by an UV-visible spectrophotometer (Perkin Elmer, Lambda 35). The effects of the other parameters on the adsorption of xerogel were carried out via a similar procedure. In each run, the determined content of xerogel was added to Erlenmeyer flasks including 50 mL of a given concentration of MB aqueous solution. The amount of adsorbed MB by xerogel at equilibrium (qe) and the adsorption efficiency (AE%) were found by applying the following equations; (1)
Experimental
Materials Tetraethylorthosilicate (TEOS), ethanol, toluene, HCl, and MB were supplied from Sigma-Aldrich. Ammonia solution (NH4OH, 25 wt%), was purchased from J.T. Baker. XRD measurements were performed on a PANalytical X’Pert-Pro XRD diffractometer using CuKα radiation (40 kV, 40 mA). Infrared spectra were recorded over a spectral region from 4000 to 450 cm−1 using Perkin Elmer Spectrum One FT-IR spectrophotometer models accompanied with both KBr pellets. SEM images were recorded using Zeiss EVO®LS 10. The textural properties of the sample were determined on the Micromeritics ASAP 2020 adsorption device. Synthesis of Xerogel Silica xerogel was prepared according to the acid and base-catalyzed two-step sol-gel method previous study
(2) where C0 and Ce are the initial and equilibrium concentrations of MB (mg.L-1), respectively. M is the amount of xerogel used (g) and V is the volume of the MB solution (L) [38].
Results And Discussion

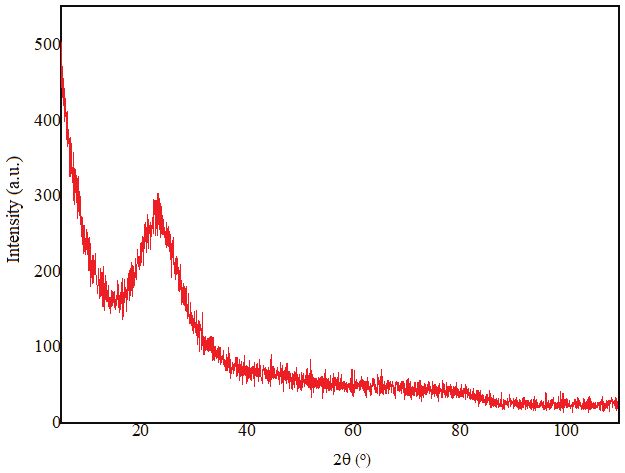

Characterization The XRD pattern of the silica-based xerogel was presented in figure. As shown in Figure 1, the synthesized sample demonstrates a broad peak between 20° and 30°. The broadness of this peak is typical of the silica-based sample with an amorphous structure [39].
Sigma J Eng Nat Sci, Vol. 42, No. 1, pp. 189−197, February, 2024

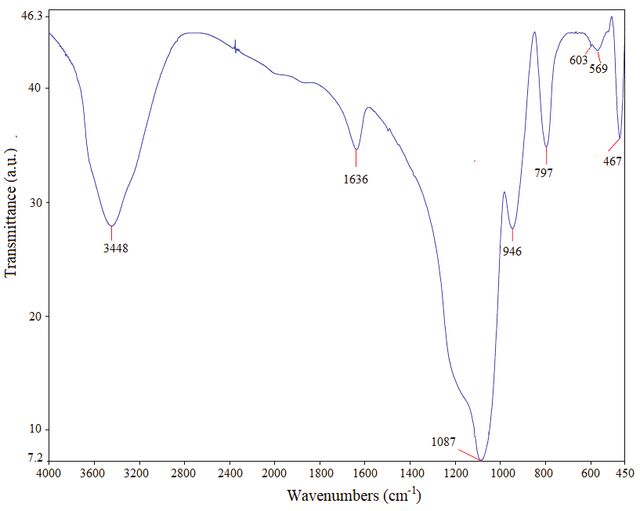

The FT-IR spectrum of the produced silica-based xerogel was depicted in Figure 2. The broadband at 3448 cm-1 was related to -OH group stretching vibration. The peaks at 467, 797, and 1087 cm-1 corresponded to the bending, symmetric, and asymmetric vibrations arising from Si-O-Si, respectively. Furthermore, the vibration of H-O-H showing the presence of H2O molecules was observed at 1636 cm-1. The Si-OH vibration appeared at 946 cm-1. In the meantime, Si-O stretching of O-Si-O network defects was observed at 569 cm-1 [19,39–41]. The surface area, the total pore volume, and the average pore width of xerogel was 375.86 m2.g-1, 0.28 cm3.g-1, and
3.69. nm, respectively. The SEM image of the sample was
given in Figure 3. It is seen that the sample has small and agglomerated particles in non-uniform shape. The porous structure could not be seen clearly due to the low resolution of SEM.
Figure 3. SEM image of silica-based xerogel. Effect of Xerogel Amount The relationship between the varied dose of adsorbent (0.02-0.25 g) and adsorption efficiency was investigated by keeping the other parameters stable. According to Figure 4a, the removal rate increased quickly up to 0.02 g, and then slowly reached equilibrium at 0.06 g. The constant uptake capacity of xerogel after equilibrium may result from the reduction of the total surface area of MB adsorption due to aggregation or overlapping of adsorption sites [43]. It was obtained that the optimum dose of adsorbent providing the highest efficiency (99.4%) was found as 0.06 g. Effect of Time The contact time effect on the MB removal efficiency of xerogel was conducted at predetermined various times starting from 1 to 120 min by using the adsorbent amount of 0.06 g and dye concentration of 20 mg.L-1. Figure 4b demonstrated the variation of adsorption efficiency depending on the time. In the figure, the adsorption of MB onto xerogel increased rapidly within 1 min, and then a slight increase was observed up to 45 min. After 45 min, it approached nearly a constant value and at this time the adsorption efficiency of the xerogel was observed as 98.4%. Effect of Initial Concentration The MB concentration effect on adsorption capacity was determined by selecting different concentration ranges (10-100 mg.L-1). As given in Figure 4c, the removal efficiency of dye increased instantly until 10 mg.L-1 and a considerable increment was not seen between 10 and 20 mg.L-1. After reaching equilibrium, the uptake capacity of xerogel gradually decreased with increasing MB concentration. The highest amount of MB removal was measured at 20 mg.L-1 with 99.65%.
Adsorption Kinetics Pseudo-first order (PFOM) and pseudo-second order (PSOM) kinetic models were employed to analyze the kinetics of the adsorption study. The PFOM and the PSOM were stated as Eqs. 3 and 4, respectively [44];
Sigma J Eng Nat Sci, Vol. 42, No. 1, pp. 189−197, February, 2024
The drawn plots of PFOM and PSOM were given in Figure 5. The estimated parameters and regression coefficients (R2) were presented in Table 1. It was seen that the calculated R2 in the PSOM was considerably higher than that found in the PFOM. Additionally, the qe value estimated by PSOM and the qe value obtained experimentally were found to be almost the same. Hence, it can be stated that the PSOM best expresses the kinetic mechanism of the MB adsorption study. Adsorption Isotherm The estimation of isotherm data is necessary to explain the adsorption ability of the adsorbent [38]. In the present work, the Langmuir (LM) and Freundlich (FM) isotherm models were employed to analyze the obtained equilibrium data of MB adsorption onto silica-based xerogel. The expressions of the LM and FM were presented in Eqs. 5 and 6, respectively [45]; (5)

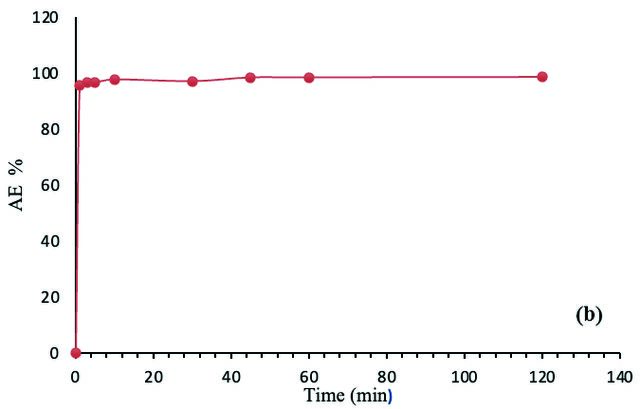

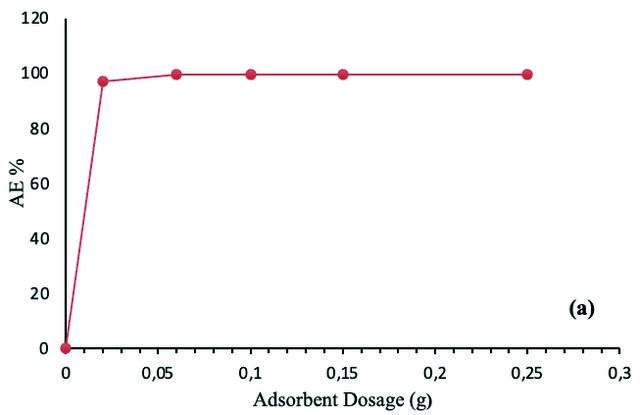

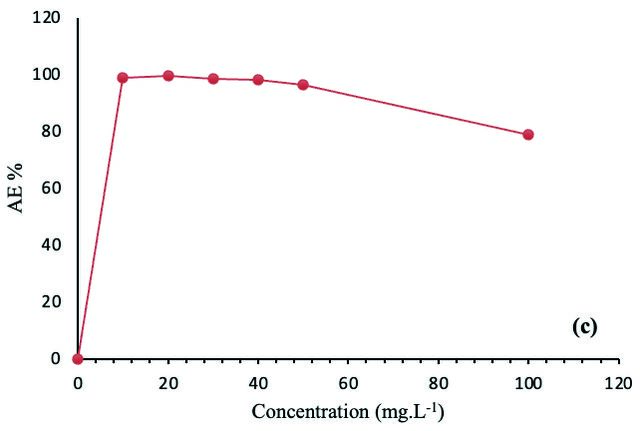

Figure 4. Effect of various parameters on the adsorption of MB (a) Adsorbent dosage, (b) Time, and (c) Initial concentration. (3)
(4) where qe is the amount of MB adsorption by the silica-based xerogel at equilibrium, while qt is the adsorbed MB amount at time t. Also, k1 and k2 represent the rate constants of PFOM and PSOM.
where Ce is MB concentration at equilibrium (mg.L-1), qe is the adsorbed MB dosage at equilibrium (mg.g-1), qm is the maximum adsorption capacity of the silica-based xerogel (mg.g-1). KL and Kf are calculated from the intercept of the graphs given in Figure 6a and b, respectively and n is a constant found as the slope of Figure 6b. The calculated parameters and correlation coefficients (R2) of LM and FM were depicted in Table 2. It was found that the experimental data received from MB adsorption fitted to the LM in comparison to FM in terms of correlation coefficients. The fact that the LM conforms quite well with the equilibrium data shows that the process occurs over a homogeneous surface using single-layer sorption [38]. The maximum adsorption capacity (qm) of the study was found as 1666.67 mg.g-1, and it was compared with previously reported silica-based adsorbents presented in Table 3. The xerogel had the greatest adsorption capacity among all the silica-based adsorbents. Therefore, xerogel can be applied as an
Sigma J Eng Nat Sci, Vol. 42, No. 1, pp. 189−197, February, 2024

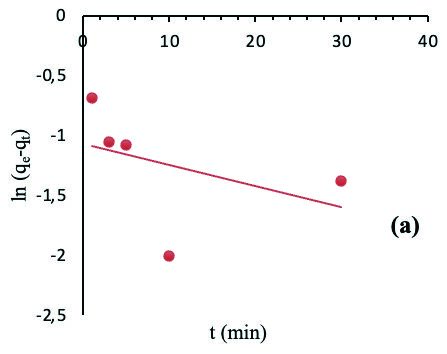

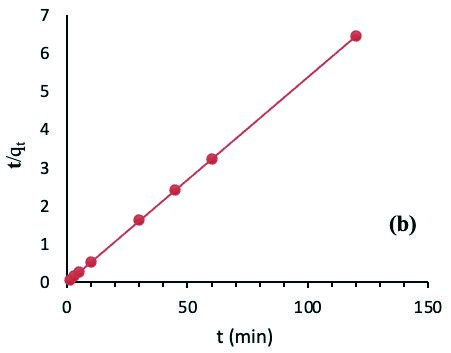

Figure 5. The MB adsorption kinetics plots (a) PFOM and (b) PSOM. Experimental conditions: dosage of the adsorbent:
0.06. g and initial dye concentration: 20 mg.L-1.

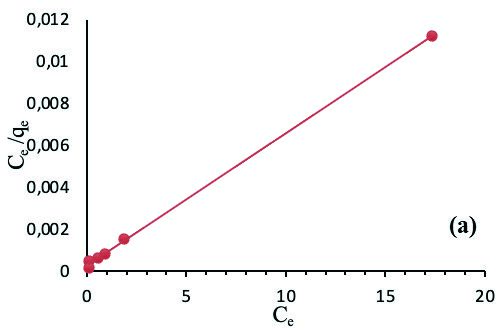

Figure 6. (a) LM and (b) FM model plots. Experimental conditions: dosage of the adsorbent: 0.06 g and time: 45 min.
Table 2. Isotherm parameters for the adsorption of MB on the sample Langmuir
effective adsorbent for the removal of MB dye over other available adsorbents. The characteristics of adsorption isotherm can be analyzed using separation factor (rL) that was expressed by Eq. 7; (7)
where KL is the LM constant (L.mg-1) and C0 is the highest initial MB concentration (mg.L-1). The separation factor in the current study was calculated as 0.0244 (0<rL<1), showing that the MB removal process of silica-based xerogel is favorable [22].
Sigma J Eng Nat Sci, Vol. 42, No. 1, pp. 189−197, February, 2024
Table 3. Maximum MB adsorption capacities (qm) of silica-based materials from the cited in literature Adsorbent
Nomenclature
Adsorption efficiency Initial concentrations of MB, mg.L-1 Equilibrium concentrations of MB, mg.L-1 Pseudo-first order model constant Pseudo-second order model constant Langmuir isotherm model constant Freundlich isotherm model constant The amount of xerogel, g Separation factor The amount of adsorbed MB by xerogel at equilibrium, mg.g-1 The maximum adsorption capacity of the silica-based xerogel, mg.g-1 The amount of adsorbed MB by xerogel at time t, mg.g-1 Volume of the MB solution, L
Data Availability Statement
The authors confirm that the data that supports the findings of this study are available within the article. Raw data that support the finding of this study are available from the corresponding author, upon reasonable request.
Conflict Of Interest
The author declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.
Conclusion
In the present work, silica-based xerogel was synthesized and utilized as an adsorbent for MB adsorption at different operating parameters. The obtained results exhibited that the MB adsorption process depends on the amount of xerogel, time, and initial MB concentration. The highest removal capacity of xerogel was reached at 45 min with 20 mg.L-1 initial MB concentration, and 0.06 g of xerogel. The high removal capacity of xerogel reached within 1 min indicates that the adsorption of MB is fast. The PSOM with a high R2 represents well the kinetic mechanism of the study. The LM isotherm fitted best the obtained equilibrium data and achieved maximum adsorption capacity (1666.67 mg.g-1) can be assigned as quite high when compared to MB adsorption studies with silica-based materials. It can be stated that silica-based xerogel is an appropriate adsorbent for the elimination of MB from aqueous solution, owing to its high yield, great adsorbing capacity, and fast process.
Ethics
There are no ethical issues with the publication of this manuscript.
References
- Chen Z, Fu J, Wang M, Wang X, Zhang J, Xu Q. Adsorption of cationic dye (methylene blue) from Z, et al, Preparation of Congo red functionalized aqueous solution using poly(cyclotriphospha- Fe3O4@SiO2 nanoparticle and its application for zene-co-4,4′-sulfonyldiphenol) nanospheres. Appl the removal of methylene blue. Colloids Surf A Surf Sci 2014;289:495−501. [CrossRef] Physicochem Eng Asp 2018;550:90−98. [CrossRef]
- Zhang W, Zhang LY, Zhao XJ, Zhou Z. Citrus pec- tin derived ultrasmall Fe3O4@C nanoparticles as porous materials; emerging designer adsorbents for a high-performance adsorbent toward removal aqueous pollutants removal and water treatment. of methylene blue. J Mol Liq 2016;222:995−1002. Microporous Mesoporous Mater 2018;266:252−267. [CrossRef] [CrossRef]
- Ravi, Pandey LM. Enhanced adsorption capacity of designed bentonite and alginate beads for the Bandegharaei A, Dotto G. Microwave synthe- effective removal of methylene blue. Appl Clay Sci sis of silica nanoparticles and its application for 2019;169:102−111. [CrossRef] methylene blue adsorption. J Environ Chem Eng
- Hoijang S, Wangkarn S, Ieamviteevanich P, 2018;6:649−659. [CrossRef] Pinitsoontorn S, Ananta S, Lee TR, et al. Silica- [20] Sheng L, Zhang Y, Tang F, Liu S. Mesoporous/ coated magnesium ferrite nanoadsorbent for selec- microporous silica materials: Preparation from nat- tive removal of methylene blue. Colloids Surf A ural sands and highly efficient fixed-bed adsorp- Physicochem Eng Asp 2020;606:125483. [CrossRef] tion of methylene blue in wastewater. Microporous
- Xiao X, Zhang F, Feng Z, Deng S, Wang Y. Adsorptive Mesoporous Mater 2018;257:9−18. [CrossRef] removal and kinetics of methylene blue from aque- [21] Erturk S, Sari Yilmaz M, Piskin S. Potential low- ous solution using NiO/MCM-41 composite. Phys cost carbon-based adsorbent from gold mine tail- E: Low-dimens Syst Nanostructures 2015;65:4−12. ings for anionic dye removal. Water Sci Technol [CrossRef] 2021;83:1300−1314. [CrossRef]
- Hassan AF, Abdel-Mohsen AM, Fouda MM. Comparative study of calcium alginate, activated car- methylene blue onto bamboo-based activated car- bon, and their composite beads on methylene blue bon: Kinetics and equilibrium studies. J Hazard adsorption. Carbohydr Polym 2014;102:192−198. Mater 2007;141:819−825. [CrossRef] [CrossRef] [23] Yao Y, Xu F, Chen M, Xu Z, Zhu Z. Adsorption
- Chen J, Feng J, Yan W. Influence of metal oxides behavior of methylene blue on carbon nanotubes. on the adsorption characteristics of PPy/metal Bioresour Technol 2010;101:3040−3046. [CrossRef] oxides for Methylene Blue. J Colloid Interface Sci [24] Sari Yilmaz M. Graphene oxide/hollow meso- 2016;475:26−35. [CrossRef] porous silica composite for selective adsorption of
- Panizza M, Barbucci A, Ricotti R, Cerisola G. methylene blue. Microporous Mesoporous Mater Electrochemical degradation of methylene blue. Sep 2022;330:111570. [CrossRef] Purif Technol 2007;54:382−387. [CrossRef] [25] Han R, Zhang J, Han P, Wang Y, Zhao Z, Tang M. Study
- Labanda J, Sabaté J, Llorens J. Experimental and of equilibrium, kinetic and thermodynamic param- modeling study of the adsorption of single and eters about methylene blue adsorption onto natural binary dye solutions with an ion-exchange mem- zeolite. Chem Eng J 2009;145:496−504. [CrossRef] brane adsorber. Chem Eng J 2011:166:536−543. [26] Benvenuti J, Fisch A, dos Santos JHZ, Gutterres M. [CrossRef] Silica-based adsorbent material with grape bagasse
- Soniya M, Muthuraman G. Comparative study encapsulated by the sol-gel method for the adsorp- between liquid-liquid extraction and bulk liq- tion of Basic Blue 41 dye. J Environ Chem Eng uid membrane for the removal and recovery of 2019;7:103342. [CrossRef] methylene blue from wastewater. J Ind Eng Chem [27] Rafatullah M, Sulaiman O, Hashim R, Ahmad A. 2015;30:266−273. [CrossRef] Adsorption of methylene blue on low-cost adsor-
- Salem IA, El-Maazawi MS. Kinetics and mechanism bents: A review. J Hazard Mater 2010;177:70−80. of color removal of methylene blue with hydrogen [CrossRef] peroxide catalyzed by some supported alumina sur- [28] Luque R, Balu AM, Campelo JM, Gracia MD, faces. Chemosphere 2000;41:1173−1180. [CrossRef] Losada E, Pineda A, et al. Catalytic applications of
- Bazrafshan AA, Ghaedi M, Hajati S, Naghiha R, mesoporous silica-based materials. R Soc Chem Asfaram A. Synthesis of ZnO-nanorod-based 2012;43:253−280. [CrossRef] materials for antibacterial, antifungal activi- [29] Karamahmut Mermer N, Sari Yilmaz M, Dere ties, DNA cleavage and efficient ultrasound-as- Ozdemir O, Piskin MB. The synthesis of silica-based sisted dyes adsorption. Ecotoxicol Environ Saf aerogel from gold mine waste for thermal insulation. 2017;142:330−337. [CrossRef] J Therm Anal Calorim 2017;129:1807−1812. [CrossRef] 196 Sigma J Eng Nat Sci, Vol. 42, No. 1, pp. 189−197, February, 2024
- Knežević NŽ, Ruiz-Hernández E, Hennink WE, Vallet-Regí M. Magnetic mesoporous silica-based and hydrophobic silica aerogels dried under ambi- core/shell nanoparticles for biomedical applications. ent pressure using a new co-precursor method. J RSC Adv 2013;3:9584. [CrossRef] Non Cryst Solids 2016;452:187−193. [CrossRef]
- Pawlaczyk M, Schroeder G. Adsorption studies of Cu(II) ions on dendrimer-grafted silica-based mate- C.I. Basic Green 4 (Malachite Green) from aqueous rials. J Mol Liq 2019;281:176−185. [CrossRef] solutions by adsorption using cyclodextrin-based
- Sriram G, Uthappa UT, Madhuprasad K, Ho-Young adsorbent: Kinetic and equilibrium studies. Sep J, Tariq A, Brahmkhatri Varsha P, et al. Xerogel Purif Technol 2007;53:97−110. [CrossRef] activated diatoms as an effective hybrid adsorbent [44] Chairat M, Rattanaphani S, Bremner JB, for the efficient removal of malachite green. New J Rattanaphani V. Adsorption kinetic study of lac dye- Chem 2019;43:3810−3820. [CrossRef] ing on cotton. Dyes Pigm 2008;76:435−439. [CrossRef]
- Osagie C, Othmani A, Ghosh S, Malloum A, Kashitarash Esfahani Z, Ahmadi S. Dyes adsorption isotherm and kinetic modeling of 2,4-D pesticide on from aqueous media through the nanotechnology: activated carbon derived from date stones. J Hazard A review. J Mater Res Technol 2021;14:2195−2218. Mater 2009;163:121−126. [CrossRef] [CrossRef] [46] Jamwal HS, Kumari S, Chauhan GS, Reddy NS,
- Guzel Kaya G, Yilmaz E, Deveci H. A novel sil- Ahn JH. Silica-polymer hybrid materials as meth- ica xerogel synthesized from volcanic tuff as an ylene blue adsorbents. J Environ Chem Eng adsorbent for high-efficient removal of methy- 2017;5:103−113. [CrossRef] lene blue: Parameter optimization using Taguchi [47] Han H, Wei W, Jiang Z, Lu J, Zhu J, Xie J. Removal experimental design. J Chem Technol Biotechnol of cationic dyes from aqueous solution by adsorp- 2019;94:2729−2737. [CrossRef] tion onto hydrophobic/hydrophilic silica aero-
- Hannachi Y, Hafidh A. Preparation and characteri- gel. Colloids Surf A Physicochem Eng Asp zation of novel bi-functionalized xerogel for removal 2016;509:539−549. [CrossRef] of methylene blue and lead ions from aqueous solu- [48] Ge S, Geng W, He X, Zhao J, Zhou B, Duan L, et tion in batch and fixed-bed modes: RSM optimiza- al. Effect of framework structure, pore size and tion, kinetic and equilibrium studies. J Saudi Chem surface modification on the adsorption perfor- Soc 2020;24:505−519. [CrossRef] mance of methylene blue and Cu2+ in mesoporous
- Mota TLR, Gomes ALM, Palhares HG, Nunes EHM, silica. Colloids Surf A Physicochem Eng Asp Houmard M. Influence of the synthesis parameters 2018;539:154−162. [CrossRef] on the mesoporous structure and adsorption behav- [49] Hassan H, Salama A, El-Ziaty AK, El-Sakhawy M. ior of silica xerogels fabricated by sol-gel technique. New chitosan/silica/zinc oxide nanocomposite as J Sol-Gel Sci Technol 2019;92:681−694. [CrossRef] adsorbent for dye removal. Int J Biol Macromol
- Venkateswara Rao A, Nilsen E, Einarsrud MA. 2019;131:520−526. [CrossRef] Effect of precursors, methylation agents and solvents [50] Yu ZH, Zhai SR, Guo H, Iv TM, Song Y, Zhang F, on the physicochemical properties of silica aerogels et al. Removal of methylene blue over low-cost prepared by atmospheric pressure drying method. J mesoporous silica nanoparticles prepared with nat- Non Cryst Solids 2001;296:165−171. [CrossRef] urally occurring diatomite. J Sol Gel Sci Technol
- Ali RM, Hamad HA, Hussein MM, Malash GF. 2018;88:541−550. [CrossRef] Potential of using green adsorbent of heavy metal [51] Dhmees AS, Khaleel NM, Mahmoud SA. Synthesis removal from aqueous solutions: Adsorption kinet- of silica nanoparticles from blast furnace slag ics, isotherm, thermodynamic, mechanism and eco- as cost-effective adsorbent for efficient azo-dye nomic analysis. Ecol Eng 2016;91:317−332. [CrossRef] removal. Egypt J Pet 2018;27:1113−1121. [CrossRef]
- Hu W, Li M, Chen W, Zhang N, Li B, Wang M, et al. Preparation of hydrophobic silica aerogel with Badawi M, et al. Adsorption of methylene blue kaolin dried at ambient pressure. Colloids Surf A on silica nanoparticles: Modelling analysis of the Physicochem Eng Asp 2016;501:83−91. [CrossRef] adsorption mechanism via a double layer model. J
- Al-Oweini R, El-Rassy H. Synthesis and charac- Mol Liq 2020;319:114348. [CrossRef] terization by FTIR spectroscopy of silica aerogels [53] Karim AH, Triwahyono S, Sidik SM, Kamarudin prepared using several Si(OR)4 and R′′Si(OR′)3 pre- NHN, Jusoh R, Jusoh NWC, et al. Amino modified cursors. J Mol Struct 2009;919:140−145. [CrossRef] mesostructured silica nanoparticles for efficient
- Standeker S, Novak Z, Knez Z. Adsorption of adsorption of methylene blue. J Colloid Interface Sci toxic organic compounds from water with hydro- 2012;386:307−314. [CrossRef] phobic silica aerogels. J Colloid Interface Sci [54] Parida D, Salmeia KA, Sadeghpour A, Zhao S, 2007;310:362−368. [CrossRef] Maurya AK, Assaf KI, et al. Template-free synthesis Sigma J Eng Nat Sci, Vol. 42, No. 1, pp. 189−197, February, 2024 197 of hybrid silica nanoparticle with functionalized blue and its invitro release: Mechanism and Kinetics mesostructure for efficient methylene blue removal. study. Colloids Surf A Physicochem Eng Asp Mater Des 2021;201:109494. [CrossRef] 2020;587:124333. [CrossRef]
- Saleh TA, Al-Ruwayshid SH, Sarı A, Tuzen M. Synthesis of silica nanoparticles grafted with copo- Ramalho TDC, Pinto LDMA. Cyclodextrin/silica lymer of acrylic acrylamide for ultra-removal of hybrid adsorbent for removal of methylene blue in methylene blue from aquatic solutions. Eur Polym J aqueous media. J Incl Phenom Macrocycl Chem 2020;130:109698. [CrossRef] 2014;78:77−87. [CrossRef]
- Sadanand S, Fosso-Kankeu E, Ramontja J. al. Adsorption Properties of calcium alginate-sil- ica dioxide hybrid adsorbent to methylene blue. J Efficient and Rapid Adsorption Characteristics of Inorg Organomet Polym Mater 2020;30:2114−2125. Templating Xanthan Gum-Graft-Poly (Aniline) [CrossRef] and Silica Nanocomposite toward Removal of Toxic
- Verma M, Dwivedi PK, Saxena NS. Hollow silica Methylene Blue Dyes. In: 9th Int'l Conference on nanoparticles synthesized from core-shell nanopar- Advances in Science, Engineering, Technology & ticles as highly efficient adsorbent for methylene Waste Management (ASETWM-17). 2017.
