Numerical simulation of flow and dam body sediment over a movable bed due to an earthfill dam break

Abstract

Keywords: Earthfill-dam; Dam-break; Sediment; RANS; k-ω; PISO; Model; Simulation

Introduction

Earthfill dams have been widely built all over the world due to mainly economical reasons. These dams however are prone to failures as a result of erratic seeping, piping, insufficient spillway capacity, overflows and extreme inflows.

The most recent examples are Patel Milmet Embankment Dam in Kenya failed on 9 May 2018 and Laos Embankment Dam in Vietnam failed on July 23, 2018 due to extreme inflows [1]. When such dams fail not only water but also

*Corresponding author. *E-mail address: gokmentayfur@iyte.edu.tr, alibek.issakhov@ gmail.com, bashkantktl@gmail.com This paper was recommended for publication in revised form by Regional Editor Abdelraheem Mahmoud Aly Published by Yıldız Technical University Press, İstanbul, Turkey Copyright 2021, Yıldız Technical University. This is an open access article under the CC BY-NC license (http://creativecommons.org/licenses/by-nc/4.0/).

Sigma J Eng Nat Sci, Vol. 40, No. 3, pp. 553–567, September, 2022

dam body sediment transport occurs, resulting in an inundation of downstream area with muddy flow causing severe damage to human lives and livestock. For example, as a result of the failures of these two dams, about 190 people were buried under the mud (https://en.wikipedia. org/wiki/Patel_Dam_failure; https://en.wikipedia.org/ wiki/2018_Laos_dam_collapse). Dam failures are thus studied experimentally and numerically. Experimental and numerical studies are carried out in one-dimension [2]-[5], in two-dimensions [6][12] and in three dimensions [13]-[17]. In the experimental studies, the dam body is generally represented by a movable metal and thus the sediment transport part of the physical process is ignored [18]-[21]. Thus, the researchers, in their experimental and numerical studies, have mostly concentrated on the water flow part. However, as the recent dam failures show, when such dams fail, both water and sediment transport play crucial role. Therefore, there is a need to develop models considering both transport. The main problems in the existing numerical methods in terms of a fluid-solid modelling can be many folds; (1) describing the interface position, (2) tracking the moving interfaces, (3) implementing the moving boundary conditions, (4) having the discontinues interfaces, (5) having the breaking waves, and (6) determining the dynamic pressure loads when exposed to several phases. Good interface capturing method in modeling the high density multiphase flows requires not only the sufficient numerical accuracy, but also the mass conservation. The particle methods, based on the Lagrangian framework for simulating the multiphase flows, contain the hydrodynamics of smoothed particles [22], the finite elements method (FEM) without a mesh [23] and the FEM of particles [24]. These methods have been extended by many researchers to model a wide class of problems associated with complex interactions between liquids and solids due to their high computational efficiency and simplicity [25]-[28]. However, these methods have some restrictions, such as the lack of instability and consistency in tension due to the distortion of the material region, which can lead to low accuracy and problems in satisfying the required convergence. Artificial viscosity is considered as an important problem in the SPH (Smoother Particle Hydrodynamics) applications [20], [29]. Furthermore, for the FEM of particles, the mesh size and the number of the particles are considered as significant parameters [30]. In the Eulerian approach, however, the level setting method [28] and many more advanced numerical methods are suggested for more accurate modeling of the multiphase flows [31]-[37]. The level setting methods are simple but less accurate, and thus the reinitialization methods are generally used to increase their accuracy. Alternatively, the Volume of Fluid (VOF) [38] methods, such as the simple linear interface calculation algorithm, the piecewise linear interface calculation algorithm, and the VOF least squares

reconstruction algorithm are well known for reasonably conserving the mass and they are often used by researchers to simulate the multiphase flows [39]-[43]. The VOF method has significantly increased the range of performance, accuracy and applicability. With the development of computer technology, the VOF has been applied to simulate many real large-scale engineering problems such as the dam break flows [5], [6], [17], [44], and [45]. Numerical models simulating the flows containing sediment in a flow field are also developed [46] and [47]. Bao et al. [47] carried out the numerical calculations, the geomorphological analysis, and the laboratory measurements to estimate the extent of potential debris flows. Marsooli and Wu [46] developed a three-dimensional (3D) numerical model for modeling flows during a dam break with sediment transport. The hydrodynamic part of the model is described by the three-dimensional Reynolds Averaged Navier-Stokes (RANS) equations. The non-cohesive sediment transport dynamics is described by three more partial differential equations (for suspended sediment concentration, sediment rate, and bed elevation). For the numerical solution, they empoyed the finite volume method with a compression boundary capture scheme. Although the model of Marsooli and Wu [46] is a comprehensive model, it requires heavy numerical computational burden due to solving five very highly nonlinear partial differential equations. The objective of this study is to develop a more efficient and reliable numerical solver for modeling the process of water flow and sediment transport as a result of an earthfill dam break. It proposes to consider the sediment as a third phase, supplementing the phases of air and water. In this way, three partial differential equations would be numerically solved. The solution would then be much faster and more efficient during the modelling process. The article is structured as having 6 sections: The introduction is given in Section 1. The governing equations are presented in Section 2 while the Numerical Algorithm is described in Section 3. Section 4 involves the validation of the numerical model with the idealized dam break flows over fixed and movable beds while Section 5 contains the application of the numerical model using the laboratory experiments of earthfill dam breaks over fixed and movable beds. The Conclusions are presented in Section 6.

Governing Equations

This study treated the dynamics of the process as having the four phases: water, air, sediment, and bulk dam. The RANS equations are employed for the incompressible fluid flow [17]:

Sigma J Eng Nat Sci, Vol. 40, No. 3, pp. 553–567, September, 2022

∂ui ∂ui u j 1 ∂Pg 1 ∂ + =g− +ρ ρ ∂x ∂t ∂x j ∂x j i   ∂u ∂u j   (μ + μt )  i +   ∂x j ∂xi     

where u is the flow velocity, g is the gravitational acceleration, P is the pressure, ⋅ is the fluid density, ⋅ is the dynamic viscosity, μt is the eddy viscosity; χ is the phase characteristic, χ = αqρq (where ρq is volume fraction of qth phase (can be fluid, air or sediment) in the cell, ρq is the density of qth phase), i and j stand for the x-, y-, and z-directions. The phase characteristic (χ) is the fundamental parameter in the VOF formulation when solving the multiphase fluid flow transport. In each control volume, the volume fractions of all phases sum to unity. The fields for all variables and properties are shared by the phases and represented by the volume-averaged values, as long as the volume fraction of each phase is known at each location. Thus, the variables and properties in any given cell are either purely representative of one of the phases, or representative of a combination of the phases, depending upon the volume fraction values. In other words, if qth fluid-phase volume fraction in the cell is denoted as αq, then three conditions are possible: αq = 0; the cell is empty of qth fluid, αq = 1; the cell is full of qth fluid; 0 < αq < 1, the cell contains the interface between qth fluid and one or more other phases. Based on the local value of αq the appropriate properties and variables are assigned to each control volume within the domain. The volume fraction equation is not solved for the primary phase; the primary-phase volume fraction is computed based on the n

constraint of ∑α q = 1 . In this study, four phases (n = 4) q =1

as air (q = 1), water (q = 2), sediment (q = 3) and bulk dam (q = 4) are used in the modelling procedure for the fluidsediment transport as a result of earthfill dam break. The tensor stress in the incompressible Newtonian → ­fluids is proportional to the strain rate tensor D as [17] and [48]:

The tensor stress for the non-Newtonian fluids is determined as:

where η is a three invariants function of the strain rate → ­tensor D [44]. To close the RANS equations, the k-ω SST (shear stress transport) turbulent model with two additional equations for the two variables k and ω is employed. Issakhov et al. [44] empoyed several methods to close the RANS equations and concluded that the k-ω was the better one, especially with respect to the CPU time. For the Newtonian fuids (air and water), Equation (4) is employed while for the the nonNewtonian fluids (sediment and earthfill dam), Equation (6) is used. The Navier-Stokes equations are discretized on a fixed Cartesian grid using the FVM method. The relationship between velocity and pressure is solved using an iterative method.

Numerical Algorithm

The PISO (Pressure-Implicit with Splitting of Operators) algorithm is chosen to solve the RANS equations (Eqs. 1-3 given in Section 2 above) numerically [49]. This is an extension of the SIMPLE method used to solve the Navier-Stokes equations. Generally the algorithm PISO takes less CPU time [44]. The PISO algorithm is a pressure velocity calculation procedure for the Navier-Stokes equations, originally developed for non-iterative calculation of the unsteady compressible flow, but it has been successfully adapted to the stationary problems [50]. The PISO algorithm contains one prediction step and two corrector steps and it is designed to ensure the mass conservation using the predictor-corrector steps. The algorithm can be simply summarized by the following steps [49]: Step 1. The boundary conditions are set. Step 2. The discrete momentum equation to calculate the intermediate velocity field is solved. Step 3. The mass flows on the faces of the cells are calculated. Step 4. The pressure equation is solved. Step 5. The mass flows on the faces of the cell are corrected. Step 6. The velocity based on the new pressure field is corrected. Step 7. The boundary conditions are updated. Step 8. Steps from Step 3 onward are repeated for specified number of times. Step 9. The time step is increased and the steps from Step 1 onward are repeated. The computational grid of the numerical model contained approximately 600,000 hexahedral cells. All the calculations were computed in PC: Intel Core i9, RAM

Validation Of The Numerical Model

Two experimental data herein are used for validating the developed numerical model.

Sigma J Eng Nat Sci, Vol. 40, No. 3, pp. 553–567, September, 2022

DAM Break FLOW Over Fixed BED

The numerical model is first verified using a laboratory measurement of a dam break flow on a fixed bed having an isolated block, conducted at the Netherlands Marine Research Institute (MARIN) [51]. The laboratory tank has the length of 3.22 m, the width of 0.993 m and the height of 1 m. A rectangular block with a size of 0.403 × 0.161 × 0.161 m is placed at 1.167 m downstream of the tank. The initial water depth inside the tank is 0.55 m, and the lower area is dry. Figure 1 displays the tank specification and the location of the gauges. Two water level meters (H2, H4) at the lower and upper positions of the movable gate, and four pressure gauges (P1, P3, P5, P7) on the side and upper parts of the block are installed. The details of the experiment can be obtained from Kleefsman et al. [51]. Figure 2 shows the temporary changes in the water levels at H4 and H2 sensors. As seen, the model captures the measured data. The water levels decrease at H4 up to 2.9 s, when the first reflected wave moves to the upper wall. The reflected wave contacts the wall and it is reflected back downstream, indicating a peak water level around 3.9 s. The front wave arrives at H2 in 0.4 s, and rises to 2.4 s when reflected waves arrive back from the block and the lower wall. The results are compatible with those in Cagatay and

Kocaman [3]. Table 1 summarizes the computed error measures for these simulations. As seen, the MAE and RMSE values are very low as 0.0072 m and 0.0182 m for H2 and 0.0077 m and 0.0245 m for H4, respectively. The measured and simulated temporal change in the pressures at P1, P3, P5, P7 gauges are presented in Figure

3. As seen, there is sharp increase in the pressures at P1 and

P3 when the wave hits the block at about 0.45 s. The simulated values show several false bursts on the sensors P5 and P7 due to air bubbles in the water and it is difficult for the model to cope with an isolated empty cell surrounded by fluid cells. Isolated empty cells occur when a progressive wave contacts the block, redirects upward and falls onto the

Figure 2. Measured and simulated water depths in the tank (H4) and at location H2.

Figure 1. The computational geometry of the first laboratory measurement [51].

Sigma J Eng Nat Sci, Vol. 40, No. 3, pp. 553–567, September, 2022

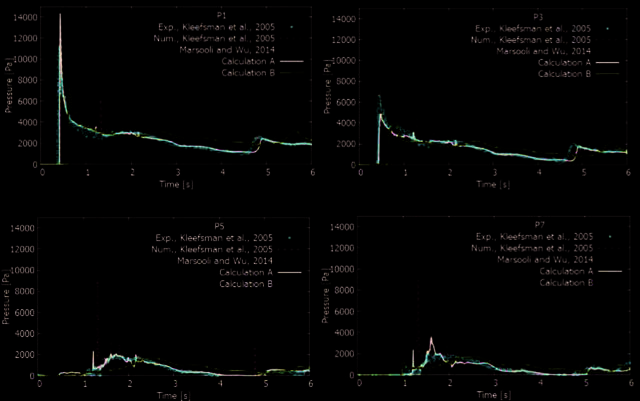

Figure 3. Comparison of predicted and measured pressures at various pressure gauges (P1, P3, P5 and P7).

top of the block. The same case is also shown elsewhere [51] and [52]. However, the comparisons in Figure 3 show that the developed model has a good ability to predict the temporal change in the pressures. It is especially worth noting that a very good prediction is done at location P1. Table 1 summarizes the computed error measures for these simulations. As seen, the MAE and RMSE values are, on the average, very low as 82.2 Pa and 355.2 Pa, respectively. Figure 4 displays the early stages of two snapshots of the simulation, together with the images from the laboratory experimental measurements of Kleefsman et al. [51]. As seen, there is a good match between the snapshots of the simulations and the experiments, especially when water first hits the block at 0.4 sec and 0.56 s. The obtained numerical simulation results are in good agreement with the measurement data with regard to the capturing of the wave front, arrival times, and pressures. They are also compatible with those in Cagatay and Kocaman [3].

DAM Break FLOW Over A Moving BED

The second test case involves the applicability of the developed model when the dam break water flows over a movable bed. The obtained computational values are compared against the measured data and the predicted values

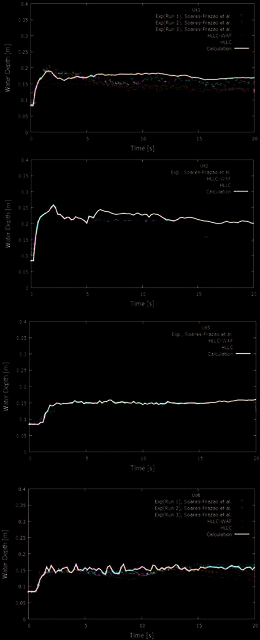

given in Soares-Frazão et al. [53]. The geometry of the region in which the calculations are performed is shown in Figure 5. The width of the reservoir section of the flume is 3.6 m and the narrow section of the flume is 1 m. The fixed base of the channel is covered with coarse and saturated sand layers at a height of 0.085 m. In the laboratory measurements, homogeneous coarse sand ρs / ρw = 2.63 is used. The model for the sediment phase is considered as the non-Newtonian fluid. The water height in the reservoir at the initial stage is 0.47 m. Figure 5 also shows the control points where the hydrometric measurements are carried out. The coordinates of the control points are given in Table 2. The details of the experiment can be obtained from Soares-Frazão et al [53]. Figure 6 shows the calculated values of changes in the water levels at the control points and their comparisons against the experimental and computational values given in Soares-Frazão et al [53]. As seen, the obtained numerical data are comparable with the experimental data. The cause of some deviations may be due to conditions associated with the characteristics of the sedimental environment, as well as the surface roughness coefficients and the initial conditions. The presence of a mobile bed (non-Newtonian fluid) assists to decrease the flow rate and influence the transport in general. This implies that in the case of dam

Sigma J Eng Nat Sci, Vol. 40, No. 3, pp. 553–567, September, 2022

Figure 4. Images of modeling dam break flood waves at 0.4 s and 0.56 s of the experiments (the top picture is from the actual laboratory experiments of Kleefsman et al. [51]).

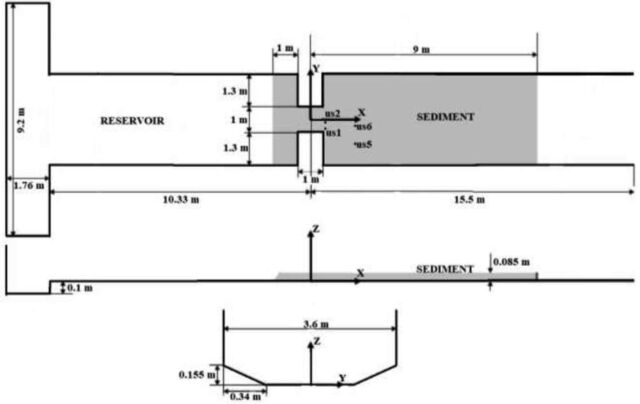

Figure 5. Plan view of the second laboratory experimental set-up [53].

Sigma J Eng Nat Sci, Vol. 40, No. 3, pp. 553–567, September, 2022

Table 2. Coordinates of the sensors [53] Measuring detectors

failure, sediment deposits can increase at the immediate dam vicinity [17] and [54]. Figure 7 displays the three dimensional water flow profiles at different periods of the simulation. As seen, the model has produced reasonable numerical simulations of the water flow over a movable sediment bed. From the results of this test problem, it can be concluded that the presence of a movable layer can have a significant effect on the movement of the flow during a dam break. In particular, differences in behavior are noticeable at the initial stages of the break, as well as during the first collision of the flow with the obstacle.

Application Of The Numerical Model

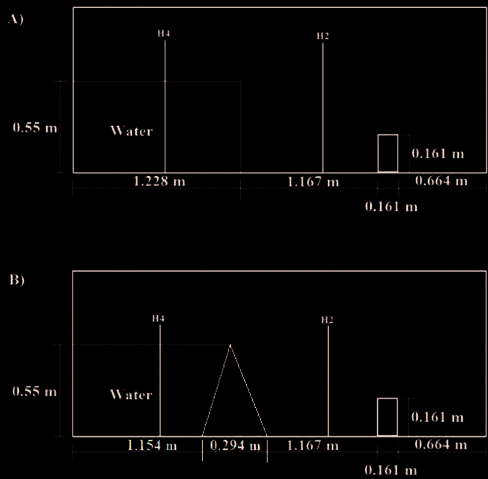

Earthfill Dam Break Over a Fixed Bed In each experiment given in Section 4, the dam body is resembled with a movable metal gate. However, in real life conditions, earthfill dam bodies are constructed from bulk of sediments. Therefore, in this section, simulations of water and sediment transport due to an earthfill dam failure is investigated. For this purpose, the first experimental model (see Fig.1) given in Figure 8A is artificially conceptualized as the one in Figure 8B where the dam body is considered to be formed as a bulk of sediment in the shape of a triangle. All the corresponding dimensions of the region, the location of the sensors, and the location of the obstacle remain the same as in the first experimental problem, presented in Section 4. All the sizes of the studied area remain the same as in the first experiment and the volume of water in the tank has changed due to the artificial dam body. The conceptualized triangle bulk dam body has the height of

Earthfill DAM Break Over A Moving BED

To study the influence of the dam body soil type on the dam break flow and sediment transport over a moving bed, three scenarios are considered for the second experimental setting (Figure 13). The basic formulation and dimensions of the second experiment remain the same, with the exception of the dam body. The reservoir has the width of 3.6 m and the length of 36.0 m, of which about 27.6 m is usable. The coordinates are taken at the center of the dam body. The flume bed is covered with coarse and saturated sand layers at a height of 0.085 m. The total coating length is 10.0

m, while the length of channel 1.0 m before the narrow section and 9 m after the narrow section. In this experimental set up, the movable bed is considered to be formed from sand with the density ratio of ρs / ρw = 2.6. In each scenario, different soil density is considered in the dam body (Table 3). Figure 13 also shows the control points at which the hydrometric measurements are carried out. The coordinates of the control points are given in Table 2. The simulations for the three scenarios are presented in Figure 14, where the flow levels at the four sensors are compared. As seen, the flow levels at the sensors initially increase due to the presence of a portable bulk dam. At the initial moment of the dam break, the dam body soil is transferred due to the pressure of the flow. The dam

Sigma J Eng Nat Sci, Vol. 40, No. 3, pp. 553–567, September, 2022

Figure 13. Considered experimental setup for studying the influence of dam body soil type [53].

Figure 14. Measured and simulated water depths at Us1, Us2, Us5, Us6.

Sigma J Eng Nat Sci, Vol. 40, No. 3, pp. 553–567, September, 2022

Figure 15. Three-dimensional images of a breakthrough at different points in time. body sediment transport as a whole slows down the flow. However, it should be noted that, in general, the transport behavior under the three scenarios (three different soil type) is very similar. This similarity is due to the relatively small volume of the bulk dam compared to the volume of water. Three-dimensional images of the transport at different times for the third scenario are presented in Figure 15. As seen, the collapsed part of the dam is transported downstream and settles in a wider channel. An enormous section of the movable bed is transported to a wide section of the channel and it starts to slowly settle in the region and forms a newly terrain. This phenomenon initiates further modification in the terrain, and also leads to a general change in the channel. These results indicate that the collapsing and consequently moving sediment can significantly increase the depth of flooding and change the morphology of the downstream area.

The reliability of the proposed numerical method is verified by two test problems with the laboratory data. The model successfully captured the temporal changes in the measured flow depths, pressures, wave fronts, and the arrival times. These results illustrate the effectiveness of the proposed numerical method. Two application problems are considered: (1) the dam body is considered having a bulk sediment in the shape of a triangle and the downstream section has a fixed bed and an obstacle, and (2) the dam body is considered to be formed by a different soil and a movable downstream bed. The simulations showed that, due to sediment, there is a noticeable decrease in the shock pressure at all points around the obstacle and there is an increase in the water levels. The bulk dam body sediment moves together with the water flow while spreading. It takes longer time for the sediment laden flow to reach the obstacle, as compared the clear water case. The soil type has minor effect while the transport of sediment can raise the water levels and change the morphology of the downstream section. The presented modeling results demonstrate the importance of taking into account the transport of the dam body sediment since these can significantly affect the flow by changing direction and magnitude. The dam body sediment transport as a whole slows down the flow. It can cause a deformation in the terrain. On the other hand, it can slow down the wave front since it would increase the density and viscosity of the mixture. In general, it seems that the soil type has minor effect on the transport behavior. The developed numerical model can be useful for realistically modelling the three dimensional non-Newtonian fluid transports due to an earthill dam breaks over complex terrains. It needs to be pointed out that, in this study, the conceptualized earthfill dam break simulations are carried out. The conceptualized dam bodies (movable metal gate and/or triangular sediment) cannot be encountered in real world applications. Although the numerical simulations under such circumstances can be useful with regard to investigating the behavior and transport of flow and sediment and thus consequently gaining an insight into the physics of the processes, the applications of the developed numerical model on real world dam body failures could be very beneficial to show the effectiveness of the model.

Conclusions

This paper presents the results of the modeling flow and sediment transport due to an earthfill dam break. The modelling is accomplished by using the VOF method for the multiphase flow. The phase characteristic parameter is used; as phases of air, water, sediment, and bulk of dam body. The system of equations are solved numerically using the PISO algorithm.

Data Availability Statement

The authors confirm that the data that supports the findings of this study are available within the article. Raw data that support the finding of this study are available from the corresponding author, upon reasonable request.

Sigma J Eng Nat Sci, Vol. 40, No. 3, pp. 553–567, September, 2022

Conflict Of Interest

The author declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Ethics

There are no ethical issues with the publication of this manuscript.
