Investigating the usability of Kevlar and steel fibers as a hybrid in concrete pavements

Abstract

Keywords: Concrete Pavements; Kevlar Fiber; Steel Fiber; Waste Material; Taguchi Method

Introduction

Concrete pavements have a structure of transferring the loads to the subgrade by spreading over a wider area. They are high-standard superstructures which provide driving safety and comfort in airports and highways with high traffic volumes [1]. Concrete pavements have started to be used as an alternative to flexible pavements since the 1990s due to the import of asphalt in Turkey, increased maintenance costs, and external dependencies. The popularity of concrete pavements has gradually increased hence, significant

researches have been carried out about rigid pavements in Turkey as in Europe and United States of America. The service life of concrete pavements depends on external factors, and most of these factors are correlational. Because the emergence of any negative factor affects the other factors, this leads to some disadvantages. For example, there is a possibility of fracture due to heavy vehicle load. Therefore, penetration increases by causing fractures in pavements due to road base and ground deformation [2]. Although the concrete has several advantages, it is generally weak in post-crack abrasion resistance, flexural strength,

*Corresponding author. *E-mail address: unsalb@atauni.edu.tr This paper was recommended for publication in revised form by Regional Editor Ahmet Selim Dalkilic Published by Yıldız Technical University Press, İstanbul, Turkey Copyright 2021, Yıldız Technical University. This is an open access article under the CC BY-NC license (http://creativecommons.org/licenses/by-nc/4.0/).

Sigma J Eng Nat Sci, Vol. 42, No. 2, pp. 344−355, April, 2024

and load-bearing capacity as a brittle material [3, 4]. Mainly dynamic wheel loads cause cracks in the edges and sides of the concrete, quickly spreading due to low flexural strength. Tensile stresses occur under the concrete pavement and compressive stresses above the concrete pavement due to positive temperature differences. Concrete pavements are exposed to these tensile stresses caused by the positive temperature gradient longer than the axle loads. As the thickness of the concrete increases, the tensile stresses arising from the temperature difference also increase [5]. Therefore, the thickness of concrete pavement can be reduced by using fibers [6]. Adding fiber to concrete is possible to increase the tensile strength, ductility, and power holding capacity of concrete [7-11]. Several studies were conducted on fiber-reinforced concretes (FRC) to evaluate their properties. Song and Hwang [12] reported that an increase in the steel fiber volume fraction up to 2% led to an increase up to 98% in the splitting tensile strength of FRC compared to that of control concrete. Iqbal et al. [13] declared that increasing the volume fraction of steel fibers in high strength lightweight self-compacting concrete reduced the compressive strength while improving the splitting tensile strength, flexural strength, and flexural toughness of the concrete. Sharbatdar and Rahmati [14] reported that steel fibers with 20 kg/m3 improved flexural strength, tensile strength and impact resistance respectively by 83%, 20% and 270%. Kamil et al. [15] evaluated the effects of polypropylene and aramid fibers on the performance characteristics of concrete. It was seen that many problems of pavements such as permanent deformation, fatigue cracking and thermal cracking might be solved by fiber-reinforcement. Yildirim et al. [16] concluded that HFRC impact performance increased with an increase in steel fibers proportion under repeated impact loads. They also concluded that the hybrid fibers had a positive effect on the performance of concrete. Bhogone and Subramaniam [17] studied the early-age fracture response of concrete with steel and hybrid blend of steel and macro polypropylene fibers. They concluded that plastic shrinkage cracking was reduced by 90.4% using a hybrid blend of steel and macro polypropylene fibers. Scorza et al. [18] studied the fracture behavior of roller-compacted concrete pavements using hybrid fibers. They stated that the combination of 0.2% short copper-coated steel fibers and 0.5% medium polymeric fibers increased the fracture toughness by 16.3% concerning plain specimens. According to the results of Lee and Cho [10], the equivalent flexural strength ratio increased with the increase in the fiber volume fraction but decreased with the increase in the concrete strength. Yousefieh et al. [19] investigated the effect of fibers on drying shrinkage in restrained concrete. Fibers in concrete not only reduced the drying shrinkage cracking but also increased the initial cracking time of FRC concerning plain concrete. Sukontasukkul et al. [20] investigated the effects of steel and polypropylene fiber hybridization on the flexural performance of fiber-reinforced geopolymer. The results indicated that the hybridization of steel fiber

could improve the flexural response, toughness, and residual strength of polypropylene fiber reinforced geopolymer to different degrees. Almusallam et al. [21] studied the impact resistance of hybrid fiber reinforced concrete (HFRC) casted using steel and plastic fibers with different ratios. The impact penetration test results showed that the usage of hybrid fibers reduces scabbing and spalling damage. Khamar and Kumar [22] investigated the effects of a hybrid fiber between steel and micro polypropylene (PP) fiber on properties including compressive, flexural, and splitting tensile strengths. Their results showed that the optimum volume fractions of micro PP fiber were 20% for compressive strength and 30% for flexural strength. It is evident from the literature that hybridization of two or more precisely selected fibers with different sizes and types can develop concrete with more attractive engineering properties [23-25]. Fiber optical cable is made from glass or plastic sending light signals, and it includes an outer protective cover strengthened with Kevlar and glass fiber as the strength element (Figure 1). Its popularity has gradually increased through technological developments and has become a frequently-used product in the communication sector. These cables with 20-year economic life have been replaced with the new ones, and the olds have been scrapped. The economic usability of these scrapped ones is not possible. Kevlar in fiber optic cables are considered to be used in road concretes that have an essential place in the transportation sector. Kevlar, a waste material, has a synthetic chemical structure and is highly resistant to impact and heat due to its structure. This material is used to manufacture armor (protective gloves, vests, fireproof clothing, parachutes, etc.) and sports equipment. As a waste material, Kevlar is not being used for recycling since it does not have any usage area.

Sigma J Eng Nat Sci, Vol. 42, No. 2, pp. 344−355, April, 2024

In the conventional approach of experimental studies, while one factor is kept varying, all other factors are constant. Therefore, when the number of mixing variables increases, the number of experiments also increases. Hence, the quantity of materials, money, and time increase in the conventional design of experiments. The Taguchi method can decrease the number of experiments for such experimental studies. One of the advantages of the Taguchi method over the conventional experimental design is keeping the experimental cost at a minimum level. A concrete pavement design aims to determine the thickness of the layers and the quality of the materials and ensure the tensile stresses occurring under the pavement in order not to exceed the flexural strength of the concrete [5]. The current study aimed to increase the flexural strength, which is one of the essential parameters in a concrete pavement design. For this purpose, four parameters, each having three different levels, were considered for the experimental design. These factors and levels were: steel fiber (0, 500 g/m3, 1000 g/m3), Kevlar (0, 500 g/m3, 1000 g/m3), silica fume (0, 5%, 10%), water/binder ratio (0.40, 0.45, 0.50). Compressive and flexural strength and the flexural toughness of specimens were determined for 28 days of curing age. The Taguchi optimizations for each compressive and flexural strength and flexural toughness using the L9 orthogonal array were carried out. The findings of this research had potential significance for the optimization of the hybrid FRC in different structural applications.

The RC 80/60 BN type, hooked end, low carbon, and uncoated steel fiber supplied from Sancak Kimya San. A.Ş. were used. The technical properties of steel fiber are given in Table 3. Kevlar fibers were added into the mixture at a length of 4 cm (Figure 2). The physical properties of Kevlar fiber are given in Table 4.

Table 2. Physical and mechanical properties of cement Physical and Mechanical Tests Slenderness 45m sieve

Table 3. Technical properties of steel fiber Technical Property

Material And Methods

In the study, CEM I 42.5R cement produced in Erzurum Aşkale Cement Plant and conforming to TS EN 197–1 standard was used. The chemical properties of CEM I 42.5R cement are presented in Table 1, and the physical and mechanical properties are presented in Table 2.

Table 1. Chemical properties of the cement Chemical Analyses SiO2 Al2O3 Fe2O3 CaO MgO SO3 Ignition loss K2O Na2O (Na2O); Na2O+0,658x K2O Cl Imponderable CaO (free lime) Insoluble matter

Sigma J Eng Nat Sci, Vol. 42, No. 2, pp. 344−355, April, 2024

Pozzolanic materials are used for filling in the micropores in the binder. These materials contribute to the strength of the binder due to their pozzolanic reactions [26-29]. Accordingly, silica fume was used in addition to cement in the study. Technical properties of silica fume are presented in Table 5. ZYLA 645 super-plasticizer concrete admixture produced by GCP Applied Technologies firm was used in poured concrete samples in the study. This admixture was a ready-to-use plasticizer concrete mixture. It was the aqueous solution of the hydroxyl organic components that

had effects upon the final properties of concrete. It was produced under active control to provide the estimated performance as standard. It did not include calcium fluoride. It was conforming to TS EN 934-2 standards. The angular aggregate used in the study was procured from the facility established for aggregate production of the Aşkale Cement Plant close to Tercan district of Erzincan province. The gradation curve of the aggregate mixture used was given in Figure 3 within the limits specified by TSE 3526-3529 standards. The results of the sieve analysis are given in Table 6. Experimental Approach All other factors are fixed in conventional experimental design while changing one specific factor. As the factors and levels in the experimental design increase, the number of experiments to be conducted increases. Accordingly, practicing such a design leads to material, time, and labor difficulties. Furthermore, in the case of inner interaction among the factors, the optimum conditions obtained according to the conventional experimental design’s not being in actual optimum conditions. Taguchi method as one of the experimental design techniques has successfully been conducted for the optimization in systematic designs [28, 31-33]. This method enables a systematic approach for optimizing performance and quality designs. The optimizations to be performed using the Taguchi method are fulfilled in 8 steps:

8. Confirming the outputs

The Taguchi method uses performance statistics (S/N) as the optimization criterion. There are three types of

Sigma J Eng Nat Sci, Vol. 42, No. 2, pp. 344−355, April, 2024

performance statistics, the biggest–the best, nominal–the best, and the smallest-the best. Using the data obtained from the experiments, the S/N values were calculated according to equation 1 depending upon the bigger the better performance statistics.

kept constant, and SF, water/binder ratio, steel fiber ratio, and Kevlar fiber ratio were used as the parameters. The cement content for rigid pavements was suggested to be above 350 kg/m3 according to the concrete pavement technical specifications [30] released in 2016. Accordingly, the cement content was determined as 350 kg/m3, and silica fume was added as 0%, 5%, and 10% of the cement weight as an additive. Steel fiber and Kevlar fiber were used at the rate of 0 g/m3, 500 g/m3, and 1000 g/m3. The plasticizer was kept constant for all samples and used at a rate of 1.5%. Considering all factors, a total of 9-groups samples were prepared. The parameters and their levels are given in Table 7, and the experiment plan prepared according to the L9 orthogonal array is given in Table 8 [36].

(1) Here; S/NL: Performance statistics n: The number of repetitions performed in an experimental combination Yi: ith the performance statistic of the experiment. The parameter levels maximizing S/NL are optimum. However, the experiment providing optimum parameter levels for the Taguchi method may not exist in the experimental design. Accordingly, the performance value corresponding to optimum conditions can be estimated by equation 2. Yt = µ+Xi + ei

Here; µ: General average for the performance value, Xi: Fixed effect of the parameter-level combination in the experiment, ei: i. random error in the experiment Here, the Yt value calculated depending upon the experimental outputs is a point estimate. Accordingly, a confidence interval at a specific level of error should be created to determine whether verification experiments were significant or not. The confidence interval for the chosen level of error was calculated by equation 3. [34, 35], (3) Here;

: Table value, α: Level of error, DFMse: Total degree of freedom for the error mean square, m: Degree of freedom for the parameters used in mean estimation, ni: The number of repetitions for verification experiments In the study, CEM I 42.5 R Type cement produced in Aşkale Cement Plant and aggregate produced in Aşkale Cement Plant Tercan facility were used as the main component. The steel fiber of RC 80/60 BN with the hooked end was procured from Sancak Chemistry firm, Kevlar fiber procured from the cables scrapped by Türk Telekom A.Ş., silica fume (SF) and ZYLA 645 super-plasticizer concrete admixture were used. Tap water was used to provide the water necessary for the concrete mix. Cement dosage was

Results And Discussion

The compressive and flexural strengths obtained from the experiments according to the L9 orthogonal array are presented in Table 9. In this Table, the average of three samples obtained from the experiments in terms of MPa was presented with S/N values calculated by equation (1) [36]. According to the Taguchi method, average S/N effects should be calculated to determine optimum conditions. After calculating S/N values by equation (1), the average S/N values were calculated via these values and presented in Tables 10 and 14. In these tables, the maximum value of each parameter indicates the optimum level of that parameter. To understand better the values in the Tables, the optimum conditions obtained with these values are presented in Figures 4, 5, and 7. The optimum conditions for compressive and flexural strength and the contribution ratios of

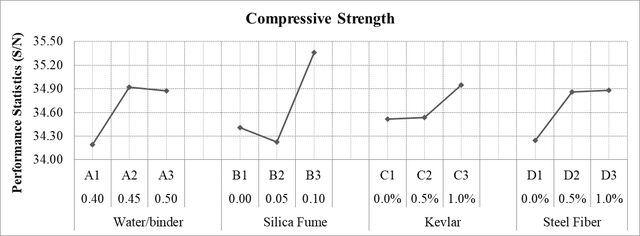

parameters to S/N calculated using analysis of variance are given in Tables 11 and 14. Evaluation of Compressive Strength When Figure 4 was analyzed, it was noticed that optimum levels for compressive strength were A2, B3, C3, and D3. According to Table 12, the parameters that had the highest effect upon compressive strength were silica fume, Kevlar fiber ratio, water/binder ratio, and steel fiber ratio, respectively. When the experimental plan presented in Table 8 was considered, the design with the optimum values was not present in the experimental plan. Therefore, a sample was prepared according to the relevant parameter values (A2, B3, C3, D4) to verify the result, and the sample was tested again after 28-day curing conditions. A 60.58 MPa of compressive strength was obtained at the end of the verification experiment. The S/N value corresponding

Table 12. Optimum conditions maximizing the compressive strength and estimation of performance

1. Level

Table 15. Optimum conditions maximizing the flexural strength and estimation of performance

Expected value at optimum conditions (S/N) 21.454 Result of verification test (S/N) / (MPa)

levels maximizing flexural strength were A2, B3, C3, and D3. When Table 15 was analyzed, it could be seen that the most significant parameter that affected flexural strength was the Kevlar fiber rate. The followings were steel fiber, water/binder rate, and silica fume, respectively. When the experimental plan in Table 8 was analyzed, the combination providing maximum flexural strength was not included in the experimental design. The sample was prepared according to the relevant parameter values (A2, B3, C3, D4) to test the result, and the sample was tested again after 28-day curing conditions. At the end of the verification experiment, 12.14 MPa flexural strength was obtained. The S/N value corresponding to this result was 21.68. This value should be between 20.804 and 22.104 intervals at a 95%

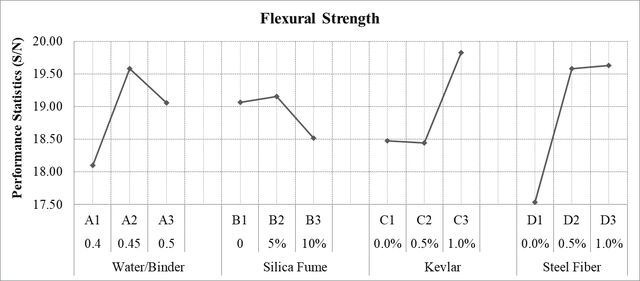

confidence level. This value was noticed to be accurate at a 95% confidence level. In flexural strength experiments performed for each sample group in different admixture rates, the effects of parameters upon strength are presented in Figure 5. Evaluation of Toughness Toughness is one of the most remarkable properties characterizing fiber-reinforced concretes. This concept depends on the role (distribution, size, slenderness, etc.) of fibers in concrete and is considered while evaluating the workability of fiber concrete. This property is affected by fiber quantity, slenderness ratio, fiber length, fiber geometry, loading ratio, and sample size of fiber concrete. The measurement of power holding capacity was determined in JSCE-SF4 Japan, ASTM 1018 USA, TS 10515 standards and found as calculating the area below

Sigma J Eng Nat Sci, Vol. 42, No. 2, pp. 344−355, April, 2024

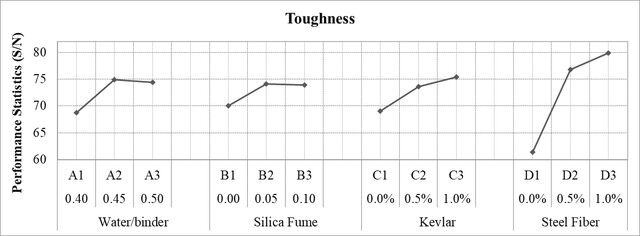

Figure 7. The effect of parameters on toughness. the load-deformation curve. The toughness of concrete increases by increasing fiber content in concrete and growth in fiber length and slenderness ratio. Compression stress depends upon the quality of concrete rather than the role of fibers, and toughness and flexural strength depend upon the performance of fibers. As the toughness of concrete increases, its behavior under the earthquake loads becomes more ductile [40]. In the studies on stressstrain behaviors of steel, fiber-reinforced concretes under compression, it was reported that the type and quantity of fiber had a remarkable effect on the toughness value of concrete [41]. Due to the reasons mentioned before or during the study, it is beneficial to obtain fracture mechanics parameters (toughness, fracture energy) studying with size effect principles upon especially special concretes and, accordingly, fiber concretes. Rehabilitation appears in various material criteria (fracture mechanics parameters), such as toughness and fractures energy by mixing steel fibers with a higher modulus of elasticity rather than concrete. After the concrete begins to break, that is, after

moving away from the linear-elastic area, the fibers play a more active role and increase the fracture energy. The load-strain curves obtained for one of the experiments is presented in Figure 6. Toughness values obtained from the experiments are presented in Table 16. Effects of parameters upon toughness were presented in Figure 7. The ANOVA table for toughness was calculated according to the Taguchi Method. It can be seen from Table 17 that the most effective parameter on the flexural strength is steel fiber with a rate of 78.28%. This is followed by water/binder with 9.13%, Kevlar with 8.30%, and silica fume with 4.29%. When Figure 7 was analyzed, the highest toughness value was determined in the 2nd level of water/binder ratio (A2), in the 2nd level of silica fume (B2), 3rd level of Kevlar fiber (C3), and 3rd level of steel fiber (D3). As can be understood from the Figure, the concrete had higher ductility as the rate of fiber increased, and the energy it absorbed increased [38]. According to Taguchi’s analysis results, it was determined that energy holding capacity increased

Sigma J Eng Nat Sci, Vol. 42, No. 2, pp. 344−355, April, 2024

at the rate of 206% compared with concrete using Kevlar fiber. Similarly, an 845% increase was observed in the case of using only steel fiber. Caf [38] stated that an increase at 100-1200% was possible to appear in toughness in terms of technical properties of fiber concretes.

Conclusion

The concrete road pavement usage has gradually increased in our country and in the world. These are environmental-friendly, long-life rigid pavements resisting heavy vehicle load rather than flexible pavements. Due to increasing fuel rates, concrete pavements have started to compete with flexible pavements in terms of their initial manufacturing, maintenance, and repair costs. Compared to the flexible pavements, the most important property of concrete pavements is their spreading capability of the traffic loads on the ground to a larger area. They have more resistance against larger flexural strength due to their high rigidity and elasticity modules. Concrete is a structural material that is weak in flexural strength but strong in compressive strength. Accordingly, most of the studies on concrete pavements have been carried out to improve the flexural strength of concrete. This study aimed to investigate the usability of Kevlar fiber obtained as waste material from fiber optic cables in concrete pavements. For this purpose, the effect of Kevlar fiber was evaluated with steel fiber, which is known to contribute to the flexural strength of concrete. In the experimental plan, four parameters, including three levels in each, were used, and the effects of these parameters were evaluated according to the Taguchi method. The results obtained from the study were as below: • Unit weight was observed to decrease even slightly in Kevlar fiber-reinforced concrete. This was considered Kevlar’s having less unit weight than the conventional concrete has. Unit weight was observed to increase in concrete with steel fiber admixture. This increase was relatively more than Kevlar. This could be explained as the unit weight difference between steel fiber and concrete was much more than the unit weight difference between Kevlar fiber and conventional concrete, and fiber quantity in the admixture was much more.

In the study, 46.62 MPa compression and 6.63 MPa flexural strength were obtained from the control sample produced with aggregate, water, cement, and plasticizer. • In the case of only Kevlar fiber presence in concrete (in case of not using SF and steel fiber), an increase up to 5.1% was observed in compressive strength (48.99 MPa). In the case of adding just steel fiber in concrete, nearly 7% more increase was provided than the control concrete (50.17 MPa). Maximum compressive strength was obtained in the third level of steel fiber rate. However, it was possible to mention that compressive strength obtained from the second and third levels were close to each other, and accordingly, both levels could be used. In the case of using 1000 g Kevlar fiber and 10% SF per 1 m3, an increase up to 14.67% was observed in compressive strength. In the case of using both steel fiber and Kevlar fiber in the admixture, the highest compressive strength value of 63.96 MPa was obtained. • In the case of only Kevlar fiber presence in concrete (in case of not using SF and steel fiber), an increase up to 14.5% was determined in flexural strength (7.75 MPa). In the case of adding only steel fiber in concrete, nearly 21.5% more increase was provided than the control concrete (8.45 MPa). Maximum flexural strength was obtained in the third level of steel fiber rate. However, it was possible to mention that flexural strength obtained from the second and third levels were very close to each other, and accordingly, both levels could be used. • In the case of increase in water/binder ratio, approximately an 8% increase was noticed in compressive strength (50.70 MPa). However, roughly equal compressive strengths were obtained in the second and third levels of the water/binder ratio. This meant that both effects were nearly similar in the design to be conducted, and accordingly, both were possible to be used. In the case of increase in water/binder ratio, approximately a 15.8% increase was noticed in flexural strength (7.87 MPa). • In the case of only using Kevlar fiber, energy holding capacity was determined to increase up to 206% more than standard concrete, and an 845% increase was observed in the case of using only steel fiber. The construction of flexible pavements has become increasingly unsustainable due to rising life cycle costs.

Sigma J Eng Nat Sci, Vol. 42, No. 2, pp. 344−355, April, 2024

For this reason, concrete pavements should be preferred throughout the world and in our country. Concrete is a structural material that is strong in compressive strength but weak in flexural strength. For this reason, the concrete pavement design is aimed to ensure that the tensile stresses caused by the axle loads and positive temperature gradient remain below the flexural strength of the concrete. According to the results obtained, the flexural strength of the concrete was improved by the usage of hybrid fibers. Using waste Kevlar material in concrete pavements will reduce the amount of expensive fiber types required to increase flexural strength. And it will also reduce concrete thicknesses. Thus, it will contribute to the country’s economy and the environment.

Authorship Contribution

Concept: Osman Ünsal Bayrak, Erhan Mola; Design: Osman Ünsal Bayrak, Halim Ferit Bayata; Literature research: Erhan Mola; Materials: Erhan Mola, Fatih İrfan Baş; Data analysis: Osman Ünsal Bayrak, Fatih İrfan Baş, Halim Ferit Bayata; Writing: Erhan Mola, Fatih İrfan Baş

Data Availability Statement

The authors confirm that the data that supports the findings of this study are available within the article. Raw data supporting the finding of this study are available from the corresponding author, upon reasonable request.

Conflict Of Interest

The author declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Ethics

There are no ethical issues with the publication of this manuscript.

References

1. Ağar E, Sütaş İ, Öztaş G. Beton yollar: rijit yol tures using advanced material characterization tests. üstyapıları; malzeme-tasarım-üretim-yapım-bakım J Test Eval 2010;38. [CrossRef] teknikleri. İstanbul: İstanbul Teknik Üniversitesi; [16] Yildirim ST, Ekinci CE, Findik F. Properties of hybrid 1998. fiber reinforced concrete under repeated impact
2. Bolat H, Subaşi S, Çullu M, Akkaya U. Beton Yolları loads. Russ J Nondestruct Test 2010;46:538−546. Bekleyen Tehlikeler. Yapı Teknolojileri Elektronik [CrossRef] Dergisi 2010;6:30−37. [17] Bhogone M, Subramaniam KV. Improvement in ear-
3. Monteiro P, Mehta P. Concrete: Structure, proper- ly-age cracking performance of concrete with hybrid ties, and materials. Englewood Cliffs: Prentice-Hall; steel-macropolypropylene fiber blends. Mater Today 1993. Proc 2022. [CrossRef] Sigma J Eng Nat Sci, Vol. 42, No. 2, pp. 344−355, April, 2024 355
4. Scorza D, Luciano R, Mousa S, Vantadori S. Fracture [29] Richard P, Cheyrezy M. Composition of reac- behaviour of hybrid fibre-reinforced roller-com- tive powder concretes. Cement Concrete Res pacted concrete used in pavements. Constr Build 1995;25:1501−1511. [CrossRef] Mater 2021;271:14. [CrossRef] [30] Karayolları Genel Müdürlüğü. Beton Yol
5. Yousefieh N, Joshaghani A, Hajibandeh E, Kaplamaları Teknik Şartnamesi. 2016, Karayolları Shekarchi M. Influence of fibers on drying shrink- Genel Müdürlüğü: Ankara. age in restrained concrete. Constr Build Mater [31] Bayrak OU, Hınıslıoğlu S. A new approach to the 2017;148:833−845. [CrossRef] design of rigid pavement: single-axle loading. Road
6. Sukontasukkul P, Pongsopha P, Chindaprasirt P, Mater Pavement Des 2017;18:573−589. [CrossRef] Songpiriyakij S. Flexural performance and toughness [32] Bayrak OU, Hattatoglu F, Hinislioglu S. of hybrid steel and polypropylene fibre reinforced Determination of modulus of rupture of pavement geopolymer. Constr Build Mater 2018;161:37−44. concrete with silica fume and fly ash using taguchi [CrossRef] technique. Int J Civ Struct Eng 2010;1:518−533.
7. Almusallam TH, Siddiqui NA, Iqbal RA, Abbas [33] Joshaghani A, Ramezanianpour AA, Ataei O, Golroo H. Response of hybrid-fiber reinforced concrete A. Optimizing pervious concrete pavement mixture slabs to hard projectile impact. Int J Impact Eng design by using the Taguchi method. Constr Build 2013;58:17−30. [CrossRef] Mater 2015;101:317−325. [CrossRef]
8. Peace GS, Peace GS. Taguchi methods: a hands-on reinforced geopolymer concrete under ambient cur- approach. Reading, MA: Addison-Wesley; 1993. ing. Int J Sci Res 2013;4:729−734.
9. Banthia N, Majdzadeh F, Wu J, Bindiganavile V. itive manufacturing series. New York; 1990. p. 7−80. Fiber synergy in Hybrid Fiber Reinforced Concrete
10. Mola E. Kevlar ve Çelik Liflerin Yol Betonlarında (HyFRC) in flexure and direct shear. Cement Kullanılabilirliğinin Araştırılması. [Master Thesis]. Concrete Compos 2014;48:91−97. [CrossRef]
11. Cattaneo S, Biolzi L. Assessment of thermal damage Erzurum: Atatürk Üniversitesi; 2019. p. 84. [Turkish] in hybrid fiber-reinforced concrete. J Mater Civ Eng [37] Rao GA. Long-term drying shrinkage of mortar-in- 2009;22:836−845. [CrossRef] fluence of silica fume and size of fine aggregate.
12. Yang K-H. Tests on concrete reinforced with hybrid Cement Concrete Res 2001;31:171−175. [CrossRef] or monolithic steel and polyvinyl alcohol fibers. ACI [38] Caf M. Polipropilen ve Çelik Lifli Betonların Darbe Mater J 2011;108. [CrossRef] Dayanımı. [Master Thesis]. Erzurum: Atatürk
13. Chan Y-W, Chu S-H. Effect of silica fume on steel Üniversitesi; 2012. [Turkish] fiber bond characteristics in reactive powder con- [39] Yaka S. Konya bölgesi agregaları ile çelik lif kul- crete. Cement Concrete Res. 2004;34:1167−1172. lanılarak üretilen yol betonlarının mekanik özel- [CrossRef] liklerinin incelenmesi. Konya: Selçuk Üniversitesi
14. Hınıslıoğlu S, Bayrak OÜ. Optimization of early Fen Bilimleri Enstitüsü; 2011. [Turkish] flexural strength of pavement concrete with silica [40] Yerlikaya M. Çelik tel donatılı betonların deprem fume and fly ash by the Taguchi method. Civ Eng etkisi altında davranışları. Kocaeli Deprem Environ Syst 2004;21:79−90. [CrossRef] Sempozyumu Bildiriler Kitabı, 2003. p. 302−304.
15. Hınıslıoğlu S, Bayrak OÜ. A robust approach for [Turkish] evaluating modulus of elasticity of pavement con- [41] Fanella DA, Naaman AE. Stress-strain properties of crete. Indian J Eng Mater Sci 2005;12:111−116. fiber reinforced mortar in compression. J Proc 1985.
