Calculation of buckling loads of ipe-section bending members based on optimization of analytical for

Abstract

Keywords: Analytical Calculation; Buckling Load; Calibration; Cantilever Beam; Finite Element Method

Introduction

In the lateral buckling calculations of steel beams, the design methods of simply supported and cantilever beams given in the regulation are the same. However, due to the different end support conditions in cantilever beams, the

maximum displacement and buckling angle occur at the free ends instead of the middle of the span. The buckling modes obtained as a result of this situation are different from each other. Therefore, the recommended methods for simple support beams are not suitable for cantilever beams

*Corresponding author. *E-mail address: ozbayrak@erciyes.edu.tr This paper was recommended for publication in revised form by Editor in-Chief Ahmet Selim Dalkilic Published by Yıldız Technical University Press, İstanbul, Turkey Copyright 2021, Yıldız Technical University. This is an open access article under the CC BY-NC license (http://creativecommons.org/licenses/by-nc/4.0/).

Sigma J Eng Nat Sci, Vol. 42, No. 4, pp. 973−987, August, 2024

[1]. AISC or DCCPSS regulations do not guide the lateral buckling of cantilever beams [2,3]. This research aims to provide rational information against lateral buckling in the design of steel cantilever beams. In general, the concepts of lateral buckling of beams and lateral-torsional buckling are explained in many books in the literature. Accordingly, the elastic lateral torsion buckling load under the bending effect of simple supported beams can be solved with the help of closed-form equations [4–7]. However, analytical solutions become very complex when beam end conditions differ from simple support. Therefore, numerical approximations such as the finite element method are needed to solve basic differential equilibrium equations [8–10]. The load-displacement relationships of I-section steel cantilevers were investigated by [11]. Under the effect of a single load at the free end, numerical and experimental results were compared. Accordingly, estimating the buckling load by numerical analysis with the ABAQUS program during the design phase was considered an acceptable method. Studies on unsymmetrical I-section cantilever beams were carried out by Samanta and Kumar [12]. In the studies, single load, distributed load, and moment were affected at the beam end. With the help of the ABAQUS program, the buckling load was investigated by giving lateral support to the top flange, bottom flange, and both. Accordingly, it has been found that if loading is made to the lower flange, the side support position does not significantly affect the cantilever beam buckling capacity. Özbaşaran et al. presented alternative design methods for calculating the buckling load and movement of I-section cantilever beams under the effect of lateral-torsional buckling [13]. In the critical elastic lateral-torsional buckling load calculation, the results of the closed-form equations, the analysis made by ABAQUS, and the experimental findings were found in accordance with the results of the proposed design method. Ma et al. conducted a study on elastic lateral buckling of unsymmetrical I-section cantilever beams [14]. According to the RayleighRitz method, while the profile flanges remain linear during buckling, it is assumed that the web part is susceptible to distortion. The accuracy of the proposed method has been verified with the help of the NASTRAN program, which calculates according to the finite element method. The elastic lateral torsional buckling behavior of tapered beams with different support conditions has been investigated by Andrade et al. [15]. A better understanding of the tapered beam behavior was provided by providing concrete explanations for some of the results regarded as illogical in the research. Zhang et al. conducted studies on the lateral-torsional buckling behavior of I-section cantilever beams with stiffening plates [16]. An analytical solution of the dimensionless buckling equation of these beams was obtained with the help of dimensionless parameters. The dimensionless critical moment formula developed with the help of mathematical optimization analysis software (1stOPT) has been verified with ADINA finite element software. A simple and useful calculation method for practical engineering

calculations is presented in the research. The results of the finite element analysis of the elastic lateral-torsional buckling strength of light steel cantilever beams under the effect of transverse loading were shared by Kurniawan and Mahendran [17]. Accordingly, the applicability of modification factors in various steel design codes was reviewed, and the design approach in the AS4100 code was proposed for light steel cantilever beams subjected to transverse loading. The study carried out by Trahair stated that the lateral buckling formulations suggested in the design regulations for simply supported beams with uniformly distributed loads are not suitable for cantilever beams [7]. His study aimed to develop simple approximate methods in the design of cantilever beams against inelastic lateral buckling. Within the scope of the research conducted by Yılmaz and Kıraç [18], an equation that can be used to calculate the critical torsional buckling load of the IPE and IPN simple support beams in European norms was presented [18]. The slenderness of the profile section and the effect of loading positions were taken into account in their study. Consistent results were obtained among analytical, parametric, and numerical solutions. It has been found that the lateral torsional buckling load of European IPE and IPN beams can be determined by the presented equation and used safely in design procedures. I-section composite beams are discussed by Prombut and Anakpotchanakul [19]. It has been observed that the bending results obtained from the shear deformation theory and finite element analysis in beams under uniformly distributed load applied to the upper flange are compatible with each other. It is stated that thanks to the validated finite element procedure, realistic results can be obtained based on curvature, taper, and buckling along the length of an I-section. Özbaşaran and Yılmaz introduced shape optimization for symmetrical I-section beams with tapered flanges and/or web [20]. The optimization procedure was created using the Big Bang - Big Crunch algorithm and Deb’s constraint handling method. The designs made were verified by finite element analysis. It has been shown that tapering in absolute conditions may not significantly affect the material economy. Trahair stated that the design methods given in regulations such as AS4100, BS595, Eurocode3, and AISC for lateral buckling of cantilever beams are modifications of the rules introduced according to simple support beams [1]. The accuracy of these modifications was found to be questionable, and it was emphasized that they could not fully guide the design. A different method has been developed, and the solution has been summarized with examples. Minimizing the cost and weight of products has been an area of interest for many industries. It is among these sectors in reinforced concrete and steel structures. Complex situations arise in reinforced concrete and steel structures design due to the nonlinear structure behavior and related design equations. In addition, the behavior of the designed sections under the effect of dynamic loads also creates complex situations. These problems are sizing optimization

Sigma J Eng Nat Sci, Vol. 42, No. 4, pp. 973−987, August, 2024

problems [21]. Previous optimization studies on reinforced concrete and steel structures are based on weight and cost [22–30]. Shaqfa and Orbán improved the position of the upper and lower flexural member, simultaneously minimizing cost, weight, and cost-weight [31]. Hayalioğlu and Değertekin presented a genetic algorithm for designing the optimum cost of nonlinear steel frames with semi-rigid connections subject to the displacement and stress restrictions of the American Institute of Steel Construction-Allowable Stress Design (AISC-ASD) regulation [23]. As a result of their studies, they stated that more economical optimum frames could be obtained by adjusting the stiffness of the connections in frame systems. Omkar et al. used Particle Swarm Optimization (PSO) to minimize the weight and total cost of the composite component to achieve a certain strength of composite components [32]. Barraza et al. used Genetic Algorithm (GA) and Particle Swarm Optimization (PSO) to minimize the structural weight of steel structures exposed to earthquake loads and to improve the structural performance of buildings [33]. As a result of their studies, they emphasized that they generally obtained better solutions with PSO in structural buildings compared to the GA approach. Another issue of sizing optimization is to maximize the cross-section against torsion and fracture [34–37]. Cho optimized the design of a composite cylindrical shell against buckling and fracture and stated that the optimized composite cylindrical shell exhibits significantly improved mechanical properties compared to the traditional design as result of the study [36]. Many optimization studies are also done in Excel−Solver [37–39]. Taki optimized the dimensions of the Z-hardened panel under compression load with Excel-solver to update Farrar’s work. As a result of the work, he developed design charts for Z-hardened panels and produced a design guide [40]. Msabawy and Mohammad used the Generalized Reduced Gradient (GRG) algorithm in the Solver Add-on tool in Microsoft Excel to perform first-order elastic structural analysis of semi-rigid steel portal frames [37]. Msabawy and Mohammad used the GRG algorithm to optimize cross-sectional areas in cold-formed steel frames [39]. As a result of their studies, they stated that it proved the reliability and validity of the GRG algorithm in terms of the ability to obtain optimum configurations of optimized sections. In addition to the sizing optimization problem in reinforced concrete and steel structures, there are modification studies of theoretical equations. Perelmuter and Yurchenko determined the optimum height and weight of the tower by changing various equations depending on the capacity of the wind-powered generator’s generated energy [30]. Based on the concepts of the Euler-Bernouli beam theory and fracture mechanics, Vosoughi reformulated the management equation using genetic algorithms (GA) and particle swarm optimization (PSO) techniques [41]. They showed the convergence, efficiency, and accuracy of the optimization method with the finite element method by solving different examples. Le et al. took into account the Adaptive Neuro-Fuzzy Inference System (ANFIS) using the

GA and PSO to assess the buckling damage of steel columns subjected to axially compressive load [42]. They concluded that the ANFIS-PSO method significantly outperformed the ANFIS-GA method with a correlation factor of 0.929. Jung et al. working to assess the tensile characteristics of high strength steel, used Artificial Neural Networks (ANN) and back-propagated linear regression [43]. They asserted that using a deep learning system produced predictions of yield strength, yield ratio, and tensile strength with high accuracy. Cuong-Le et al. introduced a PSO-optimized Support Vector Machine (SVM) to identify deterioration in truss and frame constructions [44]. Additionally, they contrasted the suggested approach with ANN, Deep Neural Networks (DNN), and Adaptive Neuro-Fuzzy Inference System (ANFIS). They concluded that the damage and the degree of damage for truss and frame structures were successfully identified using the proposed strategy, outperforming the other techniques. Das and Das have used Random Forest Regressor (RFR) to evaluate the fundamental natural frequencies of isotropic plate structures [45]. They have been considered as square, rectangular, thin, and thick plates whose materials have been selected as Structural Steel, Aernet 100, Al 7108, and Al 2024 for the isotropic plates. They claimed that the suggested strategy accurately predicts the fundamental natural frequency and is an adequate model for such a scenario. Özbayrak et al. conducted buckling load calculations using ANSYS on European I-section cantilever beams reinforced with transverse stiffener plates at various intervals [46]. They have created formulations employing multiple linear regression analysis and multigene genetic programming techniques to estimate the found load values more effectively. According to their statement, the lateral buckling stress according to the transverse stiffener plate spacing for European I-section cantilever steel beams can be calculated with formulations created using computer technology. In the construction literature, more studies use machine-learning models of steel I-beams and cantilever beams. Artificial intelligence has enabled the suggested formula to successfully forecast the residual lateral buckling capacity of steel I-beams, according to research on artificial neural networks [47]. In a different study, a deep learning classifier was used to determine the damage status of cantilever beams in an invasive-free manner with the maximum level of accuracy [48]. Artificial neural networks were used to assess the twisting performance of a steel I beam that was externally attached to sheets with polymer matrix reinforcement enhanced with various fibers to reduce the experimental work [49]. Additionally, the web-post buckling shear strength of cellular beams and the load-bearing capability of castellated steel beams were predicted using artificial neural network models [50,51]. Thanks to a database provided by a study that included 475 finite element models, the lateral torsional buckling strength was calculated using an artificial neural network and the multiple regression approach [52]. An adaptive neuro-fuzzy

Sigma J Eng Nat Sci, Vol. 42, No. 4, pp. 973−987, August, 2024

inference system was used to develop empirical equations for estimating natural frequencies from a finite element dataset [53]. Additionally, form optimization makes use of artificial intelligence. Using a genetic algorithm, the stiffness of cold-formed steel sections was increased [54]. Within the scope of the research, analytical calculations were compared with the results of numerical analysis. It has been observed that the calculations made with the LTBeam program are compatible with the analytical calculation results. Critical lateral buckling loads found from analytical equations and LTBeam program results are consistent in this regard. However, it has been determined that there are some differences between these and the FEA results depending on the profile cross-section and length. In the studies in the literature, it is stated that the analysis made according to the finite element method with the help of developing computer technology is more accurate than the calculations made with closed-form equations. First, using two different FEA programs, lateral buckling loads calculated in the ANSYS program were verified with the help of the SAP2000 program. Later, studies were carried out to harmonize the results from the equations given in Timoshenko, Gere, and other Regulations with FEA results (ANSYS). Using optimization techniques, the equation given by Timoshenko and Gere and formulations given in AISC and DCCPSS regulations were successfully updated.

buckling load was calculated and compared with five different methods. These are, respectively, elastic stability theory, regulation on design, calculation, and construction principles of steel structures (DCCPSS), LTBeam program, SAP2000, and ANSYS software (Figure 1). In the calculations, the material elasticity modulus was 210000 MPa, the shear modulus was 80769 MPa, and the Poisson ratio was

Materials And Methods

In the case of a single load acting on the shear centre at the free end of the IPE section cantilever beam, the lateral

Sigma J Eng Nat Sci, Vol. 42, No. 4, pp. 973−987, August, 2024

Calculation According to AISC and DCCPSS Regulations In the case of lateral torsion buckling boundaries, the positive contribution of the bending moment distribution along the length between the points supported by the lateral stability connection is taken into account by the coefficient given in Equation 3. The regulations stipulate that this coefficient in cantilever beams is taken as Cb = 1 with an approach on the safe side. However, since it was determined that this approach has a limited contribution, the expression given in Equation 3 was used within the scope of the research. (3) The critical stress value of I-cross section elements with double symmetry axes, whose web and flange parts are compact and under the effect of bending around their strong principal axes, are calculated with the expression given in Equation 4 according to the lateral-torsional buckling. (4) The effective radius of inertia used in the critical stress value formulation is as given in Equation 5. (5)

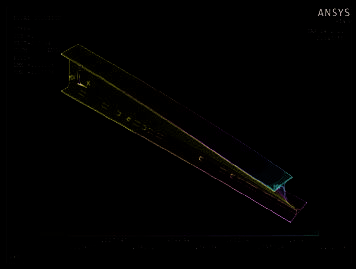

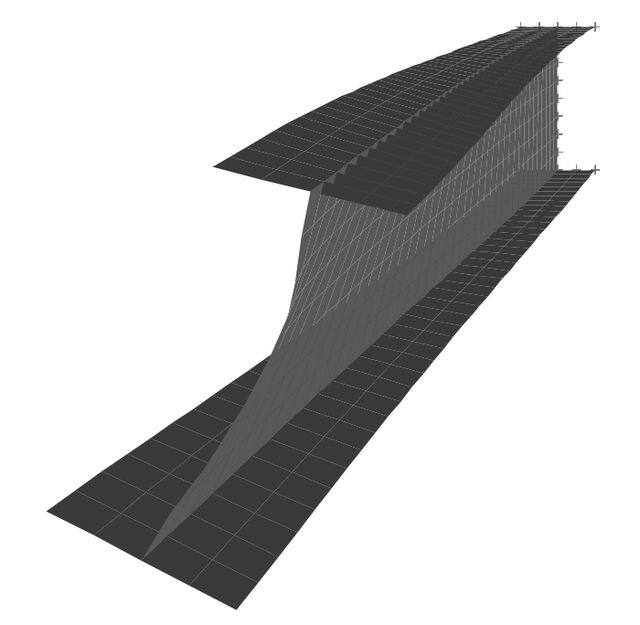

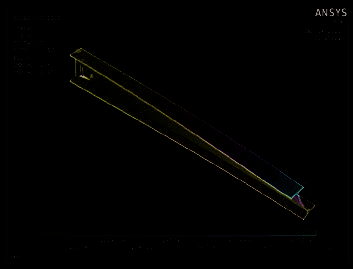

Accordingly, the critical value of the lateral-torsional buckling load of the I cross-section elements under the bending effect is calculated as given in Equation 6 in the regulations. (6) Calculation According to Finite Element Method Finite element models of beams were created with the help of ANSYS, SAP2000 and LTBeam software. Critical lateral buckling load analysis was performed with the help of the created models. Accordingly, three-dimensional solid modelling of cantilever beams was created in the analysis made with ANSYS software (Figure 2) The material type of the created models was defined as SOLID187. In the analysis made according to linear elastic material properties, cantilever beams were divided into finite elements with an average range of 2.5 ~ 5 cm. Fixed support was defined at the nodal point on one side of the beam endpoints, and a 1 N unit loading was made to the shear centre on the other free end. The analysis type was selected as Eigen Buckling and the value calculated as buckling load factor at the end of the analysis gave the buckling load. According to the analysis made by utilizing the SAP2000, the cantilever beam body and flange elements are defined using the Shell Element. (Figure 3). In the models, flange and web joints were combined at 90o angles. Cantilever beams with linear elastic material properties were divided into finite elements with an average range of 2.5 ~ 5 cm. Fixed support properties were assigned to the nodes on one side of the beam endpoints. The shear centre at the other free end was loaded with 1 N unit loading. P-Delta effects were taken into consideration by selecting the analysis type

Sigma J Eng Nat Sci, Vol. 42, No. 4, pp. 973−987, August, 2024

as Buckling. As a result of the analysis, the value obtained as the buckling load factor gives the buckling load value. LTBeam is free software developed by CTICM (Center Technique Industriel de la Construction Métallique) in France, used only for the calculation of critical moments [55]. Critical elastic lateral-torsional buckling loads can also be determined through one-dimensional finite element models, where beams are modeled according to their actual geometry using LTBeam software. (Figure 4). The program can perform buckling analysis of both simply supported beams and cantilever beams. Limited documentation on LTBeam made interpretation of results difficult. However, several reliable sources Access Steel (2005) and ECCS (2006) refer to LTBeam as a useful program [56,57]. Optimization With Microsoft Excel Solver Solver is the simplest and most understandable computer software used to find the optimal result. Solver is an add-in command available in Microsoft Excel. Although it is a command included in Excel, the user must enable this command. Solver is used to find the largest or smallest value of the target cell in a formula. Constraints can be developed to the values to be used in models to be developed with the Solver and these restrictions can be applied to cells [Excel - help]. Using the lateral buckling load values of the IPE profile obtained from ANSYS program with the help of Excel Solver; • The factor γ2 in Equation 1 given by Timoshenko and Gere was calibrated [6]. • Fixed coefficients in Equation 4 given in AISC and DCCPSS regulations were calibrated.

1. The Solver command is opened from the Data tab.

2. The target cell is determined by choosing one of values such as mean absolute error (MAE), root mean square error (RMSE), and mean absolute relative error (MARE).

3. The Largest is chosen if the target cell value is desired

to be as large as possible, and the Smallest is chosen if it is desired to be as small as possible. If certain value is desired to be obtained, the value option is selected, and its value is written in the box. Since the error rate was desired to be the least in the study, the smallest option and RMSE value were chosen.

4. A variable cell must be determined for each coefficient

in the equations to be calibrated. Each variable cell must have a direct or indirect relationship with the target cell. In the study, cells containing the values of coefficients a, b and c were selected as variable cells. Before starting the optimization process, a random number must be defined to the coefficients a, b and c.

5. Solver is based on Nonlinear Generalized Restricted

Gradient (GRG), Simple LP and expansion methods. The nonlinear Generalized Restricted Gradient (GRG) method was used in the study.

6. After clicking the Solve command, the equation was

solved by the data solver and the expansion coefficients that give the smallest error value were calculated. Error Criteria Error criteria were used to test the accuracy of the calibrated equations for the estimation of the lateral buckling load values of the IPE profiles. Commonly used error

Sigma J Eng Nat Sci, Vol. 42, No. 4, pp. 973−987, August, 2024

criteria in the literature are Mean Absolute Relative Error (MARE), mean absolute error (MAE), mean square error (MSE), root mean square error (RMSE), determination coefficient (R2) [58,59]. In this study, MARE, MAE, MSE, RMSE and R2 error criteria were used. The fact that MARE, MAE, MSE and RMSE values are closest to zero and R2 value is closest to one reflects the accuracy and power of the prediction. In addition, the Nash-Sutcliffe efficiency coefficient (NSE), proposed by Nash and Sutcliffe [60], has been used in many studies to measure estimation accuracy. The variance of the estimated data compared to the variance of the observed data is a normalized statistic that determines the relative size. NSE expresses to what extent the observed and predicted data converge [60]. MARE, MAE, MSE, RMSE and NSE values were calculated from the formulas given in Equation 7-11. (7)

Results And Discussion

Analytical and Numerical Findings The critical lateral buckling load of I-section cantilever beams was calculated using a total of five different methods. The calculated buckling loads were obtained by applying a single load to the centre of shear at the free end of the beam. Although there are differences when the profile section increases and cantilever length decreases, the buckling load values calculated using the closed form equations and LTBeam program are close to each other. On the other hand, when the profile section is reduced and the cantilever length is increased, differences occur in the FEA results. However, the buckling load values calculated with the help of FEA generally confirmed each other. As a result, the results of the first three methods and the last two methods given in Table 2 are quite different from each other. This can be clearly seen in Figure 5.

Table 2. Lateral buckling load values calculated with different methods Profile Type

Ansys

Sigma J Eng Nat Sci, Vol. 42, No. 4, pp. 973−987, August, 2024

Table 2. Lateral buckling load values calculated with different methods (continued) Profile Type

Ansys

IPE 100 IPE 120 IPE 140 IPE 160 IPE 180 IPE 200 IPE 220 IPE 240 IPE 270 IPE 300 IPE 330 IPE 360 IPE 400 IPE 450 IPE 500 IPE 550 IPE 600 IPE 100 IPE 120 IPE 140 IPE 160 IPE 180 IPE 200 IPE 220 IPE 240 IPE 270 IPE 300 IPE 330 IPE 360 IPE 400 IPE 450 IPE 500 IPE 550 IPE 600 IPE 100 IPE 120 IPE 140 IPE 160 IPE 180 IPE 200 IPE 220 IPE 240 IPE 270 IPE 300 IPE 330 IPE 360 IPE 400 IPE 450 IPE 500 IPE 550 IPE 600

Sigma J Eng Nat Sci, Vol. 42, No. 4, pp. 973−987, August, 2024

Table 2. Lateral buckling load values calculated with different methods (continued) Profile Type

Ansys

The existing analytical method formulations have been optimized according to the FEA analysis results obtained by utilizing the ANSYS program. There are two main reasons for choosing the buckling load values to be referenced in FEA calculations from the ANSYS program instead of SAP2000. Firstly, cantilever beams are modelled as Solid elements in the ANSYS program and as Shell elements in SAP2000. Secondly, in SAP2000, while the web and flanges are joined perpendicular to each other at an angle of 90o; The web and flange joints of the models in ANSYS are curvilinear and exactly the same as the real profile geometry. For these reasons, the ANSYS program was used for the buckling load values taken as a reference within the scope of the research. The comparisons of the buckling load values of the IPE series cantilever beams of five different lengths calculated by five different methods are as given in Figure 5. Optimization Technique Findings with Microsoft Excel Solver In the second stage of the study, the a and b coefficients in Equation 12 were calibrated with the help of Excel−Solver, keeping the relationship between the γ2 factor and the L2C/ C1 ratio. The analyses have been conducted on a computer with an AMD Ryzen 7 PRO 3700 8-Core 3.60 GHz processor and 8 GB RAM. In addition, the c, d and f coefficients in Equation 13 of AISC and DCCPSS Regulations were calibrated with the help of Excel−Solver. At this stage, two different calibration processes were carried out using two different equations. The graph of the relationship between the ratio L2C/C1 given in Table 1 and γ2 is given in Figure

6. As can be seen in Figure 6, there is an exponential relationship between the ratio L2C/C1 and γ2 as in Equation 12. Therefore, the coefficients of Equation 12 were optimized to determine the γ2 factor. In the advancing age of science, there are new methods for calculating lateral buckling load values as well as the Timoshenko and Gere [6] equation. The c, d and f coefficients of Equation 13 were calibrated by adhering to AISC and DCCPSS Regulations and using the lateral buckling load values obtained from the ANSYS program.

(13) c= 1, d= 0.078, f= 0.5 The coefficients of Equation 12 and Equation 13 were calibrated using Excel Solver so that the RMSE error criterion was the smallest. The coefficients of the calibrated equations are given in Table 3. As seen in Table 3, the new coefficients are different from each other. Comparison criteria for two different calibrated equations are given in Table 4. The approximate MSE values of the calibrated equations were obtained as 890, MARE values of 50 and

Sigma J Eng Nat Sci, Vol. 42, No. 4, pp. 973−987, August, 2024

Figure 5. Lateral buckling loads of cantilever beams of different lengths.

Sigma J Eng Nat Sci, Vol. 42, No. 4, pp. 973−987, August, 2024

Figure 7. Comparisons of the prediction and ANSYS values of the buckling load for Calibration Timoshenko and Gere equation MAE values of 24. NSE error value was used because of high MSE values. An NSE value greater than 0.9 indicates that the estimate is correct. The scatter plots in Figures 7-8 are quite good as there is no deviation from x=y (45°). In recent years, machine learning research in the construction industry have used a maximum of 3 performance criteria [47,49,50,52,53,61–65]. The equations created utilizing the six performance criteria have undergone a

thorough analysis in this study. Six performance parameters were used to objectively assess the Caliber models’ performance. The correlation coefficient R has been utilized as a performance criterion in machine learning studies in the field of construction the most frequently in recent years [49, 50, 52, 53, 63–67]. The R value for these studies in the literature was discovered to be somewhere in the range of 0.9, and

Sigma J Eng Nat Sci, Vol. 42, No. 4, pp. 973−987, August, 2024

Figure 8. Comparisons of the prediction and ANSYS values of the buckling load for Calibration AISC - DCCPSS

the correlation between the actual predicted value and the observed value was only somewhat stronger. Additionally, several researchers used the R2 criterion to assess the effectiveness of the models they created for machine learning investigations [47,50,53,61]. The R2 criteria was determined to be more than 0.9 in these investigations. This finding demonstrates that prediction and observation have a stronger link. The determination factor R2 criteria was utilized in this work instead of the R coefficient, which would have been misleading for assessing the performance of the models. Tables 4 show that the Caliber models’ findings meet the R2 criteria of larger than 0.9 and that there is a stronger connection between prediction and observation. The amount of time that passed while the suggested strategy was being used is another important finding. It took 0.173 seconds to optimize the coefficients. With the developing technology, the proposed approach for calculating the buckling load is not only accurate but also significantly faster. Thus, decreases the amount of computation necessary to carry out such an analysis. Excel−Solver has been used in optimization studies in the field of construction in recent years [36,38–40]. However, it was used for the first time in the field of construction in the optimization of the coefficients of an equation in this study.

Conclusion

Analytical solutions become very complex when the beam end conditions are a cantilever beam with a fixed

support as opposed to a simple support. Therefore, numerical approaches such as the finite element method are needed to solve the fundamental differential equilibrium equations. Despite having various types of smart automating, finite element types, and executed analyses, two identical models examined using the finite element method in two distinct verified software’s should have produced findings that are equal. Because the mesh cannot be adjusted, the usage of isoperimetric components on SAP2000 can only be used to make initial estimates for early phases of study. Finite elements with more nodes or integration points are not an option in SAP2000. ANSYS software, which is more suitable for research than design, has been preferred in finite element analysis due to the advantage of the selection and full control of different finite element meshes, where different behaviour rules of materials can be applied, and possible complex analysis applications. In today’s steel specifications, no distinction is made in the design and calculation methods of simply supported beams and cantilever beams under the buckling effect. However, the buckling zones on the steel beams change according to the end support conditions. Considering these situations in differential equilibrium equations creates quite complex problems in generating analytical solutions. Instead, existing analytical formulas were optimized for cantilever beams with reference to finite element analysis. Thanks to the results obtained, the buckling load calculation of cantilever beams can be successfully solved with the help of renewed closed form equations. This renewed

Sigma J Eng Nat Sci, Vol. 42, No. 4, pp. 973−987, August, 2024

formula can make very high accuracy predictions, which can be an alternative to finite element analysis. The proposed approach in optimizing the coefficients has taken only 0.173 seconds, it can be concluded that employing Excel-Solver reduces the computational cost that is required to conduct for buckling loads of IPE-Section. 85 numerical calculations were conducted to determine the buckling load of IPE cantilever beams with varied length. Therefore, only cantilever beams with the IPE section are compatible with the calibrated equation created using the Excel-Solver. Other I-section cantilever beams require a significantly wider variety of numerical analysis. In further studies, experimentally validate the proposed method and its results is recommended for buckling load calculations.
