3D printed stacked antenna for WLAN drone communication

Abstract

Keywords: Microstrip Antenna; Stacked Antenna; Wide Band; Drone Communication

Introduction

Unmanned aerial vehicles (UAV), also known as drones, initially designed and developed for military applications. However, in recent years, they have spread rapidly into areas such as search and rescue, monitoring, surveillance, emergency assistance, delivery of goods, and aerial photography and video [1, 2]. Since they cost less than other options, are

easily deployed and able to hover, they became a popular choice for communication relays or aerial base stations in emergencies and public safety communications [3−6]. The traditionally designed microstrip antennas mounted on small size UAV have limited bandwidth characteristics which make them unable to transmit other type of signals other than the visual signals simultaneously [7]. This draw

*Corresponding author. *E-mail address: aysu.belen@iste.edu.tr This paper was recommended for publication in revised form by Regional Editor N. Özlem Ünverdi Published by Yıldız Technical University Press, İstanbul, Turkey Copyright 2021, Yıldız Technical University. This is an open access article under the CC BY-NC license (http://creativecommons.org/licenses/by-nc/4.0/).

Sigma J Eng Nat Sci, Vol. 41, No. 3, pp. 656−664, June, 2023

back case frequent UAV crashes due to the limited information of ground-based pilot, whom requires other critical data such as location, altitude, direction, and flying speed alongside of visual signals in order to success a safe landing [8]. Thus, a viable antenna design solution not only must be low size, low weight, but also must have a wide operation band alongside of high gain performance. Naturally, this spread increased the need for wireless communication systems, which led to more researchers looking for new design models of antennas that cost less, have a low profile, light weighted, compact, and broadband or multi resonant frequency [9−11]. Although Microstrip Patch Antennas (MPA) have the mentioned advantages, which made them one of the widespread antenna models, they also have a significant handicap of narrow operation bands that prevent their use in many applications [12]. Many techniques such as capacitive compensation [13, 14], reactive matching networks [15], or thicker substrates [16] have been developed in order to expand the bandwidth performance of patch antennas. However, this make the design costs more, or its radiation efficiency decreases due to considerably distorted radiation. On the other hand, stacking, which is another method for bandwidth enhancement [17−25], allows us to achieve antenna designs with high gain and wideband by stacking a parasitic patch. Recently, as the 3D printing technology developed rapidly, these devices have become not only cheap and affordable but also a popular solution for prototyping fast and accurately with a low cost [26]. Nowadays they are being used particularly for prototyping of intricate microwave designs such as Reflectarray antennas [27−30], the realization of flexible antennas [31, 32], Multilayered Dielectric Loaded Antenna (DLA) [33, 34], Quasi-Yagi Antenna [35], MPA [36], and Horn Antennas for X band applications [37]. Herein, the design of a wideband Stacked Microstrip Patch Antenna (SMPA) suitable for WLAN drone applications and its low-cost realization using 3D printing are presented. The main design goals in this work are low weight, low size antenna design that is suitable to be mounted on a drone system with low cost manufacturing technique. This can only be achieved via multi-layer or multi stacked designs. However such designs usually are heavy and hard/ high cost to manufactured due to the material properties. In order to solve these challenging problems 3D printing technologies had been used. For this purpose, the antenna is simulated in CST Microwave Studio by a 3D electromagnetic based model. The geometrical design parameters of the proposed SMPA and their effects on the performance measures have been studied. After the antenna is designed with parameters that are selected optimally, it is prototyped utilizing 3D printing technology. The results obtained from the simulations of the design and the measurements of the prototype are compared. Furthermore a performance comparison study is done between the proposed design and related counterpart works in literature. It is observed from the comparison that in addition to the design achieving

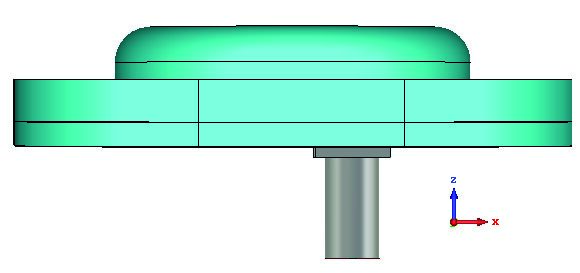

a better performance than its counterparts in literature in means of operation band, size, gain performances, the realization of the proposed design can also be achieved accurately with low cost prototyping method of 3D printer technology. Antenna Design In this section, an SMPA antenna design as shown in Figure 1 is presented. The proposed design consist of three layers a radiating element and two parasitic patches in the second and third layers that are separated via a dielectric material, respectively. PLA (Polylactic acid) material whose permittivity varies between 1.24 and 2.71 [38], and loss value varies between 0.002~0.008 [36] is taken as the base material for 3D printing. The optimal design parameters values (Table 1) are selected using grid search technique for the SMPA to operate at WLAN frequencies of 5.2-5.8 GHz. For a better understanding the effects of variables on performance characteristic of the antenna, Figure 2 and Table 2 are presented. In order to present the importance of optimization of determination of design variables, in Figure 2, and Table 2, some of the variables are taken as variant while other parameters are taken constant equal to the mentioned optimal values. As it can be seen from the results, each of the variables have a certain level of impact on both S11 and gain characteristics of the antenna design where the determination of optimal variables value is an important factor for having high performance antenna design. The simulated gain of the antenna design with the mentioned parameter values approaches to 9.3 dBi at 5.6 GHz. In the following section, the experimental results of the 3D printed SMPA are presented, and they are compared with its own simulation results as well as its counterpart design results.

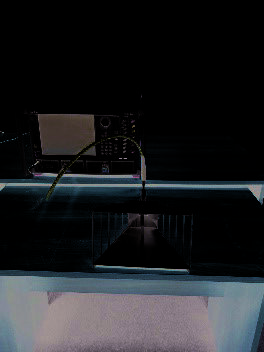

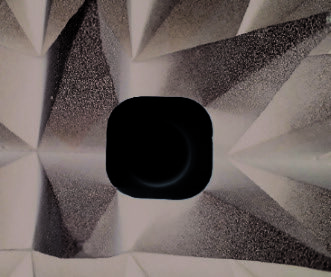

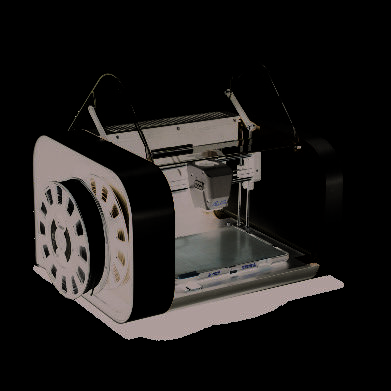

Experımental Results of 3D Printed Stacked Antenna In Figure 3, the 3D printed antenna is presented. RoboxDual by CEL is used for prototyping of 3D printed antenna [39], the weight of the antenna is measured as 40 gram. The measurements of the 3D printed SMPA are carried out utilizing R&S®ZVL vector network analyzer a Network Analyzer with a measurement range of 9 kHz-13.5 GHz, alongside two identical antennas, A-info, LB8180,

Sigma J Eng Nat Sci, Vol. 41, No. 3, pp. 656−664, June, 2023

0.8-18 GHz Broadband Horn Antenna [40−42]. The obtained simulated and experimental results are given in Figure 4. As it can be seen from the Figure 4, measured and simulated radiation patterns at 5.2 and 5.8 GHz are given alongside of |S11| characteristic at Figure 4 (c) from the figure, it can be observed that both simulated and measured responses are consistent. Furthermore, the performances of the proposed SMPA and its counterparts [24], [43−47] are compared in Table 3. As it can be seen from the table, the propose design achieves better operation bandwidth where the most of the counterparts achieves 200 MHz or 700 MHz operation bandwidth, the proposed antenna achieves 1 GHz band. Same can also be mentioned for the gain characteristics where, the designs with wide operation band achieves similar or better gain characteristics at the expanse of large antenna size. The only design that presents better bandwidth and size performance compared to the proposed design is [45], however it should be noted that the mentioned work is multi-layer design prototyped using high end materials of Rogers 4350B and Rogers 5800, where

the cost of manufacturing is considerable higher than the proposed cheap and ease to access PLA material.

Conclusion

In this work, design and realization of a 3D Printed Stacked Antenna for WLAN Drone Communication has been presented. The main goals of the work are being low size, low weight antenna design with high performance characteristics to be realized using low cost manufacturing technique of 3D printers. The proposed design has a measured gain of 7.5~8.3 dBi. Furthermore, the experimental results have been compared with both its simulation results and the performance results of counterpart designs in literature. Based on these comparisons, it can be concluded that the proposed 3D printed SMPA design achieves better performance results in means performance measures of gain, operation bandwidth, and size compared to counterpart designs, alongside having a low cost profile thanks to 3D printed technology. In feature works, it is aimed to use

Sigma J Eng Nat Sci, Vol. 41, No. 3, pp. 656−664, June, 2023

(e) Figure 2. Gain and |S11| response of the SMPA antenna with respect to variation of (a) ε1, (b) h2, (c) R3, (d) ε2, (e) R1.

Sigma J Eng Nat Sci, Vol. 41, No. 3, pp. 656−664, June, 2023

Value Gain/|S11|(dB) @ 5.2 GHz Gain/|S11|(dB) @ 5.8 GHz Value Gain/|S11|(dB) @ 5.2 GHz Gain/|S11|(dB) @ 5.8 GHz Value (mm) Gain/|S11|(dB) @ 5.2 GHz Gain/|S11|(dB) @ 5.8 GHz Value (mm) Gain/|S11|(dB) @ 5.2 GHz Gain/|S11|(dB) @ 5.8 GHz Value (mm) Gain/|S11|(dB) @ 5.2 GHz Gain/|S11|(dB) @ 5.8 GHz Value (mm) Gain/|S11|(dB) @ 5.2 GHz Gain/|S11|(dB) @ 5.8 GHz Value (mm) Gain/|S11|(dB) @ 5.2 GHz Gain/|S11|(dB) @ 5.8 GHz

Acknowledgements

Thanks to Microwave and Antenna Laboratories of Yildiz Technical University for measurement setup, İstanbul University-Cerrahpaşa for 3D printer and to Aktif Neser Elektronik for providing researcher licenses.

Data Availability Statement

The authors confirm that the data that supports the findings of this study are available within the article. Raw data that support the finding of this study are available from the corresponding author, upon reasonable request.

Conflict Of Interest

The author declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Ethics

There are no ethical issues with the publication of this manuscript.
