The impact of indoor common spaces layout design on providing social distancing in residential compl

Abstract

Keywords: Residential Building Design; Indoor Common Space; Design Methodology; Psychological; Communication; Social Distancing; Software Design

Introduction

planning, design context, problem-solution co-evolution, and apply reasoning strategies that impact software design efficiency. Nevertheless, many common areas have emerged due to this epidemic, and various public discussions are currently taking place. New characteristics for these areas can be found in studied and future urban planning. Nevertheless, new and valued qualities, crucial and vital to city life, can be taken on and observed by new ways sometimes believed and named ‘amenities,’ common and public areas. The purpose of this study was to analyze, based on a case study in Erbil, the influence of open-air spaces on social prevention in residential complexes after COVID 19. A deliberate land use plan and significant technological advancements in design recently supported multi-story apartment dwelling buildings. Several multi-story flats exceeding 12 floors have already been erected in the urban region and are constantly spreading because of the substantial overgrowth of these projects. The flats are classified as high-density, closeness, and sky-city and differ from other forms of housing, leading to a distinct architectural environment. Then, emphasis is placed on the vital features for the research of the apartment complex. s This study attempts to employ an expert investigation to identify residential typology architecture’s purpose and weighting variables. In the future, the results of this pilot study will aid in developing multi-story residential apartment complexes. To evaluate interpretation and comparison, five cases of multi-story residential apartments were chosen in Erbil City.

Social distancing, two new words in the world, are no longer unknown to social anthropologists. Over 50 years ago, Edward T. Hall proposed the phrase proxemics, which found that social conduct is determined by the link and gap between human corpses. In his book The Hidden Dimension, he defined four distance measurements [1]. 1. Intimate (less than 1.5 feet, shared by friends and families), 2. person, common among friends and families, (1.5 to 4 feet), 3. social (4 to 12 feet, shared amongst friends), and 4. community (12 to 25 feet and more, shared among the general public). The total physical distance between bodies determines these four measurements, and each distance provides a distinct physical observation among people. One of the presently actively suggested pollution control measures is social distancing. Social distancing minimizes the humanity rate and slows the disease spread by setting 2 m as the standard distance to decrease the connection between diseased and uninfected people [3]. Though, in indoor spaces, such as department stores, cafes, corridors, and other stores, limited spaces, it isn’t easy to maintain social distancing because the population density is relatively higher than in outdoor spaces. In addition, the epidemic of COVID19 requires fear and isolation from the worldwide population. Despite these difficult circumstances, however, there remain conditions of compassion and community. “Social distancing” has even kept our relationship in certain circumstances. The link between people and activities is one such relationship. A design method may now be characterized as a formal example of a design activity that acts as a mental instrument that helps designers to achieve an objective about the given circumstances and resources [3]. It means that techniques operate as information carriers, which allocate how their users receive, clarify, and adjust their behavior to implement specified designs. Therefore, a new design strategy to achieve social distance must be used to decrease covid-19 in this circumstance. COVID-19 underlined the uncertain character of public and community land in cities and municipal planning. On the one hand, the propagation of the virus seems to be a classical illustration of Hardin’s common disaster [4]. On the other hand, the pandemic spread was mainly caused by a community gathering in hallways, lobbies, entrances, courtyards, and other interior public areas, and, above important, daily consumption of ambient air. s However, during lockdowns, people seek out precisely the common and indoor public places. In [5], the design of the software is a complicated process of thinking, which plays a key role in decision making. Still, their grasp of how decisions are taken is restricted, particularly concerning design challenges and the development of design solutions. Therefore, this study has picked space syntax software for analysis to develop

Term’s Definitions Indoor common spaces According to the control effect [6] and social distancing in the common space of residents returning home [7]. Examples include the elevator lobby [8], stair corner [9], or some small extension platforms [10]. The indoor public spaces that are commonly found in multi-story residential buildings are divided into five categories in this research:

5. Elevators

Multi-story Apartment Building It is a housing unit in a multi-story building in a group housing project. Multi-story buildings have more than four floors depending on the layout plan. It is principal to a series of social problems containing the deterioration in the mental health of the residents [11], a compact sense of belonging [12] lacking supporting facilities ([13], and a lack of monitoring that leads to an improved crime rate [14; 15; 16].

Sigma J Eng Nat Sci, Vol. 41, No. 4, pp. 699−715, August, 2023

Typology Design Typology comes from the word ‘type,’ defined by the Cambridge International Dictionary of English as a specific group of things or people with similar separation types. It forms a minor division of a more extensive set’ [17]. In this sense, ‘type’ is connected to classification based on comparing characters or features. McHenry [18, as cited in 19], defines it as an arrangement of groups, the associates of which are recognised by assuming stated characteristics that are commonly special and together specific groupings set up to assistance demonstration or review by creating a limited connection among occurrences. A type may indicate one or several kinds of features and contain only those significant types for the difficult question’. This description distinguishes typology from classification by highlighting the former’s character as a system of the grouping of kinds to support the demonstration, or study, by establishing a limited connection between phenomena [20].

typology in multi-story apartment buildings. The study focused on metrics such as mobility, circulation, and connectivity that are linked to indoor common spaces and typology. To characterise the strategy from the features of the designs, a reductive approach to data interpretation was used. It also identified the most common indoor standard room, a single central walkway with lobby and hallway access. [26] attempted to determine the effect of spatial configuration parameters on the practical efficiency of apartment layouts. The research looked at the spatial organisation, architecture, social order, and privacy concerning indoor common spaces and typology. This study’s approach was statistical spatial analysis using space syntax tools. Among previous related studies about COVID-19 in multi-story apartment buildings, Galym Tokazhanov et al. (2020) tried to explain the following COVID-19 pandemic and evaluate the expected changes in sustainability requirements of residential buildings. The study focused on the indicators related to the multi-story apartment building and COVID19, such as indoor finishing material, health and safety, comfort, innovative technology, green and natural environment, design, and social wellbeing. The methodology in this study was based on a review of the literature. Also, [27] tried to explain the coronavirus pandemic and social distancing strategy for coronavirus prevention among the residents of buildings in Calabar, Nigeria. The study focused on the indicators related to the multi-story apartment building and COVID-19, such as good-quality materials, aesthetically pleasing environment, and social lifestyles. The methodology in this study was based on a survey and observation. [28] tried to observe the factors prompting social distancing over space planning and organisation and the spatial organisation and space configuration suitability. The study focused on the indicators related to the multi-story apartment building and COVID-19, such as spatial organisation, wayfinding, accessibility, and circulation. The methodology in this study was based on space syntax software.

Social Distancing It means ensuring space between people. For example, to prevent the spread of epidemiologic diseases like COVID19 and decrease the risk of pollution, people should stay at a minimum of six feet (1.8 meters) from others [21]. According to another definition, social distancing defines the general class of behaviours that decrease connections between people in a community in which people may catch but have not yet been recognised (and, as a result, are not isolated) [22].

Related Studies

First, [23] tried to find a way to make the inside public spaces of multi-story apartment buildings more conducive to social contact among residents. In China’s multi-story apartment buildings, the study’s statement of the issue, a sense of culture, is difficult to determine. Furthermore, most occupants in multi-story apartment buildings have few opportunities to socialise with their neighbours. Therefore, the study also discusses how different forms of inside public space in a multi-story apartment building can be used as both circulation and a connection between apartments. Inside public spaces in multi-story apartment buildings are divided into five categories in this study: ground-level open public spaces, entrance halls, stairs, corridors, and lifts. [24] aimed to demonstrate that typical indoor spaces are organised to have a divided social system. Different groups use the area in different ways, resulting in different conceptualisations. According to the authors, space has many fixed purposes and is built for particular purposes in many buildings. Communication, wayfinding, organisational structures, physical function, accessibility, and social interaction were examined as indicators of indoor shared spaces. [25] attempted to explain the means of access into various levels of the building and access through individual units on floors, based on previous similar research regarding

Statement of the Problem It is evident from the surveyed literature that many indicators influence the layout of common indoor spaces throughout buildings and that many construction tools are available. However, the relationship between multistory apartment residential building types and limiting the spread of COVID-19 has not been discussed in any study. • The noticeable potential significance of COVID-19 is a worldwide aversion to huge crowds. Concerts, cultural occasions, sporting occasions, ceremonials, mass gatherings, daily activities, and political complaints involve many people, commonly in common indoor spaces, such as ground-level open public areas, entrance halls, staircases, corridors, and lifts. These indoor spaces (inside the building) for crowds and activities will be applied to reducing the spread of COVID-19. Therefore, COVID-19 is one of the most critical factors

in the apartment. This question comes to mind: Which of the following factors has the optimum design plan type for reducing COVID-19 spread? Through the quarantine, people were said to practice social distancing and to stay home every time possible. However, the World Health Organization (WHO)’s examination of the spread of COVID-19 in the world showed that 78% to 85% of transmission happens inside families. One concern connected to this is disinfection when inhabitants reappearance from outdoor the home. Furthermore, the multi-story apartment residential building includes many different plan types that may provide an additional indoor common space in apartment buildings. Therefore, according to the situation observed above, the research problem can be expressed as a verification of the relationship between the architectural plan types of multi-story residential buildings and limiting the spread of COVID-19 in its common indoor spaces.

Research Aim and Objectives: This study aims to estimate how to decrease the spread of COVID-19 by the plan type on the common indoor spaces in the multi-story apartment buildings in Erbil City. To reach this purpose, the following objectives are stated: • To survey the strength and the direction of relationships between the indoor common spaces and indicators for controlling COVID-19 in residential buildings. • To define the optimal design layout type for restricting COVID-19 in multi-story residential buildings. • To recognise the optimal indicators within the indoor spaces of multi-story apartment residential buildings. • To provide specific layout design guidelines for common indoor spaces in multi-story apartment residential buildings. Research Questions There are FIVE research questions based on the objectives stated above:

1. In the visibility-graph analysis (VGA), which type has

the closest relationships between connectivity, integration, and visibility, as well as the highest assessment-mean value for each indicator?

4. What type of graph has the most incredible visibility

correlations between the first and second moments? 5. What is the difference between measuring indoor common-space indicator by questionnaire and measuring with space syntax? Hypothesis To guide the research, the following research hypothesis was expressed and tested in the study: Hypothesis(H1) There is an affirmative relationship between physical factors and the social distancing of common indoor spaces in an apartment building.

Sigma J Eng Nat Sci, Vol. 41, No. 4, pp. 699−715, August, 2023

Hypothesis(H2) There is an affirmative relationship between psychological factors and the social distancing of common indoor spaces in an apartment building. Hypothesis(H3) There is an affirmative relationship between communication factors and the social distancing of common indoor spaces in an apartment building. Hypothesis(H4) There is an affirmative relationship between environmental factors and the social distancing of common indoor spaces in an apartment building.

Materials And Methods

The analysis used mixed methodologies, integrating quantitative and qualitative approaches, to increase the accuracy of the research results. The theoretical framework is chosen using the qualitative approach. Meanwhile, the quantitative method is used for testing the research objectives, hypothesis, and research questions. In general, the research methodology is managed through six stages listed below: 1. In the first stage, to describe a theoretical model, previous related studies were reviewed. As a result, the research model developed consists of four independent variables of indoor common space factors: physical, psychological, communicational, and environmental factors, and one dependent variable, which is social distancing.

2. The second stage included a pilot study conducted with

residents of an apartment using a quantitative questionnaire survey to evaluate the theoretical model.

3. In the third stage, a qualitative case study selected

using a phenomenological methodology that involves findings, field notes, and documentation

4. In the fourth stage, a quantitative survey method is

conducted over a case study by adopting the quantitative questionnaire to answer the research questions and research hypotheses. 5. In the fifth stage, syntactic analysis of the spatial organisation of the research case study is used to support the result of the fourth stage.

6. In the sixth stage, SPSS software is used to evaluate the

questionnaire results and find a correlation between space syntax and quantitative questionnaire results. Theoretical Framework Based on the investigation of the previous related studies, this study develops to express the theoretical research model, as presented in figure1. Therefore, the pilot study was accepted to test the academic research model. Pilot study A pilot study is showed to test the theoretical model of this study to form the social distancing of residential spaces from independent variables of common indoor areas, which includes;(physical factors, psychological factors, communication factors, environmental factors), and defining the social distancing concept as the dependent variable.

Sigma J Eng Nat Sci, Vol. 41, No. 4, pp. 699−715, August, 2023

This pilot study aims to estimate indoor common spaces’ impact on the social distancing of indoor residential areas. First, a quantitative questionnaire survey had been arranged by using simple and clear statements. Then, the questionnaire was distributed randomly on the 22nd of October 2020 to the inhabitant living in different apartment places in Erbil city. About 170 questionnaires out of 150 were returned, the data were analysed using the statistical package for the social sciences; SPSS software. In observation, correlation analysis (person product-moment correlation coefficient test) is used to discover the correlations between the factors and define the linear relationship’s strength and direction. Moreover, multiple regression analysis was conducted to express an equation that denotes the best prediction of the social distancing of residential spaces from several independent factors of common indoor spaces. The correlation coefficient showed a positive relationship between the three indoor common space factors included (physical factor, psychological factors, and communication factor) and the social distancing of the apartment inside spaces. Furthermore, multiple regressions showed that the apartment indoor common spaces factors clarified 63.7% of the difference toward the social distancing of the apartment inside spaces. Therefore, the study concluded that physical, psychological, and communication were the significant

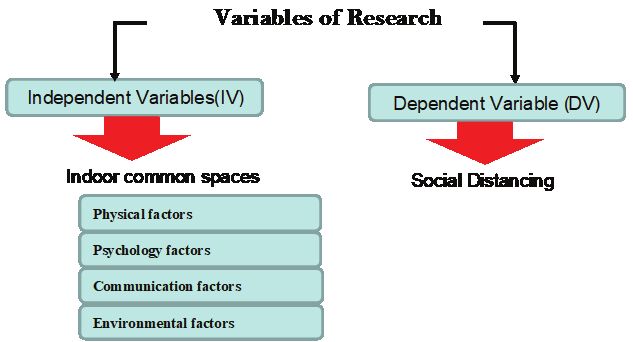

Figure 1. Theoretical Model of common indoor spaces (IV) vs social distancing (DV). factors that directly impacted the social distancing of inside areas, as shown in Figure 1. A model of four independent variables (physical, psychological, communication, and environmental factors) assesses common indoor spaces and a dependent factor to show social distancing in residential areas in this study. Table 1 describes the theoretical design model, including four independent and dependent variables for developing the questionnaire. First, the factor measurements are based on a review of the available literature, as shown in Figure 1. Then, the specifics of factor measurements are discussed.

1. Point: includes the plans that have one central vertical

circulation, near which all the entrances to the apartments are located 2. single-loaded corridor (gallery): involves plans connected to a long corridor with one or more central vertical circulation, on one side of which all the apartments are located.

3. The double-loaded corridor contains plans with one

or more essential vertical circulation connected with a long passage where all apartments are positioned on both sides.

4. Large-scale developments (segment): contains the

plans with one or more essential vertical circulation. The parallel outlines are repeated two or more times. Still, those parts are connected to create the building’s final design.

5. Mixed: one or more of the types above were in the same

building (corridor with a segment and so on). Five case studies of multi-story apartment residential buildings (apartments) in Erbil City were selected as a study (Table 2) for review and comparison, with one case representing each of the styles listed above[37].

3. The results from the correlation between the quantitative questionnaire results and quantitative, syntactic spatial analysis.

2. The results obtained through the spatial analysis of the

Results Obtained From Questionnaire Survey Analysis The statistical findings will be divided into three categories as follows. The below is a descriptive analysis of the IV and DV factors The descriptive study will investigate whether there is a connection between respondents’ behaviours and their observations of indoor common-space variables. As a result, the statistical evaluations below were carried out, with the maximum mean of the variables exceeding 3.70 and a standard deviation of 1.09 for responsiveness to communication factors require variables (SD). The minimum range of the mean for environmental factors was 3.16 and 1.11 standard deviations. As a result, psychological and physical characteristics are close to zero, with 3.60 and 3.47 SD and 1.00 and 0.93 SD, respectively. Table 3 shows that social distancing was 3.56, with a standard deviation of 0.90. Correlation statistics between IV factors and the DV factor Correlating analysis is used to assess the relationships between indoor common-space factors (physical, psychological, communication, and environmental) and social distancing to explain and test the hypothesis of a meaningful correlation between dependent and independent variables. In addition to defining the strength of the linear relationship between variables, correlation analysis (the Pearson product-moment correlation coefficient test) was used to discover the correlations between the variables. Each independent variable has a dependent variable associated

Point

Table 3. Result (Mean, Standard deviation, and %Agree) of factors Factors

Sigma J Eng Nat Sci, Vol. 41, No. 4, pp. 699−715, August, 2023

Table 4. Summary of Correlation Analyses between Dependent and Independent factors Hypothesis

1. There is a POSITIVE (affirmative) relationship between physical factors and the

social distancing of common indoor spaces in an apartment building.

2. There is a POSITIVE (affirmative) relationship between psychological factors and

the social distancing of common indoor spaces in an apartment building.

3. There is a POSITIVE (affirmative) relationship between communication factors

and the social distancing of common indoor spaces in an apartment building.

4. There is a POSITIVE (affirmative) relationship between environmental factors and

the social distancing of common indoor spaces in an apartment building.

with it. Coefficients of correlation will vary between -1.00 to +1.00. A perfect negative correlation is represented by a value of -1.00, whereas a perfect positive correlation is represented by +1.00. A value of 0.00 indicates that there is no correlation [30]. From 0.05 to 0.01, the correlation procedure was applied to a two-tailed statistical significance test. The data in Table 4 is a summary of the findings of this study’s correlation analysis. This study aims to determine a meaningful relationship between the independent variables (common indoor spaces) and the dependent variable (social distancing), resulting in the hypothesis. Table 4 shows the correlation analyses; more than half of indoor common-space factors (physical, psychological, and communication) positively (significantly) correlate to social distancing; however, environmental factors have a weak (insignificant) relationship with the study’s primary dependent variable. Multiple regression analysis between IV factors and the DV factor Multiple regressions are used to assess the association between independent variables (indoor common-space factors) and a dependent variable in this study (social distancing). Thus, the best estimate in the social distancing of apartment buildings from independent variables in common indoor spaces would be represented by an equation. The recommended model was determined by the joined result of the independent variables, namely (1) physical factors, (2) psychological factors, (3) communication factors, (4) environmental factors, and (5) social distancing. As a result, the model is expressed as follows: Social Distancing = β + β1 + β2 + β3 + β4 Where social distancing = the social distancing dimensions β = constant of beta value β1= Beta value of physical factors β2= Beta value of psychological factors β3= Beta value of communication factors β4= Beta value of environmental factors The multi-regression of the model is brief in Table 6, whereas the R2 for this model is 0.661, demonstrating that

the indoor common-space factors explain 66.1% of the variation of social distancing. Overall, the physical (β=0.443, p=0.000), psychological (β =0.346, p=0.000), and communication factors (β=0.270 p=0.030) have significant, positive relationships with social distancing. The result expresses that the physical factor is most significant because each change in these factors is correlated with a 0.472-change in social distancing. Environmental factors (β =0.006, p=0.901) have a non-significant relationship with social distancing.

Table 5. Summary of Multiple Regressions Analysis of IV variables Model

R2=0.661 a. Dependent Variable: F5(Social distancing) b. (Constant),F1,F2,F3,F4 *Significant at the level 0.01 (Sig ≤0.05), n=50 **High significance at the level 0.01 (Sig ≤0.01), n=50

The beta values denote the exclusive effect of each factor in the equation, resulting in the model’s final equation, which is as follows Social Distancing = 0.637 + 0.586 physical factors + 0.354 psychological factor + 0.270 communication factor + + 0.008 environmental factor. Results Obtained From Space Syntax Analysis Whether or not they have replied to research questions would be determined by the findings and data presented in the previous parts. As previously mentioned, space-syntax analysis was used to measure the typical floor plans of five chosen apartments in Erbil using depth-map software to search details and results. In addition, the questionnaire

Sigma J Eng Nat Sci, Vol. 41, No. 4, pp. 699−715, August, 2023

produced additional information and outcomes for people who live in apartments. Connectivity, integration, and visibility were the key variables and indices used in both analyses. The below summarises the findings from both studies to see how they helped provide compelling answers to the study questions.

connectivity are equivalent, visibility is high; otherwise, visibility is low. This catalogue is linked to the order of partsto-whole relations and signifies the reliability of centrality and preference by the same symbol. It is relevant for understanding some of the methods and ideas pertinent to the calculation and measurement process used in interpreting and evaluating the effects of the measures of space syntax analysis mentioned above. About the indicators of space syntax analysis, it is suitable to explain some of the tools and concepts related to the calculation and measurement method used to analyse and discuss the results. These concepts and tools can be mentioned as:

2. Visual mean Depth between two spaces is definite as

‘‘the least number of syntactic steps in a graph that are required to touch one from the other” A spatial attribute for key research parameters was also determined to measure indicators space syntax attribute of three parameters. The physical factor is measured through connectivity and visual integration, and the visibility attributes; the integration attribute calculates the psychological factor. Finally, communication is measured by the mean depth and visual integration attribute. To measure the indicators for flexibility is connectivity, density is integration, and accessibility is a visual mean depth, as shown in Table 6.

Assessment of indicators Integration, connectivity, and visibility were the three space syntax indices used in this study. The following are the definitions of these indices. Integration This is the space significance guide. The index of spatial accessibility is another name for it [31]. If the rate of space is high, it is placed in the centre of the grouping. If the system’s mean value is high, the system is closely associated and interconnected, and therefore the system’s accessibility is high [32]. Integration is a definite characteristic that specifies the points (spaces) in a system are combined or separated; the degrees mean the moves in the strategy are the most integrated. Red, orange, yellow, and green represent the most integrated (accessible spaces), while blue and dark blue represent the least integrated (inaccessible spaces) (less accessible spaces). The significance of spatial integration, also known as visual integration, is essential for predicting movement and connection [33]. It is the standard depth of the space compared to other areas within the system, and it serves as an international standard. Another measure that aids in understanding the integration is spatial depth. Connectivity The term “connectivity” refers to the number of links that connect one space to another. A space with no connectivity is a self-contained space. An area with a variety of connectivity is connected to a lot of the other regions. If the mean accessibility of all places in a building is high, there are more relationships among spaces, passages, roads, loops, and more moving routes [31]. Visibility Visibility/ readability or intelligibility is the connection between connectivity and integration value. When associated spaces are also integrated spaces, there is a clear and visible spatial relationship. In this case, the device processes that make up the system are visible or readable [31]. Visibility is the association coefficient between integration and connectivity. If spaces with high integration and high

Responses to research questions The first research question In the visibility-graph analysis (VGA), which type has the closest relationships between connectivity, integration, and visibility, as well as the highest assessment-mean value for each indicator? Based on assessments and responses from apartment residents, the single-loaded corridor (gallery) type had the highest mean connectivity value of 4.25. In contrast, the point type had the lowest mean value of 2.62. According to the connectivity values obtained from the space syntax study, the single-loaded corridor (gallery) had the highest value, while mixed-loaded corridors had the lowest (see Figure 3). The single-loaded corridor (gallery) had the maximum integration value, with 117, according to the integration mean values dependent on space syntax analysis., and the lowest in the large-scale development (segment), with 5.38 (see Figure 4). The double-loaded

Table 6. Summary of research factors indicators and space syntax attribute Indoor common spaces factors

Sigma J Eng Nat Sci, Vol. 41, No. 4, pp. 699−715, August, 2023

Figure 2. A typical floor plan of the chosen cases, showing the corridors and vertical circulation (stair cases and elevator).

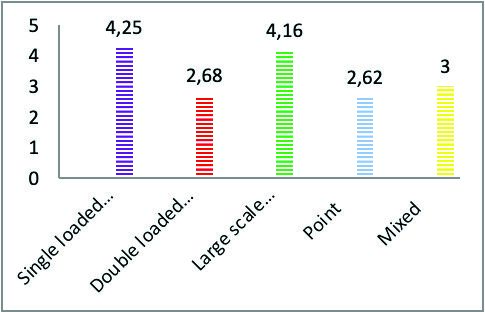

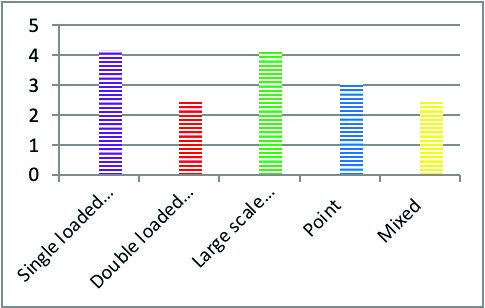

corridor and mixed have the same mean value for the connectivity factor (2.5). The highest integration value was 117 in the single-loaded corridor (gallery), and the lowest was 5.38 in the large-scale development (segment) according to space syntax analysis (see Figure 5&6). The findings showed up in both analyses for the connectivity factor. That of the five types, the single-loaded corridor (gallery) had the highest values. The connectivity attribute in this study is used to measure the flexibility parameters of physical factors in indoor apartment spaces. Accordingly, the highest value of connectivity represented the more flexible spaces than the spaces with a lower degree of connectivity. Consequently, and the numerical comparison results showed that the connectivity results value among the cases study. At the same time, the single-loaded corridor type of layout design has a more flexible design than the other types. Additionally, a large-scale development type layout design can be

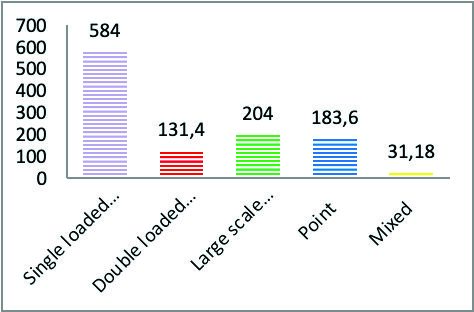

considered the second flexible design among the cases 204 value. The visual integration attribute measures the density in psychological parameters in the apartment corridor area. The highest degree of integration is considered the higher degree of density, while the lowest integration value is supposed the segregated space with a lower degree of density. In contrast, the lowest visual integration result is represented to the kind of large-scale development with

Conclusions

In our view, the lifestyle of individuals is the foremost factor that affects the search for new typological buildings and the development of a different urban residential climate. It is an individual- and family-conduct scheme. People’s lives are continually changing below the impact of political, conceptual, economic, technical, physical, environmental, psychological, and other variables. Therefore, designers, urban planners, and other specialists who create a comfortable and suitable urban residential setting must carefully research the improvements and respond to changes in time [34]. This study realizes the positive relationship between indoor common-space and social distancing in residential spaces in Erbil’s multi-story apartment buildings. A theoretical framework, including four factors (physical, psychological, communication, and environmental), has been created with the help of previous studies. The Pearson product-moment-coefficient-correlation results show a significant positive relationship between the acceptance of the physical factor and social distancing in indoor apartments, with a correlation coefficient of r=0.75 at p0.00; similarly, psychological and communication factors show significant positive relationship factors have value-correlation coefficients of r=0.612 at p=0.00 and r=0.625 at p<0.00 in sequence, but environmental factors have a weak relationship with the study’s main dependent factor (social distancing). Otherwise, the multiple-regression results show that the indoor common-space factors clarified 66.1% of the variation toward the social distancing, and show that the physical (β= 0.586, p=0.000), psychological (β= 0.354, p= 0.000), and communication factors (β= 0.270, p= 0.030) have meaningful positive relationships through social distancing. In contrast, the environmental factor (β= 0.008, p=0.901) has a non-significant association. The findings clearly show that physical and psychological influences significantly affect social distancing in residential indoor spaces. Communication and the environment are the following most essential considerations,

but only by a slight amount. These findings are focused on the multi-regression analysis statistical equation. Typical floor plan design in management circulation systems (elevators and staircases), density, accessibility, wayfinding, width area, and flexibility inside a building is a complex and challenging process critical in architectural design. For this purpose, apartment buildings based on functional circulation systems and typologies play a crucial role in enabling residents to lead everyday lives while maintaining social distance. The current thesis focused on Erbil’s multi-story apartment complexes’ spatial configuration, analysing five different multi-story apartment floor plans using space-syntax analysis and survey results. Findings from both analyses and evaluations (space syntax and questionnaire surveys) helped supply effective responses to the study’s research questions. Due to the achievement of high values in most indicators assumed for calculation and comparison in the study, the single-loaded corridor-type (gallery) plan was preferred over others in the studies (double-loaded corridor, segment, point, and mixed plans). The following results were acquired based on the space-syntax analysis. The single-loaded-corridor-type (gallery) plan is more integrated, readable, and visible than other types based on the visibility graph because of the high integration mean value. This increased integration value is due to the lower depth value recorded for this type compared to other types. Integration is the value used to explain movement on the circulation line. Its high value causes the plan to be more noticeable, perceptible, and readable by considering the depth and evolution of the areas within the system. This type is also the most connected type-based visibility map in terms of connectivity. For the selected locations, vertical circulations, main entrances, and lobbies, the mixed-type qualities and segment type have the best scores regarding the area of views provided (high visibility). The main entrance’s visibility in mixed and segment types improves the system’s readability. By separating

Sigma J Eng Nat Sci, Vol. 41, No. 4, pp. 699−715, August, 2023

the integration and reducing the system’s interaction, the system’s movement is reduced, making it less readable and interpreted. In specific ways, the more visible type is regarded positively. The findings of the single-loaded corridor plan, especially those obtained from the visibility graph, are similar to the previous analysis from this viewpoint [35]. “Axial representation has a greater degree of space reduction than the visibility graph,” according to [36]. The visibility-graph method provides a better example of architectural space because it represents the world more reliably. In addition, it reflects visual information provided to observers from any location that is accessible and free of restriction, making it more detailed than axial lines. Based on spatial analyses relevant to human and building architectural architecture, researchers have discovered a connection between the different organisations of common indoor spaces and the potential ease of providing post-COVID-19 social distancing. To analyse the existing building’s spatial organisation. A study method based on the space-syntax technique is widely used. It is possible to evaluate this approach when planning modern construction plans before designing and applying the building. As a result, it provides an opportunity to examine factors that must be considered in building projects in general and apartment buildings in particular. The survey results suggest that what was derived from the space syntax is very similar, if not identical, in many ways. Furthermore, the satisfaction levels obtained from the survey for all measurement indicators (integration, connectivity, and visibility) confirm the single-loaded corridor’s advantage in the rest of the plans. Finally, because of their thought and mathematical data, the results of both analyses (space-syntax analysis and resident responses) in this research offer a basis for creating multi-story apartment building designs, mainly post COVID-19. As a result, the new thesis effectively acts in a gap in the previous literature.

Ethics

There are no ethical issues with the publication of this manuscript.
