Analytical methodology for the design of load-bearing anisotropic panels for the wingbox of a light

Abstract

Keywords: Geometrically Non-Linear Behavior; Anisotropic Material; Rectangular Panels; Longitudinal Compression

Introduction

The use of composite materials in light aircraft reduces their structural weight. In works [1-2], it is rightly noted that the potential of composite panels in thin-walled structures prone to buckling is not fully utilized due to the lack of regulatory documents in the aerospace industry. This paper considers the anisotropic upper panels of a forward-swept wing of low- and medium-payload-capacity aircraft, exposed mainly to compressive loads. The panel’s structural weight can be reduced by the use of rigid boundary conditions. Primarily, this is due to an

increase in critical buckling stresses compared to the case of a hinged support. This is also true when designing panels for a postbuckling state using the methodology proposed in [3-4]. For this reason, in the current work, we consider problems associated with the design of rectangular anisotropic panels with the rigid boundary conditions applied along the long sides, and exposed to longitudinal compression at a postbuckling state. We also assume that the considered anisotropic panels are a part of the wingbox of the forward-swept wing, and for them, the loss of stability is acceptable under loads above the operational level.

*Corresponding author. *E-mail address: m.shkurin@mai.ru This paper was recommended for publication in revised form by Editor-in-Chief Ahmet Selim Dalkilic Published by Yıldız Technical University Press, İstanbul, Turkey Copyright 2021, Yıldız Technical University. This is an open access article under the CC BY-NC license (http://creativecommons.org/licenses/by-nc/4.0/).

Sigma J Eng Nat Sci, Vol. 42, No. 6, pp. 1756−1762, December, 2024

The purpose of this work was to develop a methodology for determining the minimum thickness of anisotropic panels in a postbuckling state exposed to the design compressive loads. This methodology is based on an analytical solution to a geometrically nonlinear problem. The methodology allows for numerical implementation and is applicable in the early design stages. Let’s consider publications devoted to the design of composite panels. The article by Ni X., Prusty G., and Hellier A. [5] provides an extensive overview of the research related to the strength, stability, and bearing capacity of anisotropic panels, published from 2000 up to 2012. We also note the work of Gavva, L., and Firsanov, V. [6] which provides an overview of analytical methods and experimental approaches to the study of the stress-strain state of structurally anisotropic aircraft panels made of composite materials. Separately, we would like to mention the monograph by Falzon B. G., Aliabadi M. H. [7] which presents the results of experimental, analytical, and numerical studies of composite panels when considering problems of stability and postbuckling state. The work by Qiao P. et al. [8] provides analytical solutions to stability problems for composite panels under biaxial loading for almost all possible types of boundary conditions. In other works, Qiao P. [9] and Qiao P. et al. [10] considered interesting studies on the identification of damage in composite panels. We also note the publications of Aliabadi M.H. et al. [11] and Aliabadi M.H. et al. [12] which present a new method for classifying and quantifying impacts for composite plates and the structure of a monitoring system (SHM) using neural networks (BNN). Of undoubted interest are the publications by Tsai S.W. [13] and Kappel E. [14] which proposed the use of composite panels with the stacking family [±φ, ±ψ]. It is noted that the proposed stacking has advantages over traditional stacking when used in elements of aerospace composite structures. We also note some analytical results obtained when considering geometrically nonlinear problems under shear [15–16]. From the above literature review, it follows that the design of composite panels is a complex and relevant problem, and the panel design for postbuckling remains insufficiently studied. Returning to the objective of this work, we note that the implementation of rigid boundary conditions in analytical studies is an important task but leads to more cumbersome relations compared to the case of a hinged support.

Materials And Methods

Basic Relations for Geometrically Nonlinear Anisotropic Panels Below, we write down the initial relations for geometrically nonlinear anisotropic panels under compression. The condition of strain compatibility is as follows [17]:

where Ф is the Airy stress function Erie, Lm are the following operators:

Ex, Ey, Gxy, µxy are the average characteristics of composite structure; ηх, xy, ηy,xy, ηxy,х, ηxy,y are the anisotropic structure influence coefficients [17]. The geometrically nonlinear equilibrium equation [17] has the following form: (2) where

Dmn (mn=11, 12, 22, 16, 26, 66) is the bending stiffnesses of a smooth anisotropic rectangular panel [17]. For the subsequent analytical solution of geometrically nonlinear problem by the Bubnov-Galerkin method, we will use the following equation: (3) where Wk is the deflection function Methodology for Designing Anisotropic Panels for PostBuckling State Under Strength Constraints Let us consider a composite rectangular anisotropic panel under longitudinal compression (Figure 1). To approximate the deflection, considering the rigid support along the long sides, we use the following function: (4) where f is the deflection amplitude, a is the tangent of wave inclination during buckling, s is the distance between nodal lines when buckling occurs.

Sigma J Eng Nat Sci, Vol. 42, No. 6, pp. 1756−1762, December, 2024

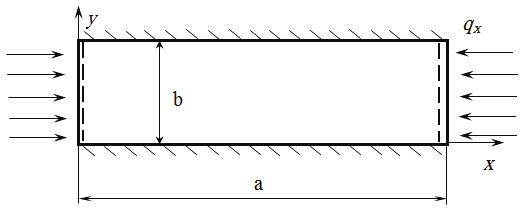

Figure 1. A rectangular anisotropic panel under longitudinal compression. Note that in [16], the deflection type (4) was used in the analytical analysis of the postbuckling behavior of an anisotropic composite panel under shear. Now let’s use equation (4) to model the postbuckling behavior of anisotropic composite panels under compression and develop a design methodology for the postbuckling state. After substituting the deflection (4) into the strain compatibility equation (1), we can obtain an expression whose solution will be the following stress function:

When considering particular solutions of the homogeneous equation with L1(Ф), we can determine the coefficients that account for anisotropic structure:

Note also that the membrane stresses on the middle surface of an anisotropic plate are determined from the definition of the Airy function F (5):

After substituting expressions (1) and (5) into equation (4) and some cumbersome transformations, one can obtain the following non-linear relationship for the deflection amplitude (f≠0):

(10) and, in particular, for the considered type of the boundary conditions and deflection (1) at рх≠0, ру≠0, рху≠0, we can obtain

Sigma J Eng Nat Sci, Vol. 42, No. 6, pp. 1756−1762, December, 2024

(m.n=11, 12, 22, 16, 26, 66); are the loads acting on the panel

In the general case, the equations for estimating the stresses in the i-layer [18-19] are as follows:

Taking into account that the longitudinal compressive stresses act on the panel Considering the longitudinal compression case (рх≠0, , in ру=0, рху=0) and introducing the designation the case of small deflections at f→0 (from equation (11)), we can use the system of equations (12) to determine the critical parameters of wave formation and obtain the following expressions: (13)

(14) Note that the obtained expressions (13) and (14) can be reduced to a numerical solution for the critical values of parameters γ and α at buckling. The parameters γ and α do not depend on the panel thickness but are determined by the anisotropic panel structure. Thus, to design load-bearing anisotropic panels with minimum thicknesses for the given flow qx, panel dimensions, and stacking, the following methodology can be used. First, using equations (13) and (14), numerically determine the critical parameters of wave formation. Second, calcuof the anisotropic structure. late the ultimate stresses , Third, using the limiting normal stress condition solve equations (6) and (7) for the deflection amplitude f. Fourth, determine the potentially critical points of function , at which stresses can reach their absolute maximum values. Now, we will present in more detail the procedure for calculating the ultimate strength stresses for the case of an anisotropic structure. We use the strength criteria for a monolayer of a composite package in the following form:

Sigma J Eng Nat Sci, Vol. 42, No. 6, pp. 1756−1762, December, 2024

Let us consider an example of the application of the above methodology to designing anisotropic panels for a postbuckling state and exposed to longitudinal compression. Note that the resulting expression (17) corresponds to the general case of combined loading when using Tsai’s strength criterion. Further, as an example, we will consider anisotropic panels with 0°/+45° reinforcement under loading mainly by longitudinal compressive and shear flows using other strength criteria. In the early stages of designing aircraft panels under static strength conditions, for a monolayer, the 1st strength is typically used. Therefore, we use exprestheory sion (17) for determining the thickness and the corresponding coefficients in the form (19) Let us carry out some transformations. First, we express the deflection amplitude f2 from the nonlinear equation (11) and substitute it into the equations for the total stresses (6), which we then substitute into the expressions for the stresses in the monolayer (16). Next, we substitute the result of the previous action into criterion (15) and obtain the following equation for the panel thickness:

In practice, for aircraft anisotropic composite panels, the stacking of monolayers with the reinforcement of 0°/+45°/90° is used. In this case, the optimal design technique is reduced to considering three equations of the type (17) for the specified reinforcement angles. The differences between these equations will be due to coefficients and . As a result, the maximum value should be chosen from the three resulting values of the total thicknesses. The critical parameters of wave formation during buckling are generally determined numerically using relations (13)-(14) We also note that the final equation (17) includes the terms, whose values determine the maximum stresses in the monolayers. For the considered deflection W(x, y) (4) and the stress function (5), the maximum values in the general case should be determined numerically. Taking into account the structure of the stress function to first approximation, to determine the potentially critical points, we can take

Thus, it is necessary to solve equations (18) for δ (0) and δ (+45), and choose the maximum value of the thickness. Note that under uniaxial compression, the most likely cause of failure is the achievement of ultimate stresses in the layer with longitudinal reinforcement.

Results And Discussion

In the general case, it is possible to determine the thickness of an isotropic panel of a given width, exposed to a given linear load (to a flow q=P/b, where b is the width of the panel), for the conditions of strength and stability and ensuring strength at a postbuckling state. That is, in the simplest case, when using the strength criterion, we have: , where are the failure stresses. To design a panel for stability and the desired thickness, one can use the , where k is the boundary condidependence tion factor and E is the modulus of elasticity of the material. In the most complex case of a panel designed for strength

Sigma J Eng Nat Sci, Vol. 42, No. 6, pp. 1756−1762, December, 2024

a methodology for determining the optimal thicknesses obtained from the condition of reaching the maximum static strength at a postbuckling state of the panel. This methodology is part of the scientific and technical research related to the design of a perspective light aircraft.

Authorship Contributions

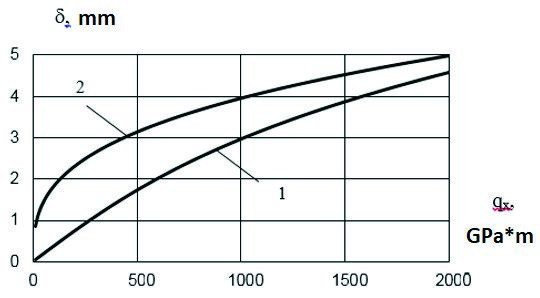

Figure 2. Orthotropic panel thickness as a function of compressive loads.
