Examining the role of nano-sized additives in boosting air conditioner efficiency

Abstract

Keywords: Additives; Air Conditioner; Environmental Impact; Nano Fluids

Introduction

Air conditioning is vital for modern living, offering comfort in homes and workplaces. However, its energy use raises concerns about environmental impact and cost. Researchers and industry professionals are exploring ways to improve air conditioning efficiency, including using nano-sized additives in refrigerants. Nano-sized

additives, like nanoparticles and nanofluids, can enhance refrigerant thermal properties. They improve heat transfer, reduce energy consumption, and enhance system performance [1-5]. Nanoparticles, with their high surface areato-volume ratio and tunable properties, are attractive for improving air conditioning efficiency. Despite their potential, integrating nano-sized additives into air conditioning is in early research stages. Challenges include additive

*Corresponding author. *E-mail address: lnpatil_p18@me.vjti.ac.in.com This paper was recommended for publication in revised form by Editor-in-Chief Ahmet Selim Dalkilic Published by Yıldız Technical University Press, İstanbul, Turkey Copyright 2021, Yıldız Technical University. This is an open access article under the CC BY-NC license (http://creativecommons.org/licenses/by-nc/4.0/).

stability, compatibility with existing refrigerants, and longterm effects on system performance. Standardized testing methods are needed to evaluate additives in real-world applications. This article provides an overview of nanosized additives’ role in boosting air conditioner efficiency. It reviews advancements, discusses benefits and challenges, and suggests future research direction [6-12]. The air conditioning system in an automobile has become an essential and indispensable technological component [13-17] that ensures optimal thermal comfort for both the driver and passengers during travel. The assessment of the impact of cooling the passenger compartment on the energy consumption and emissions of the vehicle is contingent upon the consideration of thermal comfort in real-world scenarios [18-25]. The present car air conditioning (AAC) system exhibits excessive fuel consumption relative to its ability to effectively regulate the interior temperature [3, 26,27]. To begin with, the protracted use of the air conditioning system when the vehicle is stationary diminishes its operational effectiveness [28-31]. The existing automotive air-conditioning (AAC) system has some limitations, including excessive fuel consumption in relation to the necessary amount required to sustain the desired thermal comfort level inside the vehicle [32, 33, 34]. To begin, the protracted use of the air conditioning system during vehicular idleness diminishes its operational effectiveness [35]. Consequently, in order to sustain the operation of the AAC system, there is a need for an increase in the workload, power, and fuel consumption of autos. One further concern is the escalation of noxious gasoline emissions originating from mobile cars in situations characterised by frequent stops and slow-moving traffic [36, 37]. Carbon dioxide (CO2), hydrocarbons (HC), nitrogen oxides (NOx), and carbon monoxide (CO) are among the gases under question. The emission of gases will contribute to the exacerbation of air pollution and the phenomenon of global warming [38]. Efforts are being made to solve these concerns with the aim of enhancing the existing AAC system, reducing fuel usage, and augmenting overall operational efficiency. The selection of the working fluid for a refrigeration system may significantly influence its performance. When choosing lubricants and refrigerants for AAC systems, it is important to exercise caution [39–43]. Several researchers have conducted experiments involving the utilisation of nanoparticles [44–48] that are disseminated inside lubricants, often referred to as nanolubricants, in order to enhance the coefficient of performance (COP) and cooling capacity of refrigeration systems. The use of nanoparticles enhances the thermal properties [49, 50] and system performance [51, 52] of base fluids or lubricant blends. Ohunakin et al. [53] conducted a study on the utilisation of nanoparticles of TiO2, SiO2, and Al2O3, which were suspended in mineral oil lubricant, in home freezers powered by liquid propane gas. The study demonstrated that the incorporation of titanium dioxide (TiO2) and silicon dioxide (SiO2) nanoparticles resulted in a significant

Sigma J Eng Nat Sci, Vol. 43, No. 1, pp. 107−120, February, 2025

improvement in the coefficient of performance (COP), with an increase of up to 2.06%. The study conducted by Senthilkumar and Anderson [54] examined the behaviour of a suspension of SiO2 nanoparticles in polyolester (POE) oil within the context of the R410A cooling system. The researchers made a significant finding that the use of lubricant nanoparticles resulted in enhanced performance of the refrigeration system. The highest coefficient of performance (COP) recorded was 1.7, while the lowest value for compressor work was 80 W. The maximum cooling capacity achieved was 160 W, using a refrigerant mass charge of 40 g and including 0.4 g/L of SiO2 nanolubricants. The use of R134a in cooling and heating systems has been improved by several studies [57–60].

Refrigerants

R22 Refrigerant Chlorodifluoromethane, sometimes known as R22, is a hydrochlorofluorocarbon (HCFC) refrigerant that was widely used in HVAC and refrigeration systems for a long time. Because of its chemical makeup—CHClF2—it was able to effectively absorb and dissipate heat. Although R22 has a low ozone depletion potential (ODP) of 0.05, it has a high global warming potential (GWP) of around 1,810– 1,880 over a 100-year period, which is a major environmental negative. R22 has been phased out of use in many countries due to its detrimental effects on the ozone layer and its contribution to greenhouse gas emissions, and more environmentally friendly alternatives such as hydrofluorocarbons (HFCs) and hydrofluoroolefins (HFOs) have been adopted in its place. Physical Properties for R22 Refrigerant are shown in Table 1.

Selection Of NANO Materials

Nanomaterials research and utilization are attractive and dynamic fields of materials science and nanotechnology. Nanomaterials, which are created or handled at the nanoscale, are typically smaller than 100 nanometers (one nanometer is one billionth of a meter). This extraordinary size gives nanoparticles new properties and opens up new possibilities in many sectors. Size-dependent behavior distinguishes nanomaterials. Nanoscale materials typically have different characteristics than bulk materials. Reactivity, optical quality, electrical conductivity, and mechanical strength may be enhanced. Thus, nanomaterials are employed in electronics, medicine, energy, environmental studies, and materials engineering. Nanoparticles,

7. Direct contact with non-body surfaces

Standard 55 provides circumstances anticipated to be thermally acceptable to at least 80% of the adult inhabitants of a space, even if optimal thermal conditions for any one individual in a given location are difficult to define owing

Sigma J Eng Nat Sci, Vol. 43, No. 1, pp. 107−120, February, 2025

to personal preferences. Most significantly influencing the performance of the AC are

5. The amount of fresh air required for each space.

Charging and Leak Proof System in Air Conditioning System The best performance and dependability of air conditioning systems depend on charging and leak-proof mechanisms. For optimal cooling and heating performance, it is essential that air conditioning systems be properly charged with the appropriate quantity of refrigerant. If the system is overcharged or undercharged, the compressor might be damaged, and the system’s efficiency and cooling capacity will suffer. Technicians employ precise measurements of refrigerant levels to properly charge an air conditioning system. Depending on the size of the system, the ambient temperature, and the presence or absence of leaks, the required amount of refrigerant must be added or removed. Longterm efficiency and environmental considerations make leak-proofing an AC system as important as charging it. Leaks in refrigeration systems not only reduce their ability to chill but also emit toxic chemicals into the atmosphere, adding to issues like ozone depletion and climate change. Regular checks are undertaken to detect and fix any leaks in the system as soon as possible. In order to find and repair leaks in refrigerant lines, coils, or other components, technicians employ leak detection equipment, such as UV dyes or electronic leak detectors. The effectiveness and longevity of the air conditioning system, as well as the system’s reduced environmental impact, depend on the prevention and repair of refrigerant leaks.

Investigation On The Performance Of R22 And R152a Refrigerant

This examines the performance of an R22/R52a air conditioning system. Performance parameters, including suction pressure, suction temperature, discharge pressure, discharge temperature, and coefficient of performance, are studied to determine the best air conditioning refrigerant. R22 and R152A are tested individually, without a combination. A typical vapour compression refrigeration system has two pressures. High- and low-side pressures condense

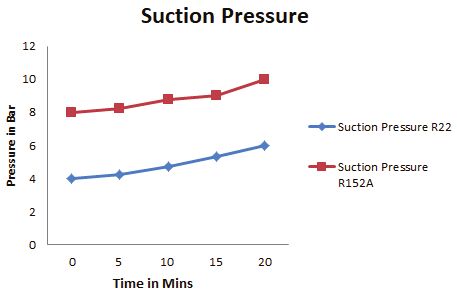

Figure 1. Comparison of suction pressure between R22 and R152A. and evaporate. The compressor discharge valve and measurement equipment separate these pressures. Condensing pressure includes high-side, head, and discharge pressure, whereas evaporating pressure includes low-side, suction, and back pressure. Effect on Suction Pressure At a certain pressure, the refrigerant begins to evaporate. Evaporation, often known as vaporising pressure, is the name given to this phase change. The compressor and any point in between are suitable locations for measuring evaporating pressure. Changes in suction pressure have a greater impact on compressor capacity than changes in the overhead residual condensate, gas density, or compressor head. The compressor can compress more gas without modification if the sucrose pressure or discharge pressure is increased. The amount of refrigerant needed is calculated using the system’s suction pressure, suction temperature, and discharge air wet bulb temperature. Using R22 and R152A as refrigerants, Figure 1 displays the 20-minute variation in suction pressure. Both refrigerants see an increase in suction pressure when the air conditioner operates. The suction pressure of R152A refrigerant is greater than that of R22. The flow of refrigerant is impeded by decreasing suction pressures. This research demonstrates that an increase in suction pressure results in a free flow of refrigerant into the system. Effect On Suction Temperature Suction temperature changes for R22 and R152A throughout a 20-minute experimental period are shown in Figure 2. It has been observed that the suction temperature decreases for both refrigerants as the system runs longer. When compared to R22, R152A refrigerant has a greater suction pressure. Since the pressure ratio rises with increasing suction temperature, more horsepower from the compressor is needed to cool a given tonnage of air. However, the compressor in this setup requires less horsepower.

Sigma J Eng Nat Sci, Vol. 43, No. 1, pp. 107−120, February, 2025

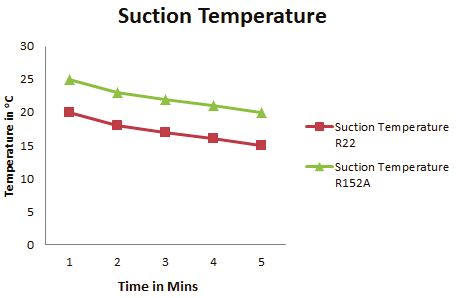

Figure 2. Comparison of suction temperature between R22 and R152A.

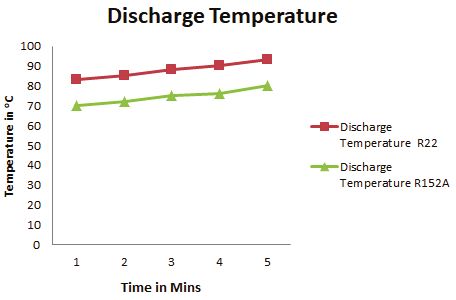

Figure 4. Comparison of Discharge Temperature between R22 and R152A.

Effects in Discharge Pressure That’s why we call it “condensing pressure” when it happens. A pressure gauge placed anywhere between the compressor’s discharge valve and the metering device’s inlet will provide an accurate reading of this pressure. Figure 3 depicts the fluctuation in discharge pressure for R22 and R152A, two common refrigerants. It is seen that the discharge pressure decreases while the system keeps running. Refrigerant R-I 52a is characterised by a lower discharge pressure. The discharge pressure generated by R22 is greater than that generated by R152A.

Effect on Coefficient of Performance The coefficient of performance (COP) is a metric used to evaluate the effectiveness of a heat pump or other refrigeration system. The coefficient of performance (COP) for a refrigerator is calculated by dividing the energy required to complete the job of the compressor by the beneficial effect or intended energy transfer done by the evaporator (RE). In Figure 5 we can see how the coefficient of performance varies for the two refrigerants in this investigation, R22 and R152A. As the system runs longer, the coefficient of performance rises for both refrigerants, although the R152A refrigerant has a greater coefficient of performance than the R22 refrigerant. The COP for R152A jumps significantly upon system start up before levelling down. This might have been caused by the original greater refrigerant compression ratio. The use of refrigerant R152A has been seen to improve the efficiency of air conditioning systems. When compared to R152A’s efficiency, R22’s performance pales in comparison. With R152A, the suction pressure and temperature may be increased while the discharge temperature and

Effect on Discharge Temperature Figure 4 displays the discharge temperatures measured experimentally for the refrigerants R22 and R152A while the air conditioning system ran for a 20-minute period of time. The results reveal that the discharge temperature is rising, whereas for R22 it is rising at first, then fluctuating, and then stabilising at a higher value. This might be because refrigerant is a better heat transmission medium.

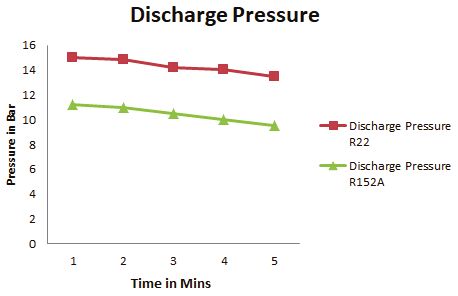

Figure 3. Comparison of Discharge Pressure between R22 and R152A.

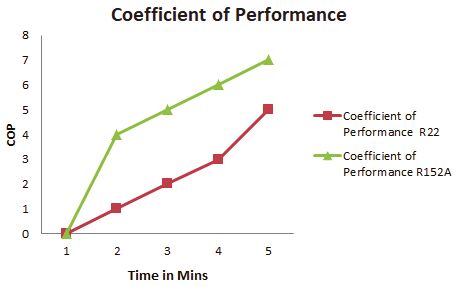

Figure 5. Comparison of Coefficient of Performance between R22 and R152A.

pressure are decreased, resulting in a more effective air conditioning system. Over time, the R152A system’s performance coefficient is much higher than that of the R22 system, indicating a greater refrigerant ion impact. Investigation on the Performance of Blended R22 and R152A Refrigerants Data collected from testing air conditioning systems charged with pure R22 and R152A are used as a benchmark against which the performance of other refrigerant blends may be evaluated. Air conditioning systems benefit from blended refrigerants because of their enhanced performance and efficiency. The compressor was charged with a combination of R22 and R152A, with mass fractions of 30:70, 50:50, and 70:30, and the results were compared to those produced with pure R22 and pure R152A. The early experimental findings using various ratios of R22 and R152A are used to determine the blending ratio. Effect on Suction Pressure Both suction pressure and suction temperature will be reduced if the compartment being cooled is already at a low temperature. Compressor efficiency drops with an increasing compression ratio and decreasing suction pressure due to losses in volumetric efficiency and cooling. The leftover gas expands in response to a decrease in suction pressure, leaving less room for new vapour to enter. So, the mass flow rate decreases because the compressor pumps less refrigerant at a certain compression ratio. Suction pressure shifts for unmixed R22 and R152A, as well as the three blended mixtures, are shown in Figure 6. As the system continues to run, it is seen that the suction pressure rises for all refrigerants. The suction pressure for R22 refrigerant is the lowest, and the suction pressure for R152A refrigerant is the greatest. Blended refrigerants provide an efficiency level between those of these two options.

Sigma J Eng Nat Sci, Vol. 43, No. 1, pp. 107−120, February, 2025

Suction pressure tends to rise as the R152A content of a mixture rises. Effect on Suction Temperature When operating circumstances change, the evaporator and compressor capabilities are influenced in various ways. Suction temperature is one component that affects their performance as shown in Figure 7. As the evaporator temperature changes, the compressor capacity responds in the exact opposite way. When the temperature at the point of suction drops, the evaporator’s capacity rises while the compressor’s falls, and vice versa when the suction temperature rises. Figure 8 depicts the difference in suction temperature between a system using pure R22 and one using a combination of R22 and R152A. R22 has a lower suction temperature, whereas R152A has a greater one. When the air conditioner is put into operation with the mixed refrigerant, the suction temperature drops. Effect on Discharge Pressure Lowering the discharge pressure helps the air conditioner’s compressor run more efficiently. Discharge pressure is shown to vary for different R22/R152A mixtures in Figure 8. Discharge pressures range from very low for R152A to very high for R22 refrigerant. Discharge pressure is observed to decrease with refrigerant mixture, with 70:30 combinations of R152A and R22 having the lowest discharge pressure. This demonstrates that under blending conditions, R152A has a greater impact than R22. Effect on Discharge Temperature The compression ratio and the discharge temperature both increase when the condensing temperature (pressure) increases for a certain suction temperature. The discharge port is the hottest part of the system, so when the discharge temperature rises, the oil and even the refrigerant might break down there. Greater compression ratios, due to high

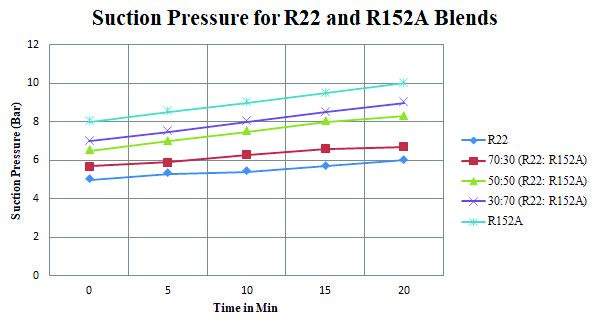

Figure 6. Suction pressure for various blends of R22 and R152A.

Sigma J Eng Nat Sci, Vol. 43, No. 1, pp. 107−120, February, 2025

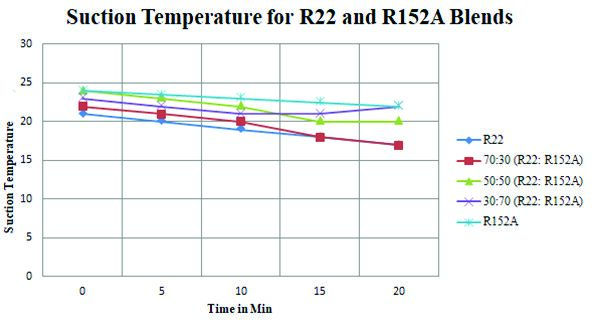

Figure 7. Suction temperature for various blends of R22 and R152A.

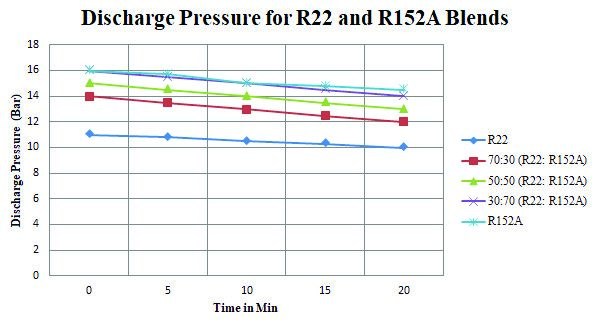

Figure 8. Discharge pressure for various blends of R22 and R152A. condensing and low evaporating temperatures, likely account for the greater discharge temperature at lower loads. Discharge temperatures are shown to vary for both pure R22 and combined R22 and R152A refrigerant in Figure

9. The R22 discharge temperature is the highest, and the

R152A refrigerant discharge temperature is the lowest. Discharge temperatures for blended refrigerants fall somewhere in this range. The blend of R152A and R22 (70:30) had the lowest discharge temperature of any gas tested, even lower than pure R152A. Effect on Coeffıcient of Performance The “Coefficient of Performance” (COP) is a common metric for describing the effectiveness of cooling solutions. The coefficient of performance (COP) for cooling systems

is defined as the ratio of cooling power delivered to cooling power consumed. A higher COP indicates a more efficient cooling system. Figure 10 shows the performance coefficients for several refrigerants in both blended and unblended conditions. It has been found that the COP of R152A is greater than that of unblended R22 and that the COP of R22 blended with a greater mass percentage of R152A is greater than that of unblended R22. Blending two distinct refrigerants might increase the COP. The COP might go up, down, or stay about the same. Superheating improves COP in Freon 12 systems but worsens it in Freon 22 systems. Light superheat has a positive influence on the volumetric efficiency and COP of reciprocating compressors because it causes any liquid refrigerant

Sigma J Eng Nat Sci, Vol. 43, No. 1, pp. 107−120, February, 2025

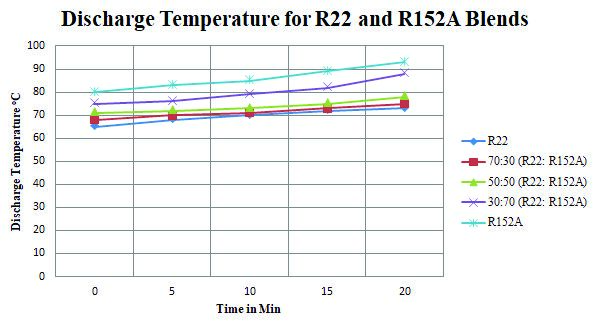

Figure 9. Discharge temperature for various blends of R22 and R152A.

Figure 10. Coefficient of performance for various blends of R22 and R152A. droplets suspended in the suction vapour to completely aphorize. It’s important to keep in mind that superheating outside the evaporator or cold area causes a loss in the air conditioning system. Blends of the common refrigerants R22 and R152A, with volumetric ratios of 30:70, 50:50, and 70:30, were found to make air conditioning work better. The 70:30 blends had the lowest discharge temperature. Additionally, the COP value increased with increasing blend volume, indicating that the mixtures were safe to use in the systems without any modifications. The COP might go up, down, or stay about the same. Superheating improves COP in Freon 12 systems but worsens it in Freon 22 systems. Light superheat has

a positive influence on the volumetric efficiency and COP of reciprocating compressors because it causes any liquid refrigerant droplets suspended in the suction vapour to completely aphorize. It’s important to keep in mind that superheating outside the evaporator or cold area causes a loss in the air conditioning system. Blends of the common refrigerants R22 and R152A, with volumetric ratios of 30:70, 50:50, and 70:30, were found to make air conditioning work better. The 70:30 blends had the lowest discharge temperature. Additionally, the COP value increased with increasing blend volume, indicating that the mixtures were safe to use in the systems without any modifications.

Sigma J Eng Nat Sci, Vol. 43, No. 1, pp. 107−120, February, 2025

Table 4. Results of confirmation experiment Suction Discharge Suction Discharge COP pressure pressure temperature temperature 14.98

Confirmation Experiment with Optımum Condition An experimental validation is performed with the same experimental setup to determine the performance of Rl 52a refrigerant with a 0.5 volume percentage of CuO nanoparticles, and the results are tabulated in Table 4. Comparing the results of the confirmation experiment to the mean of the experimental outputs reveals an improvement of 53.69% in suction pressure, a decrease of 18.99% in discharge pressure, an increase of 34.85% in suction temperature, a decrease of 15.44% in discharge temperature, and an increase of 23% in the coefficient of performance. Power Analysis Table 5 compares the output of pure R22 and R152A, blended R22 and R152A, pure R22 plus Nano additives, and pure R152A plus various Nano additives. Hourly power

usage rates are taken into account. Take R22’s 2 u/h energy consumption as an example. The daily cost of using the air conditioner at full blast is 16 units of electricity. This is a monthly consumption of 480 units during a period of 30 days. According to the findings, R152A is a more effective refrigerant than R22. Blending R22 with R152A, however, improves upon both of the separate refrigerants’ performances while still falling short of that of R152A alone. When compared to pure R22 and R152A, the performance of R22 combined with nanoparticles yields superior results. Cost Analysis Using the air conditioner’s monthly electricity bill, we can calculate the total cost of operation. Take R22’s 2 u/h energy consumption as an example. Let’s pretend that the AC uses 16 units of energy each day, operating for 8 hours each day. This is a monthly consumption of 480 units during a period of 30 days. The monthly operating cost of an air conditioning unit using R22 is almost similar to Rs. 4800/-, assuming a unit cost of Rs. The running costs of alternative refrigerants are determined in the same way. Table 6 compares the prices of pure R22 and R152A, R22 and R152A blends, R22 with nano additions, and R152A with various nano additives. When comparing the percentile increase

Table 5. Power consumed by different refrigerants used in the work Sr. No.

70. R22:30 R152a

Sigma J Eng Nat Sci, Vol. 43, No. 1, pp. 107−120, February, 2025

Table 6. Cost associated with different refrigerants used in the work Sl. No

70. R22:30 R152a

and decrease in operating cost using different refrigerant with R22 and R152A, we find that adding 0.5% of nanoparticles to R152A results in a decrease in operating cost, while adding R152A to a blend of CuO as a refrigerant results in the highest percentage increase, at 13.64%. Compared to using pure R22 refrigerant, R152A has the lowest operating costs; however, using R152A combined with 0.5% nanofluid reduces those costs by an additional 29.87%. Comparıson of Different Refrigerants Performance Table 7 also includes information on how the performance of various refrigerants improves in comparison to that of unblended R22 and R152A. When compared to unblended R152A, blended R152A, and R152A mixed with nanofluids, it is clear that the performance of R22 refrigerant is worse. Blending R152A with 0.5% CuO nanofluid yields optimal performance. When comparing R152A with 0.5% CuO to R22 refrigerant, the discharge temperature is reduced by 32.35% and the coefficient of performance (COP) is increased by 31.045; when comparing R152A with R22 refrigerant, the discharge temperature is reduced by 14.71% and the COP is increased by 14.8%.

Results And Discussion

Both R22 and R152A are used in the experiments. Using R152A as a refrigerant in an air conditioner may boost its efficiency. R152A allows for increased suction pressure and temperature while reducing discharge temperature and pressure, leading to more effective air conditioning. Over time, the R152A system’s performance coefficient is much greater than that of the R22 system, indicating a more powerful refrigeration effect. Blends of the common refrigerants R22 and R152A, in the volumes of 30:70, 50:50, and 70:30, are found to improve air conditioning performance. It is safe to use a combination of R152A and R22 in the system without making any further adjustments. It has been discovered that the discharge pressure and temperature decrease with the refrigerant combination, with the lowest values being obtained for 70:30 blends of R152A and R22. It has been shown that 70:30 mixes of R152A and R22 provide the maximum suction pressure and suction temperature. Mixtures of R152A and R22 with a 70:30 ratio provide the highest COP values (5.427). Al2O3, ZnO, and CuO nanoparticles were introduced to the refrigerant at concentrations of 0.1%, 0.3%, and 0.5% by volume, respectively. Adding nanoparticles to the refrigerant in an air conditioner

Sigma J Eng Nat Sci, Vol. 43, No. 1, pp. 107−120, February, 2025

Table 7. Performance comparison of different refrigerants used in the work Sl. No Refrigerant

70. R22:30 R152a

significantly alters the system’s performance. ZnO has the greatest suction pressure, followed by CuO and alumina. The temperatures at which suction occurs are shown to be lowest for CuO, ZnO, and alumina, in that order. The suction temperature drops as the process advances. When utilising R152A as a refrigerant, adding 0.5% of CuO nanoparticles to create low GWP and zero ODP greatly boosts the efficiency of the air conditioning system. Due to the increased density of the nano-refrigerant, the pressure at the suction head rises when nano-particles are added to the refrigerant. Depending on the concentration of CuO nanoparticles, the suction pressure ranges from

Conclusion

The study focused on refrigerant adoption, emphasizing the importance of GWP and ODP environmental factors. R22, a common air conditioning refrigerant, has a GWP of 1700 and an ODP of 0.05. Hydrocarbon refrigerant mixtures (HCM) with R22 and R152a showed promise in reducing R22 consumption. Following points are highlighted from the present study. • Hydrocarbon refrigerant mixtures (HCM) with R22 and R152a reduce R22 consumption. • Continuous 30°C testing showed HCM outperformed R22 in system performance. • R152A demonstrated improved compressor reliability at lower operating temperatures, reducing emissions. • Nanomaterials (nanoCuO, ZnO, Al2O3) explored for enhanced heat transfer in air cooling. • Nanofluids with varying microfluid volume fractions of R22 and R152a tested for air conditioning performance. • R152a with 0.5% CuO showed higher energy efficiency, lower operating costs, and a higher COP. • Cost analysis revealed R152a + 0.5% CuO to be more economical than unblended R22 and R152a alone. • Study suggests R152a + 0.5% CuO as a promising and cost-effective alternative for air conditioning refrigeration.

Data Availability Statement

The authors confirm that the data that supports the findings of this study are available within the article. Raw data that support the finding of this study are available from the corresponding author, upon reasonable request.

Conflict Of Interest

The author declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Ethics

There are no ethical issues with the publication of this manuscript.

References

1. Atik K, Aktaş A. An experimental investigation of a combined organic Rankine-vapor compression the effect of refr igerant charge level on an automo- refrigeration system acti-vated by low-grade ther- tive air conditioningsystem. J Therm Sci Technol mal energy. J Adv Res 2016;7:651–660. [CrossRef] 2011;31:11–17. [15] Afshari F, Comakli O, Lesani A, Karagoz S.
2. Moon JH, Lee JW, Jeong CH, Lee SH. Thermal Characterization of lubricating oil effects on the comfort analysis in a passenger compartment con- performance of reciprocatingcompressors in sidering the solar radia-tion effect. Int J Therm Sci air-water heat pumps. Int J Refrig 2017;74:503– 2016;107:77–88. [CrossRef] 514. [CrossRef] Sigma J Eng Nat Sci, Vol. 43, No. 1, pp. 107−120, February, 2025 119
3. Tashtoush BM, Al-Nimr MDA, Khasawneh MA. Investigation of the use of nano-refrigerants to Yusof TM. Performance analysis of SiO2/PAG nano- enhance the performanceof an ejector refrigeration lubricant in auto-motive air conditioning system. system. Appl. Energy 2017;206:1446–1463. [CrossRef] Int J Refrig 2017;75:204–216. [CrossRef]
4. Murshed SMS, Leong KC, Yang C. Investigations of thermal conductivity and viscosity of nanofluids. Int Najafi G. Energy saving in automotive air conditioning J Therm Sci 2008;47:560–568. [CrossRef] system per-formance using SiO2/PAG nanolubricants.
5. Rashid I, Zubair T, Asjad MI, Tag-ElDin EM. The J Therm Anal Calorim 2019;135:1285–1297. [CrossRef] Influence of Aligned MHD on Engine Oil-Based [31] Atik K, Aktaş A. An experimental investigation of Casson Nanofluid withCarbon Nanotubes (Single the effect of refrigerant charge level on an automo- and Multi-Wall) Passing through a Shrinking Sheet tive air conditioning system. J Therm Sci Technol with Thermal Radiation and Wall Mass Ex-change. 2011;31:11–17. Micromachines 2022;13:1501. [CrossRef] [32] Moon JH, Lee JW, Jeong CH, Lee SH. Thermal
6. Gokdemir G, Doner N, Sert Z, Sen F, Ciddi K. comfort analysis in a passenger compartment con- Effects of CuO, TiO2 and graphite microparticles sidering the solar radiation effect. Int J Therm Sci on the heat transfer prop-erties of greases. Eng Sci 2016;107:77–88. [CrossRef] Technol Int J 2022;30:101044. [CrossRef] [33] Mansour C, Nader WB, Breque F, Haddad M, Nemer
7. Zainal NA, Nazar R, Naganthran K, Pop, I. Unsteady M. Assessing additional fuel consumption from cabin MHD stagnation point flow induced by exponen- thermal comfort and auxiliary needs on the world- tially permeablestretching/shrinking sheet of hybrid wide harmonized light vehicles test cycle. Transp Res nanofluid. Eng Sci Technol Int J 2021;24:1201–1210. Part D Transp Environ 2018;62:139–151. [CrossRef] [CrossRef] [34] Danca P, Vartires A, Dogeanu A. An overview of cur-
8. Yıldız G, Ağbulut Ü, Gürel AE. A review of stabil- rent methods for thermal comfort assessment in vehi- ity, thermophysical properties and impact of using cle cabin. Energy Proced 2016;85:162–169. [CrossRef] nanofluids on theperformance of refrigeration sys- [35] Lee J, Kim J, Park J, Bae C. Effect of the air-condition- tems. Int J Refrig 2021;129:342–364. [CrossRef] ing system on the fuel economy in a gasoline engine
9. Usri NA, Azmi WH, Mamat R, Hamid KA. Forced vehicle. Proc Inst Mech Eng Part D J Automob Eng convection heat transfer using water-ethylene gly- 2012;227:66–77. [CrossRef] col (60: 40) basednanofluids in automotive cooling [36] Barth M, Boriboonsomsin K. Traffic congestion and system. Int J Automot Mech Eng 2015;11:2747. greenhouse gases. Access Mag 2009;1:2–9. [CrossRef] [37] Najjar YSH. Gaseous pollutants formation and their
10. Ohunakin OS, Adelekan DS, Babarinde TO, Leramo harmful effects on health and environment. Innov RO, Abam FI, Diarra CD. Experimental investiga- Energy Policies 2011;1:1–9. [CrossRef] tion of TiO2-,SiO2-and Al 2O3-lubricants for a [38] McNabola A, Broderick BM, Gill LW. The impacts domestic refrigerator system using LPG as working of inter-vehicle spacing on in-vehicle air pollution fluid. Appl Therm Eng 2017;127:1469–1477. [CrossRef] concentrations in idling urban traffic conditions.
11. Senthilkumar A, Anderson A. Experimental inves- Transp Res Part D Transp Environ 2009;14:567–575. tigation of SiO2 nanolubricants for R410A vapour [CrossRef] compression refrigerationsystem. Mater Today Proc [39] Hundy GF, Trott AR, Welch TC. Refrigeration, Air 2021;44:3613–3617. [CrossRef] Conditioning and Heat Pumps. 5th ed. Butterworth-
12. Mihai I, Suciu C, Picus CM. Particularities of R134a Heinemann; Oxford, UK: 2016. pp. 488. [CrossRef] refrigerant temperatur e variations in a transient [40] Rejvani M, Saedodin S, Vahedi SM, Wongwises convective regimeduring vaporization in rectan- S, Chamkha AJ. Experimental investigation of gular microchannels. Micromachines 2022;13:767. hybrid nano-lubricant for rheological and thermal [CrossRef] engineering applications. J Therm Anal Calorim
13. Zawawi NNM, Azmi WH, Ghazali MF. Performance 2019;138:1823–1839. [CrossRef] of Al2O3-SiO2/PAG composite nanolubricants in [41] Ben Said L, Kolsi L, Ghachem K, Almeshaal M, Maatki automotive air-con-ditioning system. Appl Therm C. Advancement of nanofluids in automotive appli- Eng 2022;204:117998. [CrossRef] cations during the last few years-A comprehensive
14. Qi Z, Zhao Y, Chen J. Performance enhancement review. J Therm Anal Calorim 2021;147:7603–7630. study of mobile air conditioning system using micro- [CrossRef] channel heat exchang-ers. Int J Refrig 2010;33:301– [42] Mohanraj M, Jayaraj S, Muraleedharan C,
15. Tuo H, Hrnjak P. Flash gas bypass in mobile air R290/R600a mixture as an alternative to R134a in a conditioning system with R134a. Int J Refrig domestic refrigerator. Int J Therm Sci 2009;48:1036– 2012;35:1869–1877. [CrossRef] 1042. [CrossRef] 120 Sigma J Eng Nat Sci, Vol. 43, No. 1, pp. 107−120, February, 2025
16. Ahmadpour M, Akhavan-Behabadi M, Sajadi B, Salehi-Kohestani A. Effect of lubricating oil on con- convection heat transfer using water-ethylene glycol densation characteristics of R600a inside a horizon- (60:40) based nanofluids in automotive cooling sys- tal U-shaped tube: Experimental study. Int J Therm tem. Int J Automot Mech Eng 2015;11:2747. [CrossRef] Sci 2019;145:106007. [CrossRef] [53] Ohunakin OS, Adelekan DS, Babarinde TO, Leramo
17. Saleh B. Parametric and working fluid analysis of RO, Abam FI, Diarra CD. Experimental investiga- a combined organic Rankine-vapor compression tion of TiO2-, SiO2-and Al2O3-lubricants for a refrigeration system activated by low-grade thermal domestic refrigerator system using LPG as working energy. J Adv Res 2016;7:651–660. [CrossRef] fluid. Appl Therm Eng 2017;127:1469–1477. [CrossRef]
18. Afshari F, Comakli O, Lesani A, Karagoz S. Characterization of lubricating oil effects on the per- tigation of SiO2 nanolubricants for R410A vapour formance of reciprocating compressors in air-water compression refrigeration system. Mater Today Proc heat pumps. Int J Refrig 2017;74:503–514. [CrossRef] 2021;44:3613–3617. [CrossRef]
19. Tashtoush BM, Al-Nimr MDA, Khasawneh MA. Investigation of the use of nano-refrigerants to refrigerant temperature variations in a transient enhance the performance of an ejector refrigeration convective regime during vaporization in rectan- system. Appl Energy 2017;206:1446–1463. [CrossRef] gular microchannels. Micromachines 2022;13:767.
20. Murshed SMS, Leong KC, Yang C. Investigations of [CrossRef] thermal conductivity and viscosity of nanofluids. Int [56] Zawawi NNM, Azmi WH, Ghazali MF. Performance J Therm Sci 2008;47:560–568. [CrossRef] of Al2O3-SiO2/PAG composite nanolubricants in
21. Rashid I, Zubair T, Asjad MI, Tag-ElDin EM. The automotive air-conditioning system. Appl Therm ınfluence of aligned MHD on engine oil-based Eng 2022;204:117998. [CrossRef] casson nanofluid with carbon nanotubes (single [57] Qi Z., Zhao Y., Chen J. Performance enhance- and multi-wall) passing through a shrinking sheet ment study of mobile air conditioning system with thermal radiation and wall mass exchange. using microchannel heat exchangers. Int J Refrig Micromachines 2022;13:1501. [CrossRef] 2010;33:301–312. [CrossRef]
22. Gokdemir G, Doner N, Sert Z, Sen F, Ciddi K. Effects of CuO, TiO2 and graphite microparticles conditioning system with R134a. Int J Refrig on the heat transfer properties of greases. Eng Sci 2012;35:1869–1877. [CrossRef] Technol Int J 2022;30:101044. [CrossRef] [59] Sharif MZ, Azmi W.H., Redhwan AAM, Mamat R,
23. Zainal NA, Nazar R, Naganthran K, Pop I. Unsteady Yusof TM. Performance analysis of SiO2/PAG nano- MHD stagnation point flow induced by exponentially lubricant in automotive air conditioning system. Int permeable stretching/shrinking sheet of hybrid nano- J Refrig 2017;75:204–216. [CrossRef] fluid. Eng Sci Technol Int J 2021;24:1201–1210. [CrossRef] [60] Sharif MZ, Azmi WH, Redhwan AAM, Mamat R,
24. Yıldız G, Ağbulut Ü, Gürel AE. A review of stabil- Najafi G. Energy saving in automotive air condition- ity, thermophysical properties and impact of using ing system performance using SiO2/PAG nanolubri- nanofluids on the performance of refrigeration sys- cants. J Therm Anal Calorim 2019;135:1285–1297. tems. Int J Refrig 2021;129:342–364. [CrossRef] [CrossRef]
