Centralized controller-based on optimal power flow OPF algorithm for power management in microgrid s

Abstract

Keywords: Renewable energy; microgrid system; optimal power flow; centralized controller; solar PV; power management

Introduction

In today’s rapidly growing world, the production of electricity increased significantly due to industrialization,

population growth, and high demand for electrical power for electric appliances. Electricity is generated from a range of energy sources, such as coal, natural gas, and renewable energy sources <] analyzed a multi-level inverter based

*Corresponding author. *E-mail address: abumuslimkhujaev@stu.aydin.edu.tr This paper was recommended for publication in revised form by Editor-in-Chief Ahmet Selim Dalkilic Published by Yıldız Technical University Press, İstanbul, Turkey © Author. This is an open access article under the CC BY-NC license (http://creativecommons.org/licenses/by-nc/4.0/).

Sigma J Eng Nat Sci, Vol. 43, No. 6, pp. 2279−2293, December, 2025

three-phase system during dynamic load condition. The controller is developed to supply real power even with the variation happened in voltage and current. The proposed method promised enhanced performance at DC voltage level. Moreover, theoretical model was evaluated with real time data. A DC-DC boost buck converter is a crucial component of the power system which has a MOSFET switch, traditional buck converter, capacitors and inductors. Author in [30] proposed a technique that is more reliable than the conventional converter. The proposed method had better result in terms of switching frequency and dynamic load. Another article used bidirectional buck-boost converter to improve dc voltage for the grid system [31]. This is done by minimizing the inductor current and inductor current ripple. The experimental results showed better results than the conventional type of buck boost converter. Hence, the controller was not used in an AC/DC microgrid system. Author in [32] presented an optimal power flow (OPF) controller used in hybrid microgrids. The author claimed that the plugging and un-plugging of appliances can penetrate the flow of power in the system. Especially during islanded mode, the appliances require fast response to overcome the variation in voltage and current of the loads. Therefore, the MG system require steady state stability by employing OPF to operate efficiently. The proposed technique is used in an AC/DC system to maximize its control strategy and overcome economic challenges in the future. Another author has examined the issues and challenges encountered by power systems over the past decade [33]. The author used grey wolf optimization technique to have robust control over microgrid system. The system included diesel, engine solar PV, and battery systems. The proposed method offers an improved dispatching technique for loads and sources, ensuring an economical power supply while minimizing reliance on the main grid. MATLAB/Simulink is used to validate results. However, the author did not study the OPF algorithm in real time to see if it can improve the performance of the microgrid system. A non-linear controller for renewable energy sources were studied in a DC microgrid systems. Author claimed that the conventional PI controller used in MG systems was short in providing robust control and stable power distribution in the system [34]. Moreover, interconnection damping assessment-passivity based controller (IDA-PBC) is employed to regulate the DC-link of the system. The proposed controller was tested in three different conditions and experimental results were presented. Hence, the controller was not used in AC/DC microgrids. Summary The following Table 1 presents the comparison of different controllers used in microgrid system. For the basis of the following paper, the optimal power flow algorithm-based power management strategy, performance of an AC/DC hybrid microgrid, renewable energy source, and energy storage system were studied. The study

was conducted accordingly, and I present my acknowledgement to authors who contributed to developing hybrid microgrid systems. Referring to the above studies there were several controlling techniques to enhance power flow and managing microgrid systems. Many articles used controllers and converters to improve performance of the power system. Moreover, switching techniques between grid-connected and islanded modes were seen in some of the studies. An article studied the AC/DC microgrid system powered by DC power sources [37]. However, the author did not implement real-time values to show correctness of the controller in real-time scenarios. Overall, the summary of the research focused on developing controllers to maintain optimal power flow in microgrid systems. However, several challenges in AC/DC microgrid systems remain unaddressed by the authors cited in the literature review. The AC/DC hybrid microgrid system requires renewable energy sources and backup batteries to support the grid during periods of low solar PV irradiance. It also needs the capability to switch between grid-connected and islanded modes and a centralized controller to always manage the switching. The issues must be addressed, and proper component selection is essential. An optimal power flow algorithm-based power management is required to achieve enhanced power flow in microgrids. In this paper the research is going to achieve the following items. This paper aims to achieve the following objectives.

6. Integrating Three-phase stand-alone inverter control

design with PI controller to generate PWM signal for the switch.

7. Integrating bidirectional converters in DC sources to

boost voltage regulation to a desired voltage level. 8. Integrating a centralized controller to control and provide optimal power flow to the hybrid microgrid system.

9. Analyze the effect of OPF centralized controller in three

conditions such as normal condition, solar irradiance abnormal condition and batteries abnormal condition. Microgrid System Microgrids normally consist of loads, solar PV, battery energy storage system, electric vehicle, main grid, and they are designed to work in grid connected and islanded modes [38]. The solar PV incorporates DC-DC boost converter to boost the voltage level to a desired voltage level [39]. One of the main characteristic of MG is that they can support the MG by balancing the loads with renewable energy sources, they will be connected to the grid when the sources are not able to deliver enough power. Furthermore, when the MG is connected to the main grid it is called grid connected

Sigma J Eng Nat Sci, Vol. 43, No. 6, pp. 2279−2293, December, 2025

Capable of catching variation to provide enhanced power flow

Improved performance in gridconnected/islanded modes with no need for switching

Output voltage distortion, inductor PV system current ripple and switching losses

B3cfidc

Unstable real power across the DC- AC/DC microgrid link components system

The controller was able to provide desired voltage level even when the sources have changes

variation in load/source values when the system changes from one mode to another mode

Fcs-Mpc

Better voltage regulation in gridconnected and islanded modes

The controller is capable of voltage regulation in bot grid-connected and islanded mode

Equivalent boost Enhanced performance in Microgrid converter circuit with system MPPT

mode, but when it is disconnected from the main grid it is called islanded mode and it connect/disconnect with a switch [40]. The reason to keep MG disconnected from the main grid is because of the disturbances, fault, and poor power quality and voltage/current fluctuation in the main grid. In islanded mode the MG enables enhanced power quality, reduces power losses, and improved system efficiency [41]. There are AC, DC and hybrid MG (AC/DC) MG systems. Depending on the requirements of the sources used, and types of loads one need to choose what type of MG is suitable for their design. For only DC components a DC MG is suitable to include, for AC loads and AC sources one should use AC MG system. However, when having the mixture of DC and AC energy sources and loads one should

Better conversion ability compared to conventional controllers Showed better result than other buck converters

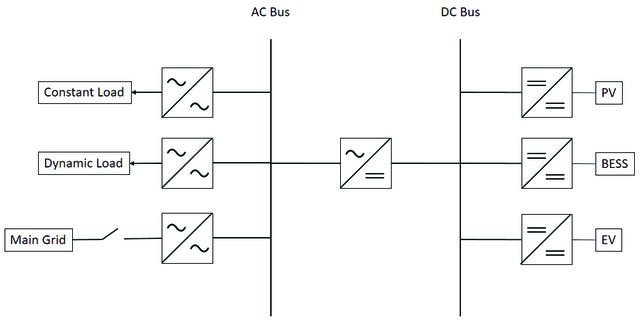

use hybrid MG system [42]. A hybrid MG contains one DC bus and one AC bus, and all the AC/DC sources and loads are connected through AC/DC buses depending on their configuration. The benefits of using hybrid MG is that it minimizes the use of too many converters and buses and it ensures cost effective design [43]. A MG normally incorporates energy sources, loads and energy storage systems. For a typical MG systems energy sources are located close to the residents. Solar PV, BESS, EV are examples of the distributed energy resources (DER) s [44, 45]. Therefore, DER located close to the users will help the system to lower the amount of power losses. The power generation by only solar PV system is unpredictable. Therefore, it is essential to include ESS systems to ensure

Sigma J Eng Nat Sci, Vol. 43, No. 6, pp. 2279−2293, December, 2025

Table 2. The nominal values for the AC and DC buses, frequency and nominal voltage for the MG

reliability in the MG [46]. In case of high-power generation by the solar PV the ESS systems allows charging and discharge when the power generation is low or the electricity tariffs are high. There are many types of ESS to store energy and one of the common used batteries are lithium-ion batteries. The MG includes a dynamic load and a constant load. Figure 1 shows the type of MG system used in this paper. The actual design of the MG system is shown in Appendix 1. The MG model was built and tested in MATLAB/ Simulink and some nominal values presented in Table 2. The solar PV is used as an energy source that supply power to MG. The solar PV array delivers maximum power point of 218.871 W. The power generation by a solar panel is highly dependent on solar irradiance (SI), the normal level for a solar PV is 1000 W/m2. In this paper the temperature is neglected. The formula for solar PV is given in equation

1. To increase the total power generated from solar PV, it

is necessary to expand the number of solar panels to the desired amount, as illustrated in equation 2 [47, 48]. (1)

The battery storage system includes a lithium-ion battery and the specifications for the battery are given in Table 4. Table 4. Specifications of BESS battery Item

The EV source includes a lithium-ion battery and the specifications are given in Table 5. Table 5. Specifications of EV source Item

Sigma J Eng Nat Sci, Vol. 43, No. 6, pp. 2279−2293, December, 2025

The constant load and dynamic load values are mentioned in Table 6. The dynamic loads fluctuated based on the demand changes throughout the day. Table 6. Specifications of the constant load and dynamic load. Item

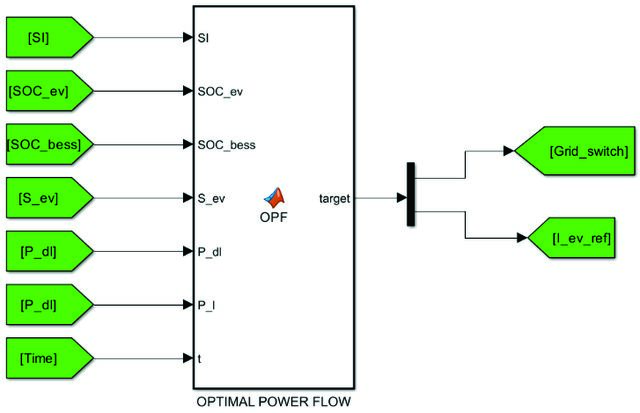

Optimal Power Flow The MG power management works based on OPF model and the OPF works as a centralized controller to enhance the efficiency and reliability of the MG system. The centralized controller receives information from MG, process it and gives reference current to EV and connect/ disconnects the switch in MG system. The OPF model is used to reduce excess power losses and costs for the system. There many types of OPF can be used to calculate the output and process it in the MG. However, to measure the values throughout the day, dynamic load changes, dynamic solar irradiance and other components makes the analysis quiet challenging. Therefore, this paper analyzes the MG system in MATLAB/Simulink with linear programming codes to enhance the performance of the system. The inputs and the outputs for the centralized controller based on OPF is shown in Figure 2. The simulation run for 2.4 seconds as the system takes long time to run if the simulation time increases. 2.4 seconds considered as 24 hour or a day.

were solar irradiance PV, loads, BESS and state of charge of electric vehicle. The optimized value for the output includes grid switch and reference current for the EV. The flow chart of the centralized controller for microgrid power management is presented in Figure 3. Microgrid components and their function The following Table 7 shows how the system works to process in OPF algorithm and maintain its efficient performance. The OPF function in isnladed mode The aim of the OPF is to minimize the power difference between the power generated and load demand. The total power generated from energy sources were summed and the loads were summed at every hours. The total load power then was subtracted from total source power to show the minimum result to keep the Microgrid in islanded mode. In islanded mode, the net power indicates that the generated power is greater than the load demand. The formulas are presented in equation 3, equation 4, and equation

5. The BESS power, and EV power are dependent on SOC

charge percentage. If state of charge is zero both the batteries cannot deliver any power to the microgrid system. (3) (4) (5)

Flow chart chart of the optimal power flow algorithm The paper’s OPF is built to minimize the power losses and always keep THE MG at its maximal stable condition. Initially the working condition of MG is examined and then the predictions and OPF values are studied. The OPF and prediction values from time t were sampled then prediction values t+∆t , were predicted. The values that were sampled

Figure 3. The flow chart of the centralized controller for microgrid power management.

Sigma J Eng Nat Sci, Vol. 43, No. 6, pp. 2279−2293, December, 2025

Table 7. Shows the working principles of the MG components Grid Switch

It is only closed and ensures the MG to supply itself from PV, BESS and EV sources as much as it can. It is only closed when the power generated by the PV, BESS and EV cannot supply enough power is lower than the loads power in the MG. Therefore, the disturbances are neglected in the OPF.

The solar PV generates power based on solar irradiance throughout the day. It does not supply power to the MG when the switch is in grid connected mode. Moreover, the temperature is not considered is this paper.

The BESS can charge from PV panel and it does not supply any power when the MG is in grid connected mode.

The EV battery connect/disconnect from the MG. In grid connected mode it does not supply any power to the MG.

power generation. The EV battery do not discharge when it is disconnected from the system nor it charges. It only works by receiving reference current from the OPF controller.

The limitations for the state of charge for BESS battery, EV battery, and maximum power for BESS battery, and EV battery are presented in equation 6-9. The system must not cross this limits. The maximum power for both the BESS battery, and EV batteries are 9kW. The maximum state of charge of BESS battery and the minimum state of charge for BESS battery is presented in Table 15. The maximum state of charge of EV battery and the minimum state of charge for EV battery is also presented in Table 8. (6) (7) (8) (9) The output control values are presented as in formula 10. (10) The OPF function in grid connected mode In grid connected mode, the microgrid does not take power from DC bus sources. As in islanded mode, the measurements will be differentiated, and the results will dictate which parameters need to be controlled in the output. The system is grid-connected when the generated power from the DC bus is less than the load demand. The formulas are presented in equation 11, equation 12, and equation 13. Moreover, when the system is grid connected, the BESS battery charge itself from solar PV panel

The system limitations are presented in equation 14-17. The system must not cross this limits to remain at grid connected mode. (14) (15) (16) (17) Predictions of time varying components Microgrid system is simulated based on time varying data. Thus, it is necessary to make predictions to make the system to work more effectively, provide the most accurate result for the outputs of the OPF controller. The dynamic values of the system are state of charge for BESS and EV batteries, solar irradiance, dynamic load and EV switch. The values received from these components need to give prediction for better performance and to be stimulated in timely basis. The predicted results then will be processed to give output for the grid switch, reference power for the voltage source converter, and reference current for the EV battery. The input i(t) values are presented in equation 18. (18) The predicted values are presented in equation 19. (19)

Sigma J Eng Nat Sci, Vol. 43, No. 6, pp. 2279−2293, December, 2025

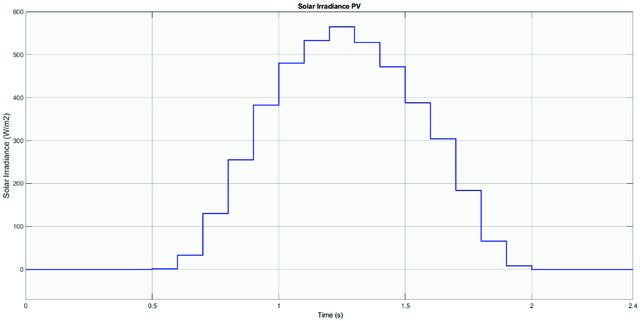

Figure 4. Shows the solar irradiance of the PV panel throughout the day.

Each predicted values are processed based on their characteristics and power performances. The BESS battery discharges when the switch is islanded and charges from the solar PV during the grid connected mode. The EV system also performs as BESS battery, but the EV is assumed to be disconnected from 8 morning to 16 evening and from 18 evening to 20 evening. The grid switch is either to be connected or disconnected is determined by the net power in the MG. If the generated power exceeds the load power, the MG can sustain itself, but it will supply power from main grid if the generated power is less than load power. The formula is shown in equation 20. (20) Initially, it is verified whether the PV can supply energy to the loads. If the power from the PV is insufficient, the batteries must discharge to meet the load demand. When in grid-connected mode, the batteries are charged by the solar PV. The net power determines if the system operates in islanded mode (OPF) or grid-connected mode. In grid-connected mode, changes in the grid switch and reference current EV can be observed.

Results And Discussion

The simulations and analysis of the MG system and OPF as a centralized controller were conducted in MATLAB/ Simulink and the results were presented in this section of the paper. The outputs from the OPF are the reference values for grid switch, power to the voltage source converter

and reference current for EV system and they were analyzed in all conditions. Later, the results of grid power, total solar PV power, BESS power, EV power and the loads power were presented in this paper. Finally, the voltage at the DC bus, voltage of the grid system and the current from the voltage source converter were presented. The results were obtained based on three conditions as mentioned below. • Normal Condition • Abnormal solar irradiance PV, where the sun disappears, and the irradiance drops to zero. • A condition where both battery energy storage system and electric vehicle experience zero charge. The results in each condition then were discussed at the end of this section. Normal condition The simulation results show the performance of the OPF as a centralized controller in normal condition. The grid switch goes to grid connected mode twice throughout the day, the power to the voltage source converter follows the switching mode and the reference current changes a lot during the day as shown in Figure 5. The grid is islanded at (switch=1) and grid-connected at (switch=0). The results for the power of the MG units are presented in Figure 6. The grid power activates twice when the MG is grid-connected, the PV power increases when the solar irradiance increases. The power results of dynamic load, constant load, BESS battery and EV batteries are also presented during normal condition. The results for voltage of the grid system, the current from the voltage source converter, and the voltage at the

Sigma J Eng Nat Sci, Vol. 43, No. 6, pp. 2279−2293, December, 2025

Figure 5. Shows the grid switch, power from the VSC, and the EV battery reference current in normal condition.

DC bus are presented in Figure 7. After changes occur in switching modes the voltages experience voltage surge and it stabilizes shortly. The fluctuations occurred at 0.8s, 1s, 18s and at 2s. The DC bus and voltage at the grid side were able to maintain 400 V at all time. Solar irradiance abnormal condition Here, the results are presented in solar irradiance PV abnormal condition, where the sun follows irradiance output until 1.2 seconds and then goes to zero. In this case, MG system will experience changes in switching. The sudden

change in solar irradiance changes the performance of the grid switching mode. Here, the grid switch experience islanded mode three times and followed by the power from the VSC. The EV battery reference current changes many times throughout the day. The grid is islanded at (switch=1) and grid-connected at (switch=0). The results are presented in Figure 8. The power results of the grid, solar PV, dynamic load, constant load, BESS battery and the EV battery are presented in Figure 9.

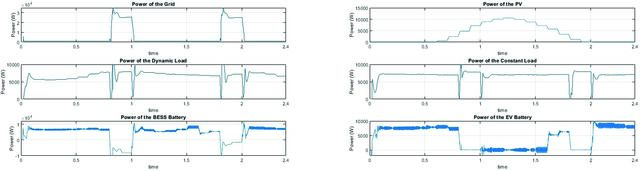

Figure 6. Shows the power results for OPF during normal condition.

Sigma J Eng Nat Sci, Vol. 43, No. 6, pp. 2279−2293, December, 2025

Figure 7. Voltage at the grid system, current at VSC, voltage at the DC bus for OPF in normal condition.

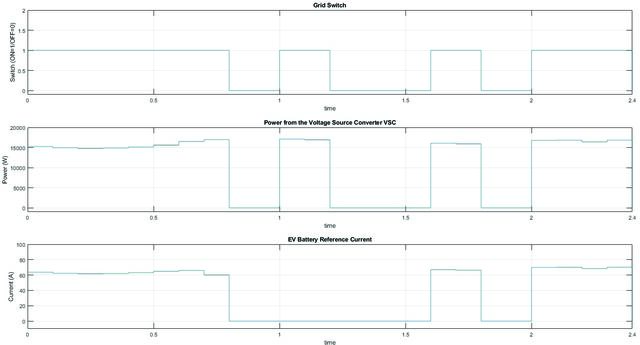

Figure 8. Shows the grid switch, power from the VSC, and the EV battery reference current in solar irradiance abnormal condition.

Sigma J Eng Nat Sci, Vol. 43, No. 6, pp. 2279−2293, December, 2025

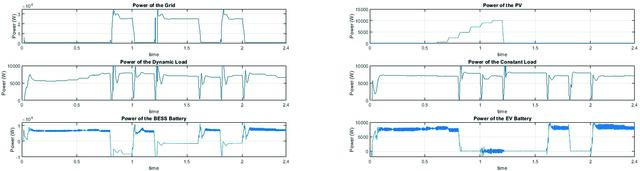

Figure 9. Shows the power results for OPF during solar irradiance abnormal condition.

Figure 10. Voltage at the grid system, current at VSC, voltage at the DC bus for OPF in solar irradiance abnormal condition.

The results for voltage of the grid system, voltage at the DC bus, and current for the VSC are presented in Figure 10. c. The State of Charge (SOC) for both the Battery Energy Storage System (BESS) and Electric Vehicle (EV) at 0% condition The results for grid switch, power from the VSC, and the EV battery reference current are presented in Figure 11.

At sate of zero charge for BESS and EV the MG system fully supported by the main grid power supply. The grid switch remains at grid-connected mode (switch=0). The MG purpose is to balance power quality, overcome limitations, reduce power losses and enhance cost efficiency of a system. The OPF controller used as a power management strategy to effectively control the power flow of the system.

Sigma J Eng Nat Sci, Vol. 43, No. 6, pp. 2279−2293, December, 2025

Figure 11. Shows the grid switch, power from the VSC, and the EV battery reference current in the EV, and BESS battery SOC 0% condition.

However, there are some ripples occurred when the switching modes changed from 0 to 1 or 1 to 0. These fluctuations need to be kept at minimum so the system can have much better performance both before and after switching modes. There are some works need to be done for future work. For future studies, the limitations such as fluctuations occurring immediately after switching modes, as observed in the results need to be reduced, and

the system can be analyzed in a microgrid system with a higher capacity to better understand the effect of the controller. Moreover, the number of power sources such as wind power, and other renewable energy sources can be added to the system. Hence, the proposed project can be realized in real project and the comparison between simulation and prototype will be verified and will be discussed further.

Figure 12. Shows the power results for OPF during EV and BESS battery SOC 0% condition.

Sigma J Eng Nat Sci, Vol. 43, No. 6, pp. 2279−2293, December, 2025

Figure 13. Voltage at the grid system, current at VSC, voltage at the DC bus for OPF in EV and BESS battery SOC 0% condition.

Conclusion

As the world rapidly advances, the use of renewable energy sources is also on the rise. To ensure efficient and reliable power distribution in Microgrid systems, power management strategies must be enhanced. The energy sources can experience disturbances, faults and fluctuations in parameters that’s why the controllers are required to balance these disturbances. More research has been conducted to minimize instability in Microgrid system. Some researchers used PI controllers to improve the performance of the Microgrid system. However, this paper incorporated optimum power flow used as a centralized controller to control the switching mode between renewable energy source and main grid power. The Microgrid (MG) consists of dynamic load, constant load, solar PV, Battery Energy Storage system (BESS) and electrical vehicle battery, and a grid. The optimum power flow (OPF) is used to provide safe and economic operation of Power Systems. Some Real-life cases such as the uncertainty of load demand and the changing in Irradiance level which affect the microgrids efficiency have been taken into the account. The inputs of the OPF received information from Microgrid and processed them with an algorithm and presented output results for grid switch, reference power for voltage source converter and reference current for the EV battery. The results showed that the OPF can control the switching modes when the power supply from sources is lower than loads. After switching occurred there were ripples in the voltages, this is because of the

sudden change in grid switch. For future work it is necessary to improve the system for better performance and minimize the fluctuations in voltage at the grid and voltages at the DC bus. The analysis and simulations indicate that the OPF based power management strategy can be implemented in a hybrid Microgrid system to enhance power flow, power supply efficiency and reliability of the system.

Data Availability Statement

The authors confirm that the data that supports the findings of this study are available within the article. Raw data that support the finding of this study are available from the corresponding author, upon reasonable request.

Conflict Of Interest

The author declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Ethics

There are no ethical issues with the publication of this manuscript.
