Numerical and experimental investigation of cross cut angle impact on heat transfer in microchannels
* Author to whom correspondence should be addressed.
Sigma Journal of Engineering and Natural Sciences 2025, Vol. 43, Issue 2, pp. 463-486; doi.org/10.14744/sigma.2025.00036
Abstract
Keywords: Computational Fluid Dynamics; Heat Transfer; Microchannels; Nanofluids
Introduction
Microelectronic components like transistors, capacitors, inductors, transformers, and resistors serve as the foundational elements in all electronic devices [1]. Any electrical component that experiences current flow must always dissipate heat. Therefore, a rise in heat in electronic circuitry primarily impacts component safety and operating dependability. One of the most significant uses of
microchannel technology is the elimination of excessive heat flow from microelectronic circuits [2]. Air serves as the primary coolant in most modern electronic cooling systems. The benefits of air include its extensive development history and experience, minimal auxiliary system support needs, high cooling system dependability, low starting cost, low operating and maintenance costs, and strong compatibility with the microelectronic circuit environment [3].
*Corresponding author. *E-mail address: lnpatil_p18@me.vjti.ac.in.com This paper was recommended for publication in revised form by Editor-in-Chief Ahmet Selim Dalkilic Published by Yıldız Technical University Press, İstanbul, Turkey This is an open access article under the CC BY-NC license (http://creativecommons.org/licenses/by-nc/4.0/).
Sigma J Eng Nat Sci, Vol. 43, No. 2, pp. 463−486, April, 2025
However, the primary issue with air cooling systems is their limited capacity to dissipate heat due to the low specific heat value of air. Heat spreaders are required to enhance the heat transfer surface area due to the low heat transfer coefficient of air cooling [4]. The air-cooled heat sink encounters three elements of thermal resistance with the spreader [5]. These are the spreader’s thermal resistance, the spreader’s thermal resistance resulting from convection between the fin and the air, including the bonding material’s thermal resistance that binds the spreader with the electronic chip [6]. Using a spreader made of high-quality conducting material will lower the spreader resistance. Newton’s law of cooling which governs Convective heat transfer from a surface is given in equation 1.
cross-cut angles on heat transport in microchannels is the driving force for this study [3], [21]. The effectiveness of gassolid fluidization (GSF) in mass, heat, and mixing transfers makes it a popular process in chemical, petrochemical, and pharmaceutical sectors. Gas flows over a densely packed bed of solid particles in GSF, causing the particles to behave like a fluid with properties that set them apart from both the solid and gas phases. Optimizing industrial processes and guaranteeing their dependable operation need a thorough analysis of GSF systems. Studying the fluidized bed’s mass transport, heat transfer, and hydrodynamic properties is a key component of GSF analysis. The behavior of various pertinent parameters on the fluid flow characteristics is illustrated by some researchers. The qualitative behaviors of velocity, temperature, skin friction, and heat transfer rates of a micropolar fluid are found to be similar for Biot number and radiation parameters. The suction/injection and activation energy parameters increase the concentration of the micropolar fluid within the boundary layer, while the chemical reaction parameter reduces the concentration in the same region. Furthermore, this quadratic convection demonstrates a strong influence on the fluid flow characteristics, with the impact of pertinent parameters being more prominent on the physical quantities compared to the results of linear convection [22], [23]. Through a combination of realistic experiments and numerical simulations, this work attempts to unravel the complex dynamics behind heat dissipation. By improving the design and efficiency of microchannel systems and contributing to the evolution of thermal management technologies for a variety of applications, including industrial heat exchangers and cooling systems for electronics, an understanding of how these cross-cut angles effect heat transmission is possible. This study might lead to the discovery of novel approaches for maximizing heat transmission in microchannels, which would enhance the overall efficiency and performance of these structures. Therefore, it was intended to conduct the numerical and experimental investigation of cross cut angle impact on heat transfer in microchannels.
Since the temperature limitations are often set, raising the product hA will increase the heat transfer rate [7]. Microchannels are channels with typical sizes between 10 and 1000 millimeters [8]. Therefore, the surface area for heat transmission is increased by a deep, narrow microchannel that is etched at the backside of a silicon substrate. Due to the lower characteristic dimensions involved, the flow in the microchannel is typically laminar in nature. The Nusselt number (Nu), for an internal flow that is completely developed, is constant [9]. Equation (1.2) provides the Nusselt number. Nu = hD/k
Because of their reduced diameter values, the microchannels have the benefit of having very high h values (on the order of several thousand W/m2 °C) [10]. Therefore, in a microchannel, there is a greater convective heat transfer due to the high product hA [11]. Because of this, microchannels are a good solution for high heat removal, with values up to 100 W/cm2. The majority of researches used theoretical, experimental, and numerical methods to study the performance of rectangular straight microchannel heat sinks [10], [12], [13], [14], [15]. These studies show that microchannel heat sinks can operate more effectively than traditional heat sinks. However, several studies use circular channels in place of rectangular ones to provide a greater cooling effect. Straight channels that are rhombic [13], trapezoidal [16], converging and diverging [17], and transversal [18], [19]. Straight channels are often used in microchannel heat sinks, which results in extremely poor fluid mixing. According to research, nanoparticles improve the thermo-physical characteristics of fluids by increasing diffusivity and conductivity. Zigzag channels exhibit superior heat transfer but with increased pressure drop. The thermal performance of oblique fin microchannels is enhanced by secondary flow and boundary layer rebuilding. Using nanofluids, researchers investigate the effect of oblique fins on cooling in computer server microchannel heat sinks by concentrating on straight channels[20]. Understanding the impact of
Materials And Methods
The experimental configuration used for the present research study is displayed in Fig 1. Its primary reservoir is a magnetic stirrer that continually stirs a nano fluid (copper oxide or silver nanowire). A pulsating pump is used to convey the pulsing flow of nano fluid into the microchannel. A differential pressure sensor will be used to monitor the pressure decrease across the microchannel. By monitoring the temperature across the microchannel, including the wall, fluid intake, and exit temperatures, the thermal performance of the microchannel may be ascertained. The microchannel fluid’s heat is removed via the condenser unit and second reservoir. With the use of a flow meter, the system’s fluid flow rate is determined, and the cooled fluid is then returned to the main reservoir.
Sigma J Eng Nat Sci, Vol. 43, No. 2, pp. 463−486, April, 2025

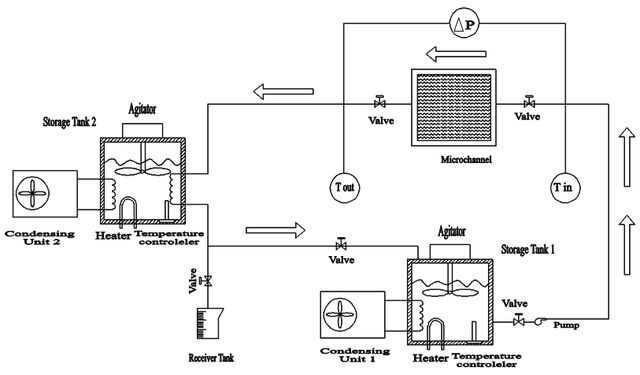

Figure 1. Experimental configuration. Heat transfer rate of fluid is calculated by using following equations . Q = mCpΔT . m = mass flow rate of fluid Cp = Specific heat of fluid ΔT = To − Ti To = Outlet fluid temperature; Ti = Inlet fluid temperature . m = ρAV Q = hA ΔT ;watt h =Coefficient of convective heat transfer A = (2H + W) × L × n mm2 ΔT = Tw − Tf Tw = wall temperature; Tf = Fluid temperature
Dh = 4Ac / Pc Ac= Cross section of Channel; Pc=Perimeter of Channel
Results And Discussion
Grid Independent Study for CFD Analysis For GSF analysis a rectangular microchannel of aluminum with dimensions of 100 x 20 x 5 was used. From table 1, it is found that deviation in pressure drop of fluid for GSF 5 and 6 is 0.12% which will be in acceptable region. Comparison of Straight Channel and Wave Channel From table 2 it is found that, as Reynolds number increases ratio of Nusselt number and ratio of pressure drop of wavy to straight microchannel get increase. Also it is found that wavy microchannel having more heat transfer rate as compare to straight channel but it increases the pressure drop which leads to increase in pumping power. Comparıson of Wavy Channel Without Cross Cut Verses Wavy Channel with Cross Cut In long microchannel, to avoid the boundary formation and to increase heat transfer rate cross cut are use at suitable distance from header. From table 3, it is found that by using cross cut in microchannel, Nusselt number is increased by 23.91% which
Sigma J Eng Nat Sci, Vol. 43, No. 2, pp. 463−486, April, 2025
Table 1. Variation of pressure drop at different GSF Length of channel
Table 3. CFD results of wavy channel without cross cut verses wavy channel with crosscut Channel
indicate that cross cut microchannel is having more heat transfer rate than that of straight channel. But simultaneously it increases the pressure drop which leads to increase in pumping power. Optimization of Geometry For present research work, cross cut microchannel was used hence it is important to optimize the geometry of it. Initially the angle of cross cut is finalized by simulating different geometries of cross cut angle 00, 100, 200, 300, 400 and 500 with the help of Computational fluid dynamics (CFD). For simulation, geometry of dimension 100 x 20 x

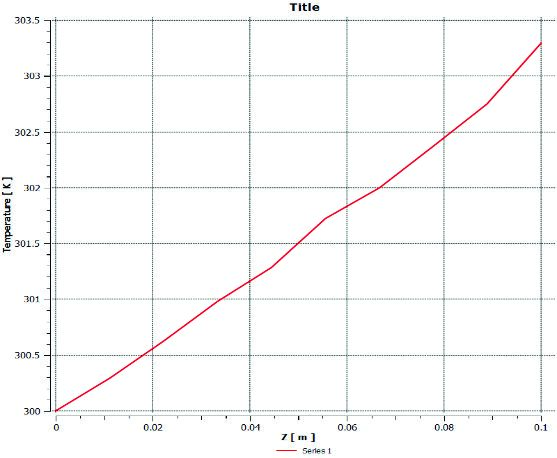

5 is used. This geometry is simulate by applying following fluent parameters. Table 4 shows parameter which to be used for the CFD simulation. Variation of Temperature with Change in Cross Cut Angle Following figures showing temperature distribution in microchannel with different cross cut angles. Figure 2 to Figure 15 is showing temperature distribution and temperature chart for microchannel without cross cut and with cross cut with cross cut angle 0°, 10°, 20°, 30°, 40° and 50° respectively. All geometries are simulated
Sigma J Eng Nat Sci, Vol. 43, No. 2, pp. 463−486, April, 2025
0.38. m/s (For Re 500 )

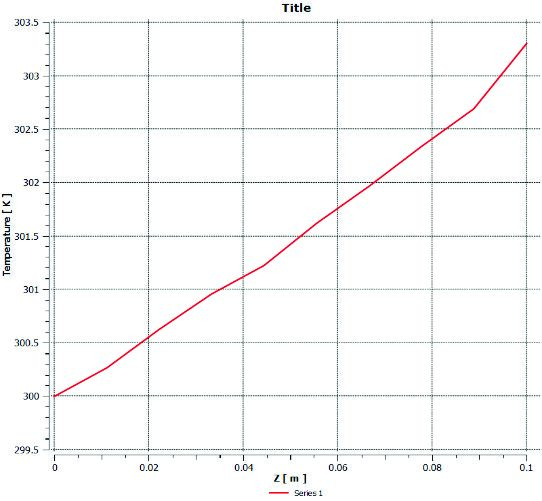

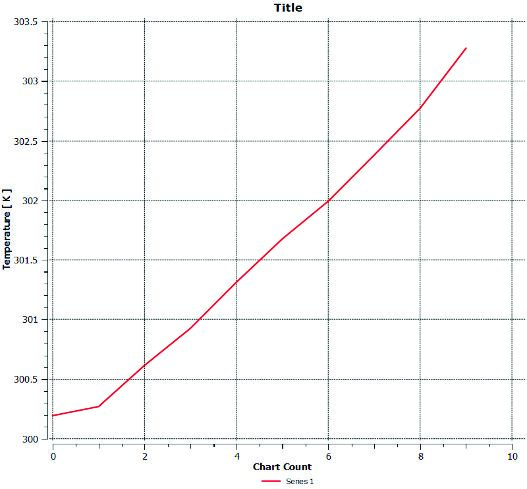

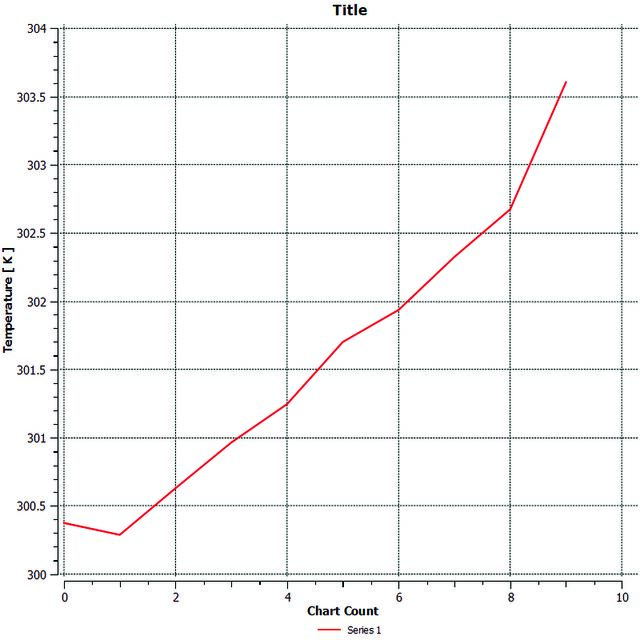

Figure 2. Temperature distribution without cross cut. at Reynolds number 500 and constant heat flux of 20000 w/m2. Corresponding temperature at different location is measured as shown in Table 5. From Table 5, it is observed that for given operating condition geometry with cross cut angle 30° showing more temperature difference than plane geometry and other cross cut geometry.
Variation of Pressure with change in Cross Cut Angle Figure 16 to Figure 29 are showing pressure distribution and pressure chart in microchannel for without cross cut and different cross cut angles. From Table 6, it is observed that pressure drop is slightly increased in cross cut microchannel which caused increase in pumping power. Maximum increase in pressure drop
Sigma J Eng Nat Sci, Vol. 43, No. 2, pp. 463−486, April, 2025
Sigma J Eng Nat Sci, Vol. 43, No. 2, pp. 463−486, April, 2025
Sigma J Eng Nat Sci, Vol. 43, No. 2, pp. 463−486, April, 2025
Sigma J Eng Nat Sci, Vol. 43, No. 2, pp. 463−486, April, 2025
Sigma J Eng Nat Sci, Vol. 43, No. 2, pp. 463−486, April, 2025
Sigma J Eng Nat Sci, Vol. 43, No. 2, pp. 463−486, April, 2025
Sigma J Eng Nat Sci, Vol. 43, No. 2, pp. 463−486, April, 2025
Table 5. Temperature distribution in microchannel with different crosscut angle Distance
of 4.66% is observed corresponding to 0° cross cut. Also increased in pressure drop corresponding to 30° is 2.4% Wall Temperature of Cross Cut Microchannel From Table 7, it is observed that wall temperature of all cross cut geometry are nearly same as applied heat flux is constant and thickness of channel is small. In the
context of microchannels, the wall temperature refers to the temperature of the surfaces forming the boundaries of the channel. In a cross-cut microchannel, typically having a rectangular or square cross-section, the wall temperature is crucial in determining heat transfer characteristics. Factors influencing the wall temperature include fluid
Sigma J Eng Nat Sci, Vol. 43, No. 2, pp. 463−486, April, 2025
Sigma J Eng Nat Sci, Vol. 43, No. 2, pp. 463−486, April, 2025
Sigma J Eng Nat Sci, Vol. 43, No. 2, pp. 463−486, April, 2025
Sigma J Eng Nat Sci, Vol. 43, No. 2, pp. 463−486, April, 2025
Sigma J Eng Nat Sci, Vol. 43, No. 2, pp. 463−486, April, 2025
Sigma J Eng Nat Sci, Vol. 43, No. 2, pp. 463−486, April, 2025
Sigma J Eng Nat Sci, Vol. 43, No. 2, pp. 463−486, April, 2025
Sigma J Eng Nat Sci, Vol. 43, No. 2, pp. 463−486, April, 2025
Table 6. Pressure distribution in microchannel with different crosscut angle Distance
Table 7. Wall temperature distribution in microchannel with different crosscut angle Distance
flow rate, channel material thermal conductivity, heat transfer coefficient at the fluid-wall interface, and fluid inlet temperature. Understanding the wall temperature distribution along the microchannel length and width is key for optimizing heat transfer processes like microchannel heat exchangers or microreactors. Computational fluid dynamics (CFD) simulations and experimental techniques such as infrared thermography or thermocouple measurements are used to study this distribution. Controlling wall temperature is vital for microchannel applications like microelectronics cooling, chemical synthesis, and biomedical devices. Maintaining uniform and controlled wall temperature enhances heat transfer efficiency, improves process control, and ensures device reliability and performance.
CFD Results By measuring fluid temperature, pressure drop and wall temperature at various points, Nusselt number for each geometry is calculated as shown in Table 8. It is found that Nusselt number of cross cut geometry is greater than Nusselt number of without cross cut geometry as mentioned in Table 8. It is observed that geometry of cross cut angle 30° showing maximum Nusselt number 11.497 which is 3.66% greater than that of plain geometry. Numerous challenges in energy and geophysical industries, such as thermal insulation, geophysical flows, petroleum resources, and polymer processing, require the analysis of mixed convective thermal and solutal transport phenomena of non-Newtonian fluids in a porous medium across various geometries. Many real fluids, including cosmetic products, grease, body fluids, and others, exhibit
Sigma J Eng Nat Sci, Vol. 43, No. 2, pp. 463−486, April, 2025
Table 8. Variation of nusselt number and pressure drop for different cross cut angle Parameter
Figure 30. Variation of Nu for corresponding to change in Re for different geometries.
non-Newtonian behavior. Several fluid models have been proposed and studied to describe the dynamics of non-Newtonian fluids. One such model is the Ostwald-deWaele power-law fluid, which finds extensive applications in engineering industries such as oil reservoir engineering, chemical engineering, and manufacturing processes. This model characterizes the flow behavior of certain non-Newtonian fluids, like polymer melts and glasses, which do not follow Newton’s law of viscosity [24]. The integration of computers and electrical gadgets is important in today’s technologically advanced world. Large-scale data management and monitoring are made easier by supercomputers and servers that are connected to several smaller computers. But these servers’ closely spaced electrical parts, which produce a lot of heat, present problems. These heat-related
problems are addressed externally by fans and air conditioners [25], and inside via heat-dissipating microchannel and flat plate heat sinks that use air or nanofluids [26]. Overheating still occurs in spite of these attempts, which reduces the dependability and longevity of electrical devices. The goal of innovations such as the combination of nanofluids [27] and cross-cut designs with wavy microchannels[28] is to reduce pressure drop, improve fluid flow mixing, and handle thermal issues in data-intensive server settings in order to prevent overheating. Figure 30 depicts the results for Nusselt number as a function of Reynolds number. The Nusselt number rises as the Reynolds number rises [29]. This is due to the decrease in the thickness of the boundary layer in the heat sink as the velocity of the nanofluid increases. The cross
Sigma J Eng Nat Sci, Vol. 43, No. 2, pp. 463−486, April, 2025
cut heat sink has a higher Nusselt number than the sans cut heat sink because to thermal boundary layer redevelopment [30]. Meanwhile, it is also noted that the initial Nusselt number increases as the angle of the oblique cut increases. Nanofluids are specifically designed colloidal suspensions of nanoparticles, usually less than 100 nm, in a base fluid. These fluids are potential for a variety of applications because they have distinct qualities from the basic fluid, such increased thermal conductivity. Typically, in Fluent, one creates a bespoke material by utilizing the mixture model to define the material characteristics of nanofluids. The effective properties of the nanofluid are a blend of the base fluid’s and the nanoparticles’ characteristics, and it is treated as a single continuous medium in this model. The volume fraction of nanoparticles in the fluid is then used to compute the nanofluid’s characteristics. The concentration ratio, represented by the symbol φ, is the volume fraction of nanoparticles in the nanofluid. It shows the proportion of the nanofluid’s overall volume to the volume of its nanoparticles. The material characteristics of the nanofluid are mostly determined by the concentration ratio; larger concentrations usually result in more notable changes in attributes. Numerous challenges in energy and geophysical industries, such as thermal insulation, geophysical flows, petroleum resources, and polymer processing, necessitate the analysis of free convective flow of non-Newtonian fluids in a porous medium. The majority of real fluids, including cosmetic products, grease, body fluids, and others exhibit non-Newtonian behavior. Studying non-Newtonian fluids in a porous matrix differs significantly from studying Newtonian fluids in porous media [31]. The associated complicated nondimensional governing equations were evaluated using a combination of local nonsimilarity and successive linearization techniques [32]. Heat and mass transfer vary significantly with the increase in nonlinear convection parameters, which depend on aiding and opposing flow situations. In both aiding and opposing flows, thermal dispersion enhances heat transfer, while the solutal dispersion parameter enhances mass transfer. This investigation is useful for understanding combustion mechanisms, aerosol technology, high-temperature polymeric mixtures, and solar collectors operated at moderate to very high temperatures [33].
Nusselt number increases with an increase of Reynolds number for all geometries because of decrease in thickness of boundary layer with increase in velocity. • Geometry with cross cut gives more heat transfer rate than plane geometry due to combine effect of redevelopment of boundary layer and formation of secondary flow. • It is found that geometry with 300 cross cut gives better heat transfer rate than that of other geometries (Experimentally 41 % more than without cut geometry). In general heat transfer rate in microchannel is depending on angle of cross cut and input parameter like Reynolds Number. The study presented in this article provides valuable insights into the impact of cross-cut angles on heat transfer in microchannels. However, Investigation of the influence of surface modifications, such as roughness or coatings, on heat transfer enhancement in microchannels could provide further insights into enhancing heat transfer performance.
