A review on utilisation of nanofluid in solar energy harnessing

Abstract

Keywords: Heat Transfer; Nanofluid; Solar Energy; Stability; Thermal Conductivity; Thermal Efficiency

Introduction

In the 21st century, finding sustainable and renewable energy sources has become a top priority. The world is facing two big problems: fossil fuel stocks are running out, and using them continues to harm the environment. Now is the time to switch to cleaner, more sustainable energy sources [1–2]. Solar energy is one of the most promising renewable energy sources since it is plentiful, reliable, and can meet a large part of the world’s energy needs. The Sun is a huge fusion reactor that sends a huge amount of energy to Earth. This energy is more than enough to meet the world’s energy

needs several times over [3]. Even while solar energy systems have a lot of potential, their current efficiency is still a barrier to their widespread use. Because of this inefficiency, a lot of research has been done on novel technologies and materials that can improve the capture and conversion of solar energy [4]. Using nanofluids to collect solar energy is one area of research that looks promising. Solar energy is one of the best sources of renewable energy because it is almost always available and doesn’t directly release greenhouse gases when it is used. Fossil fuels are limited and found in certain areas of the world, but solar

*Corresponding author. *E-mail address: sanjeev.gupta@gla.ac.in This paper was recommended for publication in revised form by Editor-in-Chief Ahmet Selim Dalkilic Published by Yıldız Technical University Press, İstanbul, Turkey © Author. This is an open access article under the CC BY-NC license (http://creativecommons.org/licenses/by-nc/4.0/).

Sigma J Eng Nat Sci, Vol. 43, No. 5, pp. 1852−1885, October, 2025

energy is available almost everywhere on Earth [5]. The International Energy Agency (IEA) says that the quantity of solar energy that hits the Earth’s surface in only one hour is enough to power the world’s economy for a whole year. This shocking number shows how solar energy might become a major source of energy over the world [6]. Also, using solar energy could help make energy more secure, cut down on the need to import fossil fuels, and lessen the negative effects on the environment that come with traditional energy production [7]. Solar power can control the climate change by controlling the emission of carbon dioxide and hence it is most powerful renewable energy source. This is the reason behind investment in solar energy technology. Engineers and scientist can get maximum from solar energy by enhancing its efficiency and effectiveness of solar energy system [8]. The world energy scene is changing a lot because of the growing need for energy, population increase, economic growth, and the need to cut carbon emissions right away. According to IEA, the consumption of global energy will enhance in the coming years. The electricity demand along is raised approximately 60% by 2040 [6]. Figure 1 shows the world’s population, the amount of CO2 in the air, the GDP per person, and the median temperature anomaly. This rising demand is a big problem because most of the world’s energy still comes from fossil fuels, which are not only limited but also release a lot of greenhouse gases into the atmosphere [9]. Now the entire world is focused on solar energy to find a balance between energy security and environmental sustainability [10]. The world energy demand can be fulfilled by solar energy without and harmful effect on the environment. This energy can be harnessed by both medium directly using PV system and indirectly by solar

thermal system. Solar power is now more competitive with traditional energy sources since solar technology is improving quickly and prices are going down. But to keep up with the growing demand, solar energy systems need to become even more efficient and useful [11-12]. Nanofluids are made by mixing nanoparticles—very small particles that are around the size of nanometers— into a base fluid like water, oil, or ethylene glycol [13]. You may make these nanoparticles out of metals (like copper and gold), oxides (like aluminium oxide and titanium dioxide), and carbon-based materials (like graphene and carbon nanotube). Nanofluids are very appealing for use in solar energy systems because they have unique qualities, such as a high surface area-to-volume ratio, better thermal conductivity, and the ability to change their optical properties [14-15]. Nanofluids can greatly increase how well solar thermal systems absorb and transport solar energy [16]. Nanoparticles in the fluid make it better at conducting heat, which makes heat transmission more efficient. Also, some nanoparticles can be designed to absorb certain wavelengths of sunlight better, which means the device can capture more energy [17]. This better thermal performance could make solar collectors work better and lessen the cost of making solar thermal energy. Nanofluids can be utilised as a cooling medium in photovoltaic systems to get rid of the heat that PV cells make. Too much heat can make PV cells less effective and shorten their lifespan, therefore cooling them down is quite important. Due to better thermal characteristics of nanofluid, it can assist PV cell properly which make the entire system more effective and efficient [18]. Researchers and people in the business world are very interested in nanofluids

Figure 1. World population, CO2 concentration, GDP per capita and Median Temperature Anomaly [From Holechek et al. [1], with permission from MDPI].

Sigma J Eng Nat Sci, Vol. 43, No. 5, pp. 1852−1885, October, 2025

because they could make solar energy systems work better. Many studies have shown that nanofluids can be used in a variety of solar applications [19–21]. Researchers and scientist are still searching best combination of nanomaterial which can make the system more efficient. Utilization of nanofluid in solar energy harnessing devices can make the solar system more efficient and also fulfill the world energy demand without any harmful impact on the environment. Already Known Ø Nanofluids are colloidal suspension different nanomaterials in a base fluid. Nanofluid offers better thermophysical properties compared to traditional fluid. Ø Nanofluid is most widely used in solar harnessing devices because of its better heat transfer ability. Ø Energy conversion in solar system has become more effective due to absorption capacity of solar radiation of nanoparticles present in the nanofluid. Ø Most of researches are performed on nanoparticles such as Al2O3, TiO2, MWCNT, etc. Ø Researchers are focused on efficiency, effectiveness and stability and cost of nanofluid utilization in solar energy harnessing devices. Gap that Need to be Addressed Ø Stability of nanofluid is the major concern when it is used in different environmental condition. Ø The utilization of nanoparticles is solar energy devices is very hazardous for health and its long term utilization can also affect the environment. Ø Only limited research are available on amount of nanoparticles used in the preparation of nanofluid which can cause problem of higher viscosity and clogging. Ø Commercial utilization of nanofluid in solar energy devices to harness solar energy is limited. Ø Utilization of nanofluid in solar system is not cost effective. Ø Hybrid nanofluid is now used in lab and real life solar system in place of mono nanofluid because of its enhanced thermophysical properties. Novelty The novelty of this review article lies in the development of new nanofluid and its utilization in its solar energy

harnessing devices. In review article different types of solar system are studies with commercial utilization of nanofluid in the solar system. This review article also focuses on the different way to enhance its long term stability of nanofluid and wide application in solar energy devices. Objectives and Scope of Study The primary objective of this review article is to summarize the recent development and utilization of nanofluid in solar energy harnessing systems. In this review article, the development, progress, possible utilization of nanofluid in different solar system is discussed in details along with their commercial usage and limitations. Also this article helps to understand how different nanofluid used in different solar application to optimize system efficiency and effectiveness to use them as an alternate source of renewable energy. The objective covered is as follows: Ø Analysis of different types of nanoparticles and base fluid along with their thermophysical properties and characteristics. Ø Analysing the behaviour of different types of nanofluid in different solar applications to optimize the system efficiency and effectiveness. Ø Exploration of nanofluids in PV/T systems, with a focus on how they can help photovoltaic cells cool down and produce more electrical and thermal energy. Ø A summary of computer models, simulations, and experimental studies that look at how nanofluids act in solar energy systems, taking into account things like flow dynamics, heat transfer, and system efficiency. Ø There will be a discussion of the real-world problems that come up when using nanofluids, such as stability, cost, scalability, and environmental impact. There will also be a list of possible research directions, technological advances, and new uses that could make nanofluids even better at collecting solar energy. Table 1 shows how this study’s methodology is different from that of previous studies. The authors believe that no other study has looked at these problems in such depth. Hamzat et al. [22] did a similar study; however this one includes the most recent developments, difficulties, and trends in the field since it was published.

Table 1. Description of Earlier Published Review Paper on Similar Topic after 2018 Ref.

This study only focused on solar powered membrane distillation for enhancement of energy using nanofluid.

This is limited to renewable system such as hydrogen production, biofuel and geothermal for energy harnessing using nanofluid

This review only focused to enhance solar collector efficiency using nanofluid

This review focused on only harnessing of solar thermal energy using nanofluid

This research only focused on harnessing solar thermal energy using hybrid nanofluid

Exclusively solar energy harvesting systems for photovoltaic self-powered applications were reviewed.

An overview of current developments in nanofluid-based solar energy harvesting systems is provided in this article.

Sigma J Eng Nat Sci, Vol. 43, No. 5, pp. 1852−1885, October, 2025

Nanomaterials And Nanofluid

Nanomaterials are materials with structural components smaller than 100 nanometers, typically consisting of atoms, molecules, or particles at the nanoscale. At this size, materials often have physical, chemical, and biological properties that are very different from those of their bulk

equivalents. This is because the surface area is larger, quantum effects are stronger, and surface phenomena are more important [29-30]. Detailed classification of nanomaterials is shown in Fig. 2 and Fig. 3. There are two main types of nanomaterials: organic and inorganic. Each nanomaterial has its own characteristics. The nanomaterials made by carbon molecules such

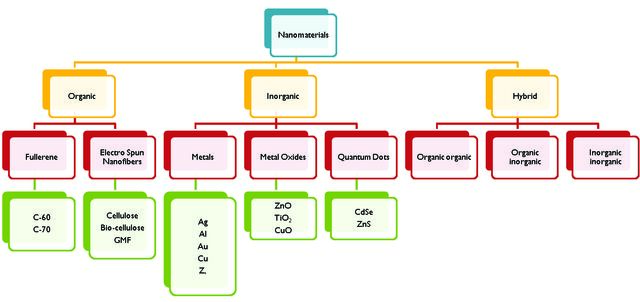

Figure 3. Organic and Inorganic nanoparticles compositions [From Bodunde et al. [31], with permission from Elsevier].

Sigma J Eng Nat Sci, Vol. 43, No. 5, pp. 1852−1885, October, 2025

as polymer or organic compound are known as organic nanomaterials. Organic nanomaterials are most widely used in solar cells, optoelectronics, sensors, biomedicines like drug delivery and many more. However, inorganic nanomaterials do not contain any carbon. They are made by metals, metals oxide and ceramics. Such materials possess good strength, electrical conductivity and also stable at very high temperature. These characteristics are very useful for their utilization in electronic industry, solar system and also cleaning the environmental pollution. The materials which contain organic and inorganic material are known as hybrid nanomaterials which have the characteristics of both. So hybrid nanomaterials are versatile and useful in solar applications [31–32]. Nanofluid are the mixture of tiny nanomaterials (1-100 nm) in the base fluid like water, ethylene glycol etc having better heat transfer characteristics. Nanomaterials such as CNT, quantum dots, metal oxides etc. posses high heat transfer and thermophysical properties [33]. Nanofluids were first thought of in the mid-1990s as a new way to improve heat transfer efficiency. After the discovery of nanomaterials, they have got attention of researchers because it makes the system more effective and [34]. The various applications of nanofluid are depicted in Fig. 4.

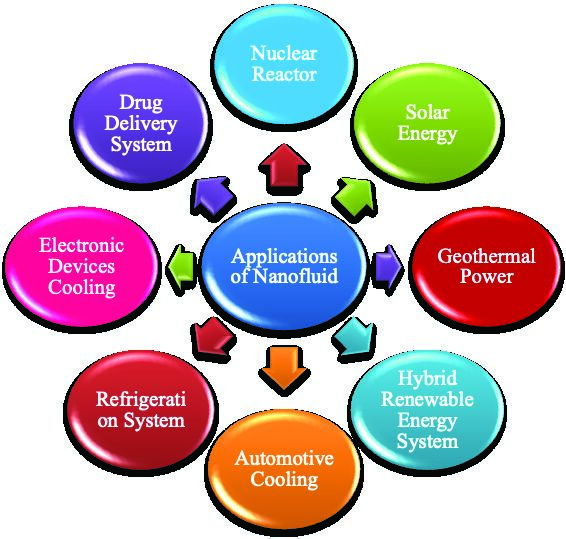

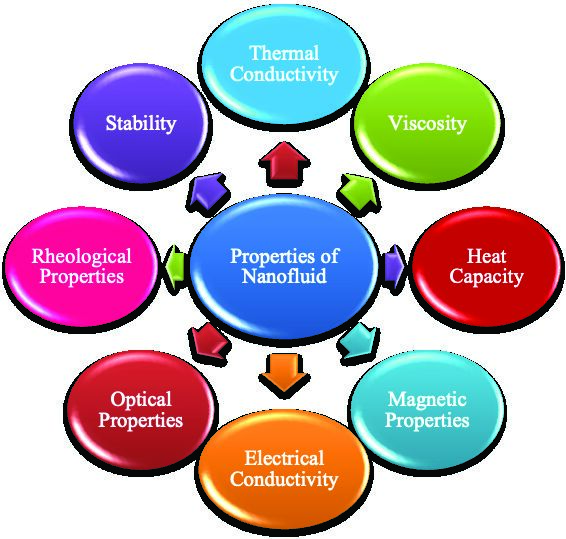

Nanofluids have better thermal characteristics than regular fluids because the nanoparticles have a large surface area and excellent thermal conductivity, which makes energy transmission more efficient. Nanoparticles make the surface area accessible for heat exchange more effective, which speeds up the processes of heat transmission. Also, the Brownian motion of nanoparticles causes micro-convection in the fluid, which makes thermal conductivity even better [35]. Studies have shown that even a small amount of nanoparticles can make a big difference in how well something conducts heat. This makes nanofluids very useful for things like cooling systems in cars, electronic devices, and renewable energy systems like solar collectors [36]. In renewable energy system, nanofluid has got special attention since it make renewable energy system more effective and reliable. In solar collector, nanofluid absorbs the solar radiation and converts it into thermal energy more prominently [37]. The direct conversion of energy make solar collector more effective compared to other heat transfer fluids. Nanofluids are also used in nuclear reactors for cooling purpose to make reactor more efficient and work better. [38]. Nanofluids offer many advantages and utilizations in various solar energy systems along with possible problems of clogging and stability. Main concern about nanofluid is

Sigma J Eng Nat Sci, Vol. 43, No. 5, pp. 1852−1885, October, 2025

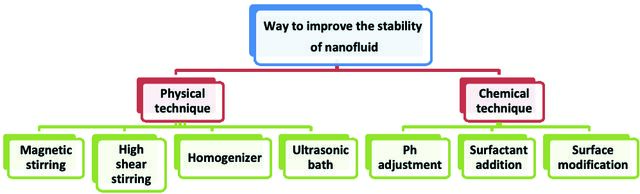

its stability over time since nanoparticles settled together after certain period of time and clogging created and ultimately lose their thermal characteristics [39]. Advance synthesis and characterization techniques are required to make nanofluid stable and its utilization in real life applications. The high cost of nanomaterials also create problem in mass production and its industrial utilization [40]. Researchers are mainly focused on Newtonian base fluid while experimentation on nanofluid since its viscosity does not affected with shear deformation. In case of nonnewtonian fluids viscosity affected with shear deformation which cause problem clogging and stability of nanofluid. You can typically find these fluids in more specialized or industrial uses, including in biological fluids, slurries, or some types of lubricants. The behavior of nanofluids in non-Newtonian fluids can be more complicated to predict because the interactions between nanoparticles and the non-linear viscosity of the base fluid can result in complex flow characteristics. Research on non-Newtonian nanofluids is less common, but it is expanding. This is because learning more about these interactions could lead to new uses for non-Newtonian fluids in areas where they are common. But the difficulty of modeling and testing non-Newtonian nanofluids

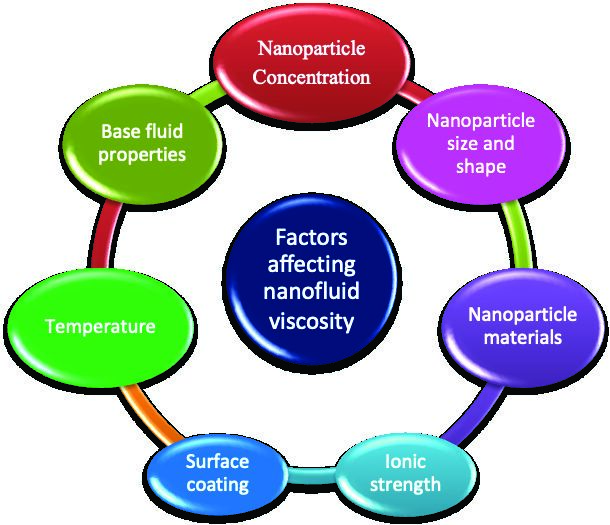

has probably caused researchers to focus on Newtonian fluids in the beginning phases of nanofluid research. PROPERTIES OF NANOMATERIALS (NANOFLUID) The size, shape, concentration, and material composition of the nanoparticles have a big effect on the properties of nanofluids. Figure 5 shows some of the different properties of nanofluid. One of the most interesting things about nanofluids is that they have better thermal conductivity than regular fluids, which makes them very good for transferring heat [41]. Nanofluids also have better viscosity and heat capacity, which can be changed by changing the concentration of nanoparticles. Another important attribute is their stability; well-dispersed nanoparticles stop aggregation and settling, which keeps the thermal performance steady [42]. Nanofluids can also have different optical, magnetic, and electrical properties depending on the nanoparticles utilized. This makes them useful for many different industrial uses, such as solar energy harnessing and cooling systems. Different properties of nanofluids used by different researchers are summarized in Table 2.

Sigma J Eng Nat Sci, Vol. 43, No. 5, pp. 1852−1885, October, 2025

Table 2. Earlier Researchers Investigation on Nanofluid Properties Ref. No.

Maximum boost of 10.1% at the 0.15 weight percent nanoparticle suspension

Utilization Of Nanofluid In Different Solar Energy Harnessing System

Nanofluids are engineered colloidal suspensions of nanoparticles in a base fluid. They have shown a lot of promise in making solar energy systems work better. Due to enhanced thermal conductivity and heat transfer rate, solar collector performs much better by utilization of nanofluid. In PV/T system, nanofluid is used as a coolant to keep solar panel cool and get maximum out of it. In concentrated solar power (CSP), solar radiation is absorbed by nanofluid and this radiation is stored as thermal energy for further uses. The optical and thermal properties of nanofluid make it more special to enhance the solar system performance.

Sigma J Eng Nat Sci, Vol. 43, No. 5, pp. 1852−1885, October, 2025

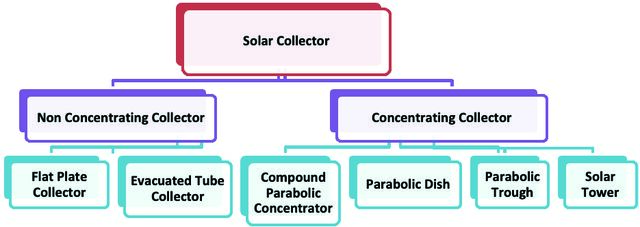

Solar Concentrator or Collector A device which collects solar radiation and converts it into heat energy for further utilization is known as solar collector [63]. Figure 9 shows a simple flat plate solar collector. A solar collector’s main parts are an absorber plate, a clear cover, insulation, and a system for moving fluid around. The materials such as aluminum, copper are used to make the absorber plate due to its high thermal conductivity. This plate is covered so that heat is not escaped from the plate. Insulation on the back and sides of the collector helps keep the heat it collects [64]. A solar collector works by collecting sunlight and turning it into heat. The absorber plate takes in energy from the sun and turns it into heat. This heat is then transferred to a working fluid (such as water or air) that flows through or across the absorber plate. The heated fluid is either used immediately or stored for later use. The efficiency of the collector depends on the quality of materials used, the design of the collector, and the intensity of the sunlight. Solar collectors are commonly used in residential and commercial settings for water heating, space heating, and even

for powering certain types of solar energy systems [65]. The detailed classification of different types of solar collectors is shown in Fig. 10 and the summary of recent research on solar collector for solar energy harnessing is provided in table 3. The mathematical formula used for the calculation of different parameters is mentioned below: It is possible to assess the flowing fluid’s usable heat transfer via (1) The solar collector thermal efficiency is calculated as (2) The solar collector exergy efficiency is calculated as (3)

Sigma J Eng Nat Sci, Vol. 43, No. 5, pp. 1852−1885, October, 2025

Table 3. Recent Researches Performed on Solar Collector using Nanofluid Ref. No.

A 9.34% increase in thermal efficiency is established for a 0.75% component volume fraction.

MWCNT/water, Graphene/water, CuoH2O, Al2O3-H2O, TiO2-H2O, SiO2-H2O

Maximum improvement in energy efficiency is observed in MWCNT/water that is 29.3%.

The HTC can rise to 78.25% when zigzag pipes and CuO/ water nanofluid are used.

For 1.5 l/m, MWCNT/ Al2O3 provide an efficiency increase of 26%.

At a SiC volume percentage of 0.1, the FPSC’s energy efficiency climbed to 37.4%.

49.52% enhancement in thermal efficiency at 0.3% volume concentration

When the cermet layer is applied to the bare tubes, the highest improvement is 7.16%.

Ag-ZnO/ Syltherm 800, Ag-MgO/ Syltherm 800, Ag- TiO2/ Syltherm 800

Maximum 31% enhancement in thermal efficiency using Ag-MgO/Syltherm 800 at 4% volume fraction

Maximum thermal efficiency is 14.79% using CuO nanofluid at 0.0224 kg/s mass flow rate

Highest efficiency increase of 69.07% at mass flow rate of 140 l/h and volume concentration of 0.1%.

85.4% maximum enhancement in energy efficiency using Graphite as TES material

FPSC, PTC

80.6% increase in thermal efficiency of PTC using carbon nanotube/ EG nanofluid

Maximum thermal efficiency enhancement is 14.0.9% using CuO nanofluid.

Pt-Etsc

Maximum gain in thermal efficiency was 69.5% 0.035 kg/s mass flow rate and 0.3% volume fraction.

MWCNT nanoparticles can boost the collector’s optical effectiveness by up to 78.1%.

Maximum energy efficiency obtained is 60% for MWCNT/ Al2O3 hybrid nanofluid

Verma et al. [66] tested a FPSC using MgO/water nanofluid with particles measuring 40 nm and an aggregate volume fraction that ranged from 0.25 to 1.5% at various mass flow rates. Thermal efficiency gain of 9.34% is established by experimental evidence for 0.75% component volume fraction at 1.5 lpm flow rate. The variation of efficiency with mass flow rate at varying volume fraction is shown in Fig. 11. For the same composition and flow rate, there was

a 32.23% increase in energetic efficiency. Verma et al. [67] again concentrated on a broad range of nanofluids to assess the FPSC effectiveness in terms of several parameters. The results of the experiments show that the energy efficiency of MWCNT/water nanofluid is improved by 29.32% at a particle volume fraction of 0.75% and a mass flow rate of 0.025 kg/s. MWCNT/water nanofluids also have minimal entropy creation, which can be a disadvantage. The greatest

Sigma J Eng Nat Sci, Vol. 43, No. 5, pp. 1852−1885, October, 2025

Figure 11. Variation of thermal efficiency of FPSC at varying mass flow rate and volume fraction [From Verma et al. [66], with permission from Elsevier]

measured decrease in production of entropy in MWCNT/ water, at 65.55%, has been noticed under identical thermophysical conditions. Saffarian et al. [68] utilized two different nanofluid Al2O3-H2O and CuO- H2O having volume fraction varying from 1% to 4% to enhance the heat transfer of FPSC using different shape of flow path. The coefficient of heat transfer and Nusselt number can be greatly increased by employing spiral and zigzag pipes, according to the observations. Furthermore, it is noted that the zigzag pipes exhibit the most pressure decrease. When nanofluid is used in place of water, the coefficient of heat transfer rises in every situation. Gad et al. [69] conducted research, In order to investigate the impact of adding nanoscale Al2O3-H2O and TiO2-H2O as an operating fluid on solar collector effectiveness. To improve spreading and decrease amalgamation, 25 nm-sized nanoparticles were employed. A surfactant was incorporated to the produced nanofluids to increase their stability, and their concentration was set at 2% by weight. Regarding base fluid, the largest increases in collector efficiency for Al2O3-H2O and TiO2-H2O were approximately 22 and 30%, correspondingly. It was suggested that Al2O3H2O and TiO2-H2O nanofluid be used to improve the efficiency of solar collectors. Elshazly et al. [70] utilized three different nanofluids Al2O3, MWCNT and, MWCNT/ Al2O3 to analyze the FPSC experimentally. Al2O3 substitution for 50% of MWCNT nanofluid results in a smaller efficiency gain and fewer hazards to the environment. According to the findings, employing hybrid MWCNT/ Al2O3 offers a 26% boost in efficiency for 1.5 L/m. Desisa [71] utilized Al2O3-H2O nanofluid for heat transfer investigation of FPSC experimentally as well as numerically at different mass flow rate and mean diameter of nanomaterial varying from 15 to 50 nm. Comparing CuO and Si2O nanoparticles with

comparable nanoparticles, they exhibit varying degrees of enhancement. Compared to 1% Al2O3-H2O and H2O, the thermal efficiency of 2% Al2O3-H2O is 5.3% and 29.75% higher, respectively. Ajeena et al. [72] examined the effects of using SiC/DW nanofluids on a FPSC’s efficiency in the climate of Gödöllő, Hungary. The results showed that the inclusion of SiC nanoparticles increased the fluid’s TC by as much as 30.3%. A 35.5% increase in thermal efficiency was seen in the FPSC with the addition of 0.1% SiC. At a SiC volume percentage of 0.1, the FPSC’s energy efficiency climbed to 37.4%. Hachicha et al. [73] conducted mathematical and experimental research to examine the impact of MWCNT/H2O nanofluid with varying concentration (0.05% to 0.3%) for moderate to medium-level temperature PTCs. 49.52% enhancement in thermal efficiency is achieved. At 0.3% concentration, 21% enhancement in Nusselt number is achieved. A thorough analysis of the application of Syltherm 800/Copper nanofluids in a PTC is conducted by Bellos et al. [74].The findings show that situations with larger heat losses exhibit the greatest improvements, indicating that the majority of the bare tube’s effectiveness is improved by the incorporation of nanofluids. When the cermet layer is applied to the bare tubes, the highest improvement is 7.16%. Ekiciler et al. [75] looked into the 3D heat transmission and flow properties of the hybrid nanofluids at different volume fraction (1% to 4%) listed in table 3 under turbulence conditions in a PTC. During investigation, Reynolds number was varied from 10000 to 80000. It is observed that the maximum enhancement in convective heat transfer is 31% by utilizing Ag-MgO/Syltherm 800 nanofluid at 4% volume fraction while Ag-ZnO/Syltherm 800 nanofluid enhance the friction factor approximately by 15%. Farooq et al. [76] used CFD simulation to analyze the PTC with the application of two nanofluids namely Al2O3 and CuO at 0.01% concentration for environmental sustainability. Maximum thermal efficiency is 14.79% using CuO nanofluid at 0.0224 kg/s mass flow rate. Copper has consistent temperature dispersion throughout the entire span of the tube used for absorption because of its superior thermal conductivity. Vahedi et al. [77] investigated the exergoeconomic and thermal performance of PTC using different nanofluid. The energy efficiency movement ran counter to the energy the demise tendency. Additionally, the maximum energy efficiency that achieved was approximately 74.4% for oil, aluminum oxide, and copper, and 79.9% for SWCNT. Ram et al. [78] used CuO/H2O nanofluid to enhance the performance of PTC with three different volume concentration at two mass flow rate. The increase in efficiency with varying volume concentration and mass flow rate is shown in Fig. 12 and observed that maximum efficiency gain 69.07% at 140 l/h mass flow rate at volume concentration of 0.1%. Using a variety of techniques, involving the application of nanofluid such as TiO2 and TES materials, Hamada et al. [79] attempted to improve the energy efficiency of the

Sigma J Eng Nat Sci, Vol. 43, No. 5, pp. 1852−1885, October, 2025

Figure 12. Variation of overall efficiency of PTC at varying mass flow rate and volume fraction [From Ram et al. [78], with permission from Elsevier].

conventional PTC. The result showed that 57.7% enhancement in thermal efficiency using TiO2 nanofluid and 85.4% using graphite as TES material. The transport and flow properties of ZnO/EG-H2O nanofluid flowing in a PTC were studied both computationally and experimentally by Ekiciler et al. [80] at various flow rates ranging from 20 l/h to 80 l/h and volume fraction varying from 1% to 4%. The results show that the ZnO/EG- H2O nanofluid greatly increases the collector’s performance. The greatest useable energy was produced using 4% ZnO/EG- H2O nanofluid at a flow rate of 80 l/h. As opposed to EG- H2O, the data indicate that using ZnO/ H2O causes a higher temperature

disparity. Esmaeili et al. [81] used Al2O3-Cu/ H2O hybrid nanofluid on PTC to investigate its performance. Heat transmission rises by 35.7% when CHGR are utilized as discs in the absorber tube as opposed to the absence of turbulators. In this instance, there is a 32.8% reduction in the overall creation of entropy. Abu-Zeid et al. [82] investigated the performance of FPSC and PTC using carbon nanotube/ water and carbon nanotube/ EG nanofluid. By employing EG nanofluid, FPSC and PTSC equipment demonstrated a notable increase in mean thermal efficiency of 64.1% and 80.6%, correspondingly. Yurddaş [83] used CFD modeling to optimize the ETSC’s thermal effectiveness after analyzing it with various nanofluids with varying concentration (0.5% to 5%) listed in Table 3. Maximum thermal efficiency enhancement is 14.0.9% using CuO nanofluid. Sasikumar et al. [84] experimentally examined the effectiveness of PT-ETSC with Al2O3 nanofluid at different concentrations (0.1% to 0.3%). Maximum gain in thermal efficiency was 69.5% 0.035 kg/s mass flow rate and 0.3% volume fraction. Kumar and Tiwari [85] use hBN/H2O nanofluid with different volume fractions (0.25 to 2%) to analyze the thermal effectiveness of an ETSC. Higher thermal conductivity has been proven using hBN/ H2O nanofluid. The ETSC’s optimum energy efficiency is increased by 84%. Henein et al. [86] used MgO-MWCNT/H2O hybrid nanofluid for 3E analysis of ETSC at different mass flow rate and weight ratio experimentally. According to the findings, increasing the weight ratio of MWCNT nanoparticles can boost the collector’s optical effectiveness by up to 78.1%. There has been a boost in mean thermal energy absorption from 240 W to 495 W which is shown in Fig. 13. The use of the hybrid nanofluid results in a 36% decrease in area of ETSC and a 56% increase in the fluid’s intake–exhaust variation in temperature.

Figure 13. Heat energy gain in different nanofluid at different mass flow rate [From Henein et al. [86], with permission from Elsevier].

Sigma J Eng Nat Sci, Vol. 43, No. 5, pp. 1852−1885, October, 2025

By employing several nanofluids listed in table 3 as operational fluids, Tong et al. [87] sought to assess the thermal endurance of an ETSC in a STS. The ETSC demonstrated the maximum energy consumption and energy effectiveness at 33.1% greater compared to the amount of water when the 0.01% MWCNT nanofluid was utilized. In terms of efficiency of energy, the highest value was 3.17 under ideal conditions. Elshazly et al. [88] utilized three different nanofluids as mentioned in table 3 to evaluate the thermal performance of ETSC at different volume fraction varied from 0.5% to 0.005% at three different mass flow rates. The results show that compared to employing Al2O3, which has previously been reported, employing hybrid MWCNT/ Al2O3 50:50% results in an efficiency improvement of almost 20%. Ultimately, it was discovered that, under identical testing circumstances, the ETSC’s energy and energy effectiveness could be increased to 73.5% and 51%, respectively, by using 0.5% MWCNT/H2O nanofluid at mass flow rate of 3.5 l/m. Solar Water Heater A solar water heater is an eco-friendly and energy-efficient system designed to harness solar energy for heating water. It typically consists of solar collectors, usually mounted on rooftops that absorb sunlight and convert it into heat. A solar water heating system is shown in Fig. 14 [89]. This heat is then sent to water, either directly or through a heat exchanger. The water is then kept in an insulated tank for later use. Solar water heaters work best in sunny places and can greatly minimize the need for traditional energy sources, which lowers utility bills and carbon emissions. These systems are great for homes and businesses because they provide a long-lasting means to provide hot water while also helping to protect the environment.

The way a solar water heater works is by turning sunlight into thermal energy, which is then utilized to heat water. Solar collectors, which are normally on rooftops, are what the system uses to capture sunlight. These collectors usually have an absorber plate that gets hot when the sun shines on it. Then, the heat is sent to a fluid, which can be water or a heat-transfer liquid that flows through pipes that are attached to the absorber plate. The heated fluid goes to a storage tank, where the heat is given to the water so it can be used. In passive systems, the fluid moves about on its own thanks to thermosiphon activity. In active systems, pumps move the fluid around. The hot water that is saved is then available for use in the home. A backup heater makes sure that there is always enough hot water, even when solar energy is low. Table 4 summarizes current research on solar water heating systems for solar energy harvesting using nanofluid. Modi et al. [90] examined the thermal endurance of SWHS utilizing chitosan as an organic and Al2O3 as an inorganic nanofluid. The Chitosan produced the highest possible heat elimination factor (0.627) and collector efficiency factor (0.727). Chitosan exhibited a 5.96% and 33.6% better efficiency when compared with Al2O3 and H2O, respectively. The variation of efficiency with time for three different cases is shown in Fig. 15. Darbari and Rashidi [91] looked into the thermal effectiveness of the flat plate thermosyphon SWH employing the various nanofluids listed in table 4. The inclusion of Cu nanoparticles, subsequent to CuO, across the different nanoparticles produces the most increase in useable energy and effectiveness. Cu and CuO nanoparticles added to the base fluid at a volume percentage of 5% increase the solar collector’s usable energy by 6% and 3%, correspondingly. Mandal et al. [92] performed parametric evaluation of SWH using paraffin wax as PCM and CuO-PCM. The highest

Figure 14. Solar water heating system [From López-Pérez et al. [89], with permission from MDPI].

Sigma J Eng Nat Sci, Vol. 43, No. 5, pp. 1852−1885, October, 2025

Table 4. Current research on solar water heating systems for solar energy harvesting using nanofluid Ref. No.

Fpc-Swh

It is possible to use chitosan and reach an experimental efficiency of 55.86%.

Fpc-Swh

Maximum 6% enhancement in thermal efficiency using CuO nanofluid

Fpc-Swh

Al2O3/oil nanofluid has 31% thermal efficiency as compared to TiO2/ oil nanofluid

Etswh

When only porous material is used, the system’s energy efficiency increases by 19.6%.

Dtptswh

Figure 15. Variation of efficiency of SWH with time with different cases [From Modi et al. [90], with permission from Elsevier]. possible rate of heat transfer for CuO-PCM is found to be 5.7 KW, provided that a gap in air of 40 mm is maintained among the plate that absorbs heat and the outer layer of glazing.

Shafiee et al. [93] used oil based nanofluid in vacuumed tube SWH to evaluated its thermal performance using three different nanofluid mentioned in table 4 at fixed volume

Sigma J Eng Nat Sci, Vol. 43, No. 5, pp. 1852−1885, October, 2025

fraction of 1wt%. Al2O3/oil nanofluid has 31% thermal efficiency as compared to TiO2/oil nanofluid. When the outcomes were assessed against the standard exergy efficiency calculation, a 6.1% discrepancy was found amongst them. Arun [94] proposed a PTC-equipped SWHS-ZO-NF.A boost in the volume fraction of the nanofluid lowers the exergy loss of the entire system. The thermal effectiveness and energy assessment are improved by the practical outcome of the proposed SWHS-ZO-NF. Firoozzadeh et al. [95] used TiO2/engine oil nanofluid to thermodynamically analyze the evacuated tube solar water heater (ETSWH) at two different mass concentrations. Consequently, the temperature rises by 6.4 °C when mass % 0.4 % TiO2 in engine oil is merged into a porous substance. The rise in temperature results in an additional 41% increase in thermal effectiveness. Furthermore, there are increases in thermal effectiveness of 5.4% and 19% when a porous medium is used, and when 0.4 mass% TiO2/oil is applied concurrently to a porous medium. The study conducted by Lotfi et al. [96] centered on examining ways to improve the energy and performance of ETSWH installed in the warm weather of Dezful, Iran. Using TiO2 nanoparticles added in two volume fractions, the investigation particularly assesses the effects of engine oil used as a circulatory fluid inside copper U-tubes placed into evacuated tubes. As a consequence, adding metallic insertion raises the water’s temperature by

Sodis

Maximum enhancement in exergy efficiency is achieved 196% using nanofluid in Tehran

The average energy efficiency increases with hybrid nano by 13.4% in the winter and 12.6% in the summer.

The solar desalination process improved the environmental characteristics by 12.45%.

The rate of production is increased by 98% when hybrid NPCM is used in a magnetic environment.

Sbgidss

38.52% enhancement in production of water distillation using 1% wt of MgO

The highest thermal efficiency was 39.9% for mono ZnO nanofluid.

24.11%, with a concentration of 0.15% being the most effective. Additionally, the investigation notes that evaporation heat transmission is more strongly facilitated by Al2O3 nanofluids than convection transfer of heat. Sahu and Tiwari [125] utilized three different nanofluids ZnO, SiO2 and ZnO - SiO2 to evaluate the performance of solar still having single slope at different depth of water. Maximum efficiency is achieved using ZnO nanofluid which is 29.5%. By using nanofluids, you may increase the rate of heat distribution, reduce the amount of time you need to warm up the water prior using it, and keep the difference

in temperature within the container higher for maximal condensing rate. Kumar et al. [126] used different JPTN at different concentrations ranging from 5% to 30% alongside silver color balls to illustrate the DESD’s effectiveness. DESS with JPTN has an energy efficiency and exergy efficiency of 41% and 5.63%, respectively. The variation of thermal efficiency with time at different concentration of JPTN is shown in Fig. 21. From Fig. 21, it was observed that the highest thermal efficiency is obtained at 20% JPTN at water depth of 0.8 cm.

Sigma J Eng Nat Sci, Vol. 43, No. 5, pp. 1852−1885, October, 2025

Figure 21.Variation of thermal efficiency with time at different concentration of JPTN [From Kumar et al. [126], with permission from Elsevier].

Parsa et al. [127] used Ag nanofluid to evaluate the performance of solar still at 0.04 wt%. Fig. 22 shows the SEM picture of the Ag nanofluid used in this work. This allows for interface consistency and uniformity to be confirmed, indicating a suitable distribution of nanomaterials in the base fluid. Maximum enhancement in exergy efficiency is achieved 196% using nanofluid in Tehran. From an energetic perspective, solar stills situated at high altitudes achieve the highest exergy efficiency

El-Gazar et al. [128] demonstrated the thermal characteristics of a standard solar still and illustrate the impact of utilizing a hybrid Al2O3- CuO nanofluid with fixed concentration of 0.025% on the purification system. According to the findings, the use of hybrid nanofluid increases still daily production by 27.2% and 21.7% in comparison to still with no nanoparticles, reaching 5.5239 kg/m2·day in the hottest months and 3.1079 kg/m2·day in the colder months.

Figure 22.SEM image of Ag nanofluid at 0.4 wt% [From Parsa et al. [127], with permission from Elsevier].

Sigma J Eng Nat Sci, Vol. 43, No. 5, pp. 1852−1885, October, 2025

Using Al2O3- CuO nanofluid increases the average energy efficiency by 13.4% in the colder months and by 22.5% in the heat of the summer. Rabbi and Sahin [129] used Al2O3SiO2/H2O hybrid nanofluid to enhance the performance of solar still. The utilization of hybrid nanofluids yields the greatest results. When hot water was used in the heat exchanger, the effectiveness of the solar still was enhanced. Hybrid nanofluid resulted in 37.76% thermal efficiency. Shoeibi et al. [130] used Al2O3- TiO2 hybrid nanofluid at fixed concentration of 0.4% to evaluate the performance of glass cooled double slope solar still using CFD analysis. According to the computational findings, the application of hybrid nanofluid optical cooling in sun desalination boosted the clean water productivity and energy efficiency by 11.09% and 28.21%, correspondingly, as compared to conventional solar desalination without hybrid nanofluid. Toosi et al. [131] established and built an innovative stepped solar still incorporating hybrid NPCM underneath steady magnetism. The PCM’s thermal conductivity enhanced with the addition of hybrid nanomaterials. Utilizing hybrid NPCM in a magnetic environment increases the stepped solar still’s capacity for manufacturing by 98%. A steady magnetic attraction reduced the hybrid NPCM’s thermal resistance. Three hours after nightfall, the distillation procedure is carried out utilizing NPCM. Naveenkumar et al. [132] used three different nanofluid mentioned in table 6 having volume concentration of 0.1% to improve the performance SBGIDSS using a vacuum fan operated by solar system. Maximum energy efficiency is enhanced by 78.6% by using vacuum fan and outside condenser. The increase in the rate at which water evaporation occurs in the solar still reservoir results in a 64.29% increase in production rate. Kajal et al. [133] performed comparative analysis using different nanofluid mentioned in table 6 to investigate the performance of solar still. When 1.0% wt MgO nanofluid is used, the highest increase in the amount produced of water from distillation above that obtained with water is around 48.91%. Almohammadi et al. [134] utilized hybrid nanofluid mentioned in table 6 to investigate the performance and productivity of solar still at a volume fraction of 0.035%. Maximum thermal efficiency was 39.9% for ZnO nanofluid. ZnO/H2O nanofluid is produced 3.14 kg of water per day at 0.035% volume fraction.

Application Of Utilization Of Nanofluid In Solar Energy Harnessing

The ultimate objective of this research is to produce maximum energy from solar energy system using nanofluid with highest efficiency and effectiveness. Nanofluid is the mixture of nanoparticles in the base fluid. Their thermal, optimal and chemical properties of much better than basic heat transfer fluid due to which they absorb solar energy much effectively. The performance of solar thermal system is enhanced due to its enhanced thermophysical and optical properties. These fluids are also very useful in PV/T system for cooling of the system

which can enhance the system performance and also boost the electrical efficiency. This review article mainly focused on utilization of nanofluid to harness solar energy to make solar system much better and sustainable solution of energy crisis. Enhanced Thermal Conductivity Enhanced thermal conductivity of nanofluid makes solar system more effective and prominent solution for renewable energy. The appliances like solar collector, heat exchanger perform much better with enhanced thermal conductivity. Improved Solar Collector Efficiency In solar thermal collector, sun light is absorbed and it is converted into thermal energy. Enhanced optical properties of nanofluid maximize the amount of absorbed solar radiation in solar collectors. These are the reasons behind the enhanced performance of all type of solar collectors. Enhanced Photovoltaic Thermal System PV/T system used nanofluid to cool the system properly and maximize the system performance. Nanofluids assist keep solar panels at the right operating temperatures by quickly getting rid of heat. This makes them work better and last longer. Advanced Solar Thermal Energy Storage Nanofluids can also be used in systems that store thermal energy. In these systems, they can make the materials that store the energy have a higher specific heat capacity and thermal conductivity. This change makes it easier to store and get back thermal energy, which makes solar power plants work better, especially when there isn’t any sun. Potential in Solar Desalination Nanofluids make solar desalination more efficient by enhancing the transfer of heat between the evaporation and condensation stages. This saves money and energy, especially in places where there isn’t much freshwater available.

Nanofluid In Solar Energy Harnessing

Nanofluids improve the collection of solar energy, which is good for the environment and the economy, but they also come with some problems. Due to enhanced thermal efficiency of solar collector, nanofluid enhanced the conversion of energy, minimising the dominance on fossils fuel and also diminishing the emission of green house gases [135]. The ability to conserve water in CSP makes them more environments friendly while production of nanoparticle for enhancement of energy production can be harmful for environment if it is not handled properly. By improving energy efficiency and lowering operating costs, nanofluids make it possible for solar systems to be more compact and resource-efficient, which can lower the original capital investment [136]. The high production cost and problem

Sigma J Eng Nat Sci, Vol. 43, No. 5, pp. 1852−1885, October, 2025

Figure 23.Environmental and Economic Impact of Nanofluid in Solar Energy Harnessing. of scaling of nanoparticle create problem in its wide utilization. Nanofluids are unstable over period of time therefore its long term maintenance is also very expensive. New kind of research is required to make nanofluid utilization viable in academic and industry for long term utilization. Fig. 23 depicted the environmental and economic impact of nanofluid utilization in solar energy harnessing systems. Environmental Impact Solar thermal system performance is enhanced due to better thermal conducting capacity of nanofluid. Therefore the performance of solar system is enhanced and dependency on fossils fuel is minimized [137]. Nanofluids can help reduce greenhouse gas (GHG) emissions over time by making solar energy more efficient. Improved solar thermal technology could help the world move away from coal, natural gas, and oil, which would lower carbon footprints. Because nanofluids transport heat better, solar collectors might be able to do the same job with fewer or smaller components. This would mean that fewer building materials, including glass, metal, and plastic, would be needed. This cuts down on resource exploitation and lessens the overall impact on the environment [138]. Nanofluids can help make concentrated solar power (CSP) systems more efficient at transferring heat, which means they need less water to cool down. This is a big deal in places where water is scarce [139].

The effects of Al2O3-MWCNT/H2O hybrid nanofluids on how well energy is used and how well the environment works Nanofluids offer better thermal qualities, like increased thermal conductivity, which can make solar thermal systems work better. This means that solar energy can be captured and used more effectively, which could mean less dependency on fossil fuels [137]. Nanofluids can help reduce greenhouse gas (GHG) emissions over time by making solar energy more efficient. Improved solar thermal technology could help the world move away from coal, natural gas, and oil, which would lower carbon footprints. Because nanofluids transport heat better, solar collectors might be able to do the same job with fewer or smaller components. This would mean that fewer building materials, including glass, metal, and plastic, would be needed. This lessens the overall environmental impact and the amount of resources that need to be extracted [138]. Nanofluids can help improve the thermal efficiency of concentrated solar power (CSP) systems, which means they use less water for cooling. This is a big deal in places where water is hard to come by [139]. How Al2O3-MWCNT/H2O hybrid nanofluids affect energy efficiency and the environment was examined by Mahhadian et al. [140] in a DAPTC at different volume fractions. By employing hybrid nanofluid, the thermal performance of DAPTC has been improved by 197.1%, 69.2%, and 6.1% in comparison to water, Al2O3, and MWCNT

Sigma J Eng Nat Sci, Vol. 43, No. 5, pp. 1852−1885, October, 2025

nanofluids of 0.4% concentration. In order to examine the financial and environmental effects of ZnO/ H2O, Al2O3/ H2O, and TiO2/ H2O nanofluids at 0.2% volume fraction on the PV/T system, Abadeh et al. [141] conducted experimental research on these materials. In comparison to a PV system, it has been demonstrated that the nanofluid-based PV/T system reduced environmental emissions by 17%.A thorough investigation of the 4E was conducted by Said et al. [142] employing Ti3C2 nanoparticles in a PTC at different volume fractions (0.05% to 0.1%). Using Ti3C2 nanofluid, it was shown that 2.25 to 2.3 tons of CO2 were mitigated annually. Economic Impact Nanofluids can make solar thermal systems (such flatplate or parabolic trough collectors) work much better, which could cut the levelized cost of energy (LCOE). This makes investing in solar energy more cost-competitive with other types of electricity [143]. Nanofluids can lower the expenses of running solar power plants by making heat transfer more efficient. For example, they might let systems work with less fluid or at lower temperatures, which would save energy and make equipment last longer [144]. More efficient heat transfer means that you may utilize smaller solar collectors to make the same amount of energy. This can lower the upfront costs of land, infrastructure, and materials, which makes solar projects cheaper [145]. It’s evident that nanofluids work better, but making nanoparticles and mixing them into fluids is still rather expensive. This could make people less likely to use it, especially in marketplaces where pricing is important. It is very difficult to produce nanofluid on mass level for industrial utilization since it requires huge amount of energy, nanoparticles are rare and also very expensive [146]. Nanofluid offers many advantages but still not utilized in mass level because the process of making nanofluid is very difficult, testing and characterization of nanomaterials are not easily available. A lot of funds are required to make nanofluid research available at commercial level [147-148]. The summary of economic impact of nanofluid in solar energy harnessing is presented in table 7.

Lari and Sahin [145] looked into the economics of a silver nanofluid with volume fraction of 0.5% in PV/T system. The recommended approach was shown to have reduced home electricity prices by 82%, and the initial expenditure paid for itself in just over two years. Lari and Sahin [149] conducted additional research on the impact of retrofitted on Ag/H2O nanofluid in PV/T systems using PCM-thermal batteries. The predicted price repayment time frame for the recovery of investments was 5.5 years, resulting in a 58.71% decrease in energy produced costs when weighed against the cost of household power. Additionally, the release of 10,195.91 tons of CO2 into the environment per year must be stopped. Stalin et al. [150] focused on 3E research of a FPSC using CeO2/H2O nanofluid with varying concentration of (0.01% to 0.1%). At 0.05% concentration, the collector efficiency is enhanced by 28.07% and energy augmentation of 5.8% was attained. The use of CeO2/H2O in FPSC resulted in a longer payback period of 2.12 years, and reduced CO2 emissions to the environment by 175 kg. The 3E and financial advantages of a redesigned ETSWH with CuO nanomaterials having concentration of 0.5% were investigated by Saxena and Gaur [146]. In comparison to the standard design, the ETSWH required a larger initial expenditure, a longer payback period, and a longer time. Additional power is saved, maintenance expenses are decreased, and the transmission of heat is improved with the updated ETSWH. The impacts of GAMWCNT/H2O nanofluid at different concentrations (0.025 wt% to 0.1 wt %) on the economic and environmental implications of FPSC were studied by Amar et al. [151]. According to experimental results, at a weight concentration of 0.1%, the maximum enhancement in efficiency of energy is 30.88%. It emerged that using GAMWCNT nanofluid instead of H2O as base fluid reduced the dimensions of FPSC and saved 321.72 MJ of intrinsic energy. When GAMWCNT nanofluids were used at 0.1 weight percent in FPSC, the time to pay back became 1.897 years, that’s 6.228% less than when H2O was used as the heat transmission fluid.

Table 7. Summary of Economic Impact of nanofluid in Solar Energy Harnessing Ref. No.

There is a drop of 36.2% and 34.6%, correspondingly, in the Carbon Repayment Period and Conventional Payback Time.

Etswh

Due to enhanced ETSWH, energy is conserved, reduces the maintenance cost and heat transmission is enhanced

The predicted price repayment time frame for the recovery of investments was 5.5 years.

Resulted in a longer payback period of 2.12 years, and reduced CO2 emissions to the environment by 175 kg.

Gamwcnt

When GAMWCNT nanofluids were used at 0.1 weight percent in FPSC, the time to pay back became 1.897 years, that’s 6.228% less than when H2O was used

Sigma J Eng Nat Sci, Vol. 43, No. 5, pp. 1852−1885, October, 2025

Nanofluid Properties In Solar Energy Harnessing

Optimizing nanofluid properties for solar energy harnessing involves adjusting several parameters to enhance the overall efficiency of solar thermal systems. Nanofluids, which are engineered by dispersing nanoparticles into conventional base fluids like water, ethylene glycol, or oil, improve thermal conductivity, heat transfer rates, and optical absorption, which are critical for solar energy applications like solar collectors and photovoltaic thermal systems. The key strategies for optimizing nanofluid properties for solar energy harnessing are represented in Fig. 24. Choice of Nanoparticles Use nanoparticles with high thermal conductivity such as copper (Cu), silver (Ag), carbon nanotubes (CNT), and aluminum oxide (Al₂O₃) to enhance heat transfer. Select nanoparticles with excellent solar absorption characteristics like graphene, carbon black, or titanium dioxide (TiO₂). This makes it easier for solar radiation to be absorbed and cuts down on reflection losses. To get more surface area and less chance of particles sticking together, change the size and shape of the particles (usually between 10 and 100 nm).

Smaller particles have a larger surface-to-volume ratio, which makes them more stable and helps heat transfer. Spherical nanoparticles are usually more stable, but rod- or plate-like forms may make optical characteristics better. Nanoparticles Concentration Too many nanoparticles can make solar collectors less efficient by making them thicker and harder to pump. Usually, concentrations of 0.1% to 5% by volume strike a good balance between improving heat conductivity and keeping viscosity levels reasonable. Make sure that the particles are properly dispersed so that they don’t clump together. This can lower the thermal performance and dirty up solar thermal equipment. Base Fluid Selection The thermal conductivity, specific heat, and density of the base fluid are very important. Water is the most frequent base fluid since it has great thermophysical qualities. However, for some conditions, such high-temperature settings, mixes like ethylene glycol-water or oil-based fluids can also be used. The base fluid should stay stable over a wide variety of temperatures so that it works the same way in different amounts of solar energy.

Figure 24. Key Strategies for Optimization of Nanofluid Properties in Solar Energy Harnessing.

Sigma J Eng Nat Sci, Vol. 43, No. 5, pp. 1852−1885, October, 2025

Surfactants and Stabilizers The clogging problem of nanofluid is improved by adding surfactant because it make nanoparticle to spread out throughout the base fluid. Addition of surfactant makes nanofluid stable over certain period of time and hence improves its characteristics and ultimately the performance of solar system is enhanced. pH Optimization The stability of nanofluid is measured by optimizing the Ph of nanofluid. A tinny amount of electroststic repulsion between nanoparticles makes them more stable over certain time period due to which heat transfer of nanofluid is enhanced. Viscosity Optimization Viscosity plays a major role in enhancement of thermal conductivity of nanofluid. Proper volume concentration of nanofluid enhances its thermal conductivity and improves the heat transfer rate and ultimately improves the solar system Thermal Stability and Operating Temperature Range Heat transfer in solar thermal system is enhanced due to their enhanced thermal conductivity of nanofluid. Nanofluids express excellent thermal conductivity at high temperature operations ranging from 50°C to 400°C. This temperature range depends on the various factors such as

volume fraction, type of base fluid, type of solar system and many more. Hybrid Nanofluids for Synergy When you mix different kinds of nanoparticles, like metal with oxide or carbon-based with metallic, you can get synergistic effects. For example, adding copper to alumina or graphene can make both thermal conductivity and optical absorption better. Advanced Characterization Techniques Advanced characterization techniques are very useful to know the stability condition of nanofluid. Many characterization techniques are available now these days such as SEM, TEM, dynamic light scattering (DLS) and many more to make nanofluid applicable for wide range of industrial applications.

Long-Term Stability And Scalability Of Nanofluid

Enhanced properties of nanofluid make it stable for long term and scalable. Proper dispersion of nanoparticles within base fluid and advanced stabilization technique improves the performance of nanofluid. Over time, instability can reduce heat transfer efficiency and increase system maintenance costs [152-153]. Scalability, on the other hand, addresses the challenges of producing large volumes of nanofluids cost-effectively while maintaining consistent

Table 8. Summary of Characterization Techniques to Enhance the Stability of Nanofluid in Solar Energy Harnessing Ref. No.

TEM, XRD

Sigma J Eng Nat Sci, Vol. 43, No. 5, pp. 1852−1885, October, 2025

quality. As production scales up, ensuring that the properties of the nanofluid—such as thermal conductivity, viscosity, and optical absorption—remain uniform becomes more difficult. Solutions include improving nanoparticle synthesis techniques and enhancing dispersion methods that are adaptable for industrial-scale operations [154-155]. Together, long-term stability and scalability are essential for making nanofluids a viable option in commercial solar energy systems and other high-performance heat transfer applications. The various characterization techniques to enhance the stability of nanofluid in solar energy harnessing are mentioned in table 8.

Conclusion

Using nanofluids to collect solar energy is a big step forward in the field of renewable energy. Solar systems such as solar collector, PV/T, solar still perform much better due to enhanced thermal characteristics of nanofluid. It is one of the best choices for solar energy conversion since it enhanced the heat transfer rate and ultimately enhanced the optical performance of the system. The major concern behind the utilization of nanofluid is its stability over long period of time, cost of production and environmental sustainability. If further research in this field improves these problems associates with nanofluid then definitely nanofluid will be a major player in the field of solar system to improve its performance and also this kind of research will be very helpful for future renewable system and diminish the dependency on fossils fuels. The thermal management system of engine is also improved by utilization of nanofluid due to its enhanced properties. This result in better engine performance and emission of fuel is lowered. But nanofluids have a higher viscosity, especially when there are more nanoparticles in them, which mean they may need more energy to move around, which could cancel out any efficiency advantages. So, while nanofluids in engines could improve performance, their commercial viability depends on finding the right mix between better engine performance, cost-effectiveness, and long-term reliability. Every researchers and scientists have believed on the utilization of nanofluid in solar system to harness its energy with enhanced efficiency and effectiveness of the system. The present research, nevertheless, took a comprehensive approach, covering a wide range of solar energy collecting equipment not before addressed in details. This investigation yields numerous investigations areas, gaps, various consequences. Furthermore, a detailed discussion on the recent development and nanofluid utilization in solar system discussed with its theoretical, experimental and also computational approach. The important findings from this review article are mentioned below: Ø Maximum 85.4% gain in thermal efficiency of solar collector using graphite as TES material.

Ø Maximum 38.4% enhancement in efficiency of solar water using CuO/H2O nanofluid. Ø Maximum 84.74% enhancement in thermal efficiency of PV/T system SiC-H2O with NEPCM. Ø 196% enhancement in exergy efficiency of solar evaporator using Ag/H2O nanofluid Ø The utilization of multi walled carbon nanotube in all solar energy harnessing system improves the system performance. In case of solar desalination system, it improves the productivity of the system also. Ø From recent research, it is observed that the utilization of hybrid nanofluid compared to mono nanofluid improves the performance of solar energy harnessing. Ø Nanofluids speed up the evaporation process, which means that the solar still can purify water faster and make more distilled water in a shorter amount of time than ordinary water. Ø Nanofluids can make solar stills work better even when the sun isn’t shining very brightly, like on cloudy days or in the early morning and late afternoon. This makes sure that the still works well all day long.

Future Research Direction

Although, a lot of research has been performed on solar energy harnessing using nanofluid but still various works that need to be addressed for better performance which are mentioned below: Ø More research is needed to make nanofluids more stable over time. This includes looking into problems like nanoparticles sticking together and settling to make sure they work the same way over lengthy periods of time. Ø To search new technique for production nanofluid at low cost to make it more viable at commercial and industrial level utilization. Ø New kind of research is also required to produce hybrid nanofluid to get maximum from solar system with highest effectiveness and efficiency. Ø Characterization technique of nanomaterials must be improved to make it stable over long period of time and also environment friendly. Ø Combining nanofluid with hybrid solar system is the new challenge for researcher and scientist. Future research must focus on it for enhancement of the system. Ø Nanofluid preparation technique must be improved in future to make it environment friendly with low cost production to make it viable for commercial utilization.

Nanofluid In Solar Energy System

A thorough and organized review of high-quality past research has found many ways to improve the efficacy of solar energy collecting equipment. Even if the use of

Sigma J Eng Nat Sci, Vol. 43, No. 5, pp. 1852−1885, October, 2025

nanofluids has been successful, there are still certain issues that should be taken very seriously since they restrict the use of solar energy harnessing systems that use nanofluids. The key challenges and limitations for performing research on the utilization of nanofluids in solar energy harnessing are mentioned below: Ø Ensuring the stability of nanoparticles within the fluid is a major challenge, as nanoparticles tend to agglomerate or settle over time, leading to reduced effectiveness and inconsistent thermal properties. Ø Nanofluids are hard to make and mix because high-quality nanoparticles are expensive and it’s hard to get them to distribute evenly. This makes it hard to do a lot of research and use them in a lot of different ways. Ø The behavior of nanofluids in heat transmission is intricate and not yet completely understood. Because of this complexity, it’s hard to anticipate how well they’ll do, which requires advanced research and a lot of money. Ø Limited data exists on the environmental and health impacts of producing, using, and disposing of nanofluids, raising concerns about their safety and sustainability, which complicates securing research funding and regulatory approval. Ø No standardized methods exist for preparing, testing, or evaluating nanofluids, complicating data comparison across studies and hindering the development of universal guidelines. Ø Translating lab scale research findings to practical solar energy systems is challenging. For instance, nanofluid properties must be tailored to suit diverse environments and system configurations. Ø There is a huge difference between optical and thermal properties of nanofluid due to concentration of base fluid, nanoparticle type etc. This difference requires very tough optimization technique and also requires much better characterization and testing. Ø It is hard to make sure that nanofluids will last a long time when they are exposed to high temperatures, UV radiation, and other environmental conditions for a long time. This is because degradation can make solar energy systems less effective over time. Ø The system’s operation and maintenance become more complex due to the need for precise control and supervision of nanofluid characteristics. Ø Experimental results can be very different from each other because of changes in how nanofluids are made, how systems are designed, and how they are used. This makes it hard to know how to use them in real life.

Nomenclature

Solar collector area (m2) Specific heat capacity (kJ/kgK) Solar radiation flux (W/m2) Mass flow rate (kg/s) Thermal efficiency

Usable heat transfer (kW) Solar irridation availability (kW) Collector input solar energy (kW) System entropy generation (kJ/K) Outlet temperature (K) Inlet temperature (K) Ambient temperature (K) Sun temperature (K)

Abbreviations

3E Energy, Economy and Environment 4E Energy, Exergy, Economy and Environment

Bvptm

Baffled PVT module Bpv Bifacial photovoltaic bPV/T Bifacial photovoltaic-thermal CTAB Cetyltrimethylammonium bromide CHGR Conical helical gear rings DSC Differential Scanning Calorimetry DESD Double-effect solar distiller

Dtptswh

Dimple tube parabolic trough solar water heater EG Ethylene glycol ETSC Evacuated tube solar collector

Etswh

Evacuated tube solar water heater FPSC Flat plate solar collector

Fesem

Field emission scanning electron microscopy GAMWCNT Gallic acid-treated multiwall carbon nanotubes GNP Graphene nanoplatelets GO Graphene Oxide HTC Heat transfer coefficient JPTN Jackfruit peel TiO2 nanofluids

Mwcnt

Multi walled carbon nanotube Nano-PCM Nanoparticle-enhanced phase change material NPCM Nano phase change material PCM Phase change material PTC Parabolic trough collector PV/T Photovoltaic thermal system PVS Photovoltaic solar PV Photovoltaic

Sspss

Single-slope passive solar still SDBS Sodium dodecyl benzene sulfonate

Swcnt

Single walled carbon nanotube SWHS-ZO-NF Solar water heating system using zinc oxide-based nanofluid SHC Specific heat capacity STS Solar thermal system SWH Solar water heater SEM Scanning electron microscopy

Sigma J Eng Nat Sci, Vol. 43, No. 5, pp. 1852−1885, October, 2025

Transmission electron microscopes Thermal conductivity Thermal energy storage Thermoelectric generator Thermal gravimetric analysis X-ray diffraction

Data Availability Statement

The authors confirm that the data that supports the findings of this study are available within the manuscript.

Conflict Of Interest

The author declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Ethics

There are no ethical issues with the publication of this manuscript.

References

1. Holechek JL, Geli HM, Sawalhah MN, Valdez R. review on recent advances and applications of nano- A global assessment: can renewable energy replace fluids in plate heat exchanger. Mater Today Proc fossil fuels by 2050? Sustainability 2022;14:4792. 2021;44:229–241. [CrossRef] [CrossRef] [17] Cuce E, Cuce PM, Guclu T, Besir AB. On the use of
2. Kumar S, Rawat MK, Gupta S. An evaluation of nanofluids in solar energy applications. J Therm Sci current status of renewable energy sources in India. 2020;29:513–534. [CrossRef] Int J Innov Technol Explor Eng 2019;8:1234–1239. [18] Akaje TW, Olajuwon BI, Musiliu Tayo RAJI. [CrossRef] Computational analysis of the heat and mass trans-
3. Kannan N, Vakeesan D. Solar energy for future fer in a Casson nanofluid with a variable inclined world: a review. Renew Sustain Energy Rev magnetic field. Sigma 2023;41:512–523. [CrossRef] 2016;62:1092–1105. [CrossRef] [19] Ahmadi MH, Ghazvini M, Sadeghzadeh M, Nazari
4. Yavuz C, Botsalı AR. A weather-based forecasting MA, Ghalandari M. Utilization of hybrid nanofluids system for the solar power plants in the Konya region. in solar energy applications: a review. Nano Struct Sigma J Eng Nat Sci 2022;40:144–149. [CrossRef] Nano Objects 2019;20:100386. [CrossRef]
5. Qadem M, Filik ÜB. Solar radiation forecasting by using deep neural networks in Eskişehir. Sigma J Ganji DD. Analytical study of a two-phase revolving Eng Nat Sci 2021;39:159–169. [CrossRef] system of nanofluid flow in the presence of a mag-
6. International Energy Agency. World energy netic field to improve heat transfer. Sigma J Eng Nat outlook 2023. https://www.iea.org/reports/ Sci 2019;37:340–360. world-energy-outlook-2023 [21] Gupta SK, Verma H, Yadav N. A review on recent
7. Kabir E, Kumar P, Kumar S, Adelodun AA, Kim KH. development of nanofluid utilization in shell & tube Solar energy: potential and future prospects. Renew heat exchanger for saving of energy. Mater Today Sustain Energy Rev 2018;82:894–900. [CrossRef] Proc 2022;54:579–589. [CrossRef]
8. Kumar N, Gupta SK. Progress and application of phase change material in solar thermal energy: Olaitan NR. Application of nanofluid in solar energy an overview. Mater Today Proc 2021;44:271–281. harvesting devices: a comprehensive review. Energy [CrossRef] Convers Manag 2022;266:115790. [CrossRef] Sigma J Eng Nat Sci, Vol. 43, No. 5, pp. 1852−1885, October, 2025 1881
9. Zhang Y, Liu L, Li K, Hou D, Wang J. Enhancement of energy utilization using nanofluid in solar Peterson GP. Nanofluids: key parameters to enhance powered membrane distillation. Chemosphere thermal conductivity and its applications. Appl 2018;212:554–562. [CrossRef] Therm Eng 2022;207:118202. [CrossRef]
10. Ahmadi MH, Ghazvini M, Alhuyi Nazari M, Ahmadi MA, Pourfayaz F, Lorenzini G, et al. M. Analysis of a boundary layer flow of a nanofluid Renewable energy harvesting with the applica- over an inclined plane via ADM. Sigma J Eng Nat Sci tion of nanotechnology: a review. Int J Energy Res 2019;37:475–488. 2019;43:1387–1410. [CrossRef] [39] Arshad A, Jabbal M, Yan Y, Reay D. A review on
11. Sahin AZ, Uddin MA, Yilbas BS, Al-Sharafi A. graphene based nanofluids: preparation, characteri- Performance enhancement of solar energy systems zation and applications. J Mol Liq 2019;279:444–484. using nanofluids: an updated review. Renew Energy [CrossRef] 2020;145:1126–1148. [CrossRef] [40] Gupta SK, Gupta S. The role of nanofluids in solar
12. Mausam K, Kumar S, Ghosh SK, Tiwari AK, Sehgal thermal energy: a review of recent advances. Mater M. Solicitation of nanoparticles/fluids in solar ther- Today Proc 2021;44:401–412. [CrossRef] mal energy harvesting: a review. Mater Today Proc [41] Gupta M, Singh V, Kumar R, Said Z. A review on 2020;26:2289–2295. [CrossRef] thermophysical properties of nanofluids and heat
13. Hu G, Ning X, Hussain M, Sajjad U, Sultan M, Ali transfer applications. Renew Sustain Energy Rev HM, et al. Potential evaluation of hybrid nanoflu- 2017;74:638–670. [CrossRef] ids for solar thermal energy harvesting: a review [42] Gupta SK, Sharma A. A brief review of nanoflu- of recent advances. Sustain Energy Technol Assess ids utilization in heat transfer devices for energy 2021;48:101651. [CrossRef] saving. Mater Today Proc 2023. doi:10.1016/j.
14. Hao D, Qi L, Tairab AM, Ahmed A, Azam A, Luo matpr.2023.03.364 [Epub ahead of print] [CrossRef]
15. Khanafer K, Vafai K. A review on the applications D, Pan Y, et al. Solar energy harvesting technologies of nanofluids in solar energy field. Renew Energy for PV self-powered applications: a comprehensive 2018;123:398–406. [CrossRef] review. Renew Energy 2022;188:678–697. [CrossRef]
16. Rao CNR, Cheetham AK. Science and technology of Wongwises S. A review of the applications of nanomaterials: current status and future prospects. J nanofluids in solar energy. Int J Heat Mass Transf Mater Chem 2001;11:2887–2894. [CrossRef] 2013;57:582–594. [CrossRef]
17. Elango T, Kannan A, Murugavel KK. Performance MB. Types and classification of nanomaterials. In: study on single basin single slope solar still with dif- Nanomaterials: synthesis, characterization, hazards ferent water nanofluids. Desalination 2015;360:45– and safety. 2021. p. 31–54. [CrossRef] 51. [CrossRef]
18. Bodunde OP, Ikumapayi OM, Akinlabi ET, Oladapo BI, Adeoye AOM, Fatoba SO, et al. A futuristic Dispersion behavior and thermal conductivity char- insight into a “nano-doctor”: a clinical review on acteristics of Al₂O₃–H₂O nanofluids. Curr Appl medical diagnosis and devices using nanotechnol- Phys 2009;9:131–139. [CrossRef] ogy. Mater Today Proc 2021;44:1144–1153. [CrossRef] [47] Mao M, Lou D, Wang D, Younes H, Hong H, Chen
19. Kukreja N, Gupta SK, Rawat M. Performance anal- H, Peterson GP. Ti₃C₂Tx MXene nanofluids with ysis of phase change material using energy storage enhanced thermal conductivity. Chem Thermodyn device. Mater Today Proc 2020;26:913–917. [CrossRef] Therm Anal 2022;8:100077. [CrossRef]
20. Rawat MK, Kukreja N, Gupta SK. Effect of rein- forcing micro sized aluminium oxide particles on sive review of energy saving in shell & tube heat mechanical properties of polymer based composite. exchanger by utilization of nanofluids. Mater Today Mater Today Proc 2020;26:1306–1309. [CrossRef] Proc 2022;50:1818–1826. [CrossRef]
21. Lee JH, Hwang KS, Jang SP, Lee BH, Kim JH, Choi SUS, et al. Effective viscosities and thermal conduc- R, Mahbubul IM. Effect of particle size on the vis- tivities of aqueous nanofluids containing low vol- cosity of nanofluids: a review. Renew Sustain Energy ume concentrations of Al₂O₃ nanoparticles. Int J Rev 2018;82:1664–1674. [CrossRef] Heat Mass Transf 2008;51:2651–2666. [CrossRef] [50] Mishra PC, Mukherjee S, Nayak SK, Panda A. A
22. Gupta SK, Dixit S. Progress and application of nanoflu- brief review on viscosity of nanofluids. Int Nano Lett ids in solar collectors: an overview of recent advances. 2014;4:109–120. [CrossRef] Mater Today Proc 2021;44:250–259. [CrossRef] [51] Chandrasekar M, Suresh S, Bose AC. Experimental
23. Dmitriev AS, Klimenko AV. Prospects for the use of investigations and theoretical determination of ther- two-dimensional nanomaterials in energy technolo- mal conductivity and viscosity of Al₂O₃/water nano- gies. Therm Eng 2023;70:551–572. [CrossRef] fluid. Exp Therm Fluid Sci 2010;34:210–216. [CrossRef] 1882 Sigma J Eng Nat Sci, Vol. 43, No. 5, pp. 1852−1885, October, 2025
24. Mahesh KV, Linsha V, Peer Mohamed A, Ananthakumar S. Processing of 2D-MAXene nano- evaluation of flat plate solar collector using nano- structures and design of high thermal conducting, fluids. Energy Convers Manag 2017;134:103–115. rheo-controlled MAXene nanofluids as a potential [CrossRef] nanocoolant. Chem Eng J 2016;297:158–169. [CrossRef] [68] Saffarian MR, Moravej M, Doranehgard MH. Heat
25. Adun H, Wole-Osho I, Okonkwo EC, Kavaz D, transfer enhancement in a flat plate solar collector Dagbasi M. A critical review of specific heat capac- with different flow path shapes using nanofluid. ity of hybrid nanofluids for thermal energy applica- Renew Energy 2020;146:2316–2329. [CrossRef] tions. J Mol Liq 2021;340:116890. [CrossRef] [69] Gad MS, Said M, Hassan AY. Effect of different nano-
26. Gupta SK, Saxena A. A progressive review of hybrid fluids on performance analysis of flat plate solar collec- nanofluid utilization in solar parabolic trough tor. J Dispers Sci Technol 2021;42:1867–1878. [CrossRef] collector. Mater Today Proc 2023 doi: 10.1016/j. [70] Elshazly E, Abdel-Rehim AA, El-Mahallawi I. matpr.2023.06.204. [CrossRef] 4E study of experimental thermal performance
27. Rubbi F, Habib K, Saidur R, Aslfattahi N, Yahya SM, enhancement of flat plate solar collectors using Das L. Performance optimization of a hybrid PV/T MWCNT, Al₂O₃, and hybrid MWCNT/Al₂O₃ nano- solar system using soybean oil/MXene nanofluids fluids. Results Eng 2022;16:100723. [CrossRef] as a new class of heat transfer fluids. Sol Energy [71] Desisa TR. Experimental and numerical investi- 2020;208:124–138. [CrossRef] gation of heat transfer characteristics in solar flat
28. Zhou LP, Wang BX, Peng XF, Du XZ, Yang YP. On plate collector using nanofluids. Int J Thermofluids the specific heat capacity of CuO nanofluid. Adv 2023;18:100325. [CrossRef] Mech Eng 2010;2:172085. [CrossRef] [72] Ajeena AM, Farkas I, Víg P. Energy and exergy
29. Chakraborty S, Panigrahi PK. Stability of nanofluid: assessment of a flat plate solar thermal collector by a review. Appl Therm Eng 2020;174:115259. [CrossRef] examining silicon carbide nanofluid: an experimen-
30. Wang J, Yang X, Klemeš JJ, Tian K, Ma T, Sunden B. A tal study for sustainable energy. Appl Therm Eng review on nanofluid stability: preparation and appli- 2024;236:121844. [CrossRef] cation. Renew Sustain Energy Rev 2023;188:113854.
31. Dey D, Kumar P, Samantaray S. A review of nano- abolic trough collector technology using industri- fluid preparation, stability, and thermo-physical al-grade MWCNT based nanofluid. Renew Energy properties. Heat Transf Asian Res 2017;46:1413– 2020;161:1303–1317. [CrossRef] 1442. [CrossRef]
32. Nikolov A, Wu P, Wasan D. Structure and stability ric thermal analysis of nanofluid-based parabolic of nanofluid films wetting solids: an overview. Adv Colloid Interface Sci 2019;264:1–10. [CrossRef] trough solar collectors. Sustain Energy Technol
33. Kumar MS, Vasu V, Gopal AV. Thermal conductivity Assess 2020;39:100714. [CrossRef] and rheological studies for Cu–Zn hybrid nanoflu- [75] Ekiciler R, Arslan K, Turgut O, Kurşun B. Effect of ids with various base fluids. J Taiwan Inst Chem Eng hybrid nanofluid on heat transfer performance of 2016;66:321–327. [CrossRef] parabolic trough solar collector receiver. J Therm
34. Abdelrazik AS, Tan KH, Aslfattahi N, Arifutzzaman Anal Calorim 2021;143:1637–1654. [CrossRef] A, Saidur R, Al-Sulaiman FA. Optical, stability and [76] Farooq M, Farhan M, Ahmad G, Tahir ZR, Usman energy performance of water-based MXene nanoflu- M, Sultan M, Hanif MS, et al. Thermal performance ids in hybrid PV/thermal solar systems. Sol Energy enhancement of nanofluids based parabolic trough 2020;204:32–47. [CrossRef] solar collector (NPTSC) for sustainable environ-
35. Tian Y, Zhao CY. A review of solar collectors and ment. Alex Eng J 2022;61:8943–8953. [CrossRef] thermal energy storage in solar thermal applica- [77] Vahedi B, Golab E, Sadr AN, Vafai K. Thermal, ther- tions. Appl Energy 2013;104:538–553. [CrossRef] modynamic and exergoeconomic investigation of a
36. Ghritlahre HK, Prasad RK. Application of ANN parabolic trough collector utilizing nanofluids. Appl technique to predict the performance of solar col- Therm Eng 2022;206:118117. [CrossRef] lector systems: a review. Renew Sustain Energy Rev [78] Ram S, Ganesan H, Saini V, Kumar A. Performance 2018;84:75–88. [CrossRef] assessment of a parabolic trough solar collector
37. Gupta SK. A short and updated review of nanofluids using nanofluid and water based on direct absorp- utilization in solar parabolic trough collector. Mater tion. Renew Energy 2023;214:11–22. [CrossRef] Today Proc 2023. [CrossRef] [79] Hamada MA, Khalil H, Abou Al-Sood MM, Sharshir
38. Verma SK, Tiwari AK, Chauhan DS. Performance SW. An experimental investigation of nanofluid, augmentation in flat plate solar collector using nanocoating, and energy storage materials on the MgO/water nanofluid. Energy Convers Manag performance of parabolic trough collector. Appl 2016;124:607–617. [CrossRef] Therm Eng 2023;219:119450. [CrossRef] Sigma J Eng Nat Sci, Vol. 43, No. 5, pp. 1852−1885, October, 2025 1883
39. Ekiciler R, Arslan K, Turgut O. Application of nano- fluid flow in entropy generation and thermal perfor- study on using oil-based nanofluids in a vacuumed mance analysis of parabolic trough solar collector: tube solar water heater: an exergy analysis. Int J experimental and numerical study. J Therm Anal Ambient Energy 2022;43:7387–7399. [CrossRef] Calorim 2023;148:7299–7318. [CrossRef] [94] Arun M. Experimental investigation on energy
40. Esmaeili Z, Akbarzadeh S, Rashidi S, Valipour MS. and exergy analysis of solar water heating system Effects of hybrid nanofluids and turbulator on effi- using zinc oxide-based nanofluid. Arab J Sci Eng ciency improvement of parabolic trough solar collec- 2023;48:3977–3988. [CrossRef] tors. Eng Anal Bound Elem 2023;148:114–125. [CrossRef] [95] Firoozzadeh M, Shafiee M. Thermodynamic analy-
41. Abu-Zeid MAR, Elhenawy Y, Bassyouni M, Majozi sis on using titanium oxide/oil nanofluid integrated T, Toderas M, Al-Qabandi OA, et al. Performance with porous medium in an evacuated tube solar enhancement of flat-plate and parabolic trough water heater. J Therm Anal Calorim 2023;148:8309– solar collector using nanofluid for water heating 8322. [CrossRef] application. Results Eng 2024;21:101673. [CrossRef] [96] Lotfi M, Firoozzadeh M, Ali-Sinaei M. Simultaneous
42. Yurddaş A. Optimization and thermal performance of use of TiO₂/oil nanofluid and metallic-insert as evacuated tube solar collector with various nanofluids. enhancement of an evacuated tube solar water heater. Int J Heat Mass Transf 2020;152:119496. [CrossRef] J Therm Anal Calorim 2023;148:9633–9647. [CrossRef]
43. Sasikumar SB, Santhanam H, Noor MM, Devasenan M, Ali HM. Experimental investigation of parallel polymer solar water heater using Al₂O₃ nanofluid type-evacuated tube solar collector using nanoflu- for performance improvement. Mater Today Proc ids. Energy Sources Part A Recover Util Environ Eff 2023;92:249–257. [CrossRef] 2020:1–13. [CrossRef] [98] Nayak S, Hassan MA, Paswan M. Investigation on
44. Kumar S, Tiwari AK. Performance evaluation thermo-fluid behavior of flat-plate solar water heater of evacuated tube solar collector using boron employing titanium dioxide–water nanofluid: an nitride nanofluid. Sustain Energy Technol Assess experimental and computational approach. J Mech 2022;53:102466. [CrossRef] Sci Technol 2024;38:1507–1516. [CrossRef]
45. Henein SM, Abdel-Rehim AA, El-Nagar K. Energy, economic and environmental analysis of an evac- mance of a solar water heater using nano-ZrO₂/water- uated tube solar collector using hybrid nanofluid. based nanofluid. Mater Today Proc 2023. doi: 10.1016/j. Appl Therm Eng 2023;219:119671. [CrossRef] matpr.2023.09.012 [Epub ahead of print] [CrossRef]
46. Tong Y, Wang R, Wang S, Wang H, Huang Li Shao C, et al. Comparison and evaluation of energetic Medhi BJ, et al. Experimental and CFD analysis of and exergetic performance of an evacuated tube dimple tube parabolic trough solar water heater with solar collector using various nanofluid. Process Saf various nanofluids. Appl Nanosci 2024;14:291–337. Environ Prot 2023;174:585–594. [CrossRef] [CrossRef]
47. Elshazly E, El-Mahallawi I. Thermal performance enhancement of evacuated tube solar collector using solar technology. Renew Energy 2018;4:88–119. MWCNT, Al₂O₃, and hybrid MWCNT/Al₂O₃ nano- [CrossRef] fluids. Int J Thermofluids 2023;17:100260. [CrossRef] [102] Al-Waeli AH, Kazem HA, Chaichan MT, Sopian
48. López-Pérez LA, Torres-Díaz T, Pérez Grajales SG, K. A review of photovoltaic thermal systems: Flores Prieto JJ, Romero DJ, Hernández Pérez JA, et achievements and applications. Int J Energy Res al. Solar water heating system with absorption heat 2021;45:1269–1308. [CrossRef] transformer for annual continuous water heating. [103] Mostakim K, Hasanuzzaman M. Global prospects, Processes 2024;12:1650. [CrossRef] challenges and progress of photovoltaic thermal sys-
49. Modi K, Shukla D, Bhargav B, Devaganiya J, Deshle tem. Sustain Energy Technol Assess 2022;53:102426. R, Dhodi J, et al. Efficacy of organic and inorganic [CrossRef] nanofluid on thermal performance of solar water [104] Salari A, Kazemian A, Ma T, Hakkaki-Fard A, Peng heating system. Cleaner Eng Technol 2020;1:100020. J. Nanofluid based photovoltaic thermal systems [CrossRef] integrated with phase change materials: numerical
50. Darbari B, Rashidi S. Thermal efficiency of flat plate simulation and thermodynamic analysis. Energy thermosyphon solar water heater with nanofluids. J Convers Manag 2020;205:112384. [CrossRef] Taiwan Inst Chem Eng 2021;128:276–287. [CrossRef] [105] Adun H, Adedeji M, Dagbasi M, Bamisile O, Senol
51. Mandal SK, Singh PK, Kumar S, Mishra SK. M, Kumar R. A numerical and exergy analysis of the Parametric investigation of CuO-doped charged effect of ternary nanofluid on performance of pho- nanofluid in solar water heater. Int J Environ Sci tovoltaic thermal collector. J Therm Anal Calorim Technol 2021;18:2855–2864. [CrossRef] 2021;145:1413–1429. [CrossRef] 1884 Sigma J Eng Nat Sci, Vol. 43, No. 5, pp. 1852−1885, October, 2025
52. Arifin Z, Prasetyo SD, Tjahjana DDDP, Rachmanto RA, Prabowo AR, Alfaiz NF, et al. The application Historic review and recent progress in internal of TiO₂ nanofluids in photovoltaic thermal collector design modification in solar stills. Environ Sci Pollut systems. Energy Rep 2022;8:1371–1380. [CrossRef] Res 2022;29:38825–38878. [CrossRef]
53. Aslfattahi N Samylingam, L, Abdelrazik AS, Arifutzzaman A, Saidur R. MXene based new class of ment using nanofluids: a comprehensive review. Int J silicone oil nanofluids for the performance improve- Ambient Energy 2023;44:1396–1416. [CrossRef] ment of concentrated photovoltaic thermal collector. [120] Kaviti AK, Yadav A, Shukla A. Inclined solar still Sol Energy Mater Sol Cells 2020;211:110526. [CrossRef] designs: a review. Renew Sustain Energy Rev
54. Sheikholeslami M, Khalili Z. Solar photovoltaic– 2016;54:429–451. [CrossRef] thermal system with novel design of tube con- [121] Hussein AK, Rashid FL, Rasul MK, Basem A, Younis taining eco-friendly nanofluid. Renew Energy O, Homod RZ, et al. A review of the application 2024;222:119862. [CrossRef] of hybrid nanofluids in solar still energy systems
55. Al-Aasam AB, Ibrahim A, Sopian K, Abdulsahib B, and guidelines for future prospects. Sol Energy Dayer M. Nanofluid-based photovoltaic thermal 2024;272:112485. [CrossRef] solar collector with nanoparticle-enhanced phase [122] Gunay T, Gumus C, Sahin AZ. The impact of change material (nano-PCM) and twisted absorber using nanofluid on the performance of solar stills: tubes. Case Stud Therm Eng 2023;49:103299. [CrossRef] a comprehensive review. Process Saf Environ Prot
56. Alktranee M, Shehab MA, Németh Z, Bencs P, 2024;189:1464–1516. [CrossRef] Hernadi K. Thermodynamic analysis of mono and [123] Kumar M, Patel SK, Mishra V, Singh D, Giri BS, hybrid nanofluid effect on the photovoltaic–thermal Singh D. Performance analysis of modified solar still system performance: a comparative study. Heliyon with parabolic reflector and nanofluids. J Taiwan 2023;9:e22535. [CrossRef] Inst Chem Eng 2024;105651. [CrossRef]
57. Azam F, Akhtar N. Optimizing the performance of Environmental and energy assessment of photo- solar still with Al₂O₃ nanofluid: an experimental study. voltaic–thermal system combined with a reflector Int J Energy Water Resour 2024;9:941-954. [CrossRef] supported by nanofluid filter and a sustainable ther-
58. Sahu R, Tiwari AC. Performance enhancement moelectric generator. J Clean Prod 2024;438:140659. of single slope solar still using nanofluids at dif- [CrossRef] ferent water depth. Desalination Water Treat
59. Ahmadinejad M, Moosavi R. Energy and exergy 2024;317:100046. [CrossRef] evaluation of a baffled-nanofluid-based photovol-
60. Kumar R, Chanda J, Elsheikh AH, Ongar B, taic thermal system (PVT). Int J Heat Mass Transf Khidolda Y, Praveen Kumar S, et al. Performance 2023;203:123775. [CrossRef]
61. Bassam AM, Sopian K, Ibrahim A, Fauzan MF, improvement of single and double effect solar stills Al-Aasam AB, Abusaibaa GY. Experimental analysis with silver balls/nanofluids for bioactivation: an for the photovoltaic thermal collector (PVT) with experimental analysis. Sol Energy 2023;259:452– nano PCM and micro-fins tube nanofluid. Case 463. [CrossRef] Stud Therm Eng 2023;41:102579. [CrossRef] [127] Parsa SM, Rahbar A, Koleini MH, Javadi YD,
62. Gu W, Wang X, Lu H, Mutailipu M. Energy and Afrand M, Rostami S, et al. First approach on nano- exergy analyses of a bifacial photovoltaic/thermal fluid-based solar still in high altitude for water system with nanofluids. Sol Energy 2023;262:111875. desalination and solar water disinfection (SODIS). [CrossRef] Desalination 2020;491:114592. [CrossRef]
63. Shen T, Xie H, Gavurová B, Sangeetha M, Karthikeyan C, Praveenkumar TR, et al. Experimental analysis of Fractional modeling for enhancing the thermal per- photovoltaic thermal system assisted with nanoflu- formance of conventional solar still using hybrid ids for efficient electrical performance and hydro- nanofluid: energy and exergy analysis. Desalination gen production through electrolysis. Int J Hydrogen 2021;503:114847. [CrossRef] Energy 2023;48:21029–21037. [CrossRef] [129] Rabbi HMF, Sahin AZ. Performance improvement
64. Khalili Z, Sheikholeslami M. Analyzing the effect of of solar still by using hybrid nanofluids. J Therm confined jet impingement on efficiency of photovol- Anal Calorim 2021;143:1345–1360. [CrossRef] taic thermal solar unit equipped with thermoelectric [130] Shoeibi S, Kargarsharifabad H, Rahbar N, Ahmadi generator in existence of hybrid nanofluid. J Clean G, Safaei MR. Performance evaluation of a solar still Prod 2023;406:137063. [CrossRef] using hybrid nanofluid glass cooling – CFD simu-
65. Xia X, Cao X, Li N, Yu B, Liu H. Study on a spec- lation and environmental analysis. Sustain Energy tral splitting photovoltaic/thermal system based on Technol Assess 2022;49:101728. [CrossRef] CNT/Ag mixed nanofluids. Energy 2023;271:127093. [131] Toosi SSA, Goshayeshi HR, Zahmatkesh I, Nejati V. [CrossRef] Experimental assessment of new designed stepped Sigma J Eng Nat Sci, Vol. 43, No. 5, pp. 1852−1885, October, 2025 1885 solar still with Fe₃O₄+graphene oxide+paraffin as [143] Hotaa SK, Mata-Torres C, Cardemil JM, Diaz G. nanofluid under constant magnetic field. J Energy Techno-economic assessment of carbon-based nano- Storage 2023;62:106795. [CrossRef] fluid dispersions in solar stills for rural coastal loca-
66. Naveenkumar R, Shanmugam S, Veerappan A. tions in the Northern and Southern hemispheres. Performance and exergy analysis of solar-operated Desalin Water Treat 2022;245:72–84. [CrossRef] vacuum fan and external condenser integrated dou- [144] Salari A, Taheri A, Farzanehnia A, Passandideh- ble-slope solar still using various nanofluids. Environ Fard M, Sardarabadi M. An updated review of Sci Pollut Res 2023;30:12883–12902. [CrossRef] the performance of nanofluid-based photovoltaic
67. Kajal G, Malik P, Garg H, Lamba R. Thermophysical thermal systems from energy, exergy, economic, properties analysis of Al₂O₃, MgO and GO nanoflu- and environmental (4E) approaches. J Clean Prod ids with water for solar still. Mater Today Proc 2023. 2021;282:124318. [CrossRef] doi: 10.1016/j.matpr.2023.06.383 [Epub ahead of [145] Lari MO, Sahin AZ. Design, performance and eco- nomic analysis of a nanofluid-based photovoltaic/ print] [CrossRef] thermal system for residential applications. Energy
68. Almohammadi BA, Alharthi MA, Alshareef RS, Convers Manag 2017;149:467–484. [CrossRef] Sharafeldin MA, Refaey HA, Abd El-Ghany HA.
69. Saxena G, Gaur MK. Energy, exergy and economic Effects of hybrid ZnO–WO₃/water nanofluid on the analysis of evacuated tube solar water heating sys- performance of active solar still equipped with a heat tem integrated with heat exchanger. Mater Today exchanger. J Therm Anal Calorim 2024;149:8631– Proc 2020;28:2452–2462. [CrossRef] 8645. [CrossRef] [147] Sohani A, Shahverdian MH, Sayyaadi H, Samiezadeh
70. Kasaeian A, Eshghi AT, Sameti M. A review on the S, Doranehgard MH, Nizetic S, et al. Selecting applications of nanofluids in solar energy systems. the best nanofluid type for a photovoltaic thermal Renew Sustain Energy Rev 2015;43:584–598. [CrossRef] (PV/T) system based on reliability, efficiency, energy,
71. Rasheed T, Hussain T, Anwar MT, et al. Hybrid nanoflu- economic, and environmental criteria. J Taiwan Inst ids as renewable and sustainable colloidal suspensions Chem Eng 2021;124:351–358. [CrossRef] for potential photovoltaic/thermal and solar energy [148] Hussain MI, Kim J. Conventional fluid- and nano- applications. Front Chem 2021;9:737033. [CrossRef] fluid-based photovoltaic thermal (PV/T) systems: a
72. Elsheikh AH, Sharshir SW, Mostafa ME, Essa FA, Ali techno-economic and environmental analysis. Int J MKA. Applications of nanofluids in solar energy: a Green Energy 2018;15:596–604. [CrossRef] review of recent advances. Renew Sustain Energy [149] Lari MO, Sahin AZ. Effect of retrofitting a silver/water Rev 2018;82:3483–3502. [CrossRef] nanofluid-based photovoltaic/thermal (PV/T) system
73. Mahian O, Bellos E, Markides CN, Taylor RA, with a PCM-thermal battery for residential applications. Alagumalai A, Yang L, et al. Recent advances in Renew Energy 2018;122:98–107. [CrossRef] using nanofluids in renewable energy systems and [150] Michael Joseph Stalin P, Arjunan TV, Matheswaran the environmental implications of their uptake. MM, Dolli H, Sadanandam N. Energy, economic Nano Energy 2021;86:106069. [CrossRef] and environmental investigation of a flat plate solar
74. Alghamdi H, Maduabuchi C, Okoli K, Alanazi M, collector with CeO₂/water nanofluid. J Therm Anal Fagehi H, Alghassab M, et al. Harnessing solar Calorim 2020;139:3219–3233. [CrossRef] power: innovations in nanofluid-cooled segmented [151] Amar M, Akram N, Chaudhary GQ, Kazi SN, thermoelectric generators for exergy, economic, Soudagar MEM, Mubarak NM, et al. Energy, exergy environmental, and thermo-mechanical excellence. and economic (3E) analysis of flat-plate solar collec- tor using novel environmental friendly nanofluid. Alex Eng J 2024;106:147–163. [CrossRef] Sci Rep 2023;13:411. [CrossRef]
75. Chiney A, Ganvir V, Rai B, Pradip. Stable nanoflu- environmental performance of a direct absorption ids for convective heat transfer applications. J Heat parabolic trough collector by using hybrid nanofluids. Transf 2014;136:021704. [CrossRef] Energy Convers Manag 2021;244:114450. [CrossRef] [153] Mukherjee S, Mishra PC, Chaudhuri P. Stability of
76. Abadeh A, Rejeb O, Sardarabadi M, Menezo C, heat transfer nanofluids – a review. ChemBioEng Passandideh-Fard M, Jemni A. Economic and envi- Rev 2018;5:312–333. [CrossRef] ronmental analysis of using metal-oxides/water [154] Sharaf OZ, Taylor RA, Abu-Nada E. On the colloi- nanofluid in photovoltaic thermal systems (PVTs). dal and chemical stability of solar nanofluids: from Energy 2018;159:1234–1243. [CrossRef] nanoscale interactions to recent advances. Phys Rep
77. Said Z, Ghodbane M, Boumeddane B, Tiwari AK, 2020;867:1–84. [CrossRef] Sundar LS, Li C, et al. Energy, exergy, economic and [155] Khan F, Karimi MN, Khan O. Exploring the scal- environmental (4E) analysis of a parabolic trough ability and commercial viability of biosynthesized solar collector using MXene based silicone oil nano- nanoparticles for cooling panels with the help of fluids. Sol Energy Mater Sol Cells 2022;239:111633. artificial intelligence and solar energy systems. [CrossRef] Green Technol Sustain 2023;1:100036. [CrossRef]

Share and Cite
