Accelerated solidification of PCM via Al2O3CuO hybrid nanoparticles in triplex tube heat storage

Abstract

Keywords: Hybrid Nanofluid; PCM; Phase Change Material; Solidification; Triplex Tube Heat Storage

Introduction

Nowadays, fossil fuel plays a major role in energy production of the world. However, this energy is limited in quantity and produces high level of pollution. Therefore,

developing a suitable source of energy is crucial to overcome these issues. The two most efficient sustainable and renewable sources of energy are solar and wind systems, which have very beneficial applications, for instance, air conditioning systems in buildings and solar water

*Corresponding author. *E-mail address: Sattar.J.Aljabair@uotechnology.edu.iq This paper was recommended for publication in revised form by Editor-in-Chief Ahmet Selim Dalkılıç Published by Yıldız Technical University Press, İstanbul, Turkey Copyright 2021, Yıldız Technical University. This is an open access article under the CC BY-NC license (http://creativecommons.org/licenses/by-nc/4.0/).

heaters [1]. Since these systems are periodic during the day and the energy demand varies over the day, a temporal inequality between energy supply and energy demand could be created. Therefore, energy storage systems are useful for matching this imbalance and promoting larger utilization of the mentioned sources [2]. In general, there are three main forms of storing thermal energy, sensible heat in which the temperature of storing material changes throughout charging /discharging, latent heat that storing/releasing energy achieved when the storage substance changes its phase from solid to liquid (charging) or from liquid to solid (discharging), thermochemical storage based on the principle of reversible exothermic and endothermic chemical reactions for heat storage [3,4]. Among the aforementioned forms, latent heat storage has been determined to be very attractive in terms of high energy storage ability over a narrow temperature difference [5,6], almost isothermal phase transition process [7], and running in a many cycles with no significant changes in its thermal and chemical properties [8]. In fact, for a given volume, PCMs are able to store 5–14 times more thermal energy than sensible heat substances [9]. This feature is beneficial, specifically for applications that require a small space. Currently, PCMs have drawn a lot of attention due to their uses in a variety of applications, including storing of solar energy [10,11], recovery of waste energy [12], electronic equipment cooling [13], and energy-efficient constructions [14]. However, the poor thermal conductivity of PCM causes slow rate of phase transition, which is a main weakness for their practical uses [15,16]. To solve this issue, several strategies have been adopted to augment the heat transfer in PCMs, such as utilizing fins [17,18], heat pipes [19,20], highly conductive metal foam [21,22], nanoparticles [23,24], graphite composites [25,26], and carbon nanotubes [27,28] as classified in Figure 1. However, it must be realized that adopting these methods need carefulness. They may cause undesirable consequences in term of decreasing the quantity of PCM in storage, increasing the weight of storage, and altering the flow regime. Moreover, there is another problem regarding PCM usage is that majority of these materials produce considerable density variation during phase change [29]. This problem, in the majority of cases, causes unfavorable expansion and shrinkage of the PCM throughout melting and solidification. Consequently, additional stresses are applied on the surface of storage. The problem is frequently resolved by making an air gap inside the container to permit the storage material to expand freely without exerting extra force against the inner surfaces of the storage [30,31]. However, with several cycle of charging and discharging, a number of air pockets are created in PCM during solidification. These air pockets adversely impact on the characteristic of heat transfer and uniformity of material which must be maintained for long-term operation [32-34]. The main focus of the current work is to comprehend the impact of utilizing

nanoparticles as additives to improve PCM solidification. As a result, the effect of air pocket creation throughout the solidification phase was not taken into consideration in this numerical study. However, it was impossible to avoid it in experimental study. The use of an extended surface to improve heat transfer is superior due to ease of implementation and comparatively low production cost. Annular, longitudinal, pin, and plate are the most popular fin designs. Among them, the longitudinal fins are performed well, particularly for cylinder shape storage [35]. The impact of perforated fins on the efficiency of vertically oriented shell and tube heat storage was investigated by Karami and Kamkari [36]. According to the experiment, PCM in the storage with perforated fins melted completely in 7% shorter duration than the storage with plain fins. This was ascribed to free convection movement in the holes of fins. Khan and Khan [37] investigated the thermal characteristic of the shell and tube storage coupled with various orientations of the Y-fins configuration using both experimental and numerical methods. The quantitative result showed that 50.7% reduction in charging time and 10% augmentation in the capacity of thermal storage can be obtained as fins arrangements changing from λ to Y. Yousef et al. [38] carried out a study on the acceleration of the melting rate in PCM-based solar still by coupling hollow pin type fins to the unit. Experimental tests were conducted for typical and pin-finned PCM-based units in order to assess the rate of heat transfer. In the result, an enhancement of 17% by employing pined shape fin in comparison to typical unit. Liu et al. [39] suggested an innovative ladder-shaped fin to speed up charging process for waste heat recovery system. The numerical result revealed that ladder-shaped fins are more effective than straight fins at optimizing the charging channel of PCM. Moreover, the highest reduction of total charging duration was 52.2% in comparison to the straight fin. A novel tree-pin-shaped fin in a shelland-tube storage system was designed and built by Wu et al. [40]. Adipic acid as PCM was implemented in the shell. For comparison purposes, traditional longitudinal fins were also investigated under the identical conditions. It was found that tree-pin-shaped fins promote melting and solidification rates and make the PCM temperature more uniform. Furthermore, storage with tree-pin-shaped fins reduces the melting duration by 44.6% and the solidification duration by 50.0% in comparison to storage with longitudinal fins. Mahdi and Nsofor [41] utilized aluminum foam of 0.95 average porosity to promote charging and discharging rate in shell and tube heat storage. Findings showed that increasing the cascade number has a significant impact on the phase transition process, which shortens the charging and discharging durations. Moreover, existing metal foam reduce the temperature variation across PCM. In general, the existence of extended surfaces or metal foam in PCM may resist the growth of the natural current that is induced in the molten region, which in turn

would offset (minimize) the positive impact of extended surfaces on thermal performance of storage. Furthermore, integration of solid material (e.g. fins and porous matrix) reduce the amount of PCM and increase the overall storage weight which deteriorate total storage energy and influence mobility of these units. Another good candidate. is to boost thermal conductance of PCM by incorporate. conductive nano scale powder, which is shown to be suitable and easy to achieve. Nano-particles. can be categorized. into two. groups: (a) carbon. allotropes and (b) metal-oxides. or metals. [42], .carbides and .nitrides [43]. Hosseinizadeh et al. [44] investigated the melting rate inside a spherical storage employing Cu-RT27 nano-PCM. It was indicated that melting duration dropped by 5 min as volume fraction boost from 0 to 0.04. Dispersion CuO nanoparticles at two volume fractions of 0.034% and 0.5% to speed up the melting of three different organic PCMs, namely, paraffin wax, coconut oil, and RT18 was performed by Al-Jethelah et al. [45]. They determined the four regimes during the melting of nano PCM using a scale-up methodology. Ebadi et al. [46] used coconut oil as PCM inside a cylindrical energy storage to explore the impact of nanoparticle volume fraction and Rayleigh number on the charging phase. It was stated that the total storing energy minimized as nanoparticle increase. Multi-walled carbon nanotubes were added to paraffin by Murugan et al. [47], who exhibited that the paraffin’s thermophysical properties were significantly improved by inclusion low concentration of the nanotubes. Another article noted that inclusion 1.0% by weight of carbon nanotubes to the paraffin augment its thermal conductivity by 113.3% [48]. As result, a significant reduction of the total melting and freezing durations was obtained. Gorzin et al. [49] examined the freezing of Cu-RT50 nano-PCM in multi-tubes thermal storage with different configurations of paraffin in the tubes. The freezing time shortened about 15% by incorporating nanoparticle of 0.04 volume concentration. Hamza and Aljabair [50] indicated that the addition of two various kinds of nanoparticles has a strong tendency to boost heat transmission owing to their synergistic effect. The melting and freezing of the Al2O3, AlN, and GNP-paraffin nano-PCMs in shell and tube heat storage were conducted by Khan and Khan [51]. In comparison to PCM without nano, melting time reduction of about 28.01%, 36.47%, and 44.57% for Al2O3-PCM, AlN- PCM and GNP-PCM, respectively. Moreover, the freezing time decrease by 14.63%, 34.95%, and 41.46%, respectively. The same thermal storage system but in another research, Khan et al. [43] tested the influence of inclusion different metal oxide nano powder with volume fraction of 0.01, 0.03, and 0.05 on melting and freezing rates of PCM. Their result indicated that in spite of raising the concentration of nanoparticles augmenting the melting and freezing rates, the free convection diminished. When compared to the pure PCM at concentration of 0.05, The SiO2-PCM

had the lowest average melting and freezing durations of all the nano-PCMs by about 41% and 30%, respectively. Hamali and Almusawa [52] applied the Galerkin method to simulate freezing process of fin-assisted water in existence of nanoparticles numerically. Fins of Y-shaped and copper oxide nanoparticles were utilized. Their finding reveled that around 10 % improvement in freezing process was achieved by dispersing these nanoparticles. Likewise, Rothan [53] investigated the effect of shape factor of the CuO nanoparticles on PCM. They found that total freezing time can be decrease by increase shape factor. Quantitatively, about 10% of improvement was obtained by inclusion CuO nanoparticles with the optimum shape factor. Zhao et al. [54] added nanoparticles (CuO) with various electrical charges into paraffin (octadecane) to studied the effect of charged nanoparticles on thermal characteristics of PCM by help of molecular dynamics technique. It was exhibited that thermal conductivity of nano-PCM was significantly enhanced by intensifying nanoparticle charges. Besides that, increasing charge of nanoparticles can enlarge nanolayer thickness. Three different type of nano additives (Al2O3, TiO2, and CuO) and three groups of nanoparticles (mono NanoPCM, hybrid Nano-PCM, and ternary Nano-PCM) were utilized by Wu et al. [55]. They studied the influence of nanoparticle compound and nanoparticle concentration on the heat transfer and thermal storage performance of shell-and-tube energy storage. The obtained result indicated that charging rate of PCM include multi types of nanoparticles is higher than mono Nano-PCM, by 2.3% for hybrid Nano-PCM and 5.2% for ternary Nano-PCM, respectively. In the current research, the potential of Al2O3 and CuO hybrid nano particle in paraffin is experimentally and numerically performed to evaluate their effect on the freezing process in triplex tube heat storage. Paraffin wax is positioned in the annulus space between the inner and the intermediate tubes whereas cold water is flowing through the inner tube and outer shell. The triplex-tube storage is advantageous over all other type of heat storage in term of high heat transfer area which Intensify heat transfer rate. According to the previous survey, most of the studies focus on using one type of nanoparticles in PCM-based double pipe heat storage. However, the freezing process of hybrid nano-PCM in triplex tube heat storage (TTHS) have not been explored by previous studies. Thus, the novelty of this experiment is to assess the influence of combine two different types of nanoparticles of volume concentration ranged from 0.4% to 3.2% on heat transfer behavior throughout PCM freezing in TTHS. Besides that, the impact of fluid inlet temperature and mass flow rate on the discharging process are also investigated. The major steps of present study are depicted in the Figure 2.

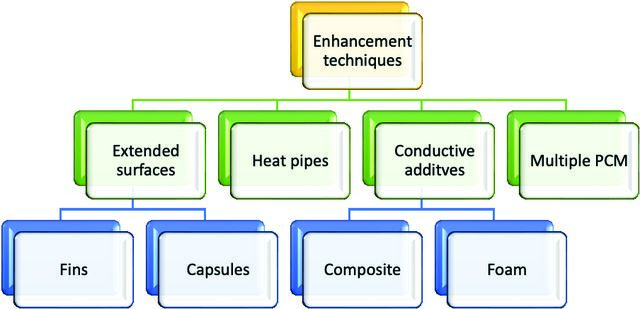

Figure 1. Categorization of augmented methods in PCM based storage units.

Experimental Setup

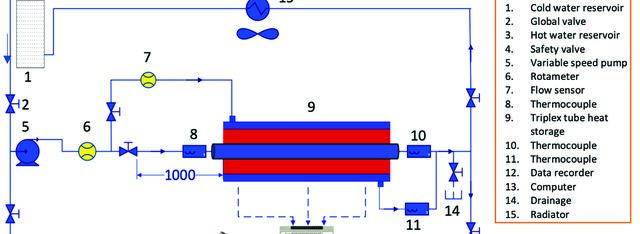

An experimental rig was established to evaluate the thermal performance of triplex tube heat storage. It made up of (1) tank (2) cold water reservoir (3) water pumps (4) flow meters (5) radiator (cross type heat exchanger) (6) thermocouples (7) temperature data recorder (8) triplex tube heat storage, as depicted in Figures 3 and 4. The storage consists of three concentric tubes of 600 mm length oriented horizontally. The PCM of 7 kg occupy annulus space between inner and intermediate tubes while the water flow in the inner tube and outer shell. The diameters of inner, intermediate and outer tubes were 50, 150, and 200 mm, respectively. To achieve high heat exchange between PCM and water, the inner and intermediate tubes were made of copper. However, the outer tube was made of carbon-steel. Two carbon steel flanges were fabricated to seal both ends of storage. Each flange has 53 mm concentric hole to facilitates passing the inner tube. Glass wool insulation with a 50 mm thickness was covered the storage to reduce the amount of heat dissipation from the storage to the surrounding air. To validate the effectiveness of this insulation, the heat loss should be quantified. This can be achieved by measuring the temperature of outer surface of insulation by using an infrared thermometer. It was found that the highest temperature variation between the outer surface of the insulation and the surrounding air was not exceed 1 °C for all cases. This slight temperature difference implies that the heat dissipation

from storage is negligible and prove the suitability of this insulation for this storage. Figure 5 depict the locations of thermocouples used to record the temperature of the PCM. Sixty K–type thermocouples were mounted in the PCM at three different sections along the heat storage length. Each section contains twenty thermocouples placed in radial and angular orientation as illustrated in Figure 6. To measure inlet water temperature, a thermocouple prop coupled in the inlet of test section. Besides that, two thermocouples fixed in the outlet of test section to measure outlet water temperature of tube side and shell side. All thermocouples with a temperature recording scope of 0-200 °C were all attached to a data acquisition system, which in turn recorded the temperature every minute and sent the values to computers. The experimental test apparatus has two kinds of flow meters. Namely, rotameter and turbine flow sensor, see Figure 4B. A rotameter of 0.2 – 18 l/min measurement range was installed vertically after main circulation pump to record the total volumetric flow rate of water. The other type of flow meter is turbine flow sensor model (G1-2) which was mounted in the plastic bypass pipe before the test section to measure the water flow rate on the outer annulus. The sensor can generate electrical pulse whenever water pass through it. Each pulse equivalent to 3.33 milliliters. Therefore, flow rate can be estimated by counting the output pulses from the sensor. This flow sensor that made of chrome can measure flow rate between 1 to 30 l/min and work with temperature range (-25 ~ +80 °C). The flow sensor was linked to the Arduino Uno with programming code

Figure 5. Sectional drawing of TTHS. saved in it and the result was displayed on the computer. Additionally, Plastic tubes and valves were employed to join the storage to the radiator, cold water reservoir and other components.

Experimental Procedure A 1500 W thermoelectric immersion heater equipped with thermostat installed in the 170-liter water reservoir to control the water temperature during the experiment.

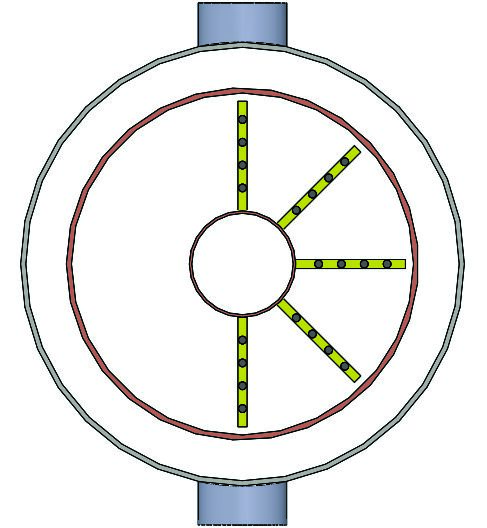

Figure 6. Schematic diagram of thermocouple distribution. Before start of each test, hot water at 70 °C pumped from the hot water reservoir into the tube and outer annulus of the TTHS in order to liquify PCM and maintain a constant initial thermal state. This process continued until PCM temperature (thermocouples readings) become higher than melting temperature, which may take around 3 hours. The experiment was commenced by supplying warm water at a predetermined mass flow rate from the constant temperature water reservoir to the TTHS where water absorb heat from PCM. After that, the heated water flow in radiator to reject the excess heat and keep the cycle temperature constant. The temperature readings of thermocouples were collected by a data acquisition system every 1-minute duration. However, the experiment was stopped when the whole PCM solidified. This can be noticed when all temperature readings of the thermocouples become below solidification temperature and the difference between the outlet and inlet temperature of HTF become less than 0.5 °C. This indicate that PCM reject maximum possible heat and system reach to thermal equilibrium, which may take (4 - 4.5) hours depend on the case. Therefore, the total time required was about 7 hours for complete cycle (charging and discharging). Calibration of Measuring Devices Thermocouples All thermocouples were calibrated by using four substances with defined boiling and melting temperature.

These substances were acetone, ethanol, water and ice-water. The instantaneous temperature was measured whenever any of the under-test substances began to boil except ice water which was recorded its temperature during melting. Then, the thermocouple’s calibration curve was obtained by comparing the discrepancies between the measured boiling/ melting temperatures and the standard boiling/ melting points. Figure 7 display the sample of calibration curve for one of the thermocouples. The result showed that the average error was ± 0.30 °C. Flow meters The calibration of both flow meters was carried out to evaluate the accuracy of both flow meters. This was achieved by utilizing volume scaled vessel and a stopwatch for estimating the time needed to reach a certain volume of water in vessel. The outcomes revealed that the average deviation was ±0.21 l/min and ±0.14 l/min for rotameter and flow sensor, respectively as depicted in Figure 8. PCM Selection In the current work, paraffin wax was employed as a PCM provided from China paraffin company. Paraffin is commonly used in literature because it has high latent heat of fusion, non-toxic and chemically stable throughout discharging cycle in comparison to hydrated salts and nonorganics paraffin. To determine the specific heat, latent heat of fusion and phase transition range of the PCM, differential scanning calorimetry (DSC) analysis were carried out. The test was performed to a paraffin sample of 14.6 gram in the temperature scope of 40 °C to 900 °C at 20 °C/ min heating rate. The DSC thermogram of the paraffin is depicted in Figure 9. By utilizing numerical integration on the area under the curve, the latent heat of fusion is estimated whereas the scope of phase transition can be found between onset point and the point fitting to the peak of the curve. The obtained outcomes from this experiment are given in Table 1.

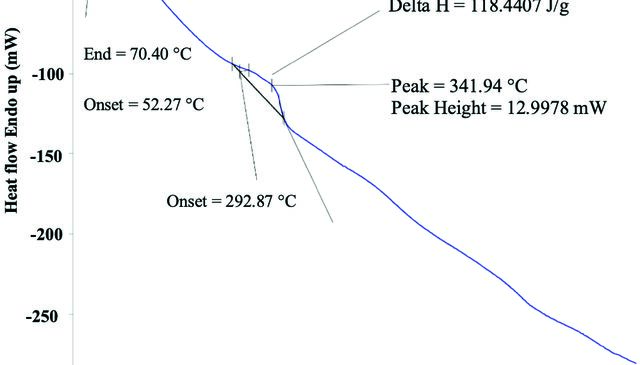

Figure 9. Heat transfer variation vs temperature for tested paraffin wax.

Preparation of Hybrid Nanoparticles Dispersed Paraffin Al2O3 and CuO nanopowder were purchased from SkySpring Nanomaterials, USA company. Providers were assured that particle size of Al2O3 and CuO of 99.9% purity are 20 nm and 40 nm, respectively. Moreover, the particle shape of two types is spherical. The thermal characteristics of Al2O3 and CuO are given in Table 1. Figure 10 illustrates the preparation steps of hybrid nano-PCM. Firstly, pure paraffin of 7 kg was melted in cylindrical vessel by using boiled water. Then, blend of Al2O3 and CuO of predetermined quantities were added to liquified PCM, following the heating and mechanical agitation. The stirring proceeds for extra 30 minutes to prevent particle agglomeration and to attain well dispersion of nano powder through PCM. Afterward, the storage was layer by layer filled with the prepared compound.

It is worth mentioning that after pouring each layer, it was waited for around 30 minutes until complete freezing was attained. These steps were repeated until the whole annulus space was occupied with mixture. The aim behind this filling steps was to eliminate the growth of air bubbles inside the PCM throughout the freezing process. The test begins after one day of subjecting the storage to the controlled environment temperature at 30 °C to achieve constant initial temperature of PCM. Numerical Simulation Mathematical model The enthalpy porosity technique, which is frequently used for modeling the PCM melting and freezing processes, is used to simulate phase transition in a TTHS. The

mathematical model is discussed in the research [56,57] and is outlined in this subsection. The major characteristic of this approach is the representation of flow and latent heat in the mushy zone using appropriate source terms. According to Seddegh et al. [58], this approach has the following advantages: (i) Similarity between phase transition and the single-phase in term of the governing equations; (ii) at the solid–liquid interface, there are no specific conditions must be fulfilled. This implies that fixed grid solutions can be utilized; (iii) the enthalpy formulation includes the solution in a mushy zone between the two typical phases, involving solid and liquid phases; and (iv) tracking the interface between solid-liquid is easier with this method, which make numerical modeling simpler. However, the main limitation of enthalpy methods is the need of a temperature interval over which the latent heat is released and the phase transition takes place. This may be realistic for some phase change problems that involve a ‘mushy’ region, but not for others that have a constant transition temperature, such as ice freezing. Therefore, applying a temperature interval to these problems are non-physical assumption [59]. Assumptions The following assumptions are used to simplify the mathematical model: 1. liquid state of PCM is considered as the Newtonian fluid.

6. No-slip conditions between fluid and the boundaries.

The enthalpy of the material can be estimated as the sum of the sensible enthalpy (h) and the latent heat (ΔH) [61]: (4) Where (5) The reference enthalpy (href ) is obtained at a reference temperature 273 K and Cp is the specific heat. The latent heat content can be written in terms of the latent heat of the material, L: (6) where ΔH may vary from zero (solid) to L (liquid). Therefore, the liquid fraction, λ, can be defined as:

In Equation (2), is the Darcy’s law damping terms (as source term) that is implemented to the momentum equation due to phase change effects on convective heat transfer which is found as [62]: (8)

Governing equations Based on these arguments, the Navier-Stokes and energy equations were used to formulate the equations describing fluid motion and temperature distribution in the PCM become [58,60]: Continuity equation:

The coefficient Amush is a mushy zone constant. This constant is a large number, usually 105–106 [63]. In the current study Amush is assumed constant and is assigned to 106. To model the solidification process of the paraffin in the existing of Al2O3/CuO hybrid nanoparticles of different volume fraction, the subsequent relations were implemented to estimate the thermal characteristics of the hybrid nano-PCM. The overall volume fraction of hybrid nanoparticles in the compound [64]

(10) Where ρhnp is equivalent density of hybrid nanoparticles which presented in equation (11) [64]:

Equivalent specific heat (Cp,hnp) of hybrid nanoparticles can be calculated from equation (13) [64]: (13) Viscosity of hybrid nano-PCM is estimated according to Batchelor model [66]: (14) Thermal conductivity of hybrid nano-PCM is obtained based on Maxwell model which can be used for low volume fraction [67]: (15) Equivalent thermal conductivity of hybrid nanoparticles (khnp) is given as [64]:

(17) The subscript np1, np2, hnp, hnpcm represent Al2O3 nanoparticles, CuO nanoparticles, hybrid nanoparticles, and hybrid nano-PCM, respectively. Tables 1 and 2 summarizes the thermal characteristics of CuO/Al2O3 nanoparticles and hybrid nano-PCM, respectively. Boundary conditions To attain the liquid state of PCM at the beginning, the initial temperature was set to 70 °C, which is above the liquidus temperature. The type of “mass-flow-inlet” and “mass-flow-outlet” boundary conditions were respectively set for the HTF at the inlet and outlet of storage unit. HTF’s mass flow rates range between (3 kg/min – 12 kg/min), and its temperature changes from 30 to 40 °C. It is noteworthy that throughout the discharging process, inlet mass flow rate and inlet temperature of HTF were unchanged. As stated previously, the outer tube in the storage system is chosen as an adiabatic wall.

Table 1. Thermophysical properties of paraffin and nano-particles [70-72] Properties

Results And Discussion

Figure 12. Comparison of average temperature between the experimental and numerical result.

method for determining solution convergence. Thus, every solved equation will have its own magnitude of residual for each cell in the model. When the residuals are attained to a certain level, the solution is considered to have converged [79]. This level of residual is 10-3 for all variables except the residual of energy equation, which should be kept less than 10-6 [80]. In this study, the predetermined convergences criteria are 10-5 for each velocity and continuity equations while 10-7 for energy equation. Since all cases of present study are transient, this order of residual was satisfied for each time step during calculation by providing 50 maximum iterations per time step and 2,000,000 maximum numbers of time steps. Generally, to approach convergence for each 3-D model, it requires around 6,000,000 total iterations. This complex problem may take around (13) days of calculations for each case by using high performance computer of the following specifications: Desktop of AMD Ryzen 5900X 12- Core - (4.6) GHz processor with water cooler, RAM: 32 GB, Hard: 932 GB and Graphic card: NVIDIA GeForce GTX-1050. Validation To evaluate the validity of the current numerical data, the PCM average temperature that acquired from the numerical modeling is verified with corresponding experimental result. The Figure 12 shows the time-dependent temperature profile (numerical and experimental) for 0.4% volume fraction, 30 °C HTF inlet temperature and 3 kg/min mass flow rate. As depicted in Figure 12, a slight deviation, lower than about 4% in average, can be noticed between the numerical and experimental outcomes, exhibiting an acceptable reliability of the solidification simulation.

Visualization of the Solidification Process The discharging begins with the PCM entirely melted as result of the earlier melting process, whereas the water is flowing at a temperature less than the solidification temperature of the base PCM. This causes solidification to begin from inner and intermediate surfaces, resulting in the creation of a small solidified layer next to each surface. This layer increases steadily by transferring heat through the surfaces to the water surrounding the annulus. The temperature contour and streamline during solidification are demonstrated in Figure 13. In the preliminary stages, the heat transfer that takes place between the cold wall (intermediate and inner tube) and liquid zone of PCM causes a temperature variation. This variation produces the buoyancy force, which gradually overcomes the viscous resistance and contributes to the production of a buoyancy driving force in the molten portion of the PCM. During this period (t = 10 min) convection current has become the major heat transmission mode and acts as an extra provide of heat release from the liquid PCM, leading to more rapid solidification in subsequent times (t=45 min, 90 min and 135 min). In the meantime, the annulus is mostly dominated by the liquid phase. After 45 min from the starting of the solidification process, a single vortex located at lower portion and two major vortices located near to tubes. one adjacent to the intermediate tube and one near to inner tube. At t =90 min, the associated isotherms have the appearance of deformed loops existing throughout the entire annulus. Afterward (t =135 min), PCM at the lower part of the annulus has been mostly solidified while the PCM at the upper has been partially solidified. The remaining liquid region that located between solid PCM layers needed further duration to solidify because the thermal resistance rose as the solid layers near to the surface increased. Comparing solidification of PCM at time of 135 min and 180 min, obviously illustrate that the isotherms travel upward at a slow rate in the upper part of the annulus and there are two small vortices exist in the upper part of annulus. This solidification characteristic implies that free convection is still the primary heat transfer mode at the upper portion of annulus, whereas conduction heat transfer governs solidification at the lower portion of the annulus. After the period of 180 min, isotherms make an elongated oval configuration. The vertices decrease in both strength and size until they vanish when the whole PCM solidified at 225 min. The superiority of conduction over convection can be determined when the vortices structure collapses and temperature contour begin to be uniformly distributed which occur after 180 min of freezing period. Effect of Mass Flow Rate The effect of varying the HTF mass flow rate (3, 6, 9 and 12 kg/min) on the solidification process was assessed at 30

Figure 13. Isotherms (Left) and streamline (Right) over time for Pure PCM.

°C of HTF inlet temperature. Figure 14 and Figure 15 illustrate time wise variation of average PCM temperature and liquid fraction, respectively. At a given time, higher mass flow rate, lower average temperature of PCM and lower liquid fraction (higher amount of solidified PCM). This is because high mass flow rate causes high heat transfer coefficient in tube and outer shell side and thus higher heat rate into PCM. The percentage reduction of solidification time is 4.85%, 7.28% and 8.5 % for mass flow rate of 6, 9 and 12 kg/min respectively compare to mass flow rate of 3 kg/ min, see Figure 16. The decrease in solidification duration is minor with boost mass flow rate. Thus, the total solidification time is not significantly affected by an increase in mass flow rate. With higher mass flow rates, the HTF has a

shorter residence duration and the heat transfer surface of the HTF tube practically remains isothermal. It is worth to consider that decreasing solidification time has some implications on the system design and performance of storage system as follow: (i) a shorter solidification time indicates that the storage unit can be discharged faster, which can enhance the unit efficiency; (ii) a shorter solidification time can promote the storage system to respond quickly to the fluctuating demand or supply of thermal energy, which is useful for integrating the system with renewable energy sources and improving load management; and (iii) a shorter solidification time also implies that the storage device can be designed with a smaller volume or a lower amount of PCM, which can minimize the system cost and weight.

Figure 14. Average PCM temperature over time for various mass flow rate.

Effect of Inlet Temperature To study the effect of inlet temperature on the freezing processes, Figure 17 and Figure 18 depict average temperature and liquid fraction of the PCM freezing under various inlet temperature of 30, 35, and 40 °C. The freezing rate enhanced as the inlet temperature decreased, ascribed to the augmentation in the heat transfer. It is noticed that the time required to approach to 50 °C is 125, 179 and 216 min respectively for HTF inlet temperatures of 30, 35 and 40 °C. The solidification time is considerably decrease even with a 5 °C reduction of the HTF inlet temperature. This is because the lower HTF temperature enhance the potential temperature gradient between PCM and HTF temperature which in turn intensify the heat transfer rate. Moreover, higher temperature difference between PCM and HTF lead to enhance buoyancy effects which promote convection currents. Similar observations were mentioned by [81]. The total solidification time can be reduced up to 38% when inlet temperature decreases from 40 to 30 °C, see Figure 19. This indicate that decrease in inlet fluid temperature has a greater impact on heat transfer intensification than an increase in HTF mass flow rate.

Figure 15. Time wise variation of liquid fraction for different mass flow rate.

Figure 17. Average PCM temperature vs time for different HTF inlet temperature.

Figure 16. Total solidification time for different mass flow rate.

Figure 18. Liquid fraction for different HTF inlet temperature.

Figure 20. Average PCM temperature vs time for different nanoparticle concentration. Figure 19. Total solidification time for different HTF inlet temperature.

Effect of Inclusion Hybrid Nanoparticle Figures 20-23 demonstrate the impact of mixing Al2O3/CuO hybrid nanopowder on average temperature of PCM, temperature distribution, liquid-fraction contours, and velocity vectors over varying solidification periods. Results reveal that raising the concentration of hybrid Nano powder enhances the rate of heat transmission and, as a result, reduces the time required for fully freezing. This is because the addition of nanoparticles boosts the thermal conductivity and viscosity of the mixture. Increasing viscosity cause shear force increase between fluid layers, which resist free convection current and reduces the temperature gradient. In fact, if the enhancement in thermal conductivity is higher than the reduction in temperature gradient, the nano-PCM reject more heat and solidifies faster. This scenario is observed for all nanoparticle concentration taken in this investigation. The improvement in heat transfer can be noticed from decreasing the PCM average temperature with increase nano concentration in Figure 20. Significant differences in average PCM temperature are obtained at the final stage of discharging. Figure 21 manifests that inclusion nanoparticles delay conduction superiority and maximizes convection contribution, causing the isotherms to appear more distorted and less crowded. This can be seen in hybrid nano-PCM (φ = 0.4%, 0.8%, 1.6% and 3.2%) as compare to pure PCM throughout all the solidification duration. Figure 22 shows little difference in solid-liquid interface’s configuration between the pure PCM case and hybrid nano-PCM cases during the last stages of solidification, when heat transfer is primarily by conduction. In fact, the variations are more obvious throughout the initial stages (e.g., 10 min) because of convection superiority, However the contour lines appear more deformed in comparison to those of pure PCM case. Concerning velocity field, Figure 23 demonstrates that the velocity magnitude at the upper portion of

annulus is higher than lower portion, ascribing to buoyancy effect which induce high convection current at upper portion of annulus. When hybrid nanoparticles are implemented to the pure PCM, the velocity values (red color region, for instance) diminish, implying a decrease in convection current of liquid PCM inside the annulus. Furthermore, when comparing the pure PCM to the nano-PCM, the distribution of velocity vectors seems more packed in the top zone. this indicate that the existence of nanoparticles resists the movement of liquid PCM over the initial stage (10 min and 45 min) of discharging in which convection is dominant mode. This scenario is not true in subsequent solidification stages because of the evolving dominance of conduction over convection as time passes. The rise in nanoparticle concentration causes a slight drop in flow velocity during the last periods of solidification (90 min and 135 min., Figure 21). This is due to the viscosity rise of PCM-melt with adding Al2O3/CuO hybrid nanoparticles. Generally, the effect of nanoparticles on average PCM temperature, isotherms, liquid-fraction contours and velocity vectors becomes more pronounced as volume concentration boost and/or time passes. Temporal variations of the liquid fraction of hybrid nano-PCM throughout the freezing process at 30 °C inlet temperature and 3 kg/min mass flow rate are depicted in Figure 24. According to the figure, the addition of Al2O3/ CuO nanoparticles with concentration 0.4%, 0.8%, 1.6% and 3.2% does not initially display a considerable difference, however over the time, a significant reduction of liquid fraction is observed as compared to the pure paraffin. The percentages of overall time reduction of nano-PCM in comparison to the comparable values in the case with pure PCM are listed in Table 4. The pure PCM requires 247 min to fully freeze. In comparison to pure PCM case, nano-PCM with concentration of 0.4%, 0.8%, 1.6% and 3.2% needs less duration and leads in overall time savings of 10.9%, 14.1%, 17.8% and 23.8%, respectively.

Figure 21. Temperature contour for various volume fraction of nanoparticles at HTF inlet temperature of 30 °C and mass flow rate of 3 kg/min.

Figure 22. Time evolution liquid fraction for different nanoparticle concentration.

Figure 23. Tangential velocity vector at different duration and nano concentration throughout discharging of nano-PCM at THTF = 30 °C.

noticeable as time evolves and/or the volume concentration increase.

Nomenclature

PCM TTHS HTF AlN GNP DSC P Figure 24. Temporal variation of liquid fraction for different nanoparticle volume fraction.

Table 4. Influence of hybrid nanoparticles concentration on solidification time at HTF 30 °C Concentration %

Conclusion

The influence of employing paraffin equipped with Al2O3/CuO hybrid nano on the thermal performance of triplex tube heat storage (TTHS) was analyzed and compared to pure paraffin (TTHS). The experimental and numerical studies were carried out at various inlet temperature (30, 35 and 40 °C) and mass flow rate (3, 6, 9 and 12 kg/min). The subsequent major findings are obtained from this investigation:

1. Heat transfer and consequently discharging period are

directly proportional to the inlet temperature of the HTF. The present research manifests that decrease the inlet HTF temperature from 40 °C to 30 °C can save total discharging duration by 38%.

4. PCM with hybrid nano-additives concentration of

0.4%, 0.8%, 1.6%, and 3.2% can respectively save overall discharging period by 10.9%, 14.1%, 17.8%, and 23.8%.

5. The variation in average PCM temperature, isotherms,

Phase change material Triplex tube heat storage Heat transfer fluid aluminium nitride graphene nano-platelets Differential scanning calorimetry Fluid velocity (m/sec) Pressure (pa) Gravity (m/sec2) Temperature (°C) Darcy’s law damping term Time sensible enthalpy Latent heat content Specific heat (J/kg °C) Latent heat of fusion (J/kg) Thermal conductivity (w/m °C) Enthalpy of material (J /kg)

Greek symbols ρ Density (kg/m3) µ Fluid viscosity (pa.s) β Thermal expansion factor (1/K λ Liquid fraction φ Volume fraction Subscripts npcm Nano-phase change material hnpcm Hybrid nano phase change material ref Reference value np1 Aluminum oxide nanoparticles np2 Copper oxide nanoparticles hnp Hybrid nanoparticles mush Mushy

Data Availability Statement

The authors confirm that the data that supports the findings of this study are available within the article. Raw data that support the finding of this study are available from the corresponding author, upon reasonable request.

Conflict Of Interest

The author declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Ethics

There are no ethical issues with the publication of this manuscript.
