Numerical analysis of nanofluid flow over a radiating oscillating plate with hall current and MHD at

Abstract

Keywords: Alumina; Radiation; Magnetic Field Parameter; Primary Velocity; Secondary Velocity; Variable Temperature

Introduction

Heat transmission analysis depends on interactions between dimensionless parameters. The objective of heat transfer in nanofluids is to enhance the thermal performance of the fluid compared to traditional heat transfer fluids. Research continues on the use of nanofluids in cooling systems, such as for industrial heat exchangers, automobile engines, and electronic devices. These systems benefit from improved heat removal efficiency due to increased thermal conductivity. The Hall Effect is a phenomenon in physics named after the American physicist Edwin Hall, who first described it in 1879. This effect refers to the generation of a voltage (hall voltage) across an electrical conductor transverse to the electric current and an applied magnetic field. Many electronic devices, including magnetic encoders, position sensors, and speed sensors, as well as sensors like Hall effect sensors, which are used to measure magnetic fields and detect current, make extensive use of the Hall effect. The Hall Effect is particularly significant in the study of semiconductors and metals, and it has various practical applications. The Hall impact is caused by the characteristics of an electric current flowing through a conductor. Electricity has tiny moving charge transporters such as electrons, holes, ions, or jointly. The Hall response sensor is a typical instrument used to measure the potency of a magnetic field. It detects the Hall current, which is caused by an electric current flowing through a conductor. Hall current is applied to the MHD power generator, magnetic field sensing equipment, phase angle measurement, sensors with their probes, wheel speed detection, and accordingly assists the anti-lock braking system. Improved heat dissipation, decreased thermal resistance, higher thermal conductivity, the potential for smaller heat exchangers, and energy efficiency are the main goals of employing nanofluids in heat transfer applications. The nanofluid model typically used is a single-phase model, where the nanofluid is treated as a homogeneous mixture of nanoparticles dispersed within a base fluid. This approach assumes that the nanoparticles are well-dispersed and uniformly distributed throughout the fluid, leading to a single-phase flow behavior. Assumptions for the nanofluid model include homogeneous dispersion of nanoparticles within the fluid, assuming stable suspension techniques to prevent aggregation or settling. It also assumes negligible particle-particle interactions compared to interactions with the base fluid, simplifying the model. Nanoparticles are assumed to rapidly reach thermal equilibrium with the fluid due to their high surface area-to-volume ratio. Nanoparticles in a nanofluid experience Brownian motion, which is the random movement of particles suspended in a fluid due to collisions with solvent molecules. This motion causes the nanoparticles to disperse throughout the fluid, enhancing the thermal conductivity and convective heat transfer properties of the nanofluid. The interaction between nanoparticles and the base fluid also influences the thermal behavior of the nanofluid. Surface chemistry, intermolecular forces, and the stability of the

colloidal suspension can all affect the dispersion and thermal properties of the nanofluid. Additionally, properties such as density, viscosity, and thermal conductivity are presumed constant across temperature and nanoparticle concentration ranges, though exceptions may occur under extreme conditions. Nanofluids are the latest exciting growing technology that is helping to raise the thermal conductivity of liquids. Nanofluids exist in microelectronics, fuel cells, pharmaceutical industry. Alumina nanofluid enforces greater thermal conductivity. In their analysis, Roy et al. [1] applied three methods to solve equations based on their frequency ranges. Based on a study by Muthucumaraswamy [2], it was found that the velocity in a vertical oscillating plate with a chemical reaction decreased as the phase angle increased while keeping the concentration constant and varying the temperature. Nagarajan et al. [3] intended radiation effects along with chemical reactions and it plays a vital role in health and military forces. Sridhara et al. [4] gave importance to the coolant to control thermal expansion. Ilyas Khan et al. [5] noted that temperature and concentration variations gave way to driving forces from thermal diffusion. Murali Gundagani et al. [6] used a finite element solution. When exploring the possibilities of using nanofluids in renewable energy sources, Omid Mahian et al. [7] examined both the benefits and challenges of this approach. They also evaluated the effectiveness of a nanofluid-based direct absorption solar collector, taking into account factors such as measurement of the dimension and volumetric proportion of nanoparticles used. Loganathan et al. [8] calculated the heat transfer rate using four distinct types of nanofluids. This investigation appears to be relevant to the field of chemical reactions and heat transport. He established that Silver water nanofluid had the best heat transfer rate with radiation compared to other nanofluid. Muthucumaraswamy et.al [9] discussed various applications for MHD in this context. The Laplace transformation is widely employed to solve governing equations. Chandrakala et al. [10] discussed the effects of oscillating plates with radiation at a constant temperature. She believed in the importance of thermal radiation effects except that not getting more attention from researchers. Abid Hussanan et al. [11] insisted on Newtonian heating which neglects inner resistance compared to surface resistance. Okedoye [12] used a combination of sub-methods including the Richardson extrapolation technique, along with Fehlberg’s fourth-fifth order Runge-Kutta shooting iteration method by degree four interpolant to solve the governing equations. Rajesh et al. [13] examined the influence of nanofluid flow on moving vertical plates with temperature oscillation possessions with radiation. Murali et al. [14] solved the governing equations using the Galerkin finite element method. Many practical diffusive processes involve the molecular diffusion of a species in the presence of a chemical reaction occurring within or at the boundary, as noted by Babu et al. [15]. For this reason, engineers and

scientists find it extremely useful to analyze heat and mass transport in chemical reactions. Ahmad Qushairi Mohamad et al. [16] introduced non-coaxial spin in convection flow, as it has been proven to be useful for stirring, cooling turbine blades, and even vacuum cleaners. Bayomy et al. [17] examined the extreme relative error of the Nusselt number and local experimental temperature and concluded that the uniformity index was 68% less valuable to using water as the coolant substitute for air. Gauri Shankar Seth et al. [18] were concerned about the consequences of Hall current and convective flow of rotating fluid along ramped wall temperature and revealed that MHD-free convective flow is applied in many industries for high-temperature forming. Rajput et al. [19] studied the heat immersion on flow prototypical along variable temperature and also observed that both velocity decrement because of increment immersion and angle. In their study, Sonia Nasrin et al. [20] related infinite Oscillating porous plate along Hall current and found thermal and concentration flux with persistent temperature. Jithender Reddy et al. [21] utilized the Casson fluid model to determine the viscous dissipation in the presence of an oscillating vertical plate. They were able to obtain a solution by implementing the finite element method. Iqbal et al. [22] probed the influences of a radiative hybrid nanofluid along the Hall current in an oscillating vertical plate. Jithender Reddy et al. Tokgoz et al. [23] took the corrugated duct, instead of the smooth duct to evaluate heat transfer enhancement in channel flow, and flow properties of an alumina-water nanofluid through corrugated channels with varying geometric shapes were explored numerically. Vijayalakshmi et al. [24] applied the Runge-Kutta method to solve differential equations and analyzed the statistical variations of skin friction, thermal, and concentration transfer coefficients. It’s fascinating to see how different methods can be applied to solve complex equations and lead to insightful findings. Manjula et al. [25] considered an inclined radiative oscillating plate and found the responses of Dufour number. Shantha Sheela et al. [26] reviewed an overview of the magnetohydrodynamic flow of nanofluids via a vertical plate with radiation and numerical schemes are found to be more favorable than analytical schemes because of the intricacy of the governing equations. Kanif Markad et al. [27] investigated the impact of multi-walled carbon nanotube (MWCNT) modification on shape memory polymer hybrid composites, focusing on their mechanical, thermomechanical, and shape memory properties. Arulmozhi et al. [28] deliberated reactions in moving radiative infinite vertical plate existence of chemicals. Aamir Farooq et al. [29] examined the Maxwell Nanofluid’s oscillatory behavior concerning mass and heat transport. Engine oil is used as a base fluid and graphene nanoparticles are added to it because of its high heat conductivity. Kanif et al.[30] observed that increasing the thickness of piezoelectric layers led to a significant rise in voltage, while the total thickness of the laminated plate remained unchanged. Kanif Markad et al.[31] discussed that the fabrication process involves

preparing the SMPHC through magnetic stirring, shear mixing, and ultrasonication, followed by molding using the hand layup method. Stefan Heidinger et al.[32] compared the 33 sets of correlations and data points from both simulations and experiments, a meta-correlation has been derived for calculating the Nusselt number. Markad Kanif et al. [33] highlighted the crucial role of carbon nanotubes, multi-wall carbon nanotubes, graphene, and nano-silica in the development of nanocomposites. Mehboob Ali et al. [34] applied a conversion technique to solve the dimensionless equations, followed by employing the numerical approach Bvp4c for their solution. Aamir Ali et al. [35] expanded our comprehension of fluid dynamics and heat transfer in intricate systems. Investigating how magnetic effects, nanofluid characteristics, and heat conduction interact allows researchers to make substantial progress in fluid mechanics and heat transfer. Understanding Hall effects holds particular importance in applications with conductive fluids or plasma, as they provide a more precise understanding of the behavior of charged nanoparticles in the presence of a magnetic field. Yuchi Leng et al. [36] found that fluid flow dynamics are influenced by porous media, magnetic fields, and fluid properties, while heat transfer is affected by factors such as Eckert number, magnetic effects, and thermophoresis. Additionally, fluid absorption is influenced by activation energy and Brownian motion. These principles have applications across various industries including medicine, pharmacology, and chemistry, and are also relevant in food processing, particularly through Joule heating. Design considerations such as streamlines, heat lines, and mass lines play a critical role in optimizing processes. Muhammad Aqib Aslam et al. [37] investigated that while heat and mass transfer rates peak with shear-thinning fluids, they diminish with shear-thickening fluids. Additionally, they observed that these rates are highest in concentration-dominated assistant flow and lowest in concentration-dominant counter flow. Based on the literature review, they discussed the convective heat transfer, numerous boundary conditions, and varieties of special fluids, radiation, and vertical oscillating plates. Here Alumina is considered as a nanofluid and water is a base fluid. As far as our comprehension extends, there have been no inquiries undertaken regarding the influence of magnetohydrodynamic (MHD) nanofluid flow over an oscillating vertical plate with enhanced temperature, taking into account Hall effects and radiation.

Mathematical Analysis

The viscosity of an incompressible Al2O3 nanofluid has been examined when it passes by a vertical plate that oscillates while thermal radiation is present. The temperature of the plate and fluid is the same at the time t* ≤ 0, or T∞. Along the x* axis, the plate has oscillated, and for the remaining axes, the y* axis is normal. Initially, the plate has the temperature T∞ When it starts to oscillate, the temperature of the plate is raised to Tw. z* axis is uniformly paralleled by the

the fluid flow and heat transfer within the domain of interest, ensuring that the behavior of the nanofluid is appropriately modeled both near the solid surface and in the far field. The formula for the following unsteady flow represents the equations that govern the Boussinesq’s approximation: (1)

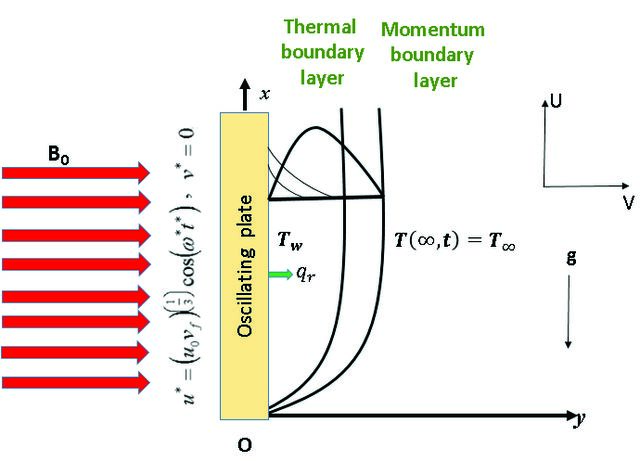

Figure 1. The geometry of a problem. uniform magnetic field B0. The usual direction of application of the radiative heat flux (qr) to the plate is observed. An indestructible behavior of Al2O3 nanofluid as it flows over an oscillating plate in the existence of thermal radiation has been studied. The problem’s geometry is in Figure 1. The equation z*= 0 and the x*oy* a plane is considered. The plate’s temperature and the fluid’s temperature are identical at the time t* ≤ 0. The oscillations of the plate along the x* and the y* axes and remaining axes are normal to the plate. The starting velocity of Oscillating is an increase in temperature Tw. The z* axis is parallel to the uniform magnetic field B0, which is applied uniformly. The plate receives the radiative heat flux qr in the usual direction. The thermo physical properties of water and alumina nanoparticles are listed in Table 1, and Figure 1 shows the actual model. are indicated by the letters u*, v*, and The elements and w*=0. The velocity similarity variables are w* in used as the main similarity variables in this pseudo-similarity transformation. It is indicated by η. The usage of waterbased Al2O3 nanoparticles as a fluid is considered. The suspended nanoparticles, which are in thermal equilibrium, are transported with the base fluid. Z* and t* control the flow. The uninterrupted flow further from the plate is taken into account. In the far field, far away from the plate, the velocity boundary condition is often set to a specified value, representing the bulk flow conditions of the fluid far from the influence of the plate. Similarly, the temperature boundary condition in the far field is usually prescribed as a constant value, reflecting the ambient conditions or the conditions at the outlet of the system. These boundary conditions provide the necessary constraints to solve the governing equations for

where u* and v* are the primary and secondary velocities. Eq. (1), and Eq. (2) are momentum equations and Eq. (3) is an energy equation. The necessary boundary constraints are (4) Where The introduced non-dimensional quantities are as follows:

Table 1. Thermo-physical properties of water and Alumina nanoparticles Physical Properties

Results And Discussion

Numerical calculations for various physical factors Gr, R, M, m, ω, ϕ and t depending on dynamics and

Effects of Different Parameters on the Primary and Secondary Velocity Profile A decline in U and V (velocity components) in Figures 2 and 10 gradually decreases in the region far away as the magnetic field parameter (M) is increased due to the influence of the magnetic field on the fluid flow. As the magnetic field parameter increases, the magnetic forces become stronger. These magnetic forces act on the fluid, causing it to resist motion perpendicular to the magnetic field lines. Consequently, the velocity components U and V decrease gradually as the magnetic field parameter increases, particularly in regions far away from the source of the magnetic field. This is because the plate, which has a stronger hydromagnetic body force, has a stronger hydromagnetic field. The main velocity U in Figure 9 was reduced by increasing ɷ from π/30 to π/2, and V in Figure 17 was also reduced. One possible explanation could be that at higher angular frequencies, the flow becomes more constrained or directed in a certain manner, leading to a reduction in overall fluid velocities U and V within the system. Additionally, increased angular frequency might induce greater fluid resistance or turbulence, resulting in reduced velocities. Figures 4 and 12 show how the U and V rise as the value of the Grashof number (Gr) increases and how this occurs for flow control. When the Grashof number increases, the buoyancy forces induce stronger convective motion within the fluid. This enhanced convective motion leads to increased fluid velocities, both in the main direction (U) and tangential direction (V), as shown in Figures 4 and 12. A dimension of the boundary layer expansion is the major aspect of the Prandtl number. Both of the velocities in Figures 5 and 13 increase

as the Prandtl number rises. The increase in both velocities (U and V) with rising Prandtl number can be attributed to the influence of the Prandtl number on the boundary layer thicknesses, which in turn affects heat transfer rates and fluid motion within the boundary layer. The ϕ increment causes the U and V in Figures 6 and 14 to decrease. Particles with a larger mass increment weigh more and study about diminish in velocity. The primary velocity U in Figure 7 is decreased and V in Figure 15 rises as a result of the radiation increase. Because of how quickly the fluid moves with oscillations. Figure 8 shows an increase in primary velocity U for an ascending value of time (t), and Figure 16 shows a reversal of the trend in secondary velocity V. Figure 3 shows that U fell when the value of the Hall parameter (m) was raised, while Figure 11 shows that the V trended in the same direction.

Temperature Profile Parameter Exploration In Figure 18, the temperature decreases as the solid volume fraction increases due to weight because a higher solid volume fraction implies a greater mass of solid particles within the system. As a result, more thermal energy is absorbed by the increased mass of solid particles, leading to a reduction in the overall temperature of the system. Thermophoresis refers to the movement of particles in response to a temperature gradient. In a nanofluid, this phenomenon can cause the nanoparticles to migrate toward regions of higher or lower temperature depending on the specific characteristics of the particles and the fluid. This movement can affect the distribution of nanoparticles within the fluid and consequently influence its thermal behavior. In Figure 19. increment of Pr values leads to a decrease in the temperature. To lower the temperature thermal diffusivity, add the Prandtl number values together. In the temperature profile, the most specific parameter is

Figure 18. Variations in temperature using various ϕ values.

Figure 19. Variations in temperature using various Pr values.

Figure 20. Variations in temperature using various R values.

Figure 21. Variations in temperature using various t values.

radiation, and noted that an increment of radiation leads to a decrease the temperature in Figure 20. For a choice of t = 0.10, 0.16, 0.21, and 0.26, 0.31, 0.36, the temperature variations are shown in Fig 21. and because of improved temperature boundary conditions, each unit of time results in a temperature rise. Enhanced temperature boundary conditions may minimize heat loss from the system to the surroundings, preserving more thermal energy within the system and contributing to a continuous temperature rise.

Exploration of Nu & Cf In Table 2, various values of solid volume fraction, R, Pr, and t are considered and enumerated. The relative contributions of convective and conductive heat transport are shown by the magnitude of the Nusselt number, a dimensionless quantity. Convective heat transmission is

predominant when the Nusselt number is large, but conductive heat transfer is more important when the Nusselt number is low. Tabulate the Nusselt numbers calculated from simulations for different nanoparticle volume fractions or Prandtl numbers. This table provides insights into how these parameters influence the heat transfer rate from the plate to the fluid. By comparing numerical results with existing analytical solutions or benchmark cases, researchers can validate the accuracy of their computational models for alumina nanofluid and gain confidence in their predictive capabilities. Additionally, any discrepancies between numerical and analytical results can provide insights into the limitations of the computational approach and guide further improvements in the modeling techniques used. The Nusselt numbers are listed in Table 3 and Figure 22 and Figure 23, increments of t and R direct to increase the Nusselt number. Convective heat transmission is predominant when the Nusselt number is large, but conductive heat transfer is more important when the Nusselt number is low. The latest research paper likely shows improved phase angle results due to advanced experimental or computational techniques enhancing measurement accuracy. Refinement of parameters to better reflect real-world conditions and updated material property data, especially heat and mass transfer coefficients, could have significantly influenced the outcomes.

Table 4. Differences between U and V›s skin friction coefficient values t

Table 5. Contrasting the outcomes of skin friction coefficient (Cf) ω

Current study values are positive and positive skin friction values indicate that the shear stress acts in the same direction as the flow of the fluid. This means that the fluid is exerting a force on the surface in the direction of the flow. Several variables, including surface roughness and flow characteristics, affect the skin friction coefficient in Table 5. In other contexts, negative skin friction values indicate that the shear stress acts opposite to the direction of the fluid flow. This means that the surface is exerting a resistive force on the fluid, opposite to the flow direction. To minimize skin friction and reduce drag, it is frequently employed in the analysis of boundary layer flow over surfaces, such as aircraft wings. Note that the skin friction coefficient might have several different formulations based on the particulars of the flow under consideration and the context in which it is used. MATLAB has calculated the Cf values of the U and V and listed them in Table 3 for a variety of values of ϕ, t, Pr, R, ω, M, and m. Skin friction in V lowers in value over time. Additionally, it has been found that skin friction gets progressively less as M gets larger.

Conclusion

Radiative oscillating vertical plates at various temperatures have been explored accompanied by MHD and Hall current. The Hall Effect combined with nanofluids that have magnetic nanoparticles can potentially boost and regulate heat transfer in thermal systems. It seems like manipulating the magnetic field could influence the distribution of the nanoparticles and maximize heat transfer efficiency. Magnetic nanofluids have proven to be very useful in biomedical applications, especially for targeted drug delivery. The Hall Effect is a phenomenon that can be used to guide and direct these magnetic nanofluids to specific locations within the body. By applying an external magnetic field, the nanofluids can be precisely directed to the desired location, which can help to increase the effectiveness of drug delivery while minimizing potential side effects. Utilizing the Laplacetransform approach, equations are resolved. For both U and V, the possessions of various parameters Gr, Pr, t, R, M, m, and solid volume fraction are visually explored. The Skin Friction Coefficient and the Nusselt number are investigated with different numerical values. There are so many different types of nanoparticles out there that could be used to create new and improved nanofluids. Future research work may be

performed using new and improved Nanofluids. Following are the conclusions reached by the current study. § The velocity in the primary and secondary flow increases as the Prandtl number and Grashof number are increased. In contrast, the solid volume particle, Hall parameter, magnetic field parameters, and phase angle are reversed. Increases in time, increase in primary velocity, and a decrease in secondary velocity because of oscillations with increased hotness. § As the radiation parameter and Prandtl parameter have higher values, the fluid’s temperature falls. However, because of its large size and stronger boundary conditions, increasing the solid volume particle and time results rise in temperature. § The ranges of the Nusselt numbers grow with increasing values of t, Pr, and R, but decrease with increasing values of the solid volume fraction. § For the rise in phase angle, the skin friction values in primary velocity increased and secondary velocity reduced.

Nomenclature

A α B0 β Cp Cf E ε ɳ F g Gr k M m Nu ω Pr ρ ϕ q-w R σ t^* t T Tw T∞ θ u*,v*,w* U,V,W μ ϑ x,y,z

Constant Thermal diffusivity Constant applied magnetic Thermal expansion coefficient Specific heat at constant pressure Coefficient of Skin Friction Electric field Dimensionless small quantity Pseudo-similarity variable Complex Function Gravity acceleration Thermal Grashof number Thermal conductivity Dimensionless magnetic field parameter Hall Parameter Nusselt Number Phase angle Prandtl number Density The solid volume fraction of the nanoparticles Dimensional heat flux from the plate Radiation Electrical conductivity Time Dimensionless time Local temperature of the nanofluid Wall temperature The temperature of the ambient nanofluid Kinematic viscosity Velocity components along x*, y*, z*axes Dimensionless velocity components Dynamic viscosity Kinematic viscosity Cartesian coordinates

Acknowledgments

The authors would like to thank the respectful reviewers for their constructive comments.

Authorship Contributions

S. Sarala: wrote the first version of the manuscript; methodology; prepared the figures; and contributed to answering comments. E. Geetha: supervision; review and editing; validation; interpreted the results and contributed to answering the comments.

Data Availability Statement

The authors confirm that the data that supports the findings of this study are available within the article. Raw data that support the finding of this study are available from the corresponding author, upon reasonable request.

Conflict Of Interest

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Ethics

There are no ethical issues with the publication of this manuscript.
