Performance enhancement of box solar cooker with photovoltaic panel

Abstract

Keywords: Figure of merit; Hybrid; Photovoltaic panel; Plate temperature; Pot temperature; Sidewall inclination; Solar cooker.

Introduction

Energy has been an integral component of human life and cannot be separated from it. The availability of energy exerts a beneficial influence on the overall quality of life. The sustained survival and welfare of both individuals and communities are significantly contingent upon the accessibility of energy resources. The strategies of energy conservation and the implementation of renewable energy sources constitute two principal methodologies for energy management and ought to be concurrently embraced. In this regard, it is imperative to initially identify and assess energy consumption patterns across various sectors. According to the report published by the International Energy Agency concerning global energy statistics (2022 Key World Energy Statistics [1]), in the year 2022, residential buildings accounted for 29% of the total consumption of natural gas worldwide. Furthermore, residential buildings utilized 28% of the global electrical energy consumption. In light of this data, Figure1 illustrates the proportion of the major global sectors consuming the energy for both natural gas and electricity in the year 2022. As illustrated in Figure 1, residential structures globally constitute the second most energy-intensive sector. This observation has prompted both researchers and corporations to explore various strategies aimed at mitigating the energy requirements of edifices. Nevertheless, the substantial energy utilization of buildings is not the sole issue of concern; energy consumption is also intrinsically linked to the emission of greenhouse gases (GHG). Evidently, diminishing energy utilization in residential structures will exert a considerable impact on worldwide energy consumption and greenhouse gas emissions. Globally, developing nations are typified by low per capita energy consumption, primarily for lighting and cooking; high rates of unemployment in rural areas; a significant reliance on biomass energy sources in rural areas; and a significant disparity in living standards between urban and rural populations [2]. Technologies for renewable energy have recently been used as a sustainable

development strategy [3]. It is possible to turn any renewable energy source into electricity, which may then be utilized for heating and cooking, resulting in the reduction of conventional energy utilization. Such renewable sources include Biomass energy, wind energy, geothermal energy, small hydro power energy and Solar energy. Renewable sources of power, such as those derived from the sun and the wind, have become increasingly popular over the last few decades. Solar energy is the most practical and advantageous kind of renewable energy source since it can be turned into a broad variety of different forms of energy both directly and indirectly. This makes solar energy the most effective and useful form of renewable energy source that has a negligible impact on the surrounding ecosystem. The radiant energy that the sun produces is known as solar energy. Kumar and Ramakrishnan [4] presented several significant outcomes regarding the role and advancements of solar thermal systems (STS) in domestic applications Solar cookers are gadgets that harness the radiant energy of the sun to cook food. One of the important uses of solar energy is solar cooking, which can take the place of traditional cooking methods. Solar cooking is a well-established technology that is used to cook food in situations where maintaining a healthy diet is of utmost importance. It contributes to the reduction of deforestation as well as the usage of fuel, both of which are growing more expensive as time goes on. Cooking by solar cooker also helps in 17 SDG (Sustainable Development Goals) as per the policy of the United Nations [5]. Dewangan [6] outlined the current status and future possibilities for solar box cookers, focusing on their practical utility, performance parameters, design improvements, social acceptance, and the application of computational techniques to enhance their development. The efficient outcome for setting up a solar energy plant in a Turkish hamlet was determined by Taner and Dalkilic’s [7] feasibility study of solar energy-technoeconomic analysis. Various classifications for solar cookers may exist based on the research methodology. They fall into two primary

Figure 1. Share of major sectors consuming energy in the total global energy consumption from energy sources like natural gas and electricity in the year 2022 [1].

Table 1. Advantages and disadvantages of Different solar cookers Type of Solar Cooker

• Can cook multiple dishes at once. • Easy to build and use. • Good for slow cooking.

• Requires direct sunlight for effective cooking. • Bulky and may be difficult to transport.

• Cooks’ food quickly (high temperatures). • Can be used for frying, grilling, and baking.

• Requires precise alignment with the sun. • Can be dangerous due to high temperatures.

• Lightweight and portable. • Relatively inexpensive to make. • Good for small quantities.

• Can achieve high temperatures for grilling and baking. • More stable than parabolic cookers.

• Requires consistent sunlight. • Can only cook small quantities at once.

categories: direct and indirect, depending on how solar thermal energy is transmitted to the cooking vessel [8]. Alternatively, there are four primary types of cookers when it comes to the device’s configuration: box cooker, concentrating cooker, and panel cooker [9,10]. The advantages and limitations of different type of solar cookers are shown in the table 1. Looking to the benefits available from the solar cookers, Yettou [11] provided critical insights into the thermal performance and efficiency of parabolic solar cookers in Algeria, emphasizing the importance of regional and seasonal factors in their adoption and use for solar cooking applications. From the literature, it is found that researchers have worked on various aspects related to the solar cookers namely Mathematical modeling and computational analysis [12–19], Design modifications in solar cooker by [20– 28] and by using phase change materials [29–37]. From the review of literature on mathematical modeling and design modifications of solar cookers, it is observed that only one of the models have considered the effect of the thermal contact resistance (TCR) between the absorber plate and the food vessel used to cook the food in the solar cooker which is given by Vaidya and Channiwala[19]. Also, from the literature of different design modifications, it is found that only few design modifications increase the solar insolation available for cooking apart from direct solar incidence. Though different designs and modifications are done in the solar cookers, the major drawback for the solar cooker is its inability to perform in the cloudy day when the solar insolation is less. Various researchers have carried out experiments on solar cooker for improvement of its performance and analysis by electric back up. Nandwani [38] created an electric cum solar oven that can be used for cooking and baking practically any kind of dish at any time of day or night, regardless of whether solar or electric energy is being utilized. It was comprised of a black-painted electric plate that had a surface area of 0.16 square meters and a wattage of

1500. It was protected by a box made of wood and featured two glass coverings that were spaced apart by 2 cm. The thermostat had a range of 121 oC to 204 oC, which was used to adjust the temperature. Hussain et al. [39] developed a box-type cooker equipped with auxiliary heating. They investigated the performance of two distinct solar cookers through a series of trials. One has an outside box made of teak wood, and the other with an outer box made of Tor to supply 900 watts, six electric iron heating elements, each of which is 150 watts, were utilized. In a different configuration, a holder for a bulb was utilized to supply the heat. The diameter of the bulb holder measured 100 cm, while its length measured 20 cm. The bulb holder was outfitted with a 100-watt bulb that was inserted inside. The bulb holder was pierced with holes so that hot air could flow through it. The results of the first cooker’s F1 and F2 measurements were found to be 0.16 and 0.27 respectively, whereas the results of the second cooker’s F1 and F2 measurements were

Materials And Methods

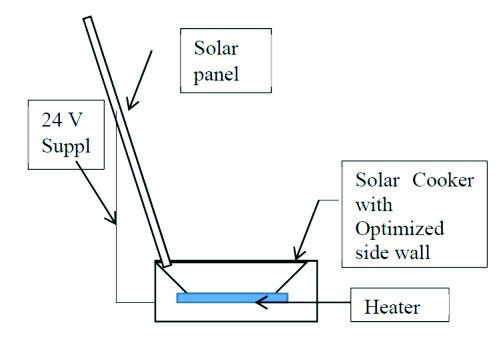

This section is divided into two subsections namely (a) Development of Hybrid Solar Cooker and (b) Experimental studies on the developed hybrid solar cooker. Development of Hybrid Solar Cooker The methodology chosen is based on a mathematical model given by Vaidya and Channiwala [19]. Calculation of the size of a hybrid solar cooker is carried out considering the energy required to cook the food for a small family as suggested by Goswami et al. [48]. The aluminum plate having the dimensions of the base as 340 x 340 mm2 in size and has a depth of 70 mm is used as an absorber plate. The measurement of the plate’s top aperture area is 560 x 580 mm2. To attain these dimensions, an aluminum absorber plate is first cut and then bent suitably. The design calls for the side walls to be bent in such a way that they take advantage of the optimal angles as proposed by Vaidya et al. [26] The surface is prepared by removing dust and contaminants from the surface in a sequential manner. Polishing and buffing are two types of mechanical cleaning processes. Abrasives are utilized during the polishing process in order to remove minute amounts of metal from the surface. The purpose of this step, which comes before buffing, is to create a surface that is free of the larger defects that grinding leaves behind. Following closely behind mechanical cleaning is the use of chemicals to remove pollutants. The pollutants include a wide variety of oils and greases, as well as waxes and organic compounds. Glass and plastic have traditionally been the go-to options when it comes to solar cooker glazes. The transmittance of the glass is relatively high at around 90 %. The infrared radiation that is released by the hot absorber plate cannot pass through it very easily since it is almost entirely opaque to such radiations. As a result of its availability in very thin sheets, the use of plastic rather than

glass significantly reduces the expense associated with the construction of solar systems. However, exposure to sunshine causes the plastic to depolymerize, which results in it becoming brittle and brown in color. Therefore, the plastic’s transmissivity will gradually decrease to a significant level as time goes on. The solar cooker with double glass can reach temperatures between 150 and 250 oC, which is a higher temperature than the solar cooker with a single glass, which means that the amount of time needed for cooking can be reduced. Therefore, there must be two panes of glass in the glazing. There were two pieces of float glass utilized, each measuring 4 mm in thickness, and there was a gap of 15 mm between two pieces of glass. After creating a groove gap in the frame, the inner and outer glass are inserted using epoxy adhesive, and then the assembly is left alone for five to six hours so that the glue may fully cure. Glass frame and housing body are connected together utilizing hinges to complete the connection. The insulation is placed behind the absorber plate as well as all around the absorber plate’s perimeter. It prevents heat from escaping via the back and sides of the collector. The material Cerawool, which has a density of 64 kg/m3 and a thermal conductivity of 0.48 W/mK., is utilized for insulation purposes. The solar cooker’s various parts are safely housed in an enclosure that is impervious to the elements. This enclosure prevents moisture, dirt, dust, and air infiltration from entering the collection, which would have a negative impact on the collector’s overall performance. Aluminum composite panel is utilized for the exterior body frame because of its low weight and promising lifespan in terms of payback period. Aluminum composite panel is a combination of aluminum and aluminum alloy. The top cover lid of the solar cooker has been outfitted with a foldable solar panel with dimensions of 540 x 540 mm2. In conditions with no load, the solar panel has a voltage output of 35 V. Below the absorber plate is a heater that is 340 x 340 mm2 in size and operates on 24 V of direct current. The instrumentation includes photovoltaic panel, thermocouples and D.C. heater. The photovoltaic panel is where the supply comes from for the heater. Thermocouples of the T type are used to measure the mean plate temperature, the temperature of the glass cover, the temperature of the air inside, and the temperature of the food and water that is being cooked. The great sensitivity of 40-50 mv/ oC offered by T type thermocouples makes them the preferred option. The thermocouple undergoes calibration with the ice point serving as its reference junction. In order to determine the average temperature of the outer glass cover in both the loaded and unloaded states, thermocouples have been attached to the inner surface of the outer glass cover with the help of epoxy adhesive. In addition, thermocouples have been attached to the top and bottom of the absorber tray, the side walls of the housing, and the interior of cooking pots. The standard solar panel has an input rate of around 1000 W/m2, however the solar panels now available in the

market achieve an efficiency gain of no more than 15 to 20% at best. Consequently, a 1 m2 solar panel will generate between 150 and 200 W when exposed to adequate sunshine. The area of the cover of the designed solar cooker is 600 × 600 m2 and the monocrystalline photovoltaic panel of size 580 mm × 535 mm × 3 mm readily available in the market can be fixed on it. Estimated average global radiation at Surat, Gujarat, India throughout the year for 9 am to 10 am considering clear days is 774.82 W/m2. [50,51] • Considering 17% efficiency, the power available will be

Results And Discussion

The newly created hybrid solar cooker was put through a no-load test at first so that researchers could determine what impact the addition of a heater would have on the cooker. Cooking was done on the cooker with the heater connected and without the heater connected on the 21-1118. The outcomes are presented as below. Figure 4 demonstrates the fluctuation in temperature of the plate of inclined side-walled solar cooker as a function of time both with and without the heater on 21-1118. Both curves exhibit a similar trend in the temperature profile, but the maximum temperature that can be achieved with the heater is far higher. It’s possible that the additional

Figure 4. Temperature variation in inclined side-walled solar cooker with heater and without heater effect on 21-11-18. heat made available by the photovoltaic panel is the reason for this. If the heater is present, it can reach a maximum of around 90 oC, but it can only get to about 82 oC on its own. In addition to this, the temperature decrease in the cooker appears to be less severe. when the cooker is equipped with the heater than when it is without the heater. In addition, it has been seen that the starting temperature of the plate is maintained at the same level in both cases, when the solar radiation starts to fall on both the cookers. After 9:30 in the morning, a slow but steady rise in temperature may be noted. This is due to the fact that the solar panel does not have sufficient power for the heater to function at its maximum capacity during the aforementioned hours. As soon as a significant quantity of electricity is created by the photovoltaic panel, the heater is turned on at its maximum

capacity, also known as its highest wattage. This is reflected in the data presented in figure 4 as well. After 1:00 pm, the heater gets heated at full capacity, and as a result, the maximum temperature difference of around 6-7 oC between the two solar cookers is observed until 4:00 pm. Thus, by the auxiliary heating obtained by the photovoltaic panel and the heater, an increase of about 9% is observed in the maximum plate temperature. Figure 5 shows the Global Horizontal Irradiation (GHI) on 21-11-18. From the figure, it is observed that there is a dip in the values after 11.00 a.m. The variations in the plate temperatures of solar cookers with and without heater may be attributed to these variations in the GHI. Figure 6 demonstrates the difference in temperature between the plates in the conventional cooker, the hybrid cooker, and the ambient temperature as a function of the local time during no-load test on 4-12-18 and 17-12-18.

Figure 6. Variation of Plate Temperatures of conventional solar cooker, Hybrid solar cooker and ambient temperature with local time during no-load tests on 4-12-18 and 17-12-18.

Figure 7. Variation of Pot Temperatures of conventional solar cooker, Hybrid solar cooker and ambient temperature with local time during load tests on 5-12-18 and 10-12-18. There is a correlation between the passage of time and an increase in temperature, and this correlation is seen in both conventional and hybrid cookers. The hottest part of the day occurs around in the middle of the day and obviously, the peak solar insolation occurs at midday. Additionally, in comparison to a conventional cooker, the temperature that is maintained throughout the day in a hybrid cooker is higher. The maximum temperature achieved in the hybrid cooker is found 25% higher than that of conventional cooker due to sidewall inclination of the solar cooker and the addition of an auxiliary heating by the DC heater empowered by the photovoltaic panel. Plate temperatures of both cookers reach to their maximum value at nearly 1:00 p.m., but then the rate of reduction in the temperature of hybrid solar cooker is found more which emphasizes the need to retain the heat for more time. The range of figure of merit, F1, that may be estimated from equation (1), for a conventional cooker is 0.07 to 0.10, but the range for the solar cooker having a modified design with photovoltaic panel is 0.096 to 0.12 respectively. The maximum value of 0.10 for a conventional cooker is lower than the maximum value of 0.12 for a newly developed hybrid cooker which justifies the idea of using the photovoltaic panel. The average figure of Merit F1 is found to be

Conclusion

With the anticipated high demand for energy to be utilized in cooking, it is currently highly relevant to make improvements to cooking devices based on the application of solar energy by which reduction in CO2 emissions, deforestation and air pollution can be achieved. The focus of the present study is the inability of the solar cookers to perform during low solar intensity. Newer approaches for making solar cookers usable in the low intensity of sunlight are necessary to advance the technology. Use of photovoltaic

photovoltaic panel of only 50 watts is not observed. Hence this work of incorporating photovoltaic panel and heater with the inclined side-walled solar cooker is novel for that aspect. No-load tests, load tests and cooking test were carried out for the performance of the newly developed hybrid solar cooker. Main findings of the present study can be summarized as below • There is an increase of 9% in the maximum plate temperature of inclined side-walled solar cooker with the addition of auxiliary heating operated by solar panel. • The temperatures of the plates that are achieved in the newly developed hybrid solar cooker are found to be greater by 25% than those that are achieved in the conventional cooker. • The figure of merit F1 for the hybrid solar cooker, which was acquired during the stagnation test, is discovered to be higher throughout the day than that of the conventional cooker. The average F1 for conventional solar cookers is 0.09, whereas the average F1 for hybrid cookers is 0.11. The value of F1 is also found higher than that of Joshi & Jani and Mahavar et.al.

During the load testing, the average figure of merit F2 for the hybrid cooker was found to be 0.635, whereas the average figure of merit F2 for the conventional cooker was found to be 0.375. It is also found higher than that of Mahavar et. al. • Cooking tests performed on the hybrid and conventional cookers depict that food is found fully cooked in the newly developed hybrid solar cooker after the cooking time of 120 minutes. This suggests that the newly developed hybrid cooker can also be used even during December when the average solar intensity is around 500 W/m2 or even less, with the help of the heat input by the heater which is available due to the solar panel. Thus, the experimental results project new developed hybrid solar cooker to be more efficient than the conventional solar cooker. Future research work may be focused to integrate solar cookers with various renewable resources together such as thermal, photovoltaic panels, biomass etc., to get an increase in the heat input. The use of various nanomaterials in combination of hybrid solar cookers can be done for better heat accumulation. For heat retention, the hybrid cookers may be integrated with different energy storage materials. Improvements in the design, materials used to construct solar cookers, insulating materials, reflective materials etc. can be focused. The design and performance of solar box cookers can be optimized through the use of a variety of computational techniques, such as computational fluid dynamics (CFD) and Artificial Intelligence Things (IoT). These methods provide novel approaches to evaluating and enhancing solar box cooker efficiency, opening the door for further developments in solar cooking technology.

Nomenclature

Aperture area of the cooker of the cover plate (m2) The figure of Merit 1 from the stagnation test F1 The figure of Merit 2 from the load test F2 Insolation on the horizontal surface when the IGS stagnation temperature is reached (W/m2) Heat loss factor at stagnation ULS Stagnation plate temperature (0C) TPS Time taken for heating from Tw1 to Tw2 (s). t2-t1 Ambient temperature (0C) Ta MCw Heat Capacity of water (J/0C) Plate temperature with heater (0C) TpH Plate temperature without heater (0C) TpWH Plate temperature for conventional solar cooker. TP Conv (0C) TP hybrid Plate temperature for hybrid solar cooker. (0C) Tpot Conv Temperature of Pot in the conventional solar cooker (0C) Tpot hybrid Temperature of Pot in hybrid solar cooker (0C)

Greek Letters ε Emissivity of the material ηo Optical efficiency

Abbreviations

TCR Thermal Contact Resistance GHI Global Horizontal Irradiation (W/m2)

Acknowledgement

The authors wish to express their gratitude to administrative authorities of Sardar Vallabhbhai Patel National Institute of Technology, Surat, Gujarat, India for providing the facilities to perform the experimental work.

Data Availability Statement

Authors confirm that the data that supports the findings of this study are available within the article. The raw data that supports the findings of this study are available from the corresponding author, upon reasonable request.

Conflict Of Interest

The authors declare no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Ethics

There are no ethical issues with the publication of this manuscript.

References

1. Dewangan SK. Performance parameters, design considerations, social adoption, and computa- Tesfay M, Gebray B. Theoretical and experimental tional techniques for solar box cooker development: comparison of box solar cookers with and without Current status and future possibilities. J Therm Eng internal reflector. Energy Procedia 2014. [Crossref] 2023;9:921–941. [Crossref] [22] Mahavar S, Sengar N, Rajawat P, Verma M, Dashora
2. Taner T, Dalkilic AS. A feasibility study of solar P. Design development and performance studies energy-techno economic analysis from Aksaray city, of a novel Single Family Solar Cooker. Renewable Türkiye. J Therm Eng 2019;5:25–30. [Crossref] Energy 2012;47:67–76. [Crossref]
3. Farooqui SZ. A review of vacuum tube-based solar cookers with the experimental determination of solar cooker Jorhejpatarnskua: thermal standard energy and exergy efficiencies of a single vacuum analysis of solar cooker with several absorber pots. tube-based prototype. Renew Sustain Energy Rev Energy Procedia 2014;57:1573–82. [Crossref] 2014;31:439–445. [Crossref] [24] Zafar HA, Khan MY, Badar AW, Tariq R, Butt FS.
4. Sansaniwal SK, Sharma V, Mathur J. Energy and Introducing a novel design in the realm of box exergy analyses of various typical solar energy appli- type solar cookers: An experimental study. Journal cations: A comprehensive review. Renew Sustain of Renewable and Sustainable Energy 2018;10. Energy Rev 2018;82:1576–601. [Crossref] [Crossref]
5. Cuce E, Cuce PM. A comprehensive review on solar cookers. Appl Energy 2013;102:1399–1421. [Crossref] solar cooker via novel micro/nano porous absorb-
6. Yettou F, Azoui B, Malek A, Gama A, Panwar NL. ers: A thermodynamic analysis with experimental Solar cooker realizations in actual use: An overview. validation. Solar Energy 2018;176:211–9. [Crossref] Renewable and Sustainable Energy Reviews 2014;37. [26] Vaidya HA, Rathod MK, CHANNIWALA SA. [Crossref] Design, Development, and Analysis of a Box Type
7. Garg HP, Bandyopadhyay B, Datta G. Mathematical Solar Cooker with Optimally Reflecting Side Walls. modelling of the performance of a solar cooker. Journal of Thermal Engineering 2023;9:1–647. Appl Energy 1983;14:233–9. [Crossref] [Crossref]
8. Pejack ER. Mathematical model of the thermal performance of box-type solar cookers. Renewable Thermal performance of a solar box cooker with Energy 1991;1:609–15. [Crossref] outer reflectors: Numerical study and experimental
9. Terres H, Lizardi A, López R, Vaca M, Chávez S. investigation. Sol Energy 2017;158:347–59. [Crossref] Mathematical model to study solar cookers box- [28] Amer EH. Theoretical and experimental assessment type with internal reflectors. Energy Procedia of a double exposure solar cooker. Energy Convers 2014;57:1583–92. [Crossref] Manag 2003;44:2651–63. [Crossref]
10. Das TCT, Karmakar S, Rao DP. Solar box-cooker: Part I—Modeling. Solar Energy 1994;52:265–72. Experimental Investigation of NaNO3 KNO3 as [Crossref] Solar Thermal Energy Storage for Potential Cooking
11. El-Sebaii AA, Domański R, Jaworski M. Application. J Sol Energy 2016;2016:1–6. [Crossref] Experimental and theoretical investigation of a box- [30] Domanski R, El-Sebaii AA, Jaworski M. Cooking type solar cooker with multi-step inner reflectors. during off-sunshine hours using PCMs as storage Energy 1994;19:1011–21. [Crossref] media. Energy 1995;20:607–16. [Crossref]
12. Nikolić N, Lukić N. A mathematical model for determining the optimal reflector position of a dou- of Stearic Acid for Solar Thermal Energy Storage in a ble exposure flat-plate solar collector. Renewable Double Compartment Solar Box Cooker. Arid Zone Energy 2013;51:292–301. [Crossref] J Eng Technol Environ 2019;15:385–94.
13. Harmim A, Merzouk M, Boukar M, Amar M. Performance study of a box-type solar cooker tal verification of performance of box type solar employing an asymmetric compound parabolic cooker. Part II: Cooking vessel with depressed lid. concentrator. Energy 2012;47:471–80. [Crossref] Energy Conversion and Management 2008;49:240–
14. Vaidya HA, Channiwala SA. Mathematical 6. [Crossref] Modelling of a Box Type Solar Cooker Incorporating [33] Santhi Rekha SM, Sukchai S. Design of phase change Contact Resistance. Journal of Scientific & Industrial material based domestic solar cooking system for Research 2022;81:922–31. [Crossref] both indoor and outdoor cooking applications. J Sol
15. Harmim A, Merzouk M, Boukar M, Amar M. Energy Eng Trans ASME 2018;140:1–8. [Crossref] Design and experimental testing of an innovative [34] Buddhi D, Sahoo LK. Solar cooker with latent heat building-integrated box type solar cooker. Solar storage: Design and experimental testing. Energy Energy 2013;98:422–33. [Crossref] Convers Manag 1997;38:493–8. [Crossref] J Ther Eng, Vol. 11, No. 6, pp. 1−13, November, 2025 13
16. Sharma SD, Buddhi D, Sawhney RL, Sharma A. Design, development and performance evaluation Inbuilt PV Module For Standalone Forced Convection of a latent heat storage unit for evening cooking in a Operation. J Therm Eng 2020;6:92–8. [Crossref] solar cooker. Energy Convers Manag 2000;41:1497– [46] Srimanickam B, Kumar S. Drying investigation of
17. Mwaura MM, Thoruwa FN. Phase change materials tor with solar dryer. J Therm Eng 2023;9:659–68. for energy storage in solar box cooker : Sustainable [Crossref] innovations in energy technology 2019:214–9. [47] Hajibeigy MT, Walvekar R, CV A. Mathematical
18. Abu-Hamdeh NH, Alnefaie KA. Assessment of modelling, simulation analysis of a photovoltaic thermal performance of PCM in latent heat stor- thermal system. J Therm Eng 2021;7:291–306. age system for different applications. Sol Energy [Crossref] 2019;177:317–23. [48] Goswami V, Harijan H, Pargi S, Pal SC, Vaidya
19. Nandwani SS. Design, construction and experimen- H, Channiwala S. Analysis, design and perfor- tal study of electric cum solar oven-II. Solar and mance evaluation of a light-weight, energy-effi- Wind Technology 1989;6:149–58. [Crossref] cient solar cooker. Int Conf Energy Environ Econ
20. Hussain M, Das KC, Huda A. The performance 2016;3:120–125. of a box-type solar cooker with auxiliary heating [49] Vaidya H, Channiwala S, Rathod M. Quality m. hussain, k. c. das and a. huda. Renew Energy Assessment of Box - Type Solar Cooker using 1997;12:151–5. [Crossref] Aluminium Composite Panel. Res Appl Therm Eng
21. Chaudhuri TK. Estimation of electrical backup for 2022;5:1–10. solar box cooker. Renew Energy 1999;17:569–72. [50] Mani A. Handbook of solar radiation data for India, [Crossref] 1980–1981.
22. Kumar S. Natural convective heat transfer in trap- ezoidal enclosure of box-type solar cooker. Renew Energy Centre, MNRE Indian Meteorological Energy 2004;29:211–22. [Crossref] Department; 2008.
23. Shahzad A, Kanwal T, He MG. Design and Development of Efficient Domestic Electric Cum procedure for box-type solar cookers. Sol Energy Solar Oven. J Basic Appl Sci 2013;9:296–301. 1987;39:353–60. [Crossref] [Crossref] [53] BIS. IS13429-3: Solar cooker-box type, part 3: Test
24. Mahavar S, Sengar N, Dashora P. Analytical model method [MED 4: Mechanical Engineering]. 2000. for electric back-up power estimation of solar box [54] Sukhatme SP, Nayak JK. Solar energy. McGraw-Hill type cookers. Energy 2017;134:871–81. [Crossref] Education; 2017.
25. Joshi SB, Jani AR. Photovoltaic and Thermal Hybridized Solar Cooker. ISRN Renew Energy ing of a small scale hybrid solar cooker. Sol Energy 2013:1–5. [Crossref] 2015;122:148–55. [Crossref]
