Energy and exergy analysis of a novel solar-biomass tri-evaporator multigeneration plant integrated

Abstract

Keywords: Biomass; Exergy; Hydrogen production; Multigeneration; Solar energy

Introduction

The continuous rise in global energy demand, closely linked to national development, has intensified the urgency to transition from conventional fossil-based power systems to renewable energy solutions [1,2]. This shift is driven by

a combination of factors, including climate change, greenhouse gas (GHG) emissions, fossil fuel depletion, and volatile energy prices [3]. Renewable energy sources such as solar, wind, biomass, hydropower, and geothermal have emerged as sustainable alternatives, offering the potential to

*Corresponding author. *E-mail address: anisijieo@fuotuoke.edu.ng This paper was recommended for publication in revised form by Editor-in-Chief Ahmet Selim Dalkilic Published by Yıldız Technical University Press, İstanbul, Turkey Yıldız Technical University. This is an open access article under the CC BY-NC license (http://creativecommons.org/licenses/by-nc/4.0/).

reduce carbon emissions, mitigate environmental degradation, and enhance energy security through resource diversification [4].In this context, multigeneration systems also referred to as polygeneration systems represent a progressive evolution in energy conversion technologies. Unlike conventional cogeneration or trigeneration systems that typically produce electricity and heating/cooling, multigeneration systems can simultaneously deliver electricity, thermal energy, desalinated water, hydrogen, cooling, and other by-products. These systems enhance overall efficiency by utilizing waste heat and integrating multiple energy outputs within a unified configuration, thereby minimizing fuel consumption and improving sustainability metrics. Recent global trends underscore the momentum behind renewable energy and hydrogen technologies. By the end of 2024, global concentrated solar power (CSP) capacity reached approximately 6.8 GW, while global bioenergy capacity rose to 150.8 GW, with electrical capacity alone contributing 83.8 GWel across nearly 4,971 operating biomass power plants [5,6]. Electrolytic hydrogen production capacity has surpassed 5 GW, and global hydrogen output is projected to reach 97 million tons in 2024. These figures reflect the expanding role of renewables in supporting clean, integrated energy systems. Solar energy, characterized by its wide availability and scalability, continues to be a cornerstone of the energy transition [7]. Its integration with other renewables, such as biomass, allows for hybrid configurations that offer complementary benefits. Biomass, derived from organic materials like forestry residues and municipal waste, provides a stable energy supply that compensates for the intermittency of solar power [8]. The efficiency of biomass gasification is influenced by factors such as feedstock type, particle size, and operational parameters. Studies have explored related phenomena in solid fuel combustion and transformation, including unburned carbon dynamics [9], briquetting techniques [10], tar characterization [11], grindability indices [12], and grinding energy optimization [13]. Hybrid renewable systems that couple solar and biomass sources offer improved system reliability and resource flexibility. Advanced thermodynamic cycles such as the Organic Rankine Cycle (ORC) and Kalina Cycle (KC) have proven effective for converting low- and medium-temperature heat from these sources into useful energy [14]. ORC systems, in particular, excel in recovering waste heat from industrial and renewable sources, contributing to both energy efficiency and environmental performance [15]. For instance, a solar-biomass hybrid system using Stirling engines and anaerobic digesters was shown to generate 5.6 GWh/year while reducing CO₂ emissions by 7.8 kton/year, with an energy cost of $0.075/kWh [16]. Numerous studies have modeled and optimized hybrid renewable systems to enhance energy resilience. In Libya, [17] used the System Advisor Model (SAM) to evaluate a PV/wind system with pumped hydro storage, demonstrating reliable load coverage and minimal levelized cost of energy (LCOE). In Gaza, [18] employed HOMER-Pro to

optimize a PV-wind-diesel system for a COVID-19 quarantine center, achieving 100% load reliability and reduced emissions. Similarly, [19] explored a hybrid wind-Stirling dish system for Hurghada, Egypt, and [20] assessed a biogas-based system tailored to the terrain and waste profile of Al-Jabal Al-Gharbi, achieving 86% CO₂ reduction with an LCOE of 3.5 ¢/kWh [21]. Hydrogen integration into multigeneration systems offers further decarbonization potential. As detailed by [22], hydrogen and fuel cell technologies can stabilize renewable energy systems by storing excess electricity and providing clean fuel for multiple end uses. Water electrolysis using surplus renewable energy is central to this approach, particularly in regions with variable solar and wind resources. Other subsystems, such as Vapour Absorption Systems (VAS), contribute to sustainable energy applications by replacing mechanically intensive vapor compression systems with thermal-energy-driven alternatives [23]. VAS can utilize waste heat from industrial or renewable processes, improving system sustainability for cooling and heating loads. Additionally, Proton Exchange Membrane Fuel Cells (PEMFCs), operating in low (60–80°C) or high (120–200°C) temperature ranges, present efficient pathways for clean electricity generation from hydrogen [24]. Multigeneration systems have already been deployed in industrial sectors such as pulp and paper, salt, and district heating, particularly in Europe. For example, Finland and Sweden have pioneered the use of forest residues and roundwood for electricity and heat generation [25]. Meanwhile, several researchers have proposed novel configurations integrating multiple renewable inputs and thermodynamic cycles. [26] developed a solar-biomass-wind polygeneration system incorporating gasification, CO₂ capture, ammonia synthesis, and ORC technologies. [27– 30] examined variations of solar-based multigeneration systems utilizing combinations of Kalina cycles, Brayton cycles, supercritical CO₂ cycles, and desalination technologies. Recent innovations include [31]’s solar tower system that integrates Brayton, transcritical, and organic Rankine cycles with PEM electrolysis and ammonia synthesis. The system produced 4938 kW of net power and demonstrated notable hydrogen and ammonia outputs with energy and exergy efficiencies of 26.71% and 26.16%, respectively. [32] reported a CSP-based system producing 3.62 MW of power and 0.0072 kg/s of hydrogen. Similarly, [33] evaluated a solar-geothermal hybrid system generating 56.6 kg/day of hydrogen and 1.47 kg/s of freshwater with enhanced power generation from thermoelectric integration. [34] compared basic and regenerative ORC cycles coupled with reverse osmosis, highlighting performance sensitivity to turbine and condenser pressure settings. The following evaluation objectives were taken into consideration while conducting the above thorough literature review: the architecture of the multigeneration system, the system’s primary energy resources and how they are converted, the effective utilization of energy sources for

each subsystem, the method of producing hydrogen, the decarbonization of power production, the system, and its primary end products. It is found that a multigeneration energy system powered by a combination of biomass and solar energy sources with PTC system running on a hybrid nanofluid (MWCNT-Al2O3 / therminol VP1), incorporating and utilising the tri-evaporator system has not been investigated by integrating a unique ORC system combined with Kalina Cycle, Vapour absorption system, Proton exchange membrane, and a fuel cell, using minimal energy of the configured system to generate Electricity, Heating, Cooling, hot water, and Hydrogen. Furthermore, the performance of linked subsystems in such a multigeneration system must be investigated under various operational conditions. It is anticipated that these systems will open up several new possibilities for using biomass and solar energy sources. Inspired by these gaps in the literature, this study proposes an integrated energy system that generates clean energy from renewable sources. A key innovation lies in the use of a single working fluid to drive three interconnected subsystems. By strategically bleeding the fluid during turbine expansion, the same medium is repurposed for cooling production. This integrated design shortens the thermodynamic process path, reduces system complexity, and minimizes the number of components required. As a result, it enhances overall performance, boosts energy utilization, and achieves a higher cooling-to-power ratio—an especially noteworthy aspect of this study. Furthermore, the paper develops models for an innovative cycle featuring a tri-evaporator system. This includes a conventional evaporator in the vapour absorption system (VAS) and unconventional evaporators in both the organic Rankine cycle (ORC) and Kalina cycle (KC) subsystems. The tri-evaporator configuration provides numerous benefits, such as increased cooling capacity, improved heat recovery, enhanced flexibility, reduced temperature differentials, greater system reliability, better heat transfer, and improved overall energy efficiency. By enabling heat recovery from multiple sources, minimizing thermal stress, and offering operational redundancy, this configuration represents a significant advancement in integrated energy systems. The objectives of this research include the development of a new renewable energy-based integrated system capable of producing various utilities. To achieve this, the study involves a thorough investigation using thermodynamic balance equations for each system component, analyzing how state properties and varying operating conditions impact individual subunit performance as well as the system’s overall performance. In this paper, we further present a comprehensive analysis starting with the system description, including detailed insights into each component such as the parabolic trough collector (PTC), Kalina cycle (KC), organic Rankine cycle (ORC), vapour absorption system (VAS), proton exchange membrane (PEM) electrolyzer, biomass combustor, and a

fuel cell. Then the energy and exergy analyses, are discussed providing balance equations for different components to evaluate performance.

Materials And Methods

Materials The National Aeronautics and Space Administration (NASA) database provided daily meteorological data on solar irradiation for the Otuoke University community for 15 years. Furthermore, the biomass is woody waste of different wood species from tropical hardwood timber harvesting/logging in Otuoke. The average data served as the foundation for selecting simulation data for the planned multigenerational system and its components. Furthermore, the system modelling was conducted using Engineering Equation Solver (EES), and secondary data was sourced from publicly available literature and scientific sources. System Assumptions The whole system operated at steady state with negligible changes in potential and kinetic exergy. The ambient temperature and pressure at inlet to the turbine were taken as 250C and 1.013 bar, unless otherwise indicated during parametric analysis. The remainder of the input data for simulation across the entire plant is summarised and presented in Table 9. System Description The proposed multigeneration architecture is shown in Figure 1. The system overview shows that the parabolic trough collector (PTC), powered by the sun, is the integrated energy system’s primary energy source, the Kalina cycle (KC) provides power and cooling, the organic Rankine cycle (ORC) also provides power and cooling, the vapour absorption system (VAS) provides cooling, a proton exchange membrane (PEM) electrolyzer for hydrogen production powered by a biomass combustor and a fuel cell powered by hydrogen from the PEM electrolyzer. Starting with the PTC, a hybrid Nanofluid (Multi-walled carbon nanotube and Aluminium dioxide (MWCNT Al2O3 / therminol-VPI) which is the heat transfer fluid of the subsystem, enters the solar collector as stream 54, and its energy is raised. The superheated exiting stream 52 from the PTC flows first into the vapour generator (VG for KC) for the Kalina cycle and transfers some of its thermal energy to the KC working fluid. Exiting as stream 53, it enters the vapour generator of the organic Rankine cycle (VG for ORC) and secondly transfers some more of its heat energy to the ORC working fluid. The hybrid Nano fluid returns to its initial state 54, and the cycle goes on continuously. Superheated steam-ammonia (NH3-H2O), the working fluid (stream 1) of the Kalina cycle leaves the vapour generator (VG for KC) and enters a separator (S1) and flashes into stream 2 and stream 3. Stream 2 is a

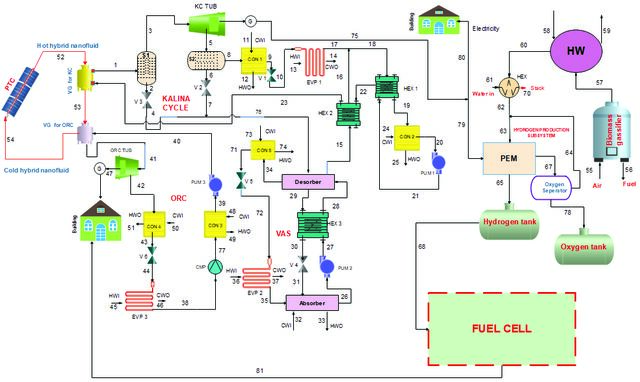

Figure 1. The proposed solar-biomass-based multigeneration system.

1688 J Ther Eng, Vol. 11, No. 6, pp. 1685−1704, November, 2025

high-pressure, temperature condensate that flows through a throttling valve resulting in low-pressure stream 4. Stream 3, which is a high temperature and pressure steam ammonia passes and expands through the Kalina turbine converting some thermal energy into Mechanical shaft work that drives an alternator to generate electricity. The expanded vapour (stream 5) flows into a separator (S2) and splits into a lower-pressure condensate (stream 6), and another lower-pressure and temperature vapour (stream 8). Stream 6 is throttled into lower pressure stream 7 which mixing uniformly with stream 4 results in stream

76. Stream 8 is condensed into a lower temperature stream

9 by a high-pressure condenser (CON1), and then throttled into a lower pressure stream 10, it gains heat by the cooling process in the evaporator (EVP1), exits as stream 17 and mixes uniformly with stream 16 to yield stream

18. This transfers its heat energy in the heat exchanger

(HEX1), exiting as stream 19, it further loses its heat in the low-pressure condenser (CON 2) and exits as stream 20, whose pressure is increased in the pump (PUM 1) to become stream 21 that gains heat in HEX1 into stream 22, and further gains more heat in the heat exchanger (HEX2) to exit as stream 23 which returns to the VG for KC and the cycle continues in that order. The working fluid (R245fa) of the organic Rankine cycle (ORC) subsystem receives its heat energy from VG for ORC and then flows as stream 41 to expand in the turbine, converting some of its heat energy to shaft work that drives an alternator to produce electric power. Exiting as stream 42 and entering into the high-pressure condenser (CON4), it loses some of its energy and exits as stream 43, whose pressure is further lowered when throttled to stream 44. It gains heat energy through the cooling process in the evaporator (EVP3) and leaves as stream 38, which is compressed by the compressor (CMP) into stream 77. Stream 77 flows into the low-pressure condenser (CON3), releasing some of its heat energy and flows out as a low-temperature, low-pressure stream 39, which is pumped by a pump (PUM3) back to VG for ORC as stream 40. This cycle continues in this manner. The ammonia-water fluid fraction (stream 76) from the Kalina cycle separators (S1 & S2) transfers heat to the Lithium Bromide water (LiBr-H2O) solution inside the desorber and exits as stream 15. When the weak LiBrH2O solution (stream 28) is heated, a portion of the water absorbed by the LiBr is released as vapour (stream 34). Due to the removal of water from the remaining solution, it becomes more concentrated (stream 29). The water vapour coming from the generator/desorber is then condensed (CON 5) to a saturated liquid state in a condenser (stream 34 to stream 71), where the heat rejected is utilized for space heating/hot water production. The condensed liquid is then throttled to a lower pressure. This pressure is determined by setting the evaporator temperature to be the saturation temperature and determining the corresponding saturation pressure. After throttling, the refrigerant is in the saturated liquid-vapour state

(stream 72). Afterwards, the refrigerant is passed through the evaporator, where the refrigerant absorbs heat from the space being cooled/air-conditioned. After the evaporator, the refrigerant is sent to the absorber (stream 35). The strong solution exiting from the desorber is passed through a heat exchanger (HEX3) and recovers some heat (stream 29 to stream 30) that was provided to the solution in the desorber. And then, the heat is transferred to the incoming weak solution (stream 27 to stream 28). After the heat exchanger, the strong solution is then throttled to a lower pressure in the absorber (stream 31). The strong solution (stream 31) coming into the absorber is cooled by rejecting some heat into the atmosphere. The lower temperature of the solution increases its capability to absorb water vapour, and therefore, the vapour incoming from the evaporator is absorbed to make a weak LiBr-H2O solution (stream 26). This weak solution is then pumped. (PUM 2) to a higher pressure to the desorber (stream 27) and is passed through the heat exchanger (HEX3) to gain some heat (stream 28) and return to the desorber. The cycle continues in this order. The heat released in the form of flue gases (stream 57) from the combustion of fuel obtained from biomass gasification flows to the hot water generating unit and transfers its heat energy to the hot water generator for domestic hot water supply. Exiting (stream 60) into a heat exchanger (HEX) and transferring energy to the incoming water (stream 61). The spent flue gases (stream 70) leave HEX through the stack, while heated water (stream 62) and hot water by-product (stream 64) from the proton exchange membrane (PEM) electrolyzer mix uniformly as stream 63. A portion of the electric power generated from the Kalina cycle (stream 79) is used by electrolysis reaction to decompose the heated water (stream 63) in the PEM electrolyzer, which yields hydrogen (stream 65) going into the H2 storage tank, oxygen and hot water mixture (stream 67) which goes through the O2 separator to split into oxygen (stream 78) going into the O2 storage tank and hot water (stream 64) going as a portion of the input to feed the PEM electrolyzer. The chemical energy of the fuel, hydrogen (stream 68) and oxygen from the air, is converted into electricity (stream 81) in the fuel cell unit through a pair of redox reactions. Thermodynamic Modelling and Analysis This research work deployed thermodynamic modelling, which specifically dwelt on mass, energy, and exergy balances of each component of the subsystems of the multigeneration system through developed codes in the EES software [35]. Energy Modelling The system is modelled using the energy flow equation at steady state conditions for a control volume. Thus, for the kth component, the energy balance, since the potential and kinetic energy effects are negligible, is generally obtained as follows from Rajput [36]:

(1) The terms in Eq. (1) are represented as: the kth component,

However, since the potential and kinetic energy effects are negligible, Equation (1) is reduced to Equation (2) as:

component, while Hi, KEi, and PEi, represent the enthalpy, kinetic energy, and potential energy, respectively, at the component inlet. Similar expressions are used for the con-

Equation (2) is applied to all components of the system; similarly, the mass balance is obtained at the component level with the term [36]: (3)

Table 1. Summary of energy balances for the system Component

ṁ44 h44 + ṁ45 h45 = ṁ38 h38 + ṁ46 h46 ṁ38 h38 + Wcomp = ṁ77 h77

Kalina valve 3 Kalina valve 2 Kalina valve 1 Kalina condenser 1 Kalina evaporator 1 Kalina condenser 2 Kalina HEX 1 Kalina HEX 2 Kalina pump 1 VAS desorber VAS condenser 5 VAS valve 5 VAS valve 4 VAS evaporator 2

PEM HEX

̇ = ṁ9 h9̇ + ṁ12 h12 ṁ8 h8̇ + ṁ11 h11 ̇ ̇ = ṁ14 h14 ̇ + ṁ17 h17 ṁ10 h10 + ṁ13 h13 ̇ + ṁ24 h24 ̇ = ṁ20 h20 ̇ + ṁ25 h25 ṁ19 h19 ̇ ̇ ̇ + ṁ22 h22 ṁ18 h18 + ṁ21 h21 = ṁ19 h19 ̇ + ṁ22 h22 ̇ = ṁ16 h16 ̇ + ṁ23 h23 ṁ15 h15

WKalpump + ṁ20 h20 = ṁ21 h21 ̇ + ṁ28 h28 ̇ = ṁ15 h15 ̇ + ṁ29 h29 + ṁ34 h34 ̇ ṁ76 h76 ̇ + ṁ73 h73 ̇ = ṁ71 h71 ̇ + ṁ74 h74 ṁ34 h34 ̇ = ṁ72 h72 ̇ ṁ71 h71 ̇ = ṁ31 h31 ̇ ṁ30 h30 ̇ + ṁ72 h72 ̇ = ṁ37 h37 ̇ + ṁ35 h35 ṁ36 h36 ̇ + ṁ29 h29 ̇ = ṁ28 h28 ̇ + ṁ30 h30 ṁ27 h27

WVASpump + ṁ26 h26 = ṁ27 h27 ̇ + ṁ35 h35 ̇ + ṁ32 h32 ̇ = ṁ33 h33 ̇ + ṁ26 h26 ṁ31 h31 ̇ + ṁ56 h56 ̇ = ṁ57 h57 ̇ ṁ55 h55 ̇ ̇ ̇ + ṁ60 h60 ṁ57 h57 + ṁ58 h58 = ṁ59 h59 ̇ + ṁ61 h61 ̇ = ṁ62 h62 ̇ + ṁ70 h70 ṁ60 h60 ̇ ̇ ṁ63 h63 + WPEM = ṁ67 h67

2586.38 7.33 8.62 1.056 15.475 0.02 0.22 53.16 5.53 West African albizia Albizia sp

2976.02 5.78 10.17 1.007 17.372 0.01 0.14 48.94 45.38 Red silk cotton tree Bombax bounopozense

Exergy Modelling The exergy modelling of the integrated energy system is performed at steady state conditions using the second law of thermodynamics. Exergy-based modelling has the potential to identify components in the system with large irreversibilities and quantify them. The analysis considers each component as a control volume while applying the general exergy balance expression in Equation. (39) from Bejan and Tsatsaronis [40] as:

where L is the collector length, ω is the collector width and Dc is the collector cover diameter. From Equation (1), the related energy equations for each of the components and subsystems are formulated for the multigeneration system in Table 1. The properties of the different hardwood species [39] used as biomass are presented in Table 2

Here, the unknowns F, ṁ, cp, and Ar are collector efficiency, working fluid mass flow rate, specific heat and reflector area, respectively. The connection between the aperture and reflector area can be written in terms of concentration ratio as follows [38]

Table 2. Elemental composition and combustion properties of some the hardwood species [30]

where, Fr is the collector heat removal factor, Aa is the aperture area, C is the concentration ratio, ρ, α, ε, and σ are reflectivity, absorptivity, and emissivity and Stephan Boltzman constant, UL is the overall heat loss coefficient and can be directly obtained or determined using equations in Tyagi et al. [38], St is global solar radiation, and T is the collector temperature. The heat removal factor of the collectors can be defined as follows:

The Actual useful heat gain from a concentrating type collector is defined with the Hottel–Whilier equation from Kalogirou [37] and Tyagi et al. [38]:

Parabolic Trough Collector Subsystem The Parabolic Trough collectors (PTCs) receive energy from the sun as one of the energy sources of the multigeneration energy system. PTCs are eligible to deliver high temperatures up to 400 °C for heat production or electricity generation and are available in the market with several types. The energy balance in the PTC, for Equation (1), is obtained as:

Table 3. Summary of component exergy balances for the system Component

PEM HEX

Where is the exergy destruction rate, is the exergy flow rate associated with heat transfer, is the rate of work done within the control volume, and are the sums of the exergy flow rate in and out of the control volume, respectively. The subscript ‘k’ represents the kth component. The exergy associated with work and heat is defined as [40]:

The exergy efficiency, ψk, and the exergy destruction ratio, YD,k, are equally defined for the kth component as [40]:

The exergy destruction can also be expressed in terms of product and fuel exergy as: (12)

(14) Parabolic trough collector subsystem The exergy balance in the PTC, for Equation (9), is obtained as:

Equation (19) below is an extended form of the single-particle nanofluid used in specifying the heat capacity of the hybrid nanofluid [41]: (19)

(15) The amount of solar heat ratio collected by the solar collectors and transferred to the working fluid can be defined as [37]: (16) Here, Cr represents the number of collector rows and ηr represents receiver efficiency. Equation (16) is used to calculate heat exergy input to the system since the collector and heat exchanger efficiencies are not included in Equation (5) From Equation (9) the related exergy balance, the exergy of fuel, and the exergy of product around the state points in each component of the subsystems of the multigeneration system are expressed below in Table 3. Thermophysical Properties of the Hybrid Nanofluid The equations used to calculate the hybrid nanofluid characteristics are provided in this section and are adapted from the source, Takabi & Salehi [41]. In the equations below, “1” represents a Multi-walled carbon nanotube (MWCNT) nanoparticle, “2” represents Aluminium Oxide (Al2O3) nanoparticle, “bf ” represents the base fluid Therminol VP1, and “hnf ” represents the hybrid nanofluid. The density of the hybrid nanofluid is derived below (Equation (17)) as an extended form of single-particle nanofluid, which showed great agreement with experimental results [41]: (17) φ is the total volume concentration of two types of nanoparticles scattered in a hybrid nanofluid, computed as [41]:

In addition, the thermal conductivity of hybrid nanofluid, which is defined according to the Maxwell Model, is derived below (Equation (20)) as an extended form of single-particle nanofluid, which showed great agreement with experimental results [41]: (20)

Plant Performance Indices Several plant performance indices were considered in the plant, including the Kalina turbine and pump work,

Table 4. Summary of key system performance indices Performance index

Table 5. Model validation of present work with (Parikhani et al. [42] for Kalina cycle subsystem Parameter

exergy of refrigeration, both for the Kalina and ORC, as well as ORC turbine work. All performance indices and the corresponding developed relationships are shown in Table 4, following the nomenclature in Figure 1.

Results Validation

To validate the thermodynamic simulation results for the proposed Multigeneration system, a suitable code is written in Engineering Equation Solver (EES) software to compare the obtained findings to those in the literature. In this study, four case studies from the literature are chosen, and each is simulated in a constant situation. These case studies include the KC, ORC, VAS subsystem, and PEM electrolyzer system. Validation for each case study is performed below. Validation of Kalina Cycle Subsystem In the first case study, a KC is selected from Parikhani et al. [42], and simulated under constant input parameters. In this simulation, some of the KC design input parameters of [42] were plugged into the KC of the present work model. It can be expressed that the results of the current investigation properly corroborate the results of [42], with some improvements in performance indices. According to Table 5, a performance parameter (i.e. net output power) is selected, and the calculated value is compared with the literature. There is a good agreement between the obtained result in the present model and those reported in the literature.

Validation Of Organic Rankine Cycle Subsystem For the second case study, the results of the model for the Organic Rankine Cycle system are presented in Table

6. Some of the ORC design input parameters of [43] were

plugged into the ORC of the present work model. It can be stated that the results of the current investigation properly verify the results of Ozturk & Dincer [43], with some enhancements in the performance indices. From Table 6, two performance parameters (i.e., Turbine Power Output and Pump work) are selected, and the calculated values are compared with the literature. This comparison of the different parameters validates well with the literature. Validation of Vapour Absorption Subsystem Presented in Table 7 is the third case study, which is the vapor absorption system (VAS). In the simulation, some of the VAS design input parameters of Karaca and Dincer [44], were substituted into the VAS of the present work model. From Table 7, two performance parameters (i.e. evaporator cooling rate and energetic COP) are selected and the calculated values are compared with the literature. This comparison of the different parameters, agrees well with the literature. Validation of PEM Electrolyzer Subsystem The final but not least significant verification step is using a PEM electrolyzer. In the mathematical modelling of the PEM electrolyzer, the operating temperature is set at 90°C, the power supplied is 4.07kW, and the oxygen and hydrogen pressures are fixed at 1 bar. Based on Table 8, a performance indicator (i.e., hydrogen production rate) is

Table 6. Model validation of the present work with Ozturk & Dincer, [43] for the ORC generation subsystem Parameter

Table 7. Model validation of present work with Karaca & Dincer [44] for the VAS subsystem Parameter

Table 8. Model validation of the present work with Khanmohammadi et al. [45] for PEM electrolyzer Parameter

selected, and the calculated value is compared with the literature. It can be expressed that the results of the current investigation substantiate the results of Khanmohammadi et al. [45] as seen in Table 8, with some improvements in performance indices. A minor discrepancy is attributed to the different design operating conditions, like the unavailable or varying mass flow rate of water. Since the mass flow rate of water affects hydrogen production if it is insufficient, but once sufficient, the hydrogen flow rate increases with an increase in power supplied, as long as efficiency losses at high power are managed.

Results And Discussion

This paper investigates the thermodynamic performance of a solar power-biomass-assisted multigeneration system for the production of electricity, cooling, heating, hydrogen, and hot water from the energetic and exergetic analysis perspectives. The design data and thermodynamic

computation of this modelled investigation at the component level were simulated utilizing a generated source code in EES. Table 9 shows the design data used for the analysis. In conducting the energy and exergy assessments of the solar-biomass integrated multigeneration system, values of mass flow rate, temperature, pressure, specific enthalpy, specific entropy and exergy are serially determined for each state of the system as tabulated in Table 10. These were considered and evaluated using the design conditions in Table 9. As obtained in Table 4, the major performance indices of the plant are shown in Table 11, and comprises the power output and cooling from both the ORC and KC subsystems. The system has a total power output of 964 kW, with 276.03 kW from the ORC and 145.28 kW from the Kalina system. Also, cooling from the Kalina system after turbine expansion and separation resulted in 129.6 kW of cooling with an evaporator temperature of -33.5 oC. Since the analysis involved the second law analysis, the exergy of cooling in

ORC TIP

Table 10. The systems’ operating thermodynamic properties S/No 1

Table 10. The systems’ operating thermodynamic properties (continued) S/No 47

Kalina evaporator was recorded as 12.15 kW. In the VAS, at an evaporator temperature of 5 oC, 18.4 kW of refrigeration was achieved, with a corresponding 0.24 kW of exergy of cooling. The PTC contributes about 311.4 kW and 683.8 kW of heat to power the vapour generators of the ORC and KC systems, respectively. The total net output of the system was simulated as 964.9 kW, with 93.32 kW of exergy, while the system’s net heat input from the biomass combustor was 3827 kW. The energy and exergy efficiencies of the plant was recorded as 52.2 % and 16.14 %, respectively. Parametric Study The surrounding temperature influences most thermodynamic systems in their operation. For example, changes

in the surrounding temperature might occasionally lead to an increase or decrease in system performance. The impact of variations in ambient temperature on the total energy and exergy inputs into the integrated energy system is shown in Figure 2. The results indicate that the total energy input is 1848 kW. This remained relatively constant when ambient temperature varied from 290 to 310 oK for the reason that energy input is not affected by varying environment temperature conditions. Whereas for exergy input, at the same ambient temperature range from 290 to 310 oK, it decreases linearly from 587.8 to 564.1 kW as exergy loss increases. Figure 3 illustrates the impact of ORC turbine inlet temperature on the ORC turbine output. Between 120 to 150 o C, the turbine output power increased steadily from 17.74

Table 11. Summary of performance indices of the energy system Performance index

to 59.13 kW. The sharp rise is due to the rise in the values of input enthalpies and exergies. Although the turbine power output increases with turbine inlet temperatures, it can be inferred that an optimum TIT of 137.5 oC exists corresponding to a turbine inlet pressure of 25 bar. Figure 4. shows the impact of Kalina turbine inlet temperature (TIT) on both total energy and exergy efficiencies of the energy system. It is observed that an increase in Kalina turbine inlet temperature from 150 to 170 oC, results in an increase in both overall energy and exergy efficiencies.

Figure 2. Ambient temperature effect on system total heat input.

Whereas the energy efficiency increased steadily from 52.2 to 78.4%, the exergy efficiency increased steadily to a peak of 18.42% at 162.9 oC, beyond this temperature, any further increase results in a decrease in power output due to operational disturbances. Figure 5 demonstrates the impact of ORC turbine outlet pressure on the system performance index. By increasing the backpressure of the turbine from 3 to 6 bar, the exergy and energy efficiencies decrease by about 1% and 4.5%, respectively. However, at a very low turbine back pressure, the fluid can attain a two-phase zone after expansion with a resultant effect on turbine blades. The influence of ORC turbine back pressure on turbine output is demonstrated in Figure 6. High turbine back pressures result in minimal turbine expansion with truncated turbine work. It was found that when the ORC turbine backpressure was increased from 3 to 6 bar, the ORC turbine power output decreased from 33.83 to 18.92 kW. The results demonstrate the validity of the model linking the operating parameters in the ORC and its components. The impact on the total exergy and energy efficiencies due to changes in the Kalina turbine outlet pressure is shown in Figure 7. In the design simulation, the Kalina turbine outlet pressure was set at 6.993 bar. However, for this analysis, the Kalina turbine back pressure was varied between 5 and 8 bar; and within this range, the total system energetic and exergetic efficiencies decreased by about 1 % and 2.5 %, respectively. The results are consistent with the behavior of the energy generation system with regards to the value of turbine back pressure against the turbine power output capacity. The results of the effect of generator temperature on VAS evaporator cooling is shown in Figure 8. The cooling rate with regard to energy and exergy considerations increases at a constant generator pressure of 0.07904 bar. The higher vapour generator temperature increases the heat input to the generator; thus, the refrigerant can absorb heat energy. This results in a higher concentration of refrigerant vapour

Figure 4. Effect of Kalina TIT on system’s total efficiencies.

Figure 5. Effect of ORC turbine outlet pressure on total energy and exergy efficiencies.

Figure 6. Effect of ORC turbine outlet pressure on ORC turbine power output.

Figure 7. Effect of Kalina turbine back pressure on total energy and exergy efficiencies.

entering the condenser. Since the VAS relies on the absorption and desorption processes to create cooling, the higher concentration of refrigerant vapour in the condenser results in an increased cooling rate in the system. The magnitude of such an increase is depicted in Figure 8, where an additional 40 oC generator temperature increase resulted in an additional 20 kW of cooling in the evaporator with constant operating pressure. Vapour generator pressure on the cooling rate of the VAS evaporator was investigated with the result shown in Figure 9. Increasing the pressure in the vapour generator raises the boiling point of the refrigerant. This means that the refrigerant will need more energy to change from a liquid to a vapour state. As a result, the refrigerant is not able to absorb enough heat in the evaporator. The reduction of the cooling rate, both in energy and exergy, is thus experienced with higher vapour generator pressures. The impact of the cell operating temperature of the PEM electrolyzer on the daily hydrogen production rate of the plant is seen in Figure 10. At increasing temperatures, the

PEM becomes more conductive, allowing for easier proton transport. This leads to a reduction in membrane resistance and improves the overall cell efficiency, thereby enhancing the hydrogen production rate. However, the results also show a decrease in the cell voltage when temperature was increased. The cell voltage dropped marginally to 1.15 volts for a cell temperature increase of 40 K. This drop can be attributed to the membrane connectivity due to increased proton migration triggering a voltage drop in the process. Figure 11 demonstrates the energy balance around the domestic hot water heater, with hot water temperature fixed at 90 oC, gave an indication of the required biomass combustor outlet temperature and the quantity of hot water that can be produced. The quantity of hot water at 90 oC can be high with higher combustor outlet temperature as shown in Figure 11. The system can deliver up to 6000 liters of hot water at 90 oC for a combustor temperature of 425 oC. The result of hybrid nano fluid source temperature on the overall energy and exergy output of the system was investigated and shown in Figure 12. Without an additional

Figure 8. Effect of VAS generator temperature on evaporator cooling rate.

Figure 9. Effect of VAS generator pressure on evaporator cooling rate.

Figure 11. Effect of combustor temperature on domestic hot water production.

re-configuration of the system to reflect changes in turbine inlet parameters for the ORC and KC, an increase in the heat transfer of the hybrid nanofluid will result in additional heat transfer in the vapour generators of the two power

cycles. This is shown in Figure 12. Therefore, an increase in the nano operating temperature will overall result in lower energy and exergy efficiencies with large exergy destruction from the system.

Figure 12. Nano source temperature effect on system total efficiencies.

Figure 10. Effect of PEM temperature on cell voltage and hydrogen rate.

Figure 13. Nano source temperature effect on system total heat inputs.

Figure 14. Variation of the collector mass flow rate with KC, ORC power outputs and hydrogen production rate.

The parametric effect of the hybrid Nano fluid source temperature was investigated on the overall energy and exergy inputs of the system in Figure 13. An increase in the Nano source temperature results in an increase in the overall energy input of the integrated energy system. Between the nano source temperatures of 155 oC to 180 oC, total energy input increased significantly from 1549 to 1848 kW. For the same source temperature range, the total exergy also increased from 435.8 to 578.1 kW. This increasing energy and exergy inputs with respect to higher source temperatures is so because both of these types of heat energy are functions of temperature since it is theoretically agreed upon that an increase in thermal energy yields an increase in temperature. The effect of varying the trough collector mass flow rate on KC net power output, ORC net power output, and hydrogen production rate is demonstrated in Figure 14. As Parabolic Trough Collector (PTC) mass flow rate increases from 2 kg/s to 3.5 kg/s, the Kalina cycle net power output rises linearly by 4.1% from 450.8 kW to 469 kW, while the Organic Rankine Cycle (ORC) net power output increases non-linearly by 251% from 6.475 kW to 22.69 kW, accelerating beyond 2.75 kg/s. Concurrently, daily hydrogen production from the Proton Exchange Membrane (PEM) electrolyser grows steadily by 4.1% from 176.2 kg/day to 183.4 kg/day. These increases are attributed to enhanced heat transfer and improved thermal energy input, highlighting the benefits of optimizing PTC mass flow rate for improved performance in the multigeneration energy system.

Conclusion

This research paper examines the thermodynamic performance of a novel solar-biomass power based plant for hydrogen generation, from an energetic and exergetic viewpoints. This integrated energy system is designed for different purposes such as hot water, heating, electricity, cooling,

and hydrogen productions. The parametric studies have been conducted with regard to a number of factors, including ambient temperature, the turbines inlet temperatures and the turbines output pressures. Here is a quick summary of the primary findings from the thermodynamic analysis: • The ORC and Kalina subsystems are sustainable when run with R245fa and ammonium water as the respective working fluid. • The system has a total power output of 964 kW, with 276.03 kW from the ORC and 145.28 kW from the Kalina system. Also, cooling from the Kalina system after turbine expansion and separation resulted in 129.6 kW of cooling with an evaporator temperature of -33.5 o C. • The PTC contributes about 311.4 kW and 683.8 kW of heat to power the vapour generators of the ORC and Kalina systems, respectively. The total net output of the system was simulated as 964.9 kW, with 93.32 kW of exergy, while the system’s net heat input from the biomass combustor was 3827 kW. The energy and exergy efficiencies of the plant was recorded as 52.2 % and

Nomenclature

Symbol Aperture area (m2) Aa Reflector area (m2) Ar C Concentration ratio Heat capacity of the hybrid nanofluid (kJ/K) Chnf Specific heat (J/kg·K) cp Number of collector rows Cr Collector cover diameter (m) Dc ̇ k Exergy associated with work (kJ) EW Exergy associated with heat (kJ) EQ̇ k Exergy destruction rate (kJ/s) EḊ k F Collector efficiency (%) Collector heat removal factor Fr H Enthalpy (kJ) h Specific enthalpy (kJ/kg)

Thermal conductivity (kW/m.K) Collector length (m) Working fluid mass flow rate (kg/s) Pressure Heat rate to the kth component (kJ/s) Specific entropy (kJ/kg.K) Global solar radiation (kW/m2) Collector temperature (K) Temperature (°C) Overall heat loss coefficient (kW/m2K) Rate of work output from the kth component (kJ/s) Exergy destruction ratio

Greek symbols α - absorptivity ε - emissivity ρ - reflectivity ρbf - Density of the base fluid (kg/m3) ρhnf - Density of the hybrid nanofluid (kg/m3) φ - Total volume concentratio σ - Stephan Boltzman constant (kW/m2K4) ω - Collector width (m) ψk - exergy efficiency (%) ηr Receiver efficiency ((%)) Subscripts and Superscripts bf Base fluid hnf Hybrid nanofluid i Inlet k Element k, component k j Outlet Abbreviations and Acronyms Al2O3 Aluminium dioxide C Carbon CHP Combined heat and power CMP Compressor CO2 Carbon dioxide CON Condenser COP Coefficient of performance CSP Concentrated Solar Power EES Engineering Equation Solver EVP Evaporator FVI Fuel Index Values (FVI) GCV Gross Calorific Values H Hydrogen HEX Heat exchanger KC Kalina cycle LCOE Levelized cost of energy LiBr Lithium Bromide water MC Moisture Content MWCNT Multi-walled carbon nanotube N Nitrogen NASA National Aeronautics and Space Administration NH3 Ammonia

Oxygen Organic Rankine cycle Proton exchange membrane arabolic trough collector Pump Photovoltaics Separator & Sulphur System Advisor Model software Solar-driven gas turbine Valve Vapour absorption system Vapour generator

Data Availability Statement

The authors confirm that the data that supports the findings of this study are available within the article. Raw data that support the finding of this study are available from the corresponding author, upon reasonable request.

Conflict Of Interest

The author declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Ethics

There are no ethical issues with the publication of this manuscript.

Statement On The Use Of Artificial Intelligence

Artificial intelligence was not used in the preparation of the article.
