Introducing an optimal pressure ratio for aircraft design and investigating the effect of nozzle eff

Abstract

Keywords: Aircraft; Efficiency; Jet engine; Nozzle effect; Optimal design point; Propulsion

Introduction

The design of efficient aircraft engines is a cornerstone of modern aeronautical engineering, with compressor pressure ratio (CPR) playing a pivotal role in achieving optimal engine performance. A well-designed CPR significantly influences thermodynamic performance, fuel efficiency, and overall thrust generation. Traditional approaches to determine the optimal CPR primarily focus on thermodynamic cycles, such as the Brayton cycle, considering parameters like thermal efficiency and specific fuel consumption [1–3]. However, a growing body of literature suggests that an exergetic approach, which evaluates energy quality and irreversibilities, offers a more comprehensive understanding of engine performance [4–13]. Exergy analysis, unlike conventional energy analysis, accounts for the degradation of useful energy and provides a systematic method to assess efficiency improvements. Researchers have explored exergetic methodologies to optimize energy systems [14]. Others applied these principles to aircraft engines, demonstrating the effectiveness of exergy-based optimization in aviation [2,15–17]. Despite these advancements, the nozzle’s contribution to jet engine performance, particularly in relation to exergetic efficiency, remains underexplored. Former studies have highlighted the critical role of nozzle efficiency in thrust generation. These works have shown that nozzle losses can significantly degrade overall engine performance, particularly in high-performance engines. However, there is limited integration of nozzle efficiency considerations into a holistic exergetic optimization framework. Moreover, a significant gap in the literature lies in the simultaneous evaluation of thrust, exergy efficiency, and CPR optimization. While individual studies have addressed thrust or exergy efficiency independently, the coupling of these metrics for determining optimal CPR has received scant attention. This integrated approach is vital for developing design guidelines that balance thrust generation and exergy efficiency, thereby enhancing the performance and sustainability of jet engines.

This paper seeks to address this gap by developing a comprehensive framework that integrates thrust and exergy efficiency into optimizing CPR for aircraft engine design. The study highlights the interplay between CPR, nozzle efficiency, and exergetic performance, providing insights into achieving higher thermodynamic and operational efficiency. By bridging the gap between traditional thermodynamic metrics and exergy-based performance analysis, this work aims to establish a novel methodology for designing high-efficiency jet engines.

Governing Equations

Energy can be explained as the summation of exergy and anergy [18–22]: (1) where exergy and anergy are maximum accessible work and non-accessible work, respectively. The specific energy can be written as [18–22]: (2) where h, V2/2 and gz are specific enthalpy, kinetic and potential energy terms, respectively. In the absence of the effects of nuclear, magnetic, electric, and surface tension fields, the specific exergy can be written as summation of physical, chemical, kinetic, potential, heat and work exergy terms [18–22]: (3) where exph = (h−h0) − T0(s−s0), exch = (Δhformation− T0Δsformation) + T0R Σ(yilnyi/yi0), exk = v2/2, and exp = gz. Temperatures in these equations are in Kelvin. The exergy and exw = w, values of heat and work are respectively, where temperatures in the exq equation are in Kelvin.

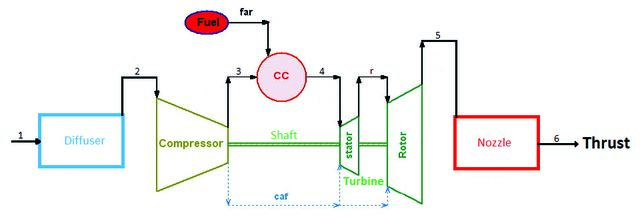

Noticing that 1, 2, 3, 4, 5 and 6 states in Figure 1 respectively introduce the diffuser inlet, compressor inlet (diffuser outlet), combustion chamber inlet (compressor outlet), turbine inlet (combustion chamber outlet), nozzle inlet (turbine outlet) and exhaust (nozzle outlet), all equations required for the energy-exergy analyses and thermodynamic optimization of jet engine have been summarized in Table 1 [18–29].

Results And Discussion

Validation An engineering equation solver (EES) program has been written for an open simple gas turbine cycle with methane (CH4) as a fuel and results have been compared with reference study [30]. The related equations have been written for the compressor, combustion chamber and turbine, and results have

Table 1. Thermodynamics equations for energy-exergy analyses [18–29] Components Diffuser

Table 1. Thermodynamics equations for energy-exergy analyses [18–29] (continued) Components

been revealed through the calculations of compressor outlet temperature (COT), turbine inlet temperature (TIT), and turbine outlet temperature (TOT) via EES program. Analysis indicates that the data differ by no more than 3.5%, which falls within an acceptable margin for this type of parametric evaluation (Table 2). Table 2. The Validation of EES Program’s Data for Simple Gas Turbine Cycle vs. Reference [30] Variables

Jet engine The jet engine performance was analyzed under steadystate steady-flow (SSSF) conditions using a two-stage turbine with blade cooling [29]. Dodecane (C12H26​) was selected as the fuel, and the energy efficiencies of the diffuser, compressor, combustion chamber, turbine, and nozzle were assumed to be 90%, 95%, 100%, 92%, and 90%, respectively. The combustion process was modeled as an isobaric reaction with a constant turbine inlet temperature of 1200°C across all cases. Parametric studies were conducted at sea level (T0​= 25°C, P0​= 101.325 kPa, RH0​ = 30%) and cruise altitude (T0​= −56.5°C, P0​= 22.6 kPa, RH0​= 0%). Key performance indicators, including thrust, exergy destruction, energy efficiency, and exergy efficiency, were evaluated across various compressor pressure ratios. It is important to note that all results are expressed on a mass basis (per 1 kg of inlet air) rather than on a volumetric basis (per 1 m³ of inlet air). The results indicate that maximum thrust is achieved within a low CPR range of 15 to 25 across all scenarios. At cruise conditions, higher thrust levels are observed, though less thrust is required as flight speed increases to maintain

steady flight. Exergy destruction shows a consistent decline with increasing CPR, as illustrated in Figure 2. Energy and exergy efficiencies exhibit distinct patterns. At sea level, these efficiencies peak at CPR values of 50 to 60, whereas at cruise altitude, optimal efficiencies are reached at CPR values exceeding 100 (Figure 3).

Additionally, the cooling air fraction (caf) and fuel-air ratio (far) respond to changes in CPR and altitude. The far increases with altitude due to lower ambient temperatures, which require higher fuel input to sustain TIT, while caf decreases as inlet air cooling capacity improves (Figure 4).

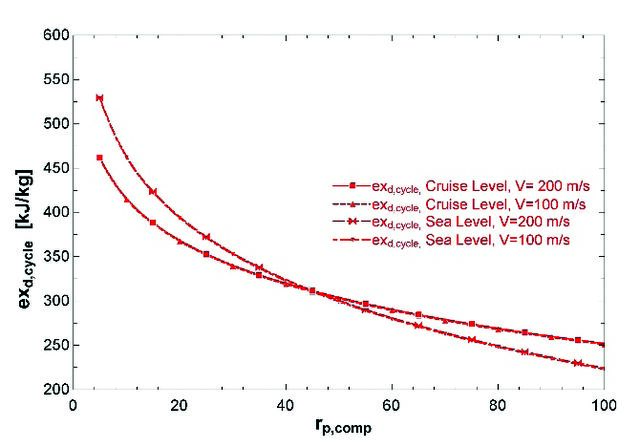

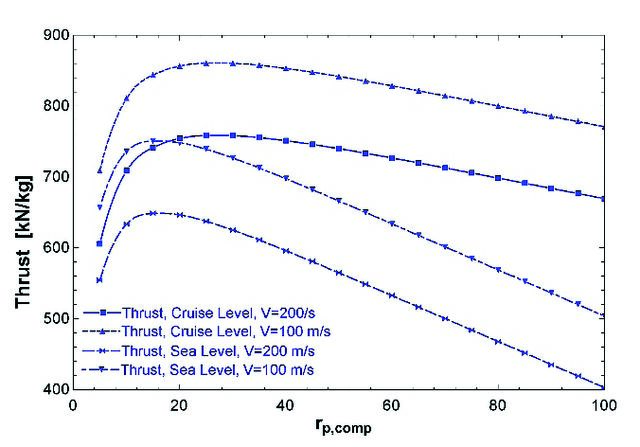

Figure 2. Thrust production and exergy destruction of jet engine at different flight scenarios.

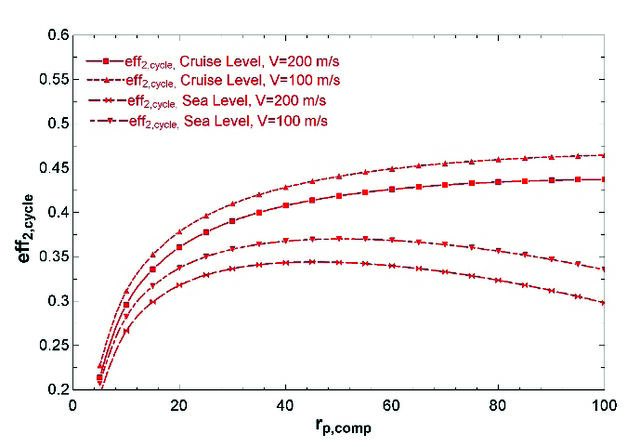

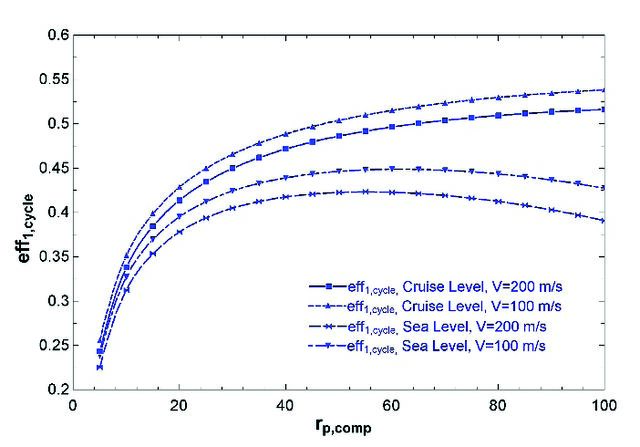

Figure 3. Energy and exergy efficiency of jet engine at different flight scenarios.

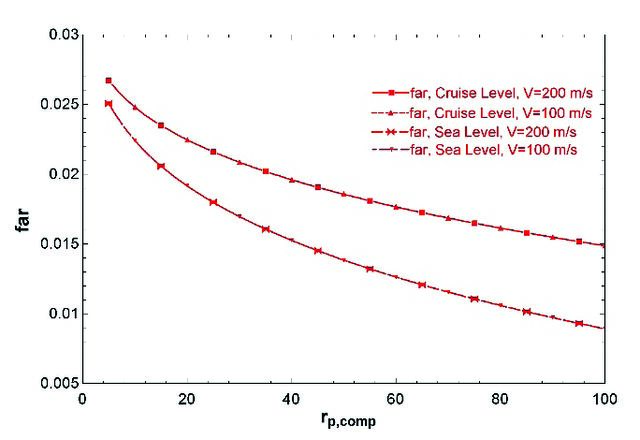

Figure 4. Cooling air fraction and fuel air ratio of jet engine at different flight scenarios.

Figure 5. Max simultaneous thrust- exergy efficiency as an operating design point at sea level

Table 3. Design point’s pressure ratios for different flight scenarios Flight Scenario

The intersection of thrust and exergy efficiency curves, identified as the optimal design point, marks the CPR where simultaneous maximization of these parameters occurs. Figures 5 and 6 highlight this phenomenon, with the corresponding CPR values summarized in Table 3. These optimal CPR values exhibit a direct correlation with altitude and an inverse correlation with flight speed.

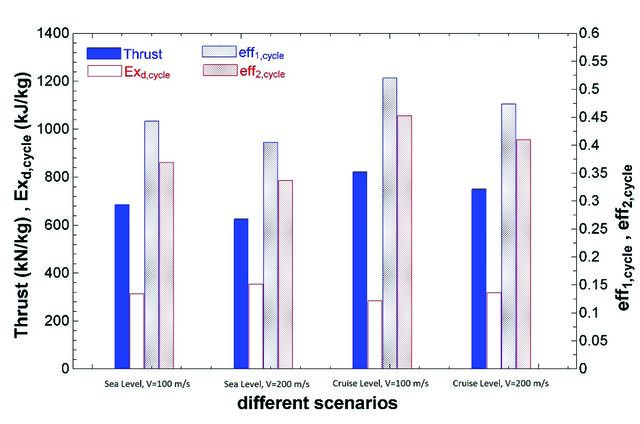

Figure 7. Performance parameters of jet engine at design point for different flight scenarios.

Figure 6. Max simultaneous thrust- exergy efficiency as an operating design point at cruise level

All performance parameters of the jet engine at design points have been plotted in the bar diagram of Figure 7. As can be seen in this diagram, while exergy destruction is increased thrust, energy efficiency, and exergy efficiency of jet engine are decreased with speeding of an aircraft. Moreover, all performance parameters of jet engine are upgraded with rising altitude. As illustrated in Figure 8, the specific fuel consumption (SFC) at the optimal design points decreases by 22.27% to 14.44% at sea flight level and by 13.43% to 5.15% at cruise flight level, compared to the SFC at maximum thrust conditions for velocities of 100 m/s and 200 m/s, respectively. Furthermore, Figures 5 and 6 indicate that the optimal design points exhibit significantly lower compressor pressure ratios compared to the points with maximum exergy efficiency. The reduced SFC and pressure ratio at the optimal points, alongside simultaneous maximization of thrust

Figure 8. Comparison of specific fuel consumption at max thrust and optimal design point for different flight scenarios.

and exergy efficiency, makes these points highly favorable from a practical design perspective. Eventually, the effect of nozzle energy efficiency is investigated on the jet engine’s performance, revealing changes of the most critical design parameters of thrust and exergy efficiency at previously mentioned operating design conditions. As disclose in Figure 9, at sea level, by increasing the efficiency of nozzle from 60 to 100% the thrust is increased from 540.7 to 727.4 kN/kg , and the exergy efficiency of engine boosts from 24.4% to 41.1%, for the speed of V = 100 m/s. These values for the speed of V = 200 m/s are 473.2 to 670.1 kN/kg thrust increase, and 21.7% to 37.7% exergy efficiency boost. At cruise level, for the same nozzle efficiency improvement in Figure 10, the similar values at cruise level are 652.3 to 871.7 kN/kg and 578.2 to 805.9 kN/ kg increase in thrust, with 30.0% to 50.4% and 26.3% to 45.1% boost in exergy efficiency, for the speeds of V = 100 m/s and V = 200 m/s, respectively. As shown in Table 4, the performance improvement of a jet engine with increasing nozzle efficiency is even greater for sea level flight altitude at the optimal design points. Jet engine performance is significantly influenced by the pressure ratio and nozzle efficiency, as they determine the thrust and efficiency of the engine. Meanwhile, there are the limitations of each. Higher pressure ratios lead to higher temperatures in the combustion chamber and turbine. These temperatures can exceed material limits, requiring advanced cooling techniques or high-temperature materials. As the pressure ratio increases, the compressor stages require higher efficiency. Beyond a certain point, increasing pressure ratio results in diminishing returns due to inefficiencies, such as mechanical losses and flow separation. High pressure ratios can increase the risk of compressor stall or surge, especially at off-design conditions, reducing operational reliability. Higher pressure

ratios demand more work from the turbine to drive the compressor, which can limit the available for thrust generation. Increasing the pressure ratio typically requires more compressor stages, which adds weight and mechanical complexity to the engine. Very high-pressure ratios might not match the ideal cycle conditions for specific flight regimes, such as low-speed or high-altitude operations. On the other hand, low nozzle efficiency results in incomplete conversion of thermal and pressure energy into kinetic energy, reducing thrust output. At off-design conditions, such as low-speed or high-altitude operation, flow separation within the nozzle can reduce efficiency and stability. In supersonic nozzles, imperfect expansion due to mismatched atmospheric pressure can lead to shock waves, causing energy losses and efficiency reduction. At varying altitudes, the nozzle may be under-expanded (not fully converting pressure) or over-expanded (causing shocks and flow separation), limiting efficiency. If the nozzle material is not adequately insulated, heat losses can occur, slightly reducing the energy available for thrust. Designing a nozzle optimized for multiple flight regimes (subsonic, transonic, supersonic) is challenging. Fixed geometry nozzles may perform sub-optimally in some conditions, while variable

Figure 9. Improvement of jet engine performance operating in optimal design condition by increasing nozzle efficiency at sea level

Figure 10. Improvement of jet engine performance operating in optimal design condition by increasing nozzle efficiency at cruise level

Table 4. Design point’s thrust and overall exergy efficiency improvements by increasing nozzle energy efficiency from 60% to 100% for different flight scenarios Flight Scenario

geometry nozzles add weight and mechanical complexity. Considering the combined impact on performance, a proper high-pressure ratio and efficient nozzle are essential for maximizing thrust and minimizing SFC. Limitations in either reduce overall engine performance. Higher pressure ratios improve efficiency, but this is only beneficial if the nozzle effectively converts the energy into thrust. By balancing these limitations, the design of jet engines should meet the specific performance requirements for different aircraft types and missions. The analysis of the present research underscores the critical role of optimal CPR and nozzle efficiency in enhancing jet engine performance at different flight scenarios. Achieving maximum simultaneous thrust and exergy efficiency at practical design points provides significant operational benefits, including reduced SFC and improved sustainability.

Conclusion

This study provides a comprehensive investigation into the optimization of jet engine performance using an energy-exergy analysis framework. By introducing the concept of the optimal design point as the optimum compressor pressure ratio of the intersection of thrust and exergy efficiency curves, a novel methodology for jet engine design optimization is proposed. This approach considers variations in compressor pressure ratio (CPR), flight altitude, and nozzle efficiency. The findings demonstrate that the optimal design points significantly enhance the practical viability of engine operation. At sea level, the specific fuel consumption (SFC) at the optimal conditions is reduced by up to 22.27%, while at cruise altitudes, it decreases by 13.43%, compared to maximum thrust conditions. These results emphasize the importance of balancing thrust and exergy efficiency for achieving sustainable and efficient engine designs. Furthermore, the study reveals that the optimal CPR is lower than CPR value at maximum exergy efficiency, making the design both practical and efficient for real-world applications. A critical aspect of this research is the impact of nozzle efficiency on engine performance. Enhancing nozzle efficiency from 60% to 100% leads to substantial improvements in thrust and exergy efficiency under optimal design conditions. At sea level, thrust increases by up to 41%, while exergy efficiency improves by 73%. Similarly, at cruise altitude, these parameters are enhanced by up to 39% and 71%, respectively. These improvements highlight the vital role of nozzle efficiency in maximizing engine performance and reducing environmental impact. The study also addresses the limitations of high-pressure ratios and nozzle inefficiencies, including mechanical complexities, material constraints, and off-design performance challenges. By integrating these considerations into the optimization framework, the research offers valuable

insights into the design trade-offs required for efficient propulsion systems. In summary, this research bridges the gap between traditional thermodynamic approaches and exergy-based methodologies, offering a robust framework for the future design and optimization of jet engines. The results provide actionable guidance for achieving higher efficiency, reduced fuel consumption, and improved sustainability in aviation propulsion systems, setting a benchmark for innovative and environmentally conscious aerospace engineering solutions.

Nomenclature

Specific energy, kJ / kg Dimensionless efficiency Specific exergy, kJ / kg Gravitational acceleration constant, m / s2 Molar mass, kg / kmole Dimensionless mach number Mass flow rate, kg / s Pressure, Pa Specific heat rate, kJ / kg Dimensionless pressure ratio Specific entropy, kJ / kg Time, s Temperature, °C Velocity, m / s Specific work rate, kJ / kg

Greek symbols λ Dimensionless excess air η Dimensionless efficiency Subscripts 1 or I First law or energetic 2 or II Second law or exergetic 0 Ambient condition cc Combustion chamber ch Chemical comp Compressor D Destruction diff Diffuser isen Isentropic k Kinetic nozz Nozzle p Potential ph Physical poly Polytropic q Heat r Rotator turb Turbine w Work

Abbreviations

Compressor pressure ratio Fuel air ratio Relative humidity Specific fuel consumption Steady state steady flow Turbine inlet temperature Turbine outlet temperature

Data Availability Statement

The authors confirm that the data that supports the findings of this study are available within the article. Raw data that support the finding of this study are available from the corresponding author, upon reasonable request.

Conflict Of Interest

The author declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Ethics

There are no ethical issues with the publication of this manuscript.

Statement On The Use Of Artificial Intelligence

Artificial intelligence was not used in the preparation of the article.
