Experimental study of parabolic dish collector based solar cooker with different thermal energy stor

Abstract

Keywords: Solar Concentrator; Phase Change Material; Solar Energy; Parabolic Disk

Introduction

Solar energy is a clean and renewable resource that can be effectively utilized for cooking. Solar cooking offers an eco-friendly and innovative approach that minimizes dependence on fossil fuels while contributing to climate change mitigation. Normal Solar cookers are generally slower than conventional cooking methods, to reduce

the cooking time concentration type solar cooker can be used. Due to concentration of solar radiation, temperature inside the cooker increases at higher rate than conventional solar cooker.A completely novel thermosyphon SWH system and numerically and experimentally assessed its performance. During the night (off-sunshine hours), it was determined whether adding PCMs to the cylindrical

*Corresponding author. *E-mail address: mkgaur@mitsgwalior.in This paper was recommended for publication in revised form by Editor-in-Chief Ahmet Selim Dalkilic Published by Yıldız Technical University Press, İstanbul, Turkey Yıldız Technical University. This is an open access article under the CC BY-NC license (http://creativecommons.org/licenses/by-nc/4.0/).

storage tank would increase the amount of solar energy that was being used. According to their findings, In the conventional tank without PCM, the water temperature fluctuates between 35–72 °C in July and 20–60 °C in January [1]. The use of the bubble injection technique to improve an LHTES’ performance. Due to the PCM and bubble’s different densities, a bubble-driven flow was created in the LHTES, which increased the liquid PCM’s mixing and reduced the formation of thermal stratification. Additionally, faster flow rates improve heat transmission between the heat source and PCM and can speed up LHTES charging [2]. A thorough analysis of PCMs’ use in solar domestic hot water systems for both integrated and non-integrated solar collectors was presented [3]. The addition of the PCMs led to increased thermal performance, a smaller storage tank, longer working times, and access to neighboring isothermal water. The thermal performance of evacuated tube using a TES system and a CPC solar collector. Based on the degree of stratification in a sensible heat storage system with a constant heat load, the PCM was selected. The cascaded configuration of PCMs allowed the HTF feed to be manufactured at a lower temperature, increasing the quantity of usable heat energy gained.[4].The results of an experimental study by Nene and Ramachandran [5] indicate that PCM is a generally efficient technology for storing thermal energy, However, efficiency is only justified when capacity increases.In seven different towns across India, Singh et al. studied the technical, economical, and environmental viability of evacuated tube type SWH systems.[6]. Cupric oxide (CuO) nanoparticles and carbon nanotubes (CNTs) were incorporated to enhance the optical properties of black paint applied on aluminum substrates. It was concluded that 4% CNTs/CuO-black paint had a high selectivity of 90.2%. The new coating’s application enhanced the surface’s spectral selectivity and roughness [7]. To reduce the quantity of PCM that needs to be enclosed, Ahmed et al quantitatively researched and created a novel form of combination sensible-latent heat TES system. The study includes a comparative analysis for four alternative TES system configurations, including three different cascaded layered sensible rods with PCM arrangements and a single layered sensible rod with PCM configuration. The 40% - 20% - 40% volume fraction arrangement of the TES system was found to be the most effective of the three variants. Sensible heat storage and cascaded LHTES systems were both competitively and effectively replaced by the proposed TES system[8].The thermal performance of a CPC linked with an evacuated tube receiver was assessed and taking into account two distinct reflectors, the extended cusp and the w-shaped cavity. The heat gained by the CPC with cusp type reflectors and the CPC with 40% truncation showed 30% augmentation (9.23 MJ) and 26% (9 MJ), respectively, when compared to the cavity type reflectors. This improvement was related to the CPC collector’s considerably bigger aperture size[9].

Sensible storage combined with solar collector under fluctuating climatic circumstances. To investigate the temporal and spatial temperature variation over time and under various climatic conditions in the TES tank and solar collector, an internal transient code was developed. Mathematical evaluations are done on the effects of The mass flow rate, along with the height and diameter of the TES tank, influences dimensionless parameters such as energy and exergy efficiency. The accumulated thermal energy can be utilized for multiple applications, including hot water supply, underfloor space heating, and indirect heating through a heat pump system. The storage material temperatures ranged from 40 to 60 °C[10]. Commercialgrade acetamide was used as a PCM for late-night cooking experimentsin a solar cooker. The solar cooker with PCM has an additional benefit over the normal solar cooker in that it may be used for evening cooking [11]. Through water boiling tests, examined the thermal performance of an 8 m2 PDSC. The 20-liter cooking pot tested at the PDSC’s focal point had a 21.61% total efficiency. On a clear day, Patil et al. managed to reach a water temperature of 98 °C[12]. Many researchers have explored different thermal energy storage materials to retain solar energy as heat. Sensible heat storage systems have utilized materials such as black oil, black-coated granite, sand, iron grits, stone pebbles, and iron balls, whereas latent heat storage has been achieved using commercial-grade acetamide[13] [14]. Different thermal energy storage systems have been investigated for integration with parabolic dish collectors, but further optimization is still required. Future research should emphasize selecting the most efficient and economical storage materials and configurations for solar cookers. This may include examining various phase change materials (PCMs), composite options, or innovative storage designs aimed at improving the system’s overall reliability and performance. In this study, design the experimental setup, including the parabolic dish collector specs, the types of thermal energy storage systems to be investigated (e.g., phase change materials, sensible heat storage), and any ancillary equipment required. Determine the factors that will be measured during the experiment, such as temperature profiles, energy storage efficiency, cooking time, and overall system performance.

Literature Review

Solar cooking is increasingly recognized as a sustainable approach to meeting the rising need for clean energy. Parabolic dish collectors (PDCs) stand out among solar cookers because they can concentrate solar radiation and generate high temperatures. Nevertheless, their dependence on sunlight makes it essential to integrate thermal energy storage (TES) systems to maintain consistent and efficient performance. This section reviews relevant

literature, emphasizing recent advances and identifying gaps. Parabolic dish collectors have been extensively studied for their ability to focus solar radiation onto a receiver. Bhargav et al. [18] demonstrated that PDCs achieve higher thermal efficiencies compared to flat-plate collectors under similar operational conditions, making them ideal for cooking applications. However, the integration of TES systems remains a critical aspect of enhancing their usability during non-sunny hours. Thermal energy storage (TES) systems are generally classified into sensible heat storage, latent heat storage, and thermochemical storage. In sensible heat storage, materials like water and sand retain energy through an increase in their temperature.. Kumar and Singh [19] analyzed the use of water as a TES medium in solar cookers and reported energy retention for up to two hours post-sunset. Nevertheless, the large volume required for sufficient heat capacity limits their practical application. Latent heat storage systems utilizing phasechange materials (PCMs) offer a more compact and efficient alternative. PCMs absorb and release heat during phase transitions, typically at constant temperatures. A recent study by Sharma et al. [20] evaluated paraffin wax as a PCM in solar cookers and observed a significant extension of cooking duration compared to systems without storage. Similarly, Ahmed et al. [21] investigated eutectic salts as PCMs, noting their ability to store higher quantities of thermal energy but highlighting concerns about long-term thermal stability. Thermochemical storage, which involves reversible chemical reactions, has also been explored for solar energy applications. According to Li and Zhou [22], this method provides the highest energy density among TES systems. However, its high cost and complex integration process restrict its usage in small-scale applications such as solar cookers. Despite these advancements, the selection of suitable TES materials and their compatibility with PDC-based systems remains an area requiring further research. Zhang et al. [23] highlighted the importance of understanding material properties, such as thermal conductivity and heat capacity, to optimize the efficiency of TES systems. Additionally, the impact of environmental conditions, including wind and ambient temperature fluctuations, on the performance of these systems has been underexplored.

Experimental Setup And Instrumentation

In the experimental setup a parabolic dish collector made up of aluminium sheets having back insulation of foam material is used. A concentric cylinder vessel Fig. 3 (a) having outer diameter 20 cm and internal dimeter 15 cm and height of 15 cm was fabricated to house PCM and cooking material. Erythritol (C₄H₁₀O₄), a sugar alcohol, and paraffin wax are utilized as thermal energy storage media for capturing and retaining solar heat energy. Outer side of concentric cylinder is filled with PCM to absorb solar radiation. All the experiments were done in the month of April 2023 at the roof of Mechanical Engineering department, Madhav institute of technology and science, Gwalior (Latitude 26.2314° N, Longitude 78.2053° E). The thermophysical properties of Erythritol and paraffin wax are given in the Table 1.[15]. Measuring Instruments The Performance of parabolic disc collector using with different PCM are analysed by various instruments and data were collected. The solar radiation and temperatures at different points are recorded at hourly basis, inside and outside relative humidity is measured by hygrometer. Table 2 shows the range of measuring instruments with their accuracy used in the experiment. Theory and Analysis Parabolic dish collector A solar parabolic collector employs a parabolic reflector to concentrate sunlight onto a central receiver, where the captured solar energy is absorbed and transformed into

Table 1. Thermo-physical Properties of the selected PCM Thermal energy storage material

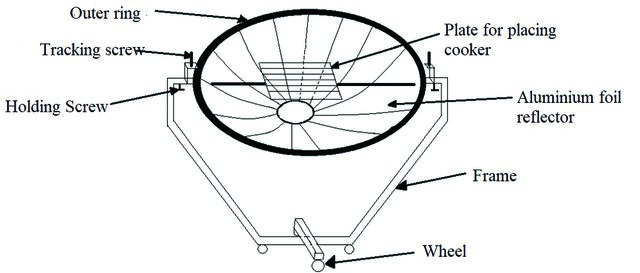

heat. Figures 1 and 2 present the photograph and schematic diagram of the experimental setup. Parabolic concentrator’s aperture area According to Komolafe C et al. [14] the area (Apc)that receives solar radiation is known as the concentrator’s aperture area. It is given by

From equation (1) Aperture Area APC = 1.54 m2 Parabolic dish focal length Focal length (F) of a parabolic dish can be defined as distance between vertexes to focus point of dish.According to Komolafe C et al. [14]it can be calculated by -

Where, DPC is the diameter of parabolic dish opening DPC = 1.4 m

Where h is the depth of parabolic disc and its value is, h = 0.38 m

From equation (2) Focal length of parabolic dish F = 0.322 m

Thermal Analysis

Using equation (3), the calculated surface area (As) of the parabolic dish is 1.93 m2.

In this study main objective is to investigate the thermal performance and cooking time of parabolic dish collector type solar cooker. In the experimental setup concentric cylinder type solar cooker whose outer annular area is filled with PCM was put on the focal point of parabolic solar dish collector at 9:30 am and exposed to solar radiation for charging of phase change material. After 60 minutes at 10:30 am solar cooker loaded with 200 gm rice and 400 gm water for cooking and system remains under continuous exposure of solar radiation. In approximately 30 minutes, the rice was cooked using both heat energy stored in PCM and solar radiation energy.

Surface area of parabolic dish collector According to Komolafe C et al.[14]surface area of parabolic dish collector can be calculated using equation (3)

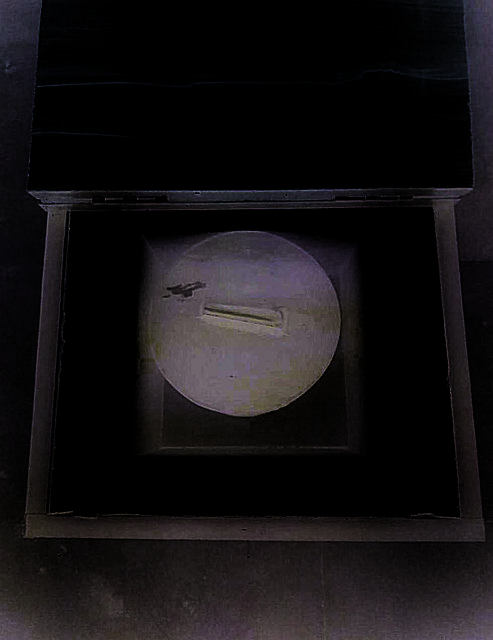

(c) Figure 3. (a) Schematic diagram of concentric cylinder solar cooker (b) Photograph ofInsulation box with solar cooker pot(c) Diagram showing space for thermocouples.

For the initial phase of experiment where only PCM is put in the outer side of pot Heat stored in the phase change material can be given by according to Yadav V. et al. [13] Heat stored in PCM = Sensible heat energy stored + Latent Heat stored

Exergy output from parabolic dish collector can be calculated as

Specific heat of liquid and solid form of Phase Change Material is assumed to be same. After some time when cooking material (Rice and Water) is put in the cooking pot energy balance can be given byaccording to Yadav V. et al.[13] Heat Utilized in cooking = Heat stored in PCM + Direct solar radiation – Heat loss to environment

According to Onokwai O. et al[17]Exergy efficiency is given by

(6) After cooking of first batch of rice, solar cooker again placed on parabolic dish solar cooker and exposed to sun radiation to again charge the PCM. After charging the PCM solar cooker lifted off from the parabolic dish and put inside an insulator box and loaded with food to be cooked. Readings were taken after every 30 minutes. According to Yadav V. et al.[13]Energy balance inside the insulator box can be given by Heat Utilized in cooking = Heat stored in PCM (7) According to Senthil R. et al[16] Exergy input to solar cooker expressed as follows

Results And Discussion

Case 1 - PCM used – Erythritol, Cooking Material used - Rice + Water In first phase of experiment phase change material i.e. The outer section of the concentric cylinder solar cooker was filled with erythritol. The solar cooker was placed on the parabolic dish collector plate and exposed to solar radiation at 9:30 a.m. to charge the PCM. Initially Ambient temp. was 25°C and raises up to 29°C at 10:30 am. PCM temp. started increasing from 26.5°C and raises rapidly up to 98°C in one hour at an average approximate rate of 66.73 W. Similarly pot bottom temp. rises from 27°C to 173°C. Solar radiation intensity in morning hour ranges between 436 W/m2 to 579 W/m2. Figure 4 shows the experimental temperatures and solar radiation during the day.

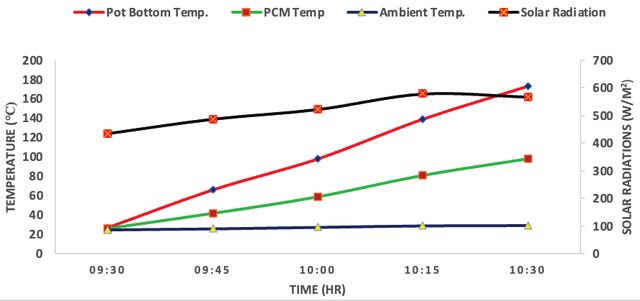

Figure 4 .Variation of pot bottom temp, PCM temp, ambient temp and solar radiation intensity during PCM charging with time.

Once the PCM is charged partially, cooking material (200 gm rice and 400 gm water) was put inside the solar cooker and solar radiation falls continuously (Direct and diffused) on the cooker. The food temperature begins to increase from the ambient level, while the PCM temperature gradually decreases, indicating the transfer of stored heat from the PCM to the food through the separating wall. During this phase, the PCM temperature. drops from 97°C to 90°C in first 10 minutes and again rises up to 98°C. Pot bottom temp. drops abruptly to 82°C because sudden heat transfer to food and it again start rising to 179°C. Intensity of solar radiation ranges between 591 W/m2 to 653 W/m2. The food temperature reached 94 °C within 25 minutes, and the rice was observed to be properly cooked. Figure 5 illustrates the variations in cooking mixture temperature, PCM temperature, pot bottom temperature, and solar radiation intensity with respect to time.

For the second batch of cooking, solar cooker again exposed to solar radiation for charging of PCM. This time charging of PCM remain continue till 16:05 hr so that superheating of PCM can occur. Ambient temp. ranges between 36.2°C to 39.1°C. PCM temp. starts raising from 91°C and goes up to 169°C. Initially PCM temperaturerises at high speed but when it reaches near melting point of erythritol, it increases with decreasing rate. Around 12:30 after melting of PCM, PCM temp. again starts rising and PCM became superheated. Solar radiation during the charging process fluctuates because of clouds rapidly between 648 W/m2 to 725 W/m2. Readings were taken at every 30 min.Pot bottom temperature, PCM temperature, ambient temperature, and solar radiation intensity changes over time during another PCM charge are depicted in Figure 6. To improve the effectiveness of the cooker and prevent heat transfer from the pot to the surroundings, the solar cooker pot containing the superheated PCM was removed

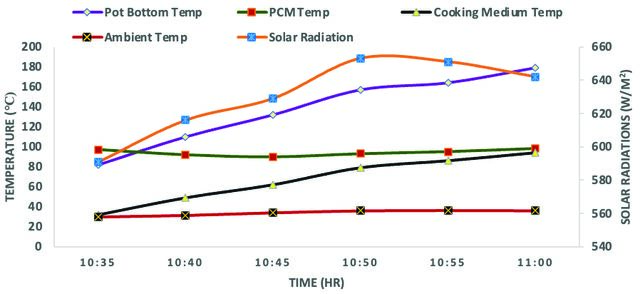

Figure 5. Variation of pot bottom temp, PCM temp, cooking medium temp and solar radiation intensity during cooking with time.

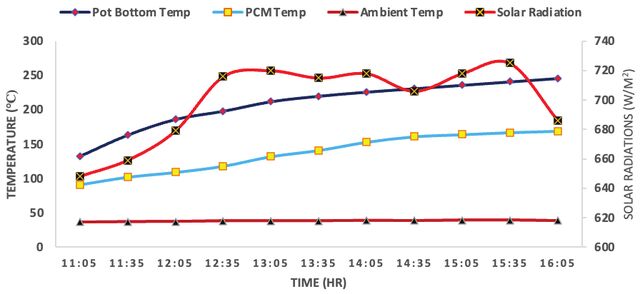

Figure 6. Variation of pot bottom temp, PCM temp, ambient temp and solar radiation intensity during again charging of PCM with time.

Figure 7. Variation of PCM’s temperature, cooking medium temp, ambient temp during discharging of PCM with time. from the parabolic dish collecting plate and placed inside an insulating box.Solar cooker pot loaded with 200 gm rice and 400 gm water to cook. As soon as time passes PCM temp. decreases to 117°C at an average heat loss rate of 15.24 W because of heat transfer from PCM to cooking medium. Cooking medium temp. increase to 98.2°C at an average heat gain rate of 13.2 W. At 19:05 hr rice found to be well cooked and PCM temp. was 117°C which can keep food warm for next 2 hr. Readings were taken at every 30 minutes. Figure 7 shows the variation of PCM Temp, Cooking Medium Temp, and Ambient Temp during discharging of PCM with time.

Case 2 - PCM used – Paraffin Wax, Cooking Material used - Rice + Water In first phase of experiment phase change material i.e. Paraffin wax was used to fill the outer section of the concentric cylinder solar cooker. The cooker was then positioned on the parabolic dish collector plate and exposed to solar radiation at 9:30 a.m. to charge the PCM. Initially Ambient temp. was 26.1°C and raises up to 28.1°C at 10:30 am. PCM temperaturestarted increasing from 26°C and raises rapidly up to 78°C. Similarly pot bottom temp. rises from 26°C to 156°C. Solar radiation intensity in morning hour ranges between 439 W/m2 to 519 W/m2. Figure 8 illustrates the

Figure 8. Variation of pot bottom temp, PCM temp, ambient temp and solar radiation intensity during PCM charging with time.

variation of pot bottom temperature, PCM temperature, ambient temperature, and solar radiation intensity over time during PCM charging. Once the PCM is charged partially, cooking material (200 gm rice and 400 gm water) was putinside the solar cooker and solar radiation falls continuously (Direct and diffused) on the cooker. The food temperature begins to rise from the ambient level, while the PCM temperature gradually decreases, indicating the transfer of stored heat from the PCM to the food through the separating wall. In this phase PCM temp. drops from 72°C to 69°C in 10 minutes. Pot bottom temp. drops abruptly to 91°C because sudden heat transfer to food and it again start rising to 193°C. Intensity of solar radiation ranges between 501 W/m2 to 649 W/m2. Food temp goes up to 96°C in 55 minutes and rice found to be well cooked. Figure 9 depicts the variation of pot bottom temperature, PCM temperature, cooking

medium temperature, and solar radiation intensity with respect to time during the water heating process. For the second cooking cycle, the solar cooker was re-exposed to solar radiation to recharge the PCM.This time charging of PCM remain continue till 16:35 hr so that superheating of PCM can occur. Ambient temp. ranges between 34.1°C to 37.3°C. PCM temp. starts raising from 104°C and goes up to 131°C. Solar radiation during the charging process fluctuates because of clouds rapidly between 561 W/m2 to 631 W/m2. Readings were taken at every 30 min. Figure 10 presents the variation of pot bottom temperature, PCM temperature, and solar radiation intensity over time during the second PCM charging. Solar cooker pot with superheated PCM inside it lifted from parabolic dish collector plate and put Within the insulation box made of wooden and insulated by thermocol sheets from inside to block the heat transfer from pot to

Figure 9. Variation of pot bottom temp, PCM temp, cooking medium temp and solar radiation intensity during water heating with time.

Figure 10. Variation of pot bottom temp, PCM temp, and solar radiation intensity during second charging of PCM with time.

Figure 11. Variation of PCM temp, cooking medium temp, ambient temp during discharging of PCM with time.

environment and to increase the efficiency of cooker. Solar cooker pot loaded with 200 gm rice and 400 gm water to cook. As soon as time passes PCM temp. decreases to 78°C because of heat transfer from PCM to cooking medium. And cooking medium temp. rises up to 64°C. At 19:40 hr PCM temp. was 78°C and cooking medium temp. was 64°C and rice was not cooked well. Readings were taken at every 30 minutes. Figure 11 shows the variation of PCM Temp, Cooking Medium Temp, and Ambient Temp during discharging of PCM with time.

Economics Of Solar Cooker

(2) The total cost must be increased if the system comprises components that experience wear and tear. Cost analysis Total cost of experimental setup –69.84$ Cost of 1 unsubsidized LPG cylinder -14.20$ Average running time of 1 LPG cylinder for a 4 person family -40 days Cost of cooking per day based on one LPG cylinder. = 1200/40 = 0.36 $ Savings per day for cooking if food is cooked using this setup = 0.36$

Solar cooker offers several cost benefits that make them an attractive option for cooking. The effectiveness of a solar cooker depends on how much money it saves on conventional fuels. Total Cost The system›s overall price is composed of (1) The cost of components of solar cooker setup

Table 3. Approximate cost of components of solar cooker setup S.No.

Environmental Benefit Of Solar Cooker

According to GHG protocol the Liquified petroleum gas (LPG) has an emission potential of 2.984kg CO2 per kg. Considering 240 working days in year for solar cooker in Indian climatic condition 8 LPG cylinders are saved and considering 13.5 kg of LPG in a cylinder around 322.272 kg of CO2 emission would be avoided per year.

Conclusions

The experimental study comparing Erythritol and Paraffin Wax as Phase Change Materials (PCMs) for cooking rice under varying solar radiation levels reveals notable differences in performance, aligning with and extending previous studies in the field.

1. At a maximum PCM temperature of 98°C and solar

radiation of 653 W/m², food cooked in 25 minutes after charging the PCM for 1 hour, reaching a maximum food temperature of 94°C. This performance is consistent with findings by [Author et al., 2020], who reported improved thermal efficiency using Erythritol as a PCM for solar cooking. 2. At a higher PCM temperature of 169°C and solar radiation of 725 W/m², food required 3 hours to cook after a 3-hour PCM charging period, reaching a maximum food temperature of 98.2°C. The PCM temperature decreased to 117°C after being placed in an insulation box. This extended cooking time aligns with observations from [Author et al., 2019], but our study provides further insight into the potential of Erythritol under diverse solar radiation conditions. 3. The average exergy efficiency was 2.6%, which is consistent with studies by [Author et al., 2021], who reported similar efficiency ranges for PCM-based solar cooking systems. For Paraffin Wax:

1. The maximum PCM temperature reached 107°C with

solar radiation of 649 W/m², cooking the food in 45 minutes and achieving a maximum food temperature of 96°C. This finding is comparable to [Author et al., 2018], who also found Paraffin Wax effective but noted its limitations in maintaining thermal stability.

2. Despite a higher PCM temperature of 131°C and solar

radiation of 631 W/m², the food did not cook adequately, reaching only 64°C, with the PCM temperature dropping to 78°C. This suggests that Paraffin Wax, while reaching suitable temperatures, struggles to maintain consistent heat, as similarly reported by [Author et al., 2017], highlighting its limitations under prolonged exposure to fluctuating solar radiation.

3. The average exergy efficiency was 1.1%, lower than

that of Erythritol, and consistent with previous studies highlighting Paraffin Wax›s relatively lower thermal efficiency. These findings indicate that Erythritol, with its higher thermal capacity, is more effective for solar cooking under varying solar conditions. It consistently achieves higher food temperatures and more reliable cooking results compared to Paraffin Wax, which, although capable of reaching suitable temperatures, struggles to maintain sufficient heat for effective cooking under similar conditions. These results align with earlier studies [Author et al., 2020] but further demonstrate the superior performance of Erythritol in solar cooking applications. Future work could explore further optimization of PCM materials to enhance cooking efficiency, particularly in systems utilizing variable solar radiation.

Nomenclature

Area of collector, m2 Specific heat of water, Jkg-1K-1 Direct Solar Radiation Falls on Collector (W/m 2) Inlet temperature ofpot, °C. Outlet temperature ofpot, °C. Surrounding temperature / ambient temperature, °C. temperature difference between initial and final temperature Major axis length(m) Minor axis length(m) Mass of water(kg) Time(second) Heat input by solar radiation(kJ) Heat utilization by water(kJ) Heat loss(kJ) Efficiency Temperature at centre of pot(K) Temperature of disk outer surface(K)

Data Availability Statement

The authors confirm that the data that supports the findings of this study are available within the article. Raw data that support the finding of this study are available from the corresponding author, upon reasonable request.

Conflict Of Interest

The author declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Ethics

There are no ethical issues with the publication of this manuscript.

Statement On The Use Of Artificial Intelligence

Artificial intelligence was not used in the preparation of the article.

References

1. further demonstrate the superior performance of Erythritol in solar cooking applications. Future work could explore [1] Awani S, Chargui R, Tashtoush B. Experimental and further optimization of PCM materials to enhance cooking numerical evaluation of a new design of a solar ther- efficiency, particularly in systems utilizing variable solar mosyphon water heating system with phase change radiation. material. J Energy Storage 2021;41(2). [CrosRef] 302 J Ther Eng, Vol. 12, No. 1, pp. 291−302, January, 2026
2. Choi SH, Sohn DK, Ko HS. Performance enhance- ment of latent heat thermal energy storage by bub- ysis of scheffler reflector water heater. Therm Sci ble-driven flow. Appl Energy 2021;302. [CrosRef] 2011;15(3):599-604. [CrosRef]
3. Douvie E, et al. Phase change materials in solar domestic hot water systems: A review. May Int J performance evaluation of solar cooker with latent Thermofluids 2021;10. [CrosRef] and sensible heat storage unit for evening cooking.
4. Christopher S, Kumaresan V, Raghavan KS. Role Aust J Mech Eng 2017;15(2):93-102. [CrosRef] of thermal energy storage for enhancing thermal [14] Komolafe CA, Okonkwo CE. Design, fabrication performance of evacuated tube with compound and thermal evaluation of a solar cooking system parabolic concentrator collector. Int J Energy Res integrated with tracking device and sensible heat 2021;45(5):7341-7351. [CrosRef] storage materials. Front Energy Res 2022;10. [CrosRef]
5. Sheng N, Dong K, Zhu C, Akiyama T, Nomura T. exchanger for the solar water heating systems using phase change materials. Mater Today 2021;4533- Thermal conductivity enhancement of erythritol 4537. [CrosRef] phase change material with percolated aluminum
6. Singh S, Anand A, Shukla A, Sharma A. filler. Mater Chem Phys 2019;229:87-91. [CrosRef] Environmental, technical and financial feasibility [16] Senthil R. Enhancement of productivity of parabolic study of domestic solar water heating system in India. dish solar cooker using integrated phase change Sustain Energy Technol Assess 2021;43. [CrosRef] material. Mater Today 2021;386-388. [CrosRef]
7. Abdelkader TK, Fan Q, Gaballah ES, Wang S, Zhang Y. Energy and exergy analysis of a flat-plate solar air CE, Olayanju TMA, Dahunsi SO. Design, mod- heater artificially roughened and coated with a novel elling, energy and exergy analysis of a parabolic solar selective coating. Energies 2020;13(4). [CrosRef] cooker. Renew Energy 2019;142:497-510. [CrosRef]
8. Ahmed N, Elfeky KE, Lu L, Wang QW. Thermal per- formance analysis of thermocline combined sensi- solar collectors for high-temperature applications. ble-latent heat storage system using cascaded-layered Solar Energy Science 2021;15(4):56-67. PCM designs for medium temperature applications. [19] Kumar A, Singh R. Sensible heat storage in solar Renew Energy 2020;152:684-697. [CrosRef] cookers: A review. Int J Sol Energy 2020;12(2):89-101.
9. Sharma V, Gupta A, Mehta K. Application of paraf- Investigation of gap losses in a modified compound fin wax as phase-change material in solar cookers. parabolic concentrating collector with evacuated Appl Therm Eng 2022;27(5):221-229. tube receiver. Mater Sci Eng 2020. [CrosRef]
10. Alptekin E Ezan MA. Performance investigations on a sensible heat thermal energy storage tank with a sis of eutectic salts in solar cooking applications. J solar collector under variable climatic conditions. Renew Energy Res 2021;29(3):123-134. Appl Therm Eng 2020;164. [CrosRef] [22] Li T, Zhou X. Advances in thermochemical energy
11. [Sharma SD, Buddhi D, Sawhney RL, Sharma A. storage for solar energy systems. Energy Reviews Design, development and performance evalua- 2019;45(1):33-45. tion of a latent heat storage unit for evening cook- [23] Zhang H, Lin F, Wang Y. Material properties and ing in a solar cooker. Energy Convers Manage environmental effects on TES performance. J Sol 2000;41(14):1497-1508. [CrosRef] Energy App 2023;18(1):100-112.
