Improving corrosion properties of manganese aluminium bronze alloys MAB-Cu4 through electroless nick

Abstract

Keywords: Bronze alloys; corrosion; electroless coatings; nickel-phosphorus; structural properties.

Introduction

Developments in ship materials are crucial for ensuring coastal defence security and enhancing maritime trade [1]. The propeller is the main propulsion mechanism of a marine vehicle, revolving at high speeds in saltwater, operating under conditions of prolonged immersion and high-speed rotation in seawater [2]. Thus, severe corrosion develops on the marine ship propeller [3]. Manganese aluminium bronze alloys (MAB) are commonly used copper alloys for producing maritime components, particularly large-sized

and high-speed ship propellers [1] due to their excellent casting capabilities, mechanical properties, corrosion resistance, tribological properties, and cavitation resistance [3–5]. Moreover, marine hydraulic components like pumps, valves, turbines, and rudders also utilize MAB alloys, which can be utilised under corrosive conditions. MAB alloys include substantial proportions of Ni, Al, Mn, and Fe. Cast MAB alloys are mostly composed of a coarse α phase, an ordered solid solution β phase with an irregular form, and large κ phases, which are Fe and Mn-rich intermetallic compounds [5]. The complex microstructure

*Corresponding author. *E-mail address: yasemin.yildiran@kocaeli.edu.tr Published by Yıldız Technical University Press, İstanbul, Türkiye This is an open access article under the CC BY-NC license (http://creativecommons.org/licenses/by-nc/4.0/).

of these alloys is influenced by its chemical composition and processing methods [4], including heat treatments, which negatively impact their resistance to corrosion in saltwater [5]. Their multi-phase microstructure often undergoes selective phase corrosion due to the difference in chemical content and crystal structure among various phases, leading to galvanic corrosion [1]. Their corrosion behaviour varies depending on the pH level and the kind and amount of aggressive ions present in the corrosive environment [1]. Recently, the corrosion behaviour of MAB alloys has been extensively researched [1–8] yet there is a notable need to enhance their corrosion resistance. Electroless coatings may promise in enhancing their resistance to corrosion, but further study is required. Electroless coatings can produce uniform deposits, especially on complicated components [9]. Thus, electroless nickel plating is a commonly employed technique for coating copper and its alloys. An external power source is unnecessary for this process, as the reactions occur autocatalytically. The coating layer exhibits a uniform thickness distribution across the entire surface of the parts. The primary objective of using this material is to achieve exceptional resistance to corrosion and abrasion. Additionally, it possesses advantageous characteristics such as high brightness, rapid deposition rate, and excellent solderability. Particularly, electroless Ni-P coatings show significant potential for improving the corrosion resistance of copper alloys [9–11], where the deposition of the coating is relatively flexible and is one of the surface treatment technologies widely used in industries [10]. They offer corrosion protection by establishing a barrier between the underlying material and the environment that causes corrosion. Ni-based electroless coatings with outstanding engineering features are growing in the aerospace, military, automotive, oil, gas, and marine sectors [11]. The corrosion resistance of Ni-P coatings is influenced by the phosphorus ratio, internal stress, and amorphism ratio [12]. Liu et al. [10] employed a Ni-P/Ni-B duplex coating layer to the CuSn10Pb10 alloy resulted in enhanced surface antifriction and wear resistance. The Ni-P coating layer acts as a barrier, preventing the CuSn10Pb10 alloy from dissolving in the Ni-B plating bath and allowing the Ni-B layer to be deposited [10]. To the author's knowledge, there is no study using Ni-P coatings to enhance the corrosion resistance of bronze alloys used in the marine atmosphere. In the present study, manganese aluminium bronze (MABCu4), a bronze commonly used in propellers, was coated with electroless Ni-P, and its corrosion properties were examined in a 0.5 M NaCl environment.

Materials And Methods

Cylindrical geometry samples with a diameter of 20 mm and a height of 10 mm were prepared from the MAB alloy produced by the casting method for coating and characterization processes. The surfaces of the samples were grinded using 180–400–600–800–1200 grid sandpapers, respectively, and were made suitable for the coating process. The dirt and grease formed on the sample surface during processing were

ultrasonically cleaned using acetone and ethanol, respectively, for 10 minutes each. Sensitization and activation processes were applied to the surfaces before coating. To obtain a clean and active surface after ultrasonic cleaning, the samples were immersed in silver nitrate solution (5 g/l AgNO3) and sodium boron hydride solution (2 g/l NaBH4 and 10 g/l NaOH) for 60 seconds and at room temperature, respectively. The plating process was carried out in an alkaline Ni-P bath. In process, NiSO4.6H2O was used as a nickel source, NaH2PO2.H2O as a reducing agent, Na3C6H5O7 as a complexing agent, CH4N2S as a stabilizer, and NaOH as a pH adjuster. The bath composition is given in Table 1 and the bath preparation procedure can be found elsewhere [10]. After the procedure, the samples were taken from the bath and cleaned with boiling water twice. The morphology of the coated sample surfaces was examined by scanning electron microscopy (SEM, JEOL 6060 LV). The chemical composition of the coating was examined using energy dispersive X-ray spectroscopy (EDS) integrated with SEM. The phases in the structure were analyzed by X-ray diffraction (XRD, Rikagu D/Max 2200). Details of the XRD analysis can be found elsewhere [13]. The electrochemical corrosion properties of both uncoated and Ni-P coated MAB-Cu4 were examined using potentiodynamic polarization (PP) and electrochemical impedance spectroscopy (EIS) methods. Aqueous 0.5 M NaCl solutionwas chosen as the corrosive medium for the experiments. A three-electrode cell (Gamry Paracell, USA) was used for the tests; working, counter and reference electrodes are sample, graphite and calomel, respectively. The samples are 10×10 mm in size and the area exposed to the corrosive medium is 0.28 mm2. Before each experiment, open circuit potential (OCP) measurements were carried out for 60 minutes until the corrosion potential reached a steady state. Potentiodynamic polarization measurements were carried out in the ± 1.0 V potential range and at a scan rate of 1 mV/s. Tafel extrapolation was applied to PP curves via the Gamry Echem software and the corrosion rate was determined. EIS measurements were performed using 10 mV AC perturbation and 10 points/decade parameters, and the frequency range is 10–2–105 Hz. Finally, the micrographs of the cross-sectional microstructures of untreated-MAB-CU4 (a) and coated-MAB-CU4 alloy (b) after corrosion tests were examined via optical microscopy (Nikon Eclipse L 150). Table 1. Bath composition and parameters of the Ni-P coating process

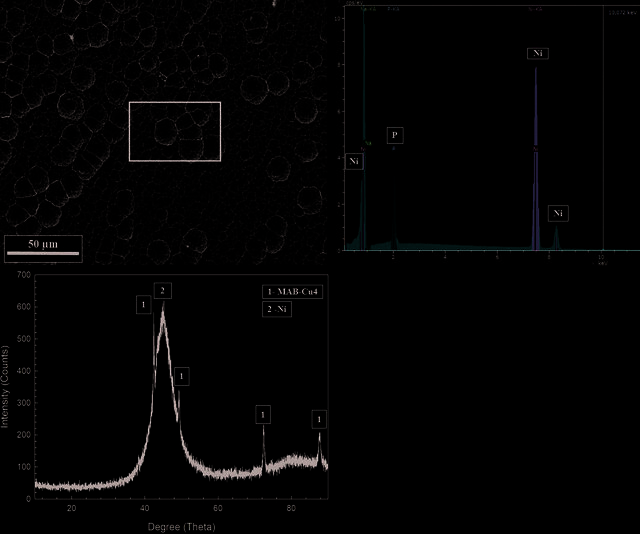

Figure 1. The MAB-Cu4 alloy coated with Ni-P; (a) SEM image of the surface, (b) EDS analysis of region of interest marked in (a), and (c) XRD analysis. MAB-Cu4: Manganese aluminium bronze alloys; SEM: Scanning electron microscopy; EDS: Energy dispersive X-ray spectroscopy; XRD: X-ray diffraction.

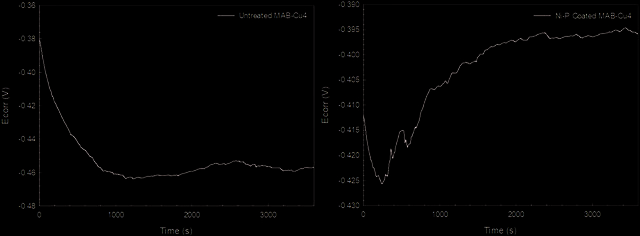

Figure 2. Corrosion potential-time graphs obtained in aqueous 0.5 M NaCl environment for (a) untreated and (b) Ni-P coated MAB-Cu4 alloys. MAB-Cu4: Manganese aluminium bronze alloys.

Results And Discussion

Figure 1a depicts the surface image of the Ni-P-coated MAB-Cu4 alloy, in which there is evidence of the accumulation of a coating layer on the entire surface of the alloy. The coating layer possesses a cauliflower-like structure

and exhibits the same characteristics as those identified in previous studies [14]. On the surface, randomly distributed cluster formations resulting from Ni-P grain aggregation are visible. Besides, porosity formation is relevant in certain regions within the coating layer, resulting from the release of H2 gas during the deposition of the coating.

EDS analysis (Fig. 1b) performed on the region of interest shown in the inlet image in Figure 1a reveals the presence of Ni, P, and elements throughout the surface. The XRD analysis (Fig. 1c) suggests that the coating possesses an amorphous and nanocrystalline composition, while typical peaks of electroless nickel coatings are detected [15, 16]. In addition, four additional peaks were identified, which correspond to the substrate material MAB-Cu4 alloy. Figure 2 displays the corrosion potential (Ecorr) over time for both the untreated and Ni-P-coated MAB-Cu4 al-

loy samples, obtained from electrochemical corrosion tests conducted in a 0.5 M NaCl aqueous environment. The untreated MAB-Cu4 alloy's Ecorr value, initially around -0.30 V, decreased to approximately -0.47 V within a span of approximately 1000 seconds. Subsequently, consistent and steady behaviour was observed throughout the entire corrosion test, which lasted for 3600 seconds. The corrosion potential of the Ni-P-coated MAB-Cu4 alloy, initially around -0.412 V, decreased within the first 200 seconds and reached approximately -0.425 V. Subsequently, there was a progressive increasing trend, leading to a potential value of -0.395V around the 2000th second. This was followed by a period of consistent values until the conclusion of the measurement. During this period of growth, there were minor drops in potential observed around the 400th and 500th seconds. Figure 3 gives the potentiodynamic polarization curves of the untreated and Ni-P-coated samples. The corrosion potential (Ecorr) was determined to be -0.43 V. At a voltage of around -0.08 V, the alloy began to exhibit a tendency to passivation, resulting in a corrosion current density (icorr) of 0.013 A/cm2 at a corrosion potential of -0.013 V. Transpassivation took place at an Ecorr value of around 0.02 V, with the Ecorr value measuring 0.014 A/cm2. Upon examination of the anodic polarization curve for the Ni-P coated MABCu4 alloy, it was found that the Ecorr value was lower than that of the untreated alloy (-0.532 V). Furthermore, passivation was not detectable. Figure 4 displays the results of an electrochemical impedance spectroscopy (EIS) test that was done on

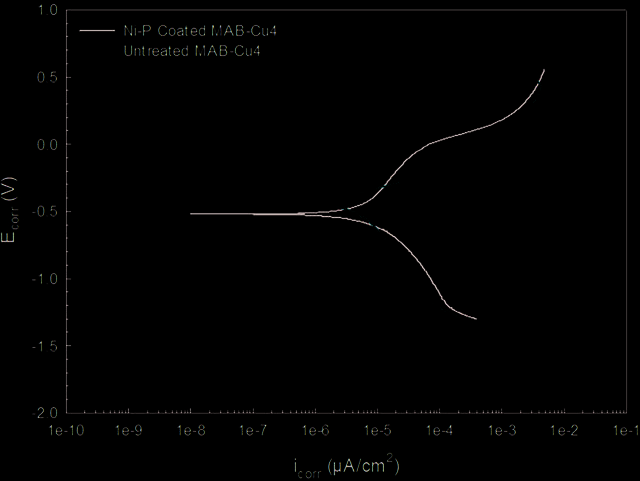

Figure 3. Potentiodynamic polarization curves of untreated and Ni-P coated MAB-Cu4 alloys obtained in aqueous 0.5 M NaCl corrosive environment.

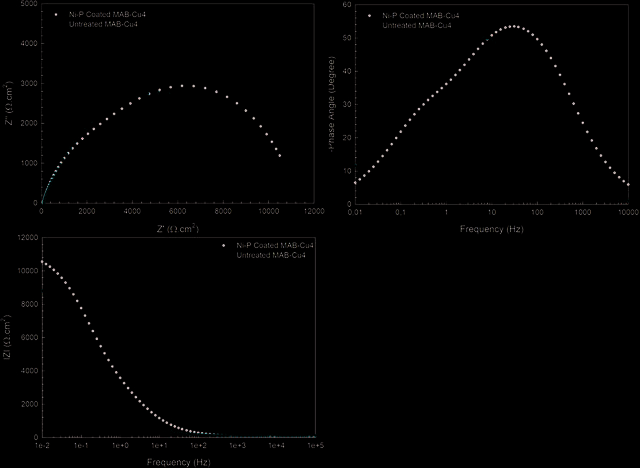

Figure 4. (a) Nyquist curves, (b) Bode intensity curves and (c) Bode phase angle curves of untreated and Ni-P coated MAB-Cu4 alloys. MAB-Cu4: Manganese aluminium bronze alloys.

Figure 5. Optical microscope micrographs of the cross-sectional microstructures of untreated-MAB-CU4 (a) and coatedMAB-CU4 alloy (b) after corrosion tests. untreated and Ni-P-coated MAB-Cu4 alloys in a 0.5 M NaCl solution that is corrosive. Figure 4a clearly demonstrates that each material's curves consist of a single semicircular arc, which indicates that charge-controlled dissolution solely influences the dissolution of the relevant material. The arc diameter also serves as an indicator of the level of resistance to corrosion. Previous research suggests that an increase in the arc's diameter leads to a greater level of corrosion resistance [17]. Therefore, the larger arc diameter of the Ni-P-coated MAB-Cu4 alloy leads to greater corrosion resistance. Examining the Bode intensity curve graphs provided in Fig. 4b reveals a high degree of similarity between the curves for both samples. Nevertheless, the Ni-P-coated sample exhibits higher intensity values at low and medium frequencies compared to the untreated sample. This indicates that the corrosion mechanism is identical for both samples; however, the Ni-P-coated sample exhibits superior corrosion resistance. In Bode phase angle curves (Fig. 4c), the presence of a single peak in these curves shows that corrosion is occurring because of a single reaction, which is occurring at the same time as the results of the Nyquist and Bode intensity curves. The Ni-P-coated sample exhibits a peak at higher phase angle values and higher frequency values, suggesting a higher level of corrosion resistance. Figure 5 displays the optical microscope images of the cross-sectional microstructures of the untreated and coated MAB-CU4 alloy following corrosion tests. The protective layer and coating layer do not show a clear interaction, but the coating layer shows a clear adhesion with the substrate. The coating also maintains its integrity after the corrosion tests since a uniform coating layer with a thickness between 13 and 20 µm is visible in Figure 5b.

Conclusion

This study examines the corrosion properties of electroless nickel-phosphorus-coated manganese aluminium bronze (MAB-CU4) alloys in a 0.5 M NaCl solution. The coating layer exhibits a cauliflower-like structure

with porosities resulting from the release of H2 gas during deposition. EDS analysis detected Ni, P, and various elements on the coating, while XRD analysis indicated that the coating has an amorphous and nanocrystalline structure. Electrochemical corrosion tests revealed that the Ecorr value of the untreated MAB-Cu4 alloy decreased to -0.47 V within 1000 seconds. Then, a pattern of reliable and unwavering conduct was observed. After 200 seconds, the corrosion potential of the Ni-P-coated MABCu4 alloy decreased from -0.412 V to -0.425 V. Then, there was a gradual rise in the potential value, reaching -0.395V at approximately the 2000th second. The anodic polarisation curve analysis of the Ni-P-coated MAB-Cu4 alloy revealed that the Ecorr value was lower than that of the untreated alloy (-0.532 V). The Ni-P-coated sample shows higher intensity values at low and medium frequencies compared to the untreated sample, suggesting a similar corrosion mechanism for both samples. However, the Ni-P-coated sample demonstrates better corrosion resistance. Electroless nickel phosphorus coating on MAB alloys could increase their corrosion resistance and lifespan, especially in corrosive environments. Future research investigating their resistance to cavitation erosion is essential to enhance their application as marine propellers.
