Numerical investigation of blood flow features in intracranial saccular aneurysms

Abstract

Keywords: Hemodynamics; Intracranial Aneurysm; Pulsatile Flow; Stream Function-Vorticity Formulation; Computational Fluid Dynamics; Wall Shear Stress Analysis

Introduction

An aneurysm occurs when part of an artery wall weakens, allowing it to widen abnormally or lump out. The blood flow continues inside of this abnormal region and the rupture of the weakened wall causes high rate of mortality [1]. To investigate the hemodynamics of flow inside aneurysms, several studies have been conducted in the context of numerical, experimental and clinical research [2-7]. In a glass model of intracranial saccular aneurysm, Steiger and Ruben [2] observed flow instabilities at the Reynolds number 300 during the deceleration of the flow. Meng et al [8] showed that the curved-vessel aneurysm model has fundamentally different hemodynamics compared to straight vessel-aneurysm. The flows in the curved and the straight vessel geometries correspond to ‘inertia driven flow’ and ‘shear driven flow’ respectively. Gonzales et al [9] investigated the blood flow inside intracranial aneurysms where they emphasize the rapid change in the flow of a cardiac cycle results in rapid changes in wall shear stress and pressure. This initiates the aneurysm growth and rupture at the cavity neck. Valencia and Solis [10] investigated numerically the terminal saccular aneurysm in basilar artery. They modeled the artery wall using the elastic solid and Mooney-Rivlin hyper elastic models and modeled the blood using Newtonian constitutive relation. It is reported that the effective wall shear stress and deformation are observed at systole. Clinical experiments and observations are time-consuming and expensive, and can be quite limited due to ethical concerns. Numerical modeling of the blood flow is an ideal way to investigate the efficiency of recommended treatment (such as the introduction of intravenous stent) and to understand the flow mechanism within the aneurysm. The numerical models in the literature either used the flow domain obtained from a three dimensional magnetic resonance imaging of the artery [4-5], or simplified the artery geometry to a constant diameter tube as shown in Figure 1 [6-8]. In this study pulsatile flow in an intracranial aneurysm is numerically investigated under the combined effect of the aneurysm size, the curvature of the artery and the flow rates. The aim of this study is to evaluate the flow field and the wall shear stress distribution along the saccular cavity wall during a cardiac cycle and use these findings to have a better understanding of the mechanism leading to the rupture of the vessel.

This paper was recommended for publication in revised form by Regional Editor Bekir Yilbas 1 Department of Mechatronics Engineering, Yildiz Technical University, Istanbul, TURKEY 2 Department of Mechanical Engineering, Bogazici University, Istanbul, TURKEY *E-mail address: hmercan@yildiz.edu.tr Manuscript Received 10 November 2017, Accepted 15 January 2018

Journal of Thermal Engineering, Research Article, Vol. 4, No. 2, Special Issue 7, pp. 1867-1878, February, 2018

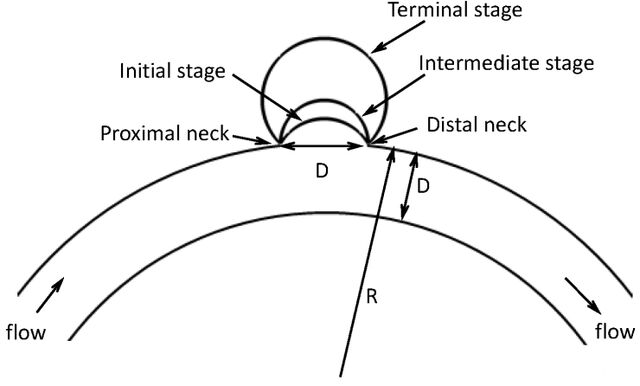

Figure 1. Aneurysm model geometry with initial, intermediate and terminal stages

Mathematical Model And Validation

Three stages of aneurysm with three different artery geometries (straight, δ=1/6 and δ=1/4) are used for the flow domain. The artery curvature is defined as δ=1/R, where R is the radius of curvature of the artery measured from the neck of the aneurysm, as shown in Figure 1. The blood is modeled as a Newtonian fluid [10-11]. The Reynolds number reads:

where ρ is the blood density, μ is the blood viscosity, V is the maximum velocity in the cardiac cycle and D is the length of the aneurysm neck. For human blood flow at 37oC based on an approximation for blood, the viscosity density ratio is set to μ/ρ=0.027 cm2/s [3]. The flow rates are 126ml/min and 202.5ml/min; and the corresponding Reynolds numbers are 350 and 500 respectively where they are for the conditions at systole peak stage during a cardiac cycle. These flow rates correspond to realistic flow parameters in human cerebral arteries. The Dean number (Ɗ) which measures the curvature effects is defined as: 𝐷𝛿 1/2

where δ is the curvature, and the Dean number is ranged from 70 – 125 for the curved arteries considered in this study. These values are in the range valid for human cerebral arteries where the Dean number is between 10 and 200 [8]. The pulsatile flow along the artery is replaced with the average velocity at the aneurysm neck shown in Figure 2. This shows a cardiac cycle of 60 beats per minute as given in the experimental study of Milner et al [5]. The curve fitting parameters for the pulsatile flow are listed in Table 1, where the average velocity along the aneurysm neck is defined with the following 9th degree polynomial: (10−𝑗) 𝑉𝑎𝑥𝑖𝑎𝑙 (𝑇) = ∑10 𝑗=1 𝑃𝑗 𝑇

where T is the non-dimensional time during cardiac cycle. The mass and momentum conservation equations for incompressible fluid under the absence of body forces are given as,

Journal of Thermal Engineering, Research Article, Vol. 4, No. 2, Special Issue 7, pp. 1867-1878, February, 2018 where u is the velocity vector, ρ is the density of the fluid, T is the stress tensor which is defined for Newtonian fluid as:

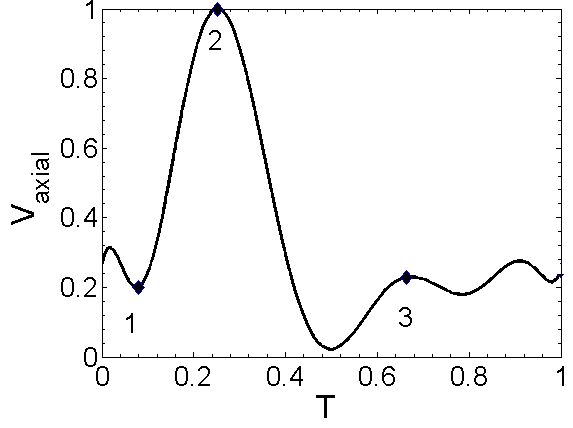

Figure 2. Non-dimensional blood velocity (Vaxial) during a cardiac cycle (T), 1: end of diastole, 2: systole peak, 3: start of diastole Table 1. The curve fitting coefficients for the non-dimensional blood velocity during a cardiac cycle P1 P2 P3 P4 P5 P6 P7 P8 P9 P10

Curve Fitting Coefficients 0.00066569588305481 -0.0197178396582261 0.243012393546922 -1.60627032860107 6.10336710834574 -13.2056863776158 14.9714121873087 -7.2693180121154 1.09771533200526 0.244358120780213

where, p is the pressure, I is the identity tensor, μ is the viscosity and D is the rate of deformation tensor. The length of the aneurysm neck (D) and maximum velocity during a cardiac cycle (V) are used to non- dimensionalize the governing equations. The unsteady vorticity-stream function formulation is adopted in generalized body-fitted orthogonal coordinates. The sample elliptic meshes generated for the flow domain are shown in Figure 3 for three developing stages of a saccular aneurysm. The governing equations are solved using a second order finite difference method. The discretized vorticity transport equation is integrated in time using Runge Kutta 4th order scheme. Successive over relaxation (SOR) with Chebychev acceleration is used to solve the stream function equation. The aneurysm wall is considered as a rigid wall and no-slip boundary condition is applied for velocity components. Thoms’s formula is used to evaluate the vorticity value at the aneurysm wall [12]. The CFD code is written and compiled using GFortran 95 and GNU Fortran compiler. The numerical scheme is tested for three different grid densities, 41×41, 61×61 and 81×81 for all aneurysm geometries. Mesh convergence results are shown in Table 2 for intermediate stage during a cardiac cycle for Re=350, δ=1/6, Ɗ=71.44. Based on these results all results presented in this study are performed using 61×61 grid elements with time step 10-5. The convergence criterion for SOR with Chebychev acceleration to solve the stream-function equation is of the order of 10-6.

Journal of Thermal Engineering, Research Article, Vol. 4, No. 2, Special Issue 7, pp. 1867-1878, February, 2018

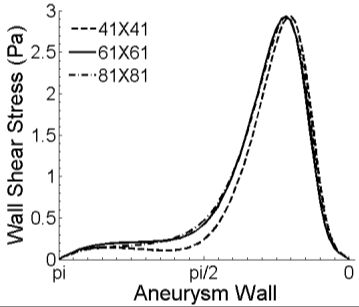

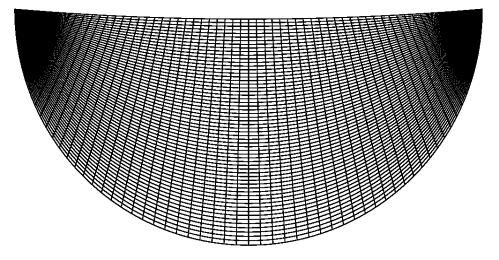

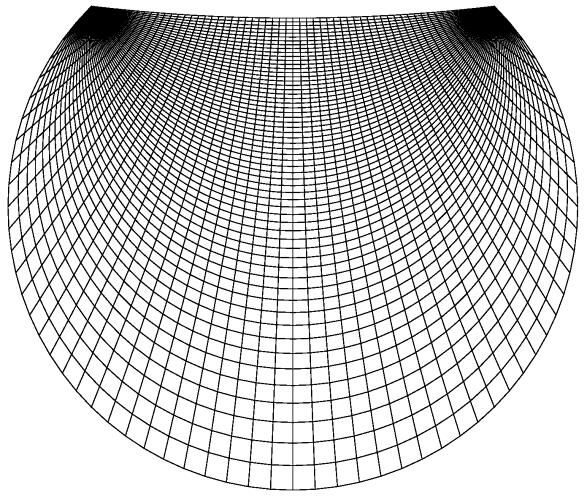

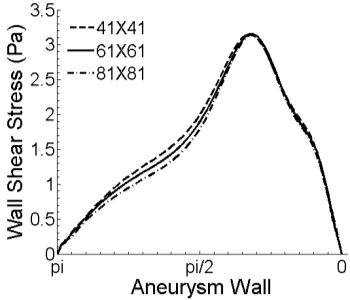

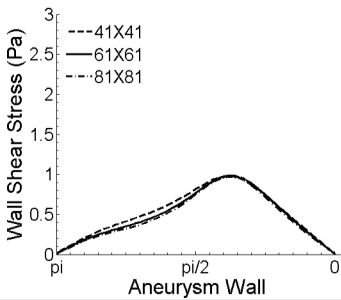

Figure 3. The two dimensional aneurysm geometry and typical meshes for δ=1/6. Table 2. Grid independency test for three different grid densities: 41×41, 61×61 and 81×81. Wall shear stress along the aneurysm wall for intermediate stage during a cardiac cycle for Re=350, δ=1/6, Ɗ=71.44 (Case 2). Grid Independence

Zhang et al. [6] investigated experimentally and numerically the saccular aneurysm along large arteries for laminar non-pulsatile flow at Reynolds number 256.6. Shishir et al. [7] used the same geometry as a test case to validate their numerical results in two dimensional flow domain. In Table 3, the average velocity value inside of the aneurysm as well as the average wall shear stress is compared with the results in the literature. It should be noted that Zhang et al. [6] and Shishir et al. [7] modeled the flow inside a saccular aneurysm using a simplified artery geometry and in the present study the pulsatile flow in the artery is replaced with the average velocity along the aneurysm neck. Although the flow inside the aneurysm is investigated with simplified boundary conditions in two dimensions, it can be observed that the average velocity in the aneurysm cavity and the average shear stress value along the aneurysm wall agree well with existing data in the literature. Table 3. Numerical result validation: comparison with the literature Flow parameters

Journal of Thermal Engineering, Research Article, Vol. 4, No. 2, Special Issue 7, pp. 1867-1878, February, 2018 Bouillot et al. [13-14] investigated the saccular aneurysm experimentally and numerically. The saccular aneurysm geometry is idealized as a sphere and a straight tube. The details of the aneurysm geometry are described in Bouillot et al. [14]. Velocity profiles and streamlines are shown in the symmetry plane of the model at the systole peak and the late diastole for particle imaging velocimetry (PIV) and computational fluid dynamics (CFD) results in Figure 4(a). The equivalent Reynolds number for the aneurysm cavity is 250, where the velocity along the neck is around 0.2 m/s. The streamline patterns during the corresponding cardiac cycle instances evaluated using the present model and the simplified boundary conditions showed agreement with the results in the literature, as shown in Figure 4(b).

Results And Discussion

The shape and the diameter of the artery have a combined effect on the flow structure within an intracranial aneurysm [6-7]. In this study the diameter of the artery is kept constant and the effects of curvature of the artery are investigated together with the shape and size of the developing aneurysm during one cardiac cycle. The solutions presented in this study correspond to the second cardiac cycle. The details of the idealized geometry of the developing aneurysm are shown in Figure 5, where the center of the aneurysm wall and the corresponding angles are given.

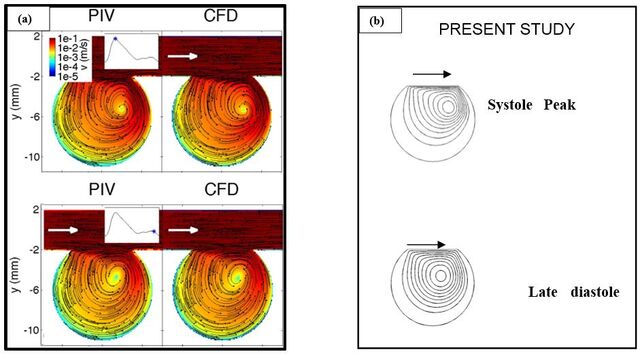

Figure 4. (a)Results from Bouillot et al [13] (b) Results from present study (Re=250), Comparison of streamline contours for terminal stage aneurysm at systole peak and late diastole The instantaneous streamline contours in the developing aneurysms are shown in Tables 4-6-8 and 10 at three different instances in one cardiac cycle, (points 1, 2 and 3 are as shown in Figure 2). These streamline contours correspond to two different flow rates and three different artery curvatures

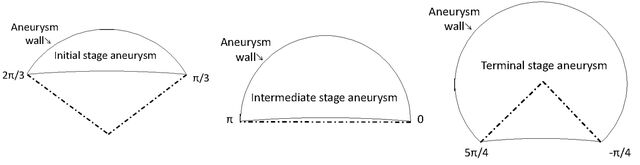

Figure 5. Geometrical definition of the aneurysm wall for three developing stages. 1871

Journal of Thermal Engineering, Research Article, Vol. 4, No. 2, Special Issue 7, pp. 1867-1878, February, 2018 A common observation to all contour lines is that the primary vortex is closer to the distal wall (as shown in Figure 1) during the diastole end (1), it then moves closer to the same corner during the systole peak and finally moves towards the center of the aneurysm during the diastole start. This behavior has also been reported by Bouillot et al. [13] where only straight vessels are investigated in the terminal stage. In all initial stages, the primary vortex approaches the aneurysm neck as the cardiac cycle moves through stages 1 to 3. On the other hand, in the intermediate stage, the primary vortex approaches the aneurysm neck in the systole peak. Secondary vortex formation is observed only in the terminal stage of Case 1 (straight artery, Re=350), for diastole end (close to distal neck) and diastole start (close to the center of the aneurysm cavity), where the secondary vortices for this geometry are mostly observed in the opposite side of the cavity under higher inertial effects [13]. This hemodynamic behavior can be considered as a result of the ‘shear driven flow’ feature [2]. Table 4. Streamline pattern for initial, intermediate and terminal stages at diastole end (1), systole peak (2) and diastole start (3) for Re=350, straight artery (Case 1) Case1

Table 5. Wall shear stress along the aneurysm wall for initial, intermediate and terminal stages for Re=350, straight artery (Case 1) Case1

Journal of Thermal Engineering, Research Article, Vol. 4, No. 2, Special Issue 7, pp. 1867-1878, February, 2018 Table 6. Streamline pattern for initial, intermediate and terminal stages at diastole end (1), systole peak (2) and diastole start (3), for Re=350, δ=1/6, Ɗ=71.44 (Case 2) Case 2

Table 7. Wall shear stress along the aneurysm wall for initial, intermediate and terminal stages, for Re=350, δ=1/6, Ɗ=71.44 (Case 2) Case2

Tables 5-7-9 and 11 summarize the wall shear stress distribution along the aneurysm wall for all the four cases (i.e. Case 1: Straight wall, Re=350, Case 2: δ=1/6, Re=350, Case 3: δ=1/4, Re=350, Case 4: δ=1/4, Re=500), where the aneurysm is developed in three stages (i.e. initial, intermediate and terminal). Three critical instances are considered in a cardiac cycle (i.e. diastole end (1), systole peak (2) and diastole start (3)). On each horizontal axis, the angles are measured from the center of the corresponding geometry and they are provided to locate the outermost line of the symmetry plane of the aneurysm wall (shown in Figure 5). The angle ranges are (2π/3:π/3) for initial stage, (π:0) for intermediate stage and (5π/4,-π/4) for terminal stage. On each vertical axis, the shear stress values are provided. The shear stresses are plotted in the clockwise direction along the aneurysm wall. It is observed that for all four cases, the wall shear stress during the systole peak (2) is higher than the diastole end (1) and diastole start (3) in the initial and intermediate stages. Similar observation is also reported in the numerical study of Valencia and Solis [10] for the terminal saccular aneurysm of the basilar artery. The maximum wall shear 1873

Journal of Thermal Engineering, Research Article, Vol. 4, No. 2, Special Issue 7, pp. 1867-1878, February, 2018 stress location is closer to the distal wall. During the initial stage, the maximum shear occurred closer to the distal wall and during the intermediate stage, the maximum shear occurred closer to the midpoint of the aneurysm wall. During the terminal stage, the maximum stress changed direction and the systole peak occurred in the vicinity of the distal corner where a stress concentration is observed. These observations are supported by the previous clinical and numerical studies in the literature [9 and 15]. Although the wall shear stress distributions along the aneurysm wall for the curved artery cases (Cases 2-3-4) have a similar trend, the wall shear stress distributions for the straight artery (Case 1) are different. The rich vortical structure during the terminal stage (shown in Table 4), leads to stress fluctuations along the wall in diastole end and diastole start instances (1 and 3 respectively). In Case 1, the change in the shear stress value along the aneurysm wall during the systole peak instance (2) is more intense compared to other cases. Table 8. Streamline pattern for initial, intermediate and terminal stages at diastole end (1), systole peak (2) and diastole start (3), for Re=350, δ=1/4, Ɗ=87.5 (Case 3) Case 3

Table 9. Wall shear stress along the aneurysm wall for initial, intermediate and terminal stages, for Re=350, δ=1/4, Ɗ=87.5 (Case 3) Case3

Journal of Thermal Engineering, Research Article, Vol. 4, No. 2, Special Issue 7, pp. 1867-1878, February, 2018 Table 10. Streamline pattern for initial, intermediate and terminal stages at diastole end (1), systole peak (2) and diastole start (3), for Re=500, δ=1/4, Ɗ=125 (Case 4). Case 4

Table 11. Wall shear stress along the aneurysm wall for initial, intermediate and terminal stages, for Re=500, δ=1/4, Ɗ=125 (Case 4) Case4

Table 12. Effect of the radius of curvature on the maximum wall shear stress, Re=350 Phase Max Wall Shear Stress (Pa) Initial Stage Intermediate Stage Terminal Stage

1 (Diastole end) Straight δ=1/6 δ=1/4 Case1 Case2 Case3 2.54 2.23 1.65

2(Systole peak) Straight δ=1/6 δ=1/4 Case1 Case2 Case3 3.48 3.41 3.26

3 (Diastole start) Straight δ=1/6 δ=1/4 Case1 Case2 Case3 0.79 0.79 0.79

Journal of Thermal Engineering, Research Article, Vol. 4, No. 2, Special Issue 7, pp. 1867-1878, February, 2018 Table 13. Inertia effect on the maximum wall shear stress, δ=1/4 Phase Max Wall Shear Stress (Pa) Initial Stage Intermediate Stage Terminal Stage

1 (Diastole end) Re=350 Re=500 Case3 Case4 1.65 2.19 2.93 3.59 -2.53 -3.20

2(Systole peak) Re=350 Re=500 Case3 Case4 3.26 3.40 3.14 3.84 -5.10 -5.82

3 (Diastole start) Re=350 Re=500 Case3 Case4 0.79 0.79 0.97 1.31 1.21 1.37

Tables 12 and 13, summarize the peak shear stress values, and demonstrate the effects of the curvature and the flow rate, respectively. In this study, the artery geometry is defined using the radius of the curvature. In the initial and intermediate stages for all cardiac instances the maximum wall shear stress value increases with the radius of curvature, where it is maximum for the straight artery (Case 1). However for the terminal stage, the maximum wall shear stress values for the curved arteries (Case 2 and Case 3) are higher than that of the straight artery (Case 1). As it can be observed in Table 13, for higher flow rates and the same artery geometry (Case 3 and Case 4), the maximum wall shear stress values are observed to be higher for all stages and cardiac cycle instances. The recirculation occurs inside the intracranial aneurysms mainly due to a sudden increase of the diameter of the artery [15]. The circulation is also enhanced with high radius of curvature at the artery [16-17]. In Case 1 where the artery is straight, the secondary vortex is observed in diastole end and diastole start. The wall shear stress cannot be evaluated experimentally or measured using current in vivo techniques and can only be determined from the numerical results [17]. The wall shear stress is evaluated from the gradient of the velocity, where high values indicate a sharper change in velocity. The wall shear stress has an important effect on the generation, progression and finally rupture of the aneurysm. The location of the maximum shear stress also has a significant role in the rupture mechanism. In all cases (Cases 1 - 4) the peak values of the wall shear stresses are observed to be closer to the distal neck and the maximum value is observed in systole peak in the vicinity of the distal neck. The vortical structure within the cavity of the aneurysm is laminar [9]. Although the flow is laminar, the wall shear stresses as shown in this study change rapidly within a cardiac cycle, which may cause vibration along the aneurysm wall and bruits which are significant observations during turbulent hemodynamic flow [3]. These vibrations may be one of the main reasons of the origin, progression and rupture of the intracranial aneurysm [9, 15]. The mechanism of the origin, progression and rupture of the intracranial aneurysm can be further revealed with an analysis that considers the hemodynamics associated with the vascular tissue mechanics, which is not considered in this study. In this context, a fluid solid interactive analysis can be carried out by considering a nonrigid wall. Also, flow fluctuations and abnormal stress growth affect the alignment of endothelial cells which has to be considered in remodeling. The mechanobiology and the histopathology of these lesions need to be investigated using new computational models like Fluid Solid Growth Models (FSGM), associated with the hemodynamics [18-21]. In summary, the artery curvature and the developing aneurysm stages play an important role in hemodynamic patterns. The wall shear stress increases with increasing radius of curvature and inertial forces.

Concluding Remarks

In this study, the hemodynamic patterns are evaluated and analysed for three artery curvatures and developing aneurysm geometries. The governing equations are solved with a finite difference scheme using body fitted curvilinear coordinates. The pulsatile flow in the artery is replaced with a simplified velocity boundary condition along the aneurysm neck. The key observations from the numerical simulation results are: during a cardiac cycle the developing aneurysm vortex is squeezed towards the aneurysm neck in the direction of distal neck and the wall shear stress reaches its maximum value during the systole peak and increases with both the radius of curvature and the flow rate. The results obtained in this study may provide insight about how the hemodynamic factors change with artery curvature for a developing aneurysm during a cardiac cycle. These biomechanical factors can be used to determine the underlying reasons of origin, progression and rupture of an aneurysm.

Journal of Thermal Engineering, Research Article, Vol. 4, No. 2, Special Issue 7, pp. 1867-1878, February, 2018

Nomeclature CFD

Computational Fluid Dynamics D Length of the aneurysm neck [m] D Rate of deformation tensor Ɗ Dean number FSGM Fluid Solid Growth Models I Identity tensor p Pressure [Pa] PIV Particle Imaging Velocimetry R Radius of curvature of the artery [m] Re Reynolds number SOR Successive over relaxation T Time [s] T Stress tensor u velocity vector V maximum velocity in the cardiac cycle [m/s] Vav average velocity [m/s] Vaxial blood velocity during a cardiac cycle [m/s] δ artery curvature [m] μ blood viscosity [Pa s] ρ blood density [kg/m3] τwall,av average wall shear stress [Pa]

References

1. Kassell, N. F., Torner, J. C., Haley Jr, E. C., Jane, J. A., Adams, H. P., Kongable, G. L. Participants. (1990). The International Cooperative Study on the Timing of Aneurysm Surgery: Part 1: Overall management results. Journal of Neurosurgery, 73(1), 18-36.
2. Steiger, H. J., Reulen, H. J. (1986). Low frequency flow fluctuations in saccular aneurysms. Acta Neurochirurgica, 83(3), 131-137.
3. Ferguson, G. G. (1970). Turbulence in human intracranial saccular aneurysms. Journal of Neurosurgery, 33(5), 485-497.
4. M. Aenis, A.P. Stancampiano, A.K. Wakhloo, A.B. Lieber. (1997). Modeling of flow in a straight stended and nonstended side wall aneurysm model. Journal of Biomedical Engineering, (119), 206-212.
5. Milner, J. S., Moore, J. A., Rutt, B. K., Steinman, D. A. (1998). Hemodynamics of human carotid artery bifurcations: computational studies with models reconstructed from magnetic resonance imaging of normal subjects. Journal of Vascular Surgery, 28(1), 143-156.
6. Y. S. Zhang, X. J. Yang, S. Z. Wang, A, Qiao, J. I. Chang, K. Y. Zhang, Z. C. Liu, Y. J. Zhao, Y. Zhang, B. Luo, C. H. Li. (2010). Hemodynamic effects of stenting on wide-necked intracranial aneurysms. Chinese Medical Journal, 123(15), 1999-2003.
7. Shishir, S. S., Miah, M. A. K., Islam, A. S., Hasan, A. T. (2015). Blood Flow Dynamics in Cerebral Aneurysm- A CFD Simulation. Procedia Engineering, 105, 919-927.
8. Meng, H., Wang, Z., Kim, M., Ecker, R. D., Hopkins, L. N. (2015). Saccular aneurysms on straight and curved vessels are subject to different hemodynamics: implications of intravascular stenting. American Journal of Neuroradiology, 27(9), 1861-1865.
9. Gonzalez, C. F., Cho, Y. I., Ortega, H. V., Moret, J. (1992). Intracranial aneurysms: flow analysis of their origin and progression. American Journal of Neuroradiology, 13(1), 181-188.
10. Valencia, A., Solis, F. (2006). Blood flow dynamics and arterial wall interaction in a saccular aneurysm model of the basilar artery. Computers & Structures, 84(21), 1326-1337.
11. Gijsen, F. J. H., Allanic, E., Van de Vosse, F. N., Janssen, J. D. (1999). The influence of the non-Newtonian properties of blood on the flow in large arteries: unsteady flow in a 90 curved tube. Journal of Biomechanics, 32(7), 705-713.
12. Mercan, H., Atalik, K. (2011). Flow structure for Power-Law fluids in lid-driven arc-shape cavities. Korea- Australia Rheology Journal, 23(2), 71-80.
13. Bouillot, P., Brina, O., Ouared, R., Yilmaz, H., Lovblad, K. O., Farhat, M., Pereira, V. M. (2014). Computational fluid dynamics with stents: quantitative comparison with particle image velocimetry for three commercial off the shelf intracranial stents. Journal of Neurointerventional Surgery, Neurintsurg.
14. Bouillot, P., Brina, O., Ouared, R., Lovblad, K. O., Farhat, M., Pereira, V. M. (2014). Particle imaging velocimetry evaluation of intracranial stents in sidewall aneurysm: hemodynamic transition related to the stent design. PLoS One, 9(12), e113762. 1877 Journal of Thermal Engineering, Research Article, Vol. 4, No. 2, Special Issue 7, pp. 1867-1878, February, 2018
15. Shojima, M., Oshima, M., Takagi, K., Torii, R., Hayakawa, M., Katada, K., Kirino, T. (2004). Magnitude and role of wall shear stress on cerebral aneurysm. Stroke, 35(11), 2500-2505.
16. Bogren, H. G., Mohiaddin, R. H., Yang, G. Z., Kilner, P. J., Firmin, D. N. (1995). Magnetic resonance velocity vector mapping of blood flow in thoracic aortic aneurysms and grafts. The Journal of Thoracic and Cardiovascular Surgery, 110(3), 704-714.
17. Tse, K. M., Chiu, P., Lee, H. P., Ho, P. (2011). Investigation of hemodynamics in the development of dissecting aneurysm within patient-specific dissecting aneurismal aortas using computational fluid dynamics (CFD) simulations. Journal of Biomechanics, 44(5), 827-836.
18. Humphrey, J. D., Taylor, C. A. (2008). Intracranial and abdominal aortic aneurysms: similarities, differences, and need for a new class of computational models. Annu. Rev. Biomed. Eng., 10, 221-246.
19. Humphrey, J. D. (2009). Coupling hemodynamics with vascular wall mechanics and mechanobiology to understand intracranial aneurysms. International Journal of Computational Fluid Dynamics, 23(8), 569-581.
20. Di Achille, P., Humphrey, J. D. (2012). Toward large-scale computational fluid-solid-growth models of intracranial aneurysms. The Yale Journal of Biology and Medicine, 85(2), 217.
21. Mei, Y., Chan, I., Chen, D., Watton, P. (2017). A novel Fluid-Solid-Growth-Transport (FSGT) framework for modeling the evolution of intracranial aneurysm disease. In Proceedings of the 5th International Conference on Computational & Mathematical Biomedical Engineering, 1271-1272. 1878
