Performance of low GWP fluids in heat pump systems

Abstract

Keywords: Heat pump; low GWP fluids; COP; exergy analysis

Introduction

With global energy demand being on the rise, energy efficiency and alternative energy supply are firmly embedded in the centre of scientific research. Whilst pursuing efficient power and heat production systems, there is a requirement for suggested solutions to be sustainable and environmentally friendly. With impact of global warming being more prominent, greater pledges are made towards reduction in CO2 emissions and pollution in general. Heat pumps and refrigeration systems have long been known and successfully employed in numerous commercial and industrial applications. With developing countries becoming more affluent, a sharp rise in air-conditioning demand is likely, potentially accelerated by the climate change. Use of heat 748

Research Article continuous efforts to reduce greenhouse gas emissions and raising environmental concerns, the future of HFCs in heat pump systems is uncertain. Since Montreal and Kyoto protocols, a number of pure fluids and fluid mixtures have been suggested as suitable replacement fluids for R22, amongst others R134a, R407C, and R410A, whose GWP is considerable. Furthermore, R134a is being phased out in Europe, and the initiative to completely ban most uses of HFCs in developed countries is well under way. Low GWP refrigerants are available, and more are being developed to replace the current generation of HFCs. Hence, it is not surprising they are in the spotlight on current scientific research [5, 6] (and references therein). Presently a range of hydrofluoroolefin (HFO) looks promising.

where numbering depicts the relevant points of the cycle: 2 and 3, for condenser inlet and outlet states, and 4 and 1, for evaporator inlet and outlet conditions, respectively. All fluid properties were evaluated by REFPROP 9.1. Coefficient of performance (COP) and exergetic efficiency were calculated as:

 T  q C 1  0   TC   ex   T  wcomp  q E 1  0   TE 

where TE, TC, and T0 are temperatures of the evaporator, condenser and dead-state, respectively. Maximum temperature difference in operational temperatures of the cycle was calculated as shown below. Exergy destruction in individual cycle components was evaluated from the exergy balance:

Three groups of fluids were considered. Firstly, historically used pure refrigerants, with high GWP and ODP: R12 and R22. These harmful fluids are included in the study for comparison purposes only. Suggested R22 replacement fluids [7], R134a and R245fa, were considered. Despite being widely used nowadays, high GWP fluids are expected to face bans in not too distant future as more low GWP fluids are being developed and their use encouraged due to environmental concerns and global warming effects. Second group comprised of selected mixtures, which have been developed to address high GWP fluids phase out whilst maintaining satisfactory performance characteristics. Nearly azeotropic mixtures, R404A (44% R125 + 52% R143a + 4% R134a) and R410A (50% R32 + 50% R125) have been designed to be used as R22 replacements. Zeotropic mixture R407C (23% R32 + 25% R125 + 52% R134a) is a similar blend with higher critical temperature, where three components deliver desired heat capacity, reduced flammability and pressure. It must be noted that the mixtures contain very high GWP fluids, R143a and R125 (GWP of 4300 and 3450, respectively). Overall GWP is lower due to the presence of more moderate GWP fluids, R32 (GWP = 650) and R134a (GWP = 1300). However, they still present a considerable environmental concern. In particular, R404A is the most widely used gas in the EU in stationary refrigeration systems, yet

System Model

Heat pump operation was modelled assuming steady-flow, steady-state system, with negligible kinetic and potential energy losses. Pressure drops in all cycle elements were ignored, with pressure changes occurring only during compression and expansion processes. Schematic of a simple heat pump system is given in Figure 1. Main processes can be outlined as: adiabatic compression, isobaric cooling in the condenser, isenthalpic expansion in the throttle, and isobaric heating in the evaporator. Saturated liquid state at the condenser outlet, and saturated vapour state at the inlet of the compressor were assumed in all cases. Evaporator operational pressure was determined as the saturation pressure at ambient temperature, which was varied in 273K – 300K range. Condensation temperature was fixed at 333K. Compressor isentropic efficiency of 80% was assumed. Heat and work exchanges were calculated as enthalpy gradients between relevant points of the cycle, as outlined below: (1) q E  h1  h4

Research Article revised f-gas regulations will introduce a ban on the use of virgin HFCs with a GWP higher than 2500 from 2020.

fluids fall into A1 category. Low GWP fluids typically have higher flammability; hence, A2 and A2L classification. The only high toxicity fluid (B) fluid considered is R245fa. Table 2. Environmental and safety properties of selected fluids.

Ashrae

Fluid ** *** R12 R22 R134a R245fa R404A R407C R410A R152a R1234yf R1234ze

1 4000 0.05 1700 0 1300 0 1030 0.04 3300 0 1610 0 1725 0 120 0 4 0 <1 ** ODP: Ozone depletion potential, relative to R11; *** GWP: Global warming potential, relative to CO2; **** ASHRAE Standard 34 – Refrigerant safety group classification. 1: No flame propagation; 2: Lower flammability; 3: Higher Flammability; A: Lower Toxicity; B: Higher Toxicity.

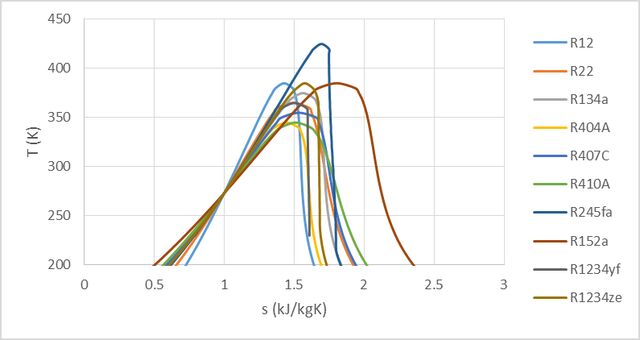

Figure 2. Saturation curves of selected fluids. Table 1. Basic thermodynamic properties of selected fluids. M Tb Tc pc Fluid (kg/kmol) (K) (K) (MPa) 120.91 243.40 385.12 4.1361 R12 86.47 232.34 369.30 4.9900 R22 102.03 247.08 374.21 4.0593 R134a 134.05 288.29 427.16 3.6510 R245fa 97.604 226.93/227.68* 345.27 3.7349 R404A 86.204 229.53/236.52* 359.29 4.6394 R407C 72.585 221.71/221.79* 349.49 4.9012 R410A 66.051 249.13 386.41 4.5168 R152a 114.04 243.70 367.85 3.3822 R1234yf 114.04 254.18 382.51 3.6349 R1234ze

Results And Discussion

Evaluation of heating performance of different refrigerants is presented in Figure 3 as a function of the evaporator temperature. Coefficient of performance increased with evaporator temperature similarly for all fluids. However, larger variations were observed for higher evaporator temperatures. Notable lower COP values were found for the mixtures, with R404A showing poorer performance than the other two. Best performing fluids, R245fa and R152a, reached COP values above 7 for the highest evaporator temperatures, outperforming R12, while R1234ze showed identical COP rise as R134a. COP of R1234yf cycle was higher than those of the mixtures, yet lower than any pure fluid. Interestingly, the difference between R1234 fluids was practically constant (0.5) across the temperature range. Our model is in agreement with Gorozabel Chata et al.[8] results, showing poorer performance of mixtures compared to high GWP pure fluids. Our results for R410A are somewhat lower than those reported by Palmiter et al. [9], yet this is presumably due to different assumption for compressor efficiency. Superb performance of R245fa has confirmed by Pan et al. [10], who suggested R245fa/R600 mixtures for high temperature conditions. Further differences in fluid behaviour were observed through comparison of the required compressor input. Specific work of compression is presented in Figure 4. By far the highest compressor work was needed for R152a; a third higher than the second highest compression work for R407C and practically twofold of the lowest work input of R12. Due to very low compressor demand R12 and its replacement R404A were historically favoured; our results identified identical behaviour of R1234yf, and somewhat higher values for R1234ze. Required work input of R245fa was marginally higher than that

Liquid/Vapour phase temperature at saturation at atmospheric pressure *

In the light of stringent environmental regulations a number of low GWP fluids entered international refrigerant market and quickly gained popularity. R152a has been seen as a potential replacement for R134a due to the similarity in operational parameters, but R152a GWP is one tenth of R134a one. Furthermore, family of hydrofluorolefins (R1234 group) has been developed to fully replace R134a. Their GWP is extremely low; however, there are flammability issues. Basic thermodynamic parameters of the considered fluids are given in Table 1. Ozone depletion potential and global warming potential, as well as ASHRAE flammability and toxicity classifications are given in Table 2. As shown on Figure 2, R152a is a slightly wet fluid, with the widest curve. Saturated vapour side is practically vertical for R245fa, R1234yf and R1234ze. Thus, these are isentropic fluids. With the highest critical temperature, R245fa saturation dome is obvious. Compared to R1234yf, R1234ze has higher critical point and generally larger saturation curve. Majority of 750

Research Article of R134a. Interestingly, R22 required higher compressor work than any of the suggested replacement fluids, including low GWP ones. Mixtures, R407C and R410A, also showed significant compressor input. Figure 5 depicts the magnitude of heat delivered to the condenser as the function of the evaporator temperature. Heat load varied largely for different fluids, with R152a again reaching an immense value. Having high compressor work and high heat input, it is not surprising R152a had very high COP. Heat delivered by R22 was the second highest below 14°C. Above this temperature threshold, R245fa showed marginally better performance. Both fluids also reached comparable COP values. However, R245fa is showing the best overall performance whilst requiring the lowest compressor work. The lowest amount of heat rejected was identified for R404A case. Low condenser outputs were also evaluated for R1234yf, R12, and R1234ze. Compared to R1234yf, R1234ze heat rejection load was higher. R1234ze compressor work was greater as well, and overall performance was better. Conversely, R1234yf had the lowest work requirement, but also the poorest performance of all pure fluids. Two R1234 refrigerants needed lower compressor input, but also absorbed less heat during evaporation compared to R134a. Hence, the performance was poorer and less heat available to the condenser. Maximum temperature difference, between the compressor inlet and outlet states, as specified in Eq. 7, presented in Figure 6 allows for three distinct groupings. R12, R404A and R134a showed virtually identical decrease in compressor outlet temperature. Other two mixtures, R407C and R410A, as well as R22, have reached notably higher temperatures at the end of compression step. Temperatures calculated for R152a compression were slightly lower than those of the top group, but still significant. On the other hand, R245fa and R1234 refrigerants achieved modest temperature lift, on average 10K lower than the intermediate group, and up to 30K lower than the high temperature group.

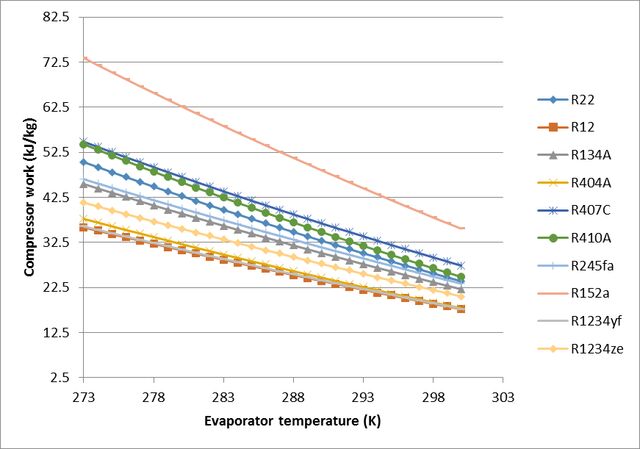

Figure 4. Required compressor work for different refrigerants as a function of the evaporator temperature.

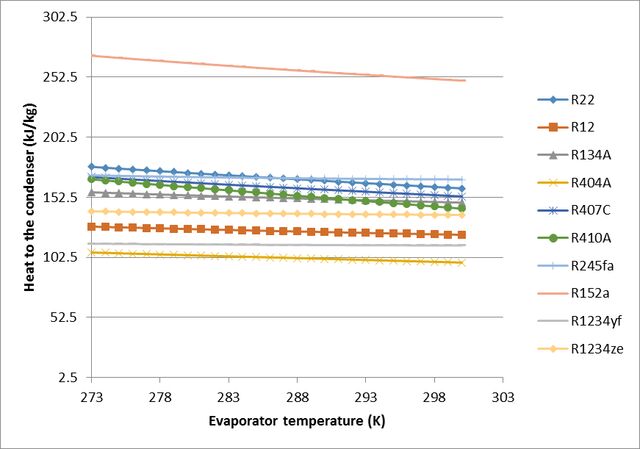

Figure 5. Specific heating load of different refrigerants as a function of the evaporator temperature.

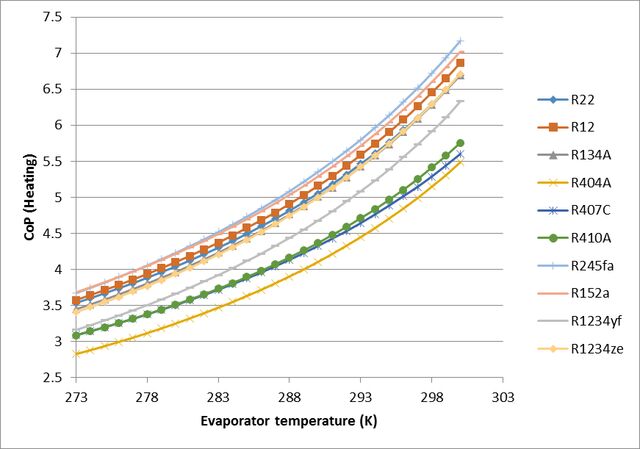

Figure 3. Coefficient of heat pump performance of selected refrigerants as a function of evaporation temperature.

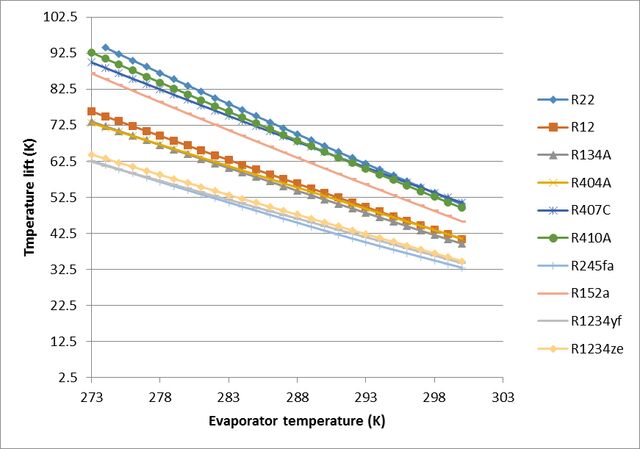

Figure 6. Temperature lift in different refrigerant systems as a function of the evaporator temperature. 751

Research Article and R1234yf. On the other hand, for R245fa and R152a more than 45% of destroyed exergy can be contributed to the evaporation. Table 3. Additional properties of selected fluids. R22 R12 R134a R404A R407C R410A R254fa R152a R1234yf R1234ze

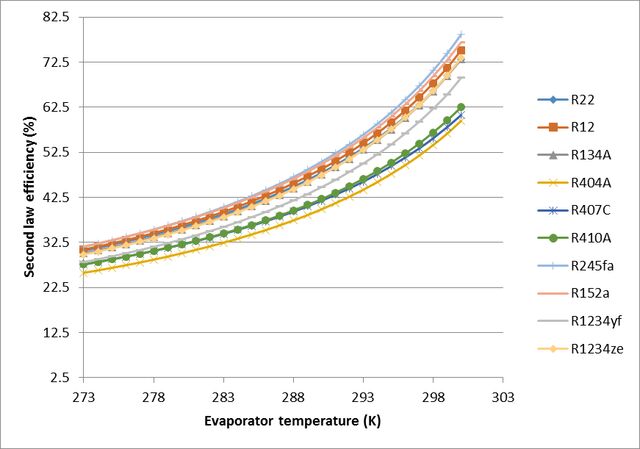

Figure 7. Exergetic efficiency of different refrigerants as a function of the evaporator temperature.

Thermal conductivity (mW/mK) TE = 15 °C TC = 60 °C 9.70 55.18 10.48 67.11 12.85 66.16 14.50 50.64 13.43 67.72 13.84 70.86 12.22 77.00 13.58 83.48 12.91 53.29 12.75 62.85

Kinematic viscosity (cSt) TE = 15 °C TC = 60 °C 0.4026 0.1101 0.3618 0.1049 0.4773 0.1176 0.2408 0.0860 0.3704 0.0992 0.2681 0.0823 1.7088 0.2066 0.7131 0.1360 0.3786 0.1057 0.6135 0.1267

Further fluid properties were also taken in account when evaluating suitability of low GWP refrigerant to be used in heat pump systems. Thermal conductivity is essential to ensure effective heat transfer, while low viscosity is desirable to avoid frictional losses in cycle elements. Selected fluid properties are presented in Table 3 for TE = 15 °C and TC = 60 °C. Thermal conductivity of mixtures was higher at lower temperatures making them good working fluids in low temperature environments. However, at condenser temperature significantly higher thermal conductivity values were found for R152a and R245fa; R1234 fluids had lower values which may cause issues in heat transfer in the condenser. Additionally, R152a and R245fa have notably higher kinematic viscosities than pure fluids, which could prove to be problematic, primarily for compressor operation, but also for the system on the whole. Nonetheless, R1234 fluids had lower viscosities, similar to those of pure high GWP fluids, and with appropriate thermal properties [11] must be considered as likely replacement for conventional working fluids in heat pump systems.

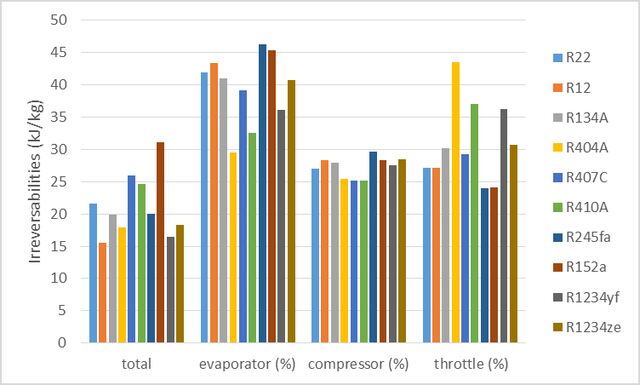

Figure 8. Overall exergy destruction and its distribution across cycle components for different refrigerants at TE = 15 °C. In terms of exergetic performance, our selected fluids can be roughly divided into two groups, as shown in Figure 7. Tested mixtures generally showed lower exergetic efficiency than pure fluids, with R1234yf being the worst performing fluid in the latter category. While pure fluids showed very similar increase of exergetic efficiency with evaporator temperature, slightly larger values were found for R245fa and R152a, with R1234ze yielding identical efficiencies as R134a. Nevertheless, comparison of overall exergy destruction values paints a different picture. Total irreversibilities varied greatly; R22, R404A and R1234 fluids had low exergy destruction rates, whilst the highest one was observed for R152a. Distribution of exergy destruction in individual cycle components is of interest. Approximately 25% of irreversibilities occurred during the compression for all mixtures, and up to 30% for pure fluids. However, exergy destruction in the evaporator and the throttle were very dissimilar for different fluids. The expansion process was the primary cause of irreversibilities for R404A, R410A

Conclusion

Gradual phase out of high GWP fluids threatens to affect current systems performance unless suitable low GWP replacement fluids are found. We have assessed the behavior of various fluids, concentrating on potential low GWP replacement fluids for R134a. Coefficient of performance of R152a and R245fa is somewhat higher than that of R134a. However, R152a requires substantial compressor work, while R245fa, despite comparable heat and work exchanges, is a highly toxic fluid. R1234 fluid family is also promising. R1234ze shows similar thermal performance and exergetic efficiency. Additionally, these fluids exhibit very modest exergy destruction rates and they may have an important role in the search for high GWP replacement fluids 752

Nomenclature

ex specific exergy (kJ/kg) h specific enthalpy (kJ/kg) i specific irreversibility (kJ/kg) M molecular mass (kg/kmol) p pressure (MPa) q specific heat (kJ/kg) s specific entropy (kJ/kgK) T temperature (K) w specific work (kJ/kg) η efficiency (%) Subscripts 0 1, 2, etc. b c comp C E ex in HP out p T th

Efficient Economy Summer Study., eceee, Presqu'ile de Giens, France, 2011. [3] IEA, Retrofit heat pumps for buildings: final report. IEA heat pump programme., in, IEA Heat Pump Centre, Boras, 2010. [4] EST, Getting warmer: A field trial of heat pumps, in: E.S. Trust (ed.), London, 2010. [5] C. Kondou, S. Koyama, Thermodynamic assessment of high-temperature heat pumps using Low-GWP HFO refrigerants for heat recovery, International Journal of Refrigeration. [6] J. Radulovic, Utilisation of Fluids with Low Global Warming Potential in Supercritical Organic Rankine Cycle Journal of Thermal Engineering, 1 (2015) 24-30. [7] I. Sarbu, A review on substitution strategy of nonecological refrigerants from vapour compression-based refrigeration, air-conditioning and heat pump systems, International Journal of Refrigeration, 46 (2014) 123-141. [8] F.B. Gorozabel Chata, S.K. Chaturvedi, A. Almogbel, Analysis of a direct expansion solar assisted heat pump using different refrigerants, Energy Conversion and Management, 46 (2005) 2614-2624. [9] L. Palmiter, J.-H. Kim, B. Larson, P.W. Francisco, E.A. Groll, J.E. Braun, Measured effect of airflow and refrigerant charge on the seasonal performance of an air-source heat pump using R-410A, Energy and Buildings, 43 (2011) 1802-1810. [10] L. Pan, H. Wang, Q. Chen, C. Chen, Theoretical and experimental study on several refrigerants of moderately high temperature heat pump, Applied Thermal Engineering, 31 (2011) 1886-1893. [11] G.A. Longo, C. Zilio, G. Righetti, J.S. Brown, Experimental assessment of the low GWP refrigerant HFO1234ze(Z) for high temperature heat pumps, Experimental Thermal and Fluid Science, 57 (2014) 293-300.

reference state states of the cycle normal boiling point critical compressor condenser evaporator exergetic inlet heat pump outlet pressure turbine Thermal
