Numerical simulation of a stepped capillary tube used in residential heat pump systems

Abstract

Keywords: Capillary tubes; Refrigeration; Two-phase flow; Expansion devices; New design

Introduction

Residential heat pumps provide heating in winter and cooling in summer. In the cooling mode, the indoor heat exchanger works as an evaporator and the outdoor as a condenser; in the heating mode, the indoor ones works as a condenser and the outdoor as an evaporator [1]. The flow 517

is longer than in the cooling ones resulting in a smaller mass flow rate in the heating mode. The stepped capillary tube proposed by Zhao et al. [2] consists of a main capillary tube and an auxiliary capillary tube in series connection and does not employ a by-pass check valve. The inner diameter of the main capillary tube is larger than the auxiliary capillary tube; in the heating mode the refrigerant goes through both capillary tubes

also requires the selection of the following empirical correlations and boundary conditions to close the numerical problem related with the governing equations and the number of unknown variables:  The evaluation of the shear stress by means of the following expression: W   f 4 m 2 2A2 where  and

 are the friction factor and a two-phase multiplier, respectively.  The calculation of the pressure drop by a balance over a given CV using a suitable empirical equations when a singularity process is presented (i.e., a sudden contraction or a sudden enlargement).  The knowledge of the two-phase flow pattern, which is correctly evaluated by using a suitable correlation for the void fraction (g) calculation.  The definition of proper boundary conditions at the inlet and outlet sections of a stepped capillary tube. At the inlet section, the inlet pressure (pin), and either temperature (Tin) or mass fraction (xgin) should be given, depending if the inlet fluid is under single- or two-phase flow conditions; whereas at the outlet section, the discharge pressure (pd) must be given.

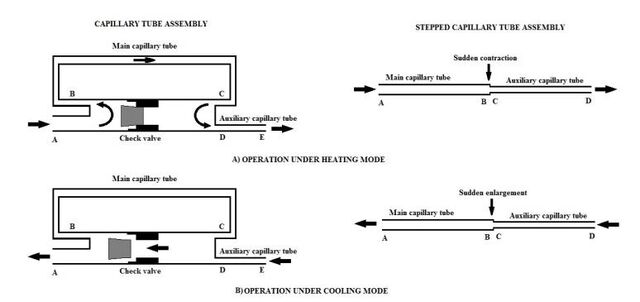

in series flowing the path of A-B-C-D; and a sudden contraction occurs at B-C; whereas in the cooling mode, the refrigerant flow direction is reversed D-C-B-A and a sudden enlargement occurs at C-B [2]. FIGURE 1. CAPILLARY TUBE ASSEMBLY AND

Heating And Cooling Operation MODE

Although the simple designs of a stepped capillary tube, the two-phase flows that occur inside them are somewhat complex, which make difficult to find out a general theoretical model to predict their behaviour with accuracy. Results have indicated that choked and metastable flows can coexist inside capillary tube expansion devices used in heat pump systems [3-4]. The objectives of this study to apply and to validate the numerical simulator for modeling stepped capillary tubes by considering separated flow model and metastable regions. The numerical solution was performed by discretization of the onedimensional governing equations based on a finite volume formulation. The use of the entropy equation enabled the physical processes produced under critical flow conditions to be successfully detected. The mass flow rate results obtained from this simulation study were compared with experimental measurements for validating the model performance.

FLOW Inside A CV Of The Model

Evaluation of empirical coefficients The one-dimensional mathematical model required information for representing the thermodynamic and fluid flow regions (e.g., subcooled liquid, metastable liquid, metastable two-phase, and equilibrium two-phase), which were obtained from additional empirical correlations. After a comprehensive review of these correlations, given previously in GarcíaValladares [5], the following equations were kept and selected for modelling each region:

Mathematical Formulation

A mathematical formulation for two-phase flow inside a control volume (CV) of a tube was originally reported by García-Valladares [5]. The CV is shown schematically in Fig. 2, where ‘i’ and ‘i+1’ represent the inlet and outlet cross section area of the tube, respectively. Taking into account the geometry of tubes (i.e., diameter, length, roughness, inclination angle, etc.), the governing equations were solved by using the following assumptions: (i) one-dimensional flow [p(z,t), h(z,t), T(z,t),...]; (ii) adiabatic flow; (iii) neglecting axial heat conduction through the fluid; (iv) constant internal diameter, and (v) uniform surface roughness. The one-dimensional model

Single-phase (subcooled liquid or superheating vapour) The friction factor (ƒ) was calculated from the empirical correlations suggested by Churchill [6].

When w approaches unity, the superheated liquid vanishes, and the fluid flow process enters to an equilibrium state of twophase flow. In the metastable two-phase region, two temperatures should be known: the superheated liquid temperature (Tm), and the saturation liquid or gas temperature (Teq). For this reason, an average temperature requires to be calculated as follows:

Metastable liquid This region initiates when the pressure drops down to the saturated pressure condition, and finishes at the beginning of the vaporization process. The pressure of vaporization (pv) at the flashing point was computed by a correlation proposed by Chen et al. [7]:

   0.914 T  0.208 D  3.18 l sc  0.679  Re    D'  T    l   g  c  

(1) where D' is a reference diameter given by the following KTsat,l x104 . equation: D'   Constants of equation (1) were determined with R-12 fluid data collected from experimental works carried out with adiabatic capillary tubes under the following operating conditions: 1.44x103<G<5.09x103 kgm-2s-1; 0<Tsc<17 K; and 0.66x10-3<D<1.17x10-3 m. Bittle and Pate [8] extended the use of this correlation for a wide variety of refrigerants (R12 to R134a, R22, R152a and R410A). Since it constitutes the unique reliable correlation reported in the literature for these purposes, Eq. (1) was implemented into the numerical model. In the metastable liquid region, the fluid thermodynamic properties were estimated by using the values corresponding to liquid saturated conditions at the fluid pressure. Temperature was determined from the thermodynamic relationship: dh  c p dT   h  dp  p T

where xg is the vapour mass fraction, which results from the mean fluid enthalpy equation; and Teq and xgeq are the values obtained for the temperature and mass fraction, respectively, if the fluid were in thermodynamic equilibrium. Due to the lack of specific correlations for the metastable two-phase region, the friction factor was estimated in the same way as for the equilibrium two-phase region. Two-phase zone under equilibrium conditions Considering a separated two-phase flow model (vgvl), the void fraction (g) was estimated from a semi-empirical equation suggested by Premoli et al. [11]. The friction factor was calculated from the same equation as in the case of the singlephase flow using a correction factor (two-phase frictional multiplier) according to Friedel [12]. Singularities Sudden contraction. The model developed by Schmidt and Friedel [13] was adopted for performing the simulation work. Sudden enlargement. The equation proposed by Chisholm [14] was used.

calculated from the energy equation (see García-Valladares et al. [9]). The friction factor parameter was calculated in the same way as for the single-phase region.

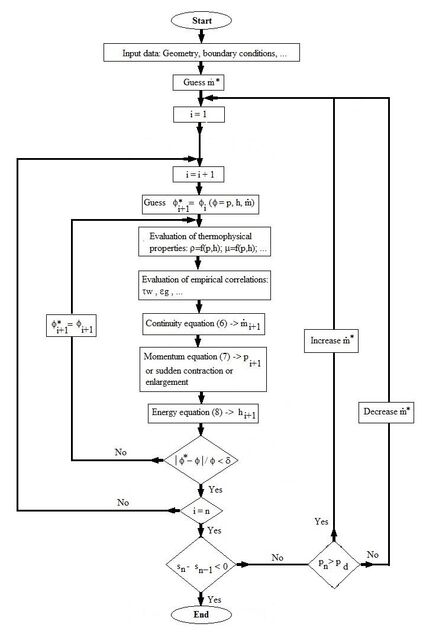

Global numerical algorithm The main objective of this numerical work was to determine the mass flow rate at any time instant inside stepped capillary tubes. Due to the high pressure gradients produced at the end of them, a non-uniform concentrated grid at the outlet section (Fig. 3) was designed using the following equation: L   i  (i  1)  Δzi   (5) tanh k   tanh k tanh(k)  n n    

Metastable two-phase In this region, Feburie et al. [10] suggest that the two-phase flow can be analyzed considering three states: superheated or metastable liquid (denoted by the subscript m), saturated liquid (subscript l), and saturated vapor (subscript g). The governing equations of continuity, momentum and energy were used to estimate the mass flow rate, the fluid pressure, and the mean fluid enthalpy, respectively. A w variable, defined as mass ratio between the sum of saturated liquid and vapour phase and the total phase, i.e., w=(ml+mg)/(ml+mg+mm), was used to estimate the superheated liquid mass flow. This variable was computed by means of the correlation proposed by Feburie et al. [10]:  p p dw P  0.02 1  w sat,l  dz  A  pc  psat,l 

where zi represents the size of the ith CV, and k is the concentration factor, which has a value of k  0 (for a nonuniform distribution a typical value of k=2.5 was adopted). Discretized equations were then coupled by using a fully implicit step-by-step method in the fluid flow direction. From the known input variables (at the inlet section and the wall boundary conditions), their corresponding values at the outlet section of each CV were iteratively calculated using the discretized equations. This numerical scheme used at the outlet section was considered as the new inlet values for the next CV using a strict convergence condition which was verified in each CV before to advance to the next CV. The numerical procedure is completed until the end of the stepped capillary tube is reached.

The mean fluid enthalpy was calculated from the three fluid phase enthalpies and their mass fractions as follows: (3) h  xmhm  xl hl  xg hg  1  whm  w  xg hl  xg hg This equation also allows the vapour mass fraction (xg) to be estimated. According to Feburie et al. [10], the temperature of the superheated liquid was assumed constant in this region. 519

At the thermodynamic equilibrium zones (i.e., subcooled liquid, superheated vapour, and equilibrium two-phase regions), temperature, mass fraction, and all the thermophysical properties were estimated by using matrix functions of pressure and enthalpy, which were computed with the REFPROP v.8.0 program [15]: (9) T  f ( p, h); xg  f ( p, h);   f ( p, h); ...

generic dependent variable (= h, p, T, , ...); superscript “o” indicates the value of the previous instant. Average values of different variables were estimated through an arithmetic mean of their values between the inlet and outlet sections, i.e, ~i  i  (i  i  1)/2 .

The above mentioned conservation equations of mass, momentum and energy, together with the thermophysical properties, were also applicable to transient two-phase flow. Steady- and/or single-phase (liquid or gas) flows were particular cases of this formulation. Moreover, a mathematical formulation in terms of fluid enthalpy provided a more simple scheme for the numerical solution (because only one equation is needed for all the regions), which could be useful for the analysis of a fluid flow composed by a mixture of refrigerants. The fluid flow inside stepped capillary tube was divided into four regions (if all these appear): subcooled (zone I: when p  psat,l, xg=0); metastable liquid (zone II: when psat,l > p  pv, xg=0); metastable two-phase (zone III: when pv > p  psat,g, 0 < xg < xgeq, 0  w  1); and a thermodynamic equilibrium twophase (zone IV: when pv > p  psat,g, xgeq < xg  1). Using the differentiation conditions among regions, the CV (where the transition occurs) is defined. For evaluating the position of the transition point, the CV was split into two CVs (see García-Valladares et al. [16]). The length of the first CV was calculated from the momentum equation, assigning the pressure condition to define the new thermodynamic region at the outlet section. The length of the second CV was then determined by a simple difference among them. Depending on the empirical correlations used, the friction factors can increase or decrease significantly among regions. The numerical global algorithm can be summarized as follows: the inlet mass flow rate was iteratively estimated by a Newton-Raphson algorithm for obtaining the critical flow conditions, which were reached when the entropy equation was not valid in the last CV. To check the critical flow conditions, other authors propose the use of the criterion dp/dz. For our purposes, both critical flow criteria were equivalent. A flow diagram for calculating the critical mass flow rate through stepped capillary tube is shown in detail in Fig. 4 In the case of the mass flow rate, a change of variable was adopted to ensure

Based on the numerical approaches described above, the governing equations were discretized for estimating the value of the main dependent variables (e.g., mass flow rate, pressure and enthalpy) at the outlet section of each CV. The resulting form of the governing equations was as follows: For the discretized continuity equation, the outlet mass flow rate was calculated by means of the following equation: m  i 1  m i

Gas and liquid velocities were calculated in terms of the mass flow rate, as follows:  m  xg  ; vg     g g A   

From the discretized momentum equation, the outlet fluid pressure was determined as follows:   2  z  f m    D   Agsin θ  ...   tp A  4 2 A 2  tp   i 1   m  x g v g  (1  x g )vl o   m  m  i  ...    t z    

o  h - 2h o     v 2   o v o 2  c  2 pi  pio    tp  i i   i i      

For each CV, a set of algebraic equations was obtained by a discretization of the governing equations of continuity, momentum and energy. Transient terms of these equations were also discretized by using the following where

a  x g vg  (1  x g )vl 2  gsinz  hi i 1 b  x g vg  (1  x g )vl 2  gsinz  h i i

Stepped Capillary TUBE

-am  i  1  bm  i  cAz / t o m  i 1  m  i  tpAz/t

In the case of a singularity (sudden contraction or sudden enlargement), the equations indicated in the section of singularities are used in order to calculate de pressure drop and after that the corresponding outlet fluid pressure. From the use of energy and continuity equations, the following discretized equation was finally obtained for estimating the outlet fluid enthalpy under adiabatic flow conditions:

independent variable). A factor fNR greater than 3.5 provided a satisfactory fitting in most of applications.

al., all the numerical cases were solved by considering a tube roughness of 0.3 x 10-6 m [18]. Grid independent solutions were systematically obtained for the following numerical parameters: n=1000, k=2.5 and fNR=3.5. According to the numerical results obtained by the model developed, the cases 1, 2, 4, 5, 7, 8 and 13 (see Table 1) of a stepped capillary tube in the cooling operation mode are working in a non-choke flow. c a s e 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Geometry (mm), working conditions (°C) L1 L2 Tcond 200 600 45 200 600 50 200 600 55 400 600 45 400 600 50 400 600 55 600 600 45 600 600 50 600 600 55 600 200 45 600 200 50 600 200 55 600 400 45 600 400 50 600 400 55

Measured mass flow rate (kg h-1) Heat Cool 44.37 46.40 47.76 49.31 50.90 52.11 43.48 45.26 45.88 47.27 49.94 51.34 41.38 42.94 45.23 45.48 48.22 48.90 53.70 60.71 57.57 65.43 61.22 68.17 47.76 51.37 50.50 54.82 55.06 58.22

Model mass flow rate (kg h-1) Heat Cool 43.15 46.15 46.16 49.29 49.28 52.67 41.81 45.39 44.73 48.63 47.78 51.92 40.55 44.37 43.43 47.56 46.38 50.79 54.14 66.75 57.67 71.46 61.33 76.40 45.79 52.21 48.95 55.74 52.21 59.37 Average deviation

Deviation (%) Heat Cool 2.75 0.54 3.35 0.04 3.18 1.07 3.84 0.29 2.51 2.88 4.33 1.13 2.01 3.33 3.98 4.57 3.82 3.87 0.82 9.95 0.17 9.22 0.18 12.07 4.12 1.64 3.07 1.68 5.18 1.98 2.89 3.62

Results Against Experimental Data For

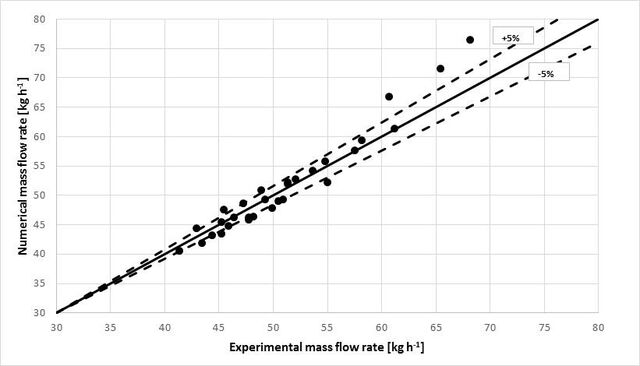

STEPPED CAPILLARY TUBES. FOR ALL THE CASES D1=1.7 mm, D2=1.3 mm, Tsc=5°C AND Tevap=5°C. Results of the comparative analyses Fig. 5 shows an excellent degree of correlation between all the numerical and experimental results compared. Average random deviation errors of ±2.9 %, and ±3.6% were computed for heating and cooling operation mode respectively; the average deviation error of all the experimental data set was ±3.2%. 96.7% of the 30 data points evaluated are within an error of ±10%, 86.7% are within ±5%.

Critical MASS FLOW RATE Along The Stepped Capillary TUBE

After determining the critical flow conditions, critical and discharge fluid pressures were compared. If the critical pressure is greater than or equal to the discharge pressure, the fluid flow will be critical, and therefore, the discharge shock wave needs to be solved; otherwise, the flow will be non-critical. Under such non critical conditions (where the outlet and the discharged pressure are equal), the mass flow rate must be reevaluated by applying again the Newton-Raphson algorithm using the outlet pressure as a new dependent variable.

Results And Discussion

To characterize the adiabatic flows inside stepped capillary tubes, the following design and thermodynamic parameters were considered (see Fig. 1): (i) Tube geometries for the main and auxiliary capillary tube (length, inner diameter and roughness); (ii) R-22 working refrigerant properties [15]. According to the values measured in copper tubes by Young et

Conclusion

A numerical model for analysing stepped capillary tubes expansion devices considering metastable region has been successfully developed. One-dimensional analysis of the governing equations (continuity, momentum, energy and entropy) was carried out. The numerical model implemented was solved on the basis of a finite volume formulation of the governing equations. Comparison of numerical simulation results were successfully carried out against a mass flow rate experimental data for R-22 for heating and cooling operation mode in a residential heat pump system. An average deviation error of ±3.2% was computed between numerical model and experimental data, which also demonstrates the acceptable capability of the model developed for predicting the fluid flow processes.

Nomenclature

A cross section area [m2] cp specific heat at constant pressure [J kg-1 K-1] CV control volume D diameter [m] f friction factor fNR change of variable (in the Newton-Raphson algorithm) g gravity force [m s-2] G mass velocity [kg m-2 s-1] h enthalpy [J kg-1] k mesh concentration factor K Boltzmann’s constant 1.380662x10-23 [J K-1 mol-1] L length [m] m mass flow rate [kg s-1] n number of CVs p pressure [Pa] pv pressure of vaporization [Pa] P perimeter [m] s entropy [J kg-1 K-1] t time [s] T temperature [K] v velocity [m s-1] w mass ratio of total saturated phase to total phase xg mass fraction (vapour quality) z axial coordinate

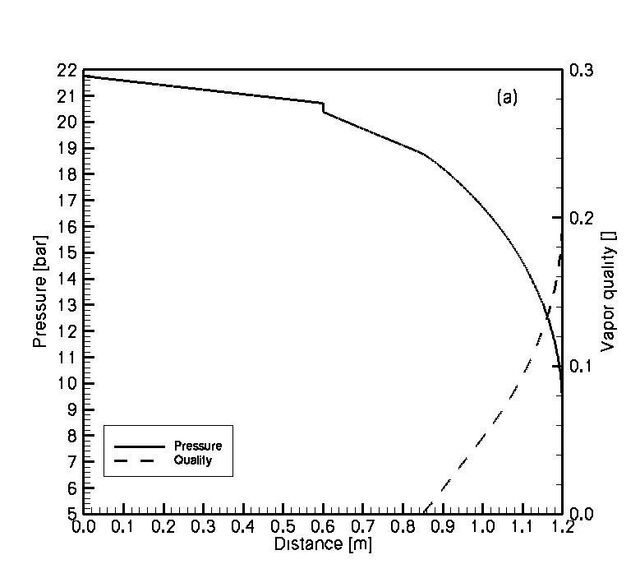

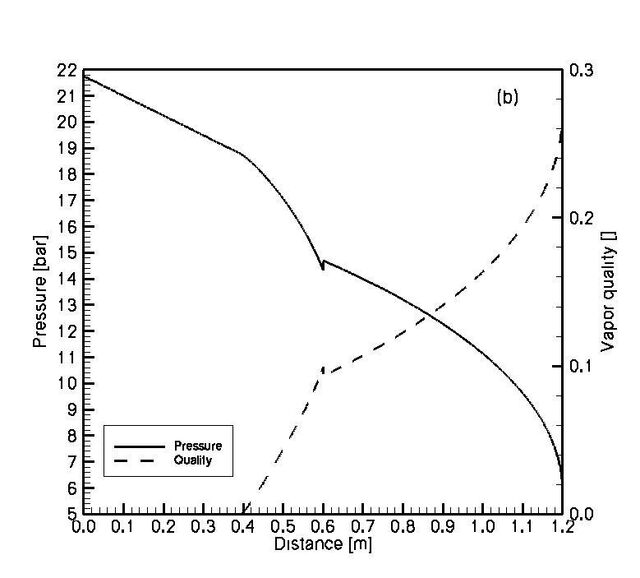

Distribution Along A Stepped Capillary TUBE

OPERATING IN: (a) A HEATING MODE, (b) A COOLING MODE Figs 6a-b shown the results for the heating and cooling mode respectively. In these figures, it is possible to see how the sudden contraction (in the heating mode) or sudden enlargement (in the cooling mode) occurs inside the stepped capillary tube at

[7] Z.H. Chen, R.Y. Li, S. Lin, Z.Y. Chen, A correlation for

temporal discretization step [s] subcooling degree [K] spatial discretization step [m] void fraction generic dependent variable two-phase frictional multiplier inclination angle [rad] dynamic viscosity [Pa s] density [kg m-3] surface tension [N m-1] shear stress [N m-2]

metastable flow of refrigerant 12 through capillary tubes, ASHRAE Transactions 96 (1) (1990) 550-554. [8] R.R. Bittle, M.B. Pate, A theoretical model for predicting adiabatic capillary tube performance with alternative refrigerant mixtures, ASHRAE Transactions 102 (2) (1996) 52-64. [9] O. García-Valladares, C.D. Pérez-Segarra, A. Oliva, Numerical simulation of capillary-tube expansion devices behaviour with pure and mixed refrigerants considering metastable region. Part I: mathematical formulation and numerical model, Applied Thermal Engineering 22 (2) (2002) 173-182. [10] V. Feburie, M. Goit, S. Granger, J.M. Seynhaeve, A model for choked flow through cracks with inlet subcooling, International Journal of Multiphase Flow 19 (4) (1993) 541-562 [11] A. Premoli, D. D. Francesco, A. Prina, A dimensional correlation for evaluating two-phase mixture density, La Termotecnia 25 (1971) 17-26. [12] L. Friedel, Improved friction pressure drop correlation for horizontal and vertical two-phase pipe flow, Proceedings of European Two-Phase Flow Group Meeting, Ispra, Paper E2 (1979). [13] J. Schmidt, L. Friedel, Two-phase pressure drop across sudden contractions in duct areas, International Journal of Multiphase Flow 23 (2) (1997) 283-299. [14] D. Chisholm, Theoretical aspects of pressure changes at changes of section during steam-water flow, NEL Report 418 (1969). [15] REFPROP version 8.0, Reference Fluid Thermodynamics and Transport Properties, NIST Standard Reference Database 23, Gaithersbug, MD 20899, USA (2007). [16] O. García-Valladares, C.D. Pérez-Segarra, J. Rigola, Numerical Simulation of double-pipe condensers and evaporators, International Journal of Refrigeration 27 (6) (2004) 979-991. [17] F. Escanes, C.D. Pérez-Segarra, A. Oliva, Numerical simulation of capillary tube expansion devices, International Journal of Refrigeration 18 (2) (1995) 113122. [18] P.L. Young, T.P. Brackbill, S.G. Kandlikar, Estimating roughness parameters resulting from various machining techniques for fluid flow applications. In: Fifth International Conference on Nanochannels, Microchannels and Minichannels, Paper ICNMM2007-30033 1-9 (2007).

Subscripts c critical d discharge eq thermodynamic equilibrium g gas or vapour l liquid m superheated or metastable liquid sat saturation tp two-phase w wall z axial direction Superscripts o previous instant * previous iteration arithmetical average over a CV:   i  i 1  2
