Positive impact of vibration on heat transfer in twisted tape inserted heat exchanger

Abstract

Keywords: Heat exchanger; Counter flow; Heat transfer enhancement; Nusselt number; Vibration; Twisted tape insert

Introduction

Heat exchangers are systems used to transfer heat between two or more fluids. They are widely used in industrial and domestic applications where heat transfer is involved. Double pipe heat exchangers are unique in operating temperature range, overall size and maintenance ease compared to other heat exchangers. They are particularly suitable for different processes in wastewater treatment and food processing units. Heat transfer intensification

of double pipe heat exchangers can result in considerable energy and material savings. Though different enhancement techniques exist to improve heat transfer, these techniques unfortunately increase pressure drop inducing higher pumping cost. Therefore, optimization is essential between enhanced heat transfer and higher pumping cost in any enhancement technique utilized on double pipe heat exchangers.

*Corresponding author. *E-mail address: arasavellipublications@gmail.com This paper was recommended for publication in revised form by Editor Ali Celen Published by Yıldız Technical University Press, İstanbul, Turkey Copyright 2021, Yıldız Technical University. This is an open access article under the CC BY-NC license (http://creativecommons.org/licenses/by-nc/4.0/).

Surface Vibration Omidi et al. [1] revealed considerable research on different enhancement techniques applied to double pipe heat exchangers. Suitable active techniques that require external power to double pipe heat exchangers are surface vibration, flow vibration, rotating pipes etc. Sheikholeslami et al. [2] explained benefits in applying active techniques to heat exchangers. Active techniques increase formation of convection currents in fluid regions of heat exchanger compared to popular passive techniques. Atashi et al. [3] experimented on heat transfer of vibrated vertical cylinder in a water vessel at different frequencies and heat fluxes. Strong influence of vibration on heat transfer was found at 25 Hz frequency and 30 kW/ m2 heat flux. Lemlich and Hwu [4] imposed vibrations at resonant frequencies to improve heat transfer between working fluids in double pipe heat exchanger significantly. Nu increased in both laminar and turbulent fluid flow conditions. Klaczak [5] exposed heat exchanger to vibrations at non-resonating frequencies and showed decrease in heat transfer between steam and water. Heat transfer improved by a maximum of 5% compared to plain heat exchanger under laminar conditions. Gondrexon et al. [6] conducted experiments on heat exchanger by using 35 kHz piezoelectric vibrator to show positive effect on convective heat transfer. Overall heat transfer coefficient with vibration increased in the range of 123% to 257% for different hydrodynamic configurations. Legay et al. [7] developed data acquisition system for vibrating double pipe heat exchanger to find accurate inlet and outlet temperatures for both fluids at regular intervals. Effect of 35 kHz vibrator on thermal resistance was more on the annulus side compared to tube side due to the hindrance in vibration transmission. Legay et al. [8] experimentally compared the performance of two different tubular heat exchangers at vibration frequency of 35 kHz and found that enhancement ratio for shell and tube heat exchanger is slightly higher. Gondrexon et al. [9] illustrated interesting results of heat transfer intensification with fouling reduction by applying 35 kHz vibrations on double pipe heat exchanger. Energy balance method compared results of heat transfer with and without vibration in a heat exchanger. Arasavelli et al. [10] demonstrated the effect of transverse vibration on heat transfer in a tubular heat exchanger experimentally. 33% maximum increase in Nusselt number is noticed at specific frequency, amplitude and vibrator position. In another work [11], they concluded that Nusselt number improved maximum of 44% for heat exchanger with different configuration at a vibrator position of 0.25. Sarma et al. [12] determined variation in fouling thickness with respect to time for double pipe heat exchangers and compared with corresponding data available in the existing literature.

Twisted Tape Inserts Twisted tape inserts provide heat transfer enhancement in tube heat exchangers with less penalty on pumping power compared to other available passive techniques. Liu and Sakr [13] reviewed experimental and numerical works done by various researchers and provided different categories of twisted tapes namely multiple twisted tapes, twisted tape with fins, twisted tapes with cuts etc. In another review paper, Varun et al. [14] described the effective method of changing twisted tape geometries to improve heat transfer in heat exchanger systems. A few studies have been made on the use of twisted tape inserts in heat exchanger systems of food processing units. Kumar et al. [15] summarized experimental and numerical studies on twisted tape inserts in heat exchanger tubes. Swirl fluid motion due to twisted tape caused increase in heat transfer and friction factor of heat exchanger tubes. Gupte and Date [16] experimentally determined the Nu for air flowing through annulus with radius ratios of

Experimental Setup

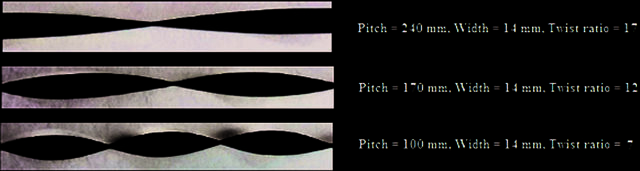

The structure of the experimental setup used in this study is shown in Figure 1. DTHECF experimental system consists of twisted tape inserted heat exchanger, electrodynamic vibrator, hot water system, cold water system and measuring devices. Twisted tape inserted heat exchanger consists of inner pipe with inserts, outer pipe and insulation. The inner pipe was made of copper with 2 mm thickness, 19 mm outer diameter and 2000 mm length while the outer pipe was made of Chlorinated Poly Vinyl Chloride (CPVC) with 3 mm thickness, 35 mm outer diameter and 1750 mm length. Asbestos rope with thickness of 5 mm insulated the outer pipe to minimize heat transfer losses from the heat exchanger. Twisted tapes used in experiment are aluminium tapes that are twisted in one direction with 2 mm thickness (t), 14 mm width (w) and 2000 mm length (l). As shown in Figure 2, twisted tapes with three different pitches (p) of 100, 170 and 240 mm equals to three Twist Ratio’s (TR = p/w) of 7, 12 and 17 approximately. These twisted tapes are inserted into inner pipe of the heat exchanger to enhance heat transfer with a little penalty on pressure drop.

Electrodynamic vibrator with amplifier is positioned at the centre of DTHECF. Present heat exchanger had 8, 40, 107, 186 and 288 Hz as first five resonating frequencies respectively [25]. 8 Hz as a first frequency had modest impact on heat transfer since heat exchanger components absorb majority of forced vibration from vibrator. Frequencies from third to fifth crossed 100 Hz, which are far away from the present vibrating capacity. Using second resonating frequency, experiments are executed by imposing vibration on a twisted tape inserted DTHECF. In vibration analyser, maximum amplitude of DTHECF with twisted tape inserts was found to be 69 mm at 40 Hz resonating frequency. Therefore, Nu in twisted tape inserted heat exchanger are examined in 23 to 69 mm amplitude range and 20 to 100 Hz frequency range. Figure 3 show the simplified arrangement of hot water system and cold water system for twisted tape inserted DTHECF. Hot water system consists of a hot water tank with heater and stirrer, a hot water pump, a hot water rotameter, a piping system, and a tube with twisted tape insert. Hot water at heat exchanger inlet is maintained at 400C using thermostat. Convection currents are strengthened inside the tank by stirring hot water at variable speeds. Hot water is pumped into the inner tube at five different flow rates ranging from 5 to 10 LPM.

Similarly, cold water system consists of a cold-water tank, a cold-water pump, a cold-water rotameter, a piping system, and annulus side in heat exchanger. Cold water from another tank is pumped into annulus side. Cold-water inlet temperature was set at 280C and its flow rate is fixed to 8 LPM using rotameter. Thermo-physical properties for working fluids flowing in twisted tape inserted DTHECF are given in Table 1 [26]. Two rotameters, whose accuracy is within 2%, were used to estimate volumetric flow rate of working fluids. Two inlet temperatures, two outlet temperatures and two tank temperatures for hot and cold-water were measured by using six K-type thermocouples with accuracy of 0.10C. Six J-type thermocouples were placed with intermediate distance of 0.25 m on outer surface of the inner pipe to measure wall temperatures with accuracy of 0.10C. Six K-type and six J-type calibrated thermocouples were connected to two digital temperature indicators separately. Data of temperatures and flow rates were recorded in steady-state conditions. Table 2 gives specifications, accuracy and quantity of experimental instruments. Initially, twisted tape with a twist ratio is inserted into the inner tube of the heat exchanger. Hot water from hot water tank was pumped and measured through rotameter. At the beginning, its flow rate is adjusted and allowed to Table 2. Specifications of experimental instruments S. No Device

6. Channels

Table 1. Thermo-physical properties for hot and cold water S. No

pass through twisted tape inserted inner tube. Its temperature is controlled by using rheostat and then recycled. Cold water is continuously drawn from another tank at a specific flow rate by using another rotameter and its temperature is maintained by using another rheostat. It flows through annulus side and then discharges. Transverse vibrator is placed below the twisted tape inserted DTHECF and then connected to amplifier for controlling vibrations. Now, heat exchanger is vibrated by fine tuning frequency and amplitude in the amplifier. After reaching steady state conditions, temperatures at twelve locations were noted from two temperature indicators. Using same procedure, experiments were conducted on twisted tape inserted DTHECF under vibrations in transverse direction at frequencies from 20 to 100 Hz with interval of 20 Hz, amplitudes from 23 to 69 mm with interval of 23 mm and at twist ratios from 7 to 17 with interval of 5 in the Re range of turbulent conditions. Uncertainty represents the range of confidence level on heat transfer parameters, which are calculated from experimental data. Initially, uncertainties of independent parameters were evaluated and listed in Table 3. Uncertainties of experimental parameters were estimated from uncertainties of independent parameters by using Eq. (1) [27] and results were summarized in Table 4.

Table 3 Uncertainties of independent parameters S. No Parameter

Inner diameter for inner pipe (din) Outer diameter for inner pipe (dout)

Overall heat transfer coefficient (Ui) ±1.61 Heat transfer coefficient for annulus ±0.91 side (ha)

Nusselt Number Nu with and without vibration based on inner pipe diameter is determined by, [28] (2)

Tube side heat transfer coefficient has been evaluated by d  din ln  out   din  d 1 ht = 1/[ − − in ] dout ha Ut 2kw

 T − Tc ,o  Where ∆Tlm = [(Th ,i − Tc ,o ) − (Th ,o − Tc ,i )]/ln  h ,i   Th ,o − Tc ,i  and Ain = π din L

and Tb ,c = (Tc ,o + Tc ,i )/ 2 6 Heat transfer rate is given by following equation Qavg = (Qc + Qh )/2

Rate of heat transfer for hot water can be evaluated by following equation Qh = (mC p )h (∆T )h

Overall heat transfer coefficient is estimated by U t = Qavg /( Ain ∆Tlm )

Data Reduction

Where (∆T )h = Th ,i − Th ,o Rate of heat transfer for hot water can be evaluated by following equation Qc = (mC p )c (∆T )c Where (∆T )c = Tc ,o − Tc ,i

Pressure Drop Formula for the calculation of friction factor with and without vibration is as follows [28] fv =

∆P ∆P , f = (ρb ,h u2 / 2)(L / din ) (ρb ,h u2 / 2)(L / din )

Where ∆P = (ρm − ρb ,h ) g (∆h) Influence estimated of vibration on pressure drop characteristics for DTHECF with twisted tape insert are not analysed since pressure-sensing devices were not included in the current experiments [8]. Nevertheless, pressure drops are from Nu in following sequence [26]. Pressure drop can be obtained by ∆P = f (ρb ,h u2 / 2)(L / din )

Results And Discussion

Validation To validate the accuracy of the experimental setup, experimental friction factors are evaluated using Eq. (9) at different Reynolds numbers when the twisted tape inserted heat exchanger is not exposed to vibrations. Values of experimental friction factors at different twist ratios are compared with the corresponding theoretical friction factors from existing correlation [30] as shown in Figure 4. Manglik - Bergles correlation for friction factors: f =

π 0.0791   Re0.25  π − (4δ / d )   2.752   1 + y1.29 

Performance Evaluation Criteria Vibration enhancement technique on twisted tape inserted DTHECF reduces its thermal resistance by creating turbulence. This results in higher maintenance cost from additional pumping power. Now, effectiveness of vibration enhancement technique was calculated by using Performance Evaluation Criteria (PEC) [29].

Maximum deviations between experimental and theoretical friction factors from Manglik - Bergles correlation are 5.10 %, 8.01% and 8.94% for twist ratios of 7, 12 and 17 respectively. Thus, it may be concluded that values of experimental friction factors deviated less than 9% compared to theoretical friction factors for all twist ratios considered in this study. Now, experimental Nu are evaluated using Eq. (2) at different Reynolds numbers when the heat exchanger with twisted tape inserts is not exposed to vibrations. Values of experimental Nu at different twist ratios are compared with corresponding theoretical Nu from existing correlation [30] for the same set of flow and temperature conditions as shown in Figure 5.

Figure 4. Experimental friction factors validation for DTHECF.

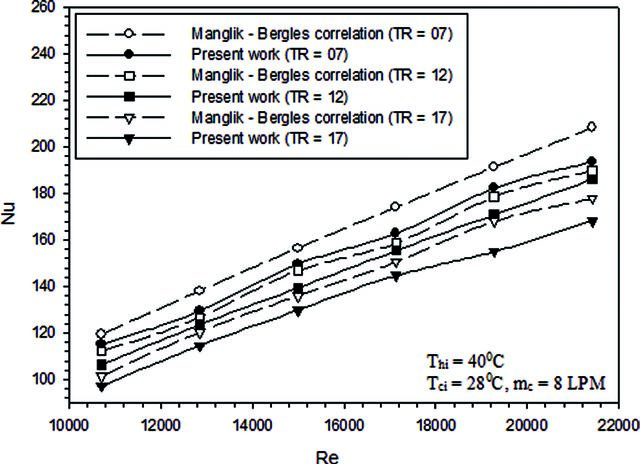

Figure 5. Experimental Nusselt number validation for DTHECF.

heat transfer coefficient. For all Reynolds numbers, lowest LMTD is registered at twist ratio of 7 giving higher improvement in heat transfer. Lowest LMTD is achieved in transversely vibrating heat exchanger with lowest twist ratio at lowest Re. When Re is increased, Nu is also found to be increasing for vibrating heat exchanger with and without inserts in Figure 7. Vibrational Nu with twisted tape inserts performed better than vibrational Nu without inserts for all Reynolds numbers. At all Reynolds numbers, vibrational Nu with twist ratio of 7 is higher than other twist ratios of 12 and 17 due to their respective LMTDs. Figure 6 indicated that lower LMTD in heat exchanger had greater heat transfer enhancement. Highest Nu is achieved for vibrating DTHECF with twist ratio of 7 at top most value of Re. Vibrational Nu at bottom most value of Re for twist ratios of 17, 12 and 7 enhanced maximum by 52%, 72% and 91% respectively compared to vibrational Nu without insert in DTHECF vibrating at 40 Hz frequency and 69 mm amplitude.

Maximum deviations between experimental and theoretical Nu from Manglik - Bergles correlation are 7.29 %, 9.15 % and 9.53 % for twist ratios of 7, 12 and 17 respectively. Thus, it may be observed that values of experimental Nu deviated less than 10% compared to theoretical Nu for all twist ratios considered in this study. Twist Ratio Figure 6 shows variations of Log Mean Temperature Difference (LMTD) with three different twist tape inserts in DTHECF vibrating at 40 Hz frequency and 69 mm amplitude for six different Reynolds numbers. LMTD decreased gradually with decline in twist ratio and also with decline in Re of vibrating twisted tape inserted DTHECF. Decrease in LMTD is due to increase in swirl flow generated by twisted tape in tube side of vibrating heat exchanger. Twisted tape inserts in the inner tube of the heat exchanger creates geometrical modifications to the flow channel inside it. They also increase effective surface area and residence time of the flowing fluid. A repeated change in the axial direction of fluid flow at tube side induces turbulence. This turbulence helps for better mixing in single phase fluid and consequently enhances heat transfer within the heat exchanger [13]. Eq. (4) clearly suggests that lower LMTD gives higher

Figure 6. Variation of LMTD with twist ratio for different Reynolds numbers.

Amplitude Figure 8 presents the experimental results for different amplitudes and different Reynolds numbers in terms of Nu. For all three amplitudes of vibrating DTHECF with insert, Nu improved with rise in Re. Nu without vibration in twisted tape inserted DTHECF also followed similar trend of augmentation. For smallest twist ratio, vibrational Nu at all three amplitudes are higher than Nu without vibration. Twisted tape inserted DTHECF vibrating at 69 mm amplitude had higher vibrational Nu compared to other vibrational Nu at amplitudes of 46 and 23 mm. This is due to increase in the displacement of twisted tape inserted heat exchanger in transverse direction with increase in amplitude. Generally, conduction mode of heat transfer within

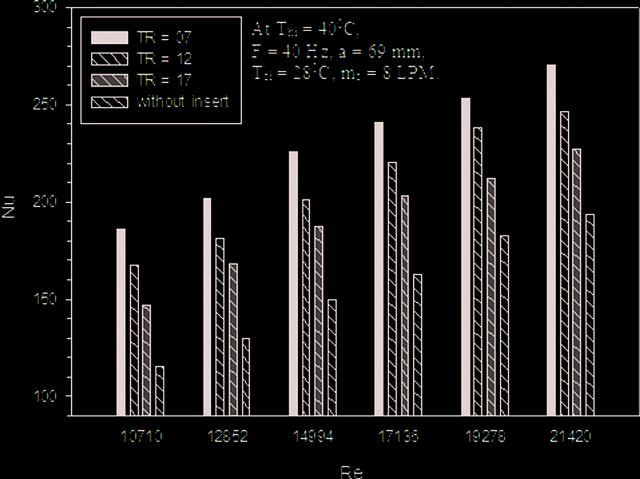

Figure 7. Variation of Nusselt number with Reynolds number for different twist ratios.

Figure 8. Influence of amplitude for different Reynolds numbers.

Figure 9. Variation of Nusselt number with frequency for different amplitudes.

fluid regions of heat exchanger in radial direction happens slowly. Now, transverse vibration creates radial mixing in the fluid regions. It also develops temperature profile in axial direction quickly reducing entrance length. This disturbance will intensify convective heat transfer in both axial and radial directions of fluid flow inside the heat exchanger. [1] For twist ratio of 7, highest Nu is reported for DTHECF with 69 mm vibration amplitude at highest Re. For highest Re, vibrational Nu at peaked frequency with increasing amplitudes increased approximately by 20%, 31% and 40% when compared to Nu in twisted tape inserted DTHECF. Frequency As displayed in figure 9, in the current analysis, Nu are examined at three different amplitudes of 23, 46 and 69 mm in the experimental frequency range and compared to Nu in DTHECF with twisted tape. It is apparent that Nu increases first and then decreases with increase in frequency. Nu rose up to specific frequency since it is second frequency of twisted tape inserted heat exchanger [4]. Second frequency for present heat exchanger found to be 40 Hz [25]. Twisted tape insert with vibration in heat exchanger will create swirl flow and triggers more turbulence breaking boundary layer. It minimizes thermal resistance and improves convective form of heat transfer between fluids and walls of heat exchanger. Now, Nu in heat exchanger starts to decrease with further increase in frequency due to its non-resonating frequencies [5]. Vibration energy at these frequencies is not sufficient to create more turbulence, which allows formation of thin boundary layer in twisted tape inserted heat exchanger. Influence of vibration on convective coefficient will start to diminish slowly. This decreasing trend in Nusselt number will continue up to 100 Hz. It is also seen in figure 9 that Nu at all frequencies improves with an increase in amplitude.

Figure 10. Influence of Reynolds number on Nusselt number at different frequencies.

At 40 Hz, Nu with amplitude of 69 mm was found to be higher than other amplitudes. For twist ratio of 7, vibrational Nu at all frequencies and amplitudes was also found to be more than Nu in twisted tape inserted DTHECF. Nu in comparison with Nu without vibration improved maximum by 28%, 35% and 62% for amplitudes of 23, 46 and 69 mm applied to twisted tape inserted DTHECF at lowest Re and second frequency in the figure 9. Figure 10 illustrates Nu at different Reynolds numbers for 20 to 100 Hz frequencies and 69 mm amplitude of DTHECF with twisted tape insert. It is observed that increasing the Re, the Nu increased steadily for all frequencies of vibrating DTHECF. High Nu was observed at highest Re for all frequencies. Bar chart diagram showed that Nu peaked at 40 Hz frequency in experimental Re range of turbulent flow conditions. For Re, Nu at 10710 enhanced

by 7%, 21%, 31%, 36% and 46% in correspondence with Nu at 12852, 14994, 17136, 19278 and 21420 respectively for twisted tape inserted DTHECF vibrating at 40 Hz and 69 mm. Figure 11 indicates the dependence of Nu on vibration frequencies at different twist ratios of 7, 12 and 17 for Re of 10710. From the figure, it is clear that Nu spiked at second vibration frequency for experimental twist ratios in DTHECF vibrating at 69mm amplitude. Nu with twisted tapes inserts at all twist ratios is higher than without insert for all vibration frequencies ranging from 20 to 100 Hz. It is increasing with decrease in the twist ratio value for twisted tape inserted heat exchanger exposed to vibration. Nu displayed high at 40 Hz for lowest twist ratio of 7. At minimum Re, Nu with twist ratios of 17, 12 and 7 enhanced maximum by 52%, 72% and 91% compared to Nu without twisted tape insert. Finally, highest enhancement of 91% in Nu is attained for lowest Re in twisted tape inserted DTHECF vibrating at highest amplitude with a second experimental frequency.

vibration frequency continues up to 40 Hz. Pressure drop starts to fall with further frequency increase due to existence of swirl flow and decrease in additional turbulence inside the non-resonating heat exchanger [5]. After 40 Hz, pressure drop decreases up to highest frequency of 100 Hz in the experimental range. As seen from figure, pressure drop raised with increment in amplitude for all Reynolds numbers. This increase in pressure drop is due to swirl flow and internal movement of fluid particles in fluid zones of twisted tape inserted heat exchanger. With further increase in amplitude, most of the fluid particles will continue to move within the layers. This will create additional frictional losses to existing pressure drop. For twisted tape inserted DTHECF, pressure drop increased by 29%, 36% and 64% for three amplitudes in increasing order when compared to pressure drop with no vibration.

Pressure Drop Variations in pressure drop against vibration frequencies are plotted for twisted tape inserted DTHECF at three amplitudes in figure 12. For Re of 10710, pressure drop is high in a twisted tape inserted DTHECF when it is vibrating at 40 Hz frequency and 69 mm amplitude. Pressure drop for twisted tape inserted DTHECF with three different vibration amplitudes are higher than without vibration at all experimental frequencies and at Re of 10710.This sharp rise in pressure drop with frequency increase is due to swirl flow from twisted tape and additional turbulence up to second resonance of twisted tape inserted heat exchanger [4]. Present heat exchanger had second frequency of 40 Hz [25]. So, increasing trend of pressure drop with increase in

Performance Evaluation Criteria Performance of heat transfer with pressure drop is evaluated on Eq. (13) to study the feasibility of imposing transverse vibration on twisted tape inserted double pipe heat exchanger. Values of PEC for different Re at three twist ratios of 7, 12 and 17 are plotted in Figure 13. For a twist ratio, values of PEC are deteriorating gradually with increase in Re. Insert with twist ratio of 7 achieved the best performance on enhancement in heat transfer in present heat exchanger and its PEC ranged from 1.25 to 1.38. Performance of twisted tape insert with twist ratio of 12 is slightly inferior to that at twist ratio of 7 and its PEC ranged from 1.24 to 1.34. For the present work, PEC values are above 1, which is desirable. Advantage of improved heat transfer with extra pumping cost using twisted tape insert in vibrating DTHECF is feasible since its PEC is greater than one.

Figure 11. Change in Nusselt number due to frequency at different twist ratios.

Figure 12. Variation of pressure drop with frequency for different amplitudes.

Figure 13. Variation of PEC with Reynolds number for different twist ratios.

Figure 14. Comparison of Nusselt numbers for first frequency range.

Multi Linear Regression Longitudinal vibration impact on transfer of thermal energy in a heat exchanger is examined experimentally and a correlation is formulated for enhancement in Nu at laminar flow conditions [5]. Present correlations are different from other existing correlations due to presence of twisted tape inserts in vibrating DTHECF. Empirical correlations of vibrational Nu with twisted tape inserts are established using multi linear variable regression from the present experimental data. Two correlations of vibrational Nu for two frequency ranges are as follows. For 7 ≤ (p/w) ≤ 17 and 23 mm ≤ a ≤ 69 mm d 2 F 0.135 ) v p a ( )−0.167 ( )0.180 w d

Figure 15. Differences in Nusselt numbers for second frequency range.

For 7 ≤ (p/w) ≤ 17 and 23 mm ≤ a ≤ 69 mm d 2 F −0.162 ) v p a ( )−0.141 ( )0.171 w d

Experimental values are compared with predicted values of Nu for two frequency ranges as shown in figures 14 and 15. The predicted values are closer to experimental values since deviations of vibrational Nu with inserts are within ±9% for both frequency ranges.

Conclusions

Experiments on heat transfer characteristics in twisted tape inserted DTHECF with transverse vibration for

single-phase flow have been carried out in present analysis. Conclusions from the present work are (1)  Influence of vibration on twisted tape inserted heat exchanger is prominent at lowest Re in turbulent conditions. At lowest Re, vibrational Nu with twist ratio of 7 enhanced by 12% and 27% compared to other twist ratios of 12 and 17 respectively due to increment in swirl flow. Changes in flow direction created turbulence and better convection currents are formed for higher heat transfer enhancement. (2)  For 40 Hz with smallest twist ratio, Nu at amplitudes of 23, 46 and 69 mm are 28%, 35% and 62% respectively higher than the non-vibrating Nu. At highest amplitude, Nu improved remarkably

due to transverse displacement of present heat exchanger. Temperature distribution in both axial and radial directions is also promoted. (3)  Nu enhanced maximum of 91% for twisted tape inserted DTHECF vibrating at 40 Hz and 69 mm compared to vibrational Nu without insert. Additional turbulence increased with rise in frequency up to 40 Hz and then decreased with further increase in frequency up to 100 Hz. (4)  Heat transfer characteristics of twisted tape inserted DTHECF is enhanced by applying vibrations on it. At the same time, pressure drop also increased. Using vibration enhancement technique is feasible since its PEC is 1.38, which is greater than one. This metric implies that the increase in heat transfer rate more than compensates the undesirable penalty of pumping power. (5)  Empirical correlations for Nu were developed and deviations found to be within ± 9% for both frequency ranges. Using developed correlations, Nu can be estimated for a given twist ratio, frequency and amplitude in experimental range under turbulent conditions.
