Hybrid nanofluids development and benefits A comprehensive review

Abstract

Keywords: Nanofluid; Heat Transfer; Thermal Conductivity; Viscosity; pH control

Introduction

A nanofluid is developed with the integration of nanoparticle and base fluid. Choi [1] introduced the concept of nanofluid. Nano is a Latin word used to denote 10-9nm part of units. The nanofluid heat conduction depends on several things such as geometrical shape, size

and stability of the nanoparticle, type of base fluid thickness and temperature. The base fluids may be water, organic liquids (C2H2, refrigerants, etc.), oils, bio-fluids (blood, synovial fluid, etc) and other liquids. The materials used for nanoparticles must be chemically stable (metals: gold,

*Corresponding author. *E-mail address: pbarmaths@gmail.com This paper was recommended for publication in revised form by Regional Editor Mustafa Kilic Published by Yıldız Technical University Press, İstanbul, Turkey Copyright 2021, Yıldız Technical University. This is an open access article under the CC BY-NC license (http://creativecommons.org/licenses/by-nc/4.0/).

copper, metal oxides: Al2O3, SiO2, TiO2, oxide ceramics: Al2O3, CuO, metal nitrides, metal carbides, carbon in various forms: carbon nanotubes, graphite, and diamond) and functionalized nanoparticles [2, 3]. The applications of nanofluids are found in various fields like electronics [4,5], solar energy [6-8], nuclear reactors [9–11], pool boiling [12, 13], automotive industry [14–16], medical [17–19], food industry [20, 21], machining processes [22–25], and in heating and cooling of buildings [26, 27]. In comparison to single nanoparticle fluids and traditional fluids, the nanofluids demonstrated improved thermal characteristics [28-36]. So, this field looks emerging for future studies. In parallel to the continuation of these fluids, scientists also used a novel class of nanofluids called a “hybrid” nanofluid acquired by suspending nanocomposite or nanoparticles of different metals into the base fluid as shown in fig.1. These HNFs are more stable and suitable than the mono nanofluids. There is no doubt that the thermal conductivity of base fluids enhanced with the addition of nanoparticles, but it also raised some problems in the form of pumping power, erosion, convection heat transfer, stability, and pressure drop due to the enhancement in viscosity resulting from the creation of clusters that increases the hydrodynamic diameter and reduces the specific surface area. The hybrid nanofluids exhibited higher viscosity as compared to the conventional fluids and most of the unitary nanofluids. However, it depends on the selected nanoparticles and their combinations. Hybrid nanofluids have better rheological properties and less clogging in pipes. The main intention of this review is to get general idea of production, nature and use of hybrid nanofluids. Here many experimental and numerical works finished by several investigators have been reviewed. At last, feasible applications and challenges are discussed.

Preparation Of Hybrid Nanofluid

Nanofluid preparation is just mixing a nano powder in a liquid. But, in reality it is more critical to determine the stability of the nanofluid. For real time applications

stability, durability and chemical unresponsiveness of the nano particles in the underlying fluid which is extremely significant. The technique that performs effectively to prepare HNF is suspending nanoparticles of particular elements or the composite nanoparticles are suspended in a host fluid at definite ratio. To get a homogeneous and stable distribution sonication technique is customized. By mixing a suitable surfactant the glomeration can be decreased further. Combination of a suitable surfactant can decrease the glomeration. Generally, Hybrid nanofluids can be made in 2 distinct ways. There are two types of methods: one-step and two-step. Other innovative ways for synthesizing quality and stability in hybrid nanofluids for heat transmission and experimentation are also being developed. (a) Single-step method: In this method, production of nanoparticles and preparation of nanofluid are finished at the same time. Here, nanoparticles are synthesized and suspended in the base fluid in a single step. [37,38]. There are so many one-step techniques by which nanofluids are prepared, for example Laser ablation process [39], Electro discharge process [40], micro electrical discharge machining (micro-EDM) process [41]. However, One-step physical method is unable to produce nanofluids in large scale because of too much cost, hence the chemical method with one step was developed. In chemical techniques When reduction processes or ion exchange occur, the base fluids contain additional ions and reaction products that are difficult to remove from the fluids. Besides, nanoparticles generated by chemical processes have a propensity to agglomerate, which restricts the potential of the high surface areas of the nanoparticles. Thus, particle scattering must be carried out. To avoid oxidation in high heat conductive metals this scheme is most suitable. In this process, uniform scattering of particles and high stability can be achieved. In addition, drying, storage, dispel of the nanoparticles can be prevented. The negative aspect of this method is not cost effective at mass production used for small scale production.

Table 1. Variety types of nanoparticles and base fluids used in developing nanofluids Origin

Water, EG, oil, water & EG mixture and bioglycol & water mixture.

Water, EG, propylene glycol, midel oil, silicone oil, mineral oil, transformer oil and engine oil

(*) Note: Cu, Ag, Au, Al, Al2O3, CuO, ZnO, TiO2, SiO2, MWCNTs, DWCNTs, SWCNTs, and R-134a are mentioned to copper, silver, gold, aluminium, aluminium oxide (also known as alumina), copper oxide (also known as cupric oxide), zinc oxide, titanium oxide, silicon dioxide (Silica), multi-walled CNTs, double-walled CNTs, single-walled CNTs and 1,1,1,2-Tetra fluoro ethane respectively.

(b) Two-step method: Firstly, physical and chemical procedures such as grinding, milling, or the vapour stage approach are used to create hybrid nano powder. Secondly, hybrid nano powder which is prepared in the first step is distributed in the base liquid with the assistance of ultrasonic vibrator or shear mixing apparatus which is shown in Fig.3. This is not expensive to produce hybrid nanofluid in mass [42,43]. The main intricacy is agglomeration which cannot avoid because

Figure 3. The two‐step nanofluid fabrication procedure with an ultrasonicator device. Vander Waal and Cohesive forces exist with non-dependent nanoparticles. This agglomeration can deprive by means of suitable surfactant or by dissolving devices such as magnetic stirrer, homogenizer with high-pressure, ultrasonic bath and disrupter.

Table 2. The various types of hybrid nanoparticle were stated by eminent researchers: Al2O3/Cu Al2O3/CuO

Hybrid nanofluids with various nanoparticles and host liquids are prepared by any of the above two methods. The different types of base fluids and hybrid nanoparticles are given below and in table 2. The different types of base fluids:

10. Dia-thermic oil

Table 3. Stability period of different nanofluids References

1. Stability:

The significant property that affect the running of a thermal system at desired capacity. The Vander Waal and cohesive forces exist among the nano particles is the main cause for agglomeration. By heat transferring HNFs decreases the potential because of proneness to coagulation. The flow behaviour also decreases by amplifying frictional resistance which in turn increase the pressure drop. Not having of good stability of HNF can change the thermo physical properties which in turn effect the heat transfer rate. Stability analysis can be made by different methods such as Spectral Analysis method, Sedimentation method, Light Scattering method, Zeta Potential analysis, and Centrifugation method. Some common methods are developed in literature for minimizing the agglomeration. They are: (i) Addition of surfactant (ii) Controlling pH with electrostatic stabilization and (iii) Ultrasonic vibration. By adding appropriate surfactants many researchers prepared stable nanofluid. Stability period of different nanofluid in various articles are given in table 3. 2. pH control: Nanofluid stability depends on electro-kinetic properties. Because of the strong repulsive forces, the stability

can increase the pH control. A good stability of water with CNTs can be attained with acid treatment [55]. Fovet et al. [56] examined Al2O3nano-fluid with assorted pH values and noticed the variations in agglomeration by fluctuating the pH value. For different samplings different pH value exist. For example, the pH value which is apt for copper, alumina distributed and graphite in water are almost 8, 2, and 9.5, respectively.

3. Ultrasound intensity:

Ultrasound intensity acts a key role in changing the shapes or structures of nanoparticles and its characteristics. By rising the ultrasound intensity, the exceptional cavitations also escalates and the collapsed cavity generates a shockwave inside the solution. Thus, reduces the size of the particle and improving the nanofluid stability [57].

4. Thermal conductivity:

In literature so many studies describe an increase in heat conductivity of the hybrid nanofluids. In recent times, Sundar et al [58] equated graphene and GO/Co3O4 hybrid nanofluid. The result illustrations improvement of

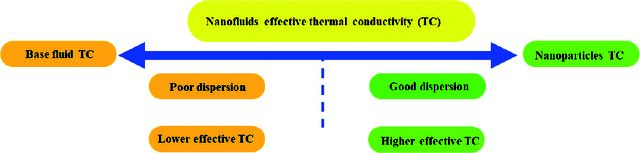

Figure 5. The relationship between the stability of nanofluids and their effective thermal conductivity (TC).

the thermal conductivity of hybrid nanofluids is greater than that of graphene but viscosity remains same. This is because of the synergistic thermal property. A comparison is shown with some mono nanofluids in figure 2 and observed that an enhancement is noticed in the hybrid nanofluid thermal conductivity when compared to Carbon Nanotube/Ethylene Glycol nanofluid, clustering is prevented in the fluid by adding of MgO in the working fluid. The thermal conductivity of different nanomaterials is displayed in Fig.4. Here we noticed that the thermal conductivity for carbon nano tubes is more when compared with other selected nanomaterials. The relation between stability of nanofluid and its effective thermal conductivities are shown in Fig.5.

5. Viscosity:

The hybrid nanofluid viscosity depends upon the selected nanoparticles, concentration, and temperature. Dardan et al. [59] exhibited viscosity and its relationship with the temperature variations and solid volume fractions of Al2O3 – MWCNT/SAE40 oil hybrid nanofluid. According to his outcomes, viscosity responsiveness to temperature was small and it affects a lot to the solid volume fraction. This is because when temperature rises, the intermolecular connections between molecules weaken, lowering viscosity. However, its impact is more significant at a lower temperature and high particle volume fraction. Due to the van der Waals forces between nano-additives, larger nano-clusters form, which can prevent oil layers from moving on top of each other. It could result in a larger increase in viscosity. Some important facts about the augmentation of viscosity of hybrid nanofluids are: • High volume fraction of nanoparticles triggered the development of nano-clusters of greater size due to

Vander Waals forces existing among the particles that could cause the viscosity augmentation by reducing the movement of fluid layers [60]. • Enhance in volume fraction of nanoparticles caused internal shear stress to enhance which will, in turn, increases the hybrid nanofluid viscosity [61,62] • An enhance in hydrodynamic diameter of nanoparticles results adsorption and clustering will tend to enhance the viscosity [63]. • High resistance between two fluid layers due to the existence of nanoparticles caused enhancement in viscosity of hybrid nanofluid [58, 64]. At lesser concentration of nano particles, this resistance is little, whereas high for higher concentration. Kinds of hybrid nanofluids flows: a. Turbulent flow: Hybrid nanofluids has a synergistic effect by which they offer all the properties of its components. Nano lubricants and turbulent hybrid nanofluid has many applications in heat exchangers was specified by Minea [65], Teng et al. [66] and Nabil et al. [67]. b. Laminar flow: TiO2-CNT was used by Kalidasan et al. [68] in heat exchanger under laminar flow condition which is a hybrid nanofluid. Owing to its high stability it was suggested for heat transfer applications [69]. The laminar flow of hybrid nanofluid performed better. APPLICATIONS OF HYBRID NANOFLUIDS: Hybrid nano fluids have many applications:

1. Electro-mechanical application:

In electrical equipment and electrical power transformers where oil is cooled the thermal conductivity and dielectric properties of the operational liquid can be enhanced by adding nano diamond to the mineral oil as an additive, with no changes in the electrical insulation of the liquid, the lifespan and power of the transformer can be enhanced with minimum maintenance and decrease the break downs because of overheating. In 1995, Choi discovered a heat transfer fluid called nanofluid and tested it in transformers and the out puts of his study [70] was for cooling transformers alumina nanoparticles are used in thermal oils.

2. HVAC [heating, ventilation, and air conditioning

application: Jiang et al. [71] firstly worked on the effect of CNTs on refrigerants and explained that CNT nanorefrigerants thermal conductivity is plentiful further than CNT–water nanofluids and as the diameter of CNTs decreased, increase in thermal conductivity is noticed. Also, adding nanoparticles raise the coefficient of the heat transfer to the system [72].

3. Renewable energy application:

Usage of Energy is inexorable. Renewable energy is gorgeous further admired and eco-friendlier. Sun be the very important source for it. Solar energy predominantly used in production of electricity and also in water heating and drying of agricultural products. By using hybrid nanofluids as the working fluid. [7376] the ability of the solar collector for water heater can be increased.

4. Application in Manufacturing process:

In Grinding process high amount of energy is converted to heat and a reason for damage to the work piece, for example, cracks, burning of work piece, phase transformations so forth. Hybrid nanofluids’ tribological feature enables for better cooling and lubricating in the grinding process, as well as costeffective production [25, 77].

5. Cooling in Automotive:

In automobiles the braking system mainly depends on the motion of the fluid which diffuse energy. While braking heat is produced which in turn absorbed by the breaking fluids results reduction in the kinetic energy of the automobile. The nanoparticles in the base fluid shows better properties like, more viscous, high conductive nature, high boiling point and also cut down the incidents like vapor-lock and also improve safety during driving [78-82]. Similar studies can be seen in the mentioned references [67, 83].

6. Application in heat exchanger:

At low concentration, the metallic nanoparticles are hybridized with the intention that the rate of heat transfer is improved with low cost. Due to this reason, CNT-TiO2 hybrid nanofluid is suggested for heat transfer applications. The uses, production, and thermophysical properties of hybrid nanofluids were briefly reviewed in these studies. (see [84, 85]).

7. Application in miniaturized cooling systems:

One important advantage of hybrid nanofluids are in the miniaturized cooling systems that supply magnetic field agitation of the nanofluids to enhance the heat transfer rate of the system. The influence of magnetic field on different hybrid nano fluids with different geometries was discussed by many authors [86–88]. Because of their large absorption potential due to their high surface area, hybrid nanoparticles have various uses

in sectors such as medicine (genomics, pharmacogenomics, drug delivery, optics, surgery, general medicine), agriculture (tissue engineering, prosthesis), industry (fabric sciences, energy), and the environment (physical sciences, health sciences). Applications of hybrid nano fluids are portrayed in Fig.6.

Conclusions, Challenges And Future

WORKS: The nanofluid technology has vastly expanded to meet industrial ethics, and increased investments to scale down designs that may be made healthier and gain additional profits with the use of unique hybrid nanoparticles are immobile incomplete to explore. The current review perusal introduces preparation, performance, factors affecting, and applications of hybrid nanofluid. The thermal characteristics of such a fluid are superior to the conventional fluid and mono nano particle fluid. It was also determined that as temperature and volume fraction raise, so do the features of hybrid nanofluid. The heat transfer concert of hybrid nano fluids is very much appealing, but some encounters exist in their development. They are: • There is lack of uniformity among the outcomes of various researchers • There is deficiency of theoretical model which forecast the activities of the hybrid nanofluids; while preparing a nanofluid, dissimilar methods tends to different results and volume fraction. • In hybrid nanofluid synthesis, the nano particles used are mostly hydrophobic. Some times their characteristics are affected while making them into hydrophilic. As a result, thorough investigations are required to calculate thermophysical and hydrodynamic performance for clear engineering applications.

• One of the foremost factors that impinge on the functioning of hybrid nanofluid is stability. Some researchers observed that stability of the nanofluid decline as time passes for long period. The surface tension in the fluid is reduced by adding surfactants and assists the scattering of the nano particles in the fluid. Surplus amount of adding surfactant to hybrid nanofluid have an effect on viscosity, thermal conductivity and stability. • While examine the functioning of the working liquids viscosity take an important part, liquids with high viscosity has low thermal performance. When two dissimilar particles are united to do a single task, compatibility is very significant. More number of experiments are needed to spot out the nanoparticles which are compatible. • Appropriate selection of nanoparticles in a hybrid nanofluid is most significant to get a required synergistic effect. Methodical technical insight, high manufacture cost, etc. are the other issue which has to be focused. The production of hybrid nanofluids at commercial scale must be increased so that they can be used in many industries. • Choosing the right individual components of a hybrid nanofluid is crucial for achieving the desired synergistic result. Other issues related to high production costs for synthesis and investigations, for example, must be effectively addressed through technological awareness. • The more complicated the innovation process for hybrid nanofluids, the higher the cost of generating nano fluids, which is one of the constraints that could limit the usage of hybrid nanofluids in industry. CONCLUSIONS: Investigators are treading to the examination of the rheological and heat transfer behaviours of hybrid nanofluids. Moreover, the examinations are necessary to be carried out to talk the origin source behindhand the peculiar variations of thermal conductivity, heat transfer features and viscosity of hybrid nanofluids. Some examinations are given below: a. Heat transfer qualities can be enhanced by raising nanoparticles to mono nanofluids due to their polished thermophysical properties, and this enrichment is more for hybrid nanofluids. b. The flow properties of hybrid nanofluids are also optimized with the inclusion of hybrid nanoparticles. The relative viscosity of the hybrid nanofluid increased as a result of the formation of nano clusters in the working fluids, which caused the hydraulic diameter of hybrid nanoparticles to rise, hence increasing the relative viscosity.

c. Hybrid nanofluids have markedly higher thermal conductivity than traditional fluids and mono nanofluids of individual ingredients. There are various inconsistencies between the researchers on the mentioned causes behindhand peculiar behaviour of these new type of heat transfer fluids many key issues must be addressed in a methodical manner. The following are some main concerns: a. There are huge gaps between experimental results and theoretical expectations, as well as between experimental results from different researchers for the same type of nanofluids. b. A lack of standard and appropriate nanoparticle suspension characterization. c. Insufficient understanding of intricate phenomenon and Thermodynamic network and rheological alterations in hybrid nanofluids are complicated mechanisms. d. Preparing stable and homogeneous nanoparticle suspensions for long-term stability is a significant issue for real-time applications. So, more attention has to be given in finding the higher boundaries of volume fraction and the proportion of the nanoparticles in the liquid. Nevertheless, to be aware of the complex mechanism with hybrid nanofluids following heat transfer optimization and real-world applications with hybrid nanofluids.

Data Availability Statement

The authors confirm that the data that supports the findings of this study are available within the article. Raw data that support the finding of this study are available from the corresponding author, upon reasonable request.

Conflict Of Interest

The author declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Ethics

There are no ethical issues with the publication of this manuscript.

References

1. working fluids, which caused the hydraulic diameter of hybrid nanoparticles to rise, hence increasing the [1] Choi SUS, Eastman JA. Enhancing thermal conduc- relative viscosity. tivity of fluids with nanoparticel. U.S. Department 452 J Ther Eng, Vol. 8, No. 3, pp. 445–455, May 2022 of Energy, Basic Energy Sciences-Materials Science. radiator coolant. Case Stud Therm Eng 2018;11:26– Washington, DC; 1995. 34. [CrossRef]
2. Sarkar J. A critical review on convective heat trans- fer correlations of nanofluids. Renew Sustain Energy K. Numerical study on turbulent forced convective Rev 2011;15:3271–3277. [CrossRef] heat transfer using nanofluids TiO2 in an automotive
3. Sarkar J, Ghosh P, Adil A. A review on hybrid nano- cooling system. Case Stud Therm Eng 2017;9:72–78. fluids: Recent research, development and applica- [CrossRef] tions. Renew Sustain Energy Rev 2015;43:164–177. [16] Xian HW, Sidik NAC, Najafi G. Recent state of [CrossRef] nanofluid in automobile cooling systems. J Therm
4. Ahammed N, Asirvatham LG, Wongwises S. Anal Calorim 2019;135:981–1008. [CrossRef] Thermoelectric cooling of electronic devices with [17] Kothandapani M, Prakash J. The peristaltic transport nanofluid in a multiport minichannel heat exchanger. of carreau nanofluids under effect of a magnetic field Exp Therm Fluid Sci 2016;74:81–90. [CrossRef] in a tapered asymmetric channel: Application of the
5. Sarafraz MM, Arya A, Hormozi F, Nikkhah V. On cancer therapy. J Mech Med Biol 2015;5:1550030. the convective thermal performance of a CPU [CrossRef] cooler working with liquid gallium and CuO/water [18] Akbar NS, Raza M, Ellahi R. Anti-bacterial applica- nanofluid: A comparative study. Appl Therm Eng tions for new thermal conductivity model in arter- 2017;112:1373–1381. [CrossRef] ies with cnt suspended nanofluid. J Mech Med Biol
6. Shende RC, Ramaprabhu S. Application of few-lay- 2016;16:1650063. [CrossRef] ered reduced graphene oxide nanofluid as a working [19] Dehdashtian S, Behbahanian N, Mohammadi fluid for direct absorption solar collectors. J Nanosci Taherzadeh K, Hashemi B. Development of elec- Nanotechnol 2017;17:1233–1239. [CrossRef] trochemical sensor based on multiwall carbon
7. Zeiny A, Jin H, Bai L, Lin G, Wen D. A compara- nanotube for determination of anticancer drug ida- tive study of direct absorption nanofluids for solar rubicin in biological samples. Adv Nanochemistry thermal applications. Sol Energy 2018;161:74–82. 2019;1:22–28. [CrossRef] [20] Taghizadeh-Tabari Z, Zeinali Heris S, Moradi M,
8. Firoozzadeh M, Shirzadi N, Shafiee M. Experimental Kahani M. The study on application of TiO2/water study on photovoltaic cooling system integrated with nanofluid in plate heat exchanger of milk pas- carbon nano fluid. J Sol Energy Res 2017;23:53–58. teurization industries. Renew Sustain Energy Rev
9. Hadad K, Kowsar Z. Twofold application of nanoflu- 2016;58:1318–1326. [CrossRef] ids as the primary coolant and reactivity controller [21] Jabari SS, Jafari SM, Dehnad D, Shahidi SA. Changes in a PWR reactor: Case study VVER-1000 in nor- in lycopene content and quality of tomato juice mal operation. Ann Nucl Energy 2016;97:179–182. during thermal processing by a nanofluid heating [CrossRef] medium. J Food Eng 2018;230:1–7. [CrossRef]
10. Saadati H, Hadad K, Rabiee A. Safety margin and fuel cycle period enhancements of VVER-1000 in minimum quantity lubrication grinding. Tribol nuclear reactor using water/silver nanofluid. Nucl Trans 2008;51:730–737. [CrossRef] Eng Technol 2018;50:639–647. [CrossRef] [23] Sidik NAC, Samion S, Ghaderian J, Yazid MNAWM.
11. Mahmud KM, Yudistirani SA, Ramadhan AI. Recent progress on the application of nanofluids in Analytical study of forced convection in fluid cool- minimum quantity lubrication machining: A review. ing use nanofluid Al2O3–Water on nuclear reactor Int J Heat Mass Transf 2017;108:79–89. [CrossRef] core based fuel cylinder with hexagonal sub chan- [24] Kumar A, Ghosh S, Aravindan S. Experimental nel. Int J Energy Eng 2016;6:8–15. investigations on surface grinding of silicon nitride
12. Ham J, Kim H, Shin Y, Cho H. Experimental inves- subjected to mono and hybrid nanofluids. Ceram tigation of pool boiling characteristics in Al2O3 Int 2019;45:17447–17466. [CrossRef] nanofluid according to surface roughness and con- [25] Zhang X, Li C, Zhang Y, Jia D, Li B, Wang Y, et al. centration. Int J Therm Sci 2017;114:86–97. [CrossRef] Performances of Al2O3/SiC hybrid nanofluids in
13. Karimzadehkhouei M, Shojaeian M, Şendur K, minimum-quantity lubrication grinding. Int J Adv Mengüç MP, Koşar A. The effect of nanoparticle Manuf Technol 2016;86:3427–3441. [CrossRef] type and nanoparticle mass fraction on heat transfer [26] Kulkarni DP, Das DK, Vajjha RS. Application of enhancement in pool boiling. Int J Heat Mass Transf nanofluids in heating buildings and reducing pollu- 2017;109:157–166. [CrossRef] tion. Appl Energy 2009;86:2566–2573. [CrossRef]
14. Subhedar DG, Ramani BM, Gupta A. Experimental investigation of heat transfer potential of Al2O3/ saving in HVAC systems using nanofluid. Appl Water-Mono Ethylene Glycol nanofluids as a car Therm Eng 2011;31:1543–1545. [CrossRef] J Ther Eng, Vol. 8, No. 3, pp. 445–455, May 2022 453
15. Kilic M. A numerical analysis of transpiration cool- ing as an air cooling mechanism. Heat Mass Transf EA. Anomalous thermal conductivity enhance- Und Stoffuebertragung 2018;54:3647–3662. [CrossRef] ment in nanotube suspensions. Appl Phys Lett
16. Kilic M. Numerical investigation of heat transfer 2001;79:2252–2254. [CrossRef] from a porous plate with transpiration cooling. J [41] Phuoc TX, Soong Y, Chyu MK. Synthesis of Therm Eng 2018;4:1632–1647. [CrossRef] Ag-deionized water nanofluids using multi-
17. Kilic M, Ali HM. Numerical investigation of com- beam laser ablation in liquids. Opt Lasers Eng bined effect of nanofluids and multiple impinging 2007;45:1099–1106. [CrossRef] jets on heat transfer. Therm Sci 2018;2018:3165– [42] Shabgard M, Seyedzavvar M, Abbasi H. Investigation 3173. [CrossRef] into features of graphite nanofluid synthesized using
18. Kilic M, Abdulvahitoğlu A. Numerical investiga- electro discharge process. Int J Adv Manuf Technol tion of heat transfer at a rectangular channel with 2017;90:1203–1216. [CrossRef] combined effect of nanofluids and swirling jets in a [43] Sahu RK, Somashekhar SH, Manivannan PV. vehicle radiator. Therm Sci 2018;2018:3627–3637. Investigation on copper nanofluid obtained through [CrossRef] micro electrical discharge machining for dispersion
19. Suneetha S, Subbarayudu K, Wahidunnisa L, Reddy stability and thermal conductivity. Procedia Eng PBA. Navier slip condition on time-dependent 2013;64:946–955. [CrossRef] radiating nanofluid with the soret effect. Eng Trans [44] Asadi A, Asadi M, Rezaniakolaei A, Rosendahl LA, 2020;68:177–198. Afrand M, Wongwises S. Heat transfer efficiency of
20. Sangapatnam S, Ketineni S, Chamkha AJ, Polu Al2O3-MWCNT/thermal oil hybrid nanofluid as a BAR. Numerical investigation of non-fourier flux cooling fluid in thermal and energy management theory with chemical action on maxwell radiating applications: An experimental and theoretical inves- nanoliquid: A biomedical application. In: Rushi tigation. Int J Heat Mass Transf 2018;117:474–486. Kumar B, Sivaraj R, Prakash J, editor. Advances in [CrossRef] fluid dynamics. Lect Notes Mech Eng. Singapore: [45] Parsian A, Akbari M. New experimental correlation Springer, 2021: 793–810. [CrossRef] for the thermal conductivity of ethylene glycol con-
21. Sangapatnam S, Ketineni S, Lalahamed W, Haq RU. taining Al2O3–Cu hybrid nanoparticles. J Therm Homogeneous-heterogeneous chemical action and Anal Calorim 2018;131:1605–1613. [CrossRef] non-Fourier flux theory effects in a flow with car- [46] Wei B, Zou C, Yuan X, Li X. Thermo-physical prop- bon nanotubes. Heat Transf Res 2019;48:4240–4261. erty evaluation of diathermic oil based hybrid nano- [CrossRef] fluids for heat transfer applications. Int J Heat Mass
22. Subbarayudu K, Suneetha S, Bala Anki Reddy P, Transf 2017;107:281–287. [CrossRef] Rashad AM. Framing the activation energy and [47] Mechiri SK, Vasu V, Venu Gopal A. Investigation binary chemical reaction on CNT’s with cattaneo– of thermal conductivity and rheological properties christov heat diffusion on maxwell nanofluid in the of vegetable oil based hybrid nanofluids contain- presence of nonlinear thermal radiation. Arab J Sci ing Cu–Zn hybrid nanoparticles. Exp Heat Transf Eng 2019;44:10313–10325. [CrossRef] 2017;30:205–217. [CrossRef]
23. Reddy PBA, Suneetha S, Reddy NB. Numerical study of magnetohydrodynamics (MHD) boundary transfer and friction factor of MWCNT-Fe3O4/ layer slip flow of a Maxwell nanofluid over an expo- water hybrid nanofluids. Int Commun Heat Mass nentially stretching surface with convective bound- Transf 2014;52:73–83. [CrossRef] ary condition. Propuls Power Res 2017;6:259–268. [49] Qing SH, Rashmi W, Khalid M, Gupta TCSM, [CrossRef] Nabipoor M, Hajibeigy MT. Thermal conductivity
24. Chang H, Jwo CS, Fan PS, Pai SH. Process optimiza- and electrical properties of Hybrid SiO2-graphene tion and material properties for nanofluid manufac- naphthenic mineral oil nanofluid as potential turing. Int J Adv Manuf Technol 2007;34:300–306. transformer oil. Mater Res Express 2017;4:015504. [CrossRef] [CrossRef]
25. Zhu H, Zhang C, Liu S, Tang Y, Yin Y. Effects of nanoparticle clustering and alignment on thermal A, Safaei MR, Rostamian H, et al. Thermal con- conductivities of Fe3O4 aqueous nanofluids. Appl ductivity of Cu/TiO2-water/EG hybrid nanofluid: Phys Lett 2006;89:4–7. [CrossRef] Experimental data and modeling using artificial
26. Liu MS, Ching-Cheng Lin M, Huang I Te, Wang CC. neural network and correlation. Int Commun Heat Enhancement of thermal conductivity with carbon Mass Transf 2015;66:100–104. [CrossRef] nanotube for nanofluids. Int Commun Heat Mass [51] Yarmand H, Gharehkhani S, Shirazi SFS, Goodarzi Transf 2005;32:1202–1210. [CrossRef] M, Amiri A, Sarsam WS, et al. Study of synthesis, 454 J Ther Eng, Vol. 8, No. 3, pp. 445–455, May 2022 stability and thermo-physical properties of gra- conductivity and dynamic viscosity of TiO2-SiO2 phene nanoplatelet/platinum hybrid nanofluid. nanofluids in water: Ethylene glycol mixture. Int Int Commun Heat Mass Transf 2016;77:15–21. Commun Heat Mass Transf 2017;86:181–189. [CrossRef] [CrossRef]
27. Hamid KA, Azmi WH, Nabil MF, Mamat R. Experimental investigation of nanoparticle mix- M. Synthesis of Al2O3-Cu/water hybrid nanoflu- ture ratios on TiO2–SiO2 nanofluids heat transfer ids using two step method and its thermo physical performance under turbulent flow. Int J Heat Mass properties. Colloids Surfaces A Physicochem Eng Transf 2018;118:617–627. [CrossRef] Asp 2011;388:41–48. [CrossRef]
28. Shiravi AH, Shafiee M, Firoozzadeh M, Bostani H, Bozorgmehrian M. Experimental study on convec- behavior in turbulent flow: Recent research and tive heat transfer and entropy generation of carbon numerical comparison. Renew Sustain Energy Rev black nanofluid turbulent flow in a helical coiled heat 2017;71:426–434. [CrossRef] exchanger. J Therm Anal Calorim 2021;145:597– [66] Hung YH, Wang WP, Hsu YC, Teng TP. Performance
29. Hemmat Esfe M, Esfandeh S, Saedodin S, Rostamian hybrid nanofluids. Exp Therm Fluid Sci 2017;81:43– H. Experimental evaluation, sensitivity analyza- 55. [CrossRef] tion and ANN modeling of thermal conductiv- [67] Nabil MF, Azmi WH, Hamid KA, Zawawi NNM, ity of ZnO-MWCNT/EG-water hybrid nanofluid Priyandoko G, Mamat R. Thermo-physical prop- for engineering applications. Appl Therm Eng erties of hybrid nanofluids and hybrid nanolubri- 2017;125:673–685. [CrossRef] cants: A comprehensive review on performance. Int
30. Wen D, Lin G, Vafaei S, Zhang K. Review of nano- Commun Heat Mass Transf 2017;83:30–39. [CrossRef] fluids for heat transfer applications. Particuology [68] Kalidasan K, Rajesh Kanna P. Natural convection on 2009;7:141–150. [CrossRef] an open square cavity containing diagonally placed
31. Fovet Y, Gal J, Toumelin-chemla F. Influence of heaters and adiabatic square block and filled with pH and fluoride concentration on titanium oxide. hybrid nanofluid of nanodiamond - cobalt oxide/ Talanta 2001;53:1053–1063. [CrossRef] water. Int Commun Heat Mass Transf 2017;81:64–
32. Xie H, Lee H, Youn W, Choi M. Nanofluids con- 71. [CrossRef] taining multiwalled carbon nanotubes and their [69] Megatif L, Ghozatloo A, Arimi A, Shariati-Niasar enhanced thermal conductivities. J Appl Phys M. Investigation of laminar convective heat trans- 2003;94:4967–4971. [CrossRef] fer of a novel Tio2-Carbon nanotube hybrid water-
33. Syam Sundar L, Singh MK, Ferro MC, Sousa ACM. based nanofluid. Exp Heat Transf 2016;29:124–138. Experimental investigation of the thermal transport [CrossRef] properties of graphene oxide/Co3O4 hybrid nano- [70] Ilyas SU, Pendyala R, Narahari M, Susin L. Stability, fluids. Int Commun Heat Mass Transf 2017;84:1–10. rheology and thermal analysis of functional- [CrossRef] ized alumina- thermal oil-based nanofluids for
34. Dardan E, Afrand M, Meghdadi Isfahani AH. Effect advanced cooling systems. Energy Convers Manag of suspending hybrid nano-additives on rheologi- 2017;142:215–229. [CrossRef] cal behavior of engine oil and pumping power. Appl [71] Jiang W, Ding G, Peng H. Measurement and model Therm Eng 2016;109:524–534. [CrossRef] on thermal conductivities of carbon nanotube
35. Chattopadhyay P, Gupta RB. Production of griseo- nanorefrigerants. Int J Therm Sci 2009;48:1108– fulvin nanoparticles using supercritical CO2 anti- 1115. [CrossRef] solvent with enhanced mass transfer. Int J Pharm [72] Alawi OA, Sidik NAC, Mohammed HA. A compre- 2001;228:19–31. [CrossRef] hensive review of fundamentals, preparation and
36. Afrand M, Nazari Najafabadi K, Akbari M. Effects applications of nanorefrigerants. Int Commun Heat of temperature and solid volume fraction on viscos- Mass Transf 2014;54:81–95. [CrossRef] ity of SiO2-MWCNTs/SAE40 hybrid nanofluid as a [73] Otanicar TP, Phelan PE, Prasher RS, Rosengarten G, coolant and lubricant in heat engines. Appl Therm Taylor RA. Nanofluid-based direct absorption solar Eng 2016;102:45–54. [CrossRef] collector. J Renew Sustain Energy 2010;2:033102.
37. Hemmat Esfe M, Rostamian H, Reza Sarlak M. [CrossRef] A novel study on rheological behavior of ZnO- [74] Yousefi T, Veysi F, Shojaeizadeh E, Zinadini S. An MWCNT/10w40 nanofluid for automotive engines. experimental investigation on the effect of Al2O3- J Mol Liq 2018;254:406–413. [CrossRef] H2O nanofluid on the efficiency of flat-plate
38. Nabil MF, Azmi WH, Abdul Hamid K, Mamat R, solar collectors. Renew Energy 2012;39:293–298. Hagos FY. An experimental study on the thermal [CrossRef] J Ther Eng, Vol. 8, No. 3, pp. 445–455, May 2022 455
39. Moghadam AJ, Farzane-Gord M, Sajadi M, Hoseyn- Zadeh M. Effects of CuO/water nanofluid on the A. Flow and heat transfer in non-Newtonian nano- efficiency of a flat-plate solar collector. Exp Therm fluids over porous surfaces. J Therm Anal Calorim Fluid Sci 2014;58:9–14. [CrossRef] 2019;135:1655–1666. [CrossRef]
40. He Q, Zeng S, Wang S. Experimental investigation on the efficiency of flat-plate solar collectors with heat transfer of hybrid nanofluid over a permeable nanofluids. Appl Therm Eng 2014;88:165–171. shrinking cylinder with Joule heating: A compara- [CrossRef] tive analysis. Alexandria Eng J 2020;59:1787–1798.
41. Zhang Y, Li C, Jia D, Zhang D, Zhang X. Experimental [CrossRef] evaluation of the lubrication performance of MoS2/ [84] Kilic M. A heat transfer analysis from a porous plate CNT nanofluid for minimal quantity lubrication in with transpiration cooling. Therm Sci 2019;23:3025– Ni-based alloy grinding. Int J Mach Tools Manuf 3034. [CrossRef] 2015;99:19–33. [CrossRef] [85] Sheikholeslami M, Rokni HB. Nanofluid two phase
42. Hussein AM, Bakar RA, Kadirgama K, Sharma KV. model analysis in existence of induced magnetic Heat transfer enhancement using nanofluids in an field. Int J Heat Mass Transf 2017;107:288–299. automotive cooling system. Int Commun Heat Mass [CrossRef] Transf 2014;53:195–202. [CrossRef] [86] Subbarayudu K, Wahidunnisa L, Suneetha S,
43. Leong KY, Saidur R, Kazi SN, Mamun AH. Reddy PBA. Against a wedge with aligned mag- Performance investigation of an automotive car netic. In: Rushi Kumar B, Sivaraj R, Prakash J, edi- radiator operated with nanofluid-based coolants tors. Advances in fluid dynamics. Lecture Notes (nanofluid as a coolant in a radiator). Appl Therm in Mechanical Engineer. Singapore: Springeri, Eng 2010;30:2685–2692. [CrossRef] 2020:263–275. [CrossRef]
44. Banihashemi S, Assari M reza, Javadi S, Vahidifar S. Experimental study of the effect of disk obsta- Wongwises S, Tran MD. Effect of magnetic field cle rotating with Different angular ratios on heat on laminar forced convective heat transfer of transfer and pressure drop in a pipe with turbulent MWCNT–Fe3O4/water hybrid nanofluid in a flow. J Therm Anal Calorim 2021;144:1401–1416. heated tube. J Therm Anal Calorim 2019;137:1809– [CrossRef] 1825. [CrossRef]
45. Mousavi SB, Zeinali Heris S, Hosseini MG. Experimental investigation of MoS2/diesel oil nano- combined effect of nanofluids and impinging jets fluid thermophysical and rheological properties. for different parameter. J Fac Eng Archit Gazi Univ Int Commun Heat Mass Transf 2019;108:104298. 2019;34:1501–1515. [Turkish] [CrossRef]
