Design development and analysis of a box type solar cooker with optimally reflecting side walls
Journal of Thermal Engineering 2023, Vol. 9, Issue 3, pp. 637-647; doi.org/10.18186/thermal.1297564
Abstract
Keywords: Solar Cooker; Optimally Inclined Sidewalls; Figure of Merit; Pot Tempe Rature; Plate Temperature
Introduction
Solar energy is the radiant energy produced by the sun. Solar cookers are devices used to entrap the sun’s radiant energy for cooking. Taner and Dalkilic [1] performed a feasibility study of solar energy-techno economic analysis and their results figure out the efficient result for establishing a solar energy plant in a village in Turkey. Solar cooking is one of the significant applications of solar energy, and it can replace the conventional technologies of cooking, as suggested by Pohekar [2] and Farooqui [3]. In villages of India, cooking is done majorly by burning wood or cow dung. Solar cooking must substitute them for reducing health risks and the destruction of forests. Large numbers of solar cookers have been developed in various countries. Solar cookers can be classified into two major categories considering how thermal energy is transferred from the sun to the cooking vessel: focused or direct and box or indirect. According to Sansaniwal [4], considering the configuration of the device, they can be classified into four types: box type, concentrating solar cooker, collector cooker, and panel cooker. Focusing-type solar cookers cook at high temperatures quicker than box-type cookers, but they have a high initial cost and need expert personnel to operate as per Abou-Ziyan [5]. Panel cookers have high maximum working temperatures and can function as multiple cookers simultaneously. As a result of their greater reliance on reflected beams, their overall performance in cloudy conditions is extremely subpar. A parabolic dish directs a concentrated solar radiation beam on the bottom of a blackened cooking pot used cooking. Yettou et al. [6] generated maps of receiver temperature of parabolic collector for solar food cooking. A monitoring system is necessary to follow the sun’s movement and adjust the focus for optimal solar energy reflection, according to Algifri [7]. The box-type solar cooker is the simplest of all types of solar cookers. Box-type solar cookers prepare food by exploiting the greenhouse effect. Short-wave radiation can flow through a clear glass or plastic cover that is placed over the insulated box. This radiation is absorbed by the inside black-coated box. Energy is reradiated at longer wavelengths as the temperature of the inner tray rises. The glass cover prevents longwave radiation from passing through. The temperature of the box rises until it reaches an equilibrium temperature where heat losses balance the solar energy supply. A plane reflector is connected to the cooker to improve its performance. This kind of cooker can accommodate many pots of food. Because the food gets cooked at low temperatures, it does not burn. It is simple to transport due to its lightness. Due to above reasons, the box type solar cooker is used for present study. Various researchers have carried out experiments on the solar cooker for its performance and analysis. The solar cooker is made up of many components, each of which has a substantial impact on the solar cooker’s performance.
The use of a solar cooker has several drawbacks, the most significant of which are that it takes a considerable amount of time to cook, that it is not always accessible, and that it is much less effective at cooking when there is a reduced amount of sunshine. Therefore, there is a requirement to improve the performance of the solar cooker to eliminate the drawbacks that have been discussed above. The use of nanofluids, modifying the geometry of solar cookers, making technical changes and implementations for improving the use of solar energy, and use of thermal storage are a few strategies to increase the performance of solar cookers. Numerous researchers, such as Aramesh et al. [8], Omara et al. [9], Khatri et al. [10], Sawarn et al. [11], and have examined solar cooking in all of its facets. Alajingi and Marimuthu [12] discussed about the recent advancements of domestic solar appliances. Nkhonjera et al. [13] focused their research on determining the optimal container shape for a heat storage medium that could be used in solar cooking. According to the study conducted by Panchal et al. [14], latent heat storage material is able to keep the heat for an additional three to four hours than sensible heat storage material. Arunachala and Kundapur [15]suggested an improved cooker design for locating it indoors, reducing costs, and gaining social acceptance. Komolafe et al. [16] investigated the design, fabrication, and thermal evaluation of a solar cooking system integrated with an Arduino-based tracking device and sensible heat storage (SHS) materials. Asrori et al. [17] conducted the study to investigate the thermal performance of solar cooker using a spot Fresnel lens for concentrators of solar thermal energy. Cuce et al. [18] experimented with enhancing the performance figures of solar cookers through latent heat storage and low-cost booster reflectors. Milikias et al. [19] designed, developed, and experimentally tested the performance of an improved box-type solar cooker with thermal energy storage. It is to be noted from the literature that the optical efficiency and heat capacity of the solar cooker are two of the many essential design elements that determine its thermal performance. The angle of incidence of solar radiation, the number of covers (glazing), the material for covers, the coating of the stove absorber plate, and other parameters affect the optical efficiency of a solar collector. Effects of glazing and reflectors have been reported by Mehta and Channiwala [20] on box-type and triangular cookers. In their study, the extreme plate and air mass temperatures of the triangular cooker were higher than that of the box-type solar cooker for both load and no-load conditions. Heat transfer coefficient and top heat loss coefficient were less in the rectangular enclosures by 31% and 7%, respectively, as compared to trapezoidal enclosures. Channiwala and Doshi [21] presented the top loss coefficient and overall heat loss coefficient as a function of the plate temperature and ambient temperature difference for the feasible functioning range of box-type solar cookers considering the factors of wind speed and glass cover number. They also suggested a correlation for wind top loss
coefficient. A thermal testing method proposed by Mullick et al. [22] for finding the performance of a double-glazed box-type solar cooker concluded that for better performance, a high ratio of optical efficiency to overall heat loss is required. Investigations on roughness element geometries by Gawande [23], natural heat transfer coefficient by Kumar [24], and weight analysis by Goswami et al. [25] were carried out to study their effect on the performance of the solar cooker. Many researchers proposed various mathematical models and designs for solar cooking, namely a model with a booster reflector by Harmim et al. [26], different conditions predicting solar cooker performance by Pejack [27], heat transfer on box-type solar cookers with internal reflectors by Terres et al. [28], and forecasting cooking power characterized by three regulated parameters (coefficient of overall heat transfer, intercept area , and thermal conductivity of absorber plate) and three unregulated factors (solar insolation, temperature variation, and load dispersal)by Funk and Larsen [29]. Hajibeigy et al. [30] showed by mathematical modelling that with better design, efficiency of solar panels operating in non-optimal conditions can be improved. Vaidya and Channiwala [31] developed a mathematical model for box type solar cooker including thermal contact resistance. A novel design was proposed by Das et al. [32] in which solar energy is received indirectly by the cooking pot. As a booster reflector, it is equipped with an irregular parabolic concentrator that concentrates solar energy captured on the horizontal aperture onto the vertical absorber plate. El-Sebaii et al. [33] investigated the influence of variables
such as plate thickness, vessel emissivity, and insulation thickness on cooking time. Their research showed that black paint on vessels might be avoided by using weathered stainless steel or aluminum vessels and a transitory mathematical model for a box-type solar cooker with a stepped outer reflector pivoted at the top of the cooker was provided. Many researchers made changes to the concept, such as developing a solar cooker with internal reflectors [34], a truncated pyramid solar box cooker [35], and the introduction of mirrors [36]. The effects of various mirror configurations and placements and mirror inclination angles have also been studied by [37,38]. Sethi et al. [39] observed temperatures of up to 100 0C using a solar cooker with an inclined structure with 3 levels and booster mirrors. Mahavar et al. [40] prepared two servings of rice in
4.75. hours using a removable aluminum partition to split
a cylindrical cooking pot into four similar portions. Shaik et al. [41] evaluated different transparent glazing materials, such as acrylic, low-iron, medium-iron, and high-iron glasses, had their sunlight transmission characteristics. Thus, from the literature review, it can be stated that various researchers have tried to modify the design of the cooker and improve the performance of the solar cooker. A list of work done by various researches in modification of design of solar cooker is given in Table 1. In most of the designs described in the literature, the cooking pot receives heat from the lid through the glass cover and the bottom through the absorber plate. It is possible to improve the energy acquisition by giving the sidewall an incline and making it reflective.
Table 1. Work of various researchers on modification of design of solar cooker Sr No Name of Investigator
Mehta and Channiwala [20] Comparison between box-type and triangular cookers
L-shaped absorber plate with one internal (bottom) and two external plane reflectors
Triangular, semi-circular, and trapezoidal microporous absorbers
Double exposure solar cooker in which the absorber is Cooking time reduced by 30-60 exposed to solar radiation from the top and the bottom minutes. sides
Plate temperature obtained: Conventional absorber -110 °C, triangular - 134.1°C, semicircular-146.6 °C trapezoidal-151.1 °C

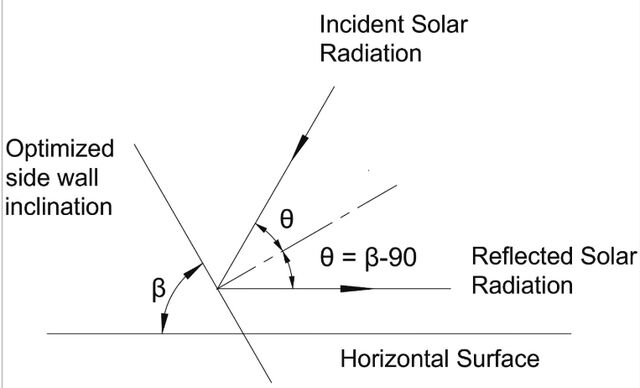

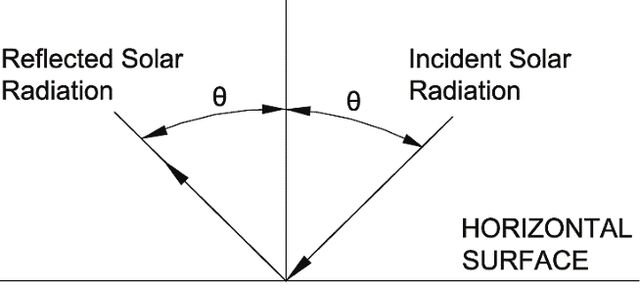

An attempt is made by El Sebaii [33] by making stepped plate as shown in Figure 1 and all the four sidewalls of the internal reflectors and by Kahsay [34] by adding extra solar cooker as shown in Figure 2 at solar noon considerreflectors at 600 inclinations to improve energy from the ing the date of 21st December. Then the inclination angle of sides also. The multi-step inner reflectors are designed by all the side walls is changed so that the reflected sun rays El Sebaii using triangular and rectangular pieces of ordifrom the wall become horizontal and remain parallel to the nary plane mirrors in a three-step fashion. The lower, mid0 0 dle and upper steps are fixed to create angles of 30 , 45 , and base. Hence the surface should be tilted so that θ= 90 − β 750 with respect to the horizontal, respectively. The cooking or β= 90 − θ . vessel is supported by a holder that was custom-made for it. It appears to be a pan that is hung upside down from two copper bars that are fastened to the outside of the wooden box. Another plane mirror facing the bottom of the cooking vessel is provided at the bottom of the device. As a result, after being reflected by the side mirrors, some of the rays may be reflected by the mirror that is located at the bottom of the vessel. Because of this, there is a rise in the level of radiation intensity within the cooking vessel as per El Sebaii. Thus, there is solar radiation from the top and bottom of the vessel. Some part of reradiated solar rays gives energy from the sides and some part from the bottom. But Figure 1. Incidence angle at Horizontal Surface. the amount of solar energy from the sides is less as the angle of inclination is not optimized for maximum solar radiation. Also, a complex geometry for multistep inner reflectors makes the construction of the solar cooker difficult and costly. To get energy from the sidewalls Kahsay et al. gave the 600 inclinations on front and side walls. They concluded that more energy can be obtained from the sidewalls also if the inclination of the sidewalls is optimized. Hence, in the present research work, as a novel component, a new cooker with optimized inclined side walls is designed and developed. The optimized sidewall angles due south, due north, due east, and due west are calculated as 67.30, 22.690, 35.440, and 35.440, respectively. The inclination given to the optimized reflective sidewalls will reflect the solar radiation falling on the sidewalls Figure 2. Optimized Inclination Angle. in the direction parallel to the horizontal absorber plate and will provide more heat to the pots through the sides, enhancing the performance of the solar cooker. The optiCosine of angle between an incident beam of flux Ibn and mization of sidewall inclination angle is not observed in the the normal to a plane surface, θ, can be given by the followliterature, and the authors consider this a novel approach. Hence in the present work, a box-type solar cooker is ing equation [49]. designed and developed with optimally reflecting sidewalls. = cos θ sin ϕ ( sin δ cos β + cos δ cos γ cos ω sin β ) The results are compared with the conventional cooker. + cos ϕ ( cos δ cos ω cos β − sin δ cos γ sin β ) (1) Design Modifications in New Developed Solar Cooker + cos δ sin γ sin ω sin β If a solar cooker is able to successfully prepare food throughout the winter, in addition to the other perforFor the location of Surat, latitude φ =21.170 mance factors that need to be examined, the solar cooker has the potential to be regarded as an excellent solar cooker. The declination angle δ can be calculated using the folHence the modification in the design is based on the insola- lowing formula [49] tion available in December at the location of Surat when the solar insolation available is least [47]. Initially, the absorber 360 plate area required for cooking is calculated as suggested 284 + n = δ 23.45sin (2) by Goswami et al. [25] and Vaidya et al. [48]. The incident 365 angle is calculated on the horizontal surface of the absorber
For the 21st of December, the number of days of the year, n = 355, and hence The declination angle δ = -23.45 Considering the time at solar noon, i.e., hour angle ω = 00 (a) For side wall facing due south γ =00 Taking θ= 90 − β cos (= 90 − β ) sin 21.17 ( sin − 23.45cos β + cos − 23.45cos 0 cos 0sin β ) + cos 21.17 ( cos − 23.45cos 0 cos β − sin − 23.45cos 0sin β ) + cos − 23.45sin 0sin 0sin β
(b) For side wall facing due south γ = 1800 cos (= 90 − β ) sin 21.17 ( sin − 23.45cos β + cos − 23.45cos180 cos 0sin β ) + cos 21.17 ( cos − 23.45cos 0 cos β − sin − 23.45cos180sin β ) + cos − 23.45sin180sin 0sin β
(c) For side wall facing due east γ = 900 cos (= 90 − β ) sin 21.17 ( sin − 23.45cos β + cos − 23.45cos 90 cos 0sin β ) + cos 21.17 ( cos − 23.45cos 0 cos β − sin − 23.45cos 90sin β ) + cos − 23.45sin 90sin 0sin β

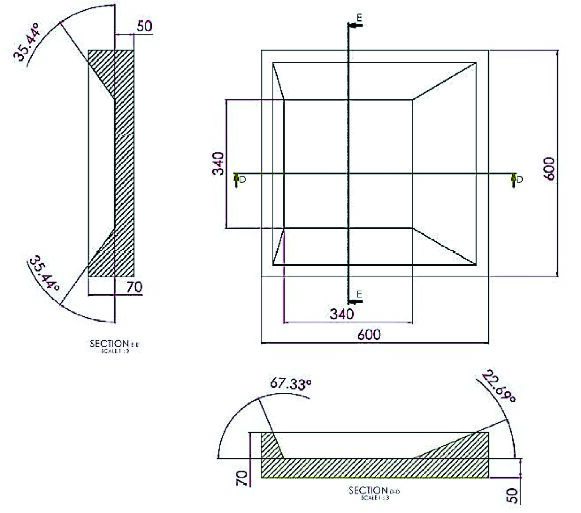

solar cooker are shown in Figure 3. The assembly drawing for the newly designed solar cooker is shown in Figure 4. Fabrication of New Designed Solar Cooker Initially, the solar cooker is fabricated as per the method and calculation by Goswami et al.[25] and Vaidya et al.[48] It is composed of a 340 mm x 340 mm x 70 mm metal plate. The size of the top is 560 x 580 mm2. The absorber tray is painted with black matte paint. It was made up of two glass plates. The back and sides of the cooker were insulated with Cerawool with a density of 64 kg/m3 and heat conductivity of 0.48 W/m-K. The thickness of the Cerawool underneath the absorber plate is 50 mm. Cerawool has a thickness of 25 mm behind the sidewalls. As a result of this insulation, it can be considered as there is no or minimal leakage from the cooker. An Aluminum composite panel was used to house the solar cooker. Dimensions of Aluminium Composite Panel (ACP) are 500 x 500 mm2. T-type thermocouples that were calibrated were used to take temperature readings throughout the cooker at various points. The new cooker was built using the same methodology. The side walls are bent according to the angles optimized in the design. The surface is prepared by polishing, buffing, and chemical cleaning. Two float glasses (4 mm thickness) have been used with a spacing of 15 mm between the two glasses. Both inner and outer glass is fitted in a groove made in the frame by glue. Glass frame is hinged with the housing body.
Thus, all four sidewalls are inclined as the calculated angles. The dimensional details of the newly developed
Experimental studies on new designed solar cooker As developed and discussed earlier, a series of experiments have been conducted on a fully instrumented optimized solar cooker to measure its performance under load and no-load conditions. The actual cooking has also been undertaken in this cooker. The details of the experiments are given in Table 2.
cos (= 90 − β ) sin 21.17 ( sin − 23.45cos β + cos − 23.45cos 90 cos 0sin β ) + cos 21.17 ( cos − 23.45cos 0 cos β − sin − 23.45cos 90sin β ) + cos − 23.45sin 270sin 0sin β
The newly developed solar cooker was placed through a thermal performance test to determine the figure of merit F1 for no-load situations and the figure of merit F2 for different loading conditions [22]. The first figure of merit represents efficiency level and is the proportion of optical efficiency to heat loss factor; it is assessed using a static test with no load and is termed the stagnation test.
Figure 5. Variation of the temperature of Absorber plates of conventional and new designed solar cooker.
To determine the second figure of merit, F2, the solar cooker is placed in the sun without a mirror but loaded fully with water and pots. The initial water is kept at 60 0C, the average between ambient and boiling temperatures. Temperature and sun radiation is recorded until the temperature achieves 95 0C. The following equation is used to compute the second figure of merit, F2.
1 Tw 2 − Ta 1− F1 ( MC )W F1 I G F2 = x ln A ( t2 − t1 ) 1 − 1 Tw1 − Ta F1 I G
The value of IG is averaged for all the values during the test period. A cooking test is performed to evaluate the cooking capacity of the newly designed cooker in December, and the results are compared with the conventional cooker.
Results And Discussion
No-load tests, load tests, and cooking tests were carried out on the newly designed solar cooker. The results obtained during the tests are shown below: Figure 5 depicts the variance in plate temperatures between the conventional and newly designed cookers and ambient temperature as a function of local time. Temperatures in both traditional and newly built cookers have been seen to rise with time. The hottest part of the day is between noon and 3:00 pm. Throughout the day, the temperature of the newly designed cooker is more than that of
the conventional cooker. The highest temperature reached in the conventional cooker is 65 0C, while the highest temperature achieved in newly designed cooker is 76 0C. It is observed that the temperature of new designed solar cooker is about 16% higher from 11.30 am to about 2.00 pm. Figure 6 and Figure 7 represent the variance of the figure of merit F1 of the conventional cooker and newly designed cooker with local time on day 1 and day 2. It is observed that the figure of merit F1 of the newly designed cooker is more throughout the day than that of the conventional cooker. The highest value is 0.11 and 0.07 for day 1 and day 2 for conventional cooker and 0.15 and 0.09 for newly designed cooker. Figure 8 shows the temperature profile of air mass inside the conventional and newly designed cooker. The temperature obtained in the newly designed cooker is
Figure 9. Variation of Pot Temperatures of Commercial Cooker and New Designed Solar Cooker.
Figure 8. Temperature Profile of Air mass of Conventional and New Designed Cooker.
higher than the conventional cooker. This may be due to increased reflected beam radiation as an effect of optimized inclination of the sidewalls of the newly designed cooker. Max temperature of 86 0C is achieved in a newly designed cooker, and 49.5 0C is achieved in a conventional cooker. The average airmass temperature between 11:00 am and 2:00 pm is 43 0C, and that for the newly designed cooker is 78 0C. Figure 9 shows the variation of pot temperatures of the conventional cooker and the newly designed cooker concerning time. The pot temperature of the newly designed cooker is found to be increasing earlier than the pot temperature of the conventional cooker. And it is found to be higher throughout the day. The highest temperature of the newly developed cooker is around 86 0C, while the highest temperature of the conventional cooker is around 60 0C.
The maximum value of Figure of merit F1 is calculated to be 0.15 for the newly developed cooker and 0.11 for the conventional cooker at 1.15 pm. The solar cooker having a Figure of merit F1 not less than 0.12 is graded as a grade A solar cooker, and F1 not less than 0.11 is graded as a Grade B solar cooker. The value of Figure of merit F2 is evaluated to be 0.59 for the newly designed cooker and 0.30 for the conventional cooker. It is to be noted that the accepted condition for the solar cooker to be qualified for the Indian Standards IS1 mark is that F1 must be larger than 0.11, and F2 must be greater than 0.40. In addition, if the value of F1 is
0.12. or greater, the solar cooker is categorized as “Grade A”;
otherwise, it is labelled as “Grade B” [34]. A cooking test was also carried out with two pots of (200 gm rice+ 350 gm water) and two pots of (200 gm daal+ 350 gm water) in the newly designed cooker and the conventional cooker. Figure 10 shows the photographs of the daal
Figure 10. Daal and rice placed in commercial Solar cooker for cooking.
and rice placed in the conventional cooker before cooking, and Figure 11 shows the pictures of daal and rice in the newly designed cooker before cooking. After 130 minutes, the lentils were checked by pressing between the thumb and first finger to check if they were cooked through. The lentils in new designed solar cooker were found soft and
disintegrated easily, but the lentils were found hard and did not disintegrate in the conventional cooker. Figure 12 and Figure 13 show the photographs of daal and rice placed in the conventional Solar Cooker and newly designed Solar Cooker after the cooking test. Figure 14 and Figure 15 show the photographs of uncooked lentils from the conventional cooker, and fully cooked lentils from New designed Solar Cooker.
Figure 14. Uncooked Lentils from the conventional solar cooker. Figure 11. Daal and rice placed in new designed Solar Cooker for cooking.
Figure 15. Fully cooked Lentils from New designed Solar Cooker. Figure 12. Daal and rice placed in Commercial Solar Cooker after cooking period.
Figure 13. Daal and rice placed in New designed Solar cooker after cooking period.
Figure 16. Graph of food temperature vs time for the real cooking tests.
The graph of food temperature in the newly designed cooker and that in the conventional cooker for the actual cooking tests is shown in Figure 16. It is observed that the temperature of the food in the newly designed solar cooker reaches the maximum value at about 90 0C at around 12.10 pm and remains at that temperature till 2.00 pm, during which the food gets cooked. The maximum temperature in the conventional cooker is 60 0C which is, between 1:00 pm to 3:00 pm, and the food is found uncooked.
