Effect of operating parameters on the performance of rotary desiccant wheel energized by PVT collec
Journal of Thermal Engineering 2023, Vol. 9, Issue 4, pp. 988-997; doi.org/10.18186/thermal.1333904
Abstract
Keywords: Desiccant Air-Conditioning; Rotary Desiccant Wheel; Silica-gel; Photovoltaic Thermal Collector; Regeneration Temperature
Introduction
Development of technology and industry and the increase in human living spaces cause an increase in the need for air-conditioning and, accordingly, an increase in energy consumption. The energy requirement for air-conditioning
is one of the biggest reasons of energy consumption in buildings in modern societies [1]. The high electricity requirement puts a significant pressure on the electricity supply network [2]. Reducing the environmental damage caused by the refrigerants used in conventional systems
*Corresponding author. *E-mail address: uolmus@cu.edu.tr This paper was recommended for publication in revised form by Regional Editor Tolga Taner Published by Yıldız Technical University Press, İstanbul, Turkey Copyright 2021, Yıldız Technical University. This is an open access article under the CC BY-NC license (http://creativecommons.org/licenses/by-nc/4.0/).
is also very important in terms of environmental protection [3]. Today, a substantial part of energy production is provided by fossil fuels, but due to the gradual decrease of resources and the damage they cause to the environment, many efforts are made to utilize alternative resources, such as solar, wind and geothermal more widely [4].
Figure 1. Schematic view of the desiccant wheel studied. The main objective in the design of air-conditioning systems is to provide thermal comfort and reduce energy consumption [5]. Desiccant air-conditioning systems (DAC) are good alternative to the conventional ones, as they can be energized with low-quality thermal energy and do not contain environmentally harmful refrigerants [6]. Many studies have been carried out to meet the energy needs of desiccant air-conditioning systems with alternative clean energy sources such as solar and geothermal energies or waste heat [7-9]. The use of solar energy offers great potential in reducing both high-quality electricity consumption and environmental problems [10]. Solar thermal collectors are a widely-used commercial technology that converts sunlight into thermal energy. Many researchers have studied thermal cooling systems integrated with different types of solar collectors such as flat plate, vacuum tube and concentrated solar collectors [11-13]. Although the efficiency of solar thermal collectors is higher than that of solar photovoltaic (PV) panels, thermal cooling devices have a lower coefficient of performance (COP) than conventional compression cooling systems [14]. This results in larger collector areas compared to vapor compression systems driven by PV modules. In addition, the cost of thermal cooling devices can be relatively high, especially in small systems. Therefore, there is a need for alternative solutions that can increase the competitiveness of solar thermal cooling systems [15]. Photovoltaic/thermal (PV/T) collectors can provide a cost-effective solution for thermal cooling systems, because they generate both
electricity and thermal energy from incoming solar radiation. In addition, removing heat from a PV/T module not only increases the electrical efficiency of the PV/T module but also extends its lifespan. The electrical energy gain from the efficiency-enhanced PV/T module may be greater than the energy consumed by parasitic components in the system, such as fans or pumps. This can result in higher total energy conversion than a stand-alone PV module or a stand-alone solar thermal collector [16]. Desiccant wheel (DEW), used to remove moisture from the process air, is a crucial component of solid desiccant air-conditioning systems [17]. A schematic view of the desiccant wheel integrated with water-cooled PV/T collector is shown in Figure 1. The wheel consists of two sections called process and regeneration. The states P1 and P2 represent the process air inlet and outlet, and states R2 and R3 shows regeneration air inlet and outlet, respectively. While the moist outdoor air passes through the process section of DEW, its humidity decreases and the temperature increases (P1àP2). On the other hand, the same outdoor air is heated to regeneration temperature with PV/T water collectors (R1àR2) in the regeneration side. The hot air that gained the ability to absorb moisture discharges the moisture out of system (R2àR3). The change of process and regeneration air streams at 1.3 m/s frontal velocity and 60 °C regeneration temperature is shown in psychometric diagram (Figure 2). Different desiccant materials such as silica-gel, molecular sieve, zeolite, superadsorbent polymer, metal silicate are used in DEW equipment. Silica-gel is commonly used as desiccant material among these materials. In addition to desiccant material used, there are other factors that affect the performance of a DEW. These include regeneration temperature, air frontal velocity, wheel speed, area ratio of the process and regeneration sections, specifications of DEW such as diameter and thickness. Since many factors affect the performance of a DEW, the researchers focused in their studies [18, 19] on these parameters to reveal their influence. In addition, many researchers worked on renewable energy technologies, which are more environmentally friendly in terms of emission and more suitable in terms of energy consumption instead of traditional technologies, in obtaining the regeneration thermal energy [20]. Yamaguchi and Saito [21] conducted experimental and numerical analysis of DEW. The authors analyzed the effects of regeneration temperature, air velocity, wheel thickness and rotational speed on the performance of DEW. It was observed that with the increase of the regeneration temperature, the process outlet temperature also increased, and humidity decreased. Kamar et al. [22] experimentally investigated the effects of regeneration temperature on the performance of DEW. Process outlet air temperature, temperature and dehumidification efficiencies were considered as performance criteria. The results showed that increasing regeneration temperature increased process outlet temperature, decreased the thermal and dehumidification efficiencies of DEW. Saputra et al. [23] carried out an experimental
investigation on the dehumidification performance of DEW at different regeneration temperatures and regeneration airflow velocities. It was seen that amount of dehumidification increased with increasing regeneration temperature and airflow velocity. Goodarzia et al. [24] evaluated the moisture removal capacity, sensible, latent and total coefficient of performance of DEW at different operating conditions using manufacturer software. They varied the regeneration temperature between 65 °C and 110 °C. Their results indicated that COP decreases and moisture removal capacity increases with increasing regeneration temperature. Generating regeneration thermal energy using PV/T is one of the alternative applications that reduce energy consumption in desiccant based air-conditioning systems. Therefore, it is necessary to examine the effects of DEW and PV/T equipment on each other for different operating conditions. Literature survey reveals that, studies examining the effects of regeneration temperature and air frontal velocity together in DEW systems energized by PV/T water collectors are very limited. In this study, the effect of regeneration temperature on the performance parameters of PV/T supported DEW was investigated for different air frontal velocities. Climatic conditions of Osmaniye province were taken into consideration in the analysis. Despite their potential advantages, solar DAC systems are very limited in use because of some deterrents. In the design of DEW, which is the most important component of DAC systems, knowing the effect of important parameters that affect the behavior of DEW will help to design DEW more accurately. The results obtained in this study provide helpful information for the proper design of DEW and therefore DAC systems, which may ultimately contribute to the spread of DAC systems.
Material And Methods
In this study, the effect of regeneration temperature on the performance of silica-gel desiccant wheel was investigated at different air frontal velocities. A machine learning algorithm model developed by [25] was used to estimate the humidity ratio (ωP2) and temperature (TP2) of the process air at the outlet of the DEW. Güzelel et al. [25] obtained results with different methods from the data set they produced using different equations in literature and manufacturer software. The developed models were categorized into three main groups as Multiple Linear Regression (MLR), Multilayer Perceptron Regressor (MLPR) and Decision Tree (DT). It was reported that the predictions obtained from the MLPR model agree well with the experimental results. Therefore, in this study, the temperature and humidity ratio at the DEW outlet were calculated using the MLPR model with sigmoid activation function, which was reported by [25] as the best MLPR model. The considered DEW is divided into two symmetrical areas (Ap = Ar) that have an equal mass flow rate (ṁ p= ṁ r)
and thus air frontal velocities are also equal (Vp = Vr = V). This arrangement is called balanced flow. In this study, PV/T water collectors connected in series and parallel were used to provide the thermal energy requirement of the desiccant wheel. A PV/T water collector with a total area 2 m2 consists of 3.2 mm thickness of glass cover, 0.66 m2 photovoltaic module, 0.2 mm-thick selective copper absorber plate, 10 copper water tubes and 50 mm insulation. The design parameters used in simulations are given in Table 1. The design parameters used in the simulations are the values for a typical water cooled PV/T collector [8, 26]. Details of the PV/T model and definitions of terms in the equations were presented in [27]. Energy balance equation for solar cell can be written as; (1) and solar cell temperature (Tsc) is calculated from the equation below;
(2) The absorber plate receives thermal energy from the radiation from glazing and non-packing area of the PV module. This thermal energy is transferred from absorber plate to the water tubes to heat water. Energy balance equation for absorber plate is; (3) and absorber plate temperature (Tap) can be calculated from; (4) The thermal energy gain by the water is as equation (5); (5) Outlet water temperature at the end of the Nth PV/T collector (Tw,o,N) can be calculated from equation (6); (6) The rate of useful thermal energy gain from N identical PV/T collectors connected in series (QṄ ) can be calculated using the following equation; (7)
Temperature dependent electrical efficiency of solar cell (ηc,N) and PV module (ηm,N ), and thermal efficiency of Nth PV/T water collector (ηth,N) can be calculated equations (8), (9) and (10) respectively;
Performance of DEW was expressed in terms of dehumidification (ηω) and temperature (ηT) efficiencies that can be calculated from the following equations:
(10) The PV/T model utilized was validated with experimental data and good agreement between the model and experimental data was reported [27]. The mathematical model of the system was solved on EES (Engineering Equation Software) platform. DEW outlet conditions (Tp,out and ωp,out) were calculated from the MLPR model using WEKA (Waikato Environment for Knowledge Analysis) software.
Table 1. Design parameters used in the simulations [8, 26]. Parameter
Results And Discussion
In recent years, many researchers have been working on increasing the performance of the solid desiccant wheels in air-conditioning systems and providing the regeneration energy required to remove moisture with renewable energy technologies. In this study, parametric analyzes were performed on the effects of regeneration temperature (Treg) and air frontal velocity (V) on the performance of the solid desiccant wheel and the effects of these variables on the PV/T system used to provide the regeneration thermal energy. Osmaniye cooling design conditions were taken into consideration in the parametric analysis. Variation of the temperature and humidity for the process and regeneration air streams are shown on the psychometric diagram for the determined input parameters in Figure 2. The psychometric diagram shows that approximately 4 g/kg of moisture is removed from the process air at regeneration temperature of 60 °C and air frontal velocity of 1.3 m/s. At the same time, the temperature of the process air increases by approximately 13 °C during dehumidification.
In this study, the effect of regeneration temperature on outlet temperature and humidity was investigated at different air frontal velocities for Osmaniye province. Summer outdoor design dry-bulb and wet-bulb temperatures and humidity ratio for Osmaniye are 38 °C, 26 °C and 16.26 g/kg, respectively. The analyzes were carried out between 50-70 °C regeneration temperatures and at four different air frontal velocities (Table 2). Table 2. Regeneration temperature and air frontal velocity values used in analysis Parameter
Figure 2. Psychrometric diagram for 60 °C regeneration temperature and 1.3 m/s air frontal velocity.
In Figure 3, the variation of the humidity (a) and temperature (b) differences on the process side of the DEW with regeneration temperature are presented for four different frontal velocities. It is observed from the figure that both the humidity and temperature differences increase with the increase of the regeneration temperature. ∆ωpro and ∆Tpro increases respectively from 2.27 g/kg and 7.36 °C to 5.37 g/kg and 18.73 °C when regeneration temperature is increased from 50 °C to 70 °C at V=1.3 m/s. This corresponds 137.04% and 154.45% increase in ∆ωpro and ∆Tpro, respectively. One of the most important parameters triggering dehumidification of the process air in DEW is the regeneration temperature, and the amount of dehumidification increased with the increase in the regeneration temperature. Considering the effect of air frontal velocity, the humidity and temperature differences decrease with the increase of air frontal velocity at a given regeneration temperature, in contrast to the trend seen at the regeneration
temperature. Because the larger volume flow causes the desiccant bed to come into contact with more humid air and leads to faster saturation. In addition, the effect of air frontal velocity on humidity and temperature differences is more at high regeneration temperatures than at low regeneration temperatures. ∆ωpro and ∆Tpro decreases respectively from 5.37 g/kg and 18.73 °C to 4.13 g/kg and
12.24. °C when velocity is increased from 1.3 m/s to 4.1
m/s at 70 °C regeneration temperature. This corresponds 30.08% and 52.97% decrease in ∆ωpro and ∆Tpro, respectively. The observed trends in the moisture removed from the process air with air frontal velocity and regeneration temperature are consistent with trends reported in the literature [15, 28, 29]. Considering the variations in dehumidification and temperature efficiencies with regeneration temperature, it is determined that these parameters exhibit opposite trends (Figure 4). The effect of frontal velocity on both efficiencies is the same; when velocity increases both

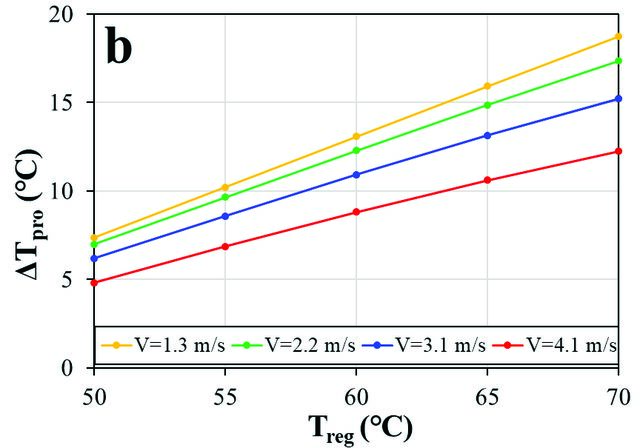

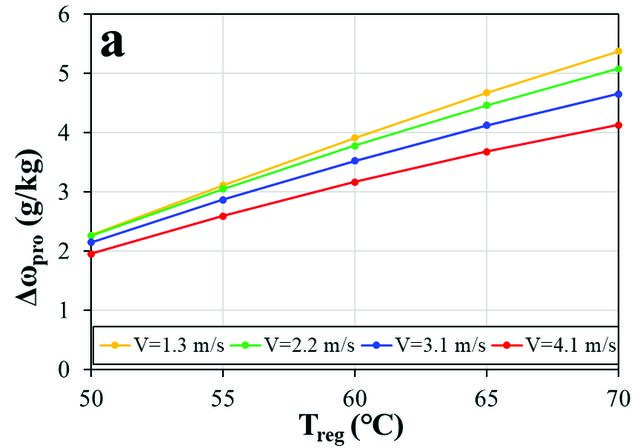

Figure 3. Variation of moisture removed (a) and temperature increase (b) in desiccant wheel with regeneration temperature.

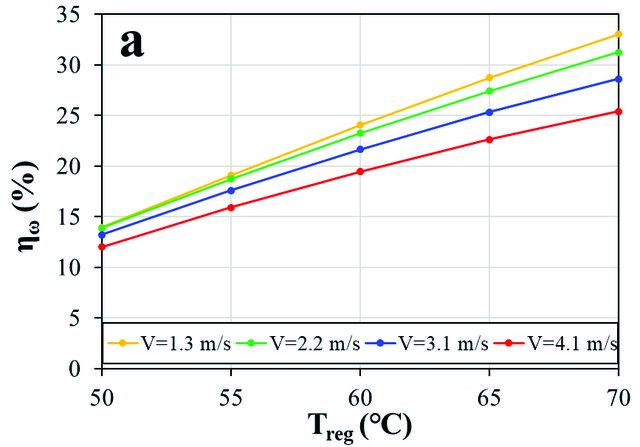

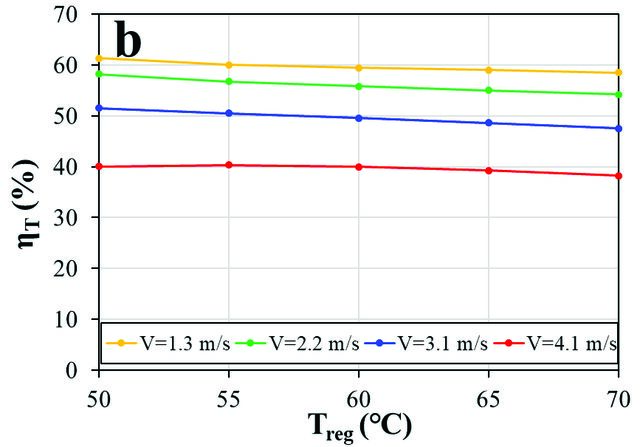

Figure 4. Dehumidification (a) and temperature effectiveness (b) of desiccant wheel.
efficiencies decrease. ηω is directly related to the humidity difference in the process air and is therefore more affected by the change of air frontal velocity with the increase in regeneration temperature, similar to the results obtained in Figure 3-a. Compared to higher regeneration temperatures, at low regeneration temperatures (especially at 50 °C) ηω values are close to each other for all velocities tested. ηω increases from 13.94% to 33.04% and, ηT decreases from 61.33% to 58.52%, when regeneration temperature is increased from 50 °C to 70 °C at V=1.3 m/s, respectively. Variation of the thermal energy required to regenerate ̇ ) with regeneration temperature is presented in DEW (Qreg Figure 5 for different frontal velocities. Increase in regeneration temperature and air frontal velocity results in higher ̇ . The change in air frontal velocity means a change in Qreg the amount of air passing through the DEW. Therefore, as V increases, the thermal energy requirement also increases. Q̇reg increases from 40.74 kW to 132.48 kW (approximately
Figure 5. Effect of regeneration temperature on required regeneration thermal energy
225% increase) when velocity is increased from 1.3 m/s to ̇ increases from 49.64 kW
4.1. m/s at 70 °C. In addition, Qreg
to 132.48 kW (approximately 167% increase) when regeneration temperature is increased from 50 °C to 70 °C at 4.1 m/s. The moisture removed from the process air per unit ̇ ) is an regeneration thermal energy expended (Δωpro/Q reg important parameter to measure the performance of DEW. ̇ ) with regeneraIn Figure 6 (a), the variation of (Δωpro/Qreg tion temperature is given for different air frontal velocities. Increasing regeneration temperature and air frontal veloċ ). However, ity negatively affects the parameter (Δωpro/Qreg ̇ ) is strongly it should be noted the parameter (Δωpro/Qreg affected by air frontal velocity at a fixed regeneration teṁ ) decreases from 0.13 (g/ perature. For instance, (Δωpro/Qreg kg)/kJ to 0.03 (g/kg)/kJ when velocity is increased from
1.3. m/s to 4.1 m/s at 70 °C. This can be explained by the
decrease in dehumidification effectiveness (Figure 4) with increasing frontal velocity. During dehumidification process, temperature of process air also increases. This is not desirable as it increases the capacity and energy consumption of the cooling system used downstream of DEW. Therefore, the parameter ̇ ) should be kept low in desiccant cooling appli(ΔTpro/Qreg ̇ ) is slightly affected by cations. The parameter (ΔTpro/Qreg the variation of regeneration temperature, as expected (Figure 6 (b)). However, for a unit regeneration thermal power expended, the temperature increase of process air decreases considerably with increasing air frontal velocity and thus air flow rate. It can be concluded from Figure 6 that low regeneration temperature is desirable for the latent ̇ ) and unfavorable for the sensible performance (Δωpro/Qreg ̇ ) of DEW. However, heat transfer performance (ΔTpro/Qreg if the dehumidification rate is the primary design consideration only, dehumidification effectiveness (ηω) is the key design parameter. In this case, regeneration temperature should be high.

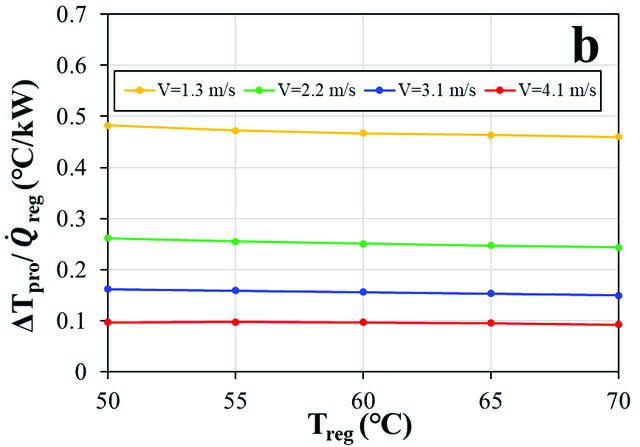

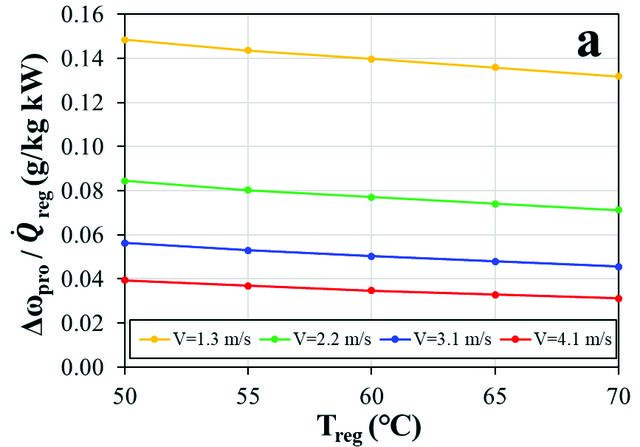

̇ ) (a) and (ΔTpro/Qreg ̇ ) (b) with regeneration temperature Figure 6. Variation of (Δωpro/Qreg
Figure 7. Effect of regeneration temperature on required PV/T collector area.
Figure 7 presents the variation of the PV/T water collector area needed (APV/T) to generate regeneration thermal energy with regeneration temperature for different frontal velocities. APV/T increases with increasing regeneration temperature and air frontal velocity, similar to the ̇ (Figure 5). It is an expected result as more PV/T collecQreg tors are needed as regeneration thermal energy increases. However, while the increase in the Q ̇reg exhibits a linear variation with regeneration temperature, the increase in APV/T surface area shows a polynomial increasing trend. At higher regeneration temperatures, the required PV/T collector area increases faster with increasing air velocity than at lower regeneration temperatures. Thermal efficiency of PV/T water collector (ηth) and electrical efficiencies of the cell (ηsc) and module (ηm) are presented in Figure 8, respectively. It can be seen from the figure that with the increase of the regeneration temperature, no change is observed in all three
efficiencies until 60 °C regeneration temperature. In this region, ηth, ηsc and ηm are 50.78%, 19.90% and 17.02%, respectively. After this critical temperature, all three efficiencies decrease due to increase in thermal losses from the collector. Thermal efficiency decreases from 50.78% to 33.42% when regeneration temperature is increased from 60 °C to 70 °C. Cell and module efficiencies decrease respectively from 19.90% to 19.58% and from 17.02% to 16.74% when regeneration temperature is increased from 60 °C to 70 °C. In general, both efficiencies obtained in the analyzes are consistent with the results reported in the literature [8, 30, 31]. Variation of Δω/APV/T and APV/T/Q̇reg, which are two important parameters in determining the suitable working conditions of PV/T supported solid desiccant wheels, are illustrated in Figure 9. The regeneration temperature that removed the most moisture (Δω) per PV/T area (APV/T), is found to be 60 °C for the low air frontal velocities (1.3 and 2.2 m/s). However, the most suitable regeneration temperature is 55 °C for 3.1 m/s. The best results for Δω/APV/T are obtained at air frontal velocity of 1.3 m/s. It is observed that while Δω/APV/T increases 3.52% when regeneration temperature is increased from 50 °C to 60 °C, Δω/APV/T decreases 37.55% when it is increased from 60 °C to 70 °C at 1.3 m/s. In addition, the most appropriate regeneration temperature value in terms of required the least PV/T area (APV/T) per heating load (Q̇reg) is found to be 60 °C for all air frontal velocities conditions. Although APV/T/Q ̇reg decreases respectively from 5.50 m2/kW to
5.00. m2/kW when regeneration temperature is increased
from 50 °C to 60 °C, it increases respectively from 5.00 m2/kW to 7.56 m2/kW when regeneration temperature is increased from 60 °C to 70 °C at V=1.3 m/s. When PV/T water collector investment is considered, it is seen that the optimum regeneration temperature is 60 °C for all conditions covered in this study.
Figure 8. Variation of thermal (a), solar cell and module efficiency (b) with regeneration temperature.
Figure 9. Variation of moisture removed per PV/T area (a) and required PV/T area per regeneration thermal energy (b) with regeneration temperature and air frontal velocity.
Conclusion
Operating parameters are of great importance in renewable energy supported air- conditioning systems where drying wheels are used. The use of PV/T water collectors in generating regeneration thermal energy for solid desiccant wheels, especially in humid and rural areas, has been the focus of attention of many researchers. In this study, a parametric study was conducted to investigate the variation of the performance parameters of the PV/T supported solid desiccant wheel with regeneration temperature for different air frontal velocities. The results obtained in the study are as follows; With the increase of the regeneration temperature, the dehumidification capacity (Δωpro) and dehumidification effectiveness (ηω) of DEW and the regeneration thermal energy (Q̇reg) required to heat the regeneration increased air for all velocities tested. ηω increases by 19.10% and, ηT decreases by 2.81%, when regeneration temperature increases from 50 °C to 70 °C for minimum air frontal velocity value. ̇ increases more than Δωpro and ΔTpro with the Since Qreg increasing regeneration temperature, low regeneration teṁ ) perature is desirable for the latent performance (Δωpro/Qreg and undesirable for the sensible heat transfer performance ̇ ) of DEW. (ΔTpro/Qreg The PV/T area needed per regeneration thermal energy ̇ ) decreases slightly up to 60 °C and then increases (APVT/Qreg with increasing regeneration temperature for all velocities. When the whole system (desiccant wheel and PV/T water collectors) is considered, the optimal regeneration air temperature for the performance parameters (Δωpro/APV/T and ̇ ) is 60 °C. Thermal efficiency decreases by 17.36% APV/T/Qreg when regeneration temperature is increased from 60 °C to 70 °C. Cell and module efficiencies decrease respectively by
0.32% and 0.28% respectively, when regeneration temperature is increased from 60 °C to 70 °C. Choosing the appropriate operating parameters contributes to the more energy efficient operation of desiccant air-conditioning systems and ultimately to the spread of such systems. In this preliminary study, the effects of regeneration temperature and air frontal velocity on the performance parameters of PV/T supported desiccant wheels were investigated under a certain climatic condition. More studies are needed for different climatic conditions to reveal the effect of these parameters in a more detail manner.
Nomenclature
specific heat (J/kgK) solar radiation (W/m2) number of PV/T collectors connected in series rate of heat transfer (kW) temperature (°C) or (K) overall heat transfer coefficient (W/m2 K) air frontal velocity (m/s) electric efficiency of solar cell electric efficiency of PV module thermal efficiency of PV/T collector
Subscripts ap absorber plate e ambient sc solar cell m module o outlet pro process air reg regeneration air w water
Abbreviations
DAC desiccant air-conditioning DEW desiccant wheel PV/T photovoltaic-thermal collector
Data Availability Statement
The authors confirm that the data that supports the findings of this study are available within the article. Raw data that support the finding of this study are available from the corresponding author, upon reasonable request.
Conflict Of Interest
The author declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.
Ethics
There are no ethical issues with the publication of this manuscript.
