Performance enhancement of absorption refrigeration systems An overview

Abstract

Keywords: Absorption Refrigeration; Waste Heat; Solar Energy; Renewable Energy; Single Effect; Double Effect; Triple Effect

Introduction

In recent decades the need for space cooling and refrigeration devices have increased dramatically to meet a variety of storage and comfort requirements. Conventional vapour compression refrigeration systems (VCRS) use around 20 percent of all the energy produced globally, corresponding

to the International Institute of Refrigeration (IIR) report. Over the next several years, the utilization rate is expected to further increase to 50% that of residential buildings and commercial hubs [1]. The rapid increase in energy usage for such refrigeration devices has put tremendous strain on conventional sources of energy, implying the phasing

*Corresponding author. *E-mail address: sudhirtyagi@yahoo.com This paper was recommended for publication in revised form by Emre Alpman Published by Yıldız Technical University Press, İstanbul, Turkey Copyright 2021, Yıldız Technical University. This is an open access article under the CC BY-NC license (http://creativecommons.org/licenses/by-nc/4.0/).

out of fossil fuels shortly will be unless an urgent action is taken. Furthermore, rising energy demand has raised the costs, stressing the need to increase the conservation of the current energy resources by lowering the rate of utilizing energy or finding new energy sources. The use of renewable energy to run refrigeration systems (e.g., waste heat from industrial operations, IC engines, wind, and solar energy) has become a more attractive area of study in recent years due to their long-term and plentiful accessibility [2–5]. The huge consumption of energy required to operate the compressors in traditional VCRS emits significant amounts of gases responsible for global warming, leading to a variety of environmental/ecological problems. Despite the high performance of VCRS, absorption technology has low performance, but it could be powered by low grade thermal energy. They utilize ecologically sustainable refrigerants and rejection of heat in absorber and condenser takes place. These characteristics of ARSs make them ideal for driving a desalination system and to produce fresh water [6]. Furthermore, conventional refrigerants such as chlorofluorocarbons (CFCs), hydrocarbons (HCs) and hydrochlorofluorocarbons (HCFCs) used in conventional VCRS are causes depletion of ozone layer and contributes to global warming [7,8]. Several communities worldwide have taken considerable endeavors to preserve the environment and ozone layer depletion, that includes the limiting use of chlorofluorocarbons (CFCs) that have chlorine content in it and the hydrofluorocarbons (HCFCs) that releases greenhouse gases, under the influence of Montreal (1987) and Kyoto (1997) protocols. Regardless of these efforts, NASA [9] estimates that the ozone hole has grown from approximately 2.4 x 107 km2 in 1994 to about 2.83 x 107 km2. The European Commission (EC) passed a resolution in October 2000 prohibiting the use of all HCFCs by 2015 [4,10]. According to a study by a climate change institution, there is a rise in average temperature of world by 0.6 degrees since the turn of the century, and this rise in temperature is projected to climb by 1.4–4.5°C, by the end of 2100 if there is no change in the emissions of greenhouse gases [11]. Due to the ecological/environmental issues created by traditional VCRS, there is a great demand to replace conventional refrigeration systems with the alternative refrigeration technologies which are eco-friendly in nature [12,13]. The study into the utilization of waste heat and renewable energy has resulted in the development of innovative refrigeration systems. These methods not only reduce greenhouse gas emissions, but they also save other energy sources. This study deals with the comprehensive overview of absorption refrigeration systems, methods to enhance its performance based on cycle layout modification, working pair selection and its flow pattern considering various aspects and working ranges. This study encourages the use the eco-friendly refrigerants to produce refrigeration and air conditioning without having harmful impact on the environment and make an efficient use of the resources to enhance the system performance. Further, the future aspect

of this technology may use the new working pairs with nanoparticles, compact heat exchangers and combining other alternative refrigeration systems to improve overall efficiency of the system. Absorption Refrigeration Technology The absorption refrigeration technology is a potential alternative to conventional VCRS that has drew the attention of scientists and engineers in recent years. The absorption refrigeration technology is a thermally powered refrigeration technique that uses heat energy which can be taken from any low-grade energy reservoir or solar energy to provide cooling. such as the exhaust of IC engine [14]. The generator, pump, absorber, solution heat exchanger, condenser, expansion valves and evaporator are the various components combined to form an ARS, as illustrated in Figure 1. This system utilizes an absorber-generator assembly to rise and transport the weak solution via a pump and thermally compressed the working fluid when heat is delivered to the generator, instead of utilising an electrically powered compressor. When the refrigerant flows through the evaporator, it vaporises itself while extracting thermal energy from the region desired to get cooled [15,16]. Further, the saturated vapour subsequently entered the absorber to get absorbed in the weak solution, which was relatively colder than the ambient. The diluted /weak solution fed to the generator via solution heat exchanger (SHX), at this stage the refrigerant is thermally desorbed when heat is provided to it, the refrigerant vapour further rejects heat in the condenser and gets condensed. After that, the condensed refrigerant in liquid state reduced to a lower pressure via throttling valve and subsequently entered the evaporator to get vaporized further and provide cooling. During the generation procedure, the strong solution from the generator entered SHX and further reduces its pressure via pressure reducing valve and enters the absorber. The saturated vapour of refrigerant fluid exiting the evaporator was absorbed in the solution available which is weak in refrigerant, in the absorber component and the cycle is continued [17,18]. The following are some of the benefits of absorption systems: • Low-grade heat energy sources like I.C. engine exhaust, industrial thermal waste and renewable energy sources such as solar energy, may be utilized to operate absorption refrigeration systems. As a result, the system is suitable for decreasing CO2 emissions and offers a lot of potential for energy savings. • Environmentally sustainable refrigerants like water or ammonia are used in absorption refrigeration systems, minimizing their effect on the depletion ozone layer and greenhouse emissions. • As the ARS with no moving parts, the operation of these systems is quiet, leading to easy maintenance and lowcost operation. • Absorption refrigeration systems have a long-life expectancy of 20–30 years.

Despite these advantages, ARSs are less efficient than conventional VCRSs in terms of energy use. Figure 2

(1) The current study is an effort to provide the review of various design and construction of ARSs, keeping in mind to enhance the performance and utilization of the absorption cooling systems. where kmedium is the absorption index of the medium which is wavelength dependent. The total extinction coefficient of a nanosuspension when combined is as given below: (2)

depicts the absorption refrigeration technology’s major benefits and drawbacks. A lot of work has been undertaken with various options in mind to improve the coefficient of performance (COP) and refrigeration capacity to overcome major challenges and boost the usage of ARS technology. The coefficient of performance (COP) that is used to assess the effectiveness of the absorption refrigeration systems is given by:

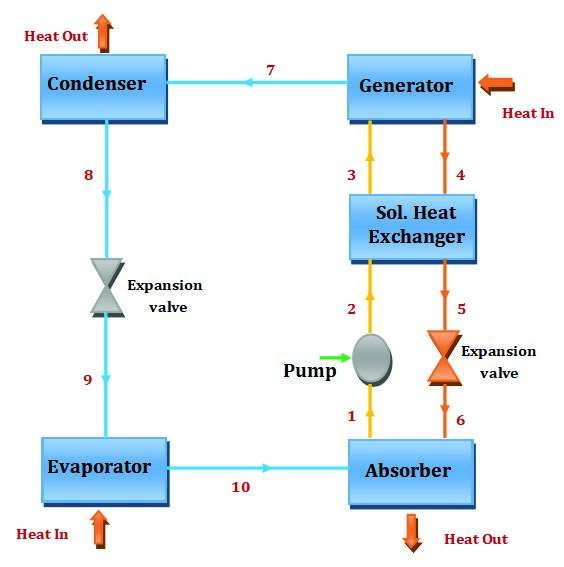

Improvement of Absorption Systems Based on the Cycle Layout This section refers to the enhancement and utilization of absorption refrigeration system based on its cycle design. Table 1. shows the advantages of various methods/configurations of ARSs. Various designs of absorption refrigeration systems have been discussed for different operations conditions and utilization, it includes half effect, single effect, double effect and triple effect ARSs. An overview on a variety of configuration for ARSs is listed in Table 2. Single-effect and half-effect cycles The basic cycle layout of an ARS is single effect absorption refrigeration system (SE-ARS). A number of experimental, analytical, and computational studies had been conducted to evaluate the performance of SEARS with various working fluid pairings under various operational conditions [19,20]. Several successful methods have been utilized to improve the COP of SE-ARSs, that includes the adjustment of operating conditions and choice of new working fluid pairs having superior thermodynamic characteristics than traditional one [21,22].

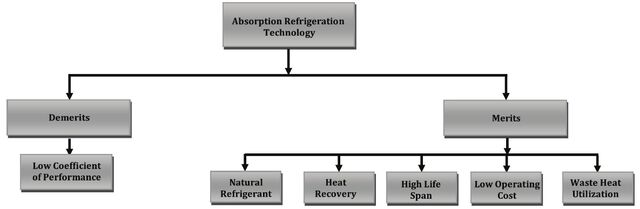

Figure 2. Merits and demerits of absorption refrigeration technology.

Despite this, the performance of SE-ARS is low. In order to improve the energy efficiency of the SE-ARS, tc-CO2 compression refrigeration system was coupled to utilize the waste heat rejecting in the gas cooler of the system to run ARS [23] in some of the research papers. Various other combinations of alternative refrigeration technologies which can operate on waste heat such as absorption and adsorption refrigeration techniques were combined to improve the performance of ARSs [24], but the complexity of the system increases [25]. Bellos et al. [26] presented their research on single-stage absorption system the operated by parabolic trough collector. SE-ARS uses an NH3/ water as the working pair to provide refrigeration in the -35°C to 5°C temperature range. There is an optimal temperature of generator for which the performance was maximum under the specific operating conditions. The annual system coefficient of performance for cooling output at -25°C and 40°C as the heat rejection temperature was found to be 0.255, the annual exergy efficiency is 4.87 percent, and payback time was ten years. When there is low temperature thermal energy is available to run the machine, the performance of SE-ARS decreases dramatically. To overcome this difficulty, a half-effect absorption refrigeration system (HE-ARS) [27]. Figure 3 was suggested to drive this system with a low temperature thermal energy while the performance of half effect cycle is approximately half as that of

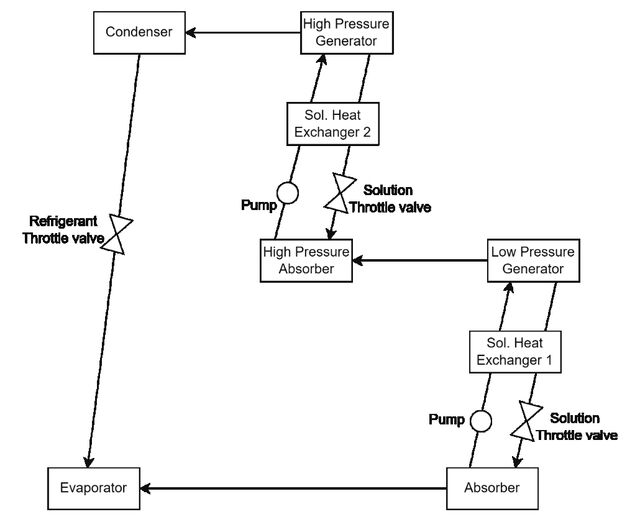

the SE-ARS [28]. The HE-ARS combines a SE cycle with a double-lift structure that may operate with lower-quality thermal sources at temperatures as low as 55°C [29]. Verma et al. [30] provided a thermodynamic study of a HE-ARS using the working fluid pair as LiBr-H2O. The HE-ARS was powered by the flat plate collector’s low-temperature hot water. A cooling load of about 25 kW has been estimated for office building. At the optimal generating temperature, the collector area was reduced. The temperature at which two generators operate optimally was determined to be 80 °C. The highest COP, and the exergy efficiency, at the optimal generator temperature was 0.416 and 7.36 percent, respectively. A new half effect absorption system operated with low grade heat was proposed by Xiaohui et al., [31]. At the high-pressure stage, the H2O-LiCl pair with higher vapour pressure is utilised, whereas the H2O-LiBr pair with lower vapour pressure is used in the low-pressure stage [32]. The pressure at the intermediate level was the crucial parameter for system performance; it should be chosen to guarantee a reduced circulation ratio during the cycle’s lower-pressure portion [33,34]. Double-effect cycle There has been a lot of work put into making ARSs more competitive with traditional VCRSs. Since, single-effect absorption systems have a poor performance, double-effect absorption refrigeration system (DE-ARS) have

been suggested for better performance [35,36]. The generator temperature in such systems is greater than that considered necessary to run a SE-ARS. Gomri [37] performed a comparison study between SE-ARS and DE-ARS. The performance of the later cycle was twofold to that of the former cycle, according to the findings. To assess the performance efficiency of a single-effect cycle and a double-effect cycle with H2O-liBr as the working fluid in a series mode flowing of the solution, Arora and Kaushik [38] created a computer model/program. The impact of operational conditions and a variety of parameters on system performance was studied. The performance of the DE-ARS was found to be 60–70% more when compared to the SE-ARS, according to the findings. Furthermore, the maximum COP was achieved at a low generator temperature, which was achieved by diminishing the temperatures of absorber and condenser while raising the evaporator temperature and solution heat exchanger efficiency. Colorado [39] reported the theoretical findings of an improved exergy analysis of a series flow DE-ARS. The advanced exergy study showed that the absorber is the component that is having highest destruction of exergy in the system. The high-pressure generator’s design and manufacturing have the most opportunity for improvement since 67.47 percent of endogenous exergy degradation is avoidable. The performance of different configurations of ARSs using NH3-LiNO3 [40] and H2O-LiBr [41] solutions were compared by Domnguez-Inzunza and colleagues. Crystallization and corrosion are the two important issues faced in the design and analysis of a DE-ARSs, leading to poor performance and choking of the complete system. Researchers have looked at two key aspects, like area available for heat transfer and the crystallization of solution,

contributes significantly in the design of DE-ARSs [42,43]. According to the findings, lowering the circulation ratio of solution and enhancing the ratio of heat-recovery improves the system overall performance and avoid crystallization while having reduction in the total heat-transfer area. Li and Liu [44] conducted a theoretical study to determine the proper heat to load ratio intended for the generator in a DE-ARS using a LiBr-H2O as working pair, as an crucial factor that significantly reduced the risk of crystallization and influenced the system performance. In DE-ARSs, there are the two basic circulation strategies regarding the flow of solution (strong/weak) in the generator-absorber assembly, known as the series and parallel flow mode as depicted in Figure 4. The comparison of parallel and series flow schemes in a DE-ARS using a combination of LiBr-H2O as working pair was conducted by Grossman et al. [45], to see how the two flow schemes affected performance of the system. The system performed better in parallel flow than the other configurations, according to the findings. Furthermore, in the parallel flow configuration, the operating conditions occurred far away from LiBr-H2O working fluid crystallization line. The way the solution is spread throughout the different generators is the distinction between series and parallel flow configurations. The solution is pumped straight from the absorber to the high temperature generator in the series flow, whereas it is distributed between the two generators in the parallel flow. The solution pumped from the absorber is separated at the outlet of the low-pressure solution heat exchanger and fed separately to the high temperature and low temperature generators in the parallel flow cycle. The solution distribution ratio is an important

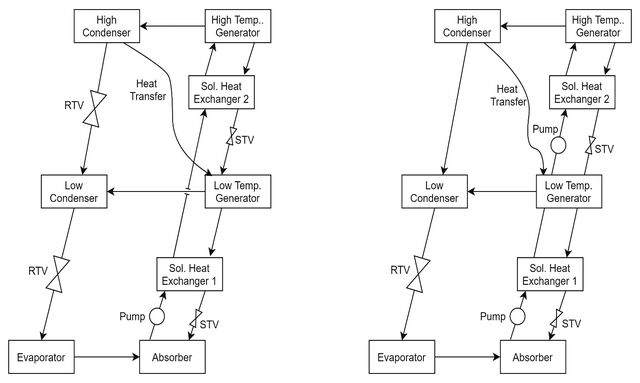

Figure 4. Schematic of double effect ARS (a) Series Flow Mode (b) Parallel Flow Mode.

parameter in parallel flow mode and is defined as the ratio of solution entering the high temperature generator to the solution leaving the solution pump. In comparison to a series flow system, the performance of a parallel flow system is more sensitive to changes in evaporator temperature and less susceptible to the changes in condenser and absorber temperature. In general, the COPs are found higher in parallel flow than that in series flow configurations [46,47]. Yang et al. [48] developed a unique high-performance H2O-LiBr based DE-ARS for tri-generation applications that utilizes a variety of heat sources, including high temperature steam and hot water. There were five alternative flow configurations simulated, that included series, reverse, revised series, parallel, and revised reverse flow patterns. The cycle efficiency was evaluated on the basis of generator sequence and the quantity and location of the extra heat exchangers. The COPs of the configurations with revised serial and reverse pattern were generally greater than that of serial and reverse configurations schemes, according to the findings. Furthermore, the parallel cycle was found to be superior to other systems in terms of COP. Furthermore, the ratio of heat source had a major influence in determining the most efficient cycle, according to the authors. For the ratio of heat source to be 0.7, the revised reverse cycle was found to be the most appropriate cycle, whereas the parallel cycle had the maximum value of COP when the ratio of heat input was greater than 0.71. A comparative study was performed to assess the effectiveness of a H2OLiBr solution-based DE-ARS. The three types of configurations were investigated: parallel, reverse parallel, and series. The system with the parallel flow configuration was found to have the greatest performance among the different flow types [49]. Chahartaghi et al. [50] presented a new LiBrH2O working pair DE-ARS with a heat exchanger for recovery of heat. The study looked at two flow configurations, including series and parallel flow systems. The findings showed that when the temperature of generator was less than 150°C, the series design offered a higher performance than that of the parallel flow configuration. When the input temperature to the generator was greater than 150 °C, however, the parallel system was shown to perform better than the series design. Triple-effect or multi-stage cycles The triple effect absorption refrigeration system (TE-ARS) was created to retrieve more energy and therefore improve the COP, despite the fact that they required the heat source temperature to be greater than that of a DE-ARS. In Figure 5 (a-b), the TE-ARS in series and parallel flow mode are shown respectively. The triple effect cycle, in contrast to the DE cycle, includes an added assembly of high-temperature generator along with a condenser, offering three generators and condensers to the whole system. As a consequence, this cycle design permits for higher energy recovery, which boosts the performance of the system [51]. Gebreslassie et al. [52]

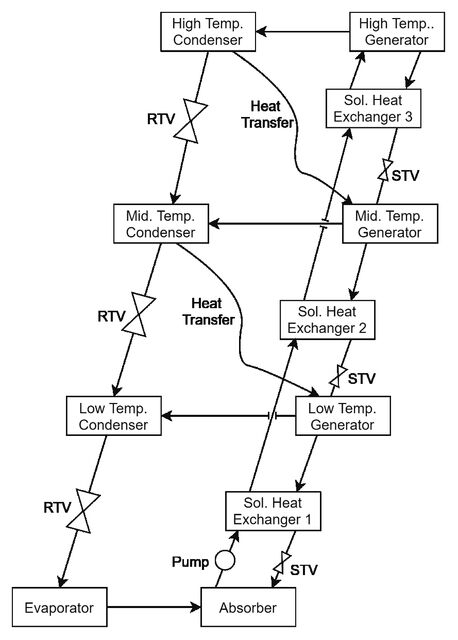

Figure 5. Schematic of triple effect ARS (a) Series Flow Mode. investigated the influence on the performance for different flow configurations of a triple-effect LiBr-H2O ARS and other configurations, including series and parallel flow arrangements on the basis of exergy analysis. It was found that the parallel flow mode of the triple effect ARS, had the highest COP. However, higher heat source temperatures were utilized in the generator of these systems, the usage of LiBr-H2O in the TE-ARS may produce the problem of corrosion. Figure 6 indicates the comparison of COP for various absorption cycle configurations based on its cycle design. According to this statistic, the increase in the number of generators improves the COP of the cycle appreciably. The triple-effect cycle achieving the maximum COP. These cycles, however, require high heat source temperatures in order to function [53]. A half-effect cycle, on the other hand, is intended to function at low quality heat source temperatures (60 to 80°C) while producing a low COP, but it has a greater number of components. The SE cycle is the simplest and less costly among all of the investigated designs since it has lesser components compared to other configurations. Furthermore, the SE ARS can function at medium heat source temperatures (80 to 100°C). The higher values COP could be obtained

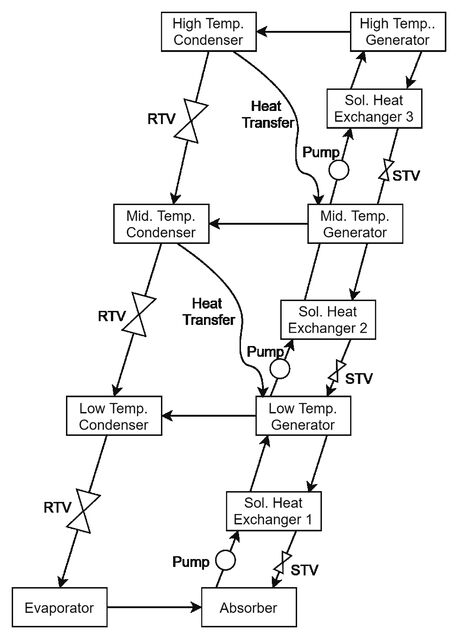

Figure 5. Schematic of triple effect ARS (b) Parallel Flow Mode. in parallel flow mode as compared to that of the series flow mode in the double-effect and triple-effect cycles. Working pair selection

The absorption refrigeration systems performance is significantly affected by the thermodynamic properties of the working fluid, so choosing the right absorbent and absorbate (refrigerant) is critical. The right choice is determined by the heat source temperature, the refrigeration system desired characteristics, the properties of the working pair components and their affinity. When selecting a working fluid pair for an absorption cooling system, the following factors must be taken into account [57]: • For the refrigerant inside the absorbent, should have large latent heat of vaporization. • The mixing of refrigerant and the absorbent is an exothermic reaction, it should have low heat of mixing. • Low viscosity, low boiling point, high miscibility, diffusive coefficient, and conductivity are all desirable thermodynamic properties. • There should be no crystallization at any stage of operation of the system. • The working pair should be environmentally friendly, chemical stable, easily available and it should be cost effective. In ARSs, due to the favourable thermodynamic properties, LiBr-H2O and H2O-NH3 solutions are the very popular working fluid pairings employed. The NH3-H2O based chillers are commonly utilized for domestic and small industrial refrigeration purposes requiring lower refrigerating temperatures, whereas the LiBr-H2O based chillers are commonly utilized for large industrial cooling applications requiring medium cooling temperatures. According to scientists in [58,59], the thermodynamic properties for the mixture of LiBr-H2O, are the important reasons due to which it cannot provide cooling below 0°C. For the same evaporation temperature, Kim and Ferreira [60] found that the working pair utilizing LiBr-H2O has more system performance than that with using H2O-NH3. The performance of a single-effect ARS using two working

Table 1. Advantages of different methods/configurations used for ARSs. Method/Configuration of ARS

Simple configuration with less components and easy operation with moderate range of generator temperature (100 to 110°C).

Low values of heat source temperatures in the generator (60 to 80°C) are required.

In comparison to SE, the COP of the DE configuration is increased by 60–70%, although higher generator temperature.

Higher performance compared to that of DE systems when high heat source temperature (210 to 250°C) is available

Simple configuration where solution is pumped to high temperature generator in a single stage.

Parallel mode performance is superior compared to series mode.

Table 2. Brief literature on a variety of configuration for ARSs. Type of ARS

Ta = 30 to 45 (°C), Tc = 30 to 45 Tg = 80 to 105 Te = 4 to 10

Conclusions

The important options to develop methods for improving absorption refrigeration system performance were examined. This includes changes to the cycle’s design. The following is a summary of the research findings: • Absorption cycles of several kinds have been designed, each with a distinct number of stages and effects. The SEARS is the benchmark (basic) absorption cycle against which the performance of newly designed absorption cycles was measured, according to the literature. • When there is availability of thermal energy sources having high-temperature levels, double effect cooling cycles have been suggested to enhance the system performance. • The triple-effect absorption cycle provides the best energy performance, followed by DE-ARS and SE-ARS, but with more heat exchangers and further cost. • For multi-effect ARS, particularly the triple-effect (TE) system, have surpassed SE and DE ARSs in terms of performance. Even though a rise in the number of effects does not always favors better performance of the system as the average cost and its complexity of the systems increases. Furthermore, to drive multi-effect cycles, thermal energy source with relatively high temperature is needed. • When the temperature of the heat reservoir is very low, the half effect cycle has been advised. This cycle, on the other hand, have coefficient of performance approximately half as that of the single-effect cycles. • Although there were various combinations of working fluid pairs, including tertiary and quaternary pair solutions, have been developed in order to improve the energy performance of the absorption systems for specialized applications, the two major pairings of working fluid, H2O-NH3 and LiBr-H2O, had been the utmost choice in general-purpose ARS.

Nomenclature

ARS SE HE DE TE COP VCRS HC CFCs HCFCs HFCs IIR NASA SHX RTV STV

Absorption Refrigeration System Single Effect half effect double effect triple effect coefficient of performance vapour compression refrigeration system hydrocarbons chlorofluorocarbons hydrochlorofluorocarbons hydrofluorocarbons International Institute of Refrigeration National Aeronautics and Space Administration solution heat exchanger refrigerant throttle valve solution throttle valve

Working pairs LiBr/H2O lithium bromide/water solution NH3 ammonia LiCl lithium chloride LiSCN lithium thiocyanate Lil lithium iodide NaSCN sodium thiocyanate tc – CO2 trans-critical carbon dioxide

Data Availability Statement

The authors confirm that the data that supports the findings of this study are available within the article. Raw data that support the finding of this study are available from the corresponding author, upon reasonable request.

Conflict Of Interest

The author declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Ethics

There are no ethical issues with the publication of this manuscript.
