Fossil energy reduction for heating and cooling of buildings using shallow geothermal integrated ene

Abstract

Keywords: Ground Source Heat Pump (GSHP); Shallow Geothermal Energy (SGE); GSHP Simulation; GSHP Feasibility; Refrigerant; Compressor

Introduction

Space heating is the major energy end-use sector compared to other appliances and half of the demand in the built environment occurs due to space heating systems [1]. The

growth of heating appliances leads to severe environmental and energy security challenges. The energy, economic and environmental analysis of different heating systems such as solar/biomass boiler, biomass boiler, coal-fired boiler, Air Source Heat Pump system (ASHP), and solar/electrical

*Corresponding author. *E-mail address: mr.kbalaj@gmail.com, balaji.kumar@vit.ac.in This paper was recommended for publication in revised form by Regional Editor Omid Mahian Published by Yıldız Technical University Press, İstanbul, Turkey Copyright 2021, Yıldız Technical University. This is an open access article under the CC BY-NC license (http://creativecommons.org/licenses/by-nc/4.0/).

heating have been done. The biomass-based system achieves the best in the result with first and second position, while the coal-fired and electrical heating systems are the worst rural houses space heating [2]. The primary energy consumption for heating the building area of 4852.26 m2 has been analyzed using different heating techniques such as ASHP, WGH, DEH, RCH, LCH, and CHP [3]. The initial investment cost, Primary Energy Consumption (PEC), and CO2 emission of the above heating systems are shown in Table 1, From Table 1, it is concluded that the ASHP system has excellent potential for heating application compared to RCH, LCH, and DEH systems. However, the CO2 emissions from WGH and CHP are lower than ASHP because it is powered by natural gas. Intrinsic challenges for transitioning from carbon-based heating to electrically-based heating include efficient electrically-based systems such as air or ground source heat pumps (GSHP) is the need of the hour. Geothermal energy is one of the easily accessible and 24x7 available renewable energy sources, and it can be used for space heating and cooling application in the built environment [4]. The integrated ASHP system with SGE is called a GSHP, which consumes very little energy because of the stable ground temperature [5]. GSHP system can be classified as a surface water heat pump (SWHP) and Ground Heat Exchanger (GHE) heat pump based on the geothermal energy utilization. The pool, river, channel, and lagoon water act as a heat sink in the SWHP technique [6]. The dynamic growth of fouling characteristics due to the surface water in the heat exchanger is a significant drawback of the system [7]. Techno-economic analysis reveals that the GHE heat pump system has good effectiveness related to the SWHP because of a more stable temperature in the ground [8]. The ground temperature is higher than the atmospheric temperature during winter and vice versa in summer. The SGE can be used for the energy-efficient operation of the ASHP, and thereby the fossil energy in the built environment can be reduced [9]. A survey conducted in Greece mainly focuses to understand the knowledge about the GSHP system. The authors have concluded that the following four factors are the reasons for the market barrier, a) installation cost b) insufficient subsidies c) lack of awareness on the technology and its advantage d) economic recession [10]. The investment advantage of GSHP is

forecasted from 2019 to 2040 considering both investment and operational benefits [11]. The authors suggest various policies timeline including carbon trading mechanism (CTM), subsidy, and preferential taxation for the development of SGE. The experimental result shows that the GSHP system has better COP and seasonal performance factors (SPF) compared to a conventional ASHP [12–14]. The average SPF for GSHP and ASHP is 2.39 and 1.83, respectively, and it is estimated from the sample size of 49 for GSHP and 22 for ASHP systems [15]. Similarly, a comparative analysis has been done for ten different states in India, and the result shows that for heating and cooling applications, GSHP saves 13 to 48% power compared to ASHP [16]. The performance and financial details of the conventional heating system, such as electric resistance, gas-fired, oil, and liquid fired, are compared with GSHP. They inferred that the GSHP system is highly beneficial compared to the above conventional system in terms of energy and economics [17]. The unit energy cost of GSHP is relatively meager compared to the other conventional systems (Figure 1) [18]. Further, the performance enhancement of the GSHP by integrating solar thermal [19,20], natural gas-fired water heater [21] system plays a vital role in diminishing the peak demand, PEC and emission in the built environment. A study conducted to replace natural gas heating with GSHP heating in European Union, concluded that in 2050, 60% of the PEC and 90% of the CO2 emission could be saved [22]. According to another study, the GSHP system saves PEC by 43% for heating and 37 % for cooling, in European cities [23]. Similarly, a comparative analysis between ASHP and GSHP system has been experimentally investigated in Greece and the results confirmed that the GSHP system saves 25.7% of PEC compared to ASHP. Also, it reduces NOx and CO2 pollution by 99.6% and 22.7%, respectively. On the other hand, it increases the SO2 emission by 18.4% [24]. A feasibility study of the GSHP system has been carried out in Sweden to replace conventional district heating to save energy and the environment [25]. Due to space constrain for boreholes and market entry barriers, it is quite hard to retrofit in urban areas. Whereas it is a good competitor when there is a space.

Table 1. Energy consumption, CO2 emission and total investment cost for the various heating system [3]. Type of system

14281 million kg [16,32]. The yearly CO2 savings ranged from 24 to 54 % compared to ASHP. The above studies reveal that the practice of GSHP reduces the PEC and CO2 emission related to the ASHP, oil-fired, and gas-fired systems, and this system can be used for the space heating and cooling application in the built environment. The review aims at finding the various possible opportunities for the effective integration of shallow geothermal energy (SGE) to decrease the fossil energy in the built environment and to reduce emission associated with it. This is the first review addresses the development of ground source heat pumps (GSHP) in the global north and global south countries. Also, the punctual information of the results of various authors has been extensively summarized.

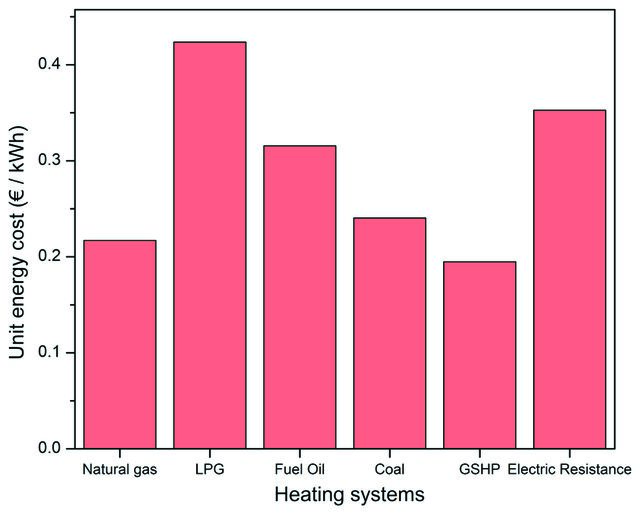

Figure 1. Energy consumption costs for the different heating system [18]. Table 2 shows a different heating system (OB, GB, LTGB, DEH, GSHP, and HGSHP) energy efficiency and CO2 emission [26]. Heating efficiency for heat pumps is indicated by the heating season performance factor (HSPF). The HSPF tells the ratio of the seasonal heating output divided by the seasonal power consumption in Watt-hours. From Table 2, it is concluded that the GSHP and HSHP have higher primary energy efficiency and lower CO2 emission. GSHP system avoids 45%, 33%, and 15% to 77% of CO2 emissions compared with OB, GB, and fossil fuel heating, respectively [27,28]. A building with an average heating demand of 0.55 kWh has been analyzed to replace the GB and OB using GSHP for ten years and the CO2 saving achieved 36.34 tons and 51.9 tons, respectively [29,30]. The CO2 saving potential of 0.88 million installed units for heating applications with an average size of 12 kW in European countries has been analyzed and found that 3.7 million tons of CO2 emission are protected per year using the GSHP system [31]. In another study, an 11 kW GSHP system for the heating application installed in Germany could save 1800 kg of CO2 per year [27]. The CO2 savings potential of the GSHP unit has been calculated for ten states in India, and the annual CO2 savings varied from 1248 to

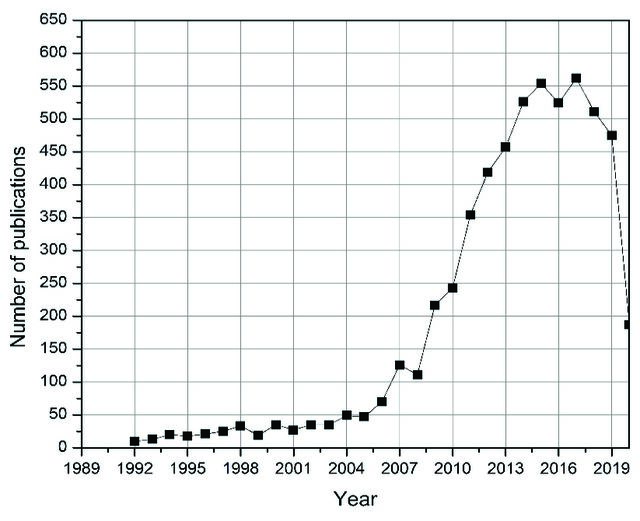

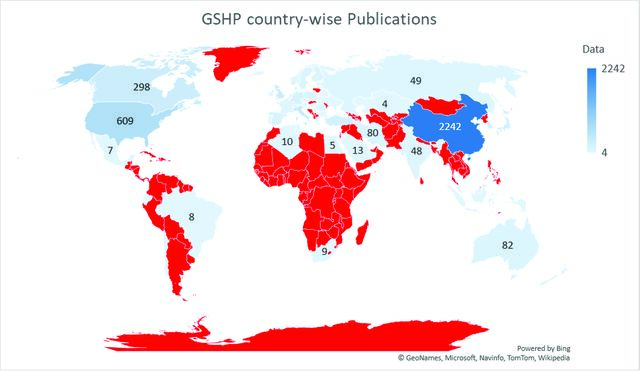

Literature Details The data collected from Engineering Village shows that GSHP research has a total of 5913 documents as of 26 June 2020 as shown in Figure 2. The share of journal articles, conference articles, conference proceedings, and book chapters are 70, 26.5, 1.2, and 1.16, respectively. China and the USA have published more research articles with a contribution of 38% and 10.3%, respectively, as shown in Figure 3. The number of research articles published has significantly increased in recent years, as shown in Figure 4. This comprehensive review highlights more than 230 research articles that have been published in the last two decades to reduce the energy demand in the built environment. GSHP Background and Installation Status The GSHP system was introduced in 1904 in Italy, and in recent years, it is gaining attention due to its energy and environmental benefits. The direct utilization of SGE has been extensively reported based on the documents available in the World Geothermal Congress (WGC) [33,34]. Direct utilization includes various applications such as space heating and cooling, greenhouse heating, agricultural drying ([35,36]), etc. At the global level, the total installed capacity as of 2014 was 70885 MWt, and the average annual growth rate is 7.9% since 2010. In which, the GSHP system capacity alone contributes to 50,258 MWt. The annual installation of GSHP systems has been varying from 5 to 20% based on the incentives and government policies [37]. Worldwide more than one million GSHP systems have been installed,

Table 2. Comparison of efficiency and emissions of different heating systems [26] Type of system

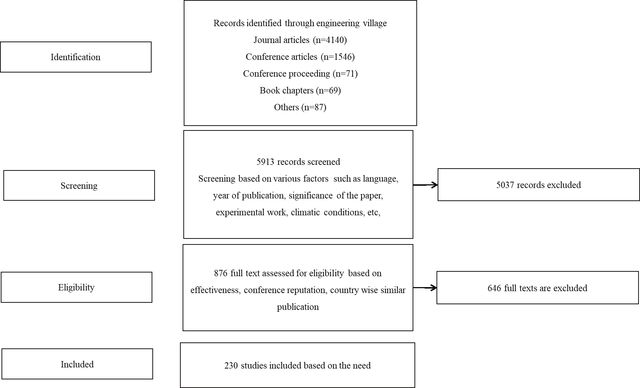

Figure 2. Preferred Reporting Items for Systematic Review (PRISMA).

and the system is prevalent in Europe, the Americas, and Asia (Table 3) [38,39]. The comprehensive data of research articles country-wise has been presented in Table 4. The percentage of installed systems (direct utilization) in the top five countries such as China, the USA, Sweden, Turkey, and Germany are 25.2, 24.5, 7.9, 4.14, and 4.0%, respectively, and it accounts for 65.8% of the world installed capacity (Figure 5). In the Americas, outstanding work is done in North America, especially in the USA and Canada. The USA and Canada contribute 88.8% and 7.4% in the total installed capacity in the sixteen countries of the Americas. In the USA, 90% of the installed systems are closed-loop systems. In which vertical loop and horizontal closed-loop account for 30% and 70%, respectively, for residential application. In USA, the installed power of heat sources is 7385 MWt from 2006, and it is anticipated to produce heat higher than 1,000,000 MWt by 2050 from

Table 3. Worldwide installed capacity and capacity factor data for direct use application [33] Region

Meteotest

GSHP systems [40]. 4.19 million GSHP systems have been mounted in the USA and western European homes as in 2012 [33]. In the European Union, including the UK, more than 0.6 million units of GSHP systems have been installed only in Sweden, Germany, and France [39,41]. Around 50000 GSHP systems have been installed in Sweden in which 10000 are open-loop, and the remaining systems are closed-loop systems. The horizontal GSHP systems are widespread in Germany, and the average capacity of the system varies from 10 kW to 14 kW for residential applications. It has been estimated that around 163000 GSHP units are installed in France. From the above review, it is concluded that most of the systems are installed for heating-dominated buildings in the global north. In the global

south, other than China, the utilization of GSHP for the cooling-dominated building is minimal. Asia contributes less than 5% in the global GSHP market even though it has a huge contribution in direct utilization, and the leading Asian countries are China, Turkey, Japan, and South Korea [42,43]. In China, more than 2537 GSHP systems have been installed as in 2005, and the GSHP market started in 1997 with two systems [44,45]. The average growth rate of the installed system has been reported as 46% between 2000 to 2013 [46]. Shenyang and Beijing provinces contribute 22.4% and 15.1%, respectively. The utilization of geothermal energy in Turkey for power generation, heating, and cooling application has increased, and Turkey is one of the top five nations based on GSHP installed units

Figure 5. Installed status of GSHP system for direct use application [33].

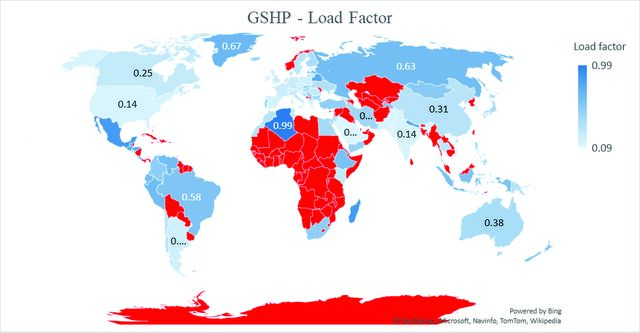

Figure 6. Load factor for GSHP system [33]. [47,48]. The cumulative installed capacity reached 99.92 MW in 2015, in which closed systems and energy pile systems have a contribution of 64.3% and 1%, respectively. In Japan, most of the systems have been installed at Hokkaido, and the contribution of open-loop and closed-loop systems are 15% and 84%, respectively. In South Korea, two GSHP

systems have been installed in 2000, and it crossed 550 installations in 2008 [49]. The total installed unit crossed 7000 in 2014, of which vertical, horizontal, and open-loop contribute 75%, 9%, and 16%, respectively. The average load factor of the globally installed system is 0.265, as shown in Table 3, which means only 2321 hours,

the system capacity is fully utilized in the year-round operation. In the southern part of the USA, most of the units are calculated for peak load, and it increases the capacity for the heating (Figure 6). Hence, the system becomes oversized with a capacity factor of 0.23. In Europe, including the UK, the GSHP system has been sized for the building baseload, and the peak demand has been met using fossil fuel. Hence the system capacity factor would be 0.68. The technical guidelines for the installation of the GSHP system in the top six European unions, including the UK, are presented [50]. These guidelines provide the details of system design and operation, and maintenance by considering the environmental factors. Shallow Geothermal Energy Availability The SGE potential and their assessment techniques have been reviewed in major cities around the world. The extensive geothermal availability mapping has been carried out in the global north for heating application. The review is based on the demand of the city and availability. From the review, it is found that enormous thermal energy is available at shallow depth, and the heat energy could be integrated at a large scale based on the local-specific factor. However, high installation costs, investors’ awareness, and lack of promotion affects effective utilization [51]. This article contains an introduction for conceptually enhancing comprehension in regions with minimal degrees of shallow geothermal energy penetration. It gives direction to project estimation and examines the institutional and social strategies to help SGE systems access [52]. The SGE potential has been carried out for different countries in the Americas (global north) such as the USA [53], South-Central USA [54], Canada [55]. Lowtemperature (maximum - 90 °C and minimum - 10 °C) geothermal potential assessment has been carried out in the USA [53]. Similarly, shallow temperature variation due to weather has been predicted using a data-driven approach for three different climates such as dry, warm, and cold [56]. This geological survey gives the details of the total energy available (71 GW for 30 years) in the USA. National Renewable Energy Laboratory studied the geothermal energy system feasibility for the different climatic conditions in the USA [40]. The system feasibility map has been drawn for the direct and indirect application of SGE. It is concluded that all the regions of the US territory are fit for the GSHP system. The temperature distribution has been mapped for various ground depths from 50 m to 250 m in Canada [55]. It has been found that global warming also plays a significant role in the ground surface temperature variation. From the above literature, the Americas has an excellent shallow geothermal energy potential. Hence there is good potential for energy and environmental saving. The SGE potential mapping has been carried out for different countries in the Europe (global north) such as North-Western Italy [57–59], Southern Italy [60], Spain [61], Switzerland [62], Southern Switzerland [63], Germany

[64], South-West Germany [65], Sweden [66], France [67], Poland [68], Croatia [69], Slovenia [70], Finland [71], Belgium [72], Denmark [73], Ireland [74], Cyprus [75], Turkey [76], Serbia [77] and Hungary [78]. The GSHP system potential in Barcelona, Spain, has been investigated with groundwater flow using the GIS technique for both open-loop and closed systems [61]. The authors claimed that the proposed methodology could be used for worldwide prediction. The SGE system potential in Ludwigsburg, Germany, has been investigated for both space and water heating applications [64]. Integrating all the available geothermal energy with existing buildings for space and water heating applications will reduce CO2 emissions by 29.7% in the city. The optimum borehole length for different locations based on groundwater availability in the city has been mapped. The borehole length is very high in the northeast, whereas the borehole length is shallow nearby the river since drilling is prohibited. The SGE potential in south-western Germany (the Black Forest, the Upper Rhine Valley, and SW-Germany) has been mapped using GIS [65]. The heat extraction potential differs according to the local condition. The maximum heat extraction per borehole is 3.5 kW and

Imst-Art

FlexPDE (Multi-Physics Finite Element Solution Environment for Partial Differential)

Iesve

and hybrid GSHP system, and it helps the users to analyze the performance and cost of the system for different applications [90]. A comparative analysis of GSHP and boiler integrated GSHP has been done using eQUEST to reduce the GTI [81]. The result reveals that the hybrid GSHP system reduces the GTI and borehole depth. The detailed research and development of the hybrid GSHP systems are presented in the comprehensive review part II [204]. Designer’s Simulation Toolkit (DeST) used for the building energy simulation has been developed by Tsinghua University, China [205]. The experimental setup of the GSHP system with 1000 kW capacity has been constructed in Shanghai, China, and the GSHP system has been simulated for four different climate cities using DeST [150]. The payback period of the higher capacity system is only two years, and only 55.8% of the operating cost has been reduced. It is inferred that the GSHP unit is highly appropriate for mild and cold climate regions, and other climate regions require a hybrid GSHP structure. GLHEPro, developed by Oklahoma State University, USA, is used to design the GHE. This program is operated based on Eskilson’s method [206]. The economic and environmental analysis of the hybrid GSHP system has been analyzed using GLHEPRO software. The results imply that the GSHP system operated using solar PV reduces global warming and acidification potential [144]. In terms of economic, the saving to investment ratio decreases while operating the GSHP system using 100% solar PV. Ground Loop Design (GLD) is used for coupling the ground thermal energy with the HVAC system, and it has been developed by GAIA Geothermal, LLC., USA [207]. The effect of borehole length has been analyzed by varying different operating parameters. The outcome of the study reveals that thermal conductivity and thermal resistance of the GHE are the deciding factors of the heat pump design [142]. When increasing the thermal conductivity from 2.0 to 3.2 W/mK, reduces the heat pump capacity by 19% for cooling and 16% for heating. In the same way, an increase in the thermal resistance by 6% increases the borehole length by 3%. Earth Energy Designer (EED) is used for the design of the GHE, and it has been developed by the Swedish Council of Building Research, Stockholm [208]. This program is operated based on g-functions. The research study predicts that the building envelope performance in 2050 will be simulated on an hourly basis using EED [128,170]. The influence of global climate change on the length of the borehole has been analyzed and the results imply that a higher borehole length is needed to achieve the same space heating and cooling demand of the building in 2050. The system COP is reduced by 10% when the global temperature increases by 1.5 °C. GeoHP-Calc tool is used to simulate the GHE system, and this simulation tool combines the CaRM-He model

[133]. This model considers the axial direction of heat conduction. The heat balance of the ground also considers the effect of weather parameters, including the long-wave radiation. FlexPDE is used to find a numerical solution based on FEM, and it has developed by PDE Solutions Inc. [209]. The effect of diameter, specific heat, thermal conductivity, grout, and HTF has been successfully analyzed and validated with experimental results [116]. The author concludes that bentonite could be used as grout material, and an increase in the U-tube size rises the heat dissipation to the soil. A finite Element subsurface FLOW and transport system (FEFLOW) is used to model the GHE, and it has been developed by MIKE POWERED BY DHI, Denmark [210]. Performance and emission of the GSHP unit have been experimentally investigated, and the model has been established to forecast the system performance for the next ten years using FEFLOW [135]. The results show that 20% of CO2 emission has been reduced using GSHP related to ASHP, and the maximum COP of the unit is 3.75 in year-round operation. The performance of the individual component of the vapor compression system can be analyzed using IMSTART, and this software is developed by the Polytechnic University of Valencia, Spain [129]. The IMST-ART simulation result shows that the maximum SPF of 5.24 for the heat pump and 2.47 for the GSHP system has been achieved [98]. This simulation model considers the following independent variables, namely, speed of compressor and circulation pump, entry, and exit temperature of the GHE. ASPEN plus can be used for the heat exchanger design apart from the process engineering systems, and it has been developed by Aspen Technology, Inc., USA (Aspen Technology, 2000). The GSHP system COP has been simulated using ASPEN Plus software varies from

1. Most of the systems are installed for heating-dominated

buildings in the global north. The direct utilization of geothermal energy is very limited in the global south nations. China has extensively analyzed the shallow geothermal potential. Similarly, it has to be carried out for other global south countries.

2. The future work may be to describe more explicitly SGE

potential for both heating and cooling and to discuss important power densities when active resupply of thermal shortfalls is accounted for.

3. Further, research and developments are essential for the

effective utilization of SGE in global south countries. Development of the new database to represent the SGE conductivities and prospective (different length) and viability of GHE systems. Also, techno-economic mapping needs to be conducted.

4. The NH3 and CO2 refrigerants were studied to a greater

extent in the GSHP system. However, propane has been rarely investigated. The exploration of natural refrigerants in the GSHP is extremely less related to the convection heat pump.

5. Various types of studies were done on improving the

GSHP performance on the system side by perfecting various parameters. However, the potential impact of the indoor environmental (air) parameters has not been studied extensively. Design integration of the SGE and building with respect to optimal energy use and operational plan must be developed. 6. Very few comparative simulation studies are only available. Therefore, further comparative research is needed in order to find the best suitable software. There is a need to find the performance of the system according to the year-round local climatic conditions. 7. The future work may be to develop transparent and crucial evaluation plans for the data point and uncertainties, vulnerabilities, and essential modeling statements. Different design computer software must be further verified by data from the field and a detailed assessment is intensively required to examine their precision and feasibility for engineering practices. 8. There are some limitations because of the initial investment and complexity of the GSHP system. The extensive

review reveals that the payback period of the system is quite high. There are possibilities for technological advancements, which will help to reduce the investment cost.

9. The improper design would increase the installation

and maintenance costs. The oversizing of the system to meet the peak demand may also be the reason for the higher payback period. Incorporating the safety factor increases the GHE length. Also, considerable attention needs to be paid to grout, and this will significantly reduce borehole length and fitting cost. Hence, proper design standards and technology development are essential to reduce the cost.

10. The best design of the individual system dramatically

reduces the investment cost and energy consumption. Still, further research is necessary for the optimization and control strategy of the integrated system according to the climatic conditions, building demand, and GTI. The influence of building load on the thermal plumes must be investigated. The traditional approach to deciding on thermal plumes is insufficient.

11. Exergy analysis may be considered under a dynamic

approach, since the design running conditions could vary greatly, during a peak day and the season. The exergy optimization could be applied to a control algorithm

12. Available theories to review the economic possibilities

of SGE in urban areas, however, are still not ready. The economic barrier and emission reduction potential of retrofitting the GSHP system in a building could be estimated. Modernization studies need to be carried out for effective integration with the existing building.

13. Most of the earlier findings are taken into account GHE

heat transfer and ignore financial and environmental aspects.

14. The effects of the Carbon trading mechanism (CTM)

are limited because it is still in the early stage of growth and has little volatility. Hence, to progress further, the CTM and proper guidelines are also beneficial for the development of GSHP.

15. A greater part of the research work focused on heat

pump components’ fault detection. However, no research is available on GHE. Most of the fault diagnosis methods are established to find the hard faults precisely in ASHP systems. Hence, plenty of research is needed on soft fault detection in the GSHP system.

16. The strong guidelines and administration plans for the

intensified shallow geothermal energy use are still missing primarily due to the shortage of system insight and process experience. 17. The evolution of SGE in global south counties is inadequate due to factors such as rules and policies, as well as a lack of financial assistance from the government. If rules and policies become efficient and policy structures are introduced, the SGE growth can quickly accelerate in the country.

18. The dissemination plans need to be developed that can

help to access the technology, and it may be focused on governing and technology advancements, fiscal subsidies, and knowledge sharing activities, with tax benefits suitable for GSHPs, people’s awareness of the system and its advantages.

19. Explanation of the technical capabilities, and proof of

thriving SGE use theories for cities, is essential to foster the adoption. Social considerations as part of the adoption potential are rarely argued.

20. The system growth in the cities based on planning by

private owners is questionable to deliver practical future results, as the costs of the discovery and supervising are expected to go beyond the reasonable economic constraints. Hence, investor participation and dedication require to be supported so that a growth plan can be realized at the community and city scale.

Conclusion

Many more can be done to ensure GSHP is better, i.e. highly efficient, cheapest, simpler, preventing any threat to geothermal and groundwater, expanding the area of application on the existing building, industries, etc. In conclusion, SGE is a clean, trusted, and greener source, which can promote social sustainable growth and help protect the global environment. For this reason, state initiatives and efforts are critical to emphasize and promote the exploration, utilization, and evolution of SGE in the country.

Nomenclature

A Area ACOP Average coefficient of performance ASHP Air source heat pump ASVRF Air source variable refrigerant flow CHP Local fired cogeneration COP Coefficient of performance CTM Carbon trading mechanism DEH Direct electric heating DeST Designer’s simulation toolkit DSS Decision support system EAHE Earth air heat exchanger EAHP Earth air heat pump EED Earth energy designer EER Energy efficiency ratio EG Ethylene glycol eQUEST Quick energy simulation tool ES Energy storage/energy source FEFLOW Finite element subsurface flow GB Gas fired boiler GHE Ground heat exchanger GLHE Ground loop heat exchanger GLD Ground loop design GSHP Ground source heat pump GTI Ground thermal imbalance

Hgshp HTF

LCA LCH LTGB OB PB PE PEC PVC RCH Ref SCOP SPF SGE SWHP VGHE WGH

High-density polyethylene Horizontal ground heat exchanger Green electricity + GSHP Heat transfer fluid Life cycle analysis Large coal-fired heating Low temperature system + gas boiler Oil-fired boiler Polybutylene Polyethylene Primary Energy Consumption Polyvinyl chloride Regional coal-fired boiler Refrigerant Seasonal coefficient of performance Seasonal performance factor Shallow geothermal energy Surface water heat pump Vertical ground heat exchanger Wall hanging gas boiler

Acknowledgments

The author worked as a project fellow in a DST-EPSRC funded project title “Zero Peak Energy Building Design for India” (ZED-I) at the Indian Institute of Technology Roorkee. ZED-I is a collaborative research project lead by IIT Roorkee along with IIT Delhi and CSIR-CBRI from India and the University of Bath from the UK. Department of Science and Technology (DST) and Engineering and Physical Sciences Research Council (EPSRC) are jointly funding this research under the “Energy Demand Reduction in the Built Environment” program (Grant numbers: DST/ TMD/UK-BEE/2017/17(c) and EP/R008612/1). This project aims to eliminate peak energy demand and minimize mean energy demand from buildings, under a changing Indian climate, through a new science of zero peak energy building design. This review was carried out as a part of the development and demonstration of low-energy cooling and heating technologies. The part of the work was carried out at IIT Roorkee. Later, the author started working as Assistant Professor at Vellore Institute of Technology, Vellore, India, and the remaining part of the review work was carried out. The author would like to thank all the investigators and team members for their constant support.

Data Availability Statement

The authors confirm that the data that supports the findings of this study are available within the article. Raw

data that support the finding of this study are available from the corresponding author, upon reasonable request.

Conflict Of Interest

The author declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Ethics

There are no ethical issues with the publication of this manuscript.
