Thermodynamic analysis of a solar-driven vapor compression re-frigeration system using R1234ze for c

Abstract

Keywords: Solar Energy; Vapor Compression Refrigeration; Low GWP Refrigerant; Cooling Applications; Performance; Comparison

Introduction

Solar-based cooling is an indispensable domain within the realm of renewable energy and has garnered noteworthy accomplishments. Its significance arises from the heightened requirement for cooling during periods of intensified solar radiation, which often aligns with hotter climates.

Furthermore, solar cooling stands out for its environmentally conscious nature, given its absence of greenhouse gas emissions and its contribution to curbing reliance on fossil fuels. Notably, it offers cost-effective advantages by lowering energy expenditures and entailing minimal maintenance costs. Another notable advantage lies in its applicability to

*Corresponding author. *E-mail address: triki.zakaria@univ-medea.dz This paper was recommended for publication in revised form by Ahmet Selim Dalkılıç Published by Yıldız Technical University Press, İstanbul, Turkey Copyright 2021, Yıldız Technical University. This is an open access article under the CC BY-NC license (http://creativecommons.org/licenses/by-nc/4.0/).

remote regions lacking easy access to electricity, rendering it a viable solution for off-grid scenarios [1]. Solar cooling systems can be broadly categorized into two primary types: solar thermal cooling systems and photovoltaic (PV) cooling systems. Solar thermal systems directly utilize solar radiation to expose the refrigerant, eliminating the need for electrical power. Conversely, PV cooling systems harness electricity generated by PV modules to drive their operations. Within the realm of thermal cooling systems, there exist four distinct categories: solar adsorption, absorption, ejector, and desiccant systems. On the other hand, PV-based solar cooling systems can be classified as either thermoelectric refrigeration systems or PV compression refrigeration systems. Among these, PV solar vapor compression refrigeration (VCR) systems prevail as the most commonly utilized and commercially accessible options. Notably, they have found practical applications in cold storage and the preservation of vaccines in rural areas [2–4]. Numerous experiments have been conducted to evaluate the effectiveness of vapor compression solar cooling systems, encompassing both alternating current (AC) and direct current (DC) variants [5–17]. In addition, various researchers have undertaken theoretical investigations into solar cooling systems using PV technology [18–26]. One particular focus in recent years has been on low global warming potential (GWP) refrigerants, with studies exploring the utilization of refrigerant mixtures with low GWP values to enhance the performance of vapor refrigeration systems. Hydro-Fluoro-Olefin (HFO) refrigerants like R1234yf and R1234ze have emerged as promising alternatives to Hydro-Fluoro-Carbon (HFC) refrigerants due to their reduced GWP values. Mota Babiloni et al. [27] compiled relevant research on R1234ze, encompassing investigations into its thermophysical and compatibility properties, heat transfer and pressure drop characteristics, and the performance of vapor compression systems incorporating this refrigerant. Other studies have assessed the viability of R1234ze and HFO1234yf as alternatives to HFC-134a, analyzed vapor compression refrigeration (VCR) systems employing different evaporators, and compared the performance of various vapor compression configurations utilizing low GWP refrigerants. In a study by Ben Jemaa et al. [28], an exergy analysis was conducted on an air-cooled vapor compression chilled water system utilizing R1234ze, with findings indicating no significant differences in energy and exergy efficiencies when compared to R134a. Rajendran Prabakaran et al. [29] conducted a comprehensive examination of the thermodynamic performance of an automobile air conditioning (AAC) system at three distinct vehicle speed conditions, employing R134a, R1234yf, and a 50/50 mixture of R1234yf and R134a. Their findings indicated that the performance of the R1234yf/R134a mixture closely resembled that of R134a within the AAC unit. However, they proposed utilizing a 90/10 R1234yf/R134a

mixture to adhere to environmental protocols (GWP <150) without necessitating component modifications. Toualbi et al. [30] investigated the energy performance of a vapor compression refrigeration cycle employing low GWP fluids (R1234yf and R1234ze) and compared it to high GWP fluids. The study revealed that R1234ze exhibited a superior coefficient of performance (COP) of 3.14, which closely approached that of R134a (3.17). More recently, Shamkar Prased et al. [31] carried out both experimental and simulation investigations to explore various refrigerants and blends as potential replacements for R134a in vapor compression refrigeration systems. The researchers analyzed heat transfer parameters and predicted the performance of low-GWP refrigerants across the HFO and HFC categories through energy and exergy analyses, considering commercial refrigerants such as R134a. Despite the various studies found in the literature, there seems to be a lack of comprehensive thermodynamic analysis for solar-driven vapor compression refrigeration system using R1234ze fluid as an alternative of R134 refrigerant for cooling applications. The mentioned gaps in the existing literature have been addressed by the presented study. In addition, the use of solar energy to power refrigeration systems is an emerging area of research and innovation, especially in regions with abundant sunlight. The aim of this paper is to evaluate the thermodynamic performance of a solar-driven VCR system in the Ghardaïa region (southern Algeria) located in in the Sahara Desert with hot and arid climate zone, which makes it an ideal location for the use of solar energy for cooling applications. The traditional method of cooling in this region is through the use of evaporative coolers, which are not very efficient and consume a significant amount of water. The use of a solar-driven VCR systems can provide a more energy-efficient and environmentally friendly cooling solution for this region. Two working fluids are studied and compared, the HFC high GWP going to be phased out, R134a and the low GWP, HFO refrigerant recently introduced R1234ze.

Materials And Methods

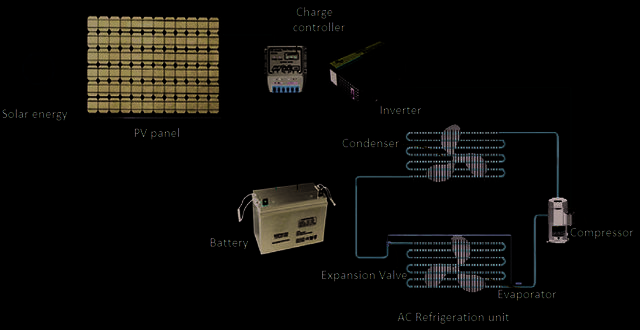

System Description The diagram in Figure 1 illustrates the key components of the solar VCR system under investigation. The system consists mainly of an AC refrigeration unit, a charge controller that prevents the battery from being over charged or deep-discharged, a DC-AC inverter which converts direct current from the solar PV panel or the battery into alternating current that can be fed to a conventional AC compressor, a battery to store and supply energy when the sun is not available and a PV generator which supplies power to the refrigeration unit and charges the battery with excess energy. The compressor plays a crucial role in compressing the refrigerant gas (1) to form a high-pressure and high

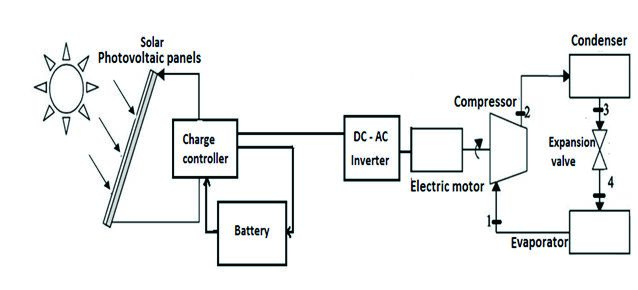

(b) Figure 1. Schematic diagram of the solar PV assisted cooling system.

temperature gas. This high-pressure gas (2) is then directed to the condenser, where it dissipates heat and undergoes condensation, transforming into a high-pressure and high-temperature-liquid. Subsequently, the high-pressure and high-temperature liquid (3) proceeds through a throttling mechanism, such as an expansion valve, experiencing a reduction in pressure and transforming into a low-pressure and low-temperature liquid. This low-pressure and low-temperature liquid (4) is then introduced into the evaporator, where it absorbs heat from its surroundings and transitions into a low-pressure and low-temperature gas. The resulting low-pressure and low-temperature gas is subsequently routed back to the compressor, initiating the cycle anew. A pressure-enthalpy diagram depicting the vapor compression cycle is provided in Figure 2.

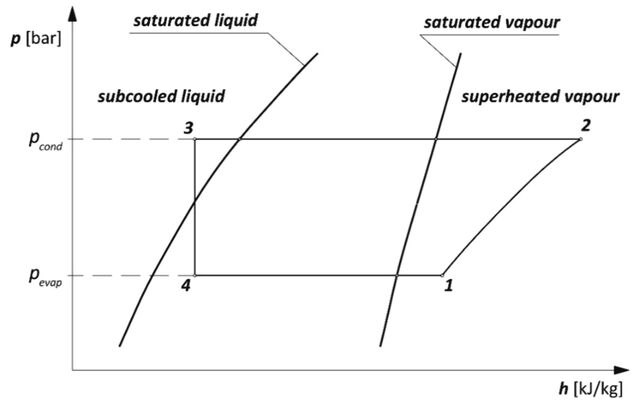

Figure 2. Pressure-enthalpy diagram of a vapor compression refrigeration cycle.

Site Description The city of Ghardaia, situated in the southern region of Algeria at latitude 32.26° N and longitude 03.46° E, experiences a hot and arid climate characterized by minimal annual rainfall. In this study, climatic data were obtained from the meteorological station located at the Renewable Energy Applied Research Unit (URAER) in Ghardaia [32]. Figure 3 illustrates the monthly variations in ambient temperature and solar global radiation for the Ghardaia region. It is evident that February registers the lowest temperatures, averaging at 23.3°C, while June represents the warmest month with an average temperature of 33.7°C. The annual average ambient temperature hovers around 25°C. Regarding solar radiation, the highest monthly value of 205 kWh/m2 occurs in July, making it the selected month for the ongoing research.

HFCs, including R134a, which possesses a GWP of 1430 (as shown in Table 1). Hence, the utilization of HFCs with a Global Warming Potential (GWP) exceeding 150 in HVAC and VCR systems is regulated by European Regulation No. 2006/40/ EC and No. 517/2014 [34,35]. As a result, R134a is slated for prohibition in the near future, prompting the search for viable alternatives such as the hydro-fluoro-olefin (HFO) R1234ze(E). This particular HFO shows promise due to its significantly lower GWP and shorter atmospheric lifetime (17 days for R1234ze compared to 13.8 years for R134a) [36]. However, despite its environmentally friendly characteristics, some drawbacks have been identified, including its slight flammability and potential negative impact on overall performance, particularly in terms of vapor compression efficiency [37].

Working Fluids R134a, categorized as a hydrofluorocarbon (HFC), is known for its absence of Ozone Depletion Potential (ODP). Nevertheless, the environmental impact of a working fluid extends beyond the depletion of the stratospheric ozone layer when it is released into the atmosphere. While HFCs do not harm the earth’s stratospheric ozone layer, certain HFCs with high Global Warming Potential (GWP) can significantly contribute to climate change. Under the Kyoto Protocol in 1997 [33], HFCs were classified as greenhouse gases and efforts have been made in many developed countries to reduce their emissions. Consequently, there is a search for alternative substances to replace high GWP

Table 1. Refrigerant properties of R134a and R1234ze [38,39] R134a

Month Figure 3. Monthly solar radiation and average daily ambient temperature (Ghardaia site) [32].

Vapor-compression refrigeration system To model the solar vapor compression refrigeration system, the principles of mass conservation and the first law of thermodynamics are utilized for every cycle component, considering the following assumptions: • Steady-state operation • Reversible heat transfer • Polytropic compression • Negligible variations in kinetic and potential energy • Insignificant pressure drops • Consistent cooling capacity When considering a control volume encompassing the refrigerant side of the evaporator, the refrigerant’s mass flow rate ( ) is defined as follows [40]:

Heat losses are a common occurrence in cooling systems, leading to a deviation between the actual coefficient of performance (COP) and its theoretical maximum COP. The thermodynamic efficiency refers to the ratio between the COP of the actual refrigeration system and the COP of a reversible refrigeration system operating within the same temperature range:

Where: h1 and h4 are the specific enthalpies at states (1) and (4), respectively (kJ/kg). Qe is the heat transfer rate, which is referred to as the cooling capacity (kW). The compressor power consumption is defined as follows [41]:

Where: COPmax is the maximum coefficient of performance of the refrigeration system which depends mainly on its operating temperatures.

Equations for calculations of the thermodynamic properties of R134a and R1234ze refrigerants are presented in [43] and [44], respectively. The developed correlations are a function of one variable for the state of saturation and two variables for the subcooled liquid and superheated vapor regions.

Where: h2 is the specific enthalpy at state (2) (kJ/kg). ηe, ηb, and ηm are respectively called as electric motor efficiency, belt transmission efficiency and compressor mechanic efficiency. Knowing the compressor exit temperature, the specific enthalpy (h2) at the exit of the compressor can be determined. The discharge temperature based on the polytropic is calculated as follows [42]: (3) Where: Pc and Pe are the condenser and evaporator pressures, respectively (bar). γ is the polytropic exponent (defined as the ratio between the specific heat at constant pressure and constant volume, Cp/Cv. For a control volume enclosing the refrigerant side of the condenser, the rate of heat transfer (Qc) from the refrigerant per unit mass of refrigerant is as follows: (4) The process in expansion valve is usually modeled as a throttling process for which:

where h3 is the specific enthalpy at state (3) (kJ/kg). Coefficient of the performance (COP) is defined as the cooling power, Qe divided by the work input, W: (6)

Solar PV panel The calculation of PV power production involves the utilization of the solar electric panel’s efficiency, denoted as ηPV, and the solar radiation input, represented as Qs [45]. (9) The generation of solar radiation from the surface area of the panel and the overall efficiency of a cooling system assisted by solar PV are defined as follows: (10)

(11) Where: A is the solar cell or panel surface area (m2) and I is solar radiation (kW/m2). In the solar vapor compression refrigeration system, the objective is to fulfill the compressor’s power requirements through electricity generated by solar PV panels.

Consequently, it is necessary to ensure an adequate number of PV panels with appropriate characteristics to meet the system’s energy demand entirely. The daily cumulative power consumption of the compressor and the daily cumulative power production of the PV panels can be calculated using the following expressions: (12)

Where: k is the hour of the day. The required PV panel area can be determined by using the following equation:

(14) Here: IT is the daily total solar radiation (kWh/m2/day). The fundamental operational parameters, derived from previous studies, which determine the performance of the cycle, are provided in Table 2.

Results And Discussion

Figure 4 illustrates the measured hourly average variations of solar radiation and ambient temperature for the Ghardaia region during the 21st day of June, July, and August. As depicted in Figure 4(a), the hourly ambient temperature experiences a significant range of variation throughout the day, with the highest average temperature occurring in June and July, and the lowest in August. Figure 4(b) demonstrates that solar irradiation increases with sunlight, reaching its peak values at noon. Subsequently, it gradually decreases during the evening hours when the

(b) Solar radiation Figure 4. Hourly mean variation of solar radiation and ambient temperature (Ghardaïa site). solar energy’s influence diminishes, and there is no solar energy effect between 8:00 PM and 4:00 AM. Moreover, the hourly solar radiation values in July surpass those of other months. The maximum solar radiation value, with a magnitude of 2.726 kWh/m2, is recorded at 12:00 PM on June 21. Comparing the maximum values of ambient air temperature and solar radiation, it is observed that the maximum atmospheric temperature occurs between 1:00 PM and 2:00 PM, whereas the maximum solar radiation is registered between 12:00 PM and 1:00 PM. Figure 5 presents a comparison of the hourly mass flow rates for both refrigerants on July 21. The calculation results indicate that the mass flow rate of R1234ze is noticeably higher than that of R134a. This difference is primarily due to R134a having a higher boiling point and heat of vaporization compared to R1234ze at a given temperature.

Consequently, R134a exhibits a greater cooling capacity, as depicted in Figure 6, meaning that a lower mass flow rate of R134a is typically required to achieve the same cooling effect as R1234ze. The lower cooling capacity for R1234ze refrigerant compared to R134a, with an average reduction equal to 10% is comparable with the findings of other experimental works present in the literature [46–48]. Furthermore, R134a has a lower specific volume and higher density in comparison to R1234ze. This implies that a smaller mass of R134a can occupy the same volume as a larger mass of R1234ze, resulting in a reduced mass flow rate requirement for R134a. Additionally, the mass flow rate experiences variations throughout the day. As the ambient temperature rises, the heat load on the system increases, necessitating a higher mass flow rate of refrigerant to maintain the desired cooling capacity.

Figure 7 illustrates the variation of the coefficient of performance (COP) for both refrigerants throughout the 21st day of July. The graph indicates that the COP of the R1234ze refrigerant surpasses that of R134a, given the specific evaporating and condensing temperatures. Moreover, the COP of R1234ze remains consistently above 4 throughout the entire 24-hour simulation period, demonstrating its superior performance within a broad operational range. For R1234ze, the COP of the VCR system fluctuates between

Data Availability Statement

Figure 14. Comparison of the cumulative compressor power consumption and cumulative PV power production for R1234ze (Ghardaia region).

The authors confirm that the data that supports the findings of this study are available within the article. Raw data that support the finding of this study are available from the corresponding author, upon reasonable request.

Conclusion

The growing demand for cooling applications and environmental concerns have spurred the development of solardriven vapor compression refrigeration (VCR) systems with low GWP refrigerants. This study focuses on analyzing a solar-driven VCR system for cooling purposes in the Ghardaïa region of Southern Algeria. The study compares the performance of R134a and its potential replacement, R1234ze, as working fluids. Key findings are as follows: • In Ghardaïa, the peak solar radiation occurs at 12:00 PM on July 21, reaching 2.726 kWh/m2, with July generally experiencing higher radiation levels. • At a given temperature, R134a requires a lower mass flow rate due to its higher enthalpy of vaporization. However, density becomes the dominant factor favoring a higher mass flow rate for R1234ze. • R1234ze demonstrates a higher COP compared to R134a, thanks to its lower compressor power requirement and improved thermodynamic efficiency for the same cooling capacity. • The solar-to-cooling COP declines as temperatures rise, primarily due to increased compressor power consumption and diminished refrigerant performance. Consequently, cooling capacity and efficiency are reduced. • Although the required surface area of solar PV panels shows minimal variation with ambient temperature, panel temperature directly influences performance and, consequently, affects the required area. • Cumulative PV power production exceeds compressor power consumption, indicating excess energy generation that can be stored for future use.

The author declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Ethics

There are no ethical issues with the publication of this manuscript.
