Experimental investigation of forced convective heat transfer and fluid flow in a mini heat pipe wit

Abstract

Keywords: Heat Pipe; Two-Phase Flow; Integrated Circuits; Heat Transfer Coefficient

Introduction

To achieve a thermally efficient and financially viable design, heat exchangers with natural and forced convection may transfer heat more quickly [1-5]. Thermal administration of electronic parts should take care of issues associated with the impediments on the most extreme temperature of chip and the prerequisites of the degree of temperature

consistency. For cooling electronic parts, one can utilize fluid coolers and air just as coolers built on the standard of the stage change heat move in shut space, for example, submersion, thermosyphon and coolers of heat pipe. Every one of these techniques has its benefits and downsides because in the decision of fitting cooling one should think about the cooler thermal parameters, price, durability and application [1].

*Corresponding author. *E-mail address: zaobaid@uoanbar.edu.iq This paper was recommended for publication in revised form by Regional Editor Tolga Taner Published by Yıldız Technical University Press, İstanbul, Turkey Copyright 2021, Yıldız Technical University. This is an open access article under the CC BY-NC license (http://creativecommons.org/licenses/by-nc/4.0/).

Heat pipes consider a suitable solution for electronic hardware cooling, so it is used to cool computer electronic parts. It is a closed system and its ability to transfer heat depends on the working fluid besides the structure design. A few narrow designs are created to meet explicit warm necessities. They are established either by an incorporated construction of microgrooves or microchannels machined in the inner surface of the warmth spreader or by permeable designs made of sintered powders or wire screens. As per certain conditions, made fine designs can be incorporated into heat pipes. Flat miniature heat pipes are little effective gadgets to meet the necessity of cooling electronic parts. They are created in various methods depending on the used material, the precision fin design and the technology used in the manufacturing process. The current review manages the improvement of a flat miniature heat pipe idea and how it is used to cool high thermal scattering electronic parts. Experimental tests are done to calculate the performance of heat pipes based on different parameters. By looking at the exploratory results with the calculated data, the dependability of the mathematical model can be checked [6]. For flat miniature heat pipes comprised of an incorporated fine design including capillary channels of various shapes, the hypothetical methodology comprises concentrating on the flow stream and the transfer of heat in insulated channel surfaces. The influence of the main variables on which the flat miniature heat pipe depends can be calculated by experimental investigation. Thus, the impact of the working fluid, the interaction between vapour and the base fluid, the capillary channel geometry and hydraulic diameter can be calculated by analysing the thermal and hydrodynamic boundary layer of the selected test section [7]. Microchannel cooling technology was introduced to the world by Tuckerman and Pease [8]. They flowed water in a microchannel created in silicon chips and the maximum value of a heat flux they were able to reach was 790w/cm2 without any change in phase with a pressure drop of 1.94 bar. Amer et al. [9] discovered that the number of Nusselt depends on the Reynolds number in laminar microchannels flow [10]. This was observed clearly from their simulation with the use of microchannels inside diameters ranging from 3 to 81μm. Khrustalev and Faghri [11] conducted an experimental investigation to determine the heat transfer and fluid flow characteristics in a rectangular microchannel under two-phase flow conditions. The pressure drop and the coefficient of friction factor had been studied during the experiment and analysed the interaction between the vapour and the working fluid. The data illustrated that the influence of the interaction of the vapour-liquid frictional on the stream of flow decreases with the interface curvature of the liquid-vapour and the shear stress decreases as we go to the centre and its irregular at the interface between the liquid and vapour. Qu and Mudawar [12] conducted an experimental study to investigate the coefficient of saturated flow under two-phase flow conditions. The water is used as a coolant in microchannel heat sinks of 21 parallel

microgrooves having (231x713µm) dimensions. A specified model of annular flow was developed to predict the coefficient of boiling heat transfer. Micro-channel two-phase features such as laminar vapour flow and droplet entrainment are incorporated into the correlation. The experimental data showed that the coefficient of heat transfer in boiling condition is a strong function of the mass boiling flow rate and it does not depend too much on the heat flux. This proves the hypothesis that the process of heat transfer mechanism is not highly dependent on nucleate boiling, but rather depends on convective boiling. Steinke and Kandlikar [13] investigated theoretically and experimentally the fundamental characteristics of boiling heat transfer in six horizontal and parallel microchannels with a hydraulic diameter of 207 µm. The water was used as a coolant with an inlet temperature of 22°C and mass flux ranging from 157 to 1782 kg/m2.s and different ranges of uniform thermal power from 5 to 930 kW/m2. The visualization of flow was used to study the reversal flow. The data indicated that the local coefficient of heat transfer decreases with the increase in quality and nucleate boiling has a big role in the heat transfer process. Launay et al. [14] evolved a mathematical model to predict the ability of heat transfer and distribution of temperature along the flow line of a flat miniature convective heat pipe using water as a working fluid. The energy of heat transfer and fluid flow have been combined to study the evaporating and condensing conditions in thin films. The distributions of temperature, pressure drop and velocity were calculated during the two phases liquid and vapour. The index of thermal performance for the system has been simulated based on constant boundary conditions of a flat miniature convective heat pipe condenser and evaporator. The influence of the dry-out on the flat miniature convective heat pipe performance can also be predicted based on the fluid fill charge and the boundary conditions. Saitoh et al. [15] performed experiments to study the boiling convective heat transfer and fluid flow in horizontal tubes of diameters 0.51, 1.12, and 3.1 mm, respectively. The refrigerant R-134a was used as a coolant during the study. The mass flux ranges from 150 to 450 kg/m2.s with a constant input power ranged from 5 to 39 kW/m2. The quality of vapour varied from 0 to

Experimental Investigation

Heat Pipe Manufacturing The test rig has been fabricated and designed based on some electronic criteria associated with the heat sink which needs to dissipate the largest amount of heat generated due to operation. More restrictions such as heat sink weight, size and total system temperature were taken into account when designing the test model. The test section is made from copper with dimensions of width, length and thickness of 60mm, 120mm and 4mm, respectively. The body of the system was fabricated in two halves, in the first half of thickness (3mm), rectangular capillary grooves (0.5 x 0.5mm2) were made by a CNC machine, while the second half of thickness (1mm) was welded to the first part using beam of laser. The coolant is charged to the test rig by a heat pipe charging tube of diameter (2.5mm) which is welded to the end of the heat pipe by a normal welding method. The boiling filling process needs to boiler, vacuum valve, and vacuum system, and to charge the working fluid to the system, some important steps must be taken: Empty the system from the air by boiling process, then ensure that system is fully vacuumed and at the end, the flat heat pipe is charged with optimum liquid amount about (1.5ml). The tested flat heat pipe with dimensions are indicated in Figure (1).

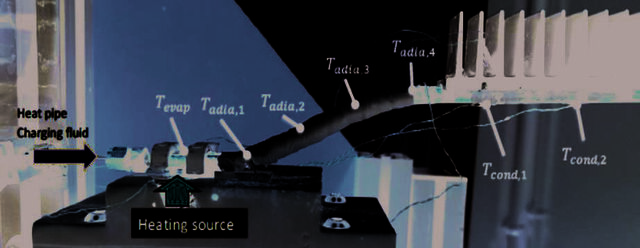

Figure (1). (a) Heat pipe test rig, (b) Heat sink and microgrooves dimensions.

Table 1. Geometric dimensions of a flat mini heat pipe FMHP Width (W)

Experimental Apparatus and Procedures To conduct the experimental investigations, the test apparatus is established for the experimental studies as shown in Figure (2). Thermal input power was supplied by the heater located at the end of the flat mini heat pipe and the constant heat flux was controlled by a variac to the test section a digital Avometer was used to measure the voltage and current during the tests. A cryostat is a device used to maintain low temperatures of samples or devices mounted within the cryostat. Low temperatures may be maintained within a cryostat by using various refrigeration methods, most commonly using cryogenic fluid bath such as liquid helium. The adiabatic side and the evaporator were

insulated with thermal insulation and the thermal losses from the isolated part were calculated by finding the difference in temperature between the insulated surface and the outer perimeter. Water was used to dissipate the heat from the system and a material with high thermal conductivity is placed between the aluminium blocks and the copper side. The heat flux has been increased from a small value to a value at which the temperature of the evaporator begins to increase suddenly and the temperature distribution of the pipe was recorded by thermocouples. Eight thermocouples type-J are distributed from the evaporator end cap section to measure the surface temperature of the flat mini heat pipe and to measure temperatures of the condenser and

evaporator holes were made on the wall of the flat mini heat pipe and thermocouples were distributed on it. The flow rate was adjusted to start the experimental procedures and the evaporator section was heated gradually using a variable transformer to generate constant heat flux. The temperature of the aluminium heat sink was maintained by adjusting the flow rate of the coolant (water). The experiment was running for (20-25 minutes) until it reach steadystate condition and after that, the temperature read out through the type-J thermocouples is recorded and thermal input power is increased to reach the required heat flux. For each step of thermal input power, all results were recorded after reading the sensors and reaching a steady-state using

data acquisition type IMP35951 and Lab VIEW software. All thermocouples were calibrated and the calibration accuracy was ranged from (±0.3-0.5oC). The thermal input power produced from the heater from the mathematical relation (Q = V × I) and thermal resistance (Rth) of flat mini heat pipe is calculated from the ratio of the temperature difference across the flat mini heat pipe to the thermal input power (Q). The thermocouples distribution is shown in Figure (3). Data Reduction The following mathematical expression is utilized to obtain the coefficient of heat transfer in the zones of the condenser and evaporator [23]:

Where h: Coefficient of heat transfer in condenser and evaporator zones. The adjusted Jakob number [23]:

Experimental data is processed and converted to dimensionless numbers to get the laws of boiling convective heat transfer based on the theorem of Vaschy-Backingham, and the constant of Laplace is [23]:

Hence, the average Nusselt number can be found from the following empirical correlation[23]:

(8) Where: C, u1, u2, and u3 are constant, and their value is calculated from the experimental results by analysis of linear regression.

Result And Discussion

(4) Dimensionless Prandtl number is [23]: (5) And Nusselt number [23]: (6)

Variation of Nusselt Number The comparison between the experimental average Nusselt number and the analytical average Nusselt number obtained from equation No. (8) is depicted in Figure (4). From this figure, it is clear that in the case of the evaporation boiling heat transfer zone (b), there is a good compatibility between the Nusselt values that were obtained experimentally and those obtained from equation No. (8), and the largest deviation between these values is ± 13%. For the condensation boiling heat transfer zone (a), the maximum deviation recorded is ± 8%.

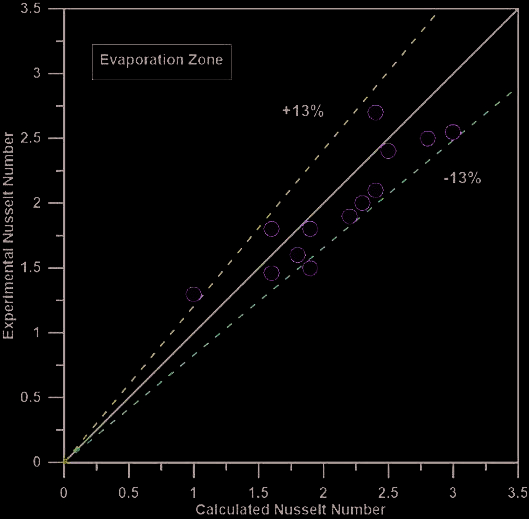

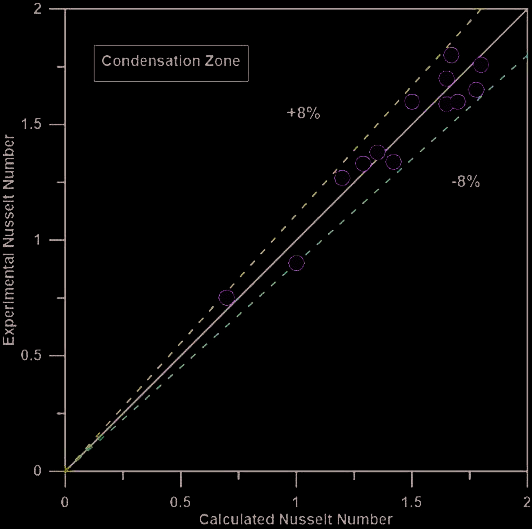

Figure 4. Experimental average Nusselt number versus analytical average Nusselt number (a) condensation zone, (b) evaporation zone.

Dual Influences of the Dissipation Unit Temperature and Heat flux Figures (5a – 5c) demonstrate the axial distance temperature distribution for flat mini heat pipe at various values of heat flux ranging from 20-50W and different temperature degrees for horizontal heat sink ranging from 15- 35°C. From these figures, it can be seen clearly that the highest value of the evaporator temperature for a flat mini heat pipe is lower than the temperature of the copper piece which is illustrated in the Figure (5d).

The wall temperature difference between the evaporator and condenser for heat sink temperature Tsf = 35°C is shown in Figure (6) as a function of heat flux in horizontal position and the temperature difference for a plate of copper is also illustrated in order to compare with the temperature difference of the flat mini heat pipe. The diagram shows that the temperature gradients of the mini heat pipe are less than the temperature of the plate of copper. As illustrated in Figure (6), the process lowers the temperature slope gradient of the flat mini heat pipe and this gives

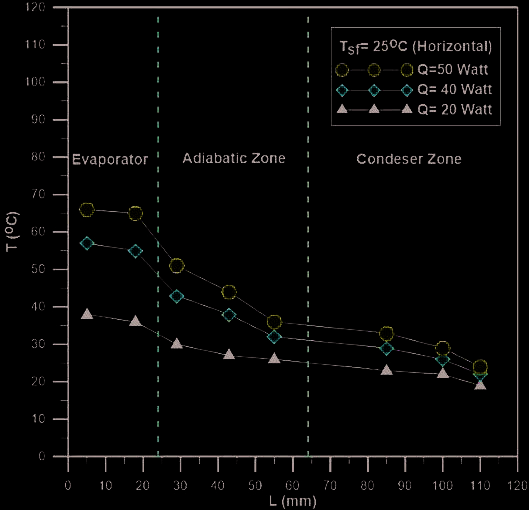

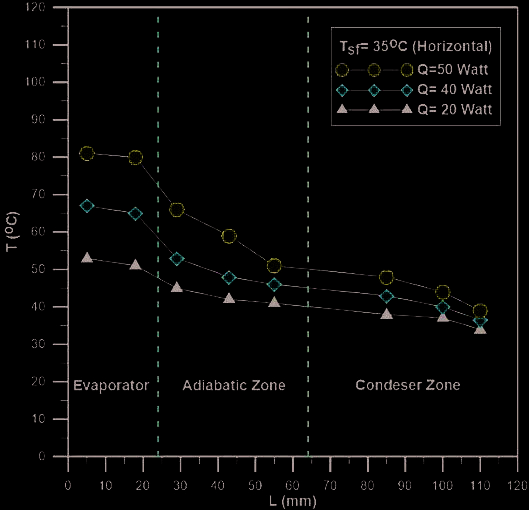

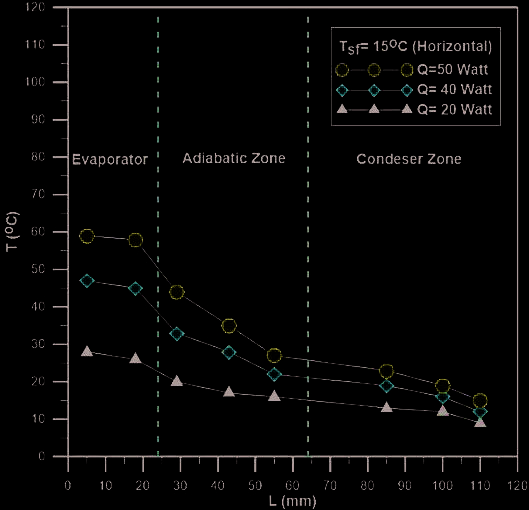

Figure 5. Temperature distribution of flat mini heat pipe at different heat sink temperatures: a) Tsf = 15°C. b) Tsf = 25°C. c) Tsf = 35°C. d) Temperature distribution for copper plate at Tsf = 35°C.

thermal conductivity for flat mini heat pipes is due to the low-temperature gradient that occurs when the thermal flux increases and this makes the heated pipes work more efficiently.

Figure 6. Temperature difference variations versus thermal input power. us an impression of the ability of the heat pipe to lowering temperatures in hot areas. The temperature difference variations increases as the thermal input power increase, for example, the difference increases from 19°C at 20 W heat flux to approximately 35°C at a heat flux 50W. Figure (7) shows the flat mini heat pipe’s effective thermal resistance versus the thermal input power and the thermal resistance has great value at low heat flux as stout liquid film located in the evaporator zone. From the Figure, it is clear that thermal resistance gradually decreases to its lowest value when the heat flux value reaches its highest value and when the thermal input power increases more than the limit of the capillary the thermal resistance begins to increase as the evaporator is almost devoid of liquid. This situation occurs due to the inability of the pumping power to defeat the losses in pressure. The decrease in thermal resistance of flat mini heat pipe is mainly due to the decrease in thermal resistance of the evaporator at a high heat flux value. In fact, the increased heat input power enhances the evaporation process in the channels. The process of intense boiling can occur if the value of the heat flux exceeds the capillary limits and as a result, the thermal resistance of the evaporator will increase. This leads to an increase in the thermal resistance of the flat mini heat pipe. The effective thermal conductivity (keff ) of the flat mini heat pipe is calculated based on Fourier’s law. The thermal input power rate is calculated by dividing the heat load over the area of the cross-sectional mini heat pipe. The extracted value is then divided over the temperature difference and then the results obtained is multiplied by the distance between the measured heat sink– source temperature points. Figure (8) shows that this increase in the effective

Figure 7. Flat mini heat pipe thermal resistance versus heat load.

Figure 8. Augmentation of effective thermal conductivity versus heat load at various heat sink.

The heat transfer coefficient variations for condenser and evaporator zone versus heat load are shown in Figure (9). The Figure depicts that the coefficient of heat transfer in the condensation zone is lower than in the evaporation zone at different heat sink temperatures. In fact, the evaporation deterioration process results from the evaporator being free of liquid at high heat flux values higher than the limit of capillary and as a result, dehydration occurs, and therefore the pumping power is insufficient to prevent the pressure losses of the vapour and liquid. The coefficient of heat transfer in the condensation zone increases with the heating load increasing because the flat mini heat pipe is full of liquid and the exclusion area at the condenser end is small. At a specified heat load, the coefficient of heat transfer at the evaporation zone increases as the temperature of the heat sink increases, while decreasing in the condensation zone. Subsequently, the process of evaporation in the microchannels is improved as the temperature of the heat sink is increased and in the meantime, the process of condensation is modified. Dual Influences of the Inclination Angle and Heat flux Experiments were carried out at various angles of inclination of the flat mini heat pipe in order to study the effect of gravitational force. Different positions are selected at a fixed temperature of heat sink Tsf = 35°C. Figure (10) demonstrates the diversity of thermal resistance versus heat loads, For thermal input power larger than 40 W, the (Rth) of the flat mini heat pipe is almost the same for all

the positions taking into account the uncertainties of the thermal resistance, but for heat load lower than 40W, the flat mini heat pipe is sensitive to any change in direction. In

Figure 10. Thermal resistance of flat mini heat pipe versus heat loads in a different direction.

Figure 9. Coefficients of evaporation and condensation heat transfer Vs. heat flux, for various temperatures of heat sink.

fact, the position of thermosyphon displays the lowest thermal resistance, while the position of anti-gravity displays the highest one.

Figure 11. Thermal conductivity ratio improvement as a function of heat loads in a different direction.

Figure (11) shows effective thermal conductivity ratio (keff/kcu) variations versus heat load. The augmentation rate for the flat mini heat pipe thermal conductivity reached about 240% at a heat load 30W for the positions of thermosyphon and horizontal, while the rate of increase in the case of the anti-gravity situation at a heat load 30W reaches 210%, then the improvement percentage begins to decrease to 200%. The change in the condenser and evaporator heat transfer coefficient is shown in Figure (12) versus various heat loads. As it is clear in the Figure that the heat transfer coefficient of the evaporator is not much affected by the change in direction of the flat mini heat pipe and when the supplied heat load exceeds the limit of capillary, the coefficient of heat transfer begins to increase for the positions of anti-gravity and horizontal. It can also be seen that the condenser heat transfer coefficient is very sensitive to any change in direction. These results obtained can be interpreted as the position of the thermosyphon is suitable for liquid return to the evaporator. Uncertainty Error The uncertainty error of calculating the one dimensional bulk and thermal spreading resistances is estimated from the measured data and the accuracy of the instruments used in the experiments. The accuracy of the J- type thermocouples is 0.5oC, while the average error for power supply reading (wattmeter) is estimated at 2.3W. Therefore, using the single sample analysis [24 and 25], the relative uncertainty error of the thermal resistance is calculated as follows:

Figure 12. Heat transfer coefficient variations for condensation and evaporation zones as a function of heat loads in different directions.

(9) The relative uncertainty error calculation of the thermal resistances has been limited to the flat miniature heat pipe, as shown in Table 3.

Table 2. Flat miniature heat pipe resistance calculation uncertainty Heat Load (W)

Conclusion

This work investigated the thermal performance of a flat miniature heat pipe for application in electronics cooling. The temperature measurements allow for a determination of the temperature gradients and maximum localized temperatures for the flat miniature heat pipe. The thermal performance of the FPHPs was further compared to that of copper solid base plates 1mm and 3mm thick. The ability of each sample to dissipate heat was evaluated by measuring the temperature distribution on the mounting surface and the temperature gradient between the heat source and heat sink. From this study the following conclusion is deduced:

1. The obtained laboratory results showed that there is a

clear decrease in the temperature gradient and that the highest temperature decreases as compared with a plate of copper for the same dimensions. 2. There was a significant decrease in the temperature difference between the source and the sink with an increase of 240% in the effective thermal conductivity in the case of the horizontal position of the flat mini heat pipe.

3. Important laws of heat have been established in the

case of condensation and evaporation, and special mathematical relationships that were used to represent laboratory results and were good at representing the theoretical model in such capillary structures.

4. The experimental data show that the incorporation of

the flat mini heat pipe in embedded electronic parts such as computers can enhance the performance of the electronic devices by reducing temperature gradients and increasing thermal conductivity by reducing the number and intensity of hot spots.

Thermal conductivity, W/m. K. Laplace constant, m. Nusselt number. Prandtl number. Heat flux, W/m². Reynolds number. Thickness, m. Temperature, °C. Wall condenser temperature, °C. Wall evaporator temperature, °C. Heat sink temperature, °C. Voltage, V. Velocity, m/s.

Greek Symbols σ Surface tension, N/m. ρ Density, kg/m3. μ Dynamic viscosity, kg/m. s. Dhv Latent heat of vaporization, J/kg. Subscripts and superscripts c Condenser. ev Evaporator. eff Effective. l Liquid. sat Saturation. sf Heat sink. v Vapour. w Wall.

Data Availability Statement

The authors confirm that the data that supports the findings of this study are available within the article. Raw data that support the finding of this study are available from the corresponding author, upon reasonable request.

Conflict Of Interest

The author declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Ethics

There are no ethical issues with the publication of this manuscript.

Nomenclature

Specific heat, J/kg. K. Gravity acceleration, m/s². Heat transfer coefficient, W/m².K. Current, A. Modified Jacob’s number.
