Effects of various parameters on the efficiency of a CO2 heat pump a statistical approach

Abstract

Keywords: Carbon Dioxide; Coefficient of Performance; Heat Pump; Refrigerant; Regression Analysis

1. Introduction

1.1. Refrigerants Refrigerants have passed through several stages of evolution. At the beginning, the early refrigeration equipment used any working fluid as a refrigerant. As long as the refrigerant worked, there was little regard on its safety or environmental impact. Some were even highly reactive. Most of these fluids were natural gases and solvents e.g. NH3, CO2, water, SO2, etc. As concerns of safety and performance became more real, the refrigeration industry started to look for new and improved refrigerants. Artificial refrigerants known as fluorochemical refrigerants (Chlorofluorocarbons – CFCs and Hydrochlorofluorocarbons – HCFCs) were then created (HCFCs were made by substituting one or more chlorine and/or fluorine compounds in CFCs so as to make them chemically less stable and reduce their atmospheric life (Bhatia)). Apart from being refrigerants, CFCs and HCFCs also were used as solvents, aerosol propellants, fire suppressants and blowing agents. Their use in refrigeration was encouraged because they were stable, efficient and safe. Gradually, they caused the decline of the use of natural fluids in refrigeration except NH 3 which was (and still is) the most popular refrigerant in large food processing plants (Bensafi and Thonon, 2007, Calm, 2008).

ABSTRACT The influence of variables such as; refrigerant amount, chilling and cooling water temperature, throttle valve opening, cooling and chilling water flow rates, on the efficiency (coefficient of performance – COP) of a water to water carbon dioxide heat pump was investigated. Design of experiments was done using design-expert® 6 software for regression analysis. A response surface method known as central cubic design was used to provide optimum results with minimum experiments. Through multiple regression analysis, an empirical equation relating the COP to the variables was derived. Analysis of variance revealed that these regressions are statistically significant at 95% confidence level compounded with a very low standard deviation and a high adequate precision. The close relationship between the predicted COP values and the actual values further proves the worthiness of the empirical equation. It was observed that cooling water temperature had the highest influence followed by the chilling water temperature. Surprisingly, the amount of the refrigerant was third followed by the throttle valve opening. Understandably, chilling water flow rate had the least effect on the COP. Through response surface diagrams, the interactive influence of the variables were also observed. The COP values arrived at varied from 1.545 to 6.914 although if the variables were optimized fully within the scope of this study, a value of up to 11.8 could be achieved. Still, if the variables range is increased further, higher COP could be achieved. Finally, a discussion was done in a bid to explain these results.

Environmental Effects Even though CFCs and HCFCs were the most desirable refrigerants, their long-term effects were not investigated until when their accumulation in the stratosphere partially destroyed the ozone layer after around 40 years of use. Bromine and chlorine from anthropogenic chemicals react 263

Research Article emissions from industrial and transport sector, its abatement is paramount because of the GWP value of the refrigerants involved (Calm, 2008). When safely contained in a proper refrigerator, refrigerants do not cause any harm to the environment, but if the system leaks or during maintenance or its end of life, these hazardous gases are released to the atmosphere and that is when they become harmful. Furthermore, during their manufacture, toxic products are created and released which are not only harmful to the environment, but are also a health concern. Due to the uncertainty of these artificial refrigerants, their use will be controlled and limited because their full environmental impact is not known. Therefore, there is a general need for a more permanent solution. As safety and environmental concerns are becoming more important, their impact as a requirement is becoming more crucial to even overshadow reliability, performance and cost. This calls for more natural and freely existing materials. Natural refrigerants are chemicals which occur as a result of natural process and which can be used to produce a refrigerating effect. They are not synthetic although can also be created synthetically. The most common are air, water, NH3, hydrocarbons (HC) and Carbon dioxide (CO2 or R744), also known as the gentle five. Natural refrigerants have negligibly small ODP and GWP (Bensafi and Thonon, 2007).

catalytically with ozone molecules thereby destroying them. The result is a thinner ozone layer and thus reduced shield against harmful ultraviolet-B light from the sun. In their study of effects of CFCs and HCFCs on the ozone layer, Mario J. Molina and F. S. Rowland described how these chemicals disintegrate in the stratosphere and produce chlorine atoms which ultimately destroy the ozone layer. Unfortunately, because of the stability of these chemicals, they can stay in the atmosphere for 40 – 150 years after being released (Molina and Rowland, 1974). Molina and Rowland’s study created a global attention on the effect of CFCs and HCFCs. An international convention (Vienna convention) was organized to discuss these effects. This resulted in the signing of an international agreement known as the Montreal Protocol in 1987 which focused on reduction and final elimination of the ozone depleting substances (ODS) (United Nations, 1987). Apart from refrigerants, other uses of CFCs and HCFCs like propellants and blowing agents were also phased out (United Nations environment Programme, 2007). As a substitute of CFCs and HCFCs, hydrofluorocarbons (HFCs) were invented. Most HFCs have negligible ozone depleting potential (ODP) and had characteristics similar to CFCs and HCFCs, therefore were taken as ideal replacements. However, like all artificial refrigerants, HFCs also have negative environmental impacts. Global warming, which means the rise of global average temperatures, was not in check until early 2000s when some of its effects started to be realized. Due to global warming, there has been melting of polar ice which increases the sea level and increase in air and ocean average temperatures which affect also the wind patterns. A lot has been argued and discussed concerning global warming. It is still an ongoing issue but most findings observe that concentration of greenhouse gases (GHGs) in the atmosphere is the cause of global warming. Greenhouse gases are gases which can absorb heat especially in the infrared range. When the sun heat the earth with its energy, most of this heat is reflected back to space by earth so as to balance the surface temperature. If GHGs are concentrated in the atmosphere, they absorb this reflected heat and thus retain the heat on earth, which results in rise of surface temperature. Therefore there has been a general call on the reduction of these GHGs (Calm and Didion, 1998, Bensafi and Thonon, 2007). Global warming potential (GWP) of a gas is its capacity to absorb heat as compared to an equal mass of CO2 over a certain period of time when it is still in the atmosphere. Unfortunately, most HFCs in common use in refrigeration industry have very high GWP. Due to these concerns, another inter-governmental forum was organized to discuss and possibly formulate solutions to abate global warming. The United Nations framework convention on climate change formulated what is now known as the Kyoto protocol in a bid to reduce the emissions of these GHGs. Under the Kyoto protocol, emissions of GHGs are restricted and this includes most HFCs (United Nations, 1998). Although the contribution of refrigeration emissions to global warming is minute as compared to

CO2 as a Refrigerant CO2 can be regarded as the best refrigerant because it is non-toxic, non-flammable and does not contribute to ozone depletion and negligibly to global warming as compared to the HFCs. CO2 used as a refrigerant can be recycled from other industrial processes thus reused instead of being released to the atmosphere. CO2 meets all the basic requirements of a refrigerant in that it is readily available and not expensive. Also, it has excellent thermo-physical properties and transport properties leading to good heat transfer; it is not corrosive and is compatible with various common materials. In addition, it has efficient compression properties and compact system design due to high volumetric capacity and high operating pressures (Nekså, 2002, Sarkar et al., 2004, Nekså et al., 1998). The only concern with the use of CO2 as a refrigerant is it becomes a super critical fluid at 31.1 °C and 73.7 bars. For low critical temperature refrigerants, a trans-critical heat pump cycle would perform better. This cycle is advantageous in some applications such as domestic water heating (DHW) because of the good temperature fit between the CO2 and the water in a counter-flow gas cooler (condenser in trans-critical cycles) (Lorentzen, 1994). Unfortunately, CO2 trans-critical cycles operate at high heat rejection pressures. High pressure presents design and cost challenges in terms of component robustness and compressor capability. Typical capital cost of CO2 heat pumps is approximately double the cost of convectional heat pumps (Hashimoto, 2006). Therefore, its efficiency of operation must be maximized to justify the capital cost. This study investigates the effects of various parameters to the improvement of the system efficiency in terms of the 264

Research Article coefficient of performance (COP). Variables which affect the performance of the system such as the refrigerant amount, environmental temperature, throttle valve opening and water flow rates were varied accordingly but within the equipment limits. These experiments were done with a statistical approach so as to improve repeatability and reliability of the results. More information on important parameters which influences COP and their interactive effects are shed in this study. Both direct and indirect effects of these parameters are thoroughly investigated. Furthermore, these experiments were done in South Africa where there is a warm tropical climate. In selecting these parameters, local environmental conditions were considered so as to observe the performance of such systems in these climatic conditions. Currently, information on experiments done in these climatic regions is very rare especially in the public domain.

2. Experimental Setup

2.1. CO2 Heat Pump Test Bed In this study, a CO2 trans-critical water to water test bed was used to study the output of the system in a tropical environment. Highly pure CO2 was used as the refrigerant while normal municipal water was used in the cooling water (gas cooler water) and chilling water (evaporator water) systems. The system contains a compressor, an evaporator, a throttling device and a gas cooler as the basic equipment among other secondary or supporting devices like vapor-liquid and oil separators; and cooling and chilling water systems. A schematic diagram of the system is shown in figure 1. The compressor of the system is Italian designed, special piston, semi-hermetic, Dorin’s CO2 compressor of the second generation with a maximum output of 10 MPa and 110 ºC thus the maximum limit of the system. The power consumption of the compressor when operating optimally is 3 kW. The throttle device used adopts a manual throttle valve design so that the amount of refrigerant flowing can be adjusted accordingly.

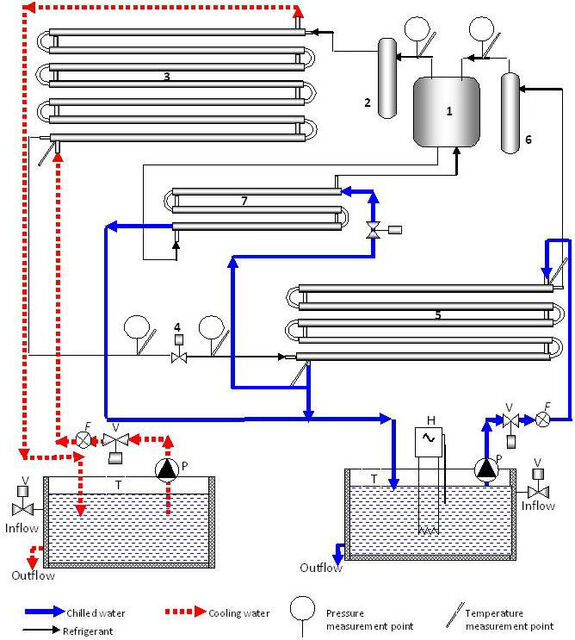

Figure 1 Schematic diagram of the CO2 heat pump test bed; (1) compressor, (2) oil separator, (3) gas cooler, (4) thermal expansion valve, (5) evaporator, (6) gas-liquid separator, (7) lubricating oil heat exchanger, (F) flow meter, (V) water yield control valve, (P) water pump, (H) heater, (T) water tank. 265

Research Article difference between the cooling water flow rate and the chilling water flow rate is the water used for oil cooling (refer to figure 1).

Both the evaporator and gas cooler in this system have the tube in tube design because of the heat transfer and viscosity characteristics of the heat transfer fluids. CO2 flows in the inner tube while water flows in the annulus of the outer tube. In the evaporator, there are three inner tubes while in the gas cooler there are four inner tubes. The inner diameter of the outer tube in both the gas cooler and the evaporator is 26 mm while the diameter of the inner tube varied according to the appliance. Due to the refrigerant characteristics, the evaporator inner tube has a diameter of 8 mm while the gas cooler inner tube had a diameter of 6 mm. All tubes had 1 mm thickness which is enough to counter the pressure experienced in them. The gas cooler has 12 passes whereas the evaporator has 10 passes, each pass in both having a length of 1580 mm. The system also contains temperature, pressure and flow-rate sensors before and after each major component. Signals from these sensors are captured and stored by a data acquisition system. The data acquisition system hardware uses PC Auto industrial control software (Force supervisory control configuration software) to collect and store operating and system measurement parameters at each state point and reflect it in the data acquisition interface. To minimize losses to the environment, all pipes, heat exchangers and tanks were lagged. During experimentation, the test rig was left to run for some time until all the readings stabilized then the output recorded in terms of temperature and pressure of refrigerant at the state points, power consumed by the compressor (actual electric power) and the flow rate and temperature of chilling and cooling water systems (which provided the actual heat transferred to or from the water). The efficiency of the system (C.O.P) was then derived from the ratio of the actual heat transferred to the cooling water to the actual compressor power consumption.

Table 1 Range of variables Name Units Low A: Refrigerant amount 1.26 kg (Ref Amt) B: Chilling water 10 deg C temperature (Ev Temp) C: Cooling water 10 deg C temperature (GC Temp) D: Throttle valve opening 20 % (Th V) E: Cooling water flow 0.192 kg/s rate (GCW Fl) F: Chilling water flow 0.158 kg/s rate (EvW Fl)

Design of experiments using design-expert® version 6 software (Stat-Ease Inc.) was used in these experiments for regression analysis. Response surface methodology (RSM) is a statistical method in design-expert® 6 that uses quantitative data from appropriate experiments to determine regression model equations and operating conditions. A standard RSM design called the central composite design (CCD) is suitable for investigating linear, quadratic, cubic and cross product effect of variables. It also helps to optimize the effective parameters and provide a lot of information with a minimum number of experiments as well as to analyze the interaction between the parameters. In addition, the empirical model that relates the response to the variables is used to obtain information about the process (Stat-Ease inc., 2002). CCD comprises a two level full factorial design (26 = 64), twelve axial points and fourteen center points therefore a total of 90 experiments were conducted. The center points were used to determine the experimental error and the reproducibility of the data. The alpha (α) value, which is the distance of axial point from the center, was fixed at 2.82843 to make the design rotatable. The experiment sequence was randomized in order to minimize the effects of the uncontrolled factors. Each response of the COP was used to develop a mathematical model that correlates the COP to the input variables through first order, second order, third order and interaction terms, according to the following third order polynomial equation:

Design of Experiments In a bid to investigate the effect of input variables to the efficiency of the heat pump, optimization experiments were conducted. The variables considered were; the refrigerant amount, the water temperature and flow rate (both chilling and cooling) and the throttle valve opening. Table 1 indicates the minimum and maximum values of these variables as used in the experiments. The system full capacity refrigerant amount (design charge amount) is 4.2 kgs. The range experimented here varied between undercharged to overcharged conditions so as to investigate the effect of charge amount. On the other hand, considering the environmental conditions experienced in a tropical region like South Africa where this study was conducted, the water temperature was varied between 10 ºC (winter) to 30 ºC (summer). Due to the maximum output pressure and temperature limitations of the available compressor, the throttle valve minimum opening could not be less than 20%. It will also be noticed that the maximum value of the cooling water flow rate is higher than that of the chilling water flow rate. The reason behind this is that, the chilling water system is also used to cool the compressor oil. Therefore the

Where Y is the predicted COP, b0 is the first term, bj is the linear effect, bij is the first order interaction effect, bjj is the 266

6. Table 2 shows the experimental design matrix and response

of the experiments in terms of the COP. 14 runs (4, 18, 25, 36, 44, 47, 56, 71, 73, 74, 82, 86, 88 and 89) at the center point of the design were used to determine the experimental error. The results were reliably consistent. The COP ranged from 1.545 to 6.914 although with all the variables put at their optimum values within the range used in this study, a maximum COP of

3. Results And Discussion

3.1. Response Matrix Optimization process of various variables affecting the COP was analyzed by design of experiments in design-expert®

Variables

B: C: D: E: F: Ev Temp GC Temp Th V GCW Fl EvW Fl ºC ºC % kg/s kg/s

Response COP

Table 2 Design of experiments matrix and its response (cont.)

Response

Research Article Table 2 Design of experiments matrix and its response (cont.)

Response

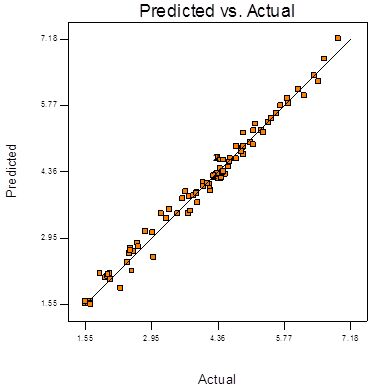

Analysis of Variance (ANOVA) From statistical point of view, there are three tests required to evaluate the model, these are, significance of factor test, R-squired test and lack of fit test. The significance test was indicated by the Fisher variance ratio (the F-test value) and its associated probability (Prob>F). The model equation was evaluated by F-test ANOVA which revealed that these regressions are statistically significant at 95% confidence level (table 3). As a general rule, the greater the F-value is from unity, the more certain it is that the empirical model describes the variation in the data about its mean and the estimated significant terms of the variables are real. The values of prob>F which are

Discussion

Refrigerant amount From the polynomial equation 2, refrigerant amount has an effect both linearly, in quadratic form and in interaction. This means that refrigerant amount has a great influence in COP determination. Practically, effect of refrigerant amount is experienced especially when there is system leakage (less refrigerant amount) or after recharge. In this study, its synergistic linear effect coupled with its antagonistic quadratic effect means that as the refrigerant amount is being added, the COP improves until an optimum point is reached where any more addition of the refrigerant amount results in a reduction of the COP. For any one system, there is always an optimum amount of the refrigerant. This optimum amount is not necessarily the full design amount of the system, but an amount in which the heat exchangers and the compressors work very efficiently (Sarkar et al., 2009, Atik and Aktaş, 2011). In the equipment under study here, the optimum point, within the range of throttle valve opening considered, was approximately

2. In fact, in some studies, the effect of these temperatures was

greater than some equipment enhancement like internal heat exchangers (Sarkar, 2005), while in others, these temperatures, if optimized, can improve the exergy efficiency of the overall system (Wang et al., 2010, Chen et al.). Higher chilling water temperature ensured complete evaporation of the refrigerant and a possible superheat before compressor intake thus it has a high enthalpy. This reduces the compressor work input while it improves its performance due to the state of the refrigerant at entry and at the same time, increases the maximum cycle temperature thus more heat output (Skaugen, 2002). Lower system performance associated with lower chilling water temperatures can either be due to reduced refrigeration capacity due to lower heat source temperature, or due to increased specific compression powers coupled by lowered compression performance due to high pressure ratios encountered. These pressure ratios also cause the volumetric capacity of the compressor to be lowered due to a lower volumetric efficiency. Refrigeration capacity is further reduced by lower mass flow rates when chilling water temperatures are low. The lower mass flow rates are caused by the low density experienced at the evaporator. As the chilling water temperature increases, the gas cooler optimum pressure also increases (Adriansyah, 2001). Consequently, CO2 heat pumps should preferably be designed for a moderate optimum gas cooler pressure. The optimum pressure depends on evaporation temperature, gas cooler exit temperature and compressor isentropic efficiency. The evaporation and gas cooler exit temperatures depend on the chilling and cooling water temperatures (Sarkar et al., 2007). 3.4.3

Cooling water temperature Cooling water temperature or heat sink temperature has the strongest coefficient in equation 2 and thus has the greatest effect in COP determination. This temperature determines the amount of heat transfer to occur in the gas cooler, whereby the lower the temperature (thus an antagonistic coefficient) the higher the heat transfer and COP. Other researchers also had similar observations (Sarkar et al., 2010). As with the chilling water temperature, the cooling water temperature does not have a significant quadratic effect and thus exerts direct effects on the COP. Its antagonistic effect is so strong to even affect its interaction effect with chilling water temperature which means that in an overall scenario, if both the chilling and cooling water temperatures were to be the same (for example where both are supplied from the same source e.g. ground water), then for a maximum COP, the cooling water 274

Research Article change in mass flow rate accordingly adjusts the heat transfer rate also (Sarkar, 2005, Kim et al., 2007). The extra CO2 charge needed to increase the pressure is boiled off and transferred from the liquid reservoir in the receiver. When increasing the opening of the expansion valve, the high-side pressure will be reduced, and the surplus CO2 is stored as liquid in the receiver. The low-pressure receiver should be designed to prevent possible liquid droplets from entering the suction line, as well as to provide sufficient volume to avoid excessive pressures if the system is inoperative at high ambient temperatures (Stene, 2004). As it is widely known, at a single water inlet temperature, there is always an optimum pressure of operation, where above this pressure or below it the COP will always be less. In these systems, as the pressure increases the COP increases initially and then the added capacity no longer compensates for the additional work of compression and hence COP decreases. At the optimum pressure, the marginal increase in capacity equals marginal increase of work. High-side pressure regulation can be applied to maintain the maximum COP and/or to regulate the heating or cooling capacity (Sarkar, 2005). Evaporator outlet vapor fraction and the degree of superheat at compressor inlet can also be controlled by adjusting the throttle valve opening (Kim et al., 2007). Furthermore, there is a general decrease in pressure loss as the higher pressure increases. Pressure loss in pipes and heat exchanger is one of the highest causes of irreversibility in heat pumps. Its reduction means an improvement in the efficiency of the heat pump. Tolerable pressure drops in heat exchangers become higher as the pressure level increases, and this gives a possibility of improving heat transfer through higher flow velocities in high-pressure systems. This is of particular importance for single-phase heat transfer in the gas cooler of CO2 systems. High pressure and proximity to the critical point causes increased specific heat, again leading to improved convective heat transfer. On the other hand, evaporator pressure drop leads to reduced temperature differences due to the corresponding drop in saturation temperature (Kim et al., 2004). The effect of high gas cooler pressures in compressors can also be another possibility of the observed results. Compressors operate more efficiently at higher gas cooler pressures. Furthermore, the negative effect of pressure loss becomes less significant as the output pressure increases both in the compressor and gas cooler. Additionally, owing to the higher pressure level, the negative effect of valve pressure drops tends to be small in CO2 compressors, thus giving higher efficiency (Kim et al., 2004). The optimum gas cooler pressure is a very important parameter, in that, the input power to the compressor is more or less proportional to the gas cooler pressure. At the same time, at low gas cooler pressure the cooling curve has an s- shape, because of the nonlinear cp value. The shape becomes more linear with increasing pressure. Due to the s-shape of the isotherm in supercritical region, the gas cooler pressure has marked influence on the specific enthalpy. Since the throttling valve inlet condition and enthalpy

There is a general decrease of refrigerant heat transfer coefficient in the evaporator when the gas cooler pressure increases at higher cooling water temperature. This is due to the change of vapor quality at the entry of the evaporator which increases as the cooling water temperature increases. This increase in vapor quality is more pronounced at lower gas cooler pressures. Therefore, at higher cooling water temperature, the coefficient of heat transfer is affected negatively. The gas cooler refrigerant heat transfer coefficient is affected especially in the vicinity of the critical point. Here there are large changes in thermo-physical properties of the refrigerant and thus gives the heat transfer coefficient a sharp peak. A lower gas-cooling pressure is better for lower ambient case, while a higher gas-cooling pressure is better for higher ambient case. At lower cooling water temperatures, a lower gascooling pressure offers the highest COP, while at higher cooling water temperatures, a higher gas-cooling pressure offers the highest COP (Hwang and Radermacher, 1998). Still, the CO2 cycle system performance is sensitive to gas cooler exit temperature because a minute change in the exit temperature can produce huge change in the exit enthalpy due to the associated change in the specific heat especially in conditions nearing the critical point (Sarkar, 2005). 3.4.4

Throttle valve opening Throttle valve opening as a variable has a reasonable effect on the COP. From equation 2, throttle valve opening had an antagonistic linear effect (the less it is the higher the efficiency) and an interactive effect with refrigerant amount. Its lack of quadratic effect means that an optimum value was not reached in the range considered in this study. Figure 3 also supports these observations. A small extension of the figure still reveals a linear mini-max behavior more pronounced at higher amounts of refrigerant which explain the interactive effect. Throttle valve opening directly affects the refrigerant mass flow rates and system high side pressure. To reduce the throttling losses it is important to achieve lowest possible temperature in the gas cooler outlet. Every heat exchanger has a minimum temperature difference between hot and cold fluid, below which, the heat exchanger is not able to exchange heat. The pinch point is where this temperature limit occurs. The pinchpoint has to be located in the gas cooler outlet so as to achieve the lowest possible outlet temperature. The location of the pinch-point is dependent on the gas cooler pressure and the CO2 mass flow rate. An increase of pressure or mass flow rate moves the pinch-point towards the gas cooler outlet. When the pinch is at the gas cooler outlet more water can be heated than if the pinch point is inside the gas cooler (Christensen, 2009). The high-side pressure is controlled by adjusting the opening of the throttle valve (Sarkar, 2005), thus temporarily changing the balance between the mass flow rate in the compressor and the valve. By reducing the valve opening, more CO2 will accumulate in the gas cooler and piping, and the high-side pressure will rise until a new balance point for the mass flow rate in the compressor and the valve has been reached. The 275

Research Article the pinch effect by higher cooling water flow rates (Fronk, 2007). Regulating mass flow rates of refrigerant or cooling medium (cooling water in this case) at a constant chilling water flow rate will affect the approach temperature. For a constant refrigerant mass flow rate, increasing mass flow rates of cooling medium will reduce refrigerant temperature at the outlet of the gas cooler thus improve the heating capacity (Reulens, 2009). If rejected heat is not utilized and just dissipated to the cooling medium, the refrigerant outlet temperature at the gas cooler can be made as low as possible with the cooling water flow rate adjustments, hence reducing the approach temperature (Adriansyah, 2001, Stene, 2004). For same size of gas cooler, the approach temperature reduces with increase in the operating pressure. The gas cooler capacity increases with increase in the operating pressure and also with the size of gas cooler. It also increases with increase in cooling medium flow rate as expected but the effect of increase in cooling medium flow rate is insignificant at higher pressure (Gupta and Dasgupta, 2014).

determines the specific refrigeration effect, it is necessary to control the high side pressure (Sarkar, 2005). At lower operating pressures (when the throttle valve is fully open or just slightly closed), the low heat output and COP was probably caused by low wall superheat. This superheat, which is needed to initiate nucleate boiling becomes low as the critical pressure is approached, thus low heat transfer characteristics are experienced (Kim et al., 2004). Still, due to the great variations in the specific heat capacity at pressures and temperatures above and near the critical point, the temperature enthalpy slope is not constant and the isobars are not parallel. As a consequence, the change of the specific enthalpy difference in the gas cooler is not proportional to the change in the specific compressor work, and for each fixed outlet temperature from the gas cooler there will therefore be an optimum high-side pressure leading to a maximum COP (Stene, 2004). 3.4.5

Cooling water flow rate Cooling water or heat sink flow rate had a linear, quadratic and interactive effect according to equation 2. The presence of a quadratic effect symbolizes an optimum amount in the study range (figure 5). This outcome was also observed in other studies (Fronk and Garimella, 2011). From figure 5, it can be observed that cooling water had a sinusoidal behavior more pronounced at higher values of chilling water flow rates. Its non-uniform optimum point depends on the other variables i.e. in the case of interactive effect between the cooling and chilling water flow rates, at lower chilling water flow rates, the optimum cooling water flow rate is low and at higher chilling water flow rates the optimum cooling water flow rate is high e.g. at chilling water flow rate of 0.16 kg/s, the optimum cooling water flow rate was approximately 0.3 kg/s but at chilling water flow rate of 0.317 kg/s, the optimum cooling water flow rate was approximately 0.35 kg/s (figure 5). It is a well-known fact that heat transfer depends on the flow rate among other parameters like temperature difference and thermo-physical properties of the fluids. A lower flow rate means a low heat transfer because of either insufficient fluid for effective heat transfer (the fluid temperature increases rapidly thus it reaches a point where the temperature difference is insufficient for effective heat transfer) or because the fluid was simply not enough to cover the entire heat transfer surface area adequately. Generally, the water side heat transfer coefficient is reduced as the flow rate reduces. When the cooling water flow rate is maximized, more heat is transferred to the water and thus the gas cooler outlet temperature is reduced, therefore a low evaporator inlet temperature is achieved. Similarly, the opposite occurs when cooling water flow rate is minimized. Water flow rates seem to only affect the heat transfer but not the compressor power consumption. This was also observed in other studies (Sarkar, 2005, Jiang et al., 2009). In some studies, this improvement of heat transfer in the gas cooler is attributed to the elimination of

3.4.6 Chilling water flow rate Chilling water flow rate had the least significant effect on COP both linearly and in quadratic form. It did not have any interactive effect probably because it does not catalyze other variables to perform better. Also, its influence on COP, even though minute, is important for consideration. Presence of a significant antagonistic quadratic effect symbolizes the negative impacts it has at extreme levels. This observation is also clear in figure 5 where a sinusoidal shape is created in the range considered. Similarly to cooling water flow rate, chilling water flow rate optimum values depend on the other variables. In the instance of its interaction with cooling water flow rates, the optimum value of chilling water flow rate increases as the cooling water flow rate increases. This is exactly what was observed with the cooling water flow rate optimum points as discussed before. Optimum chilling water flow rates is paramount not only because of system efficiencies but also in safe operation of the equipment i.e. ensuring only superheated fluid enters the compressor especially if the system lacks a liquid-vapor separator. Apart from the direct effect that water flow rates have on the water side heat transfer, chilling water flow rates also assist in ensuring proper distribution of the heat source in the heat exchanger. With increase in water mass flow rate to evaporator, both the heating capacity and compressor work increase modestly due to minor increase in the suction temperature (increase in degree of superheat) and also discharge temperature. Although, cooling capacity has higher increase because of the increase in its water side heat transfer coefficient due to both the flow rate and turbulence (Sarkar, 2005, Jiang et al., 2009).

4. Conclusion

The effects of six major variables on the COP of a water to water CO2 heat pump were investigated in this study. Design of 276

Research Article CALM, J. M. & DIDION, D. A. 1998. Trade-offs in refrigerant selections: past, present, and future. International Journal of Refrigeration, 21, 308-321. CHEN, Y., LUNDQVIST, P. & WORKIE, A. B. Second Law Analysis of a Carbon Dioxide Transcritical Power System in Low-grade Heat Source Recovery. CHO, H., RYU, C. & KIM, Y. 2007. Cooling performance of a variable speed CO2 cycle with an electronic expansion valve and internal heat exchanger. International Journal of Refrigeration, 30, 664-671. CHO, H., RYU, C., KIM, Y. & KIM, H. Y. 2005. Effects of refrigerant charge amount on the performance of a transcritical CO2 heat pump. International Journal of Refrigeration, 28, 1266-1273. CHRISTENSEN, Ø. 2009. Reversible R744 (CO2) heat pumps applied in public trains in Norway. Master of Science in Energy and Environment, Norwegian University of Science and Technology. DIPIPPO, R. 2004. Second Law assessment of binary plants generating power from low-temperature geothermal fluids. Geothermics, 33, 565-586. DUDDUMPUDI, V. S. 2010. Transcritical CO2 Air Source Heat Pump for Average UK Domestic Housing with High Temperature Hydronic Heat Distribution System. Master of Science, University of Strathclyde. FERNANDEZ, N., HWANG, Y. & RADERMACHER, R. 2010. Comparison of CO2 heat pump water heater performance with baseline cycle and two high COP cycles. International Journal of Refrigeration, 33, 635-644. FRONK, B. M. 2007. Modeling and Testing of Water-Coupled Microchannel Gas Coolers for Natural Refrigerant Heat Pumps. Master of Science, Georgia Institute of Technology. FRONK, B. M. & GARIMELLA, S. 2011. Water-coupled carbon dioxide microchannel gas cooler for heat pump water heaters: Part II – Model development and validation. International Journal of Refrigeration, 34, 17-28. GUPTA, D. K. & DASGUPTA, M. S. 2014. Simulation and performance optimization of finned tube gas cooler for transcritical CO2 refrigeration system in Indian context. International Journal of Refrigeration, 38, 153-167. HASHIMOTO, K. 2006. Technology and Market Development of CO2 Heat Pump Water Heaters (ECO CUTE) in Japan. Topical article. Japan: IEA Heat Pump Centre Newsletter. HWANG, Y. & RADERMACHER, R. 1998. Theoretical Evaluation of Carbon Dioxide Refrigeration Cycle. HVAC&R Research, 4, 245-263. JIANG, P.-X., ZHAO, C.-R., SHI, R.-F., CHEN, Y. & AMBROSINI, W. 2009. Experimental and numerical study of convection heat transfer of CO2 at super-critical pressures during cooling in small vertical tube. International Journal of Heat and Mass Transfer, 52, 4748-4756. KIM, M.-H., PETTERSEN, J. & BULLARD, C. W. 2004. Fundamental process and system design issues in CO2 vapor compression systems. Progress in Energy and Combustion Science, 30, 119-174.

experiments was done using design-expert® 6 software for regression analysis. Central cubic design was used to optimize effective parameters while using the least number of experiments. Analysis of variance method was used to identify significant variables both linearly, in quadratic form and in interaction, and an empirical equation relating the COP to the variables was derived. All variables were significant but cooling water temperature had the highest effect on COP followed by chilling water temperature and then the refrigerant amount. The throttle valve opening follows after, and then the cooling water flow rates and finally the chilling water flow rates had the least significant effects. The effects of water temperatures on heat transfer were thought to be the main cause of their huge influence in COP. The COP value ranged from 1.545 to 6.914 but a maximum of 11.8 could be achieved if all the variables are put at their optimum values. Interactive effects of the variables are also observed in the study and their influence on the COP evidently exposed by use of response surface. It was theorized that these variables were affecting the system’s COP by influencing related parameters like heat transfer, gas cooler pressure, gas cooler exit temperature and pressure losses.

Acknowledgement

The authors would like to acknowledge the financial and logistical support of Tshwane University of Technology (TUT), National Research Foundation (NRF) and Electricity Service Commission (ESKOM).

References

1. ADRIANSYAH, W. 2001. Combined air conditioning and tap water heating plant using CO2 as refrigerant for Indonesian climate condition. Doctor of Engineering Doctorate, Norwegian University of Science and Technology.
2. AGRAWAL, N. & BHATTACHARYYA, S. 2008. Performance evaluation of a non-adiabatic capillary tube in a transcritical CO2 heat pump cycle. International Journal of Thermal Sciences, 47, 423-430.
3. AGRAWAL, N. & BHATTACHARYYA, S. 2009. Exergy assessment of an optimized capillary tube-based transcritical CO2 heat pump system. International Journal of Energy Research, 33, 1278-1289.
4. ATIK, K. & AKTAŞ, A. 2011. An experimental investigation of the effect of refrigerant charge level on an automotive air conditioning system. Journal of Thermal Science and Technology, 31, 11-17.
5. BENSAFI, A. & THONON, B. 2007. Transcritical R744 (CO2) heat pumps. Technician's Manual. Villeurbanne Cedex - France: Centre Technique Des Industries Aérauliques Et Thermiques.
6. BHATIA, A. RE: Selection Tips for Environmentally Safe Refrigerants. Type to CONTINUING EDUCATION AND DEVELOPMENT, I.
7. CALM, J. M. 2008. The next generation of refrigerants – Historical review, considerations, and outlook. International Journal of Refrigeration, 31, 1123-1133.
8. CALM, J. M. & DIDION, D. A. 1998. Trade-offs in refrigerant selections: past, present, and future. International Journal of Refrigeration, 21, 308-321.
9. CHEN, Y., LUNDQVIST, P. & WORKIE, A. B. Second Law Analysis of a Carbon Dioxide Transcritical Power System in Low-grade Heat Source Recovery.
10. CHO, H., RYU, C. & KIM, Y. 2007. Cooling performance of a variable speed CO2 cycle with an electronic expansion valve and internal heat exchanger. International Journal of Refrigeration, 30, 664-671.
11. CHO, H., RYU, C., KIM, Y. & KIM, H. Y. 2005. Effects of refrigerant charge amount on the performance of a transcritical CO2 heat pump. International Journal of Refrigeration, 28, 1266-1273.
12. CHRISTENSEN, Ø. 2009. Reversible R744 (CO2) heat pumps applied in public trains in Norway. Master of Science in Energy and Environment, Norwegian University of Science and Technology.
13. DIPIPPO, R. 2004. Second Law assessment of binary plants generating power from low-temperature geothermal fluids. Geothermics, 33, 565-586.
14. DUDDUMPUDI, V. S. 2010. Transcritical CO2 Air Source Heat Pump for Average UK Domestic Housing with High Temperature Hydronic Heat Distribution System. Master of Science, University of Strathclyde.
15. FERNANDEZ, N., HWANG, Y. & RADERMACHER, R. 2010. Comparison of CO2 heat pump water heater performance with baseline cycle and two high COP cycles. International Journal of Refrigeration, 33, 635-644.
16. FRONK, B. M. 2007. Modeling and Testing of Water-Coupled Microchannel Gas Coolers for Natural Refrigerant Heat Pumps. Master of Science, Georgia Institute of Technology.
17. FRONK, B. M. & GARIMELLA, S. 2011. Water-coupled carbon dioxide microchannel gas cooler for heat pump water heaters: Part II – Model development and validation. International Journal of Refrigeration, 34, 17-28.
18. GUPTA, D. K. & DASGUPTA, M. S. 2014. Simulation and performance optimization of finned tube gas cooler for trans- critical CO2 refrigeration system in Indian context. International Journal of Refrigeration, 38, 153-167.
19. HASHIMOTO, K. 2006. Technology and Market Development of CO2 Heat Pump Water Heaters (ECO CUTE) in Japan. Topical article. Japan: IEA Heat Pump Centre Newsletter.
20. HWANG, Y. & RADERMACHER, R. 1998. Theoretical Evaluation of Carbon Dioxide Refrigeration Cycle. HVAC&R Research, 4, 245-263.
21. JIANG, P.-X., ZHAO, C.-R., SHI, R.-F., CHEN, Y. & AMBROSINI, W. 2009. Experimental and numerical study of convection heat transfer of CO2 at super-critical pressures during cooling in small vertical tube. International Journal of Heat and Mass Transfer, 52, 4748-4756.
22. KIM, M.-H., PETTERSEN, J. & BULLARD, C. W. 2004. Fundamental process and system design issues in CO2 vapor compression systems. Progress in Energy and Combustion Science, 30, 119-174.
23. KIM, S. C., KIM, M. S., HWANG, I. C. & LIM, T. W. 2007. Heating performance enhancement of a CO2 heat pump system recovering stack exhaust thermal energy in fuel cell vehicles. International Journal of Refrigeration, 30, 1215-1226.
24. KIM, S. G., KIM, Y. J., LEE, G. & KIM, M. S. 2005. The performance of a transcritical CO2 cycle with an internal heat exchanger for hot water heating. International Journal of Refrigeration, 28, 1064-1072.
25. LORENTZEN, G. 1994. Revival of carbon dioxide as a refrigerant. International Journal of Refrigeration, 17, 292-301. MOLINA, M. J. & ROWLAND, F. S. 1974. Stratospheric sink for chlorofluoromethanes: chlorine atomc-atalysed destruction of ozone. Nature, 249, 810-812.
26. NEKSÅ, P. 2002. CO2 heat pump systems. International Journal of Refrigeration, 25, 421-427.
27. NEKSÅ, P., REKSTAD, H., ZAKERI, G. R. & SCHIEFLOE, P. A. 1998. CO2-heat pump water heater: characteristics, system design and experimental results. International Journal of Refrigeration, 21, 172-179.
28. REULENS, W. 2009. Natural Refrigerant CO2. Diepenbeek: Katholieke Hogeschool Limburg.
29. RIEBERER, R. 1998. CO2 as working fluid for heat pumps. Doctor of Technology, Graz University of Technology.
30. SARKAR, J. 2005. Transcritical Carbon Dioxide Heat Pumps for Simultaneous Cooling and Heating. Doctor of Philosophy, Indian Institute of Technology.
31. SARKAR, J., BHATTACHARYYA, S. & GOPAL, M. R. 2004. Optimization of a transcritical CO2 heat pump cycle for simultaneous cooling and heating applications. International Journal of Refrigeration, 27, 830-838.
32. SARKAR, J., BHATTACHARYYA, S. & RAM GOPAL, M. 2007. Natural refrigerant-based subcritical and transcritical cycles for high temperature heating. International Journal of Refrigeration, 30, 3-10.
33. SARKAR, J., BHATTACHARYYA, S. & RAM GOPAL, M. 2009. Irreversibility minimization of heat exchangers for transcritical CO2 systems. International Journal of Thermal Sciences, 48, 146-153.
34. SARKAR, J., BHATTACHARYYA, S. & RAMGOPAL, M. 2010. Performance of a Transcritical CO2 Heat Pump for Simultaneous Water Cooling and Heating. International Journal of Applied Science, Engineering and Technology, 6, 57-63.
35. SAWALHA, S. 2008. Carbon Dioxide in Supermarket Refrigeration. Doctoral, Royal Institute of Technology.
36. SKAUGEN, G. 2002. Investigation of transcritical CO2 vapour compression systems by simulation and laboratory experiments. Doctor of Engineering Doctorate, Norwegian University of Science and Technology.
37. STAT-EASE INC. 2002. Design-Expert 6.0.6 ed. Minneapolis, Minessota: Stat-Ease Inc.
38. STENE, J. 2004. Residential CO2 Heat Pump System for Combined Space Heating and Hot Water Heating. Doctoral Degree, Norwegian University of Science and Technology.
39. STENE, J. 2007. Integrated CO2 Heat Pump Systems for Space Heating and Hot Water Heating in Low-Energy Houses and Passive Houses. International Energy Agency (IEA) Heat Pump Programme
40. International Energy Agency.
41. UNITED NATIONS 1987. Montreal Protocol on Substances that Deplete the Ozone Layer Montreal United Nations.
42. UNITED NATIONS 1998. Kyoto protocol to the united nations framework Convention on climate change. Kyoto.
43. UNITED NATIONS ENVIRONMENT PROGRAMME 2007. UNEP 2006 Report Of The Technology and Economic Assessment Panel. In: KUIJPERS, L. (ed.) Montreal Protocol On Substances that Deplete the Ozone Layer. Nairobi: UNEP
44. WANG, J., SUN, Z., DAI, Y. & MA, S. 2010. Parametric optimization design for supercritical CO2 power cycle using genetic algorithm and artificial neural network. Applied Energy, 87, 1317-1324.
45. WANG, S. K. 2000. Handbook of Air Conditioning and Refrigeration, New York, McGraw-HiII.
