Numerical and experimental investigations on performance evaluation of a conical offset vortex gener

Abstract

Keywords: Conical Offset Vortex Generator ( COVG ); Convective Heat Transfer Coefficient; Angle of Attack; Pitch to Diameter Ratio

Introduction

Heat transfer in the laminar and turbulent flow regimes occurs in various engineering applications. The passive techniques are often used to enhance heat transfer. Various industries viz. refrigeration, air-conditioning, manufacturing, power generations, process, electronics, chemical, food processing, and space applications utilizes heat exchangers for heat transfer between two or more fluids at different temperatures [1]. Enhancement of heat transfer improves the efficiency of heat exchangers. Various methods are used to enhance the heat transfer, which is broadly classified in to two types active method and passive method. Active method requires the external power such as jet impingement, magnetic or electric field, vibrations etc. [2]. Passive method uses special types of geometries in the fluid flow path to improve heat transfer rate [3,4]. Vortex generators create good swirl which can be used to break the thermal boundary layer and enhance the heat transfer. A vortex generator created with the help of cone was used by Deshmukh et al. [8] to study the heat transfer and friction factor characteristics. A certain modification is done in the vortex generator by Chamoli, et al. [18] to investigate thermal characteristics of modified geometry by creating a hole in it. For this study, some geometrical modification was made to vortex generator and experimental and numerical tests were carried out. This paper was recommended for publication in revised form by Regional Editor Pouria Ahmadi 1 Department of Mechanical Engineering, Dr. D. Y. Patil Institute of Technology, Pune, S.P. Pune University, India 2 Department of Mechanical Engineering, Pune Institute of Computer Technology, Pune, S.P. Pune University, India *E-mail address: shivaji.mundhe@gmail.com Orcid ID: 0000-0002-5033-7846*, 0000-0003-4145-8125 Manuscript Received 14 December 2019, Accepted 16 June 2020

Journal of Thermal Engineering, Research Article, Vol. 6, No. 5, pp. 858-872, October, 2020

Deshmukh, et al. [8] reported the experimental data with the winglet vortex generator made from a cone. They carried out the experimentation for varying Reynolds number from 10000 to 45000, the average Nusselt number ratio with and without the insert (Nua/Nus) at constant Reynold number (Re) is found from 1.3 to 5.0. The Nusselt number ratio (Nua/Nuc) based on equal pumping power is found in the range of 1.0 to 1.8. A similar kind of insert is used for laminar flow condition by Deshmukh, et al. [9] where Reynold’s number is varied between 250 to 1500. The average Nusselt number ratio with and without the insert (Nua/Nus) at equal Reynolds number (Re) is found from 5.0 to 15.0. The performance ratio (Nua/Nuc) based on equal pumping power is found in the range of 1.0 to 6.0 Wang, et al. [10] worked on the longitudinal vortex generator insert with the numerical and experimental analysis. Nusselt number increases from 2.55 to 7.10 with respect to the smooth tube. The friction factor varies from 2.21 to 11.27 with enhancement in overall heat transfer performance from 1.17 to 6.15. Sarviya, et al. [11] reported the experimental values for the twisted tape to insert with continuous rectangular cut edges with twist ratio 5 and 3 for Reynolds number 4000 to 20000. They observed the improvement in heat transfer rate by 2.21 and 2.23 times that of the smooth tube and 1.63 to 1.42 times of conventional twisted tape. Chokphonemphun, et al. [12] worked on the winglet vortex generator type insert in turbulent flow conditions where Reynolds number varies from 5300 to 24000 and observed that the average Nusselt number varies in the range of 2.03 to 2.34 times more than the smooth tube. The thermal performance for said insert enhanced from 1.35 to 1.59. Liu, et al. [13] experimented rectangular winglet vortex generator insert with uniform heat boundary condition in which the Reynolds number varying from 5000 to 17000 with water as working fluid. The value of Nusselt number and friction factor increased 1.16 to 2.49 times and 2.09 to 12.32 times respectively as compared with the smooth tube. Li, et al. [14] investigated drainage type inserts with varying pitch ratio and obtained increase in overall heat transfer performance. Bhuiya, et al. [15] concluded that the decrease in twist ratio increases the performance of thermal enhancement efficiency, friction factor and Nusselt number [16]. The maximum thermal enhancement efficiency obtained as 1.34 in double twisted tape and 1.44 in triple twisted tape insert, whereas Promvonge, et al. [17] reported heat transfer augmentation with inclined vortex rings with satisfactory enhancement in the heat transfer and pressure drop over the smooth tube. Chamoli, et al. [18] developed a new perforated vortex generator and obtained an improvement in thermal enhancement factor maximum by 1.65 in turbulent flow conditions. In above mentioned studies inserts used in tube like helical wire coils, twisted tapes show good enhancement in heat transfer but certainly increases the large pressure drop which results in additional consumption of pumping power. To increase the heat transfer rate and decrease the pressure drop the Conical Offset Vortex Generator (COVG) is presented in this study. Because of the unique shape of the vortex generator, it creates swirl near the wall of tube which helps to break the thermal boundary layer and leads to enhancement in the heat transfer. CONICAL OFFSET VORTEX GENERATOR (COVG) GEOMETRY The vortex generator is formed from a cone of 0.5 mm thick aluminum sheet. The cone generator angle with the axis of the cone is β = 45o and base diameter d = 25.4 mm is as shown in Figure 1(a). The curved triangular shaped vortex generator with base ‘b’ included angle ‘β’ and length ‘c’ was cut from the cone. The said cut part shown in Figure 1(b) is equally divided into three parts along the length ‘c’ and offset is given to the intermediate section i.e. part 2 by angle ‘α’ as shown in Figure 1 (c). This is the new kind of insert named as Conical Offset Vortex Generator (COVG). Multiple such parts are created from the aluminum sheet and COVG is fastened on steel pin with the help of adhesive. This assembly is mounted on the central rod by varying pitch (p) length as shown in Figure 1(c). The entire insert setup is placed in the smooth tube for testing as represented in pictorial view Figure 1(e). Table 1 depicts parameters which affect the heat transfer characteristics.

Journal of Thermal Engineering, Research Article, Vol. 6, No. 5, pp. 858-872, October, 2020

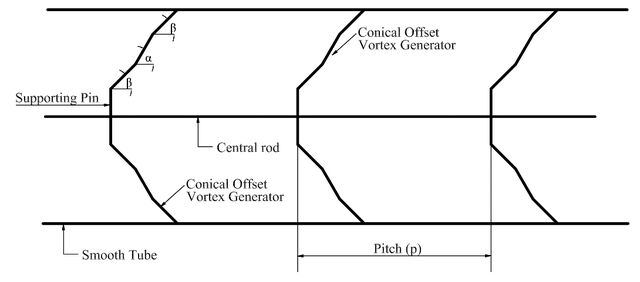

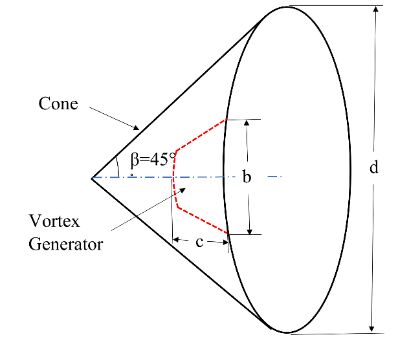

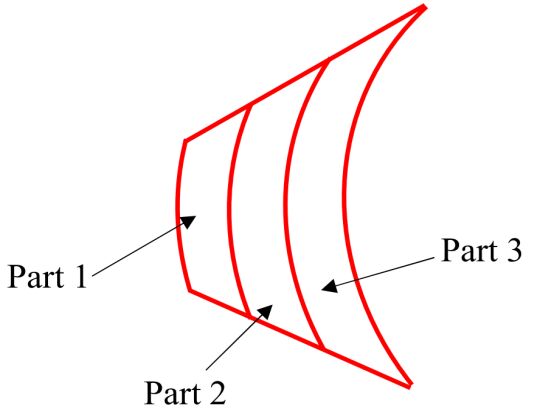

(e) Pictorial representation of conical offset vortex generator insert Figure 1. Geometry details of vortex generator The readings were taken for three different angles of attacks (α) with varying pitch length (p) as shown in the Table 1. Among these three different angles of attacks, the best configuration was identified based on the higher Nusselt number values. Table 1. Parametric representation The angle of attack for offset section ‘α’

Analytical Method

Physical model The Conical offset vortex generator insert model is inserted in the circular tube which is shown in Figure 1 (e). The computational domain has a test section of 1000 mm length (l) and diameter (d) 25.4 mm respectively. Before experimentation, the numerical simulation was performed with COVG with varying pitch to diameter ratio (p/d) 3.94, 1.97 and 1.18. Angle of attack varies from α = 15°, 30° and 60°. The simulation is performed under fully developed flow condition. For every angle of attack all pitch to diameter ratio covered i.e. the simulation is carried out for α = 15°, and range of p/d ratios as 3.94, 1.97 and 1.18, likewise all angle of attack are covered as mentioned in Table 2. Table 2. Assessed parameters in numerical study Length

Governing equations For conduction of the numerical simulations following approximations are considered 

Fluid flowing through the smooth tube is steady and incompressible

Heat loss due to thermal radiation into the surrounding is ignored

The air’s thermophysical properties are independent on temperature.

Based on these approximations the differential equations used to describe the flow of fluid and heat transfer in smooth tube with COVG are established. Following equations are represented to show the flow field [12]. Continuity equation: 𝜕 𝜕𝑥𝑖

The standard model 𝑘 − 𝜀turbulence [20] has been used. The turbulent kinetic energy (k) is calculated from the same formula by claiming that the influence of the molecular viscosity of the fluid is insignificant, while the turbulence dissipation frequency (𝜀) is estimated by using physical reasoning [19]. For the standard model, the transport equations are given below. 𝜇𝑡 is the dynamic viscosity of turbulence measured as

Journal of Thermal Engineering, Research Article, Vol. 6, No. 5, pp. 858-872, October, 2020 𝑘2

and the model constants are C1𝜀 = 1.42, C2t = 1.92 and 𝜎𝑘 = 1.0 and 𝜎𝜀 = 1.3. And 𝐺𝑘 represents the production of turbulent kinetic energy obtained from the mean velocity gradients. Numerical methodology For the numerical study, the geometry is created in GAMBIT 2.2 software and the analysis is carried out in Ansys Fluent 6.2 software. The time-independent incompressible Navier-Stokes equations are discretized using the technique of finite volume in the present numerical solution. For the discretization of convective and diffusive terms, QUICK (Quadratic upstream interpolation for convective kinetics difference scheme) and central difference flow numerical schemes are implemented. To evaluate the pressure field, the pressure-velocity coupling algorithm SIMPLE (Semi Implicit Pressure Method – Linked Equations) is implemented. Boundary conditions The following boundary conditions are set for the simulation studies. 1. 2.

Inlet temperature of fluid is set to be 300 K with varying Reynolds number (4000–45000) The mass flow outlet is used for outlet

For tube wall surface constant wall heat-flux of 1000 W/m2 is applied

The operating fluid’s physical parameters are: 𝜌 =1.12kg/m3, k =0.0272W/mK, Pr=0.712, μ=0.001003Ns/m2, Cp=1007J/kgK

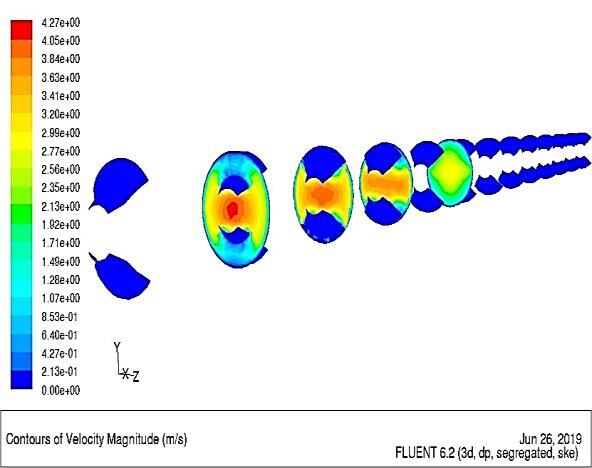

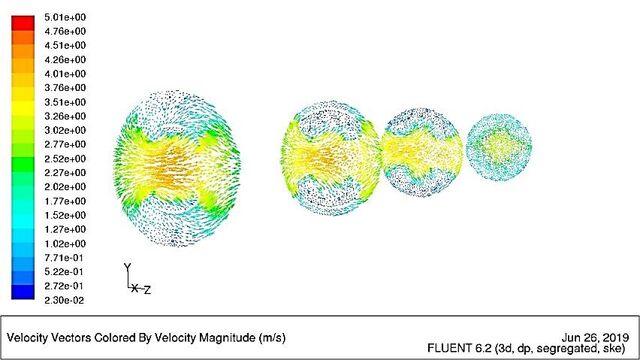

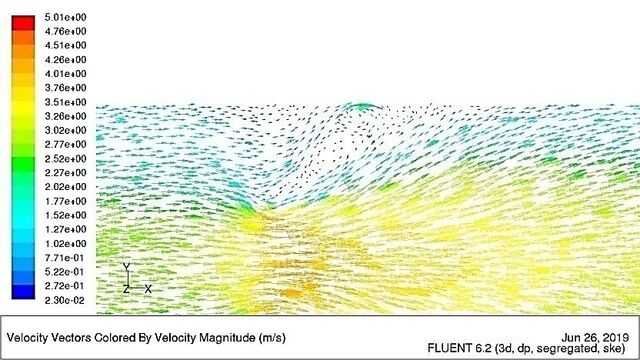

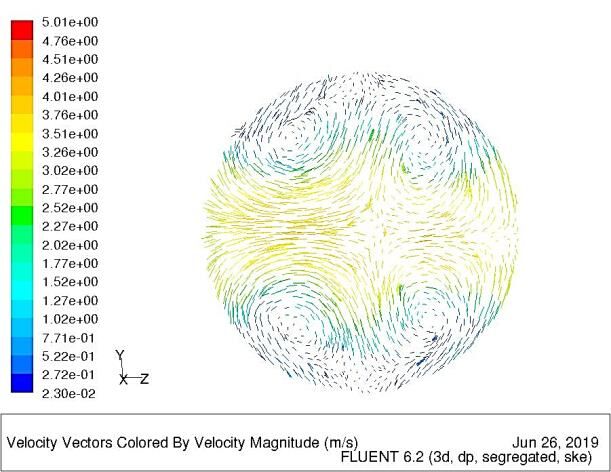

Computer domain discretization and network independency test After geometry creation in GAMBIT, for smooth tube and COVG insert the insert was split from the smooth tube. Later boundaries are specified for the geometry, and the mesh is created for the volume. Tetrahedral mesh for three different grid sizes 654798, 4893571 and 5964238 were exported and tested in the FLUENT6. Mesh 3 (5964238) found good with other than 2, so it was taken for further CFD simulation. Figure 2 represents the obtained velocity profile. The velocity profile is taken at various parts of the test section and on COVG. Figure 2 (a) shows velocity profile without COVG at various position. Fig 2 (b) shows the exacted position of the grid where it is taken on COVG. From Fig 2 (c-d) it is observed that the flow of air when it passes through the COVG it creates swirl and generate vortices near the wall surface, which then breaks the thermal boundary layer near wall surface. This leads to improving the heat transfer enhancement. Figure 2(d) represents the 4 swirls responsible for heat transfer enhancement.

Journal of Thermal Engineering, Research Article, Vol. 6, No. 5, pp. 858-872, October, 2020

Experimental Method

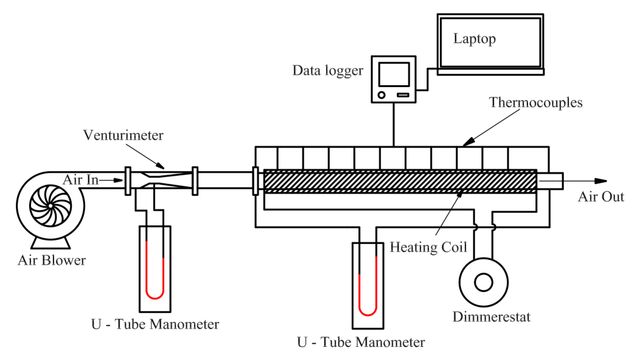

Schematic representation of the experimentation is represented in Figure 3.

Figure 3. Schematic representation of experimental Setup 863

Journal of Thermal Engineering, Research Article, Vol. 6, No. 5, pp. 858-872, October, 2020

The test section is made up of steel pipe having length 1000 mm, inner diameter is 25.4 mm, outer diameter is 33.4 mm. To pass the air through test section a centrifugal air blower is installed at one end of the pipe. The constant heat flux condition is obtained by wounding a heating coil on the test section. A dimmerstat is connected to heating coil to control the voltage and constant heat flux situation was maintained. The fluid flow is measured by differential pressure head with a manometer through a venturimeter. To prevent the heat loss, the test section is insulated with rockwool insulation. For wall surface temperature measurement, at inlet of fluid flow and outlet of fluid flow k-type thermocouples were installed. Fifteen k-type thermocouples were placed at equidistance, three were placed at inlet and three were placed at outlet. All these thermocouples were placed 120° circumferentially apart. All temperature readings were collected with calibrated data logger system. Average temperature is considered for calculation. After the complete setup, the readings are taken, and data is collected by the following procedure. Air is passed through the tube with the help of an air blower. The mass flow rate is adjusted by varying the speed of air blower and it can be achieved with the help of dimmerstat which is attached to the air blower. An electric current is passed through the electric coil to heat the test section. Every reading is taken after the system reaches its steady state condition. The readings were taken for the inlet temperature and pressure, outlet temperature and pressure and wall temperature. Data Reduction Power supplied to the test section is,

Three K-type thermocouples are placed radially (120 º apart) on the surface of the tube, at inlet and outlet. The energy balance is checked by the following equation, (𝑄𝑖𝑛 −𝑄𝑜𝑢𝑡 ) 𝑄𝑖𝑛

The value of the Nusselt number for fully developed flow is determined as: 𝑄

The Nusselt number for the smooth tube is obtained by using the Dittus-Boelter Eq. (10).

Throughout the experiments, temperatures, air volumetric flow rate and pressure drop were measured with various equipment’s, the uncertainties [7] of Nu, Re and f were calculated. The maximum uncertainties were ±2.42% for Nu, ±3.08% for f, and ±1.48 % for Re in this work.

Results And Discussion

Numerical study authentication To check the correctness’ of mathematical model, outcomes of Nu and f of the smooth tube without COVG were compared with the empirical interrelations. Figure 4 shows the trend of numerical and experimental analysis 864

Journal of Thermal Engineering, Research Article, Vol. 6, No. 5, pp. 858-872, October, 2020

and depicts a close match. From Figure 4 it is seen that the results obtained from numerical analysis are better than experimentation. The value of the Nusselt number is 7.4% and 4.2% for friction factor. Numerical simulation method was also used to investigate all COVG inserts with different pitch to diameter ratios. Figure 5 shows the comparison of numerical and experimental values of Nusselt number ratio (Nu/Nus) and friction factor ratio (f/fs) and the maximum deviation are observed as 11.5% and 6.9% respectively which show the validation of numerical study with experimental study.

Nu-Dittus Boelter Nu-Numerical f-Blasius f-Numerical Üs (Nu-Dittus Boelter) Üs (Nu-Numerical) Üs (f-Blasius) Üs (f-Numerical)

Figure 4. Numerical confirmation of smooth tube for Nu and f 80

Experimental

Figure 5. The resemblance of the (a)Nu/ Nus and (b) f /fs for the tube fitted with vortex generator between numerical simulation and experimentation. Influence of angle of attack To check the influence of the angle of attack ‘α’, it is numerically investigated for the different pitch to diameter (p/d) ratio. All the obtained results are shown in Figure 6. Figure 6 (a) shows that Nusselt number increasing with increase in Reynolds number. The angle of attack α=60º gives the maximum value of Nusselt number i.e. 410 for pitch to diameter ratio 1.18. The variation of friction factor in comparison with Reynolds number is represented in Figure 7(a). Figure 7 (a) shows exactly reverse trend with Nusselt number. The Friction factor decreases with increase in Reynolds number. Figure 6 (b) and 7 (b) represents the relation between Nu/Nu s and f/fs versus Reynolds number.

Journal of Thermal Engineering, Research Article, Vol. 6, No. 5, pp. 858-872, October, 2020

Re p/d=3.94, α=15° p/d=3.94, α=60° p/d=1.97, α=30° p/d=1.18, α=15° p/d=1.18, α=60°

Re p/d=3.94, α=15° p/d=3.94, α=60° p/d=1.97, α=30° p/d=1.18, α=15° p/d=1.18, α=60°

p/d=3.94, α=30° p/d=1.97, α=15° p/d=1.97, α=60° p/d=1.18, α=30°

p/d=3.94, α=30° p/d=1.97, α=15° p/d=1.97, α=60° p/d=1.18, α=30°

Figure 6. Effect of the angle of attack over pitch to diameter ratio (a) Nu and (b) Nu/Nus

From the results obtained by numerical simulation, it is clear, the COVG with an angle of attack α=60º and p/d = 1.18 gives better results, hence the same configuration insert is manufactured and tested with the said COVG insert.

Re p/d=3.94, α=15° p/d=3.94, α=60° p/d=1.97, α=30° p/d=1.18, α=15°

Re p/d=3.94, α=15° p/d=3.94, α=60° p/d=1.97, α=30° p/d=1.18, α=15°

p/d=3.94, α=30° p/d=1.97, α=15° p/d=1.97, α=60° p/d=1.18, α=30°

p/d=3.94, α=30° p/d=1.97, α=15° p/d=1.97, α=60° p/d=1.18, α=30°

Figure 7. Effect of the angle of attack on pitch to diameter ratio (a) f and (b) f/fs

Journal of Thermal Engineering, Research Article, Vol. 6, No. 5, pp. 858-872, October, 2020

Validation for the experimental test set up Authentication of Nu and f for a smooth tube is carried out experimentally along with the data analysis techniques. Available empirical relationships are used to obtain the values of Nu and f observed in the current experimentation. Graphical representation of values of Nu and f is shown in Figure 8. The trends in the graphical representation for the values of Nu and f are in the acceptable range as per the co-relations given by Petukhov, Dittus-Boelter, Blasius and Gnielinsiki respectively [19]. The correlation given by Gnielinsiki and Dittus Boelter is given as; Dittus Boelter:

The correlation given by Blasius and Petukhov is given as; Blasius:

Figure 8(a) shows the comparison of experimental and Gnielinsiki and Dittus-Boelter correlations results. It is seen that the Nusselt number variation is 7% less than the Dittus-Boelter correlations and less than 7.6 % as compared to Gnielinsiki correlations. For friction factor, experimental results are compared with the Petukhov and Blasius correlations and represented in Figure 8 (b). The friction factor shows a deviation of 3.8 % and 4.1 % as compared with Blasius and Petukhov correlations, respectively. From these, one can confirm that the results obtained by the experimental work are valid. 140

Experimental

Journal of Thermal Engineering, Research Article, Vol. 6, No. 5, pp. 858-872, October, 2020

Impact of pitch to diameter (p/d) ratio on Nu and Nu/Nus 400 350

Figure 9. Variation of the Nu and Nu/Nus with Re for different pitch ratios: (a) Nu and (b) Nu/Nus The experimental data is collected by performing more experiments to know the performance of pitch ratios on angle α= 60°. The performance of convective heat transfer is shown in Figure 9(a) and (b). The variation of Nusselt number with Re for angle of attack α = 60° to conical vortex generator and pitch to diameter ratio of 1.18 to 3.94 are shown in Figure 9 (a). Nusselt number increases with increase in Reynolds number. Figure 9(b) shows that the Nusselt number (Nu/ Nus) ratio decreases as a result of an increase in the flow rate with an increase in Re. The ratio of Nusselt number (Nu/Nus) for the COVG with p/d = 1.18 is found to be 2.59 to 6.8. Effect of pitch to diameter ratio on f and f/f s 2

Figure 10. Variation of the f and f/fs with Re for different pitch ratios: (a) f and (b) f/fs The variation of friction factor and friction factor ratio f/fs with Re for the COVG variation in p/d and α= 60° is shown in Figure 10 (a) and (b). Figure 10 (a) shows that the value of f decreases with an increase in Re. Figure 10 (b) shows value of f/fs increases with increase in the value of the Re. 868

Journal of Thermal Engineering, Research Article, Vol. 6, No. 5, pp. 858-872, October, 2020

The experimental results obtained from newly proposed insert are then compared with the numerical data which is represented in Figure 11. From Figure 11 it is observed that the variation in between experimental and numerical results is within acceptable range i.e. 9.8% for Nu and 11.6 for f and shows in good agreement. Figure 12 shows the comparison of ratio Nu/Nus obtained from the proposed vortex generator (COVG) with some earlier smooth tube inserts found in the literature such as, wing vortex generator of Deshmukh, et al. [8], perforated vortex generator of Chamoli et al. [18], turbulator of Nalavade, et al. [21]. The overall trend for various types of inserts shows that the decreasing in Re the value of Nu/Nus increases. The proposed COVG insert shows the higher values of Nu/Nus in the range of Re 3000 to 7000. The offset in the vortex generator interrupt the thermal boundary layer and because of this the overall thermal performance increases. Hence the offset seems to be efficient technique. For future work more geometric parameters of COVG can be studied to see the overall development in thermo-hydraulic performance. 1,8

p/d=3.94, α=60°- Experimental p/d=1.97, α=60°- Experimental p/d=1.18, α=60°- Experimental p/d=3.94, α=60°- Numerical p/d=1.97, α=60°- Numerical p/d=1.18, α=60°- Numerical

p/d=3.94, α=60°- Experimental p/d=1.97, α=60°- Experimental p/d=1.18, α=60°- Experimental p/d=3.94, α=60°- Numerical p/d=1.97, α=60°- Numerical

Figure 11. Comparison of numerical simulation results with experimental results for (a) Nu and (b) f 8

Figure 12. Comparison of Nu/Nus of the present work vortex generator to earlier research

Journal of Thermal Engineering, Research Article, Vol. 6, No. 5, pp. 858-872, October, 2020

Conclusions

In this paper, the effect of the vortex generator fitted in smooth tube on fluid flow and heat transfer is studied numerically and experimentally. The numerical simulation tests were conducted to find the optimum geometry of COVG. Multiple tests were carried out with pitch to diameter ratio (p/d = 1.18, 1.97, 3.94) and angle of attack (α = 15°, 30°, 60°). The best results obtained for angle of attack (α = 60°), it creates more swirl and disturb the boundary layer near wall surface. The same COVG is manufactured for experimentation and tests were conducted to see the effect of heat transfer. Looking at the numerical and experimental results following conclusions are drawn; 1. As value of pitch to diameter ration (p/d) decreases, the value of Nu and f increases. 2. The numerical study shows that the COVG with angle of attack (α = 60°) shows better results than (α = 15° and 30°) for Reynolds number in the range of 4000 to 50000. 3. The experimental study performed using COVG as insert with pitch to diameter ratio (p/d = 1.18) and angle of attack (α = 60°) shows enhancement in heat transfer rate from 2.3 to 6.09 times more than the smooth tube.

Acknowledgment

The author acknowledges the fund received (Research Grant Letter Ref. No. OSD/BCUD/392/202, Dated11/11/2016) from BCUD, Savitribai Phule Pune University, Pune, support received from the Pune Institute of Computer Technology, Pune and encouragement received from the Department of Mechanical Engineering, Dr. D. Y. Patil Institute of Technology, Pimpri, Pune for carrying out this research work.

Conflict Of Interest

The authors declare that there is no conflict of interests regarding the publication of this paper.

Nomenclature

Symbol Meaning A Test section inside surface area (m2) d Inside diameter of test section (m) b Base of vortex generator (Refer Figure 1 a) (m) c Vortex generator length (Refer Figure 1 a) (m) p Pitch of vortex generator (Refer Figure 1 c) (m) l Length of test section (m) k Thermal conductivity (W/mK) m Mass flow rate of fluid (kg/s) T Temperature (K) V Voltage (V) I Current (A) Cp Specific heat at constant pressure (J/kg K) Greek Symbols α β µ ν

Angle of attack (Refer Figure 1 c) Included angle for vortex generator (Refer Figure 1 a) Dynamic Viscosity (N-s/m2) Kinematic Viscosity (m2/s)

Augmented case Equivalent smooth tube at constant pumping power and constant surface

Journal of Thermal Engineering, Research Article, Vol. 6, No. 5, pp. 858-872, October, 2020

Friction factor Nusselt number Ration of pitch to inner diameter
