Effect of exhaust layout on the indoor thermal comfort under harsh weather conditions

Abstract

Keywords: Thermal Comfort; Exhaust Layout; Displacement Ventilation; CFD; Ventilation

Introduction

The main important goal of the Heating, Ventilation, and Air Conditioning (HVAC) system is to provide a comfortable and healthy living environment and reduce the contaminant in the indoor room air. A good air distribution system needs to select the proper locations of the supply and exhaust vent based on the configuration of room, heat sources position indoor and the indoor air condition [1-3]. According to the 1970s energy crisis, many efforts have been taken into account in the field of HVAC for finding a balance between the most debatable criteria's in term of air distribution, quality of the air indoor, human comfort, and energy consumption [4-9]. There were many recorded complaints by occupants about the comfortable air quality and thermal environment using the conventional variable air volume system [11-12]. The complaints were recorded due to the drawbacks of productivity and activity of occupants. In addition, a high rate of energy consumption by HVAC system has been recorded by the Hong Kong Energy End-use Data (HKEEFUD) [13]. The systems of stratified air distribution (STRAD) have been attracted much attention by researches during the last two decades, which have an advantage in term of higher performance and ventilation efficiency comparing to the traditional mixing ventilation system (MV) [1]. For the STRAD system, the air supply is directly located over the thermal sources which are generated in the occupied zone. The generated heat sources are subjected under the buoyancy law by inducing the fresh air inside the zone to circulate from the lower room level to the breathing zone. Furthermore, the STRAD systems have an effective air distribution and higher thermal comfort comparing to the MV systems [1, 14-15]. The STRAD system has also a potential to apply the cooling on the lower level inside the zone while there is no need to cool the upper level inside the same zone. Thus, there is a potential of human thermal comfort improvement and saving energy for air conditioning applications using STRAD systems [10]. The positions of diffusers inside the zone have a significant influence on the STRAD system. Kuo et al. [17] simulated the locations effects of the supply and exhaust outlet in the working zone on the human comfort. They found that the thermal comfort could be improved with the longer path of cold air supply This paper was recommended for publication in revised form by Regional Editor Alibakhsh Kasaeian 1 Department of Mechanical Engineering, Engineering Technical College, Middle Technical University, Baghdad, Iraq * E-mail address: wabd1984@yahoo.com Orcid id: 0000-0002-3048-5075, 0000-0002-5931-3664, 0000-0003-4119-1950, 0000-0001-5117-1588 Manuscript Received 14 December 2018, Accepted 28 February 2019

Journal of Thermal Engineering, Research Article, Vol. 7, No. 1, pp. 148-160, January, 2021 in the occupied area. Wan et al. [18] experimentally investigated variant densities of thermal load supply and inlet temperatures of space using a floor return technique based under floor air circulation system. They concluded that there were a significant saving in energy with an acceptable thermal comfort level under a high density of thermal load and inlet temperature of 18 ̊C. Lau et.al. [19] suggested to detach the positions of exhausts and returns inside the zone for saving more energy and providing a good indoor thermal environment using STRAD systems. Xu et al. [20] also summarized that the STRAD systems offers an energy saving and comfortable environment by enlarging the zone and increasing the height of ceiling. Lam et al. [21] studied the temperatures distribution and air flow circulation inside the zone. They numerically found that the position of exhaust has a significant impact on the human comfort of the STRAD system, in turn; it has a considerable impact on the annual load of cooling system. Awad et al. [22] practically investigated the STRAD system based on the level of interface as it was affected by the location of exhaust grilles, which also significantly influenced the cooling effect of HVAC systems. Safer indoor thermal environment can be achieved in terms of air quality when using the exhaust diffuser at the upper level of the room space and the supply vent at the low level [23]. The effects of the outlet diffuser positions were investigated numerically by Khan et al. [24]. They found that an acceptable indoor air quality (IAQ) was obtained when the exhaust opening locating close to the ceiling. Kuo and Chung [25] examined numerically the influence of the air vent locations on the indoor human comfort using different ventilation methods. Their results revealed that the best thermal comfort for the indoor air founded at the longer supply air throw in the working area. He et al. [1] found that the locations of exhaust opening may not affect by the behavior of airflow, however it can greatly influence the exposure level indoor. Lin et al. [27] studied the effect of the location of the air supply vents on the performance of displacement ventilation system. The results revealed that the good indoor environment achieved when the air supply diffuser located close to the room center. Verma et al. [28] have presented that the IAQ in a hospital ward was highly influenced by the amount of the air change and the outlet locations. They found that a high rate of air change will reduced the amount of the contaminant concentration and this will lead to enhance the IAQ. Also, a proper selection of the outlet opening will improve the quality of the air in the inhaled area. Another- study by Verma et al. [29] was performed to provide healthy and a comfortable working environment for the doctors and patients in the Intensive Care Unit (ICU). The results found that the stagnant zone in the ICU room was unhealthy for the occupants, patient and doctor, and careful considerations should be taken in account when designing a ventilation system for such room. Another investigation by Verma et al. [30] found that the contaminant distribution was influenced by the position of the patient’s bed and the arrangement of the air ventilation system in a hospital ICU room. The previous works have examined the effect of the positions of each the supply diffuser and the return diffuser on the energy consumption and indoor thermal comfort. However, limited research or insufficient studies has been performed to study the relationship between the amount of extracted air, depending on the number of the exhaust diffusers, and indoor thermal indoor thermal indoor thermal comfort. The amount of extracted air related to the number of the exhaust diffusers has a major effect on the indoor human comfort. Therefore, in this paper the influences of using a different number of the exhaust diffusers with different amount of the extracted air in an equipped office room on the human thermal comfort, velocity distribution, and indoor air temperature were investigated experimentally and numerically. .

Experimental WORK

An experimental work was performed to study the impact of the exhaust locations and the amount of the extracted air in an office room ventilated by the displacement ventilation (DV) system on both thermal indoor environment and indoor thermal comfort. Figure 1 shows the experimental room and the schematic drawing of the investigated room respectively. The tested room had dimensions of (4.25 m) length, (4.2 m) width and (3 m) height. In this room, the DV system consider the main air distribution system with dimension of (0.6 m × 1 m) which was installed at the level of floor near to room corner. To satisfy the requirements of the indoor thermal comfort, a required ventilation rate for one person was covered in this study. Therefore, in this investigation the supply air velocity and supply air temperature were 0.3 m /sec and 25 °C respectively. The bounded wall, ceiling and floor were insulated carefully to prevent heat transfer through these walls (adiabatic walls). A box with heat generation of 100 W was used and installed in the center of the room to represent the computer. The exhaust opening was 0.35 m×0.35 m. In this 148

Journal of Thermal Engineering, Research Article, Vol. 7, No. 1, pp. 148-160, January, 2021 experiments, three different exhaust locations were employed to calculate the impact of the exhaust layout on the indoor thermal environment (see Table 1). Six different locations (L) 1, 2,3,4,5 and 6, were employed to measure the air temperature. The temperature was measured for five different heights at each pole. Figure 1 shows the poles locations and the measured point for each case study. The HT-315 thermocouple was employed to measure the air temperature at the supply opening (See Figure 1 c). Digital thermocouples were used to measure the rest of the measuring points (see Figure 1 d). The experiments were performed to examine the impact of using different numbers and locations of the exhaust opening on the indoor human thermal comfort. Table 1 presents the detailed information for each case study in these experiments.

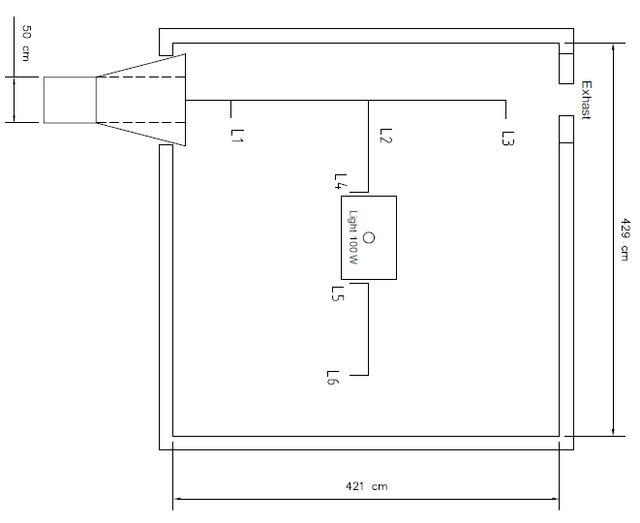

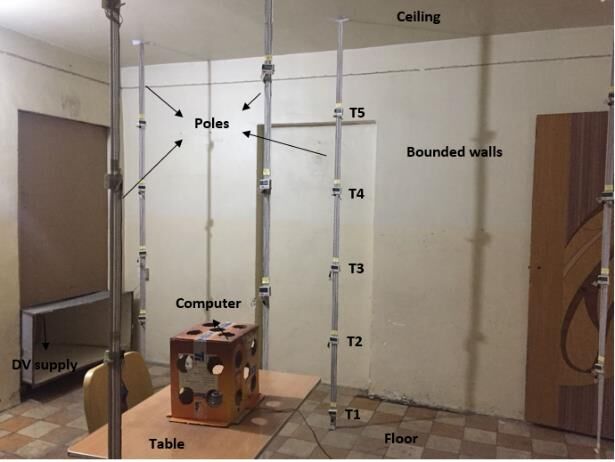

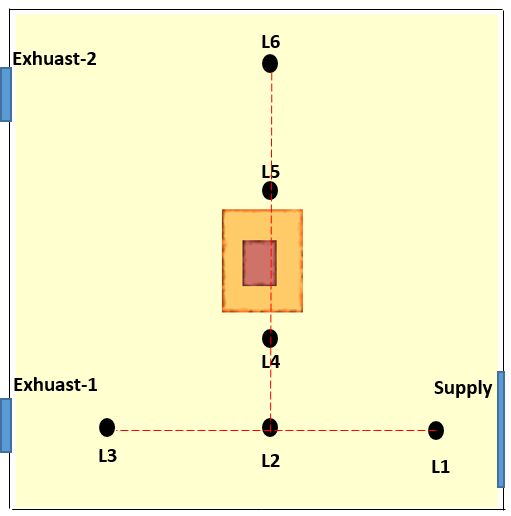

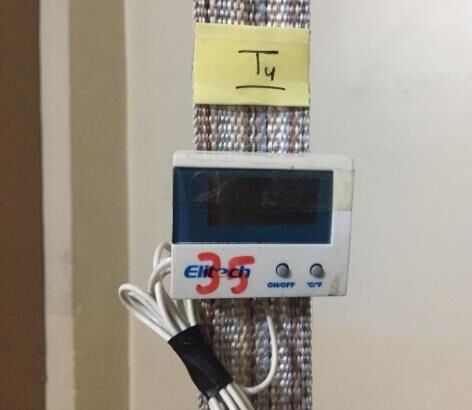

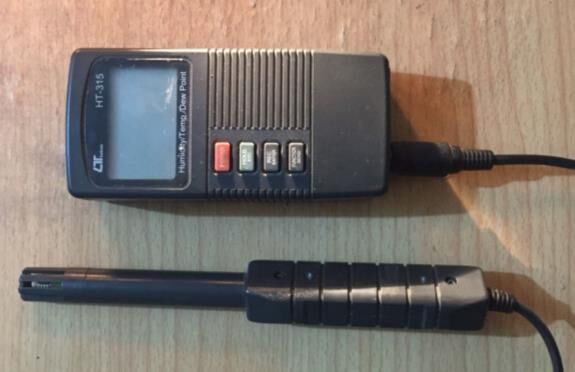

Figure 1. a) experimental chamber b) layout of the tested room c) HT-315 thermocouple d) digital thermocouple

Journal of Thermal Engineering, Research Article, Vol. 7, No. 1, pp. 148-160, January, 2021

CFD Method

Grid design and grid independent test In this study the ANSYS ICEM CFD was employed to generate the mesh system. A tetrahedral unstructured grid type was employed to create the required grid for investigated cases. A careful distribution for the mesh density generation was consider in account to cover the interested regions for the simulated room such as region near the indoor heat source and opening outlet. In addition, a required y+, 3<y+<10, was used in this investigation to gain accurate predicted results especially in region near the walls. The air velocity distribution is highly influence by the heat generate from the sources. Therefore, accurate predictions in near wall regions are highly required. For these reasons, the value of y+ should be taken carefully. To check the selected mesh was suitable to achieve a required accuracy of the simulated results, a mesh test was used in this study. 1,750,000 cells were selected to be the best size of the mesh and this was used for the all case studies. Airflow modelling A suitable turbulence model is selected to simulate the accurate indoor air movement and air temperature distribution. Therefore, in this study, the two equations renormalized group (RNG) k-ε turbulence model was used to predict the indoor air velocity and movement of indoor air temperature. Most recent researches have been used this model to predict the air movement and indoor air temperature distribution [31-33]. This model gives an accurate simulation results and saving more time [34]. Also, this model can predict the viscosity in region near-wall accurately comparing with standard k-ε model [35-38], and can be expressed as follow [39]:

where, ∗ 𝐶2𝜀 = 𝐶2𝜀 + (𝐶𝜇 𝜂 3 (1 − 𝜂 ⁄𝜂𝑜))⁄1 + 𝛽𝜂 3 with 𝜂 = (𝑆𝑘⁄𝜀 ) and 𝑆 = √2𝑆𝑖𝑗 𝑆𝑖𝑗

Journal of Thermal Engineering, Research Article, Vol. 7, No. 1, pp. 148-160, January, 2021 Table 2. Model constants Constants

For each case study, the indoor thermal environment was evaluated using ANSYS Fluent. The boundary layers in region close to the walls were calculated by using the enhanced wall treatment. The Boussinesq assumption was also employed in this study. In addition, the semi-implicit method for pressure-linked equations SIMPLE algorithm was used to treat the velocity and pressure coupling. The second order was adopted to calculate all terms in previous equations except the pressure which it calculated via PRESTO. Table 3 lists all required details of the turbulence model and the boundary conditions for the all case studies. Table 3. Detailed information for the investigated room Simulation details Turbulence model

Discrete ordinates (DO) radiation. For pressure, Staggered third order scheme PRESTO; for other terms, upwind second order; SIMPLE algorithm. Boundary conditions for the simulated room Floor, ceiling, tables and bounded walls

Validation work In this investigation an experimental study was performed to validate the accuracy and the ability of the turbulence model in prediction of the indoor air temperature distribution and indoor air movement. In this validation, temperature distribution for the six different locations was used to validate the selected turbulence model. The locations of the measured temperatures distribution for the experimental work were shown in Figure 2. In addition, the comparison between the simulated and the experimental results for the case 1only was shown in Figure 3. Depending on the Figure 3, a good agreement was achieved between the numerical and the experimental results. This will give approve of the validity of the selected turbulence model to simulate the thermal environment correctly with an acceptable accuracy (error about 6%).

Journal of Thermal Engineering, Research Article, Vol. 7, No. 1, pp. 148-160, January, 2021

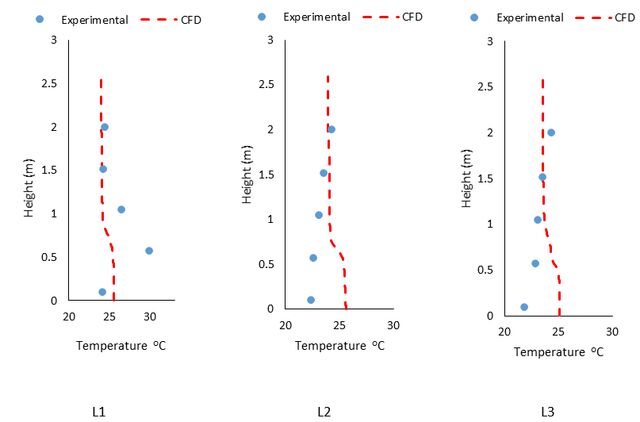

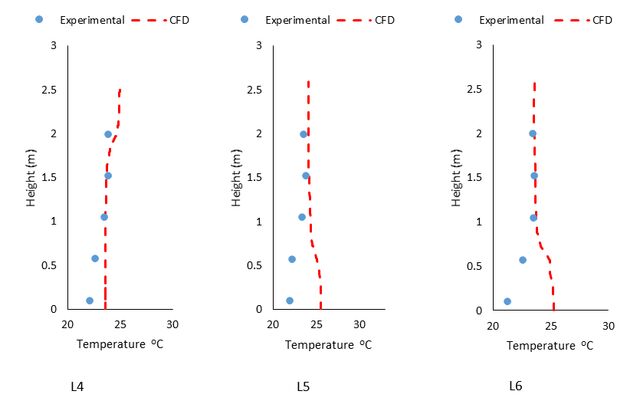

Figure 3. The comparison of the temperature distribution between the experimental and predicted results for case-1 152

Journal of Thermal Engineering, Research Article, Vol. 7, No. 1, pp. 148-160, January, 2021

Results And Discussion

Indoor air temperature distribution It is very important to create a healthy and comfortable area for the occupants. In order to satisfy this requirement, the temperature distribution indoor especially in occupied zone are very important [31-34]. This will create a thermally comfortable environment. For this reason, the temperature distribution was evaluated in each case study. In this investigation different plane section was used to display the temperature distribution in the investigated room domain. Figures 4, 5 and 6 show the temperature distribution in different section for the case 1, 2 and 3 respectively. From Figure 4 it is clear to show that there is a noticeable difference between the lower part and upper part of the tested room in both section planes. This was due to that the large amount of the supply air was extracted directly from the exhaust air outlet before mixed with the rest air inside the room. For case 2 when the exhaust opening relatively far away from the supplied opening, the temperature variation between the lower part and upper part was not large compared with case 1. This was because that the supplied fresh air has enough time to circulate inside the room domain before reached to the exhaust opening. Figure 6 shows the temperature distribution when separate the exhaust opening into two opening with the same amount of the extracted air as in case 1 and 2. By comparing with case 1 and 2, a homogenous temperature distribution was found in the room domain. This was due to that the multiple exhaust opening gave the supplied air ability to distribute in all room domains perfectly. This process will create a good air temperature distribution an also provide a better thermal comfort for the occupants compared with case 1 and 2.

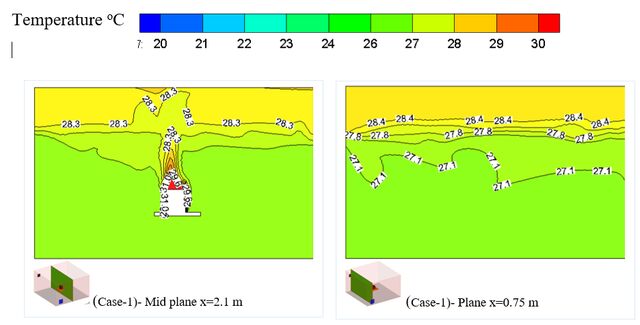

Figure 4. Air temperature distribution at x=2.1 m and x=0.75 m for the case-1

Journal of Thermal Engineering, Research Article, Vol. 7, No. 1, pp. 148-160, January, 2021

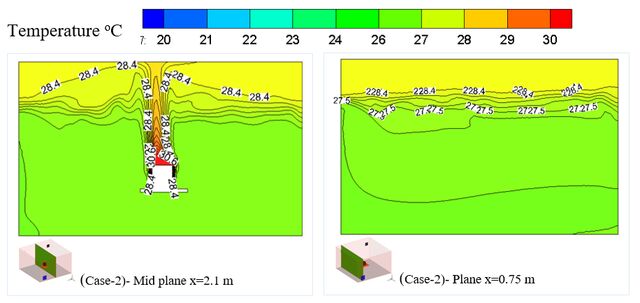

Figure 5. Air temperature distribution at x=2.1 m and x=0.75 m for the case-2

Figure 6. Air temperature distribution at x=2.1 m and x=0.75 m for the case-3

Journal of Thermal Engineering, Research Article, Vol. 7, No. 1, pp. 148-160, January, 2021 Indoor air movement distribution The main important parameter for the human thermal comfort evaluations is the air movement distribution. In this work, the distribution of the air velocity was evaluated for the three different case study at different section planes (see Figures 7, 8 and 9). As shown in Figures 7, 8 and 9, the room air velocity distribution in plane x=0.75 m are approximately the same for all case studies. This was because that the supply air velocity for all case study was same and there is no significant difference for the air velocity distribution in this sections plane especially in region near the DV supply opening (see plane x=0.75 m for Figures 7, 8 and 9). For the mid plane, there are a slight difference in air velocity distribution for the case 1 compared with case 2 and 3. In case 1 when the exhaust opening located in front of the supply, the velocity in region of the occupied zone (see mid plan in Figure 7) is higher than other of the room domain. While for case 2 and 3 the air velocity in occupied zone (see mid plan in Figures 8 and 9 respectively) was lower compared with the case 1. Therefore, a good thermal comfort was found in cases 2 and 3.

Figure 7. Velocity contour at x=2.1 m and x=0.75 m for the case-1

Figure 8. Velocity contour at x=2.1 m and x=0.75 m for the case-2 155

Journal of Thermal Engineering, Research Article, Vol. 7, No. 1, pp. 148-160, January, 2021

Figure 9. Velocity contour at x=2.1 m and x=0.75 m for the case-3 PMV and PDD evaluation The indoor thermal comfort is one of the important evaluations index for any ventilation system. For each case study in this investigation, Fanger’s comfort equations [40] were employed to evaluate the indoor human comfort. Two indices predicted mean vote (PMV) and predicted percentage of dissatisfied (PPD) employed to assess the human thermal balance for the whole body of the occupants. For the acceptable thermal comfort, the required PMV and PPD should be in range of -0.5 to 0.5 for PMV and no more than 10 for PPD [40-41]. The PMV are represented by the seven sensation point. Table 4. lists the PMV and occupant’s thermal sensation [40] Table 4. The PMV and thermal sensation scale PMV +3 +2 +1 0 1 2 3

Thermal sensation Hot warm Slightly warm Neutral Slightly cool Cool Cold

The PMV and PDD evaluations index are influenced by many factors such as metabolic rate, external work, air quality, clothes, temperature, air velocity and mean radiant temperatures. All these factors are used to calculate the PMV and PDD as follow [40]: PMV = (0.03e−0.036M + 0.028){(M − W) − 3.05 × 10−3 × [5733 − 6.99(M − W) − pa ] − 0.42 × [(M − W) − 58.15] − 1.7 × 10−5 M(5867 − pa ) − 0.0014M(34 − t a ) − 3.96 × 10−8 fcl × [(t cl + 273)4 − (t̅r + 273)4 ] − fcl hc (t cl − t a )}

Journal of Thermal Engineering, Research Article, Vol. 7, No. 1, pp. 148-160, January, 2021

t cl = 35.7 − 0.028 (M − W) − ccl {3.96 × 108 fcl × [(t cl + 273)4 − (t̅r + 273)4 ] + fcl hc (t cl − t a )}

In this investigation the PMV and PPD was evaluated for the working zone as well as for all room domain. Figures 10 and 11 show the calculated values for of the PMV and PPD for all room domain respectively. From these figures, it is clear to see that the PMV and PPD values for the case 1 are higher than in case 2 and 3. This was because that the supplied air in case 1 was extracted directly from the front exhaust opening and this causes short air circuit and may impact on the indoor human comfort. For the case 2 and 3, the well distribution of the air creates an acceptable thermal environment comparing with case 1. In addition, the higher velocity distribution in case 1 (see Figure 7) has a great influence on the indoor air. For the same reasons, the PMV and PPD (for the occupied zone) for the case 1 were higher than in case 2 and 3 as shown in Figures 12 and 13 respectively. A slight difference of the PMV and PPD values were found between case 2 and 3. Where the case 3 consider the best among all case studies. This was due to that the separate exhaust opening provides a very well indoor air and temperature distribution and creates a good indoor thermal environment.

Journal of Thermal Engineering, Research Article, Vol. 7, No. 1, pp. 148-160, January, 2021

Figure 12. The PMV evaluation at occupied zone for each case study

Figure 13. The PPD evaluation at occupied zone for each case study

Conclusion

In this research the influence of the exhaust diffuser layout and the amount of the extracted air on the human thermal comfort and thermal environment indoor (velocity and temperature distribution) were studied experimentally and numerically. The finding can be concluded: • The indoor thermal comfort and the temperature and the velocity distribution were greatly influenced by the exhaust opening locations and the amount of the extracted air. • A good indoor thermal comfort was found when the exhaust vent located far away the supply opening. • The best results regarding thermal comfort and indoor thermal environment were found by separate the amount of the extracted air in to two exhaust opening as presented in case 3. This will give the supplied air the ability to distribute inside room perfectly. • The total PMV and PPD for the case 3 were 0.46 and 9.8 respectively while the PMV and PPD for the occupied zone were 0.505 and 10.5 respectively. Therefore, where the case 3 consider the best among all case studies. • In order to prevent the air short circuit, the exhaust opening should not locate at the wall in front of the supply opening.

Nomenclature

Turbulence model constant Specific heat, J/kg-K Partial water vapor pressure, pa Surface area for the clothed to surface area for the naked body Air Temperature, oC Surface temperature for clothing, oC Radiant mean temperature, oC Relative air velocity Convective heat transfer coefficient, W/(m2. oC) Clothing thermal resistance, (m2.oC) /W Mean strain rate tensor Strain rate tensor Associated volume with i trajectory and cell j Trajectories

Journal of Thermal Engineering, Research Article, Vol. 7, No. 1, pp. 148-160, January, 2021 Greek symbols β ε μ ρ σk

Thermal expansion coefficient, 1/K Turbulent dissipation rate, m2/s3 Dynamic viscosity, kg/(m.s) Fluid density, kg/m3 Constant for k equation of the turbulence model

References

1. Bauman FS, Daly A. Underfloor Air Distribution (UFAD) Design Guide. Atlanta: American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE); 2003.
2. Budaiwi I, Abdou A. HVAC system operational strategies for reduced energy consumption in buildings with intermittent occupancy: the case of mosques. Energy Conversion and Management 2013;73:37-50. https://doi.org/10.1016/j.enconman.2013.04.008
3. Li A, Qin E, Xin B, Wang G, Wang J. Experimental analysis on the air distribution of powerhouse of Hohhot hydropower station with 2D-PIV. Energy Conversion and Management 2010;51:33-41. https://doi.org/10.1016/j.enconman.2009.08.022
4. Nielsen PV. Velocity distribution in a room ventilated by displacement ventilation and wall-mounted air terminal devices. Energy and Buildings 2000;3:179-87. https://doi.org/10.1016/S0378-7788(99)00012-2
5. Kassas M, Hamanah WM, Al-Tamimi O, Sahin A, Yilbas BS, Ahmed CB. Operation of HVAC system for energy savings and economic analysis. Journal of Thermal Engineering 2019;5:181-197.
6. Al-Tamimi O, Kassas M, Hamanah WM, Yilbas BS. Cost effective operation of HVAC system under thermal distribution, Journal of Thermal Engineering 2019;5:302-318.
7. Seppänen O. Ventilation strategies for good indoor air quality and energy efficiency. International Journal of Ventilation 2008;6(4):297-306.
8. Melikov A, Ivanova T, Stefanova G. Seat headrest-incorporated personalized ventilation: thermal comfort and inhaled air quality. Building and Environment 2012;47(1):100-108. https://doi.org/10.1016/j.buildenv.2011.07.013
9. Valkeapää A, Sirén K. The influence of air circulation, jet discharge momentum flux and nozzle design parameters on the tightness of an upwards blowing air curtain. International Journal of Ventilation 2010;8(4): 337-
10. https://doi.org/10.1080/14733315.2010.11683857
11. Bagheri HM, Gorton RL. Verification of stratified air condition design (RP-388), ASHRAE Transactions and Conferences Programs, 1986: 211-227.
12. Huizenga C, Abbaszadeh S, Zagreus L, Arens, EA. 2006. Air quality and thermal comfort in office buildings: results of a large indoor environmental quality survey. Healthy Buildings: Creating a Healthy Indoor Environment for People 2006;3:393-397.
13. Bonnefoy XR, Annesi-Maesona I, Aznar LM, Braubachi M, Croxford B. Review of evidence on housing and health, background document for the Fourth Ministerial Conference on Environment and Health. Copenhagen, WHO Regional Office for Europe 2004.
14. Hong Kong Energy End-use data (HKEEUD) 2011. The energy efficiency office electrical & mechanical services department, 2011.
15. ASRAE Handbook-HVAC applications. Atlanta: American Society of Heating Refrigeration and Air Conditioning Engineering Inc. 2011.
16. Seppanen OA, Lic PE, Fisk WJ, Eto J, Grimsrud DT. Comparison of conventional mixing and displacement air conditioning and ventilating systems in US commercial buildings. Symposium, ASHRAE Transactions 1989;95:pt.2.
17. Bagheri, Gorton. Verification of stratified air condition design. ASHRAE Transactions 1987;93:211-227.
18. Kuo JY, Chung KC. The effect of diffuser's location on thermal comfort analysis with different air distribution strategies. Journal of Thermal Envelope and Building Science, 1999;22(3):208-229. https://doi.org/10.1177/109719639902200305
19. Wan MP, Chao CY. Experimental study of thermal comfort in an office environment with an underfloor ventilation system. Indoor and Built Environment 2002;11(5):250-265. https://doi.org/10.1177/1420326X0201100502
20. Lau J, Niu JL. Measurement and CFD simulation of the temperature stratification in an atrium using a floor level air supply method. Indoor and Built Environment 2003;12(4):265-280. 159 Journal of Thermal Engineering, Research Article, Vol. 7, No. 1, pp. 148-160, January, 2021 https://doi.org/10.1177/1420326X03035917
21. Hongtao X, Naiping G, Jianlei N. A method to generate effective cooling load factors for stratified air distribution systems using a floor-level air supply. HVAC&R Research 2009;15(5):915-930. https://doi.org/10.1080/10789669.2009.10390872
22. Lam JC, Chan AL. CFD analysis and energy simulation of a gymnasium. Building and Environment 2001;36(3):351-358. https://doi.org/10.1016/S0360-1323(00)00014-7
23. Awad AS, Calay RK, Badran OO, Holdo AE. An experimental study of stratified flow in enclosures. Applied Thermal Engineering 2008;28(17-18):2150-2158. https://doi.org/10.1016/j.applthermaleng.2007.12.017
24. Thool SB, Sinha SL. Numerical simulation and comparison of two conventional ventilation systems of operating room in the view of contamination control. International Journal of Computer Applications 2014;85(5):31-35.
25. Khan J, Feigley C, Lee E, Ahmed M, Tamanna S. Effects of inlet and exhaust locations and emitted gas density on indoor air contaminant concentrations. Building and Environment 2006;41:851–863. https://doi.org/10.1016/j.buildenv.2005.04.002
26. Kuo JY, Chung KC. The effect of diffuser’s location on thermal comfort analysis with different air distribution strategies. Journal of Building Physics 1999;22:208–229. https://doi.org/10.1177/109719639902200305
27. He G, Yang X, Srebric J. Removal of contaminants released from room surfaces by displacement and mixing ventilation: modeling and validation. Indoor Air 2005;15:367-380. https://doi.org/10.1111/j.1600- 0668.2005.00383.x
28. Lin Z, Chow TT, Tsang CF, Fong KF, Chan LS. CFD study on effect of the air supply location on the performance of the displacement ventilation system. Building and Environment 2005;40:1051-1067. https://doi.org/10.1016/j.buildenv.2004.09.003
29. Verma TN, Sinha SL. Study of particle dispersion on one bed hospital using computational fluid dynamics. Materials Today: Proceedings 2017;4:10074-10079. https://doi.org/10.1016/j.matpr.2017.06.323
30. Verma TN, Sinha SL. Contaminant control in intensive care unit of hospital. Applied Mechanics and Materials 2014; 592-594: 2486-2490. https://doi.org/10.4028/www.scientific.net/AMM.592-594.2486
31. Verma TN, Sinha SL. Numerical simulation of contaminant control in multi-patient intensive care unit of hospital using computational fluid dynamics. Journal of Medical Imaging and Health Informatics 2015;5:1088-1092. https://doi.org/10.1166/jmihi.2015.1500
32. Ahmed AQ, Gao S, Kareem AK. A numerical study on the effects of exhaust locations on energy consumption and thermal environment in an office room served by displacement ventilation. Energy Conversion and Management 2016;117:74-85. https://doi.org/10.1016/j.enconman.2016.03.004
33. Ahmed AQ, Gao S, Kareem AK. Energy saving and indoor thermal comfort evaluation using a novel local exhaust ventilation system for office rooms. Applied Thermal Engineering 2017;110:821-834. https://doi.org/10.1016/j.applthermaleng.2016.08.217
34. Ahmed AQ, Gao S. Numerical investigation of height impact of local exhaust combined with an office work station on energy saving and indoor environment. Building and Environment 2017;122:194-205. https://doi.org/10.1016/j.buildenv.2017.06.011
35. Ahmed AQ. Modelling thermal comfort and energy saving enhancements in an office room served by stratified air distribution systems. UK: University of Leicester, Department of Engineering 2017. http://www.isni.org/isni/0000000464946006
36. Horikiri K, Yao Y, Yao J. Numerical study of unsteady airflow phenomena in a ventilated room. ICHMT digital library online; 2012.
37. Horikiri K, Yao Y, Yao J. Modelling conjugate flow and heat transfer in a ventilated room for indoor thermal comfort assessment. Building and Environment 2014;77:135-147. https://doi.org/10.1016/j.buildenv.2014.03.027
38. Srebric J, Chen Q. Simplified numerical models for complex air supply diffusers. HVAC&R Res 2002;8:277-294.
39. Yuan X, Chen Q, Glicksman LR, Hu Y, Yang X. Measurements and computations of room airflow with displacement ventilation. ASHRAE Transactions 1999;105:340.
40. Yakhot V, Orszag S, Thangam S, Gatski T, Speziale C. Development of turbulence models for shear flows by a double expansion technique. Phys Fluids A: Fluid Dynamic (1989–1993) 1992;4:1510–1520.
41. Fanger PO. Thermal comfort: Analysis and applications in environmental engineering. Copenhagen: Danish Technical Press, 1970. https://doi.org/10.1177/146642407209200337
42. ISO7730. Moderate thermal environments-determination of the PMV-PPD indices and specification of the conditions for thermal comfort, 1994. 160
