Optical numerical investigation of a solar power plant of parabolic trough collectors

Abstract

Keywords: Solar energy; Power plants; Parabolic trough collector; Optical investigation; Numerical Simulation

Introduction

Renewable energies are a major development globally, especially solar energy [1, 2], which is the source of the remaining types of renewable energies. Renewable energy sources are preferred, not only because they can meet the global energy shortage that is mostly dependent on fossil energies, but also because renewable energies exist in abundance with sustainable and environmentally friendly energy. Solar energy is one of the most abundant renewable energy sources in the world. It is a solar radiation that can be used in several fields, the most important of which are: electricity production and charge the batteries [3-7], air conditioning [8-11], heat swimming pools [12], air heating [13-15], water heating [16-18], nanofluids applications [19, 20], solar irrigation [21, 22], cook food [23, 24], desalination [25, 26], drying [27, 28] and process heat applications [29, 30]. For good use and more efficient use of solar energy, there are many techniques for solar collectors that can be used, including the compound parabolic collectors (CPCs) [31, 32], the evacuated tube collectors (ETCs), the Flat-plate collectors (FPCs) [33-35], the Heliostat field collectors (HFCs) [36], the linear Fresnel reflectors (LFRs) [37-39], the parabolic dish reflector (PDRs) [40, 41] and the parabolic trough collectors (PTCs) [42-44]. Based on several rigorous scientific researches, it has been possible to improve the efficiency of the above-mentioned solar collectors using nanoparticles suspended in the working fluid, as the nanoparticles improve the heat transfer inside the working fluid [45-47]. One of the most important scientific researches that dealt with improving the thermal transfer coefficient of working fluids through nanotechnology, studies carried out by Mebarek‐Oudina [48], Said et al. [49-52], Raza et al. [53], Bellos and Tzivanidis [54, 55] and Alkasassbeh et al. [56]. However, in order to make the solar collector system effective during the day, the night and in cloudy weather conditions, it is necessary to rely on efficient storage systems for thermal energy to be used when necessary in the absence of a solar energy source. This paper was recommended for publication in revised form by Regional Editor Mustafa Kılıç 1 Department of Mechanical Engineering, Saad Dahlab University of Blida 1, Blida 09000, Algeria 2 College of Engineering - Mechanical Engineering Department – University of Babylon - Babylon City – Hilla – Iraq 3 School of Architecture and Civil Engineering, Northeast Petroleum University, Fazhan Lu Street, Daqing, 163318, China 4 Department of Mathematics, King Abdulaziz University, Jeddah 21589, Saudi Arabia *E-mail address: ghodbanemokhtar39@yahoo.com Orcid ID: 0000-0003-1350-8631*, 0000-0002-1947-6397, 0000-0002-4360-0159, 0000-0002-2692-9091, 0000-0001-9443-7091 Manuscript Received 28 August 2019, Accepted 27 September 2019

Journal of Thermal Engineering, Research Article, Vol.7, No.3, pp. 550-569, March, 2021 The subject of this paper is about Parabolic Trough Collectors (PTCs) technology. This solar system was considered the most used especially in power plants, due to its high optical and thermal efficiency [57-59], but somewhat is a high cost compared to linear Fresnel reflector technology. The PTC collector consist of a linear parabolic mirror, which concentrates the beam radiation on a receiver tube positioned along the focal line, in which circulates a working fluid [60-62]. Because of the importance of this type of solar concentrators, there is in the literature a lot of scientific research that has addressed this solar technology with great accuracy, including the work done by Manikandan et al. on identifying ways to enhance and improve the optical and thermal efficiency of PTCs [63]. Moreover, Azzouzi et al. have conducted an experimental study on a PTC with a large rim angle in order to determine the optical comportment of the manufactured prototype [64]. In addition, Moloodpoor et al. have conducted a study on the thermal comportment of PTC solar collectors based on the intelligence swarm enhancer [65]. Beside, Bello et al. conducted a number of scientific research on this effective technique [66-70], where they touched on many areas of technology during their research (Industrial uses, thermal behavior study, optical behavior study, nanoparticle efficiency improvement, etc.). Besides, Korres et al. chose to use nanofluids as a working fluid with a laminar regime with a compound parabolic trough solar collector (CPTC) [32]. On a clear day, the PTC collector follows the sun along one north-south axis of rotation, meaning that the reflective mirror reflects the beam radiation from sunrise east until evening arrives west at sunset. Direct sunlight is not completely perpendicular to the reflective mirror surface, either because of random or non-random errors [57]. For this reason, it was necessary to calculate the geometric and optical coefficients with great accuracy in order to accurately determine the optical efficiency of the studied collector. Consequently, the main objective of this paper is to conduct an optical investigation of a solar power plant consisting of PTC solar collectors, in order to estimate its optical characteristics based on: • • •

The geometric parameters; The optical parameters; The change in the climatic conditions of the region of El-Oued, Algeria for the day of March 16th, 2018. Therefore, results obtained will allow engineers’ specialists in the construction of PTC solar power plants, knowing all the engineering, design and optical parameters that help determine: • The change in incidence and sun height angles; • The distance evolution between two consecutive rows; • Total optical loss due to random and non-random errors, engineering errors and visual errors; • The field collector optical efficiency; • The change in the local concentration ratio “LCR”, i.e. the thermal distribution on the absorber tube surface for a PTC collector’s model. Thus, this study is very important in all respects, theoretically for advanced students, and technically for engineers responsible for the construction of power plants, because the fact the visual aspect of such solar collectors is very complex.

Mathematical Equations Governing The Optical Model

The optical investigation of solar collectors is one of the most important physical factors in determining the performance of these collectors. For solar concentrators, the optical properties of the reflective mirrors are characterized by the reflection coefficient of the reflective mirrors "ρm", the transmission coefficient of the glass tube "τ", the intercept factor "" and the absorption coefficient of the receiver tube "αAb". When solar radiation reaches the collector, a significant amount of energy is lost for three reasons (geometric, optical and thermal). In this work, the design errors and optical errors that are generally associated with parabolic trough solar collector have been discussed. Figures 1(a-b) show the engineering description of the studied solar reflector.

Journal of Thermal Engineering, Research Article, Vol.7, No.3, pp. 550-569, March, 2021

(a) 0.60 0.55 0.50 0.45 0.40 0.35 0.30 0.25 0.20 0.15 0.10 0.05 0.00 -0.6

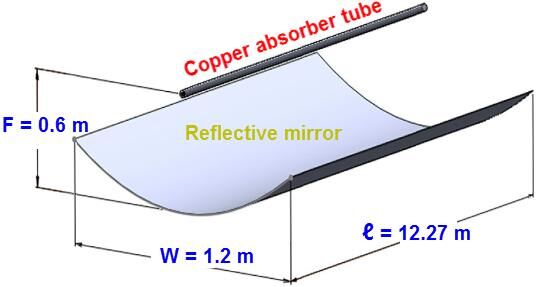

X (m) (b) Figure 1. Engineering of the studied solar collector: a) Comprehensive appearance [68], b) Cross-section Table (1) illustrates the geometric characteristics of studied solar reflector. The receiver tube is the main element of the considered reflector, whose role is to absorb incident direct-normal solar irradiance “DNI, (W/m²)”, to transform it into thermal power and to transmit this energy to a fluid heat carrier. Table (2) represents the optical characteristics of elements solar collectors. In addition, the reflector of the parabolic form is one of the most important parts of studied PTC; its purpose is to concentrate direct-normal solar irradiance in the focal line. Moreover, the reflectors are mirrors that can have different shapes and can be made from different materials depending on the configuration chosen by the exploiter. Based on what has been said previously, the optical losses have a direct relationship with the receiver tube, the reflective mirror and the distance between two successive parabolic trough collectors in the same solar power plant. Design Errors As shown in Figures (2 and 3), design errors are represented in the geometric losses. The optical performance of the parabolic trough collector varies according to the location and time of use, because climatic conditions have a

Journal of Thermal Engineering, Research Article, Vol.7, No.3, pp. 550-569, March, 2021 direct impact on the efficiency of these collectors [71, 72]. Therefore, the choice of site for the construction of solar power plants is an important factor for good performance of these power plants. Table 1. Geometric characteristics of studied PTC Geometric feature

Outer diameter of the absorber (DA,ext) 0.016 m Curve length of the reflective mirror (CL)

Inner diameter of the absorber (DA,int) 0.0142 m Rim angle (r)

Results And Discussion

Weather Conditions All numerical simulation results, as well as the effect of geometric and optical parameters on the evolution of various optical factors and the optical efficiency of a solar power plant of parabolic trough collector will be presented. This study deals with the optical behavior of the parabolic trough reflectors field in El-Oued region (altitude 62 meters, latitude 33° 29' 24'' North, longitude 06° 47' 50'' East) at Algeria. El-Oued area is characterized by a hot and dry desert climate in summer and a cold climate in winter, with wind in spring. This region is a desert state rich in agricultural resources (water and arable land), and has a large solar radiation. March 16th, 2018 was chosen as a day to conduct this optical examination of the studied solar power plant.

Time (Hour) Figure 5. Measured values of solar irradiance As is evident in Figure (5), it is illustrious that the highest value of direct-normal solar irradiance reached 1102.5716 W/m² at 10:50, and the lowest value reached 5.42891 W/m² at 19:00. Moreover, it is obvious that there are some clouds between 11:30 and 15:00. The variation in the ambient air temperature and the wind speed are shown in Figure (6). The highest value of air temperature touched 29.85 °C at 08:50, and the lowest value was 22.75 °C at 07:30. As for the wind speed, its topmost value recorded in the evening between 16:00 and 18:00, where it reached 8.7 m/s; therefore, this wind speed will not touch the optical performance of the solar power plant because it is near to sunset. As for the lowest value of wind speed is 4.1 m/s, this value was noted between 10:00 and 12:00. Reality, these meteorological data are encouraging to create the ambition of the establishment of solar power plants fields (Flat, Point and Linear solar collectors [36]) in El-Oued region, Algeria. 557

Journal of Thermal Engineering, Research Article, Vol.7, No.3, pp. 550-569, March, 2021

Time (Hour) Figure 6. Measured values of the ambient air temperature and the wind speed Estimation of Incidence and Sun Height Angles When referring to the equations mentioned above, it is clear that all optical transactions are directly related to the incidence angle “i, (°)” between the sun's rays and the surface normal. For a horizontal plane, the incidence angle and the zenith angle “Z, (°)” are the same. In the case of solar concentrators, a tracking mechanism is usually used to allow the concentrator to follow the sun. In this study, horizontal east-west tracking for a single-axis tracking mechanism was used, where the receiver tube is parallel to the north-south axis. Therefore, for a PTC collector, the solar energy incident on the opening surface is in function of two parameters: • •

The direct-normal solar irradiance; The sun position relative to the solar reflector opening.

Therefore, Figure (7) illustrates the evaluation of the incidence angle and the sun height angle versus time for the selected day of study. For reference only, the timing listed in Figure (7) is GTM +2. According to Figure (7), the both angles are contrasted in their evolution from sunrise to sunset. The maximum value of the incidence angle is at sunrise (i =83.77°) and sunset (i =89.16°), while the minimum value is at midday (i =35.6°). As for the sun height angle, its maximum value is at midday (i =54.40°), and its minimum values are at both ends of the day, i.e., at sunrise (i =6.23°) and sunset (i =0.84°). Usually, all solar collectors’ types (plan and concentration) are not installed horizontally, but in order to increase the amount of radiation intercepted and to reduce the reflection and the cosine losses. 90

Time (Hour) Figure 7. Assessment of the incidence angle and sun height angle vs. time 558

Journal of Thermal Engineering, Research Article, Vol.7, No.3, pp. 550-569, March, 2021

Estimation of Geometric Errors Many engineering and design factors reduce PTC's optical performance. These factors are the losses caused by the blockage, the losses caused by the shadows and the losses at the end of the absorber tube (End effect). To solve the problem of thermal losses caused by blocking, the distance between two consecutive rows of PTCs collectors in the same field must be determined with great precision. In addition, the amount of solar energy absorbed by the receiver tube length would be the amplitude of the incoming solar beam radiation multiplied by the correction coefficient of the incidence angle modifier “K (i)”, this coefficient is varied according to the cosine of the incidence angle multiplied by the length of PTC collector. The solar collectors’ arrangement series in the field is in the form of parallel rows. Figure (8) proves the evolution of the distance between two rows in a concentrated thermodynamic solar power plant field.

Time (Hour) Figure 8. Distance evolution between two consecutive rows

According to Figure (8), the great distance between the field rows is 5.792 meters; this distance will significantly reduce the amount of thermal loss caused by blockage in a solar power plant with the same dimensions as the studied PTC. However, this value corresponds to the time of the sunrise, where the amounts of solar radiation is very weak and does not serve the station. Therefore, the design engineer of the solar station should choose the appropriate distance between two consecutive rows of solar reflectors based on the connection between Figures (5, 6 and 8) in order to optimize the investment of the plant and give it a reasonable space. One of the important parameters that must be precisely defined when working on PTCs is the shading and blocking factors. Figure (9) illustrates the evolution of the lost opening area, the lost area resulting from shading, the factor of the rank shadow at low solar altitude and the shaded area of the reflective mirror.

Incidence angle (°) Figure 9. Assessment of geometric losses in terms of incidence angle 559

Journal of Thermal Engineering, Research Article, Vol.7, No.3, pp. 550-569, March, 2021 Through Figure (9), it is noted that: •

As for the total loss in the opening area "ATL, (m²)", it changes directly with the change of the incidence angle, where it changes proportionally to this angle, this means that increasing the incidence angle value increases the total loss in the opening area. In addition, the maximum value of ALT is 5.672 m² at the incidence angle of 89.16°, while the minimum value is 0.323 at i=35.61°; The geometric factor "Af" has a direct relationship with the total loss in the opening area, where it changes proportionally to ALT.As for the maximum value of Af is 0.77 at the incidence angle of 89.16°, while the minimum value is 0.043 at i=35.61°; As for the end effect factor “ηendloss”, it is noted that its variation at the end of the absorber tube is adversely affected by the incidence angle “i". Its values are low at sunrise, then start to rise until noon, and then fall back until sunset. As for the minimum value of “ηendloss” is 0.46 at the incidence angle of 89.16°, while the minimum value is 0.9825 at i=35.61°;

From Figures (7 and 9), it is evident that the all-engineering losses of the studied PTC are significant at sunrise and then decrease until noon, after which they increase again until sunset, as they change directly with the incidence angle. For reference, the incidence angle is changes with the solar zenith angle and the solar azimuth angle. In addition, the geometric dimensions have a direct effect on the change of the geometric error values of the solar reflectors, which is shown in Equations (1-8). Estimation of Optical Errors As shown in Equation (10), the optical efficiency varies with several factors. After conducting this numerical study, it was able to calculate these optical coefficients moment by moment from sunrise to sunset as a function of changing the incidence angle, where the changing these optical coefficients of the studied solar collector is shown in Figure (10). Through Figure (10), it is concluded that: • The intercept factor “” varies from 0.92 to 0.971 for incidence angles “i, (°)” changing from 35.61 to 89.16, where the average value of this factor is 0.967; • By the results obtained from Equation (11), the correction coefficient of the incidence angle modifier “K(i)” varies from 0 to 0.85 for incidence angles changing from 35.61 to 89.16; • By the results obtained from Equation (13), “K(i)” varies from 0 to 0.90 for “i” changing from

Conclusion

This paper aims to conduct an optical investigation of a parabolic trough collector in order to show the real optical behavior for the field solar collectors on March 16th, 2018 in El-Oued, Algeria. This study allowed determining the geometric and optical errors in terms of real weather data. Numerical simulation based on the analysis and simplification of equations has allowed calculation: •

The change in the cosine effect of the incidence angle "θi, (°)";

The change in the Sun height angle "hs, (°)" from sunrise to sunset; The change in the distance “Lspacing, (m)” between two consecutive rows;

The change in the total loss in the opening area “Al, (m²)” without taking into account the incidence angle; The change in the total loss in the opening area “ATL, (m²)” with taking into account the incidence angle; The change in the geometric factor "Af";

The change in the correction coefficient of the incidence angle modifier “K(i)”; The change in the shaded area of the reflective mirror “Ashaded, (m²)”;

Journal of Thermal Engineering, Research Article, Vol.7, No.3, pp. 550-569, March, 2021 •

The change in the shading factor “ηshadow”; The change in the optical efficiency “ηopt”;

Thus, fourteen important optical parameters were calculated, because before the construction and establishment of any solar power plant with PTC collectors, the engineers must identify these important parameters with big precision. In all case of this study, the optical efficiency has exceeded 77.22 %. As for the local concentration ratio, its maximum value is equal to 116.297 in the lower part of the receiver tube at the peripheral receiver angle “β=180°", while the minimum values of this important coefficient were recorded at the top of the receiver tube. Finally, the research team is currently working on the design of an experimental model for this studied solar collector, with the same dimensions and the same characteristics, in order to conduct optical and thermal experiments on it, which opens the prospects for the development of this type of solar concentrators.
