Experimental study of combustion of low-calorific producer gas from small scale biomass gasification

Abstract

Keywords: Biomass; Combustion; Gasification; Porous burner

Introduction

Today the majority of energy consumption of the world is fossil fuels are used worldwide for electricity production, transportation and industrial. However, fossil fuels have limited reserves and deplete with utilization. Furthermore, emissions of greenhouse gases from fossil fuel systems are

major environmental concern. This illustrates the importance of introducing and accelerating technological developments for studying strategy and design of electricity and energy system [1–13]. Biomass offers an interesting opportunity to substitute for fossil fuels.

*Corresponding author. *E-mail address: kanokkarn.j@cit.kmutnb.ac.th This paper was recommended for publication in revised form by ­Regional Editor Siamak Hoseinzadeh Published by Yıldız Technical University Press, İstanbul, Turkey Copyright 2021, Yıldız Technical University. This is an open access article under the CC BY-NC license (http://creativecommons.org/licenses/by-nc/4.0/).

Biomass is organic material that derived from burning animal and plant waste (e.g. wood, agricultural waste and garbage). The raw materials used to produce biomass are infinite. Therefore, biomass is world-wide energy resource. Although, combustion either biomass or fossil fuels releases carbon dioxide, biomass absorb a nearly equivalent amount of carbon dioxide in photosynthesis process during growth. Biomass is a carbon-neutral energy source and using biomass as fuel can be reduced fossil dependency. The traditional utilization of biomass is directly burning in furnaces which are often characterized by low efficiencies and high release of toxic organic compounds. Many researchers have attempted to use biomass as fuel to replace petroleum oil for internal combustion engine. A comprehensive review of biomass utilization in internal combustion engine was reported by Sadeghinezhad et al. [14]. The different biomass materials provide different combustion characteristics [15]. Inadequate control of biomass combustion lead to a variety of air pollutants to the atmosphere [16]. Highlight technology delivers solution to appropriately use energy from biomass is gasification. Gasification is an attractive alternative technology to achieve high quality syngas. This technology is a thermal conversion process that converts biomass into synthetic gas [17]. Unlike biomass materials, gaseous fuels can be distributed by pipeline from the plant to elsewhere. Moreover, synthetic gas provides cleaner combustion and easier to control than direct burning of biomass. Syngas production from biomass gasification can be divided into two main type: fixed bed and fluidized bed. The subtypes for the fixed bed type gasifiers are updraft and downdraft. The subtypes for the fluidized bed gasifiers are bubbling fluidized bed and circulating fluidized bed [18]. In the downdraft gasifier, the tar content of the producer gas is low because the produced gas is exited close to the reaction zone. Tar formation during devolatilization is thermally cracked in reaction zone before flow out at the exit. It is suitable for small application. However, the producer gas is diluted with nitrogen content. The heating value of synthetic gas is low. As a result, the stable combustion of low-calorific gaseous fuel in conventional burner can be difficult to accomplish. Weinberg [19] revealed the concept of borrowing heat from a premixed flame to preheat the fresh mixture. A net energy transfer from the burned gases to the unburned gases is the effect of this recuperation. By this concept, at the same quality of mixture, the flame temperature of preheated mixture is greater than the adiabatic flame temperature. Moreover, Hardesty and Weinberg [20] indicated that this process extended the flammability limits over those for a conventional flame. Porous burner is a possible solution to achieve the limiting reactant quality of combustion by internal heat recirculation through porous structure. Within porous burner, the heat recirculation from the exhaust gases to the unburned gases through radiation and conduction

through the porous structure. A variety of porous burner designs have been proposed by many researchers. The studies concluded that internal heat recirculation within porous burner results in extended the flammability limits [21–27]. They are useful comprehensive review papers in this area [28–30]. The review article deal with ultra-lean burn of methane within porous burner, with a highlight in practical aspects of burner design and operation and the application of the technology to real-world problems was proposed by Wood and Harris [31]. Moreover, the comprehensive survey about liquid fuel combustion in porous media and mathematical modeling of porous burner were reported by Abdul Mujeebu et al. [32–33]. Not only lean burn application but also rich burn application can be achieved by porous combustion. Rich combustion inside an inert porous burner were performed to evaluate hydrogen and syngas production and were revealed by many researchers e.g. Fay M et al. [34], Gao et al. [35], Pastore and Mastorakos [36], Smith et al. [37], Torres et al. [38], Ripoll [39] and Gonzalez et al. [40–41]. Porous media were used not only as burners but also heat transfer enhancement [42–45]. Furthermore, porous burners have been used to burn low grade fuel that have low-calorific value. Early studies focused on combustion of low-calorific simulated gaseous fuel in porous burner e.g. Al-Hamamre et al. [46], Francisco et al. [47–48], Keramiotis and Founti [49], Keramiotis et al. [50], and Huang et al. [51]. In addition, the numerical study of combustion of low-calorific producer gas within late mixing porous burner was proposed by Jirakulsomchok and Theinnoi [52]. However, in practical, producer gas from gasification process is possible fluctuation in quality and composition, have an effect on combustion stability. Experimental study of combustion of producer gas within porous burner was a few. Al-attab et al. [53] studied incorporated a downdraft gasification system with the two-layers porous burner for hot air production. The height of second porous layer serves as combustion zone were varied. The results indicated that the porous media burner provide an efficient combustion for the low heating value biomass producer gas with wide equivalence ratio range 0.33–0.71. The hot air production of 7 kWth can be utilized for drying process in small industries. The present experimental study investigates combustion of low calorific producer gas from small biomass gasification within a porous burner. Cooperation between small-scale downdraft gasifier and porous burner were performed. The porous burner was used to burn the real producer gas that is fluctuation in quality and composition. The combustion of low firing rate producer gas that difficult to operate in conventional combustion system and the result of tar elimination by porous burner were studied to broaden knowledge of Al-attab et al. [54]. The optimum wood types for the downdraft gasifier was determined. Two configuration of porous burner, tapered porous burner and bilayer porous

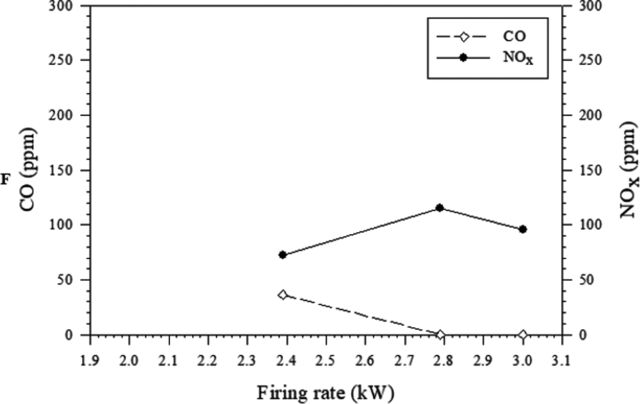

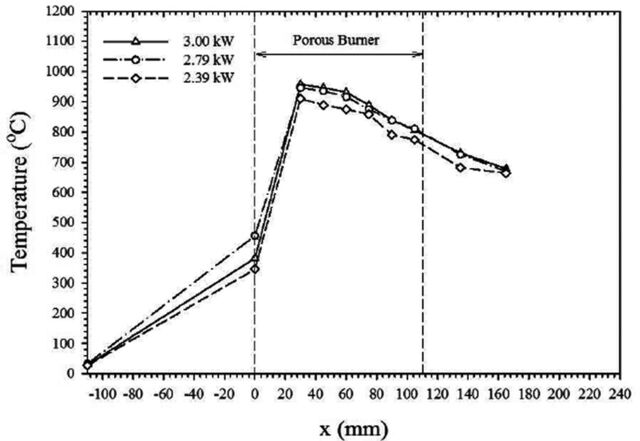

burner were used in this study. The effect of preheating and non-preheating air is investigated. As well as the effect of equivalence ration and firing rate is concluded.

Experimental Apparatus

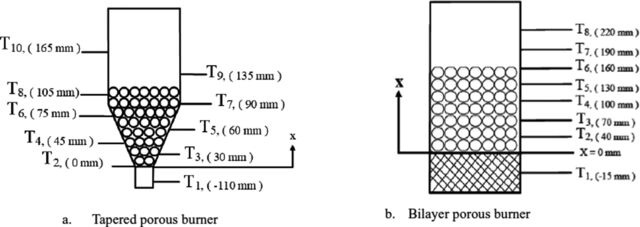

Figure 1 shows a schematic of the experimental setup. The experimental apparatus consists of fixed bed downdraft gasification, porous combustor system. The gasifier is made of stainless steel 304 pipe with a diameter of 31.5 cm and a height of 100 cm. The small-scale downdraft gasifier was developed to use for rural area in Thailand [55]. The throat size is 6 cm. Four K-type thermocouples, T1 – T4 are installed and locations are shown in Fig. 2. The producer gas from gasifier is cleaned in tar treatment set before flow into porous burner. Evergreen fast-growing tropical trees, i.e. Acacia-mangium, White popinac and Eucalyptus were used as materials to produce producer gas. Raw locks were cut to optimum size of wood chip for the gasifier and dried. At the first stage, the air was supplied to gasifier that contains wood chip. The pilot flame was utilized to startup process. In tar treatment set, Isopropanol (IPA) in wet scrubber was act as solvent to trap tar. Producer gas compositions

was analyzed by Shimadzu Gas Chromatography Model 2014 is equipped with the advanced flow controller (AFC) technology. The AFC is standard for both capillary columns and packed columns. Accurate flow rate control via AFC has higher-level repeatability of retention time and peak area, enabling a higher level of analyses. Figure 3 shows the porous combustor system. The combustion chamber is surrounded by an air jacket for air preheating. Two configuration of porous burner was considered in this study: tapered porous burner and bilayer porous burner are showed in Fig. 3a and Fig. 3b respectively. The tapered porous burner is tapering vessel is filled with aluminum oxide balls with diameter of 25 mm. The tapered pipe is 110 mm in height. While the bilayer porous burner is a cylinder stainless pipe (80 mm in inside-diameter and 400 mm in height) is filled with two type of material. The first layer of bilayer porous burner is a 25 mm packed of metallic wire screens with mesh size of 100 mesh/in. The first layer of bilayer porous burner was designed to prevent flame flashback. The second layer consists of a packed bed of Al2O3 with a diameter of 10 mm for combustion zone. Testo 350-Portable emission analyzer is utilized to measure emission form combustion process. Tar collection set is

installed to analyst tar after burning at exhaust gas release. At the beginning, the porous burner was preheated by combustion of liquefied petroleum gas (LPG) at near stoichiometric condition. A pilot flame was inserted through the small ignition port. When the combustion within packed bed occurred, the pilot flame was removed and the ignition port is closed. Then, the producer gas from gasifier was supplied into porous burner while the flow of LPG was reduced. Until the main flame of pure producer gas and air was stabilized, then adjust the operating condition. The combustion air was pressurized by air compressor and adjusted by rotameter regulator. The air preheating and nonrepeating mode were switched by three-way ball valve. Ten K-type thermocouples, T1 – T10 are placed to investigate thermal structure. Data-logger are used to continuously record temperature profiles both in gasifier and porous burner. Emission of the dry combustion products at the porous burner is monitored by using a portable emission analyzer designed especially for quasi-continuous measurement. A gas processing system of NOx and CO is especially tuned for electrochemical sensors, ensuring long-time stability and accuracy of measurement. The measuring range of the

analyzer is 0–4,000 ppm for the NOx and 0–10,000 ppm for the CO with a measuring accuracy of about ±5 ppm and resolution of 1 ppm for both NOx and CO. In the experiment, all measured emission data are corrected to 0% excess oxygen and dry-basis. Fuel flow rate, air flow rate, and pressure difference are also recorded using conventional measuring devices. Repeated measurement shows an uncertainty of about 10% for temperature and species concentration.

Results And Discussion

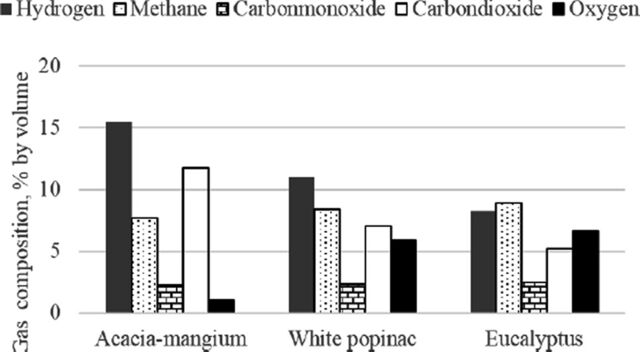

Biomass Type The effects of three biomass types (Acacia-mangium, White popinac and Eucalyptus) on gas composition obtained through gasification are presented. Preliminary experiment was performed to find optimum condition for producer gas production in the down-draft gasifier. The solid equivalence ratio (ER) was varied in the range of 0.5 to 0.7. The optimum ER for producer gas production and low heating value of three types of wood are presented in table 1. The low heating values were in the range of 3800–4232 kJ.kg–1 that are difficult to burn in conventional burner. Figure 4 shows effect of three types of biomass on gas composition of producer gas. Acacia-mangium wood provides highest low heating value at ER of 0.53 because it obtains high combustible gas composition that is presented in table1. Therefore, in this study, the Acacia-mangium wood is considered as raw material to produce gaseous fuel for porous burner. The Effect of Porous Burner Geometry Figure 5 illustrates the effect of porous burner geometry on temperature profiles at firing rate (FR) of 3 kW. The equivalence ratio (Φ) was varied from 0.8 to 0.9 in this experiments. Increasing Φ at a fix firing rate done by decreasing combustion air flow rate while producer gas flow rate was fixed. An increase in the Φ of lean mixture, the quality of mixture is increased causes an increase in

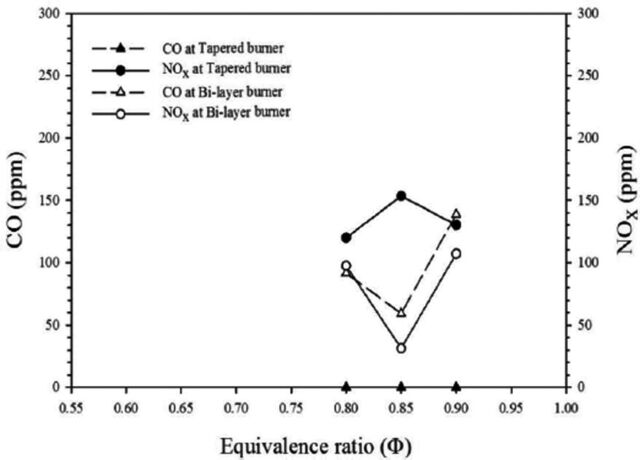

the flame temperature for both porous burners geometry. The increase in Φ does not significantly affect flame location. The results indicated that complete combustion can be occurred with in both tapered and bilayer porous burner. The small emission release is shown in figure 6. Both CO and NOx emission was less than 160 ppm for all of tests. Especially for tapered porous burner, the CO emission was nearly zero for all of Φ. The porous burner with tapered shape is found to be more efficient than the bilayer porous burner. The narrow diameter at the upstream zone results in high flow velocity of fresh mixture and high convective heat transfer at the pre-flame zone. This is lead to the short length for complete combustion and more compact combustors design. Moreover, the first layer of bilayer porous burner is designed to be tiny pore for preventing flame flashback that cause a clogging risk from impurity of tar. The Effect of Firing Rate Figure 7 illustrates the effect of firing rate (FR) on temperature distribution in the tapered porous burner at Φ =

Conclusion

The propose of this work is to investigates combustion of low calorific producer gas from small biomass gasification within a porous burner. Downdraft gasifier was used to

Figure 10. Effect of air preheating on CO and NOx emission Φ = 0.95. produce gaseous fuel. Two configuration of porous burner, i.e. tapered and bilayer porous burner were considered to determine the optimum configuration of porous burner. The effect of air preheating modes, equivalence ratio, firing rate on temperature profiles and pollutant emission were reported. The main conclusions were as follows: • The Acacia-mangium wood at ER of 0.53 was optimum condition to produce producer gas in the small downdraft gasifier in this study. • The complete combustion with small emission can be occurred within two type of porous burner. • The tapered porous burner was optimum configuration to burn producer gas. • An increasing in equivalence ratio causes an increase in the flame temperature, while it does not significantly affect reaction zone. • The increase in firing rate cause an elevation in flow velocity and convective heat transfer driving flame upstream.

• The tar reduction was 99.5% by using tapered porous burner. • The optimum operating condition is at firing rate of 3 kW and Φ = 0.95 because under this operating condition provide maximum temperature with low emission both CO and NOx.

Data Availability Statement

No new data were created in this study. The published publication includes all graphics collected or developed during the study.

Conflict Of Interest

The author declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Ethics

There are no ethical issues with the publication of this manuscript.

References

1. Plus 2017;132:197. [CrossRef].
2. Saedpanah E, Asrami RF, Sohani A, Sayyaadi H. Life cycle comparison of potential scenarios to achieve Chamkha AJ. Analysis of energy consumption the foremost performance for an off-grid photo- improvements of a zero-energy building in a humid voltaic electrification system. Journal of Cleaner mountainous area. Journal of Renewable and Production 2020;242:1–21. [CrossRef] Sustainable Energy 2019;11:015103. [CrossRef]
3. Sohani A, Naderi S, Torabi F, Sayyaadi H, Akhlaghi YG, Zhao X, et al. Application based multi-objec- zation of a solar-assisted heating and cooling sys- tive performance optimization of a proton exchange tem for a house in Northern of Iran. Journal of membrane fuel cell. Journal of Cleaner Production Renewable and Sustainable Energy, 2017;9:045101. 2019;252:119567. [CrossRef] [CrossRef]
4. Sohani A and Sayyaadi H. Thermal comfort based resources consumption and economic analysis of modelling and simulation of a solar water heater a two-stage direct-indirect evaporative cooler with for an aviculture unit using MATLAB/SIMULINK. diverse water to electricity tariff conditions. Energy Journal of Renewable and Sustainable Energy Conversion and Management 2018;172:248–64. 2017;9:063702. [CrossRef] [CrossRef] [14] Sadeghinezhad E, Kazi SN, Sadeghinejad F,
5. Tahmasebzadehbaie M, Sayyaadi H, Sohani Badarudin A, Mehrali M, Sadri R, et al. A compre- A, Pedram MZ. Heat and mass recirculations hensive literature review of bio-fuel performance ­strategies for improving the thermal efficiency and in internal combustion engine and relevant costs environmental emission of a gas-turbine cycle. ­ involvement. Renewable and Sustainable Energy Applied Thermal Engineering 2017;125:118–33. Reviews 2014;30:29–44. [CrossRef] [CrossRef] [15] Haykın-Açma H. Combustion characteristics of
6. Sohani A, Sayyaadi H, Azimi M. Employing static different biomass materials. Energy Conversion & and dynamic optimization approaches on a des- Management 2003;44:155–62. [CrossRef] iccant-enhanced indirect evaporative cooling [16] Van Loo S, Koppejan J. The handbook of biomass system. Energy Conversion and Management combustion and co-firing. London: Earthscan; 2008. 2019;199:112017. [CrossRef] [17] Sarafraz MM, Safaei MR, Jafarian M, Goodarzi M,
7. Hoseinzadeh S, Taheri Otaghsara SM, Zakeri Khatir Arjomandi M. High quality syngas production with MH, Heyns PS. Numerical investigation of thermal supercritical biomass gasification integrated with J Ther Eng, Vol. 7, No. 6, pp. 1344–1352, September, 2021 1351 a water–Gas shift reactor. Energies 2019;12:2591. [32] Abdul Mujeebu M, Abdullah MZ, Abu Bakar MZ, [CrossRef] Mohamad AA, Abdullah MK. A review of investi-
8. Lan W, Chen G, Zhu X, Wang X, Xu B. Progress gations on liquid fuel combustion in porous inert in techniques of biomass conversion into syngas. media. Progress in Energy and Combustion Science Journal of Energy Institute, 2015;88:151–6. [CrossRef] 2009;35:216–30. [CrossRef]
9. Weinberg FJ. Combustion temperature: the future? Nature 1971;233:239–241. [CrossRef] AA, Abu Bakar MZ. Trends in modeling of porous
10. Hardesty DR, Weinberg FJ. Burners producing media combustion. Progress in Energy and large excess enthalpies. Combustion Science and Combustion Science, 2010;36:627–50. [CrossRef] Technology 1974;8:201–14. [CrossRef] [34] Fay M, Dhamrat R, Ellzey LJ. Effect of porous
11. Hsu PF, Evans D, Howell JR. Experimental and reactor design on conversion of methane to numerical study of premixed combustion within hydrogen. Combustion Science and Technology, nonhomogeneous porous ceramics. Combustion 2005;177:2171–89. [CrossRef] Science and Technology 1993;90:149–72. [CrossRef] [35] Gao N, Li A, Quan C, Gao F. Hydrogen-rich gas
12. Gnesdilov NN, Dobrego KV, Kozlov IM. Parametric production from biomass steam gasification in an study of recuperative VOC oxidation reactor with updraft fixed-bed gasifier combined with a porous porous media. International Journal of Heat and ceramic reformer. International Journal of Hydrogen Mass Transfer 2007;50:2787–94. [CrossRef] Energy, 2008; 33:20, 5430–8. [CrossRef]
13. Henríquez-Varga L, Valeria M, Bubnovich V. Numerical study of lean combustibility limits exten- nal of hydrogen energy from liquid fuel in a non-­ sion in a reciprocal flow porous media burner for catalytic porous burner. Fuel 2011;90:64–76. [CrossRef] ethanol/air mixtures. International Journal of Heat [37] Smith CH, Leahey DM, Miller LE and Ellzey JL. and Mass Transfer 2015;89:1155–63. [CrossRef] Conversion of wet ethanol to syngas via filtration
14. Marbach TL, Agrawal AK. Experimental study of combustion: An experimental and computational surface and interior combustion using composite investigation. Proceedings of the Combustion porous inert media. Journal of Engineering for Gas Institute, 2011; 33:2, 3317–3324. [CrossRef] Turbines and Power 2005;127:307–13. [CrossRef] [38] Torres MT, González FA, Ellzey JL. Hydrogen pro-
15. Marbach TL, Agrawal AK. Heat-recirculating com- duction from methanol and ethanol partial oxida- bustor using porous inert media for mesoscale tion. Energy Fuels 2014;28:3453–9. [CrossRef] applications. Journal of Propulsion and Power [39] Ripoll N, Silvestre C, Paredes E, Toledo M. Hydrogen 2006;22:145–50. [CrossRef] production from algae biomass in rich natural gas-
16. Belmont EL, Ellzey JL. Lean heptane and pro- air filtration combustion. International Journal of pane combustion in a non-catalytic parallel-plate Hydrogen Energy 2017;42:5513–22. [CrossRef] counter-flow reactor. Combustion and Flame [40] Gonzalez H, Caro S, Toledo M, Olguin H. Syngas 2014;161:1055–1062. [CrossRef] production from polyethylene and biogas in
17. Belmont EL, Schoegl I, Ellzey JL. Experimental and porous media combustion. International Journal of analytical investigation of lean premixed methane/ Hydrogen Energy 2018;43:4294–304. [CrossRef] air combustion in a mesoscale counter-flow reactor. [41] Sarafraz MM, Safaei MR, Goodarzi M, Arjomandi M. Proceedings of the Combustion Institute, 2013, 34: Reforming of methanol with steam in a micro-reactor 3361–3367. [CrossRef] with Cu-SiO2 porous catalyst. International Journal of
18. Howell JR, Hall MJ, Ellzey JL. Combustion of hydro- Hydrogen Energy 2019;44:19628–39. [CrossRef] carbon fuels within porous inert media. Progress in [42] Nazari S, Ellahi R, Sarafraz MM, Safaei MR, Asgari Energy and Combustion Science 1996;22:121–45. A, Akbari OA. Numerical study on mixed convec- [CrossRef] tion of a non-Newtonian nanofluid with porous
19. Kamal MM, Mohamad AA. Combustion in porous media in a two lid-driven square cavity. Journal of media, a review. Journal of Power and Energy Thermal Analysis and Calorimetry 2020;140:1121– 2006;220:487–508. [CrossRef] 45. [CrossRef]
20. Abdul Mujeebu M, Abdullah MZ, Abu Bakar MZ, Mohamad AA, Muhad RMN, Abdullah MK. Karimipour A, Nguyen TK and Mohammad Reza Combustion in porous media and its applications-A Safaei. Simulation of water/FMWCNT nanofluid comprehensive survey. Journal of Environmental forced convection in a microchannel filled with Management 2009;90:287–2312. [CrossRef] porous material under slip velocity and temperature
21. Wood S, Harris TA. Porous burner for lean-burn jump boundary conditions. International Journal applications. Progress in Energy and Combustion of Numerical Methods for Heat and Fluid Flow Science 2008;34:667–84. [CrossRef] 2020;30:2329–49. [CrossRef] 1352 J Ther Eng, Vol. 7, No. 6, pp. 1344–1352, September, 2021
22. Kilic M. Numerical investigation of heat transfer from a porous plate with transpiration cooling. Hatziapostolou A, Founti MA. Experimental inves- Journal of Thermal Engineering 2018;4:1632–47. tigation of a radiant porous burner performance [CrossRef] with simulated natural gas, biogas and synthesis gas
23. Nourbakhsh A, Bayareh M. Study of the effect fuel blends. Fuel 2015;158:835–42. [CrossRef] of the porous plates on the tank bottom on the [51] Huang R, Cheng L, Qiu K, Zheng C, Luo Z. Low- boiling ­ process. Journal of Thermal Engineering calorific gas combustion in a two-layer porous. 2019;5:149–56. [CrossRef] Energy Fuels 2016;30:1364–74. [CrossRef]
24. Al-Hamamre Z, Diezinger S, Talukdar P, von Issendorff F, Trimis D. Combustion of low calorific eling of combustion of low-calorific-producer-gas value gases from landfills and waste pyrolysis using from Mangium wood within a late mixing porous porous medium burner technology. Process Safety burner (LMPB). Songklanakarin Journal of Science and Environmental Protection 2006;84:297–308. and Technology 2017;39:489–96. [CrossRef] [53] Al-attab KA, John Chung Ho, Zainal ZA.
25. Francisco Jr RW, Rua F, Costa M, Catapan RC, Experimental investigation of submerged flame Oliveira AAM. On the combustion of hydro- in packed bed porous media burner fueled by low gen-rich gaseous fuels with low calorific value in heating value producer gas. Experimental Thermal a porous burner. Energy and Fuels 2010;24:880–7. and Fluid Science 2015;62:1–8. [CrossRef] [CrossRef] [54] Buntek N, Wongchang T. A fixed bed downdraft
26. Francisco Jr RW, Costa M, Catapan RC, Oliveira AA. biomass gasifier for rural area, The 30th conference Combustion of hydrogen rich gaseous fuels with low of mechanical engineering network of Thailand, 5-8 calorific value in a porous burner placed in a con- July 2016, Songkhla Thailand. fined heated environment. Experimental Thermal [55] Hasler P, Nussbaumer T. Sampling and analysis of and Fluid Science 2013;45:102–9. [CrossRef] particles and tars from biomass gasifier. Biomass
27. Keramiotis CH, Founti MA. An experimental inves- Bioenergy 2000;18:61–6. [CrossRef] tigation of stability and operation of a biogas fueled porous burner. Fuel 2013;103:562–6. [CrossRef]
