Investigation of Waste Products of Boron and Metakaolin Utilizes

Abstract

Keywords: Mortar; Colemanite; Boron; Metakaolin; Polydos TS1

1. Introduction

Cement is a fine powder which has good binding properties. Cement is the most important artificial construction material. Its production has great significance on today’s construction sector [2]. However, manufacture of cement

Corresponding author. E-mail address: mushurov.m.s@gmail.com (Mikhail Mushurov) https://doi.org/10.29187/jscmt.2018.22

M. Mushurov, O. Canpolat, M. Uysal, M.M. Al-Mashhadani, Y. Aygörmez, /J. Sustain. Construct. Mater. Technol. 3(2) (2018) 212–220

must meet new and higher demands. Sustainability in terms of construction is very important to the environment of our planet. A sustainable structure is developed to ensure that its total impact on environment over the lifespan, including its use and recycle will be minimal. In order to accomplish it, sustainable construction materials should be produced with use of recycled materials, sound enough to resist under the loads and be produced with little waste. Sustainable construction materials have a small impact on the Earth environment. Towards this goal, colemanite and metakaolin fine waste materials have been investigated in different proportions along with TS14. Cement based mortar is a sustainable solution for construction, since it helps utilizing of by-products of other industries and obtains unique properties such as higher resistance to Alkali-Aggregate reaction [2]. With regard to its composition, obtained mortar is a sensitive mix, highly dependent on the chemical characteristics of substituent materials. It was observed that substitution of 3 wt.% colemanite gives mortar extra workability and extends its setting time. Use of TS14 which is a high range water reducer and superplasticizer provides shorter setting and hardening time to all figured batches [3]. The compressive and flexural strength of hardened prisms measured after certain days of curing (2, 7 & 28 days). High performance hyper plasticizing concrete admixture Polydos TS 14 which is a polycarboxylate based, new generation super plasticizing concrete admixture is developed for the ready-mix concrete and mortar that require high early strength, significant reduction in the amount of water and excellent workability was used in amount of 1% by weight of binder. Chemical admixture TS 14 is used by adding into the mixture water of concrete or directly mixing into the fresh low-slump concrete. It is used in order to increase amount of supplementary materials without harming the strength of mortar, and ensure the early strength of samples. Also it helps to obtain lowest practical water-cement ratio [4]. Colemanite is knows as a borate ore. Colemanite which is figuring is this study has chemical properties represented in Table 1. Table 1. Chemical composition of colemanite (%). Chemical Composition 𝐵2 𝑂3 CaO

Turkey takes a leading role in boron manufacturing, its global share equals to 47,2% from worldwide. Colemanite is a by-product of boron refinery, it practically has no application in any manufacture branch. Due to that reason, it is landfilled or disposed to the environments as a waste material. In the recent decade, scientists are conducting plentiful of researches in order to help its recycling. One way of colemanite recycling is its usage as a supplementary material

M. Mushurov, O. Canpolat, M. Uysal, M.M. Al-Mashhadani, Y. Aygörmez, /J. Sustain. Construct. Mater. Technol. 3(2) (2018) 212–220

in mortar and concrete industries. In respect to grain size of colemanite particle, it can be used as a filler material too [5] The influence of Colemanite supplementary on the early age properties, compressive strength and workability was studied by [3]. It was discovered that colemanite was technically feasible to be utilized in mortar and together with positive impact on environment, there is financial benefit and high workability taking place [8]. The role of metakaolin (MK) on the strength, water absorption, permeability, fresh and hardened properties & its fineness & content in mortar was studied by [6]. Chemical composition of metakaolin represented on (Table 2). It was found that 20% MK content gave long term strength, decrease in water absorption by capillary action & higher permeability resistance. The compressive strength of mortar also decreased with the increase in the Metakaolin amount and with the reduction of its finesses. According to [9] 10-15% metakaolin substitution found as an optimal. Also, M. Narmathal et al. found the best amount of metakaolin as 15% [9]. The reactivity of metakaolin is depended upon the amount of kaolinite in the raw clay material [10]. Table 2. Chemical composition of metakaolin (%). Chemical Composition 𝑆𝑖𝑂2 𝐴𝑙2 𝑂3

For this study, mixes containing 10%, 20%, 30%, 40% and 50% of metakaolin have been studied and the most appropriate percentages have been chosen as 20% and 30%. The effect of Polydos TS 14 (SP), curing conditions and water-to-cement (w/c) ratio on the mechanical properties of mortar was studied in current case. It was found that introduction of super plasticizers into mortar mixes improved their workability and mechanical properties. The flexural and compressive strengths of mortar increased, as compared to control batch. This paper focuses on the mechanical properties of cement based mortar with mineral admixtures such as colemanite & metakaolin and high performance admixture and summarizes the outcomes of the research.

Experimental Setup

The cement mix proportions used in this study for casting the test specimens are represented in Table 3. An experimental program was conducted in order to evaluate compressive strength and flexural strength of different mortar types having different water cement ratio based on ingredients used. The various materials used during the experiment in producing batches, as Ordinary Portland Cement 42,5R, standard Rilem sand, colemanite mined in Turkey, metakaolin and hyper plasticizing concrete admixture Polydos TS14. These materials conformed to the relevant British Standard (BS 197-1) [1]. The specimens used for flexural test are 40x40x160mm prisms, after flexural test conducted, two chunks 40x40x80mm tested for compressive strength. Batches, where TS 14 included, were maintained with lower water cement ratios, due to hyper plasticizing property of used chemical [7].

M. Mushurov, O. Canpolat, M. Uysal, M.M. Al-Mashhadani, Y. Aygörmez, /J. Sustain. Construct. Mater. Technol. 3(2) (2018) 212–220

Twelve different combinations of binders were prepared. Combinations are given in table based on the preliminary conducted tests, the best ratios have been decided. For the colemanite, the total substitution ratio should not exceed 7% from cement weight. For metakaolin, the ratio should not exceed 30% from cement weight. Mass of super plasticizer determined from a relevant specification document [4]. The sand, pozzolanic materials, water/binder ratio and Super-plasticizer dosage were selected based on results obtained from testing trial mixes. For some batches it become necessary to increase the water/binder ratio, since the mix was very stiff or loose. For mixes where TS 14 applied, water/binder ratio is less since admixture provides extra plasticity. Table 3. Mixture Proportions or Details of the Investigated Mixes

Results and Discussion

The results of the compressive strength test conducted on samples containing different combinations of Colemanite, Metakaolin and SP are presented in Table 4 and Fig.1-4. Notable that compressive strength of reference mix did not reach minimal recommended compressive strength value as 42,5 MPa at 28th day, its strength 35.8MPa or 18.74% lower. This might be because of undue quality of used tap water. Still, obtained compressive strength is taken as a reference value. As it is observed, compressive strength decreasing as colemanite content increases. Addition of 1% Polydos TS14 increased compressive strength on almost 20.2% to 43,0 MPa comparing to the reference batch.

M. Mushurov, O. Canpolat, M. Uysal, M.M. Al-Mashhadani, Y. Aygörmez, /J. Sustain. Construct. Mater. Technol. 3(2) (2018) 212–220

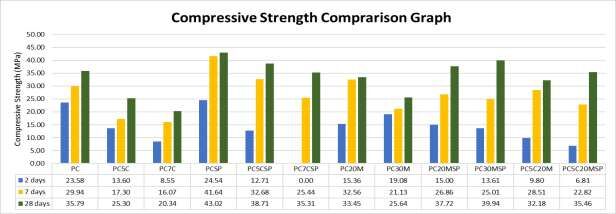

Figure 1. Compressive Strength Comparison Explicit comparison charts are given in Fig. 2-4:

Fig. 2a Compressive Strength of PC and Colemanite at 2, 7, 28 days

Fig. 2b Compressive Strength of PC, Colemanite and SP at 2, 7, 28 days

M. Mushurov, O. Canpolat, M. Uysal, M.M. Al-Mashhadani, Y. Aygörmez, /J. Sustain. Construct. Mater. Technol. 3(2) (2018) 212–220

Fig. 3a Compressive Strength of PC and Metakaolin at 2, 7, 28

Fig. 3b Compressive Strength of PC and Metakaolin at 2, 7, 28 days

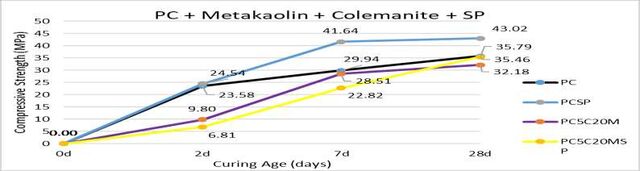

Fig. 4 Compressive Strength of PC, Metakaolin, Colemanite and SP at 2, 7, 28 days

M. Mushurov, O. Canpolat, M. Uysal, M.M. Al-Mashhadani, Y. Aygörmez, /J. Sustain. Construct. Mater. Technol. 3(2) (2018) 212–220

Table 4. Compressive strength test results at different curing ages Mix ID.

Pc30msp

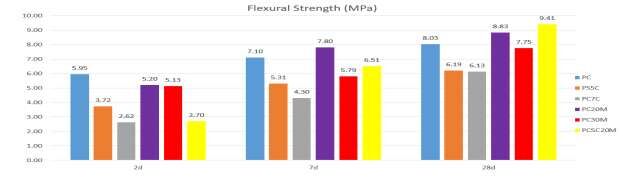

Flexural strength characteristics in tabular form is provided on (Table-7) and (Table-8). Three points loading test conducted in compliance with described in BS EN 196-1 [7]. Flexural strength of samples with 1% addition of Polydos TS14 showed better performance over the rest of the mixes, notable that results of PC5C20M, PC20M and PC5C20MSP, PC20MSP are close. Explicit graphs are demonstrating changes in flexural strength development over 2, 7 and 28 days of curing. For a better comparison, results presented as bar chart format divided on mixes without chemical supplement Fig. 5 and including it Fig. 6.

M. Mushurov, O. Canpolat, M. Uysal, M.M. Al-Mashhadani, Y. Aygörmez, /J. Sustain. Construct. Mater. Technol. 3(2) (2018) 212–220

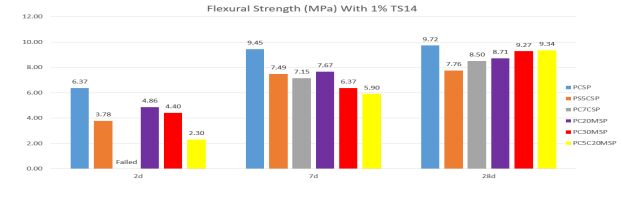

On Fig. 6 results of the same batches with addition of 1% TS14.

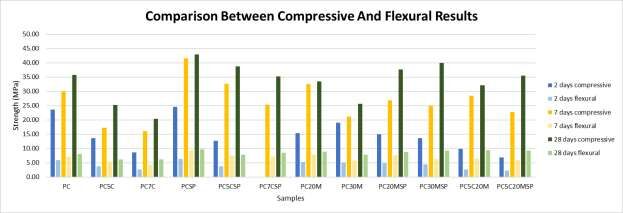

Fig. 7 Comparison between compressive and flexural results (MPa)

M. Mushurov, O. Canpolat, M. Uysal, M.M. Al-Mashhadani, Y. Aygörmez, /J. Sustain. Construct. Mater. Technol. 3(2) (2018) 212–220

Notable, that flexural strength of sample PC7CSP is higher than flexural strength of reference mix, 8.50 MPa against 8.03 MPa. The combined mix PC5C20MSP ratio showed 16.32% increase in flexural strength.

Conclusion

Properties, such a compressive strength and flexural strength containing different amount of colemanite, metakaolin and Polydos TS14 have been investigated. Results obtained from testing reference mix are 35.8 MPa compressive and 8MPa flexural. Mixes with low amount of colemanite showed decrease in both compressive and flexural strength. In case of 5% substitution compressive strength decreased on 29.32% and flexural on 22.86%. Use of 7% replacement severely deteriorated mechanical properties by 43.16% compressive and 23.67% flexural. Replacement by 20% metakaolin resulted in negligible decrease in strength to 35.4 MPa, or -6.56%. Water/cement ratio of PC20M batch is 0.5. Replacement of cement by 30% metakaolin reduced almost 29% of compressive, and 3.43% flexural strength. Use of super plasticizing agent at amount of 1% improved strength of reference mix on 20.2% to 43.0 MPa. It was observed that by substituting cement by 20% metakaolin and 5 % colemanite with 1% addition of Polydos TS 14 provides compressive strength result almost the same as reference value. Water/cement ratio for both experimental and control mix is 0.5. Compressive strength of PC5C20MSP is 35.45 MPa or 4% lower than reference value, flexural strength of mix has shown +16.32 improvement to 9.3 MPa. Also, total amount of cement in mortar can be reduced by 25%, this provides financial and ecological benefits.

References

1. BS EN 197 Cement Part 1: Composition, specifications and conformity criteria for common cements. 2015
2. S. Targan, Y. Erdogan, O.Gencel, U. Avciata, “Influence of colemanite admixture on Portland cement durability”, BU, DU, CBU, YTU, Turkey, 2011.
3. I. Kula, A. Olgun, Y. Erdogan, V. Sevinc, “Effects of colemanite waste, cool bottom ash, and fly ash on the properties of cement”, CBU, DU, SU, Turkey, 2000.
4. P.H. Kemp, “The Chemistry of Borax”, Part 1. Borax Consolidated Limited, S.W.I., London, 1956.
5. Gruber, K. A., and Sarkar, S. L., 1996, “Exploring the Pozzolanic Activity of High Reactivity Metakaolin,” World Cement, V. 27, No. 2
6. BS EN 196-1 Methods of testing cement — Part 1: Determination of strength. 2005
7. Ş. Targan, A. Olgun, Y. Erdogan, V. Sevinc, “Influence of natural pozzolan, colemanite ore waste, bottom ash, and fly ash on the properties of Portland cement”, CBU, DU, SU, Turkey, 2003.
8. M. Narmatha1, Dr. T.Felixkala, “Analysis the Mechanical Properties of Metakaolin using as a Partial Replacement of Cement in Concrete”, Educational Research Institute University, Chennai, India, 2017
9. Hooton, R. D.; Gruber, K.; and Boddy, A., 1997, “The Chloride Penetration Resistance of Concrete Containing High-Reactivity Metakaolin,” Proceedings of a PCI/FHWA International Symposium on High- Performance Concrete, New Orleans, La., pp. 172-183
