Pollution Free and Sustainable Copper Production Using Greenhouse CO2

Abstract

Keywords: Global Pollution; Greenhouse Gas; Sustainable Development; Cu Production; Hydrometallurgy

1. Introduction

Global environment pollution is due to the emission waste gases of burnt fuels from automobiles and manufacturing industries. Of these gases, Carbon dioxide is the main pollutant and is cause of global warming. In the developed countries, many industries had to be stopped due to government stringent laws against emission of the polluting CO 2. All nations in the developed and developing countries are involved and global pollution affected by one nation may be cause of gas emission of another nation. For over a century and half, such activities have pumped huge CO 2. into the atmosphere to increase its level higher than what have been for thousands of years. Though, governments of some pollution worried countries are taking measures to limit emissions of carbon dioxide and other greenhouse gases, the other countries are still emitting the harmful gases. It needs meeting of different nations and forming common laws to combat the problem. Thus, a voluntary agreement among 118 nations was made on November 4, 2016 [1], known as the Paris Agreement on environment pollution, to combat climate change. According to this agreement, each country agreed to take measures to combat climate change, with the ultimate goal of keeping the post-industrial global temperature rise below two degrees Celsius. Carbon tax [2] is another

This paper was recommended for publication in revised form by Editor Orhan Canpolat * Corresponding author/E-mail address: spaul.@metal.jdvu.ac.in (S. Paul) https://doi.org/10.29187/jscmt.2021.58 Received 27 December 2018; Received in revised form 21 January 2020; Accepted 13 October 2020, Available online 31 March 2021

Journal of Sustainable Construction Materials and Technologies, Vol. 6, No. 1, pp. 36-43, March 2021

method is cut down gas emission. In this case individuals and companies will have to pay higher taxes higher pollution generation process but will get incentives if they conserve energy and pollute less. The present investigation aims at utilizing CO2 and other harmful gases evolved in the atmosphere to produce useful products. That is waste to materials. If CO2 is passed through water carbonic acid is formed according to the following reaction. CO2 + H2O= H2CO3 ↔ 2H+ + CO32-

Carbonic acid is produced and further by hydrolysis, acid is generated and pH decreases of the system. How to utilize these two products? Chalcopyrite ore, CuFeS2, with Cu percentage less than 0.05% is not used for Cu production by conventional route. This low grade ore waste, obtained after mining and mineral beneficiation is dumped outside Cu extraction part and so only transportation cost is required to procure it. Conventionally Cu is extracted from CuFeS 2 by pyrometallurgical route [3, 4], that is roasting and smelting, converting at high temperature, followed by Electrorefining. The first three processes generate another polluting gas SO 2 which is thrown into the atmosphere and is the main culprit for acid rain. Instead, if the chalcopyrite ore CuFeS2 is hydrometallurgical extracted using by some solvent leachant [5], Sulphur will come as element sulphur S, which can be sold as by-product generation of SO2 can be prevented. The reaction is as follows: CuFeS2 + X (Lechant: H+, Fe3+) → Cu2+ + Fe2+ + 2S

The reaction requires highly oxidizing condition to be maintained. Fe 3+ is an oxidizing agent, but it reduces to Fe2+ after the reaction. To find the feasibility to utilize the green gas (1) for the above extraction of Cu (2), the reactions (1) and (2) need to be combined as follows: CuFeS2 + 4H+ + 2CO32- → Cu2+ + Fe2+ + 2S + 2H2 + 2CO32-

Since Cu/Cu2+ system is more noble than H2/H+ system, the reaction is feasible under oxidizing condition. Fe 3+, an oxidizing agent, can be added to proceed the reaction to the forward direction, else the system can electrical oxidized by applying external potential to drag electron through electrode as discussed below.

2. Experimental Methods

Low grade Chalcopyrite ore (0.05% Cu) was obtained (Figure 1) from Hindustan Copper Limited, Ghatshila, Jharkhand India. It was crushed and ground t0 -200 mesh. 20 gm of this ground ore was taken for each experiment. Polluting greenhouse gas CO2 was generated by dropping dilute HCl over CaCO3 as shown in Figure 2, experimental set up. Polluting gas was also produced by burning wood floor with air in an enclosed chamber as shown in the bottom part of Figure 2. The real pollution environment was used in the next stage of experiments after 1 st set of experiment using pure CO2 was successful in producing Cu. The polluting gas was passed through the solution (200ml distilled water), containing ground sample of 2gm Chalcopyrite ore. Two graphite electrodes were pushed through the top of the reactor and D C potential was applied across. The current and potential applied were recorded by digital meters. The electrode, connected with +ve terminal acted as anode and it helps in oxidizing leaching of the reaction 3. The other electrode, connected with the -ve terminal acted as cathode where Cu was supposed to deposit from Cu2+ ions. Initially oxidizer Fe3+ ions were added to the solution to start the reaction.

3. Results and Discussion

The noble idea behind the present work is utilization of exhaust polluting gasses (mainly CO 2) from the plant (Figure 1) and low grade unused chalcopyrite ore. Both are wastes which are converted to valuables. So the aim is waste to economy. Figure 2 shows the details of experimental set up which was discussed in the previous section.

Figure 1. Emission of polluting CO2 gas used to produce Cu collected from waste

Journal of Sustainable Construction Materials and Technologies, Vol. 6, No. 1, pp. 36-43, March 2021

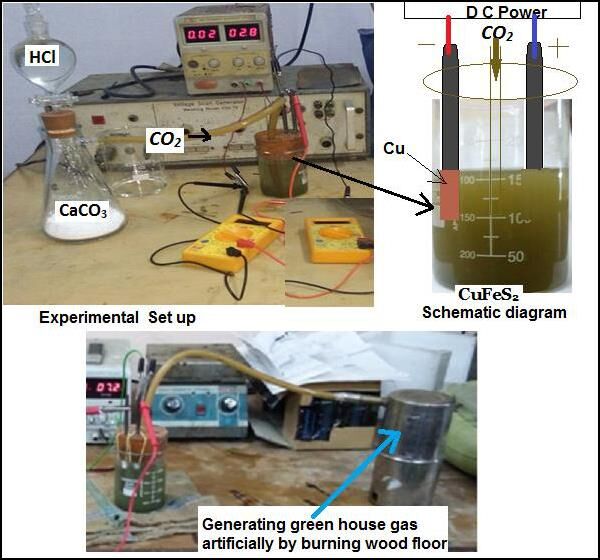

Figure 2. Experimental set up to extract Cu, using CO2 generated from carbonate or Burning wood floor, by combined Hydro and Electro Metallurgical Process

It was found that after the experiment, the color of the solution turns yellow (Figure 3). This is due to release of elemental sulphur S as explained by the reactions (2) and (3) above. The solution was filtered and the residue (Sulphur) was dried to obtain sulphur as by-product. In the conventional process of Cu extraction from CuFeS2, sulphur comes out as SO2 gas which is thrown into the atmosphere, aggravating environment pollution. In the present process, not only this pollution problem is prevented, but sulphur comes out as product to sell and increase economy.

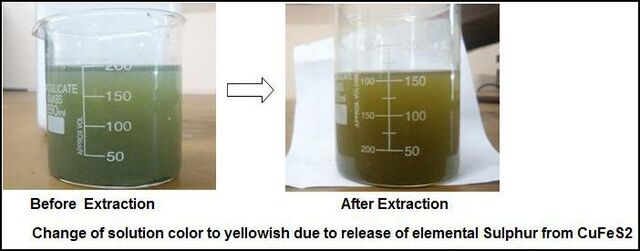

Figure 3. Showing yellowish solution due to release of elemental Sulphur

Figure 4 shows the Cu extracted at different temperature, both by hydrometallurgy and electrometallurgy. Cu2+ ions, first comes out from CuFeS2 into the solution by reacting with carbonic acid, produced from CO 2 gas (reaction 3). This is hydrometallurgical extraction of Cu. It requires an oxidizing condition. Initially it is provided by adding Fe 3+ ions. But once the reaction starts, the anodic region gets oxidized as electrons are dragged through anode, with the reaction (4), when Fe 3+ ions are regenerated, maintaining oxidizing condition at cathode the release Cu2+ ions are converted to metallic Cu. Thus, when Cu extracted by hydrometallurgy falls, Cu extracted by electrometallurgy rises.

Journal of Sustainable Construction Materials and Technologies, Vol. 6, No. 1, pp. 36-43, March 2021

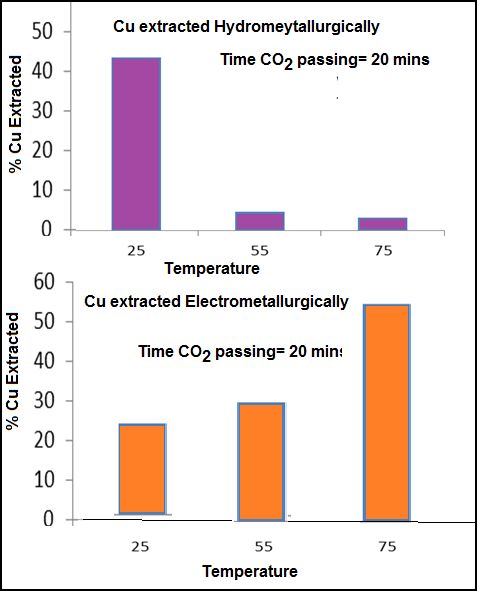

Figure 4. Bar graph showing metal extracted by Hydrometallurgy and Electro metallurgy with variation of temperature of leaching by CO 2

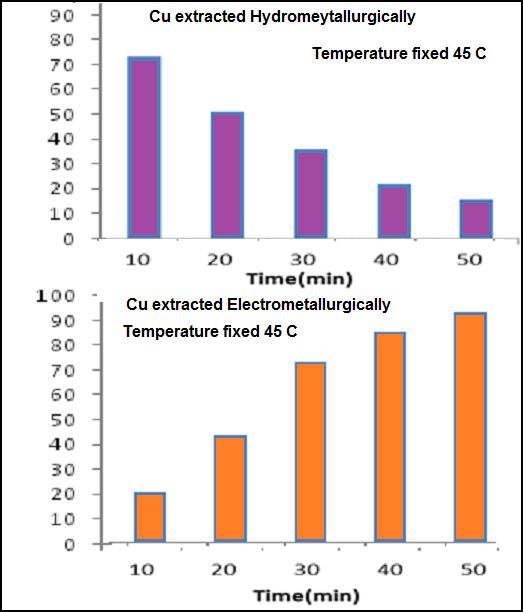

Figure 5. Bar graph showing metal extracted by Hydrometallurgy and Electrometallurgy with variation of the time of extraction by CO 2

Figure 5 shows similar study as the function of time of CO2 gas passing, at fixed temperature of experiments. The bar shows at each time (say 30 min.), the addition of two bars values will give the total amount of Cu extracted during that time by the combined hydro and electrometallurgical process. This is illustrated in Figure 6 which shows combined hydro and electro metallurgical extraction of Cu (green line curve) with passage of CO2 passing. It is seen that with passage of time the Cu amount by hydrometallurgy decreases, while that by 40

Journal of Sustainable Construction Materials and Technologies, Vol. 6, No. 1, pp. 36-43, March 2021

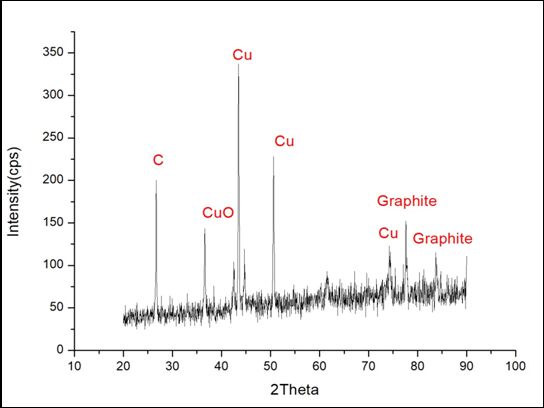

electrometallurgy increases. So the Cu2+ released by hydrometallurgy is immediately deposited at graphite cathode. The XRD of the deposited Cu at cathode is shown in Figure 7, which exhibits the presence of Cu, along with some CuO.

Figure 6. Comparison of Cu Extracted by Hydrometallurgy, Electrometallurgy and combined

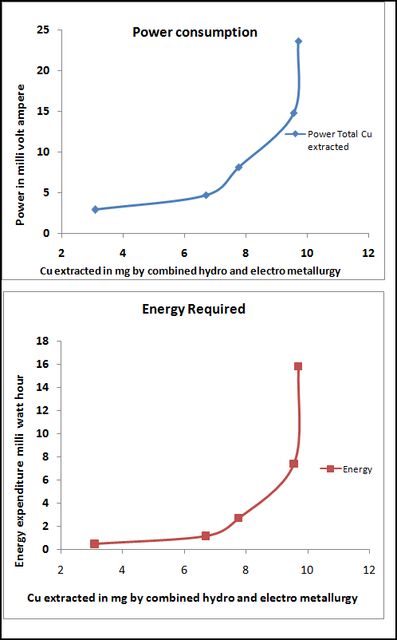

The applied potential between the two electrodes was 2.0-3.0 volt, depending on the temperature of operation and the applied current density was 3- 5 mA/cm2. Figure 8 shows the power consumption and energy required for Cu production by combined hydro and electro metallurgical process using the greenhouse gas.

Journal of Sustainable Construction Materials and Technologies, Vol. 6, No. 1, pp. 36-43, March 2021

Figure 8. Power and energy consumption of amount of extracted Cu

4. Conclusion

Cu production could be achieved from low grade Cu ore, using environment polluting greenhouse gases with an energy intensive process of a single stage combined hydro and electro metallurgical process.

Conflict of interest

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article

Ethics

There are no ethical issues after the publication of this manuscript.
