Natural pozzolan-based green geopolymer foam for thermal insulation
Journal of Sustainable Construction Materials and Technologies 2022, Vol. 7, Issue 3, pp. 6; doi.org/10.47481/jscmt.1142100
Abstract
Keywords: natural pozzolan; alkali activator; geopolymer foam; porosity; optical microscopy; thermal conductivity
1. Introduction
The building industry is one of the fastest growing industries [1], and buildings are liable for approximately 40% of the total energy consumption [2]. Generally, thermal insulation materials decrease the energy consumption of buildings by decreasing the energy loss. But organic thermal insulation materials are flammable, inorganic thermal
insulation materials need complex processing conditions, and high sintering temperature results in higher costs [3] and embodied energy. To reduce the energy consumption and consequently the energy requirement of buildings, apart from using thermal insulation materials, the development of new materials with higher thermal performance is of the utmost importance.
*Corresponding author. *E–mail address: ekizk@itu.edu.tr Published by Yıldız Technical University Press, İstanbul, Türkiye This is an open access article under the CC BY–NC license (http://creativecommons.org/licenses/by–nc/4.0/).
J Sustain Const Mater Technol, Vol. 7, Issue. 3, pp. 128–144, September 2022
Cellular or lightweight aggregate concrete materials have been produced to provide energy savings. However, their raw material is Ordinary Portland Cement (OPC), whose production process is energy intensive and emits approximately 1 ton of CO2 in a ton of production [4]. Recently, geopolymer foams have been produced by creating the gas bubbles into the binder during the chemical reactions between the foaming agent and alkali activator or by incorporating a large volume of readily–prepared air bubbles into the mixture [5], have been produced to replace foamed cementitious materials. Commonly used foaming agents such as finely divided metallic aluminum, hydrogen peroxide, sodium peroxide, sodium perborate, metal silicon, silica fume, and silicon carbide are in the field of promising research [6]. Due to the high volume of pores, they could contribute to the material's thermal performance. Furthermore, they are more sustainable than OPC–based foams since their process emits 0.19–0.24 tonnes of CO2 in a ton of its production [5], and up to 80% energy savings could be achieved [7]. Up until the present, scores of works have focused on producing highly porous geopolymers (porosity ≥50% or bulk density ≤0.7 g/cm3 [8]) having low thermal conductivity with different types of aluminosilicate sources. For example, ultrafine perlite–based geopolymer, activated with sodium hydroxide (NaOH) and foamed with hydrogen peroxide (H2O2, 0.5–3.0% by weight of aluminosilicate source), exhibits thermal conductivity, porosity, and compressive strength ranging between 0.03–0.06 W/mK, 74–89%, and 0.2–0.8 MPa, respectively [9]. Porous fly ash–based geopolymer was produced using sodium silicate (Na2SiO3) as an alkali activator and H2O2 (0.05–0.1% by weight of aluminosilicate source) as the foaming agent. The test results reveal that the values of thermal conductivity (0.07–0.09 W/mK), porosity (74–81%), and compressive strength (0.4–1.4 MPa) show promise as thermal insulation material [3]. In another study, biomass fly ash–based–geopolymers were activated by a mixture of NaOH and Na2SiO3 and were foamed using H2O2 as a pore–forming agent. Foamed geopolymers exhibit thermal conductivity as low as 0.10 W/ mK, porosity up to 72.5%, and compressive strength in a range of 1.2–6.6 MPa, depending on the content of the pore–forming agent (0.03–1.20% by weight of aluminosilicate source) [10]. In another research, fly ash–based geopolymer foams were produced by using H2O2 or Al powder foaming agents. The specimens containing H2O2 have 0.31–0.97 g/cm3 density and 0.083–0.174 W/mK thermal conductivity, whereas the specimens with Al powder have 0.50–0.77 g/cm3 density and 0.099–0.159 W/mK thermal conductivity. Study results state that these foams can be used as thermal insulation materials [11]. Fly ash was also foamed with sodium perborate foaming agent in the literature. The study results reveal that the density, thermal conductivity, and compressive strength of geopolymer foams
are in the range of 0.64–0.82 g/cm3, 027–0.32 W/mK, and 4.2–4.8 MPa, respectively [12]. Metakaolin–based geopolymer foam, activated with a mixture of potassium hydroxide (KOH) and potassium silicate (K2SiO3) and foamed with silica fume blowing agent, has a thermal conductivity between 0.12 and 0.33 W/mK, and porosity in a range of 65–85% [13]. The characterization of metakaolin–based geopolymer foam contains KOH and K2SiO3 as alkali activators and H2O2 (5–20%, by weight) as a forming agent, shows that the material with low thermal conductivity (0.11–0.17 W/mK), high porosity (60.2–83.1%), and acceptable compressive strength (0.3–11.6 MPa) could be successfully produced [14]. The pore morphology, density, porosity, thermal conductivity, and compressive strength of metakaolin–based porous geopolymers (containing H2O2 chemical pore–forming agent) were researched in another study. These geopolymers have 0.35–1.20 g/cm3 density, 0.4–5.65 MPa mechanical strength and improved thermal conductivity (0.13–0.32 W/mK) [15]. The influence of the Al powder content (3–12%, by weight) on the properties of the KOH/NaOH+Na2SiO3 activated metakaolin–based geopolymer foam was investigated. Material with improved insulating behavior, thermal conductivity of 0.15 W/mK, and porosity of 70% was produced depending on increasing Al powder content [16]. The possibility of using metakaolin–based geopolymer foams foamed with Na2O2 to be applied for fire protection was investigated. The foamed material with 0.30–0.46 g/ cm3 density, 0.085–0.115 W/mK thermal conductivity, and 0.6–1.6 MPa compressive strength possess a stable porous structure and excellent fire resistance [17]. The effects of sodium lauryl ether sulfate (SLES) foaming agents on pore types and properties of lightweight kaolinite–based geopolymers were also investigated in the literature. The results show that the lightest geopolymer foam has a porosity of 72.34% and a compressive strength of 4.69 MPa with low thermal conductivity of 0.197 W/mK [18]. Waste glass–based porous geopolymers with thermal conductivity of 0.21 W/mK, porosity of 55%, and compressive strength of 7.3 MPa were produced using a combination of KOH and K2SiO3 activators and H2O2 (5%, by weight) as pore foaming agent [19]. NaOH–activated bottom ash with varying amounts of Na2SiO3 (25–55%, by weight) as the foaming agent has 0.075 W/mK thermal conductivity, 72% porosity, and 3.55 MPa compressive strength and could be used as a thermal insulation material [20]. Waste metakaolin, recycled glass, and steel–plant waste were activated with NaOH+Na2SiO3 solutions and foamed with aluminum scrap recycling waste (50% by weight). The results showed that highly porous, lightweight building materials could be obtained with thermal conductivity, porosity, and compressive strength ranging between 0.14–0.15 W/mK, 83–86%, and 1.1–2.0 MPa, respectively [21]. Consequently, geopolymer foams show good insulating properties with thermal
J Sustain Const Mater Technol, Vol. 7, Issue. 3, pp. 128–144, September 2022
Table 1. Oxide Composition of ED, quicklime, and hardened mortar (ED)T determined by XRF

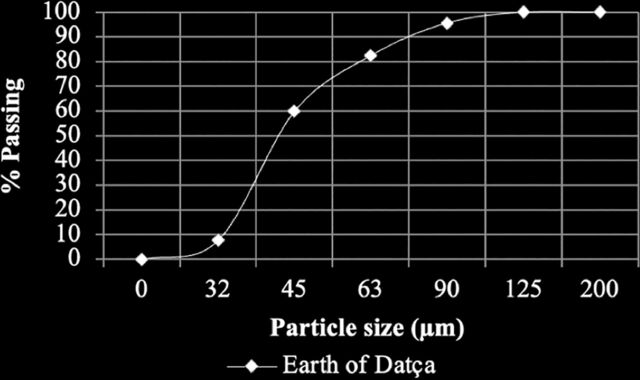

Figure 1. Particle size distribution of volcanic Tuff of Earth of Datça. conductivities, porosities, and compressive strengths ranging between 0.03–0.33 W/mK, 55–89%, and 0.2–11.6 MPa, respectively, depending on the type and quantity of aluminosilicate source, pore foaming agent, pore foaming agent– to–pozzolan ratio and fine sand–to–pozzolan ratio. Although much of the research carried out has been based on producing artificial pozzolan–based highly porous geopolymers with improved thermal performance, investigations regarding the production of natural pozzolan– based geopolymer foams are scarce. The natural pozzolan resources of Turkey are at a level that cannot be ignored. Approximately 155.000 km2 of the country consists of volcanic rocks [22]. Datça pozzolan used in this research is the natural soil of Datça Peninsula. It was formed due to strong volcanic eruptions in Nysiros and Yelli Islands [23]. This research aims to investigate the possibility of volcanic Tuff of Earth of Datça (ED) to be used as an aluminosilicate source in the production of geopolymer foam for thermal insulation. In the scope of the study, key factors such as fine sand–to–pozzolan (FS/P) and Al powder–to– pozzolan (Al/P) ratio affect the physical, mechanical, and thermal characteristics of ED–based geopolymer foam are researched. Optimizing the test results, a new porous material with low thermal conductivity is proposed as an alternative to the existing thermal insulation materials in the building industry.
2.1. Raw Materials
For the production of geopolymer foam, natural Datça pozzolan was used as an aluminosilicate source, and its specific gravity is 2.52 g/cm3. The specific surface area of the pozzolan, determined using the Blaine method [24], is 5467.75 cm2/g, and the particle size distribution is shown in Figure 1. Semi–quantitative element (XRF) and quantitative XRD analysis of the ED and lime–pozzolan mortar (ED)T produced for the pozzolanic activity test were performed in the
previous research [22] using Philips 71 PW–2404 XRF and Shimadzu XRD–6000 (Cu X–ray tube 1.5405 Angstrom) equipment, respectively. XRF analysis indicated that (Table 1) Earth of Datça fulfills the requirements of T.S. 25 [25] to be used as a natural pozzolan in cement and other types of binders because its SiO2+Al2O3+Fe2O3 content (92.26%) is higher than 70.0%, and its SO3 and Cl contents (0% and 0.092%) are lower than 3.0% and 0.1%, respectively. Furthermore, the pozzolanic activity test results (1.43 MPa flexural strength and 6.12 MPa compressive strength) provide the requirements of T.S. 25, which are ≥1 and 4 MPa, respectively. XRD patterns have shown that (Fig. 2) ED contains cristobalite, quartz, feldspar, and an amorphous compound, and (ED)T has hydration products, cristobalite, quartz, feldspar, portlandite, and an amorphous compound. Solid KOH with a molecular weight of 56.1 g/mol was
J Sustain Const Mater Technol, Vol. 7, Issue. 3, pp. 128–144, September 2022

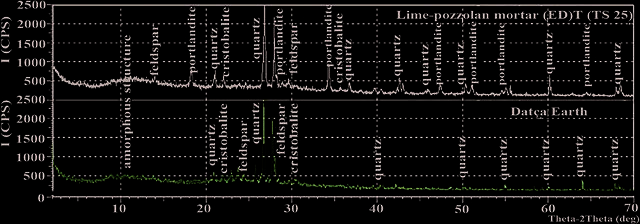

Figure 2. XRD data of ED and hardened mortar (ED)T. dissolved in deionized water for 24 hours before use and kept at ambient temperature. The mass of solid KOH in the solution is expressed as Molar (M). 12.5 molar KOH solution contains 12.5 x 56.1=701 grams of solid KOH in a one–liter solution. The sodium silicate solution's molar ratio (SiO2/Na2O) is 3.4. Finely ground silica sand with 211 µm maximum grain size and 2.63 g/cm3 specific gravity and aluminum powder foaming agent with 99% purity and 50 µm mean particle diameter was supplied from Ytong A.Ş.
2.2. Mixing, Molding, and Curing Process
The effects of activator types (NaOH, KOH, S+NaOH, and S+KOH), molar concentrations of the NaOH and KOH (7.5, 10, 12.5, and 15), and activator ratio (1.0, 1.5, 2.0, 2.5, by weight) on the geopolymeric reactivity were investigated in the previous research [26]. The combination of sodium silicate solution with potassium hydroxide (SK) as the activator type; 12.5 M as the concentration of KOH, and 2.5 as the activator ratio was selected for their better performance gain in physical and mechanical properties. In this research, the effectiveness of the following parameters, which may affect the development of the physical, mechanical, and thermal properties of the natural pozzolan–based geopolymer foam, was investigated: i The effect of acceptable sand–to–pozzolan ratio (FS/P); ii The effect of Al powder–to–pozzolan ratio (Al/P). Fine aggregate/filler is generally not added to highly porous geopolymers having low thermal conductivities in the literature [3, 9–10, 13–16, 19–21]. It converts cementitious binders to mortars, gives mortars their volumetric stability, rigidity, and stiffness [27], and has a restraining effect on drying shrinkage due to the stability in shape [28]. Acceptable sand use as a filler may also decrease the production cost by reducing the amount of binder (pozzolan and chemical activators). In the preliminary tests of this research, and was not added to the ED–based geopolymer binder. The new binder expanded approximately
3.5. times within 10 minutes after the binder was poured

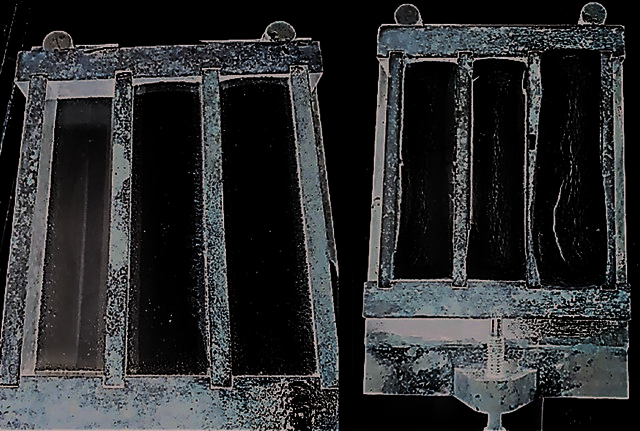

Figure 3. (a) The specimens 10 minutes after placing the molds; (b) The existence of collapse 30 minutes after placing the molds. into the molds (Fig. 3a). However, after 30 minutes, separation of solid and gas phases was observed, and the foam collapsed (Fig. 3b). The reason for this result may be the lower plastic density (≤0.5 g/cm3) of the porous binder which results in a significant decrease in the bubble confinement force (Fc) and leads to more giant and more closely spaced bubbles. Increasing bubble diameter causes an increase in the bubble buoyancy force (Fb). When Fb overcomes the surrounding Fc, bubbles become buoyant and float towards the surface of the porous binder, displace the surrounding solids, reach the surface, and collapse occurs [29]. Thus, in the first stage, the effects of the FS/P ratio (20/100, 25/100, 33/100, 50/100, and 100/100, by weight) on the properties of the foam were researched. The Al/P ratio was kept constant at 0.5% in this stage. The workability of the binder was determined by the flow table test performed according to ASTM C 1437 [30]. The water/total solid ratio, which results in optimum workability, was 0.4, and flow was found to be 100.
J Sustain Const Mater Technol, Vol. 7, Issue. 3, pp. 128–144, September 2022
Table 2. The specimen codes, mixing ratios, and curing conditions of the ED-based geopolymer foams according to the experiment stages
Stage Code Activator Activator-to ratio pozzolan (by weight) i
Specimen codes consist of XX-X-X format. The first symbol shows the alkali activator type (S: Sodium silicate, K: Potassium Hydroxide); the second shows the FS/P ratio, and the third points out the Al/P ratio.
According to the results of the first stage experiments, the FS/P ratio was selected as 20/100 because it has consistent properties for the following study stage. In the second stage, the effects of the Al/P ratio (0, 0.25, 0.50, 1.0, and 1.5%, by weight) on the foam's physical, mechanical, and thermal properties were tested. The specimen codes, mixing ratios, and curing conditions according to the experiment stages are shown in Table 2. The solid components (ED and fine sand) were mixed in a plastic bowl and then added to previously homogenized alkali activators and mixed for 5 minutes. Afterward, Al powder was added and mixed for additional 2 minutes. The mixture was then poured into 40 x 40 x 160 mm molds. It should be noted that foaming started immediately after Al powder was added to the mix. The reaction time for volume expansion of the mixture took approximately 10 minutes. Since the volume expansion ratio of the foam differs depending on the quantity of the added Al powder, in each increment of the Al powder addition, the volume expansion ratio of the mortar was determined by using a 500 ml glass test tube. The produced fresh mortar was filled in this test tube up to the level of 100 ml. After the expansion was completed, the volume expansion ratio (Rve) was calculated by Eq. (1): Rve=(Vf–Vi)/Vi(1) where Vi is the initial volume of the fresh mortar (ml); Vf is the final volume of the mortar (ml). Thus, the least amount of mixture was poured into the molds, and overflowing of the mixture from the mold during the expansion was prevented. The molded blend was covered with Polyethylene (P.E.) film to prevent rapid evaporation and cured at 70 °C and 95±5% R.H. for 24 h. Cured specimens were then taken from the oven and were kept at ambient temperature (20±2 °C, 50±5% R.H.) for seven days.
2.3. Testing Methods
Throughout the study, the relevant standards applied each physical and mechanical test to 9 prismatic specimens of 4 x 4 x 16 cm dimensions. Bulk density was calculated as the ratio of the dry mass to volume of the samples dried to a constant weight in a ventilated oven at 105 °C (TS EN 1015–10 [31]). The water absorption ratio (Ab) was calculated by considering the amount of water absorbed by the specimens, which were dried to a constant mass (md). The specimens were wholly immersed in water at 20°C for 48 hours, removed from the water, and weighed again (ms). The water absorption ratio was calculated according to the following equation (2) (TS EN 13755 [32]): Ab=([ms–md]x100)/md(2) The ultrasound pulse velocity (U.P.V.) test was applied according to TS EN 14579 [33] with a portable Proceq ultrasonic non–destructive device. The flexural strength was specified by using a machine (Universal) with a 300 kN capacity and 50 N/s loading rate (TS EN 196–1 [34]). The specimen was put on the machine with one side face on the supporting rollers and its longitudinal axis normal to the supports. The load was applied vertically using the loading roller to the opposite side face of the specimen and increased until fracture. The flexural strength (Rf) was according to the following equation (3): Rf=(1.5xFfxl)/b3(3) where b is the side of the square section of the specimen, (mm); Ff is the load applied to the middle of the specimen at fracture, (N); l is the distance between the supports, (mm). Eighteen samples, broken into two pieces in the flexural strength test, were subjected to the compressive strength test (TS EN 196–1 [34]). The specimen was centered laterally to the machine's plates, and the load was increased at a 2400 N/s rate until fracture. Compressive strength (Rc) was calculated from Eq (4):
J Sustain Const Mater Technol, Vol. 7, Issue. 3, pp. 128–144, September 2022
Rc=(Fc/1600)(4) where Fc is the maximum load at fracture, (N); 1600 is the area of the plates (40 mm × 40 mm), (mm2). Thermal conductivity was measured using the heat flow meter apparatus in steady–state conditions per ASTM C518–17 [35]. The heat flow meter apparatus consists of two copper plates, one heat flux transducer, and a protective casing with thermal insulation to prevent heat loss. The specimen (100 mm diameter and 10 mm thickness) was positioned between two copper plates, and the heat flow passing through the plates was recorded. The difference in temperature between the copper plates (∆T=T1–T2) and the heat flux (Q) was obtained with conventional sensors. Fourier's law of heat conduction was used to calculate thermal conductivity by using Eq. (5): (5) where Q is heat flux flowing through the specimen (W/m2), λ is thermal conductivity (W/mK), ∆T is the temperature difference across the specimen (K), x and d are the thickness of the specimen (m), T/x is temperature gradient (K/m). Optical analysis, which gives a detailed two–dimensional picture of the pores, was carried out to characterize the morphology of macroscale pores (>10 µm). The specimens were cut from geopolymer foams using a cutting machine. Three samples were prepared for each analysis, and four images of a fracture section of each sample were observed by optical microscope (1×). However, it is difficult to determine the pore size distribution solely by analyzing the microscopic images. Therefore, image analysis was conducted using Image–Pro Plus Image Analysis Software to analyze better the morphology of macroscale pores (air pores with >10 µm). The pore dimensions were quantified with equivalent circle diameter. Porosity, average pore diameter, maximum pore diameter, and pore size distribution were determined. The distribution of
mesoscale pore (100 nm –10 µm) was not considered because they are assumed to be insignificant in affecting the properties of geopolymer foams [36]. The test results are given in Table 3.
3.1. Influence of the Fine Sand–to–Pozzolan Ratio on
the Properties of the ED–Based Geopolymer Foam Pores are generated by a gas–releasing reaction in the geopolymer mixture, which results in a cellular structure when set. After Al powder is added to the homogeneous geopolymer mixture, in the alkali environment, reactive metal powders are oxidized in the presence of water to release H2 gas according to the reaction in Eq. (6) [37]: Al (s)+3H2O(l)+OH–(aq)→Al(OH)–4 (aq)+3/2H2 (g)(6) The hydrogen gas bubbles generated led to the ED– based geopolymer binder's expansion, which continued for the next 10 minutes. The influence of the FS/P ratio on the volume expansion ratio of the mortar was investigated together with the observation of the surface properties of the expanded specimens (Table 4). According to this, the volume of the first series prepared with a 20/a 100 FS/P ratio increased 3.0 times compared to their initial volume. Volume expansion ratios of the specimens, for each fine sand–pozzolan ratio increment, decreased by 2.8, 2.5, 2.2, and 1.1 times respectively. Especially in the specimens with the highest sand content (100/100 FS/P ratio), Al powder could not swell the binder, and almost no volume expansion (Table 4–Fig. e). The higher the amount of sand, the lower the alkali activator, Al powder, and pozzolan ratio, which are responsible for foaming the binder. In addition, light gray material precipitation looking like aluminum was observed on the top open surfaces of the sand–rich specimens (33/100, 50/100, and 100/100 FS/P ratio) after oven curing at 70 °C. This causes surface deformation; accordingly, the color and texture homogeneity of the specimens was impaired (Table 4–Fig. c–e).
J Sustain Const Mater Technol, Vol. 7, Issue. 3, pp. 128–144, September 2022
Table 4. The effects of the FS/P ratio on the volume expansion ratio and surface properties of the swollen specimens
1.1. times
The influence of the FS/P ratio on the physical and mechanical properties of ED–based geopolymer foam is given in Figure 4. The gradual increase of the FS/P ratio from 20 to 100% decreased porosity and water absorption by 0.83 and 0.68, respectively. Parallel to this decrease, there was an almost twofold increase in the bulk density of the specimens (1.66 times). Notably, this becomes significant in the region between 50 to 100% FS/P ratio, where the increment ratio of the sand is two-
fold. U.P.V., flexural and compressive strengths of the specimens increased 1.28, 1.80, and 1.81 times, respectively. When the increment of the sand ratio is twofold in the region between 50 to 100% FS/P ratio, the material's compressive strength increases significantly parallel to the increase of its bulk density. Figure 5 shows the microscopic images of ED–based geopolymer foams in each FS/P ratio. The sand ratio increases lead to a decrease in the pore volume (porosity) and the number of pores, which is also consistent with physical
J Sustain Const Mater Technol, Vol. 7, Issue. 3, pp. 128–144, September 2022
Total pore areas and porosities of the specimens as a function of the FS/P ratio are given in Figure 7. According to this, both the porosities of the specimens (obtained by experiments) and total pore areas per mm2 (obtained by image analysis) decrease with the increase of sand content of the mixture. This decreasing trend is significantly similar for both factors, which may also denote that the image analysis is a suitable method for determining the pore volume of the geopolymer foams.
Figure 4. Effects of the FS/P ratio on the physical and mechanical properties of ED-based geopolymer foam. test results. Frequency distribution diagrams of the pore diameters were prepared and given in Figure 6. Accordingly, the diameter of the specimens' pores ranged from 61 µm to 2038 µm (2.038 mm). The gradual increase of the FS/P ratio from 20/100 to 100/100 reveals that the distribution of pore size shifts towards the larger pore size distribution. The specimens with a 20/100 FS/P ratio are more homogenous with finer pore sizes, regular (narrower) pore size distribution, and a maximum 1217 µm pore diameter. When the sand content of the binder increases, the porous matrix shows the non–homogeneous distribution of larger pores, and the maximum pore diameter increases up to 2038 µm. The average pore diameter is 280 µm in the specimens having a 20/100 FS/P ratio, while the average pore diameter increases up to 407 µm depending on the increase of the FS/P ratio (100/100). These findings may be due to a higher proportion of pores between fine sand particles and at the fine sand–binder interface. In addition, the pores of sand–rich specimens have a higher degree of interconnectivity, whereas the specimens having lower sand content have a relatively lower degree of interconnectivity between pores. Furthermore, while the number of pores per mm2 is the highest in samples with a 20/a 100 FS/P ratio, increasing sand content decreased the number of pores per mm2. From these findings, it can be inferred that the total amount of fine sand in the porous geopolymer mixture controls the pores' total volume, dimension, and size distribution.
3.2. Influence of the Al Powder–to–Pozzolan Ratio on
the Properties of the ED–Based Geopolymer Foam The effects of the Al/P ratio on the physical and mechanical properties of ED–based geopolymer foam having 20% find sand content are given in Figure 8. When the Al/P ratio increases gradually from 0% to 1.5%, two distinct regions become apparent in the evolution of the properties. At first, adding 0.25% Al/P into the mixture was quite effective in pore–forming, and the bulk density of the material dropped by 53%. Beyond this level to the 1.5% Al/P, even though there was a 1.25 times increment in the Al powder ratio, the same property only decreased by 23%, which may show the influence of Al powder in pore– forming became lower. Other properties of the material as a function of Al/P ratio increment displayed almost a coherent change with the bulk density. At 0.25% Al/P ratio, the porosity, and the water absorption ratio increased sharply by 1.65 and 2.21 times, and parallel to this increase in U.P.V., flexural and compressive strengths of the specimen decreased by 0.72, 0.31, and 0.36 times, respectively. The gradual decrease in U.P.V. (54%) in the whole aluminum powder increment range may have resulted from the porous structure's gradual formation. The decreasing tendency of physical and mechanical properties with the increasing pore foaming agent content is also consistent with other study results [3, 5, 38]. Figure 9 shows the microscopic images of ED–based geopolymer foams with various Al/P ratios, and Figure 10 shows frequency distribution diagrams of the pore diameters and average and maximum values of pore diameters of ED–based geopolymer foams with various Al/P ratios. Increasing the Al/P ratio from 0 to 1.5% led to an increase in the total pore volume of the ED–based geopolymer and was consistent with the physical test results (Fig. 9 and 10). Pore diameters of the specimens ranged between 72 µm and 1787 µm (1.787 mm). Specimen with 0.25% Al/P ratio has homogenous, fine pore size with regular (narrower) pore size distributions. Average and maximum pore diameter was detected as 268 µm and 1200 µm, respectively. Gradually increase in the Al/P ratio from 0.25 to 1.5% shifted the pores of the specimen towards broader pore size distribution. Non–homogeneous distribution of larger pores with an average pore diameter of 411 µm and maximum pore diameter of 1787 µm were detected in its porous matrix. In addition, the pores showed a higher degree of interconnectivity than the specimens, with a 0.25%
J Sustain Const Mater Technol, Vol. 7, Issue. 3, pp. 128–144, September 2022

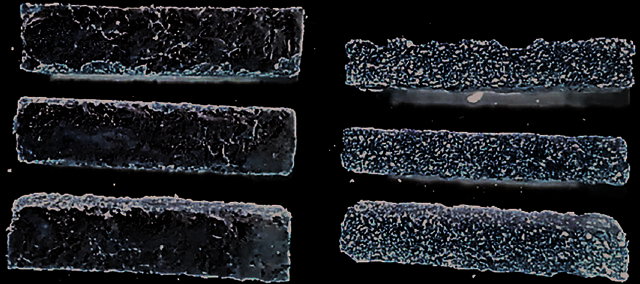

Figure 5. Microscopic images of ED-based geopolymer foams having various FS/P ratios. Al/P ratio. This degree of pore coalescence may have led to a non–homogeneous pore structure and caused the least number of pores per mm2, compared to other samples. Similar results were obtained by various studies [16, 39].
Thus, it can be stated that in the porous geopolymer mixtures, the content of Al powder is decisive in determining the total volume, dimension, size distribution of the pores, and the degree of interconnectivity between them.
J Sustain Const Mater Technol, Vol. 7, Issue. 3, pp. 128–144, September 2022
Figure 6. Frequency distribution diagrams of the pore diameters, average and maximum values of pore diameters of EDbased geopolymer foams having various FS/P ratios. The ultrasound pulse velocity (U.P.V.) is a non–destructive test method used to measure the homogeneity of concrete [40]. The pores and cracks in the concrete reduce the U.P.V. of the material, which aids in specifying the quality of concrete [41]. In this study, the homogeneity of the pore distribution of the material is determined by measuring the U.P.V. in two different regions of the sample (Fig. 11a), and the homogeneity percentage is calculated according to the standard deviation of U.P.V. results (Fig. 11b). The highest homogeneity (99.3%) was obtained from the specimens which do not have any Al powder content as expected. Increasing the Al powder content led to a decrease in the homogeneity of the ED–based geopolymer
Figure 7. Total pore area and porosity of ED-based geopolymer foams as a function of FS/P ratio.
J Sustain Const Mater Technol, Vol. 7, Issue. 3, pp. 128–144, September 2022
Figure 8. Effects of Al/P ratio on the physical and mechanical properties of ED-based geopolymer foam.
foams. Mainly, the least level of homogeneity (85.8%) was observed in the specimens having a 1.5% Al/P ratio, which may have resulted from the larger pore size distribution. This result confirms the findings that adding more Al powder may cause a microstructure with larger pores and irregular pore size distribution. The effects of the Al/P ratio on porosity, average pore diameter, thermal conductivity, and compressive strength are given in Figure 12. The porous microstructure of ED–based geopolymer mortar by adding Al powder in various proportions caused lower compressive strength than the sample without Al powder content. The specimens containing lower amounts of Al powder (0.25 and 0.50%) have found higher strengths due to the paste's being more homogenous with finer pore size and narrower pore size distribution. In addition, these specimens have a relatively lower amount of interconnectivity between pores. Thus, regularly formed air pores increase the compressive strength [42]. However, in the specimens with a 1.5% Al/P ratio, pores were interconnected, and a higher degree of pore interconnectivity and foam coalescence (merging of bubbles) led to a wide distribution of pore size and lower strength [42]. When the pore wall is too thin to bear incoming shrinkage, and if there are excessive bubbles in the matrix, during the drying process, the films between them become weak, and the bubbles start to co-
Figure 9. Microscopic images of ED-based geopolymer foams having various Al/P ratios.
J Sustain Const Mater Technol, Vol. 7, Issue. 3, pp. 128–144, September 2022
Figure 10. Frequency distribution diagrams of the pore diameters, average and maximum values of pore diameters of EDbased geopolymer foams having various Al/P ratios. alesce, giving rise to much more connected pores with larger overall pore size. Accordingly, the mechanical properties of the material decrease [43–46].
3.3. Thermal Properties of the ED–Based Geopolymer
Foam In the current study, Al powder was added to the geopolymer mortar to reduce its thermal conductivity without compromising the physical and mechanical performance requirements required for the material to be used in partition walls. The gradual increase of the Al/P ratio from 0% to 1.5% is directly proportional to the increase in porosity (1.89 times), but it is inversely proportional to the thermal conductivity, where it decreased from 0.312 W/mK to 0.087 W/mK (0.27 times) (Figure 12). A higher degree of porosity means more pores that may act as thermal insulation [47] since the thermal conductivity of still–air is lower than that of the solid matrix [48]. The most significant decrease in the thermal conductivity of the material occurred between 0–0.25% Al/P ratio, which highlights the positive effect of Al powder addition on lowering the thermal conductivity of the solid matrix. By increasing the Al/P ratio from 0.25 to 0.50, the porosity and average pore diameter increased approximately 1.1 times, while the thermal conductivity de-
creased 0.75 times. By increasing the Al/P ratio from 0.50 to 1.50, although the porosity and pore diameter increased approximately 1.50 times, the decrease in the thermal conductivity was only 0.86 times (Figure 12). Increasing the amount of Al/P ratio by more than 0.50 did not give the expected effect in reducing the thermal conductivity. This may be due to the contrasting effect of the non–homogeneous pore size distribution with larger pores (Figure 9). Therefore, it can be stated that the development of the thermal insulation capacity of a geopolymer foam is not only affected by the porosity and hence density, but also by the pore size, shape, and interconnectivity between pores [49, 50]. Smaller, more circular, and less interconnected pores increase the insulation capacity in porous structures [51]. In the case of higher thermal performance is expected, the specimen with the lowest thermal conductivity (0.087 W/mK) having the highest Al/P ratio can be selected as optimum. However, mechanical properties cannot be ignored during practical implementations [43]. Indeed, it is expected that these porous materials have the least strength that could maintain their stability under loads of non–load bearing wall sections. The criteria in the production of ED– based geopolymer foam are determined to have a thermal
J Sustain Const Mater Technol, Vol. 7, Issue. 3, pp. 128–144, September 2022
Figure 12. Effects of the Al/P ratio on porosity, average pore diameter, thermal conductivity, and compressive strength.
Figure 11. (a) Ultrasound pulse velocity obtained from two different regions in a sample; (b) calculated homogeneity percentage. conductivity of ≤0.1 W/mK and compressive strength of ≥1.0 MPa [48]. According to this, the optimum Al/P ratio of 0.5% meets the determined criteria.
3.4. Comparison with Other Current Inorganic
Ceramic Wall and Insulation Materials Bulk density, thermal conductivity, and compressive strengths of ED–based geopolymer foams are compared with those of various inorganic ceramic wall and insulation materials used in the building sector (Table 5, Fig. 13). According to Table 5 and Figure 13, the thermal conductivities of ED–based geopolymer foams produced in this study were higher than that of glass foam and lower than that of vertically perforated lightweight brick; similar results were obtained with pumice concrete, aerated autoclaved concrete, and foam concrete. Suppose protective layers can compensate for their lower compressive strength and higher water absorption ratio. In that case, this material may be used as a core layer of a laminated geopolymer composite, which behaves homogenously regarding macro scale.
3.5. Comparison with Other Existing Studies in the
Literature The porosity, thermal conductivity, and compressive strength of ED–based geopolymer foams are com-
Figure 13. Comparison of the properties of ED-based geopolymer foam with inorganic ceramic wall and insulation materials (P.C.: Pumice concrete, A.A.C.: Aerated autoclaved concrete, F.C.: Foam concrete, VPLB: Vertically lightweight perforated brick, G.F.: Glass foam, T.I.P.: Thermal insulation plasters, ED: Earth of Datça-based geopolymer foam). pared with those of geopolymer foams produced from various aluminosilicate sources and pore foaming agents (Table 6). According to this comparison, the lowest thermal conductivity of ED–based geopolymer foam (0.087 W/mK) is higher than that of ultrafine perlite–based geopolymer foam [9]; similar to that of fly ash [3], bottom ash [20, 53], and a combination of metakaolin and fly ash [54] based foams; lower than that of fly ash [10, 38], calcined kaolin [55], natural soil of Pakistan [5], a combination of metakaolin and silica fume [6], metakaolin [13, 14, 16, 56], waste glass [19], and metakaolin waste, glass waste and steel–plant waste [21]–based geopolymer foams. It is seen that the porosity and compressive strength values of the produced foam like to those of the other materials in the table. Thus, ED–based geopolymer foam looks promising to be used as a rigid inorganic wall insulation material in the building industry.
J Sustain Const Mater Technol, Vol. 7, Issue. 3, pp. 128–144, September 2022
Table 5. Compare ED-based geopolymer foam properties with other inorganic ceramic wall and insulation materials
Table 6. Comparison of ED-based geopolymer foam properties with other geopolymer foams containing various aluminosilicate sources and pore-forming agents
4. Conclusions
In line with the results obtained throughout the study, the following remarks can be specified: • Geopolymer mixture produced by mixing Al powder as a foaming agent and volcanic Tuff of Datça Peninsula in Turkey as aluminosilicate source gives promising results
in producing highly porous geopolymers with low thermal conductivity. The addition of finely ground silica sand ensures the volumetric stability of the geopolymer binder and prevents the collapse after swelling of the binder. The volume expansion ratio of the binder decreases with the increasing fine sand to pozzolan (FS/P) ratio.
J Sustain Const Mater Technol, Vol. 7, Issue. 3, pp. 128–144, September 2022
The optimum FS/P ratio is determined as 20/100 since it enables the production of more homogeneous mortar without any collapse and surface deformation. The pores of sand–rich specimens show the non–homogeneous distribution of the larger pores with a higher degree of interconnectivity. Furthermore, because fine sand decreases the porosity and increases the density of the mortar, it leads to reduce thermal performance; the amount of fine sand should not be increased unnecessarily. The optimum Al powder to pozzolan (Al/P) ratio is determined as 0.5% because it gives better physical, mechanical, and thermal properties due to its more homogenous microstructure with finer pore size, regular (narrower) pore size distribution, and lower degree of interconnectivity (low amount of pore coalescence). The thermal conductivity is affected by the total volume of the macroscale pores (>10 µm), shape, and interconnectivity between pores. Smaller, more circular, and less interconnected pores increase the insulation capacity in porous structures. Thermal conductivities of ED–based geopolymer foams (0.087–0.134 W/mK) were found within a similar range with commonly used alternative inorganic ceramic wall materials. The high insulation capacity is considered the main key parameter. ED–based geopolymer foam provided promising data to be used as a rigid wall insulation material in the building industry. However, its comparatively lower mechanical properties and higher water absorption ratio could be compensated by protective layers, and it could be used as a core layer of a laminated geopolymer composite that behaves homogenously with regard to macro scale.
Acknowledgments
The authors express their gratitude to Prof. Dr. Emin Çiftçi, who provided the I.T.U. Department of Geological Engineering laboratory facilities for optical microscope analysis.
