A Review on Selected Durability Parameters on Performance of Geopolymers Containing Industrial By-products, Agro- Wastes and Natural Pozzola

Order Reprints Cite Share

Festus NGUİ1, Najya MUHAMMED2, Fredrick Mulei MUTUNGA2, Joseph MARANGU3, and Ismael Kithinji KINOTI3

1Pwani University
2Pwani
3Meru University of Science & Technology

Journal of Sustainable Construction Materials and Technologies 2022, Vol. 7, Issue 4, pp. 5; doi.org/10.47481/jscmt.1190244

Download PDF View DOI record

Abstract

The applications of geopolymers as cementitious systems are becoming an alternative source of cement daily. The use of potentially suitable aluminosilicate inorganic waste materials incorporated with agro-industrial waste in the production of suitable geopolymer binders has been reported. Calcined clay and some agro-waste ash, such as coconut shells, are examples of aluminosilicate materials that exhibit strong pozzolanic activity because of their high silica-alumina composition. The pozzolanic reaction is primarily caused by the amorphous silica present in properly burned agricultural waste and clay. Based on a variety of available literature on concrete and mortar including geopolymers synthesized from agro-industrial waste, a critical review of raw materials and the mechanism of synthesis of the geopolymer has been outlined in this work. Additionally, the durability characteristics of agro-industrial waste geopolymer concrete and mortar, including resistance to chloride, corrosion, sulfate, acid attack, depth of carbonation, water absorption, thermal resistivity, Creep and drying shrinkage, are briefly reviewed.

Keywords: agro-industrial waste; calcined clay; coconut ash; durability; geopolymer

1. Introduction

The worldwide search for a sustainable and environmentally friendly alternative to today's dominant-natural resource-depleting convectional cement supply is the result of the rising binder innovations. Numerous agro-industrial byproducts and wastes as well as natural pozzolans have

the potential to help resolve some of the world's binder and environmental issues due to their well-known silica and/or alumina content. Numerous agricultural wastes have indeed been reported to contain pozzolanic ash, including coconut shell/fiber, olive stones, sugar cane bagasse, cotton stalks, and grape seeds [1–4]. Other reported potential agro-waste are from pine sawdust, almond, nut, hazelnut, and sunflow-

*Corresponding author. *E-mail address: festongu@gmail.com Published by Yıldız Technical University Press, İstanbul, Türkiye This is an open access article under the CC BY-NC license (http://creativecommons.org/licenses/by-nc/4.0/).

J Sustain Const Mater Technol, Vol. 7, Issue. 4, pp. 375–400, December 2022

er shells, corn, oat, and rice hulls [5], apricot, peach, and cherry stones, sunflower stalk [5–9]. Amorphous silica and the reactive element in the ash can be utilized as pozzolan in cement manufacturing to provide inexpensive building blocks and as cement, in addition to hardening hazardous wastes [10–12]. Recent studies have shown that some of the ashes can be used to create geopolymer and alkali-activated materials (AAMs) [13]. Geopolymer is an aluminosilicate binder that is made by the use of alkaline as an activator on solid precursor materials that contain silica and alumina at or just above room temperature. The alkaline solution is used to speed up aluminosilicate solubilization for the development of the material's cementing characteristics [14]. Similarly, geopolymer can also be defined as either pure inorganic or organic alkaline-solution substance with a high silica and alumina content, according to Kim et al. [15]. These materials resemble zeolite with a polymeric Si-O-Al framework and their binding properties depend on SiO2/Al2O3 ratio in the framework. In recent decades, this group of minerals has become one of the most important substitutes for conventional cement (OPC) as a binder for the manufacture of pre-cast concrete. This is due to their respectable durability qualities like low shrinkage, fire resistance, acid resistance and environmentally sustainable for the construction industry [16–20]. They are environmentally friendly materials since they have low manufacturing temperature and CO2 emission which is estimated to be nine times less compared with OPC [16]. The demand for long-established natural raw materials and aggregates in cement as a binder and concrete is greatly brought to a minimal level by the use of industrial by-products in the creation of geopolymers. This directly reduces CO2 emissions, landfilling, and energy consumption as well [21, 22]. As a result, it has proved to be a "green material," meaning that it utilizes little energy during manufacturing and emits little waste gases [23]. Due to this, geopolymer is now one of the contenders for resolving the conflict between societal growth and environmental pollution caused by the production of binders [24]. Therefore, geopolymer has applications in waste management, biomaterials, fireproofing, building engineering, and other fields [25, 26]. In comparison to PC, processing geopolymer cement uses less fuel, less calcium-based raw material, and lower manufacturing temperatures. As much as 80% to 90% less carbon dioxide is released as a result [16]. Aluminosilicate AAMs are used to create geopolymers, which can have stronger final products and do so more affordably than OPC [18]. Typically, the first four hours of the setting are when 70% of the final compressive strength is reached [27]. Geopolymer constructions exhibit decreased permeability, resilience to fire and acid attack, better unconfined compressive strength, significantly less shrinkage, excellent heavy metal ion solidification, and exceptional freeze-thaw

cycle resistance. It’s considered a high-strength concrete application that demonstrates strong resistance to fire, acid, and/or chloride penetration. So, for the chemical and nuclear sectors, geopolymers may offer a promising waste immobilization solution. The favorable effect of geopolymers on the durability performance of the resulting cementitious composite is their principal benefit. This is connected to their dimensional stability, especially with geopolymer compositions that have very low C-S-H levels [28]. The primary reaction occurs when amorphous aluminosilicates in metakaolin-based materials and other amorphous aluminosilicate materials, such as fly ash and volcanic ash with low calcium concentrations, are activated by alkalis. In essence, this causes the creation of polysialates (M-A-S-H). The attack of alkali on aggregates is the secondary reaction, although, in the absence of calcium, this won't have much. The nature and composition of the reaction products produced by geopolymers or alkali-activated cementitious materials typically rely on the type of agro-industrial by-product of the aluminosilicate precursor used, and they differ from those normally derived from OPC. The production of each of these compounds depends on the Ca/Si and Si/Al and the pH contents of the matrix. For hybrid cementitious materials, Garcia-Lodeiro et al. [29], documented the existence of several gels. This included calcium silicate hydrate (C-S-H) from the usual hydration of PC, calcium aluminosilicate hydrate (C-A-S-H), and (N, C)-A-S-H gels, which are the main by-products of the alkaline activation of aluminosilicate. In comparison to the same type of cement without activation, Palomo et al. [30], found a 50% improvement in strength at an early curing age, a lower heat of hydration, and an early setting time. They explained this as being caused by the availability of C-A-S-H, N-A-S-H, and (N, C)-A-S-H gels, which have previously been noted from hybrid types of cement made of 7:3 of FA: OPC [31]. The alkali-activated gel is created as a result of the exothermic reaction between solid aluminosilicates and hydroxide, silicate, and sulfate solutions of alkali, which promotes the ions dissolution of both Al+3 and Si+4 from starting materials [32, 33]. This gel exhibits high-quality mechanical and durable properties in the hardened phase. Geopolymer cement can be classified as fly ash, slag, rock, or ferro-sialate-based geopolymer types of cement. Alkali-activated binder, an inorganic polymer, mineral polymer, hydro ceramics, and alkali-bonded ceramic are some further names for this substance [34, 35]. Substituting waste for Portland cement in the industrial manufacturing of activated alkali materials or geopolymer binders will have positive economic and environmental effects. It would also resolve the issues related to the removal of significant amounts of garbage from industry and building sites that could otherwise threaten the environment, such as coconut shells and calcined clay brick waste.

J Sustain Const Mater Technol, Vol. 7, Issue. 4, pp. 375–400, December 2022

2. RAW Materials For Geopolymer Synthesis

In addition to the alkaline solution, silica-aluminum sources are used as raw ingredients in the production of geopolymer concrete. For the synthesis of geopolymers, there are two types of raw materials. Along with the alkaline activating solution, which is often an alkali metal hydroxide or silicate solution, this also includes the reactive aluminosilicate particles such as fly ash and calcined clays. One-part geopolymer precursors have generated interest [36–38] however, the strength of the materials do not match the requirements for the majority of construction applications. Different aluminosilicate industrial waste materials have traditionally been shown to pose effective options for the synthesis of geopolymer. These include building demolition debris, metallurgical slag, coal fly ash, and a variety of biomass ashes like rice husk ash, coconut shell ash, palm oil fuel ash, and others [39, 40]. The two most often used starting materials in the synthesis of geopolymers for use in the building are fly ash and calcined clay. Industrial waste or by-product created during the production of coal-fired energy is called fly ash [41]. For geopolymers production, a wide range of raw materials with high silica and alumina contents can be employed. Depending on where they come from, the raw materials are categorized into three classes. Among them are primary raw materials, which are composed of natural minerals and secondary raw materials, which are industrial by-products and their wastes and by-products raw materials of natural origin [42]. Natural minerals from the earth's crust, which comprises 65% Al-Si elements, are the main suppliers of raw materials [23, 43]. Several Al-Si minerals and clays, primarily kaolinite and metakaolin, have been found to polymerize in the past [23]. A purer and easily described starting material for geopolymerization is provided by metakaolin. Due to its predictable qualities and stable chemical make-up, it is also commonly employed for industrial and scientific applications. Poorly activated kaolin produces geopolymers based on metakaolin, which are too soft and water-intensive to be of much use in building applications [44–47]. The reactivity of kaolin can be improved by either mechanical or thermal treatment. Mechanical activation involving prolonged grinding decreases the degree of crystallinity and surface energy and hence increases the chemical reactivity [48]. Dehydroxylation of kaolinite at 600–800 °C for 2–5 hours results in metakaolin [44, 47], depending on purity and crystallinity, as shown in Equation (1).

Metakaolin is a highly reactive anhydrous aluminosilicate-metastable clay that can be produced by calcining kaolin to temperatures between 650 oC and 700 oC, according to [49, 50]. According to earlier studies, the reactivity of metakaolin changes as a result of heat treatment at calci-

nation temperatures between 450 and 600 oC [51, 52]. According to [53] Table 1 displays the normal chemical composition of metakaolin. Burnt clays' ability to acquire pozzolanic properties is influenced by the raw material’s quantity and kind of clay minerals present, the calcination conditions, and the fineness of the finished product [54–57]. Wastes and by-products from industry are secondary raw resources. The secondary raw materials are used in making more environmentally friendly geopolymers which also help in preserving natural resources [58, 59]. These include waste broken bricks, waste glass, fly ash, red mud, and blast furnace slag [60, 61]. Fly ash and slag are the secondary raw materials that are used and studied the most [42]. Fly ash and blast furnace slag are examples of secondary raw materials that are heterogeneous and contain contaminants like calcium and iron. This opens up more chemical pathways during polymerization, which may have an impact on the final product's setting times, slump, strength, and shrinkage [19, 62, 63]. Fly ash which is a by-product of power plants fueled using coal, mostly consists of SiO2 and Al2O3, along with a few minor substances like CaO, Fe2O3, MgO, etc. Since it has high alumino-silicate, better workability, low water demand and readily available thus has been a material of concern for geopolymer synthesis. Geopolymerisation of fly ash with alkaline media forms a cementitious material that comprises of alumino-silicate-hydrate (A-S-H) gel [64]. This geopolymer product has improved durability and strong mechanical strength [65]. However, the low reactivity of the material has limited the manufacture of geopolymers by delaying early setting and strength development [64]. Studies in microscopy and microanalysis of residual fly ash particles found in geopolymer cement show that mullite available in fly ash remains unreacted and that calcium appears to be active in the process of alkali activation of fly ash blends [66, 67]. Cooling quickly the molten iron slag from a blast furnace in water or steam, a glassy granular material known as granulated blast furnace slag (GBFS) is produced. This is usual-

J Sustain Const Mater Technol, Vol. 7, Issue. 4, pp. 375–400, December 2022

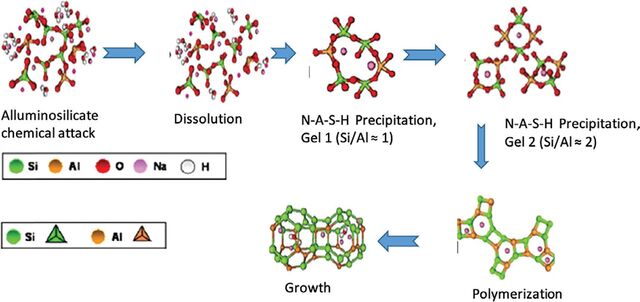

Figure 1. Geopolymerization process [82, 81]. ly very reactive with a mineral composition of SiO2, CaO, Al2O3 and MgO [42, 67, 68]. Due to its small particles, it has effectively increased its strength. As a result, GBFS has been used as a replacement material for making cement for over 75 years [19, 67–69]. A hydrated calcium-silicate (C-S-H) gel with a low C/S ratio is produced as the main reaction product during the alkali activation of GBFS. The strength and setting properties of the geopolymer are enhanced by this gel [70–72]. Hadi et al. [72], worked on a blend of GBFS with fly ash (FA), metakaolin (MK) and silica fume (SF) in nine mix designs. Their formulations gave a better early 7-day compressive strength and setting time compared to conventional cement. In another investigation on the effect of curing conditions on the performance of granulated blast furnace slag and metakaolin-based geopolymer concrete, it was concluded that the use of the GBFS/MK reported good mechanical performance degradation [73]. Red mud is another industrial waste produced during the extraction of alumina from bauxite ores. It mainly consists of Al2O3, SiO2, and NaOH [74]. It is suitable for the synthesis of geopolymers owing to its high alkalinity as well as the presence of alumina [75]. Since its silica component is non-reactive, it is typically utilized in conjunction with other alumino-silicate compounds like fly ash or metakaolin. Roadway building using red mud geopolymers may be a viable option for cementitious materials, helping to lessen the harm that waste has on the environment and human health [16, 76]. Due to its density and resistance to ion penetration, red mud-blast furnace slag geopolymer mortar was found by Liang & Ji [77] to be more durable than PC mortar in terms of protecting steel bars from corrosion. Substitution of 10–15% red mud to alkali-activated fly ash, improved the compressive strength increased by 2.5 times. This was linked to changes in phase composition and activator ratio which inhibits zeolite formation [78].

Wastes and by-products of mineral origin are natural by-products that are produced during the manufacturing process from raw materials. Perlite is an amorphous volcanic glass that contains some crystalline phases and is high in SiO2 and Al2O3. It is reduced in size and heated to create a porous product, which is then used as an agricultural water-absorbent [42, 79]. The perlite that is too fine or has an insufficient ultimate porosity, for example, to be used further, is regarded as trash. Waste perlite that has been geopolymerized, can be utilized to make effective thermally insulating materials, or it can be combined with fly ash or other waste aluminosilicates to make building materials and immobilize hazardous waste [80]. A study by Vance et al. [79], on the use of perlite waste in the preparation of geopolymer, reported that perlite waste in small particles acted as a fairly reactive aluminosilicate constituent with a strong alkali solution in geopolymer formation. Vaou & Panias [80] investigated the foamy geopolymers from perlite. They found that this material had very good thermal insulation and compressive strength of 780 kPa at 2% deformation and a fracture behavior resembling one of the rocks. In addition, it had high fire-resistant properties.

3. Mechanism Of Geopolymer Synthesis

According to research, the geopolymerization process involves three steps: (1) using an alkaline solution to dissolve (2) diffusion and ion reorganization along with the formation of minute coagulated structures; and (3) soluble species are polycondensed to create hydrated products [18, 81]. The Figure 1 illustrates the geopolymerisation process. The amorphous, zeolite-like geopolymers are created by the high-pH dissolution of silica- and alumina-containing parent materials. Aluminosilicate raw materials containing Si2O3 and Al2O3 (or other compatible Metal Oxides such as

J Sustain Const Mater Technol, Vol. 7, Issue. 4, pp. 375–400, December 2022

Figure 2. The fundamental process by which various alumino and silicate species co-polymerize to form polysialate.

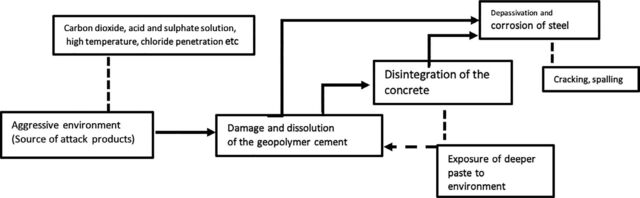

Figure 3. Cement/geopolymer concrete's general mechanism for deterioration [95]. Fe2O3) are reacted with a soluble alkali such as K or Na. The Si2O3 and Al2O3 oxides undergo dissolution into atoms forming a gel. The free atoms within the gel move, forming monomers that form polymers and oligomers. The latter forms 3-dimensional chain networks if the correct ratio of Si: Al is present within the mix expelling water to form the bond, i.e. dehydroxylation. The polymeric bonding continues until a solid hardened structure emerges [83]. Dissolution of these leads to co-polymerization of individual alumino and silicate species [27, 84, 85] to form silico-aluminates i.e poly(sialate). According to Figure 2, Poly (sialates), which can be amorphous or semi-crystalline and feature Si4+ and Al3+ in IV-fold coordination with oxygen, are chain and ring polymers. To create the sialate network, AlO4 and SiO4 tetrahedra are linked alternately by sharing all of the oxygens. The framework cavities contain positive ions, such as Na+, K+, Ca2+, Li+, Ba2+, NH4+, or H3O+ to counteract the negative charge of Al3+ in IV-fold coordination. The written empirical formula for poly(sialates); MX{(SiO2)ZAlO2}x.wH2 O. Where, Z is 1, 2, 3.., M is a cation like calcium, sodium, or potassium and x is a polycondensation degree [86]. Geopolymerisation is an exothermic process and involves polycondensation of orthosialate ion monomers as in Equations (2) and (3).

4. Durability Aspects Of Geopolymers

Alumino-silicate waste can be geopolymerized to provide a variety of mining and construction materials with superior chemical and physical qualities. These characteristics include resistance to fire, chemical stability, acidity, salts such as chlorides and sulfates [40, 87] resistance to humidity or water, freezing action, and weathering [88–90]. The stability and durability characteristics of geopolymers are similar to those of more conventional cements like Portland or blast furnace cement since they have an alkaline nature [91, 92]. Durability is a crucial factor since it measures a material's capacity to operate both temporarily and permanently despite abrasion, chemical attack, and weathering while retaining the necessary qualities [93, 94]. To understand the geopolymers’ chemical reactions when exposed

J Sustain Const Mater Technol, Vol. 7, Issue. 4, pp. 375–400, December 2022

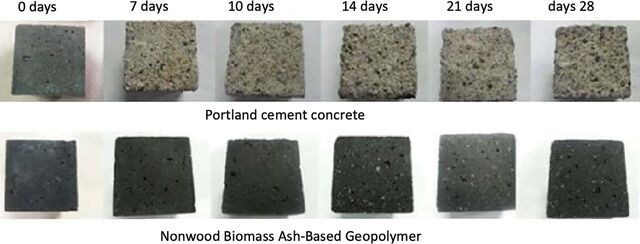

Figure 4. Visual characteristics of non-wood biomass ash-based geopolymer in acid attack on ordinary Portland cement concrete [98]. to aggressive substances, it is required to investigate their durability properties. When materials' compositions alter, the geopolymer degrades, and the paste dissolves and deteriorates when it is exposed to aggressive environments [95], as seen in Figure 3.

4.1. Acid Attack

Cementitious materials are susceptible to reaction with acidic chemicals in a range of applications, including effluents, sewage treatment facilities, power plants, agriculture and in addition to transportation and raw material storage facilities [96]. One of the qualities that building materials should have is resistance to acidic environments. Such an acidic environment can be a result of acid groundwater, acid rain, the acid solution from the sanitary sewer, animal feed and manure, waste stabilization applications, chemical and mining industries [91, 97]. OPC and geopolymer binders are acid attack-prone due to their alkaline nature. As pH decreases, calcium hydroxide and calcium sulfoaluminates breakdown first in the case of PC binder, then C-S-H decalcifies. The hydrated PC paste's main C-S-H component has a comparatively high Ca to Si ratio, leaving a porous structure on its outer layers that is vulnerable to further acid attacks. The typical alkaline earth or alkali aluminosilicate hydrate polymeric binder component, on the other hand, forms a thick silica gel protective layer on its outermost layer in an acidic environment. This slows down additional acid attacks, giving geopolymer binders a better acid attack than PC binders. Matalkah et al. [98], used visual comparisons to contrast normal PC cement concrete concrete specimens with nonwood biomass ash-based geopolymer concrete specimens that were immersed in 5% sulfuric acid solutions for up to 28 days. Figures 4 and 5 show that the PC concrete exhibited significant surface degradation and mass loss in comparison to geopolymer concrete made of

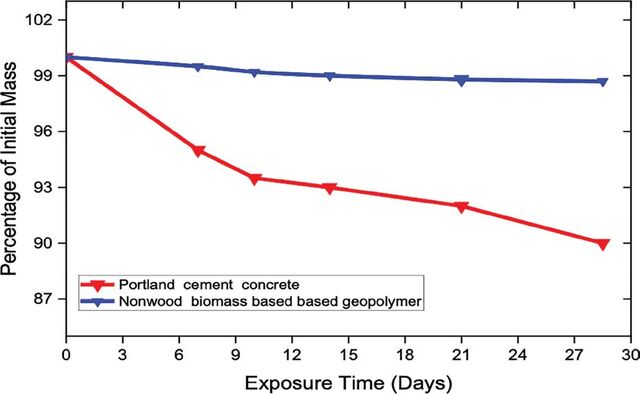

Figure 5. Mass measured against time immersed in acidic solution [98]. nonwood biomass ash. They attributed this to the geopolymer's nonwood biomass ash base's stable chemistry and good barrier properties. On geopolymer made from palm oil fuel ash, metakaolin or calcined kaolin, fly ash, bottom ash, rice husk ash and slag studies of acid resistance have previously been conducted [99–104]. The method of acid attack varies depending on the type of acid and the characteristics of the calcium salt generated, according to [105]. The structural integrity of the geopolymers will also depend on the dissociation of the cations in either the alkali or acid environments. For instance, the precursor material's iron compounds are prone to acid degradation since they play a little role in the geopolymerization procedure and may dissolve leaving pores [106]. The amorphous aluminosilicate spheres are vulnerable to both alkali and acid damage when left unreacted. This is because Al dissolves more in acids than Si. Also, both Al and Si disintegrate in alkali with Si having the highest solubility. Thus, the amount of amorphous precursor materials

J Sustain Const Mater Technol, Vol. 7, Issue. 4, pp. 375–400, December 2022

in the geopolymers determines the alkaline or acid resistance behavior. The amorphous compounds have generally a weaker resistance to chemical attack compared to their crystalline counterparts [97]. Conventional concrete constructed with OPC does not offer acid resistance. Alkali-activated or geopolymer concrete has also started to gain favor as most researchers work toward sustainable development because research has proven that it is stronger and more durable than regular concrete [72]. The cementitious materials acid resistance is affected by the concrete matrix's impermeability and the strength-forming phases' resistance [107]. Several approaches have been used to improve the impermeability of the concrete matrix such as the decrease in w/c ratio with minimal impact. According to research, creating a more stable phase is the greatest way to increase acid resistance. For instance, lowering the amount of clinker in Portland cement-based binders by using supplementary materials like metakaolin results in a decrease in the acid-soluble Ca(OH)2. This also leads to the formation of C-A-S-H -phases with lower C/S ratios, hence low leaching property [107, 108]. CASH phases offer more acid resistance than regular CSH phases made from other pozzolanas, such as fly ash. Working on the acid corrosion resistance of various cementing materials, Shi & Stegemann [109], proposed that the permeability of hardened cement pastes was less important for cement paste resistance to acidic corrosion than the composition of the hydration products. Alkali-activated blast furnace slag cement, lime, and fly ash paste primary hydration product was C-S-H with a low C/S ratio, whereas hardened PC paste primary hydration products was C-S-H with a high C/S ratio and Ca(OH)2. Acid exposure had a deleterious effect on the latter, hardened mortar [109]. As a result of sulphuric acid attack, cementitious phases in the matrix disintegrate and decalcify and sulphate salts crystallize on the exposed surface [110, 111]. This affects both the mechanical and physical characteristics of the concrete, including its porosity and strength, in addition to its density [110, 112]. These alterations in the matrix allow acid to permeate deeper into the concrete layers and neutralize them. Geopolymer concretes have the potential to replace ordinary PC concrete in construction sites exposed to an aggressive environment [113]. The aluminosilicate secondary raw materials, such as metakaolin, fly ash, and ground granulated blast-furnace slag (GGBS), react with an alkaline activator comprised of metal hydroxide or silicate solution to produce the binders. Highly cross-linked alkali-aluminosilicate is created during the alkali reaction with aluminosilicate and is referred to as geopolymer [114, 115]. The microstructure is made of a three-dimensional network of randomly connected negatively charged (AlO4)-5 and (SiO4)4 tetrahedrons that are balanced by cation M+ (K+ or Na+). Geopolymer binder formed from low calcium aluminosilicate precursor and sodium silicate or hydroxide solutions as

an alkaline activator has shown to form an amorphous form of N-A-S-H gel which has shown resilience to an acidic environment [99]. As seen in equation 4, the disintegration of this amorphous gel matrix caused by the liberation and substitution of a proton (H+) with an alkali cation (M+) is what gives geopolymer its chemical resistance. [Si-O-Al-O….]H+ M+

This occurs following the breakdown of the Si-O-Al network and the elimination of alumina. This Al delinking from the aluminosilicate structure results in the formation of Si vacancies, which when combined form an unfinished weak silicic acid [99]. Alkali-activated binders have in recent times shown resilience against aggressive environments like hydrochloric acid, sulphate, sulphuric acid, nitric acid, or acetic acid [97, 116–119]. This contradicts the observation by Lloyd et al. [118], that acid attacks inorganic polymer binders by surface corrosion. Deterioration of inorganic polymer binders is well tested by corroded depth instead of a change in mass. This is because the extremely interconnected aluminosilicate bonds of an inorganic polymer binder are attacked by acid. Instead of wearing away, as has been the case for other binder types, this causes the creation of a physically unstable and porous but intact layer on the sample surface [118]. Acidic corrosion known as nitric acid attack reduces the volume of the damaged layer as a result of the creation of the extremely soluble calcium nitrate salt [120]. According to Thokchom et al. [121], three different specimens made by alkali initializing fly ash with a mixture containing sodium hydroxide and sodium silicate solution containing sodium hydroxide from 5% to 8% of fly ash were tested for the durability of fly ash-based geopolymer mortar samples in nitric acid solution. The researchers submerged samples in a 10% weight solution of nitric acid for 24 weeks. Analyses were carried out in terms of overall aspect, weight change, and compressive strength change. Adjustments in mineralogy and micro-structural caused by nitric acid threat were also investigated. Geopolymer mortar specimens demonstrated outstanding durability in aspects of relatively low weight loss and high compressive strength retention. Also, specimens with a greater alkali content were more resistant to nitric acid. Previous analysis indicates that geopolymer mortars outperform ordinary Portland cement mortars in terms of sulfuric acid resistance, with lower shrinkage and reduced compressive strength. Similar patterns were seen by Purbasari et al. [122], who studied the resilience and microstructure of geopolymer mortars formed from co-combustion residues of bamboo and kaolin after being subjected to a solution of sulfuric acid at 5% for 2, 4, and 6 weeks. The researchers discovered that when compared to conventional Portland cement mortars, geopolymer mortars

J Sustain Const Mater Technol, Vol. 7, Issue. 4, pp. 375–400, December 2022

had superior sulfuric acid resistance in terms of lower mass and compressive strength loss. When subjected to a 2% sulphuric acid solution for up to 45 days [123], investigated the durability of geopolymer concrete made with high calcium fly ash and alkaline activators. The findings demonstrated a compressive strength drop of 20% and 28% in the geopolymer concrete and the conventional Portland cement concrete respectively. Song et al. [124], conducted an experiment to see how long concrete made with fly ash will last when exposed to 10% sulfuric acid solutions. With an evaporation rate of less than 3%, the study demonstrated the remarkable sulphuric acid resistance of geopolymer concrete. Furthermore, the Geopolymer cubes were structurally sound and still had a sizable load capacity even after the entire portion had been neutralized by sulfuric acid. Geopolymer concrete subjected to acid and salt was examined for strength by Kumaravel & Girija [125]. The workers claimed that the GPC specimens exhibited outstanding resistance to acid and salt, with a little higher concentration of NaOH as alkali, or 12 M. The strongest leaching and subsequent quick loss of thickness are caused by citric acid, which has proven to be the most aggressive of all organic acids [126]. Citric acid's polyacidity and the precipitate's lack of protective qualities may be to blame for this. The solubility and acid buffering properties of the organic salts may potentially contribute to the increased harmful effect [127]. Acetic acids found in effluents and damping sites can be aggressive as an acid attack. At equivalent concentrations, the corrosion process is comparable to that of strong acids such as sulphuric acid but less aggressive than that of citric acid [105]. Ukrainczyk et al. [128], did a degradation comparison of GP, Calcium Aluminate and OPC mortar on acetic acid. The results showed that GP concrete was least affected by the exposure to the acetic acid in terms of mass loss, hardness, and porosity. The workers attributed this to the strong aluminosilicate network structure of GP which remains stable after the leaching of alkali ions. The penetrating acid species are highly soluble in the OPC binder phases such as CH, C-S-H, AFt, and AFm, creating a very porous binder matrix. As a result, geopolymer-based mortars have better acid resistance and may be a viable substitute for conventional cement concretes used in a variety of agro-industrial settings.

4.2. Chemical Attack

4.2.1. Sulphate Attack The long-term endurance of a concrete structure may be threatened by salts and solutions of sulphate-bearing chemicals found in saltwater, industrial water effluents, groundwater, or soils nearby [129]. Depending on the calcium level, geopolymers in a sulphate environment erode in different ways [130, 131]. High calcium alkali-activated systems have similar eroding mechanisms to OPC because hydration products resemble each other [95]. The form and

extent of damage to concrete will depend on the sulphate concentration, the type of cation (e.g Na+ or Mg2+) in the sulphate solution, the pH of the solution, and the microstructure of the hardened cement matrix. Gypsum (CaSO4.2H2O), ettringite ([Ca3Al(OH)612H2O]2(SO4)32H2O), or thaumasite ([Ca3[Si(OH)612H2O](CO3)SO4) or mixes of these phases are precipitated as a result of sulfate ions' reaction with the pore [132, 133]. These solid phases' precipitation may cause tension within the material, which may result in expansion, strength loss, spalling, and severe degradation [54]. Calcium hydroxide (CH) consumption lowers pH, which can eventually cause the C-S-H to become decalcified. When the magnesium sulfate solution directly attacks the C-S-H, non-cementious M-S-H is formed [134]. When geopolymer/AAM with little to no calcium content is attacked by sulfate, there typically is an exchange of cations with the sulfate solution. This leads to the formation of N-A-S-H, a less expansive crystalline phase structure hence more resistant to sulfate attack [131]. Geopolymer mortars outperformed Portland cement mortars in terms of durability when exposed to magnesium sulfate solution, according to studies by [135] on Magnesium sulfate resistance. This phenomenon is attributed to the higher amounts of Ca(OH)2 and C3A in OPC thereby producing gypsum on the attack by sulphate ions (Equation 5). Moreover, calcium silicate hydrate abundant in OPC reacts with sulfuric acid to form SiO2 in an aqueous state weakening the structure’s strength (Equation 6). (5) (6) The "sulfate attacking" process that occurs on geopolymer binders is significantly influenced by the cation that the sulfate is connected with [136]. According to research by Ismail et al. [137], it is important to distinguish between "magnesium sulfate attack and broader processes connected to the presence of sulfate along with other, non-damaging cations. It is important to note that both Mg2+ and SO42- are capable of causing damage to a cement structure. The fly ash/slag binders investigated here were more unfavorable in MgSO4 than Na2SO4, though not by as much. This was related to the earlier situation's development of calcium sulfate (gypsum), which expanded and damaged the material [138]. In a study by Albitar et al. [139], geopolymer concrete durability parameters were studied against OPC by immersing mortar cylinders into solutions containing 5% sodium chloride, 5% sodium sulfate, and 5% sodium sulfate + 5% magnesium sulfate and 3% sulfuric acid solutions for 9 months. To investigate the effect of chemical conditions on the durability of the concrete, the authors reported that the geopolymer concrete was most resilient to sulfuric at-

J Sustain Const Mater Technol, Vol. 7, Issue. 4, pp. 375–400, December 2022

tack. This phenomenon is attributed to the higher amounts of Ca(OH)2 and C3A in OPC thereby producing gypsum on the attack by sulphuric (Equation 5). Moreover, calcium silicate hydrate abundant in OPC reacts with sulfuric acid to form SiO2 in an aqueous state weakening the structure’s strength (Equations 5 & 6). Gupta et al. [140], demonstrated a similar resistance of geopolymer concrete to acid attack in a subsequent study examining the mechanical and durability characteristics of a geopolymer composite made of slag and calcined clay. The researchers studied performance at 7, 28 and 56 days using 5% sulfuric and 5% magnesium sulfate. Water permeability was however lower in geopolymer concrete than in conventional, a disagreement with findings by Albitar et al. [139]. This was so probably due to the difference in experimental designs. Concerns have often arisen concerning the effectiveness of geopolymer concrete modifications due to the uncertainty surrounding this process. Chithambar et al. [138], worked on the durability of fiber-reinforced geopolymer concrete against chloride penetration, sulfuric acid attack, and hydrochloric acid attack among other tests. The geopolymer used in the study was synthesized using M-sand and sodium hydroxide and silicate. The effect of glass and polypropylene fiber on the performance of the concrete was studied. Chloride resistance was reported to increase with polypropylene fiber reinforcement. The reinforced concrete also showed high resistance to acid and sulfate attacks. According to investigations on geopolymer mortar made of fly-ash produced with various alkali content by Thokchom et al. [121] and Thokchom et al. [141] exhibited variable degrees of degradation when exposed to sulfuric acid. Using an optical microscope, the results showed deterioration of mortar surface with advanced effects on specimens with lesser alkali content. 4.2.2. Chloride Attack Resistance Attack on the reinforcing steel by chlorides is the most frequent cause of durability failure in reinforced concrete (RC) structures. It adversely affects the service life of an RC structure as a result of effects including reduced steel cross-section, cracking, delamination, and spalling [142]. Therefore, the need to prevent steel corrosion is an important objective in ensuring the durability of steel RC structures. Chloride ions may come from a component of the concrete matrix or an outside source, like saltwater or industrial wastewater. Chloride ions mostly enter concrete under the influence of permeability and porosity [143]. In other words, ions will penetrate pores more deeply the larger they are. The secondary precursor in AACs closes the pores, preventing chloride ions from entering the substance. Additionally, the C-A-S-H gel's dense and compact nature aids in the delayed transport of chloride into geopolymers, resulting in a greater chloride attack durability than OPC paste [144, 145].

The porosity of the geopolymer matrix determines how quickly chloride ions diffuse through it [146]. The precursor that has a larger surface area, along with a high concentration of amorphous silica and alumina, produces an aluminosilicate gel that is denser and less porous. This reduces the chloride ingress rate. Presence of CaO content influences the chloride binding capacity. This lowers the rate of chloride intrusion by causing chloride ions to adsorb on the gel's surface [147]. Ismail et al. [137], and Zhang et al. [148], working on fly ash-slag-based geopolymer found that the chloride binding depended mainly on physical adsorption. Other studies on geopolymer concrete performance against chemical attacks are summarized in Table 2.

4.3. Carbonation

When it comes to the major cause of concrete damage, as a result of steel corrosion, carbonation of concrete is regarded to be one of the most dangerous phenomena. Concrete suffers from the carbonation process because carbon dioxide diffuses through the pore structure and lowers the pH of the pore solution. Rapid destruction of the steel's passivation layer allows for unrestricted corrosion processes [155]. As a result of the internal expansion stress and weakening of the steel bars, structures eventually fail [87, 156]. When gaseous carbon dioxide enters partially wet concrete at a pH >10, a sequence of processes is often triggered. According to equations 8 and 9, it quickly dissociates into the alkaline pore solution before hydrolyzing to HCO3- and CO32- ions. CO2 + OH- → HCO3

At pore solution of pH 8, CO2 hydrates directly forming carbonic acid (H2CO3) as shown in equation (10). CO2 + H2O → H2CO3

At a higher pH the carbonic acid normally dissociates into HCO3- and CO32- ions [157]. To create CO32ions may then attack calcium-containing phases, like CaOH, C-A-H and. C-S-H. The calcium carbonate precipitates into either calcite, aragonite, or vaterite crystal polymorphs, based on the internal concrete conditions and the existence of impurities or additives [158, 159]. Under normal circumstances, calcite is the polymorph that is the most stable. Attack of CSH normally happens probably where the quantity of Ca(OH)2 is less especially in blended or geopolymer types of cement, as shown in Equation 11. CaSiO3H2O + CO2 → 3CaCO3 + SiO2 + H2O

8M Sodium hydroxide and sodium silicate 12M Sodium hydroxide and sodium silicate

10M Sodium hydroxide and sodium silicate 8M–16M Sodium hydroxide and sodium silicate

Rice husk ash and ultra-fine slag with corn cob ash Class F fly ash

28, 56 and 90 days 28, 56 and 90 days 28, 56 and 90 days 28, 56 and 90 days

Table 2. Summary of studies on geopolymer concrete performance against chemical attacks

• 10M NaOH at 28, 56 and 90 days showed the best resistance to sulfate attack

• No significant changes were visually observed, in weight and crosssection. • The outer region color changed from dark grey to light grey (corroded). Intensity corresponded to fiber content • Compressive strength loss 5 times lower than OPC • Weight loss 24 times lower than OPC • Steel fiber does not affect the weight loss/strength • Weight loss 5 times lower than OPC • Weight loss not affected by steel fiber • Weight loss 9 times less than OPC • Strength loss 2.6 times less than OPC • Percentage loss in compressive strength reduced by 13-15% with 0.25–0.75% addition in steel fibers • When replaced at 5, 10, and 15%, granite waste is favorable to GPC. • Loss in mass and compressive strength was lower than control GPC (best at 20% replacement) • 16 M NaOH GPC showed the highest resistance compared to OPC in 28 days • 16M NaOH GPC showed the highest resistance compared to OPC at 28 days • 10M and 12M NaOH GPC performed best at 28 days

• No cracks on GPC concrete specimen surface • There was low weight loss in GPC specimens compared to OPC • GPC compressive strength was least affected by acid attack compared to OPC • Concrete was moderately resistant to chloride ingress

• GPC concrete had no precipitation on surface • GPC concrete demonstrated higher resistance to sulfate attack

384 J Sustain Const Mater Technol, Vol. 7, Issue. 4, pp. 375–400, December 2022

J Sustain Const Mater Technol, Vol. 7, Issue. 4, pp. 375–400, December 2022

This lowers the alkalinity in the cementitious matrix, which allows the corrosion of steel-reinforced bars to spread and affects the mechanical performance of the material. Thus, the durability of the concrete is compromised [160, 161]. On the hand, this attack may be beneficial depending on the time, the extent to which they occur and the environmental exposure [162]. The disparities in the hydrate phase assembly, pore solution chemistry, pore structure, and transport capabilities between geopolymer carbonation concrete and Portland cement (PC) carbonation are related to variations in the concretes' binder compositions, ages, and curing circumstances [163]. The concrete's saturation level and CO2 partial pressure, which in turn depend on exposure factors such as temperature, relative humidity and the period of contact with water, are all factors in the carbonation mechanism and kinetics [164]. The depth of the CO2 penetration into cement pastes or concrete at a given time is typically used to describe the materials' resistance to carbonation. This is dependent on the substance's ability to bind CO2 as well as its porosity and pore size distribution [165]. OPC has shown better binding ability because of the high content of portlandite. In their study of alkali-activated mortars containing waste ceramic powder and GBFS only, Huseien et al. [166], found that increasing the replacement of GBFS with fly ash (FA), increased the carbonation depth. This was attributed to a larger concentration of FA geopolymer materials in the matrix, which resulted in the addition of pore structure as gel formation was constrained to a small amount of Ca, showing a higher permeability and porosity to water than in the control [167, 168]. Compared to geopolymer concrete, ordinary silicate concrete has a different microstructure. and it is impossible to use the tools for carbonation analysis on ordinary concrete. However, geopolymer concrete's carbonation-proof performance is not necessarily superior to that of regular concrete. Prisms of fly ash-based geopolymer concrete were cured in the air for 8 years before their durability test was done by [169]. To assess the effects of carbonation, durability, pore-size distribution, and permeation qualities, large specimens from GPC culverts were compared to standard PC concrete under the same exposure conditions. It was shown that OPC concrete had greater carbonation resistance than GPC. This was attributed to the mix composition or design and the material used in this study. The curing temperature of geopolymer mortar has been shown to influence the carbonation resistance. The heat-cured GP concrete of HGPC showed greater alkali leaching resistance and stronger carbonation resistance in the wet-dry repeating scenario than the ambient aircured GP concrete of AGPC. Li & Li. [170], used the test of accelerated carbonation at various intervals and on a wide range of GP mortars and GP concrete to investigate

the carbonation depths. At room temperature curing, they observed that the carbonation resistance of GP concrete was lower than the convectional OPC concrete. Heat curing was one of the elements in this study that enhanced GP carbonation resistance, along with other aspects including precursor quantity and fineness, alkali concentration, W/C ratio, and use of retarder. The alkali solution used to activate the geopolymerization affects the carbonation resistance. The alkali solution's strength and concentration considerably impact both the formation of C-A-S-H gels and the crystallinity of calcium carbonates after carbonation. According to the [171] report, the NaOH slag activated was found to be more carbonation resistant than the NaOH / Na2SiO3 slag activated. It has recently been hypothesized that carbonation affects the porosity and pore size characteristics of GPC concrete [172] studied this phenomenon using three-dimensional thermal neutron tomography, as a conservative analysis technique. They confirmed that carbonation lowered GPC porosity by approximately 30% and pore regions were shifted to smaller regions. This could be associated with the deposition of carbonation reaction products (CO2 reacting with alkaline hydroxides in the GPC matrix) onto the pores of the concrete. This improves the GPC durability properties as the lower porosity discourages chloride ingress, thereby sustaining strength and corrosion protection [173]. In their investigation to assess the performance of GPC in various exposure conditions, Pasupathy et al. [169], showed that the source material type can also affect the carbonation mechanism and alkalinity of geopolymers. This might be explained by CaO's accessibility in various precursors. In comparison to the GPC with a higher proportion of slag, the fly ash-based geopolymer displayed a lower initial pH value. It was discovered that GPC concrete had higher carbonation levels than OPC concrete in all three environmental situations. However, as the slag component in the geopolymer mix increased, the rate of carbonation decreased. In comparison to the GPC with a higher proportion of slag, the fly ash-based geopolymer displayed a lower initial pH value. The researchers concluded that as compared to OPC, geopolymer concrete is more vulnerable to corrosion and carbonation. Law et al. [174], studied the pH levels of pore water recovered from geopolymer mortar specimens that had undergone 5% rapid carbonation. They suggested a pH level of 11 to safeguard the reinforcing steel after carbonation. In a similar investigation, Li & Li. [175], looked into the connection between GPC's durability and carbonation resistance. The authors reported that the increase in blast furnace slag in the GPC matrix had a corresponding increase in carbonation resistance. Other factors considered in this study were the NaOH content, slag texture and activator solution to active filler ratio.

J Sustain Const Mater Technol, Vol. 7, Issue. 4, pp. 375–400, December 2022

Calcium carbonate precipitation forms on the OPC concrete's surface as a result of carbonation. This raises the concrete matrix's internal porosity and creates a barrier to carbon dioxide diffusion [176]. Calcium carbonate precipitation in geopolymer may cause volume change because of its poor volumetric stability in the ambient environment thus cracking. Additionally, the rate of carbonation in OPC is lower than that in geopolymer concrete, which is related to a higher Ca/Si ratio in the CSH gel [95, 176]. Based on all these factors, OPC concrete experiences less carbonation-related strength loss compared to geopolymer concrete. According to Marcos-Meson et al. [177], after carbonization, which causes N-A-S-H gel to develop, the compressive strength of fly ash slag-based geopolymers drops linearly. Further, it has been found that after carbonation, the reaction extent and mechanical properties of geopolymer concretes have decreased [156, 178, 179]. Other findings in carbonation have been summarized in Table 3.

4.4. Creep and Shrinkage

Concrete creep and drying shrinkage prediction is still an important parameter in the concrete specification, and it's critical for the long-term durability and serviceability of concrete constructions [183, 184]. While creep refers to the distortion of hardened concrete caused by a steady load, drying shrinkage relates to the cured concrete's internal moisture loss [185, 186]. Most often, shrinkage is described as the volume change in a matrix's geometry brought on by the removal of water from its surface (plastic shrinkage) and the gelling up of the matrix (drying shrinkage). It’s also the matrix of a binder's self-desiccation and carbonation of heavier molecules with lighter ones [187]. Non-autogenous shrinkage includes, among other things, thermal deformation, carbonation, shrinkage, drying shrinkage and creep shrinkage [188]. Drying shrinkage is the term used by other researchers to describe a macroscopic dimensional reduction of hardened binders brought on by the evaporation of water or moisture within the products' matrix. When samples are subjected to a certain relative humidity (RH) and ambient temperature, this type of deformation happens [189]. In a comparable situation, plastic shrinkage results from an imbalance in the moisture exchanges between a specimen surface and its surroundings [190]. A chemical reaction on the hydrated concrete, known as autogenous shrinkage, as well as the loss of water as the concrete dries, known as dry shrinkage, are the two main causes of early-age shrinkage of concrete in the hours and days after casting. Typically, autogenous shrinkage increases when the water-to-cement ratio declines for concretes with the same aggregate and binder types, meaning that strength increases and drying shrinkage reduces. Other factors known to influence both creep and drying shrinkage of cement systems include cement type, aggregate type and content, age, temperature, relative humidity of the surroundings, curing, age, and particle size [191].

For moist-cured concrete, the drying shrinkage values suggested in the ACI 209 committee's report shouldn't be more than 800 microstrains, and for steam-cured concrete, they should be between 730 and 788 microstrains [192]. Drying shrinkage causes cracking, and while this may not affect structural integrity, it may raise durability issues, making it one of the most detrimental features of cement concrete. Studies on many components of mixed content and engineering behavior of geopolymers (GP) systems, such as shrinkage and creep, have just lately started to be published. Hardjito & Rangan [193] discovered lower creep coefficient values in their investigation of medium strength GP concrete than the same grade of OPC concrete. These researchers also discovered that as the compressive strength of GP concrete increased, the specific creep dropped. This finding is consistent with traditional OPC concrete. Normal 50 to 60 MPa PC concrete often has particular creep values in the literature that range from 50 to 60 microstrain after one year, with this value decreasing for greater strength concrete. In high-volume performance fly ash concrete, the specific creep was in the range of 30 microstrains per MPa after a year, according to [194]. While the effects of curing on the mechanical properties of GP concrete have not yet been thoroughly established, it has been observed that the drying shrinkage stress of heat-cured concrete specimens is frequently lower than comparable values recorded for ambient-curing concrete [188]. This phenomenon was due to water that is generated during the chemical reaction process of ambient-cured GPs and then evaporates over time, resulting in high drying shrinkage strains, especially during the first two weeks. The engineering performance of GP binders has also been investigated with other material-related features, such as pore network distribution. In their analysis of the pore network distribution of GP binders, Duxson et al. [195] found that there are several clusters of pore diameters that are comparable to those reported in OPC systems. To analyze the basic creep behavior of GP concrete at an early age, this study used similar grade Portland cement concrete as a standard. The studies measured the drying shrinkage response of concrete specimens while assessing the influence of age and stress on real creep at an early age. The drying shrinkage rate was considerably high in the early ages of up to 28 days, according to [196] studies. This research work which was based on GPC based on FA or MK showed drying shrinkage rate decreases beyond this age. They also noted a decrease in drying shrinkage values with an increase in FA and MK contents in the GPC. This is related to the FA or MK enhancing the polymerization process to create high connectivity into the alkali-activated cement matrix. Prior investigations that enhanced the structure have validated the production of products like C-S-H, C-A-S-H, N-A-S-H, and CN-A-S-H [197]. Also, this was due to the decreased calcium content in the cement mix hence reducing the hy-

Sodium hydroxide (8M) and sodium silicate Sodium hydroxide (12M) and sodium silicate

Municipal solid waste incinerator bottom ash and granulated blast furnace slag

Accelerated 20% carbon dioxide environment, 20+2°C (Lean GPC) Accelerated 20% carbon dioxide environment, 20+2°C (Modified with 10% slaked lime) Accelerated 20% carbon dioxide environment, 20+2°C (Modified with cement) Natural environment (Atmospheric exposure conditions) Natural environment (saline environment) Natural saline environment

3% accelerated carbon dioxide 1% accelerated carbon dioxide Natural environment

J Sustain Const Mater Technol, Vol. 7, Issue. 4, pp. 375–400, December 2022

J Sustain Const Mater Technol, Vol. 7, Issue. 4, pp. 375–400, December 2022

dration rate of alkali-activated concrete. Other researchers have shown similar results of GPC concrete exhibiting lower drying shrinkage with the standard sample concrete as well as decreasing dry shrinkage values with an increase in the replacement of alkali-activated concrete [91, 198]. The creep and shrinkage are highly dependent on the curing conditions to which the concrete is exposed GPC concrete can be heat cured or cured in ambient temperatures, practices that induce varying creep and shrinkage effects. To investigate the most suitable curing conditions for GPC Khan et al. [199], studied early age shrinkage and creep. Two GPC mixes were cured at temperatures between 60 °C to 90 °C and ambient temperature. Axial tension was applied to unreinforced dog bone specimens, and it was shown that the curing temperature and time had an impact on the GPC's tensile creep coefficient and shrinkage. High temperatures were related to low early age shrinkage and high tensile creep coefficient. This was in agreement with a study by Frayyeh & Kamil [200] who observed that autogenous shrinkage would further be improved by the use of hooked-end steel fibers. In their study, an increase in hooked-end steel fiber content in the matrix has a corresponding decrease in autogenous shrinkage and tensile creep. They also went further to explore this concept by studying the effect of different reinforcing fibers on the dry shrinkage of geopolymer concrete. They used steel, propylene and carbon fibers. It was reported that improvement was generally seen across all the fibers, but steel fibers showed the highest effect. This was so since metallic fibers are generally stiff and therefore improve the concrete’s flexural strength. Non-metallic fibers have a larger surface area and can control plastic shrinkage as a result [201]. Alkaline-activated natural pozzolans geopolymer binder was studied by [202], who claimed that the product's shrinkage was influenced by the curing method and chemical make-up of the basic materials. They also mentioned a connection between shrinkage and the Si/Na ratio. Another factor that directly influences the creep and shrinkage of GPC is the void structure, which represents the bleeding behavior of concrete. Nazari et al. [203] studied the concept of void distribution patterns and their contribution to strength development in both OPC and GPC. The researchers found a correlation between the bleeding rate of concrete to dry shrinkage and concluded that modification of the bleeding rate is a necessary step to reduce early cracking in hardened concrete. They investigated the effect of slag content on the bleeding rate and found that slag reverses the indirect effect of void volume on the strength development of concrete. Similar conclusions were drawn by Negahban et al. [204] who concluded that pore structure and the distribution of voids are functions of strength development. Other findings on creep and shrinkage have been summarized in Table 4.

4.5. Thermal Performance

The global building and construction industry are very concerned about the longevity of structures made of cement. Cement-based materials are certified to be structurally sound at room temperature. Each year, it is reported that dangerous flames devastate a large number of cement-based structures around the world, causing staggering financial damage. Hazardous fires that affect these structures are largely caused by residential fires and electrical problems. In dangerous fires, these materials are subjected to temperatures that can be destructive. Due to thermal impacts on pore water and products, high temperatures have an impact on the concrete/mortar matrix's physical and chemical properties. Hazardous fires, therefore, shorten the service life of structures made of cement [206, 207]. In recent decades, research has increasingly focused on issues related to building materials' thermal performance and fire resistance. Thermal stability is essential for ensuring that they are safe to use within a specific temperature range with OPC beginning to lose strength irreversibly at 200 oC [208]. This occurs as a result of the principal binding phases, CSH, Ca(OH), and other hydrated products, deteriorating and losing water. Despite this, Jeon et al. [209], found that the breakdown of Ca(OH)2 did not result in a significant loss of strength. However, the main cause of OPC strength reduction is the expansion of lime after chilling. In past years, there have been a lot of studies done on the thermal characteristic of geopolymers exposed to high heat or fire. Geopolymers, like OPC, lose strength when exposed to high temperatures. Despite this, they maintained a substantially higher binding strength at the temperature range tested. Rivera et al. [210], investigated the effect of elevated temperature on alkali-activated geopolymeric binders compared to portland cement-based binders. The alkali-activated geopolymer showed minimal damage after the temperature exposure of up to 565 oC. Geopolymer weight decrease is associated with higher strength retention [184]. Geopolymer mortars with a high concentrated slag showed increased strength loss at high temperatures of 600 °C, owing to the decomposition of CSH phases. Despite this, all blended geopolymer mortars-maintained strength between 23 and 25 MPa after being exposed to 600 °C. Compared to geopolymer mortar, geopolymer concrete lost less weight but lost more strength as the temperature increased. The difference in the thermal increase in volume between coarse aggregates as well as binder and the decreased binder concentration in concrete to combat paste shrinkage lead to considerable microcracking. They stated that geopolymers outlast regular concrete and even some high-performance concrete in terms of heat endurance.

25 °C for 24h (ambient curing), 70 °C for 6h (Accelerated curing)

Compressive = 62 MPa (ambient), 56.5 MPa (accelerated) Flexural = 7.1 MPa Indirect Tensile =5.1 MPa

Unmodified (plain GPC) EN 123903:2009 (compressive strength) AS – 1379

75°C for 24h Compressive = 55.1 MPa @ (synthesis 28 days conditions) 25 °C, relative humidity 30% (ambient cure conditions) Compressive = 33.9 MPa @ 28 days

Rilem TC

promotor and 2.5Ms Na2SiO3 polypropylene 107-CSP (creep fiber sand strain tests)

3. Compressive, flexural

• To measure creep and [192] shrinkage strains, 20% of the ultimate compressive force was applied. • Creep and shrinkage data were collected up to the 35th day.

Shrinkage = 0.0005 mm/ mm, Creep = 0.0007 mm/mm Shrinkage = 0.0009 mm/ mm, Creep = 0.0021 mm/mm Shrinkage = 0.0006 mm/ mm, Creep = 0.0015 mm/mm Creep = 0.00065 mm/mm 1. Creep test at 20% ultimate compressive strength

J Sustain Const Mater Technol, Vol. 7, Issue. 4, pp. 375–400, December 2022

J Sustain Const Mater Technol, Vol. 7, Issue. 4, pp. 375–400, December 2022

Furthermore, according to Jiang et al. [211], fly ash, geopolymers preserved strength up to 400 °C and grew stronger at temperatures above 400 °C. In alkali-activated fly ash, crystallization of thermally stable minerals such as sodalite and nepheline was found. XRD diffractograms of geopolymer samples mostly revealed crystalline phases of nepheline when exposed to high temperatures. The presence of thermally stable crystalline phases is critical for geopolymer structure thermal stability. In addition, the solidification of melted stages aided in the development of strength. OPC, on the other hand, maintained compressive strength up to 600 °C before rapidly deteriorating beyond that temperature due to moisture loss and Ca(OH)2 breakdown. The transformation of amorphous aluminosilicates into a geopolymer structure was revealed to be strongly reliant on the geopolymer’s compressive strength. The resistance of the material to high temperatures and burning was influenced by the Si/Al ratio and iron content in the fly ash. According to Wang et al. [144], metakaolin-fly ashbased geopolymers have a strength of 46 MPa at 1000 °C. The high-temperature performance was improved with the addition of electrical porcelain as aggregates. The thermal stability of potassium-based metakaolin geopolymers up to 1200 °C was also examined by Jaya et al. [212] in terms of shrinkage and microstructural changes. The optimum densification temperature increases with the addition of quartz sand or alumina powder. When fly ash and metakaolin geopolymers were compared, it was shown that the latter are more tolerant of high temperatures [213]. To improve the thermal characteristics of geopolymer, fibers such as ash wollastonite and basalt fibers could be incorporated. Furthermore, porous materials could serve as a thermal barrier. One of the most important research areas is the creation of lightweight porous materials. Faster construction, improved thermal performance, and fire resistance are all advantages of lightweight building materials. During the foaming process, small pores or linked voids can be added to lightweight porous geopolymer materials which are also known as geopolymer foams. Air bubbles or endogenous gas production could be used to introduce the foam like hydrogen peroxide, aluminum powder or sodium hypochlorite. The gas-forming ingredient in this experiment was hydrogen peroxide. Equation (12) illustrates how hydrogen peroxide breaks down into water and oxygen in an alkaline atmosphere. H2O2

Regarding the foamed geopolymers' thermal characteristics Cheng-Yong et al. [213], found that when the lightweight porous geopolymer based on glass cullet and red mud were subjected to temperatures between 600 and 800 °C, their volume increased. The foamed geopolymer has a strength of more than 2 MPa and a density of less than 866 kg/m3. To create greater strength foamed fly ash geopoly-

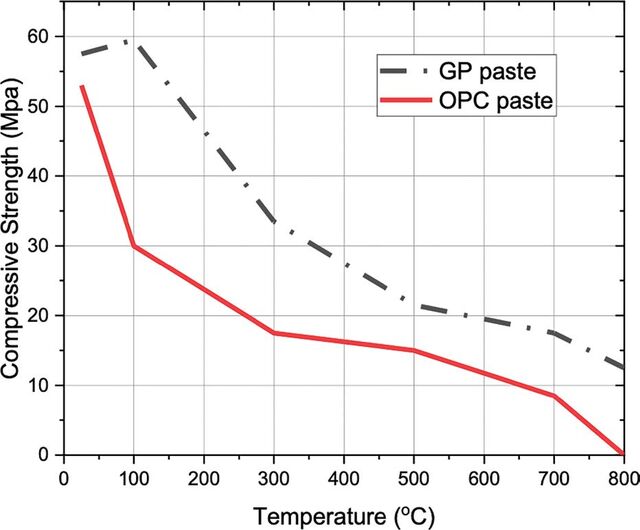

Figure 6. Geopolymer and OPC paste compressive strength comparison [215]. mers of between 2 MPa to 30 MPa and with densities less than 1000 kg/m3. Wang et al. [214], utilized 30 percentage slag replacements. The fly ash geopolymer foam maintained its strength well up to 400 °C, and it strengthened much more at 800 °C. According to Cheng-Yong et al. [213], the geopolymer foam did not break or crumble below 1000 °C. Significant shrinkage and sintering are associated with high thermal resistance at high temperatures. As far as we are aware, there is not a lot of literature on the thermal performance and fire resistance of foamed geopolymer materials. Most people believe that porous geopolymer foam behaves similarly to dense geopolymer foam when exposed to high temperatures and fire. In their research on the creation of MK-FA-based geopolymers for applications requiring fire resistance, geopolymers' compressive strength was higher than OPC pastes', according to research by Zhang et al. [215]. As demonstrated in Figure 6, after exposure to 800 °C, geopolymer paste retained 22% of its compressive strength while OPC paste lost all of it. According to this, MK-FA-based geopolymer paste showed greater compressive strength than OPC paste at room temperature or after being exposed to high temperatures [168]. At temperatures above 400°, the compressive strength of geopolymer concrete typically remains constant and degrades at a rather gradual rate [216]. Work on FA-slag GPL that was heated up to 1000 o C was done by Chithambaram et al. [217]. The weight reduction rate increased as the temperature rose from 200 °C to 1000 °C, regardless of the alkali content. The reduction of the crystalline nature caused by the inclusion of GGBS resulted in increased strength and polymerization. The rate of polymerization slows down as the temperature is raised above 600 °C, which results in a minor loss of strength.

J Sustain Const Mater Technol, Vol. 7, Issue. 4, pp. 375–400, December 2022

5. Conclusion

This study demonstrated that natural pozzolans, industrial-by products and agro-wastes are a key precursor in the production of geopolymers. The following conclusions are based on the review articles; 1. The geopolymer mortar/ concrete exhibits high resistance to both chemical and acid attack compared to conventional cements

2. OPC concrete possess a greater carbonation resistance

than GPC because of its better binding ability associated with high content of portlandite

3. Increasing the alkali activator concentration to some

extend demostrates an increase in resilience to both acid and salts attack 4. Temperature, relative humidity and the period of contact with water contribute to the carbonation mechanism and kinetics 5. Geopolymers has shown excellent resistance to temperature extreme compared to convectional cement.

Data Availability Statement

The authors confirm that the data that supports the findings of this study are available within the article. Raw data that support the finding of this study are available from the corresponding author, upon reasonable request.

Financial Disclosure

The authors declared that this study has received no financial support.
