Thermophysical characterization of concrete reinforced with baobab trunk fibers
Journal of Sustainable Construction Materials and Technologies 2023, Vol. 8, Issue 4, pp. 1; doi.org/10.47481/jscmt.1285031
Abstract
Keywords: Baobab fibers; Cement; Thermal conductivity; Density; Water absorption; Self-consistent.; Baobab fibers; cement; density; thermal conductivity
1. Introduction
The residential building sector consumes large quantities of energy for heating in cooler periods and air conditioning or ventilation in hot periods. In Senegal, the energy consumption of buildings is estimated at 49% of final national consumption [1]. This is explained by the fact that in Senegal, concrete (a conductive material) is the primary building material. With this material, air conditioning and artificial ventilation are always used to achieve minimum thermal comfort. In addition, manufacturing and recycling this material requires large amounts of energy and poses a real problem of environmental pollution and greenhouse gas emissions. Faced with this problem, developing new alternative materials to concrete is becoming necessary. One of the solutions proposed to mitigate the environmental impact
of concrete is the incorporation of vegetable fibers in the manufacture of construction materials. Vegetable fibers are local, available materials with low thermal conductivity. Thus, their use in building materials can be an alternative to reduce heat transfer. Several researchers have been interested in determining bio-composite materials physical and thermal properties based on cement and plant fibers. Benmansour et al. [2] studied the effect of fiber content on the water absorption, density, and thermal conductivity of a date palm fibers reinforced mortar. They noted a decrease in density, thermal conductivity, and an increase in water absorption as the amount of fibers in the mortar increased. Abdullah et al. [3] studied the physical and hygroscopic behavior of a cement mortar reinforced with coconut fibers. The authors concluded that the concretes' moisture content and water absorption increase as the fiber content
*Corresponding author. *E-mail address: alphousseynighabo@gmail.com Published by Yıldız Technical University Press, İstanbul, Türkiye This is an open access article under the CC BY-NC license (http://creativecommons.org/licenses/by-nc/4.0/).
J Sustain Const Mater Technol, Vol. 8, Issue. 4, pp. 251–259, December 2023
increases. However, the density of the concrete decreases. Potiron et al. [4] worked on determining the thermal conductivity and density of concrete based on sugarcane bagasse. The fibers were treated with boiling and alkaline solution. The authors concluded that thermal conductivity and density decreased with increasing fiber content in the composite concrete. Taoukil et al. [5] studied the influence of water content on the thermal properties of a cement-sand composite reinforced with wood chips. The results showed that as the percentage of wood chips increased, the concrete's thermal conductivity and thermal diffusivity decreased. However, these values increase as the moisture content of the concrete increases. Chakraborty et al. [6] worked on the effect of adding jute fibers treated with an alkaline solution and another solution of Sika latex polymer (carboxylated Styrene Butadiene) on the density of cement mortar. The results show that treating the fibers with 5% Sika latex polymer increases the density of the composite concrete. Panesar et al. [7] studied the influence of cork waste fiber content on a cement mortar's density and thermal conductivity. They found that the density and thermal conductivity of the mortar decreased with increasing fiber content. Osseni et al. [8] worked on the influence of the percentage of coir fibers on the thermal properties of a mortar. The results show that the thermal effusivity and thermal conductivity decrease by about 10% as the amount of coir fibers increases. Ashraf et al. [9] determined concrete's thermal conductivity and density containing date palm fibers. The authors noted a decrease in the thermal conductivity and density of the concrete as the fiber content increased. Similarly, Diaw et al. [10] manufactured and determined the thermo-physical properties of concrete incorporating typha australis aggregates. The authors concluded that these materials can be used in buildings to improve energy efficiency. Al-Mohamadawi et al. [11] investigated the influence of increasing flax shives treated with paraffin wax on cement concrete's thermal conductivity and density. The results showed that adding raw or treated fibers decreases cement concrete's density and thermal conductivity (<0.3 W/mK). However, the density and thermal conductivity of the treated fibers concrete increased compared to that of the raw fibers concrete. Khazma et al. [12] worked on determining the thermal conductivity and density of concrete reinforced with flax shives treated by coating with a pectin + polyethylene (pp) mixture. The authors noted increased treated concrete's density and thermal conductivity compared to raw concrete. Abderraouf [13] studied the influence of the percentage of Diss and Doum fibers treated with a sodium hydroxide solution on the thermal conductivity of cement concretes. The results show that, for fiber content of 4% by mass, the thermal conductivity of Diss and Doum treated fibers mortars decreases by 40% and 33%, respectively, compared to the control mortar. Becchio et al. [14] studied the influence of the percentage of wood aggregates on the thermal conductivity of cement concrete. Their results showed a decrease in the thermal conductivity of composite concrete compared to control concrete.
This literature review shows that many vegetable fibers manufacture thermal insulation or filling materials in housing construction. No studies have been conducted to determine the hygroscopic and thermo-physical properties of concrete made from baobab (Adansonia digitata L.) trunk fibers. The baobab is a gigantic tree of the Bombacaceae family that grows in the southern, western, and southeastern regions of Senegal [15]. This tree has long been exploited for food (leaves and fruits) and traditional medicine (leaves and bark). Baobab trunk and branches are very fibrous and are used for rope making and mat weaving. Extracting fibers from these parts does not affect the tree's health, as these parts regenerate every six months after exploitation [16]. This work aims to develop and determine cement concrete's hygroscopic and thermo-physical properties based on baobab trunk fibers. The properties studied are water absorption, moisture content, density, and thermal conductivity. Compared to the work mentioned above, the originality of this work is the use of baobab trunk fibers in producing bio-sourced concrete to manufacture insulating cementitious concrete with low environmental impact.
2.1. Baobab Trunk Fibers
In this study, the fibers used were extracted from the trunk of a local tree, the Baobab (Adansonia digitata L.). The baobab is a gigantic tree generally found in Africa's south-eastern and south-western regions, i.e., in the Sahelian and Sudano-Sahelian zones. In Senegal, the baobab is widespread in areas such as Thiès, Kaolack, Tambacounda, and in the southern regions, the Casamance. After extraction, the fibers were cleanly washed and air-dried for a week before being cut by hand into 1 cm lengths. [16, 17]. Two treatments were applied to the fibers: • The alkaline treatment consisted of immersing the fibers for 4 hours in a sodium hydroxide (NaOH) solution of 5% concentration by mass at room temperature. They were washed thoroughly with distilled water and soaked again in a 1% sulphuric acid solution for 2 hours. Finally, the fibers were washed clean with distilled water and dried at room temperature for 72h. This fiber is noted as F.T.NaOH. • Thermochemical treatment involves boiling the fibers for at least four hours and rinsing them thoroughly with distilled water to remove organic substances (waxes, peptides, impurities). The exact process then treats the boiled fibers with the same sodium hydroxide solution. This fibThis fiber F.B.T. Several studies on the characterization of bio-based composites have already shown that heat treatment and alkali treatment of plant fibers can reduce large quantities of lignin, hemicellulose, and water-soluble substances. These compounds are the primary agents responsible for the delayed setting of the cementitious matrix and poor adhesion at the fiber/cement interface [4, 18].
J Sustain Const Mater Technol, Vol. 8, Issue. 4, pp. 251–259, December 2023
Table 1. The fibers hygroscopic, physical, and thermal properties [17] Types de fibres
Table 2. Composition chimique du ciment CEM II/ B-M 32.5 R Composition
Table 3. Mass percentages of cement and fibers Components CFTNaOH/C.F.B.T. Fibers content (%)
2.2. Sample preparation
This work uses both treated fibers (F.T.NaOH) and (F.B.T.). Their properties are listed in Table 1. The chemical composition of the fibers was not given because no laboratory was available to carry out the chemical characterization. The chemical composition of the cement used in this study is given in Table 2. The concretes manufactured are composed of Portland cement CEMII/B-M 32.5 R supplied by the cement company Sococim Industries of Senegal and fibers from the baobab's trunk (Adansonia digitata L.). The ratio of water mass to cement mass is taken as 0.3. Table 3 shows each composite type's mass percentages of fibers and cement. The fibers and cement were manually mixed in a 5 L capacity beater to achieve a homogeneous distribution of the fibers, and then the beater was inserted into an E095-type mixer. Mixing was maintained for 5 minutes, gradually adding the water necessary to hydrate the cement. The homogenized paste is then poured into 10 cm x 10 cm x 2 cm heat test molds. A Time-Tronic shaking machine was used to compact a total of 60 shakes. After 24 hours, the samples were removed from the molds, placed in plastic bags to even out the distribution of water, and kept under laboratory conditions for 28 days. Before conducting the thermo-physical measurements, the samples were dried in an oven at 105 °C for 24 hours. An example of the concrete used for hygroscopic, physical and thermal characterization is presented in Figure 1.
2.3. Characterization Methods
2.3.1. Water Absorption First, the concretes were dried in an oven for 24 hours, and then their masses were weighed. Then, they were introduced into distilled water at room temperature. By carrying out successive weighings, It is noted that, after 24 hours of immersion, the concretes reached their water saturation point (∆m≤0.01g). Finally, the masses at saturation were weighed.

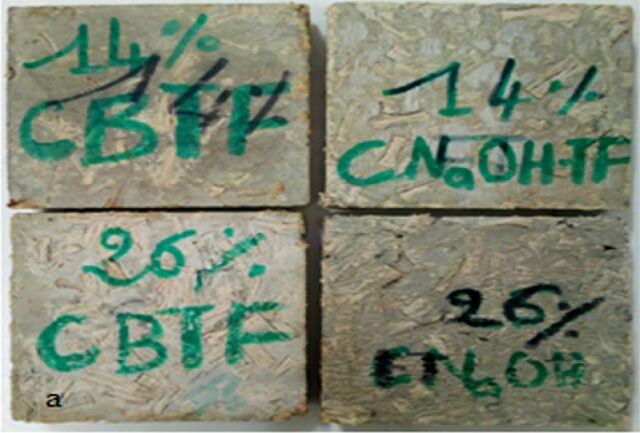

Figure 1. Baobab trunk fibers concretes. The expression of the water absorption is: (1) : Mass of concrete saturated with water. : Mass of concrete in a dry state. 2.3.2. Moisture Content The concretes were kept in the atmospheric conductions of the laboratory for 24 h before being weighed ( ) and placed in an oven at a temperature of 105 °C. 24 hours later, the drying was stopped when the last two measurements were very similar (∆m≤0.01g). The expression calcu100(2) lates the moisture content= : Mass of concrete in a dry state. : Mass of the concrete in the ambient state. •
2.3.3. Apparent Density and Porosity The bulk density is the ratio of the mass ( ) to the bulk volume of the sample. The mass of the sample was weighed with a 0.01 g precision balance. The dimensions of the sample were measured with a caliper to calculate the apparent volume. The equation obtains the bulk density:
J Sustain Const Mater Technol, Vol. 8, Issue. 4, pp. 251–259, December 2023

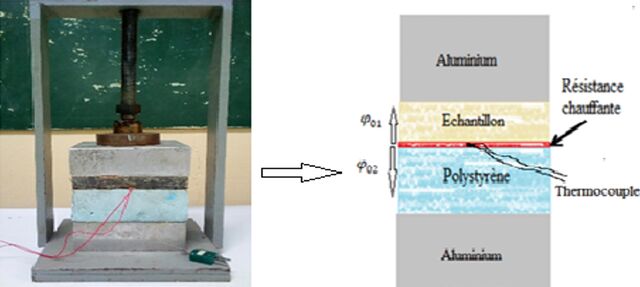

Figure 2. Asymmetrical hot-plane device. Table 4. Thermal properties of polystyrene e (m)
(3) The water-accessible porosity is the ratio of the pore volume to the volume of the concrete. The pore volume is the difference between the mass of the water-saturated concrete ( ) and the concrete in the dry state ( ). The equation gives the porosity: η: concrete porosity : Volume of the sample : Water density
2.3.4. Thermal Characterization The thermal characterization consisted of the simultaneous determination of thermal conductivity and thermal effusivity using the asymmetric hot plane method at a constant sample backside temperature (Fig. 2). The principle of this method and the modeling have been described in detail by Diéye et al. [19]. System modeling is based on two hypotheses: the heat transfer at the center of the sample is unidirectional (1D), and the temperature at the back of the sample is maintained constant. During measurement, the heating element applies a constant heat flow to one side of the 10 cm x 10 cm x 2 cm sample. A thermocouple placed in the center of the heating element records the evolution of the temperature Ts(t). The principle is to determine the values of the sample's thermal conductivity and thermal effusivity that minimize the squared deviation between the experimental and theoretical curves. The expression for the square deviation is:
With: : The quadratic error between the experimental and theoretical values. : Experimental temperature. : Theoretical model temperature. To test the validity of this method, an extruded polystyrene sample of known dimensions and thermal parameters was tested, and the results are presented in Table 4.
2.4. Thermal Conductivity Estimation by the
Self-Consistent Method This work used the three-phase model [20, 21] to determine the homogeneous medium's equivalent thermal con-
J Sustain Const Mater Technol, Vol. 8, Issue. 4, pp. 251–259, December 2023

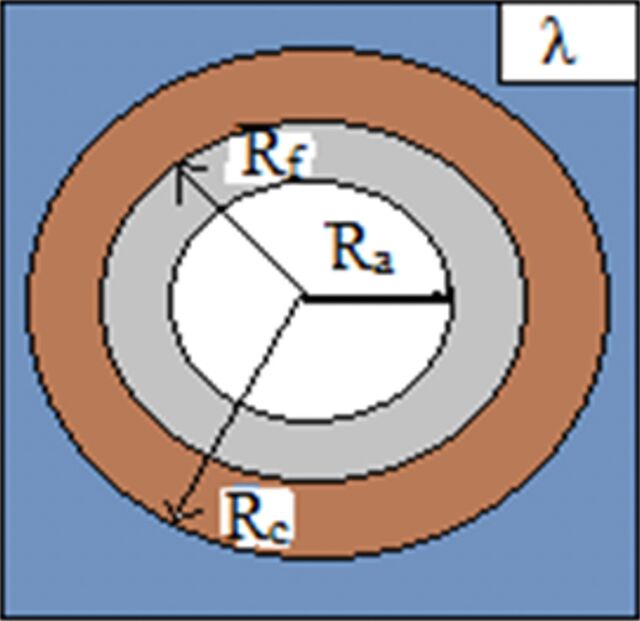

ductivity (λ). The principle of the method is to assimilate a heterogeneous material to a homogeneous medium whose equivalent thermal conductivity is determined. The sample has assimilated an assembly of centrally located spherical air bubbles (Ra, λa), covered by a concentric spherical layer of fibers particles (Rf, λf), and the whole is covered by a cementitious matrix (Rc, λc) as illustrated in Figure 3.
treatment of fibers contributes better to reducing the water-soluble components responsible for the hydrophilic character of fibers [17]. This reduces the water absorption capacity of the fibers. This same behavior was observed by Abderraouf [4].
3.1. Hygroscopic Characterization

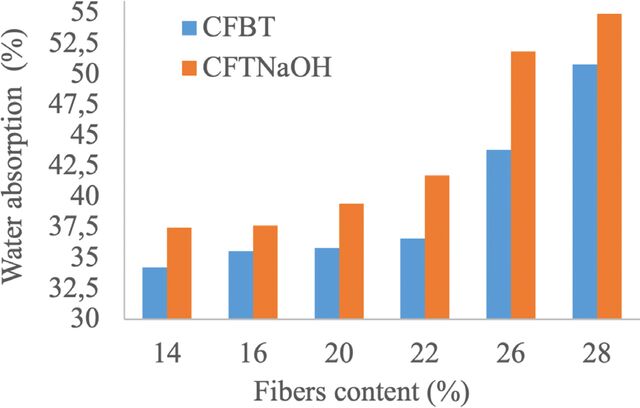

3.1.1. Influence of Fibers Content and Treatment on Water Absorption The results of water absorption at saturation of the concretes are given in Table 5. Figure 4 shows the evolution of water absorption as a function of fiber content and type of treatment. It shows that the water absorption of concrete increases as the amount of fibers increases. Baobab trunk fibers have a high water absorption coefficient [17]. Incorporating these fibers in the cementitious matrix explains the increase in water absorption of concretes when the fiber content increases. A similar behavior was observed by Xie et al. [22] on concretes based on rice straw and bamboo fibers and Benmansour et al. [2] on date palm fiber concretes. It can also be seen that the type of treatment affects the water absorption. The water absorption of C.F.B.T. concretes is slightly higher than that of CFTNaOH concretes. Indeed, it has been shown that the thermochemical

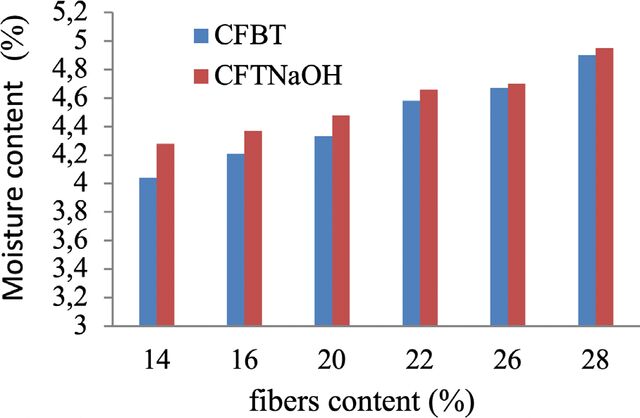

3.1.2. Influence of Fibers Content and Treatment on Moisture Content The moisture content values of C.F.B.T. and CFTNaOH concretes are shown in Table 6. Figure 5 shows that the concretes' moisture content increases when the fibers' mass fraction increases. This is because fibers comprise molecules with large amounts of free hydroxyl groups (-O.H.) and can bind water vapor [23]. It can be seen that the type of treatment also influences the moisture content. We noted that the C.F.B.T. concretes showed lower moisture contents than the CFTNaOH concretes (Fig. 5). This phenomenon can be explained by the fact that the thermochemical treatment leads better to the dissolution of lignin and hemicellulose. This makes the fibers less hydrophilic. This same behavior was also found by Sawsen et al. [24]. Although the water absorption and moisture content of the fibers have been reduced, it has to be recognized that the concretes studied are still highly sensitive to water. Therefore, for their use in buildings, they are either used for internal insulation in the form of panels or by applying a layer of waterproof plaster to the outside face when the concretes are used to fill the walls.
J Sustain Const Mater Technol, Vol. 8, Issue. 4, pp. 251–259, December 2023
Table 7. Apparent densities and water-accessible porosity of concretes Fibers content (%)
Table 8. Thermal conductivity of C.F.B.T. concretes Fibers content (%)
3.2. Thermo-Physical Characterization
3.2.1. Influence of the Fiber Content on the Density The values of the apparent densities and water-accessible porosity of the concrete (C.F.B.T. and CFTNaOH) are given in Table 7. Figure 6 shows the density variation as a function of fiber content and type of fiber treatment. It is noted that the bulk density decreases as the fiber content increases. Adding plant fibers in a cementitious matrix increases the porosity of the fiber-reinforced concrete (Table 7). However, as the porosity of the concrete increases, the density decreases. This justifies the decrease in the density of concrete fibers. Potiron et al. [4] also observed the same behavior. Figure 6 also shows that the treatment influences the bulk density of the concrete. It can be seen that the densities of C.F.B.T. concretes are slightly higher than those of CFTNaOH concretes. Some authors have shown that the treatment increases the density of the fibers Ghabo et al. [17], Asasutjarit et al. [25]. This justifies the importance of the density of C.F.B.T. concretes compared to CFTNaOH concretes. 3.2.2. Influence of Fiber Content and Treatment on Thermal Conductivity The values of the thermal conductivities of the studied concrete are given in Table 8. The variation in thermal conductivity as a function of fiber content and type of treatment is shown in Figure 7. Firstly, It can be noted that the thermal conductivity of the concrete decreases as the fiber content increases. Indeed, adding fibers to a cement matrix increases the porosity of the concrete. This contributes to the decrease of the thermal conductivity of the concrete when the fiber content increases. Other authors have observed similar behavior, Osseni et al. [8] and Benmansour et al. [2]. Secondly, it can be seen that the thermal conductivities of C.F.B.T. concretes are slightly higher than those of CFTNaOH concretes. The thermochemical treatment decreased the porosity of the fibers more than the chemical treatment Ghabo, et al. [17]. Thus, the incorporation of chemically

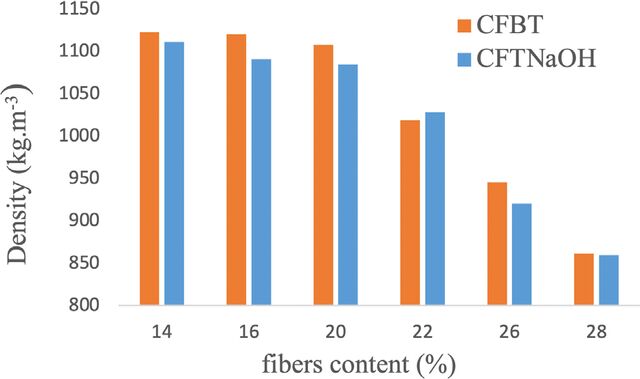

Figure 6. Density of concrete as a function of fiber content.

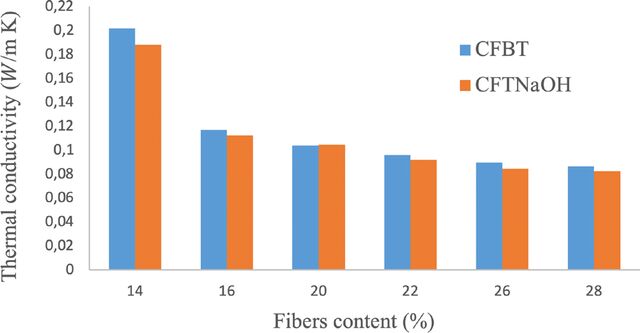

Figure 7. Thermal conductivity of C.F.B.T. and CFTNaOH as a function of fibers content type of treatment. treated fibers reduces the thermal conductivity of the concrete more. This justifies the superior thermal conductivity of C.F.B.T. concretes. Potiron et al. [4] have observed similar behavior in concretes based on sugarcane bagasse fibers. 3.2.4. Influence of Bulk Density on Thermal Conductivity Figure 8 and 9 show the evolution of the thermal conductivity as a function of the density of the concrete. It is noted that the thermal conductivity of concrete decreases as the density decreases. The addition of the fibers contributes,
J Sustain Const Mater Technol, Vol. 8, Issue. 4, pp. 251–259, December 2023

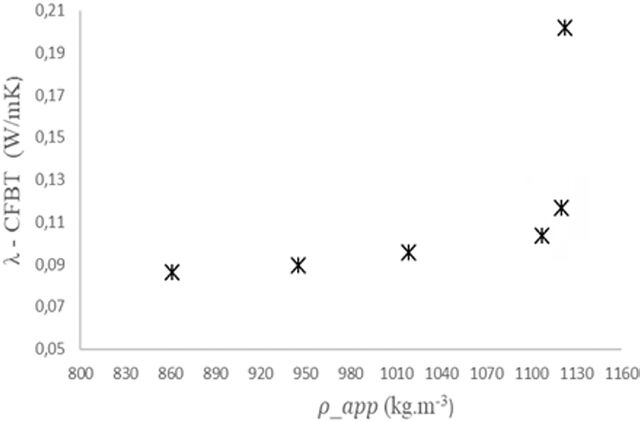

Figure 8. Thermal conductivity of CFBT concrete as a function of density.
Figure 9. Thermal conductivity of CFTNaOH concrete as a function of density.
Figure 10. Thermal conductivity of C.F.B.T. concrete as a function of volume fraction.
Figure 10. Thermal conductivity of CFTNaOH concretes as a function of volume fraction.
in one sense, to increase the porosity and, in the other sense, to reduce the density of the concrete. However, the increase in porosity leads to a decrease in density, which explains the reduction in thermal conductivity as a function of density.
Results
The variations of the experimental and theoretical thermal conductivity as a function of the fibers' volume fraction are shown in Figure 10 and 11. It can be seen that as the volume fraction of the fibers increases, the difference between the experimental and theoretical values increases. The deviations obtained between the theoretical and experimental values are between 3.3% and 8.5% for C.B.T.F. concretes and 2.9% and 8% for C.F.T.NaOH concretes. This difference can be justified by several factors: the generic pattern of the tri-composite structure for which the three phases are arranged as concentric and continuous spheres and the shape of the inclusions, which should be spherical. In addition, the experimental measurements of the thermal conductivities of the fibers and the cementitious matrix would have measurement errors. Therefore, using these values to calculate the equivalent thermal conductivity could explain this difference. The self-consistent homogenization model has also been used by Cerezo [21] and Benazzouk et al. [26] to estimate the thermal conductivity of bio-based concretes.
This work focused on the effect of incorporating baobab trunk fibers on the thermo-physical and hygroscopic properties of concrete. The fibers were chemically and thermochemically treated to study the impact of their incorporation on the properties of concrete. • The results obtained for the hygroscopic characterization showed that the thermo-physical treatment of the fibers contributes to reducing the moisture content and water absorption of the concretes studied. • From a thermophysical point of view, it was noted that the incorporation of fibers resulted in a significant decrease in the thermal conductivity and density of the composites. For a fiber content of 20%, the thermal conductivity decreased by 58.64% and 58.72%, respectively, for the C.F.B.T. and C.F.T.NaOH composites compared to the control concrete. • The theoretical results of the self-consistent method are similar to the experimental results with acceptable deviations. • Regarding the thermal insulation of the building, both types of concrete studied showed good thermal insulation properties. • Therefore, we propose the use of this material in construction to reduce energy consumption in the building sector.
J Sustain Const Mater Technol, Vol. 8, Issue. 4, pp. 251–259, December 2023
Ethics
There are no ethical issues with the publication of this manuscript.
Data Availability Statement
The authors confirm that the data that supports the findings of this study are available within the article. Raw data that support the finding of this study are available from the corresponding author, upon reasonable request.
Financial Disclosure
The authors declared that this study has received no financial support.
References
- Programme national de réduction des émissions de Gaz à Effet de Serre à travers l’Efficacité Energétique dans le secteur du bâtiment au Sénégal 2013-2016. https://www.sn.undp.org/content/senegal/fr/home/operations/projects/environment_and_energy/EfficaciteEnergetique.html
- Agoudjil, B., Benmansour, N., Boudenne, A., Gherabli, A., & Kareche, A. (2014). Thermal and mechanical performance of natural mortar reinforced with date palm fibers for insulating materials in building. Energy and Buildings, 81(1), 98-108.
- Abdullah, A., Hussin, K., Jamaludin, S. B., & Noor, M. M. (2011). Composite cement reinforced coconut fibers : Physical and mechanical properties and fracture behavior. Australian Journal of Basic and Applied Sciences, 5(7) : 1228-1240. https://www.researchgate.net/publication/250310862.
- Bilba, K., Delvasto, S., Passe-Coutrin, N., Potiron, C. O., & Toro, F. (2010). Sugar cane bagasse fibers reinforced cement composite: Thermal considerations. Composites Part A : Applied Science and Manufacturing, Elsevier, 41(4), 549-556.
- Ajzoul, T., El Bouardi, A., Ezbakhe, H., Mimet, A., Sick, F., & Taoukil, D. (2013). Moisture content influence on the thermal conductivity and diffusivity of wood–concrete composite. Construction and Building Materials, 48(1), 104-115.
- Adhikari, B., Chakraborty, S., Kundu, S. P., Majumder, S. B., & Roy, A. (2013). Polymer modified jute fibre as reinforcing agent controlling the physical and mechanical characteristics of cement mortar. Construction and Building Materials, 49(1), 214-222.
- Panesar, D. K., & Shindman, B. (2012) The mechanical, transport and thermal properties of mortar and concrete containing waste cork. Cement & Concrete Composites 34(1), 982-992.
- Ahouannou, C., Apovo, B. D., Jannot, E. Y., Osseni, S. O. G., & Sanya, E. A. (2016). Caractérisation thermique des mortiers de ciment dopés en fibres de coco par la méthode du plan chaud asymétrique à une mesure de température, Afrique SCIENCE 12(6), 119-129.
- Al Kutti, W., Al Maziad, F. A., Ashraf, N., & Nasir, M. (2020). Assessment of thermal and energy performance of masonry blocks prepared with date palm ash. Materials for Renewable and Sustainable Energy, 9(17), 1-13.
- Bal, H., Diallo, O., Diaw, A., Gaye, S., Ndiaye, M., & Wade, M. (2021). Thermophysical characterization of typha's concrete for its integration into construction. Journal of Building Construction and Planning Research, 9(1), 56-65.
- Al-Mohamadawi, A., Benhabib, K., Dheilly, R., & Goullieux, A. (2016). Influence of lignocellulosic aggregate coating with paraffin wax on flax shive and cement-shive composite properties. Construction and Building Materials, 102(1), 94-104.
- Dheilly, R., Goullieux, A., Khazma, M., & Quéneudec, M. (2012). Coating of a lignocellulosic aggregate with pectin/polyethylenimin mixtures : Effects on flax shive and cement-shive composite properties. Cement & Concrete Composites, 34(1), 223-230.
- Abderraouf, A. (2017). Etude des performances des mortiers renforcés de fibres naturelles : Valorisation des plantes locales. [Doctoral Thesis, Université Aboubakr Belkaïd– Tlemcen].
- Becchio, C., Corgnati, S. P., Kindinis, A., & Pagliolico, S. (2009). Improving environmental sustainability of concrete products: Investigation on M.W.C. thermal and mechanical properties. Energy and Buildings, 41(1), 1127-1134.
- Alioune, S., Mady, C., Mama, S., Mar, D. C., & Nicolas, A. (2018). Le baobab (Adansonia digitata L.): Taxonomie, importance socio-économique et variabilité des caractéristiques physico-chimiques. International Journal of Innovation and Scientific Research, 39(1), 12-23.
- Cisse, M., Diop, A. G., Dornier, M., Reynes, M. & Sakho, M. (2005). Le baobab africain (Adansonia digitata L.): Principales caractéristiques et utilisations. Fruits, 61(1), 55-69.
- Dièye, Y., Ghabo, A., Sambou, V., & Sarr, J. & Touré, P. M. (2020). Physical and hygroscopic characterization of fibers extracted from the Baobab trunk for their use as reinforcement in a building material. International Journal of Engineering and Technical Research, 10(1), 2454-4698.
- Amziane, S., Merzoud, M., & Sellami, A. (2013). Improvement of mechanical properties of green concrete by treatment of the vegetals fibers. Construction and Building Materials, 47(1), 1117-1124.
- Adj, M., Azilinon, D., Dieye, Y., Faye, M., Sambou, V., & Thiam, A., (2017). Thermo-mechanical characterization of a building material based on Typha Australis. Journal of Building Engineering, 9(19), 142-146.
- Collet, F., & Prétot, S. (2014). Thermal conductivity of hemp concretes: Variation with formulation, density and water content. Construction and Building Materials, 65(1), 612-619.
- Cerezo, V. (2005). Propriétés mécaniques, thermiques et acoustiques d'un matériau à base de particules végétales: Approche expérimentale et modélisation théorique. [Thèse de doctorat, L’Institut National des Sciences Appliquées de Lyon].
- Hui, D., Jiang, M., Wang, Z., Xie, X., Xu, X., & Zhou, Z. (2015). Cellulosic fibers from rice straw and bamboo used as reinforcement of cement-based composites for remarkably improving mechanical properties. Composites Part B : Engineering, 78(1), 153-161.
- Magniont, C. (2010). Contribution à la Formulation et à la Caractérisation d'un Eco matériau de Construction à Base d'Agro Ressources. [Thèse de doctorat, Université de Toulouse III - Paul Sabatier, Génie Civil, Laboratoire de Matériaux et Durabilité des Constructions (LMDC)].
- Fouzia, K., Mohamed, B., Moussa, G., & Sawsen, C. (2014). Optimizing the formulation of flax fiber-reinforced cement composites. Construction and Building Materials 54(1), 659-664.
- Asasutjarit, C., Charoenvai, S., Cheul, S. U., Hirunlabh, J., Khedari, J., & Zeghmati, B. (2007). Development of coconut coir-based lightweight cement board. Construction and Building Materials, 21(2), 277-288.
- Benazzouk, A., Douzane, O., Mezreb, K., Laidoudi, B., & Quéneudec, M. (2008).
- Thermal conductivity of cement composites containing rubber waste particles: Experimental study and modelling. Construction and Building Materials, 22(4), 573-579.
Share and Cite
Ghabo, A.; Touré, P.M.; DIÉYE, Y.; SAMBOU, A.V. Thermophysical characterization of concrete reinforced with baobab trunk fibers. Journal of Sustainable Construction Materials and Technologies 2023, Vol. 8, pp. 1. https://doi.org/10.47481/jscmt.1285031
