Effect of calcination on the physical, chemical, morphological, and cementitious properties of red mud
Journal of Sustainable Construction Materials and Technologies 2023, Vol. 8, Issue 4, pp. 7; doi.org/10.47481/jscmt.1376887
Abstract
Keywords: Compressive strength; Particle analyzer; red mud; Strength activity index; X-ray diffraction analysis
1. Introduction
In recent years, there has been a growing emphasis on the development of novel technologies to transform waste into value-added products, particularly within industrial and mining sectors. This is due to the increased recognition that reducing waste is a significant environmental concern. By recycling these industrial products, it is possible to mitigate potential environmental and health-related complications, as well as enhance sustainability [1–3]. The present study is mainly focused on utilizing alumina industrial residue (i.e., red mud) as a cementing material. Red mud is a semi-solid residue produced during the extraction of alumina from bauxite, known as the Bayer process, in alumina production. Specifically, for every tonne of alumina extracted, 1.5 tonnes of red mud is generated as a residue [4, 5].
According to the Alam [6] & Mymrin [7], 4 billion tonnes of red mud is accumulated on open lands. Additionally, more than 140 million tonnes of red mud is added to this accumulation from throughout the world every year. Disposal of this large amount of red mud is very difficult due to its alkaline nature and is uneconomical as it requires much land [8]. Moreover, this disposal creates several environmental problems, such as air, water, and land pollution. Recycling of red mud is limited due to its fineness and high alkalinity, which may create an environmental imbalance [9, 10]. Besides, as a waste product, RM does not incur any additional production costs nor does it increase emissions; rather, it decreases emissions from cement production. Utilizing RM as a substitute for cement not only addresses storage concerns but also has the potential to enhance concrete properties, provided that it is used in appropriate quantities [11].
*Corresponding author. *E-mail address: chvenky288@gmail.com Published by Yıldız Technical University Press, İstanbul, Türkiye This is an open access article under the CC BY-NC license (http://creativecommons.org/licenses/by-nc/4.0/).
J Sustain Const Mater Technol, Vol. 8, Issue. 4, pp. 297–306, December 2023
There are mixed opinions regarding the potential of red mud as a cementing material in cement/concrete composites, based on its strength and durability properties. Nikbin [12] reported that red mud has low cementing activity and shows a negative impact on compressive strength. Therefore, the usage of red mud is limited to the construction of non-structural elements. Su & Li [13] study revealed that incorporating 10% RM resulted in a minor reduction in the compressive strength of concrete, whereas incorporating more than 10% led to a significant decrease. A study by Yang [14] examined cement mortars that were based on red mud. The researchers replaced red mud in varying amounts, ranging from 0% to 9%. The results showed that the addition of red mud increased the mortar's density and improved its compressive strength. According to Ghalehnovi [15], the use of red mud in self-compacting concrete (SCC) resulted in a decrease of 10% and 20% in compressive strength when the red mud content was 7.5% and 10%, respectively. Similarly, Venkatesh [16] reported a 19% decrease in the compressive strength of concrete with the addition of 15% red mud. However, another study found that as the amount of red mud used in concrete increased, the concrete's strength decreased [17]. The decrease in strength can be attributed to the fact that replacing cement with red mud, which has low reactivity, reduces the amount of hydration products per unit volume. Contrarily, W. C. Tang et al. [18] replaced fly ash with red mud in concrete. The study found that as the replacement percentage of red mud increased, the compressive strength improved. Specifically, when 50% of the fly ash was replaced with red mud, higher compressive strength was observed along with good improvement in Interfacial Transition Zone (ITZ). Furthermore, XRD analysis showed the presence of hatrurite and larnite. For instance, many investigations have started using red mud as a secondary or tertiary cementitious material in both normal and geopolymer concretes. In their studies, researchers have blended red mud with various cementing materials, including Slag [19], Metakaolin [20, 21], Fly ash [22], GGBFS [23], Phosphogypsum [24], Granite powder, and marble powder [25], and silica fume [26]. When red mud blend with other cementing materials has shown the considerable improvement in their strength and durability than its individual usage. Although using red mud to prepare cement and concrete has promising application prospects, the presence of sodium in red mud can be detrimental to the strength and durability of cement and concrete. As a result, the amount of red mud utilized must be carefully controlled, or alternatively, the red mud must undergo a process of dealkalization, which ultimately restricts its application in cement and concrete production [27]. The conventional methods of dealkalization, such as acid neutralization, water leaching, and wet carbonation, are efficient. However, they also reduce the reactivity of red mud and have a negative impact on the performance of concrete. High-temperature treatment is an efficient method for enhancing the reactivity of red mud, as it can decompose some of its inert phases, such as cancrinite, gibbsite, and aragonite, into reactive ones that can easily
dissolve in the pore solution [28]. According to Luo [29], the ideal temperature for calcination to completely decompose cancrinite and birnessite in red mud is 1000 °C for one hour, while Danner [30] indicated that calcination at 800 °C for 15 minutes significantly enhanced the reactivity of red mud while decreasing the solubility of sodium. Manfroi [31] performed a calcium hydroxide consumption test and found that calcination at temperature of 600 °C for one hour was the optimal temperature for activating the pozzolanic reactivity of red mud. Liu et al. [32] stated that red mud demonstrated its highest pozzolanic activity when it was calcined for 3 hours at a temperature of 600 °C, which was attributed to the development of poorly-crystallized Ca2SO4. Therefore, the general consensus is that calcination is a necessary precondition for red mud to exhibit reactivity. Without calcination, red mud would remain chemically unreactive in Portland cement blends, potentially resulting in weakened strength. Research significance: Between 2010 and 2023, a total of 6,350 research articles were published on red mud as a cementing material, but less than 50 articles focused on the effect of calcination on red mud (The data was collected from Google Scholar using the following search limitations: a custom range in years from 2010 to 2023, article type set to research articles, and the keyword 'red mud as cementing material'.) There are varying opinions on the ideal calcination temperature for red mud, as its chemical composition differs from one location to another. The red mud produced by Indian aluminium industries, in particular, has limited usage in cement and concrete production due to a lack of literature on its cementing properties. Addressing this research gap, the present study conducted a comprehensive investigation into the physical and chemical properties of red mud, as well as its cementing activity when calcined at temperatures ranging from 600 °C for 1 hour to 6 hours.
2.1. Materials
The present study obtained red mud from the NALCO in Orissa, India, which was in the semi-solid form with 30–40% moisture content during collection. It was dried in a laboratory (approximately 30 ºC) for 3 days and then ground in ball mills. OPC-53 Grade cement was used for compressive strength and strength activity index tests, and all properties were within the limits of ASTM C150 [33]. Specifically, the specific surface area was 300 m2/kg, and the specific gravity was 3.12. Table 1 illustrates the Non-calcined red mud (NC-RM) and cement chemical compositions. The fine aggregates were used in accordance with IS: 383–2016 [34] and Table 2 shows its physical properties.
2.2. Calcination Process
In this study, a high-temperature muffle furnace was used for the calcination of red mud (RM), and a heating rate of 10 °C/min was maintained throughout the calcination process. The RM was calcined at a temperature of 600 °C for 1–6 hours and it is cooled at ambient air temperature for 5 hours in the laboratory after which it was ground in ball mills.
J Sustain Const Mater Technol, Vol. 8, Issue. 4, pp. 297–306, December 2023
2.5. Strength Activity Index
The compressive strength and strength activity index (SAI) tests are evaluated on the red mud-induced cement mortar samples according to the ASTM C109/C109M [36] and ASTM C311/C311M [38] standards. Equation 1 is used to evaluate the strength activity index of red mud-induced cement mortar samples.
3. Results And Discussion

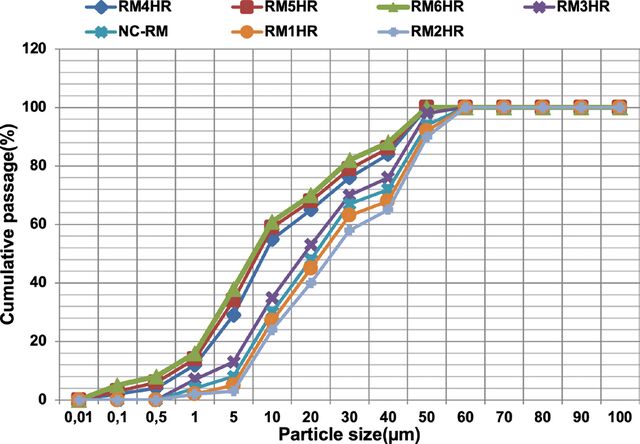

Figure 1. Particle size distribution of various calcined red muds.
2.3. Characterization Methods
In this study, the specific surface area of both calcined and non-calcined red mud samples was determined using the Micromeritics Gemini 237 and Gemini V instruments. Similarly, the particle size of the red mud samples was measured using the SZ-100Z nanoparticle analyzer from Horiba Ltd., Japan. The STA72000 thermal analyzer was used in this study to perform TG-DTA. Nitrogen (N2) was used as a stripping gas, and all red mud samples were heated at a temperature range of 20 °C to 600 °C with a heating rate of 10 °C/min, as per Wu [35]. The Rigaku MiniFlex 600 with the following parameters was used to identify XRD patterns/phases: 40 kV voltage and 15 mA current, step scan of 0.0200º, scan range from 10º to 70º (2Ɵ), a scan speed of 100.00 deg/min, and CuKa/1.541862 A wavelength. VEGA 3 SBH, TESCAN Bmo. S.R.O., CZECH REPUBLIC, was used for identifying the surface morphology of calcined and non-calcined red mud samples. In the present study, the X’pert HighScore software tool has been used to analyze the XRD results, and it is supported by the new ICDD PDF-4+/Web licenses.
2.4. Mix Proportions
According to ASTM C109/C109M [36], the mix proportions of cement mortar samples are calculated, and the proportional ratios are as follows: 1:3:0.52 (i.e., binder: fine aggregates: water-to-cement ratio). In this study, 10% of various calcined red mud has been replaced with cement in all the mixes. A total of 48 mortar samples (with a size of 50 mm on each side of the cube) are prepared and cured for 7 and 28 days in portable water, following ASTM C31/C31M [37].
3.1. Calcination Effect on Physical Properties of Red
Mud In this study, particle size analysis was conducted on the calcined red mud particles, as shown in Figure 1. The results show that all the red mud particles fall within the range of 1–50 µm, with an average particle size of 8 µm. The specific surface areas were measured using the BET apparatus and are illustrated in Table 2. Non-calcined red mud has a specific surface area of 1.86 m2/g, which increases to 2.2 m2/g after 2 hours of calcination. This increase is attributed to the loss of moisture in the particles and the destruction of alumina silicates present in the red mud particles, as mentioned by Liu [32]. They also state that specific surface area values decrease to 1.95 m2/g after 6 hours due to particle aggregation. According to Wu [35], the crystallinity of red mud particles increased with the enlargement of red mud particle size and the reduction in specific surface area resulting from calcination. Nath [39] have made similar conclusions, stating that particle size is enriched up to 200 ⁰C of heating due to improved crystallinity. However, particle collision observed at a temperature of 500 ⁰C leads to a reduction in particle size. In this study, the specific gravity of red mud was measured according to IS 4031 Part-11 (1988) [40]. Table 3 illustrates the variations in the specific gravity of red mud when calcined at a temperature of 600 °C for 1 to 6 hours, and it is compared with non-calcined red mud. The specific gravity of red mud decreased by about 1.65% during 2 hours of calcination compared to non-calcined red mud, attributable to moisture loss in the particles. However, after 2 hours of calcination, the specific gravity values increased from 0.4% (at 3 hours) to 3.25% (at 6 hours). This effect can be attributed to agglomeration between the red
J Sustain Const Mater Technol, Vol. 8, Issue. 4, pp. 297–306, December 2023

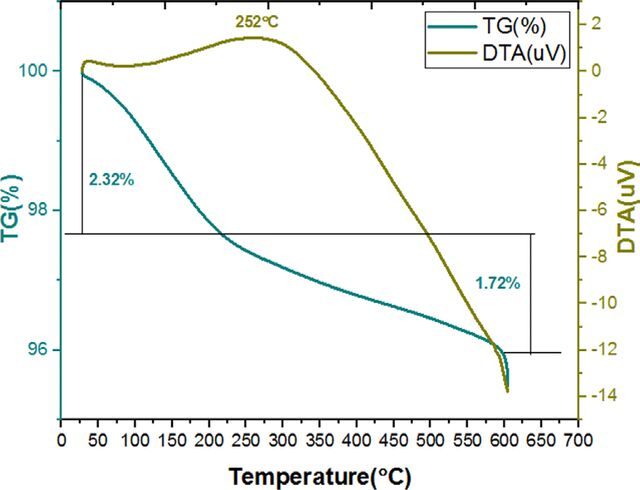

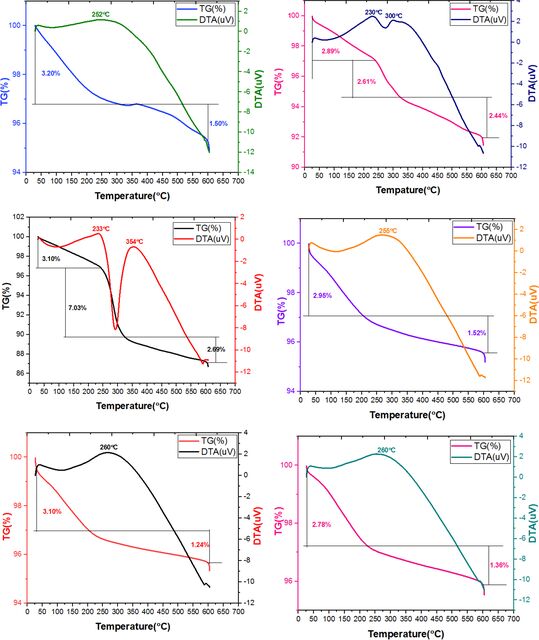

Figure 2. TG-DTA analysis of calcined red muds (a) NC-RM, (b) RM1HR, (c) RM2HR, (d) RM3HR, (e) RM4HR, (f) RM5HR and (g) RM6HR.
J Sustain Const Mater Technol, Vol. 8, Issue. 4, pp. 297–306, December 2023
Table 3. Physical properties of red mud after calcination NC-RM
Table 4. Chemical composition of calcined red mud (weight %) Temp/time
mud particles Zhang [41] and Wang [42] reported that specific gravity values significantly varied when red mud was thermally activated. In this study, thermogravimetry analysis was conducted on all calcined red mud particles to measure the mass loss, as shown in Table 3. Figure 2 depict the TG-DTA curves of all calcined red mud particles. The mass of the red mud particles varied with different calcination durations: 4.7% for non-calcined, 7.94% for 1 hour at 600 ⁰C, 12.82% for 2 hours at 600 ⁰C, 4.47% for 3 hours at 600 ⁰C, 4.34% for 4 hours at 600 ⁰C, 4.14% for 5 hours at 600 ⁰C, and 4.04% for 6 hours at 600 ⁰C. However, the reason for the mass loss observed up to 2 hours of calcination was attributed to dissipation of physical and chemically bound water. Based on the obtained results, it was observed that all the physical properties, namely specific gravity, particle size, specific surface area, and mass loss, exhibited similar behavior. The calcination of red mud significantly influenced its physical properties. However, moisture loss was observed in the red mud for up to 2 hours of calcination. Subsequently, the physical properties were enhanced, which can be attributed to particle agglomeration.
3.2. Calcination Effect on Chemical Properties of Red
Mud Table 4 displays the chemical composition of red mud under different calcination durations at a temperature of 600 ⁰C. Alumina, silica, and iron oxides were found to be the major components in all calcined red mud samples. Among them, the red mud subjected to a 2-hour calcination at 600 ⁰C exhibited higher levels of silica and calcium oxide compared to the other calcined red mud samples. This increase in silica and calcium oxide content contributes to the enhanced cementitious activity of the red mud particles. In this study, X-ray diffraction analysis was conducted to evaluate the phase transformations in red mud during calcination at a temperature of 600 ⁰C for dif-

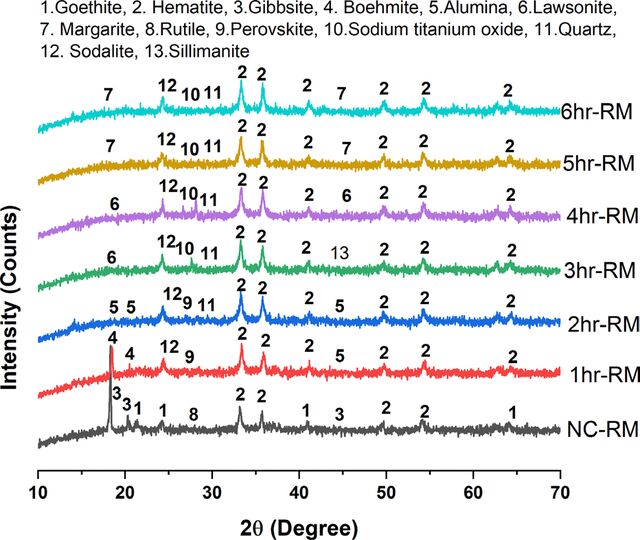

Figure 3. X-ray diffractogram of calcined red muds. ferent durations (1 to 6 hours), as shown in Figure 3. The following mineralogical phases/compounds were identified: 1. Goethite (FeO(OH)), 2. Hematite (Fe2O3), 3. Gibbsite Al(OH)4, 4. Boehmite (AlO(OH), 5. Alumina-(Al2O3), 6. Lawsonite-(CaAl2Si2O7(OH)2(H2O),
7. Margarite-(CaAl2(Si2Al2O10)(H2O), 8. Rutile-(TiO2),
9. Perovskite (CaTiO3), 10. Sodium titanium oxide(NaTiO3), 11. Quartz-(SiO2), 12. Sodalite-(Na7.89(AlSiO4)6(2 NO3)1.92, 13. Sillimanite-(Al2(SiO4)O. Gibbsite was observed at 2Ɵ=14.47 with a d-spacing of 6.1215 in non-calcined red mud. However, after 1 hour of calcination at 600 ⁰C, it transformed into boehmite due to moisture loss in the particles. Subsequently, boehmite further converted into alumina after 2 hours of calcination at 600 ⁰C. Hematite showed no significant phase changes throughout all the calcined durations, with traced positions at 2Ɵ=33.20, 35.68 and d-spacing of 2.6982, 2.5164. According to Nath [39], hematite remains stable up to 1200 ⁰C.
J Sustain Const Mater Technol, Vol. 8, Issue. 4, pp. 297–306, December 2023
Figure 4. TG-DTA analysis of calcined red muds (a) NC-RM, (b) RM1HR, (c) RM2HR, (d) RM3HR, (e) RM4HR, (f) RM5HR and (g) RM6HR. Table 5. Elemental composition of calcined red mud replaced mixes (weight %) Mixes 28 days O
Lawsonite transformed into sodalite, which explains the separation of calcium oxide during the calcination process. Rutile, initially present in the non-calcined red mud, changed to perovskite after 1 hour of calcination at 600 ⁰C, and further calcination resulted in the complete transformation to sodium titanium oxide. S.N. Meher [43] also observed similar
phase transformations, from rutile to perovskite. This phase change suggests that the calcium oxide present in the red mud may react with titanium oxide and form perovskite (CaTiO3). Quartz was detected between 2Ɵ values of 25 to 30 in the 2-hour calcined red mud, and it continued to be present in further calcined red mud samples as well. The chemical
J Sustain Const Mater Technol, Vol. 8, Issue. 4, pp. 297–306, December 2023
composition results (mentioned in Table 3) also indicated the presence of stable or higher levels of silica (SiO2) after 2 hours of calcination. Scanning electron microscopy (SEM) analysis was conducted to examine the surface morphology of red mud particles during various calcination processes. Figure 4 illustrates the SEM images of different calcined red mud particles. Microscopic observations revealed that the red mud particles exhibit an irregular shape. However, up to 2 hours of heating at 600 ⁰C, the red mud particles maintain a loose structure. In particular, Figure 4c shows a more poorly crystalline structure compared to others, which may indicate higher reactivity and better cementitious activity. A similar conclusion was made by Liu [32], stating that red mud forms a poorly crystalline structure when thermally activated, providing ideal cementitious activity. Subsequently, a dense structure is observed from 2 hours to 6 hours of heating at 600 ⁰C as the particles undergo agglomeration, resulting in their combination with surrounding particles. Similar observations regarding the physical properties of red mud were made in this study.
tious properties and is suitable for use as a cementitious material in concrete/mortar. Microstructure analysis revealed that red mud possesses significant cementitious properties as like cement. SEM images in Figure 7 indicate the formation of C-S-H (calcium silicate hydrate) and CH (calcium hydroxide). Notably, the cement mortar mixes with 2hr calcined red mud replacement exhibited better C-S-H gel formation than other mixes, as observed through the Ca/ Si ratios in the elemental composition of red mud replaced mixes, as shown in Table 5. The RM2HR calcined red mud containing mortar mix has low Ca/Si of 0.95 this is the reason for achievement of high strength (i.e., 46.27 MPa) and strength activity index values (i.e., 117.24%). According to Rossignolo [47] and MSR chand [48], the presence of C-S-H can be justified by the Ca/Si ratio of the EDXA (Energy-Dispersive X-ray Analysis) elemental weight percentages. A Ca/Si ratio ranging from 0.8 to 2.5 confirms the presence of C-S-H gel, while a lower Ca/Si ratio indicates a stronger or higher C-S-H gel formation Venkatesh [49].
3.4. Calcination Effect on Cementitious Properties of

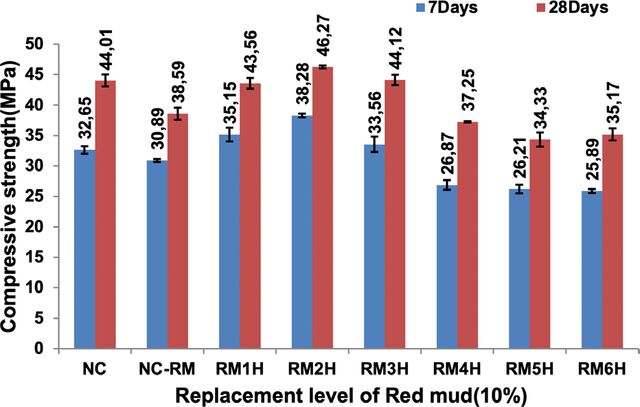

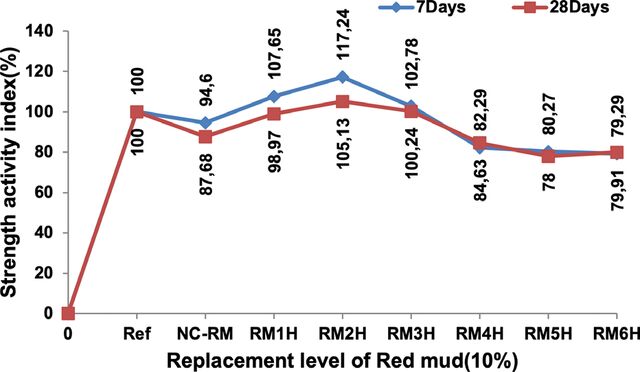

Red Mud The present study conducted the strength activity index test according to ASTM C311/C311M [38] to investigate the cementitious properties of red mud particles. In this regard, the cement mortar mixes were prepared by replacing the 10% of cement by calcined red mud (Calcined at a temperature of 600 ⁰C during 1 to 6hours). The results showed that the cement mortar samples containing 600 ⁰C@2hr (i.e., RM2HR) calcined red mud exhibited high strength, specifically 46.27 MPa, as shown in Figure 5. This effect can be attributed to the higher percentage of silica and the increased specific surface area of the red mud particles, which enhance the hydration process of the cementitious matrix. Figure 6 illustrates the strength activity index percentages of calcined red mud induced cement mortar mixes; 107.65% for RM1HR, 117.24% for RM2HR, 102.78% for RM3HR, 82.29% for RM4HR, 80.27% for RM5HR, and 79.29% for RM6HR. According to the ASTM C311/C311M [38], Wang et al. [44] and [45, 46] If the strength activity index values exceed 75%, the material exhibits good cementi-
In this study, red mud, a by-product of the Indian alumina industry (specifically NALCO), was calcined at a temperature of 600 ºC for 1 to 6 hours to evaluate its potential usage as a cementing material in cement/concrete production. The following conclusions were drawn after comprehensive assessments of its physical, chemical, morphological, and cementing properties. • Chemical evaluation studies have identified that red mud contains abundant amounts of silica, iron oxide, and alumina. In the case of calcined red mud at 600˚C for 2 hours (600˚C@2hr), it was found to contain 10.84% CaO, 21.92% SiO2, and 22.62% alumina, making it more suitable as a cementing material. • Based on the XRD analysis, hematite remained stable throughout the calcination process. However, gibbsite in non-calcined red mud transformed into boehmite at RM1HR, and further calcination at 600 oC for 2 hours resulted in its conversion into alumina. • The RM2HR calcined red mud replacement mixes exhibited high compressive strength and strength activity index values, specifically 46.27 MPa and 117.24%. It
4. Conclusions
J Sustain Const Mater Technol, Vol. 8, Issue. 4, pp. 297–306, December 2023
Figure 7. Scanning electronic microscope micrographs of calcined red mud: (a) Reference, (b) NC-RM, (c) RM1HR, (d) RM2HR, (e) RM3HR, (f) RM4HR, (g) RM5HR and (h) RM6HR.
was observed that this particular red mud contained a higher amount of silica (21.92%), a large specific surface area (2.2 m2/g), and a poorly crystalline structure. These factors played a positive role in the cementing activities. Finally, NALCO-produced red mud can be utilized as a cementing material in cement/concrete production after undergoing calcination at a temperature of 600 ºC for 2 hours.
Ethics
There are no ethical issues with the publication of this manuscript.
Data Availability Statement
The authors confirm that the data that supports the findings of this study are available within the article. Raw data that support the finding of this study are available from the corresponding author, upon reasonable request.
Financial Disclosure
The authors declared that this study has received no financial support.
References
- Gou, M., Hou, W., Zhou, L., Zhao, J., & Zhao, M. FINANCIAL DISCLOSURE (2023). Preparation and properties of calcium alu- The authors declared that this study has received no fi- minate cement with Bayer red mud. Constr Build nancial support. Mater, 373, 130827. [CrossRef] J Sustain Const Mater Technol, Vol. 8, Issue. 4, pp. 297–306, December 2023 305
- Venkatesh, C., Nerella, R., & Chand, M. S. R. (2020). Experimental investigation of strength, durability, Influence of red mud on fresh and hardened proper- and microstructure of red-mud concrete. J Korean ties of self-compacting concrete. Constr Build Mater, Ceram Soc, 57(2), 167–174. [CrossRef] 178, 288–300. [CrossRef]
- Alam, S., Das, S. K., & Rao, B. H. (2019). Strength and durability characteristic of alkali-activated (2020). Effect of different gypsums on the work- GGBS stabilized red mud as geo-material. Constr ability and mechanical properties of red mud- Build Mater, 211, 932–942. [CrossRef] slag based grouting materials. J Clean Prod, 245,
- Mymrin, V., Alekseev, K., Fortini, O. M., Aibuldin- 118759. [CrossRef] ov, Y. K., Pedroso, C. L., Nagalli, A., Winter, E. Jr., [20] Liu, J., Li, X., Lu, Y., & Bai, X. (2020). Effects of Na/ Catai, R. E. & Costa, E. B. C. (2017). Environmental- Al ratio on mechanical properties and microstruc- ly clean materials from hazardous red mud, ground- ture of red mud-coal metakaolin geopolymer. Con- cooled ferrous slag, and lime production waste. J str Build Mater, 263, 120653. [CrossRef] Clean Prod, 161, 376–381. [CrossRef] [21] Raj, R. R., Pillai, E. P., & Santhakumar, A. R. (2012).
- Ortega, J. M., Cabeza, M., Tenza-Abril, A. J., Re- Strength and corrosion properties of concrete in- al-Herraiz, T., Climent, M. Á., & Sánchez, I. (2019). corporating metakaolin and red mud. Eur J Sci Res, Effects of red mud addition in the microstructure, 91(4), 569–579. durability, and mechanical performance of cement [22] Qaidi, S. M., Tayeh, B. A., Ahmed, H. U., & Emad, mortars. Appl Sci, 9(5), 984. [CrossRef] W. (2022). A review of the sustainable utilization
- Liu, Z., & Li, H. (2015). Metallurgical process for of red mud and fly ash for the production of geo- valuable elements recovery from red mud - A re- polymer composites. Constr Build Mater, 350, view. Hydrometallurgy, 155, 29–43. [CrossRef] 128892. [CrossRef]
- Abdel-Raheem, M., Santana, L. G., Cordava, M. P., & Martínez, B. O. (2017). Uses of red mud as Q., & Zhu, W. (2023). Effects of dosage and type a construction material. In AEI 2017 (pp. 388– of GGBS on the mechanical properties of a hy-
- Patangia, J., Saravanan, T. J., Kabeer, K. S. A., & Bisht, 04023008. [CrossRef] K. (2023). Study on the utilization of red mud (baux- [24] Huang, X., Li, J. S., Jiang, W., Chen, Z., Wan, Y., Xue, ite waste) as a supplementary cementitious material: Q., Liu, L. & Poon, C. S. (2022). Recycling of phos- Pathway to attaining sustainable development goals. phogypsum and red mud in low carbon and green Constr Build Mater, 375, 131005. [CrossRef] cementitious materials for vertical barrier. Sci Total
- Nikbin, I. M., Aliaghazadeh, M., Charkhtab, S. H., Environ, 838, 155925. [CrossRef] & Fathollahpour, A. (2018). Environmental impacts [25] Ghalehnovi, M., Roshan, N., Hakak, E., Shamsabadi, and mechanical properties of lightweight concrete E. A., & De Brito, J. (2019). Effect of red mud (baux- containing bauxite residue (red mud). J Clean Prod, ite residue) as cement replacement on the properties 172, 2683–2694. [CrossRef] of self-compacting concrete incorporating various
- Su, Z., & Li, X. (2021). Study on preparation and fillers. J Clean Prod, 240, 118213. [CrossRef] interfacial transition zone microstructure of red [26] Bajpai, R., Shrivastava, A., & Singh, M. (2020). Prop- mud-yellow phosphorus slag-cement concrete. Ma- erties of fly ash geopolymer modified with red mud ter, 14(11), 2768. [CrossRef] and silica fume: A comparative study. SN Appl Sci, 2,
- Yang, X., Zhao, J., Li, H., Zhao, P., & Chen, Q. (2017). 1–16. [CrossRef] Recycling red mud from the production of alumini- [27] Wang, S., Jin, H., Deng, Y., & Xiao, Y. (2021). Com- um as a red cement-based mortar. Waste Manag Res, prehensive utilization status of red mud in China: A 35(5), 500–507. [CrossRef] critical review. J Clean Prod, 289, 125136. [CrossRef]
- Ghalehnovi, M., Shamsabadi, E. A., Khoda- bakhshian, A., Sourmeh, F., & De Brito, J. (2019). Z., Guan, X., & Zhu, J. (2021). Unveiling substitu- Self-compacting architectural concrete produc- tion preference of chromium ions in sulphoalumi- tion using red mud. Constr Build Mater, 226, 418– nate cement clinker phases. Compos B Eng, 222,
- Venkatesh, C., Nerella, R., & Chand, M. S. R. (2020). Comparison of mechanical and durability proper- X., Yu, H., & Shen, Y. (2019). Utilization of waste ties of treated and untreated red mud concrete. Ma- from alumina industry to produce sustainable ce- ter Today: Proc, 27, 284–287. [CrossRef] ment-based materials. Constr Build Mater, 229,
- Raja, R. R., Pillai, E. P., & Santhakumar, A. R. (2013). 116795. [CrossRef] Effective utilization of red mud bauxite waste as a [30] Danner, T., & Justnes, H. (2020). Bauxite residue as replacement of cement in concrete for environ- supplementary cementitious material–efforts to re- mental conservation. Ecol Environ Conserv, 19(1), duce the amount of soluble sodium. Nord Concr Res, 247–255. 62(1):1–20. [CrossRef] 306 J Sustain Const Mater Technol, Vol. 8, Issue. 4, pp. 297–306, December 2023
- Manfroi, E. P., Cheriaf, M., & Rocha, J. C. (2014). of red mud thermally treated at different tempera- Microstructure, mineralogy and environmental tures. J Jinan Uni Sci Technol, 19(4), 293–297. evaluation of cementitious composites produced [42] Wang, P., & Liu, D. Y. (2012). Physical and chemical with red mud waste. Constr Build Mater, 67, 29– properties of sintering red mud and Bayer red mud
- Liu, X., Zhang, N., Sun, H., Zhang, J., & Li, L. (2011). rials, 5(10), 1800–1810. [CrossRef] Structural investigation relating to the cementitious [43] Meher, S. N., & Padhi, B. (2014). A novel meth- activity of bauxite residue – Red mud. Cem Concr od for the extraction of alumina from red mud by Res, 41(8), 847–853. [CrossRef] divalent alkaline earth metal oxide and soda ash
- ASTM C150/C150M-16e1 (2016) Standard specifi- sinter process. Int J Environ Waste Manag, 13(3), cation for Portland cement. ASTM International. 231–245. [CrossRef]
- BIS, IS 383-2016 (2016) Specification for coarse and fine aggregates from natural sources for concrete. Bu- Suraneni, P. (2021). Strength activity index and bulk reau of Indian Standards. resistivity index modifications that differentiate in-
- Wu, C. S., & Liu, D. Y. (2012). Mineral phase and ert and reactive materials. Cem Concr Compos, 124, physical properties of red mud calcined at differ- 104240. [CrossRef] ent temperatures. Journal of Nanomaterials, 2012, [45] Kumar, K. S., Rao, M. S., Reddy, V. S., Shrihari, S., & 1–6. [CrossRef] Hugar, P. (2023). Effect of particle size of colloidal na-
- ASTM C109/C109M. (2022). Standard Test Methods no-silica on the properties of the SCM based concrete. for Compressive Strength of Cement Mortar. ASTM EDP Sciences. [CrossRef] International. [46] Madhavi, C., Reddy, V. S., Rao, M. S., Shrihari, S.,
- ASTM C31/C31M. (2019). Standard Practice for Kadhim, S. I., & Sharma, S. (2023). The effect of Making and Curing Concrete Test Specimens in the elevated temperature on self-compacting concrete: Field. ASTM International. Physical and mechanical properties. EDP Scienc-
- ASTM C311/C311M. (2022). Standard Test Meth- es. [CrossRef] ods for Sampling and Testing Fly Ash or Natural Poz- [47] Rossignolo, J. A. (2009). Interfacial interactions in zolans for Use in Portland-Cement Concrete. ASTM concretes with silica fume and SBR latex. Constr International. Build Mater, 23(2), 817–821. [CrossRef]
- Nath, H., Sahoo, P., & Sahoo, A. (2015). Character- ization of red mud treated under high-temperature Kumar, G. R. (2018). Performance and microstruc- fluidization. Powder Technol, 269, 233–239. [CrossRef] ture characteristics of self-curing self-compacting
- :1988. Method of Physical Test for Hydraulic Ce- [49] Venkatesh, C., Nerella, R., & Chand, M. S. R. (2021). ment (Determination of Density). Bureau of Indian Role of red mud as a cementing material in concrete: Standards. A comprehensive study on durability behavior. Inn-
- Zhang, Y. N., & Pan, Z. H. (2005). Characterization ov Infrastruct Solut, 6(1), 13. [CrossRef]
- Tang, W. C., Wang, Z., Liu, Y., & Cui, H. Z. (2018).
