Component-based exergy modeling of three spool turboprop engine depending on the flight conditions
Journal of Thermal Engineering 2026, Vol. 12, Issue 3, pp. 887-900; doi.org/10.47481/jten.0004
Abstract
Keywords: Turboprop engine; exergy; modeling; flight condition
1. Introduction
Aircraft gas-turbine engines are designed to be relatively reliable despite their sophisticated systems. Therefore, these engines have attracted remarkable attention in different fields, which leads to special focusing on each of their systems [1]. Turboprop engines have, in particular, powered regional aircraft, a growing sector, because of their promising advantages, such as efficiency. Due to the importance of efficiency and its challenging role, scientists focus on increasing efficiency in every area of industry [2]. Moreover, gas turbine engines are affected by several factors, such as environmental impacts and the need for aircraft renewal. Especially, environmental issues have been dealt with by international associations such as ICAO, ATAG and IATA [3]. Since these have set several goals to mitigate the effects of global warming, the aviation sector
could face challenges implementing these goals with existing technologies. According to Paris Aggrement, temperature rise o is restricted by 1.5 C compared with pre-industrial years [4]. Therefore, substantial effort is required of all states and stakeholders to maintain the established goals. The aviation sector’s steady growth has resulted in negative consequences, including increased emissions and noise pollution. In other words, it accounts for 2.1% of human-induced CO2 emissions. When considering emissions worldwide, 914 million tonnes of CO2 were produced in 2019 due to performed flights [5]. To tackle this concern, three pillars such as alternative fuels, operational measures and implementation of new technologies involving fully electrical aircraft and blended wing body are explicitly expressed in the literature [6] When it comes to greenhouse gases, CO2 and H2O are two main emissions, which are produced 3.16 kg and 1.23 kg per unit fuel of 1 kg, respective-
Submitted: 28 December 2025; Accepted: 17 January 2026 This paper was recommended for publication in revised form by Editorin-Chief Ahmet Selim Dalkılıç Published by Yıldız Technical University, İstanbul, Türkiye This is an open access article under the CC BY-NC license (http://creativecommons.org/licenses/by-nc/4.0/).
ly. Of which, CO2 resides a long time in the atmosphere [7]. When considering the open literature about thermal modeling and optimization of several systems, there are many studies [8, 9]. This study examines turboprop engines used in aircraft, particularly regional ones. In this context, Kim et al. [10] aimed to determine the most effective method for updating the thermodynamic cycle model of a turboprop engine based on measurement data. A performance-adaptation approach was applied to improve the accuracy of the model, and three methods (Newton-Raphson + RCF, GA + RCF, and GA) were compared. According to the results, all methods achieved higher accuracy than the existing model, and the Newton-Raphson and RCF-based approaches showed the highest accuracy and lowest computational cost. Using this method, the maximum relative errors for fuel mass flow rate, compressor outlet pressure, and exhaust gas temperature were found to be 4.29%, 1.36%, and 3.49%, respectively. Nicolosi et al. [3] investigated the design of a modern high-capacity turboprop aircraft with lower environmental impact compared to regional jets used for short and medium-range flights. Multidisciplinary optimization of three architectural configurations determined that a three-lifting-surface configuration for a 1600-NM range provided approximately 17.24% fuel savings. Compared with a new regional jet model developed under the same design requirements and with a 130-seat capacity, the turboprop configuration maintained its environmental advantage despite a decrease in block fuel savings from 7.24% to 5.96%. Kayaalp and Metlek [11] estimated exhaust emission indices based on air-fuel ratio, shaft speed, and fuel flow in the T56-A-15 turboprop engine. The performance of the model was evaluated using mean squared error (MSE), normalized mean squared error (NMSE), and mean absolute error (MAE). The MAE values for CO, CO₂, UHC, and NO₂ were 0.1473, 0.0442, 0.0369, and 0.0028, respectively. As a result, the model demonstrated high accuracy, yielding error values of 0.0266 for emission data and 7.6165×10-¹⁰ for combustion efficiency. Furthermore, Jakubowski and Jaklinski [12] constructed a computational model of a free power turbine engine within the MATLAB R2024b environment to evaluate engine performance. The model was developed to couple the engine geometry (determined at the design point) with variations in main-component performance by accounting for changes in operating conditions, such as rotor speed and environmental factors. The model, validated with data obtained from the PZL-3W engine, produced results showing strong agreement with experimental and literature data, demonstrating that engine performance could be reliably simulated. Kim et al. [13] developed a performance adaptation method to improve the prediction accuracy of a turboprop engine model based on flight condition measurement data. In this method, the efficiencies of the high-pressure compressor (HPC) and the power turbine (PT), the corrected mass flow rate, the HPC outlet pressure, and the high-pressure turbine (HPT) outlet temperature were adjusted using adaptation factors. The comparisons across ten operating points showed that the updated engine model significantly reduced the error relative to the measurement data collected under flight conditions. Lastly, Sharfabadi et al. [14]
established a thermodynamic model of a turboprop engine and examined the performance relationships of components under on-design and off-design operating conditions. Performance curves for different turbine inlet temperatures, altitudes, and Mach numbers were compared and validated using GasTurb software. According to the results, a 10% increase in combustion-chamber pressure loss increases specific fuel consumption by 14%, whereas a 10% decrease in combustion efficiency increases specific fuel consumption by 13% and reduces engine power by 17.5%.
0.84. at other torque settings. Moreover, in the combustor the values
were 0.76 at 240 Nm, 0.79 at 350 Nm, 0.81 at 485 Nm, and 0.82 for the remaining torques. The exergy efficiency of the gas-generator turbine varied between 0.92 and 0.97; that of the power turbine varied between 0.90 and 0.94; and that of the whole turboprop engine increased from 0.21 to 0.29 as torque increased from 240 Nm to 630 Nm. Dinc and Gharbia [19] computed main performance parameters of a turboprop engine such as exergy efficiency, shaft power, specific fuel consumption, fuel flow rate, and thermal efficiency within the range of 0–14 km altitude and Mach 0–0.6 speed. According to the study, the turboprop engine’s exergy efficiency ranged from 23% to 33%, while its thermal efficiency ranged from 25% to 35%. Dursun et al. [20] measured performance and thermodynamic parameters of a conceptual turboprop engine (C-TPE) at fifty
different power settings and predicted these outputs by employing ANN and LSTM methods. Fuel flow rate, air mass flow rate, exhaust velocity, compressor pressure ratio, turbine outlet temperature, and revolutions per minute were used as inputs; net thrust, SFC, overall efficiency, exergy efficiency, and environmental impact factor were modeled as outputs. According to the results, the exergy efficiency remained in the range of 23.93%–26.2%. In exergy-efficiency modeling, ANN achieved an R² of 0.956493, whereas LSTM achieved an R² of 0.999061. Baklacioglu et al. [21] presented a deep artificial neural network (ANN) approach supported by a genetic algorithm (GA) to predict the relative exergy destruction of turboprop engine components. Increasing the number of hidden layers and appropriately selecting network weights significantly improved prediction accuracy compared to models with fewer layers. The ANN– GA hybrid structure further enhanced the accuracy (R) to values between 0.998929 and 0.999966. Kirmizi et al. [22] examined the performance and energy analyses of a turboprop engine operating at altitude of 6.7 km and Mach 0.59, considering design variables such as TIT (1200–1400 K), CPR (16–20), and propeller efficiency (PE = 0.7–0.98). Overall, efficiency increased as PE increased (from 21% to approximately 40%) and as TIT increased (from 26.3% to 28.12%), but decreased as CPR increased (from 27.6% to 23.5%). In multiple regression analysis, linear modeling yielded an R² of
0.97. for SFC and total efficiency; second-order modeling increased
the R² to more than 0.99, and even linear approaches in models including PE resulted in an R² of 0.99. Lastly, Onur and Aygun [23] examined the performance parameters (SFC, thrust, thermal, and overall efficiency) of a turboprop engine for both ideal and actual conditions across altitudes of 0-9 km and Mach numbers of 0.3-0.6, and for design parameters (overall pressure ratio and turbine inlet temperature) ranging between 12-15 and 1200-1400 K, respectively. This study differs from the present study with respect to input variables, examined parameters, and methods.
on a turboprop engine similar to the PW127-E. Figure 1 shows a two-dimensional cross-sectional view of the PW127 turboprop engine. Moreover, Table 1 presents the key features of the related turboprop engine.
A literature review reveals exergetic studies of various turboprop engines conducted at the design point, across different flight phases, and considering different design variables. The lack of component-level modeling of exergetic parameters is the main motivation for this study. The originality of this study lies in the modeling of the exergy efficiency and exergy destruction of the PW127-E engine and its components across flight conditions. To summarize the analyses presented here, we performed (i) component-level exergy analysis; (ii) analysis of the effect of Mach number and altitude on exergy parameters; and (iii) regression analysis of component exergy efficiencies using the obtained dataset.
In this study, the inlet and outlet pressures and temperatures of the components, the air mass flow rate, and the fuel flow rate are computed using parametric cycle analysis. Then, an exergy analysis is carried out for each component. Moreover, regression analysis was conducted to model component exergetic parameters based on the obtained dataset. Several fundamental assumptions were adopted when performing exergy analysis: (i) steady-state conditions were assumed for the operation of the turboprop engine; (ii) both air and combustion products were modeled as ideal gases; (iii) complete combustion was assumed; and(iv)variations in kinetic and potential exergy were omitted.
4.1. Exergetic relations
PW100-series turboprop engines power regional aircraft that seat 30–90 passengers and have ranges of up to 750 miles. The engines offer high reliability, efficiency, and long life, and their versatility allows them to be used in a variety of applications [24]. These consist of a three-shaft turbomachinery with a free turbine and a reduction gearbox [25]. In this study, the analyses are performed
The phsyical exergy ( } ) for working fluid is measured as follows [17, 27, 28]:

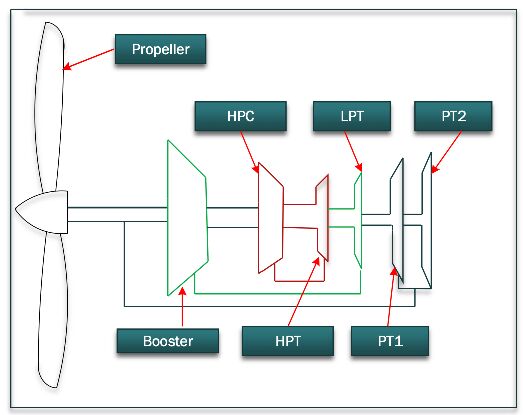

Figure 1. Representative drawing of typical PW127 engine Table 1. Specifications of turboprop engine [23, 26] Parameters
Ambient temperature (K) Ambient pressure (kPa) Air mass flow ( m o a ) (kg/s) Overall pressure ratio Turbine inlet temperature (K) Power (kW) Overall weight (kg)
4. Methodology
Assuming constant specific heat, the physical exergy of air and gas can be calculated using Eq. 2.
where m o a , T and P denote air mass flow, temperature and pressure, in turn.
For any turbomachinery component, the exergy change could be represented as follows [29]. D} = } 2 - } 1 = ^ h 2 - h 1 h - T0 (s 2 - s 1)
Similar to energy, exergy can be transferred between a system and its surroundings through mass, work, and heat interactions. To formulate the exergy balance, all of these modes of transfer must be taken into account within a defined control volume. For steady-state conditions, the exergy balance can be expressed as follows.[27, 30, 31]:
4.2. Application of exergy analysis to components of turboprop
engine Calculating exergy destruction and exergy efficiency requires determining the actual and ideal work(exergy)of the components. Formulas for these parameters are presented for each component. Figure 2 depicts the main components of a turboprop engine.
Figure 2. Cross section of turbomachinery and combustor components
4.3. For booster and high pressure compressor
In this section, the actual work, exergy destruction, and exergy efficiency formulas are provided for the booster and HPC [28, 32, 33].
oEx dest,comp = W o comp - (oEx out,comp - oEx in,comp) h ex,comp = 1 -
o comp represents real work regarding compressor whereas where W
oEx dest,comp and h ex,comp denote exergy destruction and exergy efficien-
4.3. Combustor
In this section, the fuel exergy, exergy destruction, and exergy efficiency formulas are provided for combustor.
oEx dest,comb = oEx in,comb + oEx in,fuel - oEx out,comb h ex,comb = 1 -
4.4. Turbine units
In this section, the actual work, exergy destruction, and exergy efficiency formulas are provided for the HPT, IPT and PT units.
oEx dest,turb = ^ oEx in,turb - oEx out,turb h - W o turb h ex,turb = 1 -
o turb represents real work regarding compressor whereas where W oEx dest,turb and h ex,turb denote exergy destruction and exergy efficiency, respectively.
4.5. Regression analysis
It is a method for determining the relationship between a variable and other variables. It typically examines the relationship between the dependent variable Y and the X variables, often called independent or explanatory variables. The dependent variable has a numerical value, whereas the independent variables can be numerical, binary, or multi-categorical [34]. The objectives and methods of simple linear regression can be extended to multiple linear regression models to include additional predictor variables. This study examines the relationships between the dependent variables (exergy destruction and exergy efficiency) and the independent variables (Mach and altitude). In this model, the coefficients are determined to minimize the sum of squared residuals values, as in the simple linear regression method [35]. Generally, the dependant variable in multiple linear regression can be related to n regressors, x 1 , x 2 , … and x n [36]. (14)
where e i is random error component and b 0 and b 1 are unknown constants. To forecast b 0 and b 1 , technique of the least squares is employed [36]. S ^ b 0, b 1 h = | ^ y i - b 0 - b 1 x i h2 = ^ e i h2 n
In this study, modeling performance is determined by sum squared error (SSE), root mean square error (RMSE) and coefficient of deter2 mination (R ), respectively. (16)
where y i , y i and y- i denote real, predicted and average of values, respectively. ^
Figure 3 shows the steps for modeling component exergy parameters. Accordingly, Mach and altitude are specified. Then the thermodynamic parameters (temperature and pressure) are computed. Based on this, an exergy analysis was performed, and regression analysis was applied to six components using the obtained dataset.

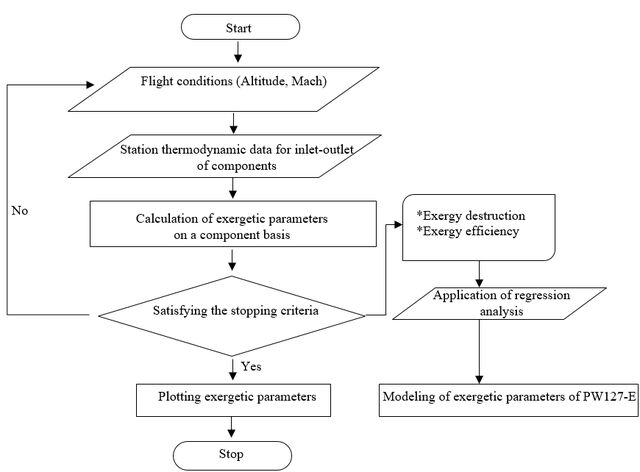

Figure 3. Flowchart of modeling of turboprop engine components
5. Results and discussion
This study analyzes how exergy destruction and exergy efficiency of the six main components of a turboprop engine (booster, high-pressure compressor, combustor, high-pressure turbine, intermediate turbine, and power turbine) vary with altitude and Mach number. Additionally, the results, based on the obtained data, of linear and quadratic regression analyses of the components are presented. Figure 4a shows the variation in exergy destruction associated with the booster at different Mach numbers and altitudes. Accordingly, it varies between 32.908 kW and 93.794 kW for both flight variables. When Mach is held constant at 0.3, exergy destruction decreases from 80.28 kW to 34.72 kW, corresponding to a 56.75% reduction at elevated altitude. Furthermore, at a constant altitude of 3 km, it increases from 50.78 kW to 62.61 kW, representing a 23.29% increase. 2 When it comes to modeling findings, R of the booster exergy efficiency is measured as 0.979 in linear modeling whereas it is enhanced to 0.9994 in quadratic modeling. Figure 4b illustrates the variation in the exergy destruction of the HPC component across flight conditions. Exergy destruction is observed between 66.803 kW and 191.128 kW across both variable ranges. Accordingly, at a constant speed of Mach 0.3, exergy destruction decreases from 163.44 kW at 0 km altitude to 70.5 kW at 6 km. However, at a constant altitude of 3 km, exergy destruction increases from 103.28 kW to 127.45 kW. Finally, for HPC exergy 2 destruction, R is found to be 0.9828 with the linear model, while it improves to 0.9995 with the quadratic model. Figure 4c shows the trend in exergy destruction in the combustion chamber as a function of altitude and Mach number. Accordingly, this parameter was determined to be between 1508.379 kW and 3121.8 kW. When the Mach number is held constant at 0.3, the exergy destruction decreases from 2870.59 kW to 1562.12 kW with
Figure 4. Exergy destruction and modeling of booster, HPC and combustor units
increasing altitude. Moreover, at an altitude of 3 km, the exergy destruction of the combustor increases from 2083.84 kW to 2355.66 kW. On the other hand, according to the modeling findings, while 2 the magnitude of R is computed as 0.9927 in the linear model, it is improved to 0.9999 in the quadratic model.
Table 2 presents the error values and R values related to the modeling success of exergy destruction for the booster, HPC, and combustion chamber. When the polynomial model changes from linear to second-degree form, improvement is observed. Namely, the RMSE value for the booster decreases from 2371 to 393.1, whereas for the HPC it drops from 4476 to 720.4. Finally, the RMSE for the combus4 4 tion chamber improves from 3.988*10 to 0.4066*10 .
Table 2. Model errors regarding exergy destruction of booster, HPC and combustor Exergy destruction

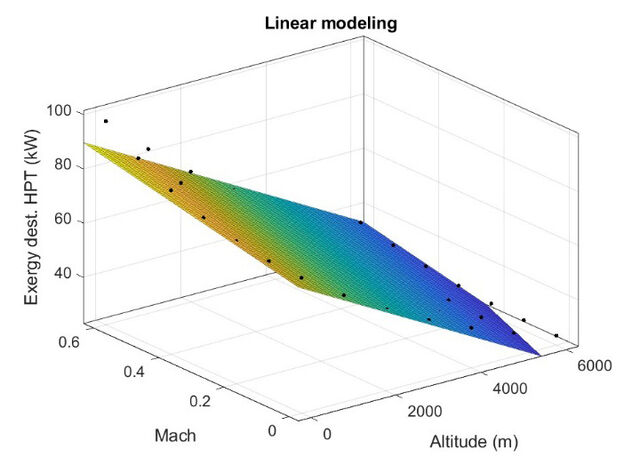

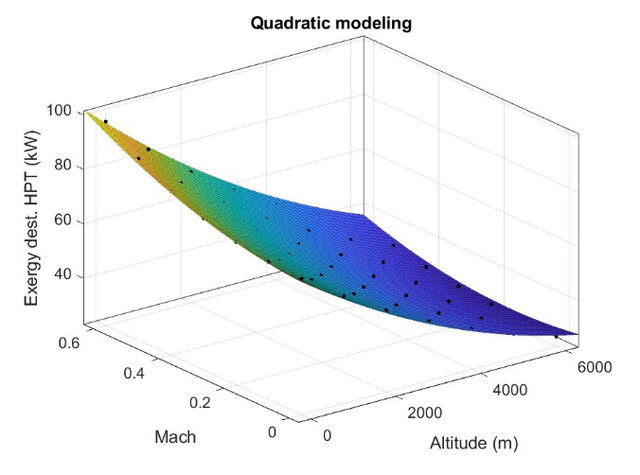

Figure 5a shows the variation of exergy destruction in the high-pressure turbine (HPT) as a function of Mach number and altitude. In this regard, it ranges between 26.51 kW and 97.89 kW for both flight variables. At Mach 0.3, exergy destruction decreases from 78.66 kW to 28.57 kW, representing a 63.67% reduction attributable to increased altitude. Furthermore, at a constant altitude of 3 km, it increases from 44.77 kW to 60.02 kW, representing a 34.06% 2 increase. When it comes to modeling findings, R of the booster exergy destruction is measured as 0.9679 in linear modeling whereas it enhances to 0.9988 in quadratic modeling. Figure 5b depicts the variation in exergy destruction of the intermediate power turbine (IPT) under different flight conditions. Exergy destruction ranged from 12.20 kW to 46.84 kW across the two variable ranges. Accordingly, at a constant Mach number of 0.3, exergy destruction decreases from 37.23 kW to 13.18 kW as altitude increases from 0 to 6 km. Furthermore, at a constant altitude of 3 km, exergy destruction rises from 20.85 kW to 28.28 kW. Finally, 2 for HPC exergy destruction, R is found to be 0.9652 with the linear model, while it increased to 0.9987 with the quadratic model. Figure 5c shows the trend in exergy destruction in the power turbine (PT) with respect to altitude and Mach number. In this context, this parameter is observed to lie between 44.66 kW and 113.02 kW. At a constant Mach of 0.3, the exergy destruction decreases from 88.72 kW to 48.69 kW as altitude increases. Moreover, at an altitude of 3 km, an increase in the exergy destruction of the power turbine, from 61.62 kW to 85.64 kW, was observed. On the other
hand, according to the modeling findings, whereas the R value is calculated as 0.9650 in the linear model, it improves to 0.9999 in the quadratic model. 2

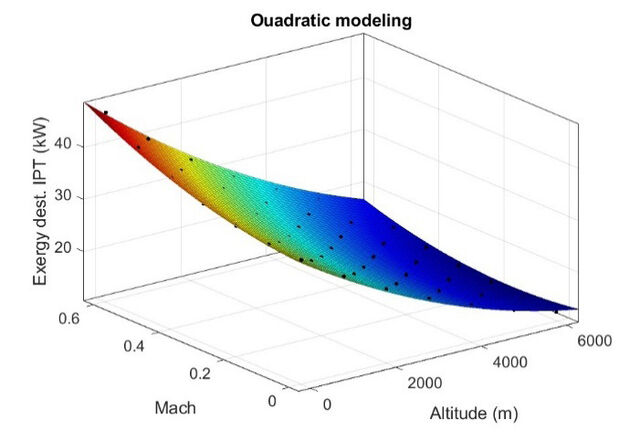

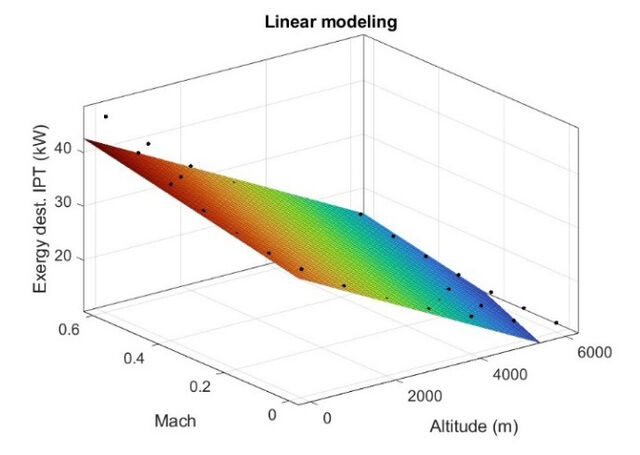

Table 3 illustrates the error values and R values related to the modeling success of exergy destruction for the HPT, IPT, and PT. As can be seen in table 3, the RMSE value for the HPT decreases from 3389 to 663.6, whereas for the IPT it drops from 1701 to 345.1. Finally, the RMSE for the PT decreased from 3159 to 541.5. In the following section, the results are presented in Figures 6 and 7, along with exergy efficiency and its modeling. Figure 6a shows the variation of booster exergy efficiency as a function of Mach number and altitude. Accordingly, it varies between 93.131% and 93.599% across both flight variables. When Mach is kept constant at 0.3, exergy destruction increases slightly, from 93.25% to 93.26%, at elevated altitude. Furthermore, at a constant altitude of 3 km, it increases from 93.13% to 93.59%, an increase of 0.46%. When it comes to 2 modeling findings, R of the booster exergy efficiency is determined as 0.9317 in linear modeling whereas it enhances to 0.9999 in quadratic modeling. Figure 6b illustrates the variation in the exergy efficiency of the HPC component as a function of flight conditions. Exergy efficiency ranges between 93.531% and 93.991% across both variable ranges. Accordingly, at a constant speed of Mach 0.3, exergy destruction increased from 93.639% to 93.689% as altitude increased from 0 to 6 km. However, at an altitude of 3 km, exergy destruction increases 2 from 93.556% to 93.966%. Finally, for HPC exergy destruction, R is found to be 0.9326 with the linear model, whereas it enhances to 0.9999 with the quadratic model.
Table 3. Model errors regarding exergy destruction of turbine units Exergy destruction
Figure 6c shows the variation of exergy efficiency of the combustion chamber with altitude and Mach number. This parameter ranges from 71.378% to 74.372%. At Mach 0.3, the exergy efficiency decreases from 72.668% to 71.851% as altitude increases. At an altitude of 3 km, the combustor’s exergy efficiency increases from 71.64% to 73.74%. On the other hand, according to the modeling 2 findings, while the R value is calculated as 0.9301 in the linear model, it improves to 0.9997 in the quadratic model.
Table 4 depicts the error values and R values related to the modeling success of exergy efficiency for the booster, HPC, and combustion chamber. As can be understood, the RMSE value for the booster -4 -5 decreases from 4.285*10 to 1.86*10 , whereas for the HPC it di-4 -5 minishes from 3.851*10 to 1.653*10 . Finally, the RMSE for the -3 -4 combustion chamber improves from 2.139*10 to 1.41*10 .
Table 4. Model errors regarding exergy efficiency of booster, HPC and combustor Exergy efficiency
Figure 6. Exergy efficiency and modeling of booster, HPC and combustor units
Figure 7a illustrates the variation in exergy efficiency of the HPT across different Mach numbers and altitudes. Accordingly, it varies between 97.048% and 97.563% for both flight variables. When Mach is held constant at 0.3, exergy efficiency increases from 97.087% to 97.554%, which corresponds to a 0.467 percentage-point increase due to an increase in altitude. Furthermore, at a constant altitude of 3 km, it decreases from 97.335% to 97.291%, corresponding to
a 0.044% decrease. When it comes to modeling findings, R of the booster exergy efficiency is measured as 0.9991 in linear modeling whereas it enhances to 1 in quadratic modeling. Figure 7b illustrates the variation in the IPT unit’s exergy efficiency under different flight conditions. Exergy efficiency ranged between 96.956% and 97.567% across both variable ranges. Moreover, at a constant speed of Mach 0.3, as altitude increases from 0 to 6 km, the
exergy efficiency increases from 97.024% to 97.552%. At a constant altitude of 3 km, the exergy efficiency decreases from 97.313% to 2 97.242%. Finally, for IPT exergy efficiency, R is found to be 0.9976 with the linear model, while it increased to 1 with the quadratic model. Figure 7c shows the variation in the exergy efficiency of the PT with respect to altitude and Mach number. Accordingly, this parameter ranged between 95.465% and 96.273%. When the Mach number is
held constant at 0.3, the exergy efficiency increases from 95.653% to 96.218% as altitude increases. At an altitude of 3 km, the exergy efficiency of PT decreases from 95.993% to 95.758%. On the other 2 hand, according to the modeling findings, while the R value is computed as 0.9876 in the linear model, it improves to 1 in the quadratic model.
Table 5. Model errors regarding exergy efficiency of turbine units Exergy efficiency
Table 5 tabulates the error values and R values related to the modeling success of exergy efficiency for the HPT, IPT, and PT. As can be seen in table 5, the RMSE value for the HPT decreases from -5 -6 4.948*10 to 5.097*10 , whereas for the IPT it drops from 8.966*10 5 -5 -4 to 1.301*10 . Finally, the RMSE for the PT improves from 2.36810 -5 to 1.067*10 . Figure 8 depicts the variation in the overall exergy efficiency of the PW127-E engine across different Mach numbers and altitudes. Accordingly, it fluctuates between 26.46% and 33.08% across both
flight variables. When Mach is kept constant at 0.3, exergy efficiency increases from 27.48% to 30.25%, which corresponds to an improvement of 2.77 percentage points attributable to elevated altitude. Furthermore, at a constant altitude of 3 km, it increases from 27.96% to 31.87%, representing a 3.91% increase. When it comes 2 to modeling findings, R of exergy efficiency of the whole engine is measured as 0.9483 in linear modeling whereas it enhances to 1 in quadratic modeling.
Figure 8. Exergy efficiency and modeling of overall turboprop engine Table 6 presents comparative results from the current and previous studies. Accordingly, the exergy efficiency results obtained are consistent with those reported in the literature. In other words, while the exergy efficiency for the overall turboprop engine is found to be
between approximately 26% and 33%, values in the literature range from approximately 20% to 33%. This difference can be explained by the characteristics of the engine under study and the types and ranges of the input parameters examined. 2
Table 6. Comparative results of exergy efficiency and R Overall turboprop engine
Lastly, table 7 shows the error values and R values related to the modeling success of exergy efficiency for overall engine of PW127-E turboprop engine. Accordingly, the RMSE value for the engine de-3 -5 creases from 3.836*10 to 9.151*10 . Table 7. Model errors regarding exergy efficiency of the overall engine Exergy efficiency
Data availability statement
Recently, studies of turboprop engines, a type of aircraft engine, have become increasingly prevalent. To the best of the authors’ knowledge, this study is the first to perform exergy and regression analyses of PW127-E turboprop engine components under flight conditions. Specifically, temperature, pressure, and airflow for the components under each flight condition are obtained via parametric cycle analysis. Then, an exergy analysis is applied to six units of the turboprop engine. In this context, exergy destruction and exergy efficiency are calculated for each component. Modeling is performed on the obtained dataset using regression analysis. To summarize the analysis remarks,
The authors confirm that the data supporting the findings of this study are available within the article. Raw data supporting the findings of this study are available from the corresponding author upon reasonable request.
The effect of altitude on exergy destruction is found to be as significant as that of the Mach number. Exergy destruction varies approximately between 45% and 65% with changes in altitude and between approximately 13% and 38% with changes in Mach number. The exergy efficiency of the combustion chamber was observed to range between 71.378% and 74.372% depending on altitude and Mach number. This change corresponds to approximately 3%. Using the quadratic model significantly improves the modeling of exergy destruction in turbine units. R² increases from approximately 0.96 to over 0.99.
Conflict of interest
The author declared no potential conflicts of interest with respect to the research, authorship, or publication of this article.
Ethics
There are no ethical issues with the publication of this manuscript.
Statement on the use of artificial intelligence Artificial intelligence was not used in the preparation of the article.
Copyright and permission statement All figures included in this manuscript are the authors’ original work.
Nomenclature
This study found that turboprop engine components can be modeled with a relatively low error rate. This analysis demonstrates that it can be applied to other aviation engine components. Modeling can optimize exergetic parameters under different flight conditions. In a future study, turboprop exergetic parameters could be predicted using machine learning algorithms for comparative evaluation. Based on this analysis, a multi-objective optimization of the turboprop engine’s thermodynamic parameters with respect to flight conditions and design parameters can be performed.
ANN CPR h HPC HPT IPT m o MAE P PE PT 2 R RMSE s SSE TIT UAV
Share and Cite
Yüksel, O.; Aygün, H. Component-based exergy modeling of three spool turboprop engine depending on the flight conditions. Journal of Thermal Engineering 2026, Vol. 12, pp. 887-900. https://doi.org/10.47481/jten.0004
