Enhancing the engine parameters of compression ignition engine using mahua biodiesel blend with alum

Abstract

Keywords: Alumina; biodiesel; EGR; emissions; Mahua oil; nano additive; performance

1. Introduction

In daily life, the fuel demand rises rapidly prompting environmental concerns. Developing sustainable fuel alternatives are vital for mitigating pollution within our ecosystems and reducing dependence on fossil fuels drastically. Pollution caused by burning of fossil fuels, especially air pollution from diesel engines has increased with the use of traditional fuels. Therefore, to reduce emissions and mitigate global warming, biodiesel has emerged as an alternative fuel strategy. This study has a lot of importance; by using nanoparticles the combustion of biodiesel can be increased and emissions can be reduced [1,2].

Different types of biodiesel, such as Mahua, Kharanja, tobacco, and rubber seed oils, have been successfully evaluated in compression ignition (CI) engines, resulting in excellent performance and regulated emissions [3]. Vivekugar et al. investigated the usage of a Mahua biodiesel mixture in CI engine and found that biodiesel usage reduced PM, hydrocarbons (HC), CO2 and CO emissions while increasing fuel consumption and nitrogen oxides (NOx) emissions [4,5]. Mahalingam et al. [6] found that the addition of 10% and 20% Octanol resulted in a considerably lowered emissions in contrast to the use of neat Mahua oil biodiesel, particularly at full load. Results shows that 6.8%, 5.1%, 4.8% and 2.1% reduction in CO, HC, NOx

Corresponding Author E-mail Adress: jamunarani.g@gmail.com *

Submitted: 15 July 2025; Accepted: 21 July 2025 This paper was recommended for publication in revised form by Editorin-Chief Ahmet Selim Dalkılıç Published by Yıldız Technical University, İstanbul, Türkiye This is an open access article under the CC BY-NC license (http://creativecommons.org/licenses/by-nc/4.0/).

and smoke emissions respectively. Prabhu et al [8] evaluated the influence of cerium oxide (CeO2) and alumina nanoparticles on Jatropa biodiesel. Different proportions of nanoparticles were added, and the researchers observed reductions in smoke emissions (32%), nitric oxide (13%), unburned hydrocarbons (33%), and carbon monoxide (60%). Prasad G.V.L et al [9] focused on the inclusion of alumina nanoparticles to Kharanja emulsified biofuel (diesel) in dissimilar proportions and concluded that the add on of alumina nanoparticles improved brake power (BP) and reduced emissions compared to KBD(Karajnja Biodiesel) emulsion fuel. Anchupogu et. al [10] investigated Calopyllum Inopyllum biodiesel with 40ppm TiO2 nanoparticles and examined in a diesel engine and observed a significant reduction in CO emissions for B2040TiO2 fuel, but the remaining emissions were increased. Addition of CuO and Al2O3 nanoparticles (at a concentration of 50 ppm) to neat diesel [11], results in an increase in power (1.0% and 3.28% with CuO and Al2O3, respectively), a reduction in specific fuel consumption (SFC) (0.5% and 1.12% with CuO and Al2O3, respectively), and a reduction in emissions. Prolonged exposure to metal-oxide nanoparticles in the combustion environment can lead to issues such as injector fouling, and abrasive wear, potentially affecting the durability and operational stability of diesel engines. Sajith et al. [12] focused on alumina nanoparticles, despite their role in enhancing atomization and surface catalytic activity, may form deposits on injector nozzles and combustion chamber surfaces during extended usage, especially when agglomeration occurs. From the previous findings it was observed that biodiesels are suited for the diesel engines up to some percentage and the experiments using mahua biodiesel in combination of additive and EGR is less. The main aim of this study is on the influence of adding (Al2O3) nano particles of alumina to the Mahua biodiesel (MB25) mixture with 20% EGR on engine characteristics of the Kirloskar TV1 model diesel engine.

2. Methods and materials

Mahua oil is suitable for the production of biodiesel, owing to its extreme fatty acid content. [13] Table 1. Biodiesel production process from raw oil Acidic-Catalyzed Esterification

60. C Temp for reaction

at 5000 rpm stirring 60°C Temp to react 1 hr Time to react 12 hr Time to separate

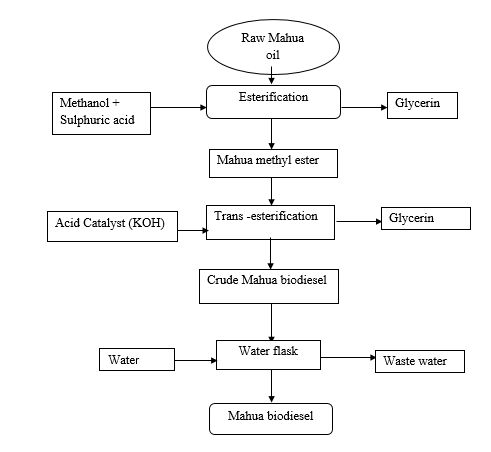

Figure 1. Biodiesel production process from raw oil The process of producing biodiesel from Mahua oil typically involves a sequential process of esterification followed by trans-esterification and the procedure is shown in Table 1.And the flowchart is depicted in Fig 1. In acid-catalyzed esterification method, the Crude Mahua oil was treated with methanol at a molar ratio of 6:1 using sulfuric acid (H₂SO₄) as a catalyst at 1% v/v of the oil. The chemical reaction o was occurred at 60 C for 60 min under continuous stirring at 600 rpm speed. Next, the mixture was permissible to settle for 4 hours, and the upper esterified layer was separated, washed with warm distilled water to remove residual acid and impurities, and dried under vacuum. In the second stage, base-catalyzed transesterification was carried out using the pretreated Mahua oil with methanol at a molar ratio of 8:1, employing potassium hydroxide (KOH) as a catalyst at 1.0% w/w based on the oil mass. The reaction proceeded at 60 degree C for 90 minutes with continuous stirring at 700 rpm. Following to this process, mixture was admitted to settle for 8 hours to expedite phase separation. The biodiesel (upper phase) was then collected, thoroughly washed with deionized water until removing the all impurities. MB25 biodiesel blend called MB25 by mixing 250 ml of Mahua bio-fuel with 750 ml of diesel. To incorporate alumina nanoparticles into the biodiesel blend, 100 ppm (parts per million) of alumina particles were weighed and assorted with the Mahua biodiesel blend (MB25) using an ultrasonicator at 30 kHz frequency for 30 minutes. To ensure uniform dispersion and prevent agglomeration and deposition of nanoparticles, 2% by volume of Tween 80 surfactant was included to the biodiesel blend. The alumina nanoparticles (Al2O3) supplied by Souvenir Chemicals, India were characterized using SEM images and XRD patterns were shown in Figure. 2(a) & 2(b). The nanoparticles were found to have a size of lower than 50 nm, with a white color and 99.9% purity. The crystalline structure of the (Al2O3) NP’s was determined by observing the

XRD image. The fuel properties of the base mixtures, including the biodiesel blend MB25, were assessed using standard ASTM method [14] and are specified in Table 2.

tests were conducted using exhaust gas recirculation. In this work, the results obtained from the optimum blends MB25, MB25AONP, MB25AONP+ 20% EGR are compared and presented. Using an AVL Digas 444N Model gas analyzer & AVL 437C smoke meter, all the emissions were measured. Several influencing factors like environment, type of device, calibration, observation influences the errors occurrence and their uncertainties. To specify the accuracy of the readings, Uncertainty analysis is required [17]. By the account of the affecting parameters shown in Table 4 like measurement of pressure, EGT, emissions, load, smoke, speed and fuel measurement, the overall uncertainty is assessed as ± 2.16% using SRSM method. 2

= Square root of {(Pr) +(EGTI) +(N) +(CO) +(HC) +(NOx) +(S) +(L) +(F) } 2

= Square root of {(1.4) +(0.2) + (0.1) + (0.2) + (0.3) + (0.1) + (1.1) + (0.2) + (1) }

Figure 2(b). XRD pattern of alumina nanoparticles Table 2. Fundamental fuel properties of tested fuel samples Fuel sample Diesel fuel MB 25

3. Equipment used

The photographic view of engine used is represented in Figure. 3 and the technical specifications in detail are tabulated in Table 3. All the tests on the engine with different fuel blends were executed at a constant engine speed of 1500 revolutions per minute (rpm) and standard conditions of IT (23 degree CA bTDC) and injection pressure of 200 bar at different loads varying from 0 to full load with a step of 25% increase on Kirloskar TV1 model CI engine. In previous research, engine was tested with different Mahua biodiesel blends varying biodiesel percentage from 0 to 30 with a step of 5 and in that 25% bio diesel blend resulted in the optimum performance and emission values. Alumina nano additives were included in to the optimum biodiesel blend to conduct engine tests. From the results blend MB25AONP shown good results and the further

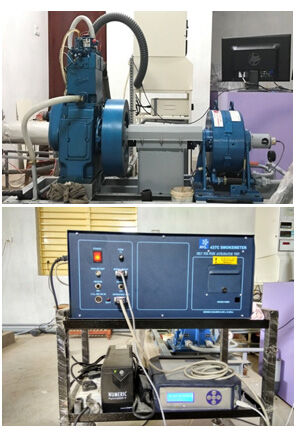

Figure 3. Tested engine, smoke meter and exhaust gas analyzer Table 3.Technical specifications of engine set up Product Engine Dynamometer

Engine test setup- 4 stroke, 1 cylinder, Diesel (Computerized) Make Kirloskar, Model TV1, Type 1- cylinder, 4- stroke Diesel, water -cooled, 110 and 87.5 mm of stroke and bore. Maximum Power 5.2 kW at 1500 rpm, CR 17.5, 661 cc, with loading unit Type eddy current, water cooled,

Table 4. Uncertainty of instruments in percentage Instrument Pressure transducer(Pr) Exhaust gas temperature indicator (EGTI) Speed indicator(N)

4. Results and discussions

The combustion, performance & characteristics of emission of 1-cylinder engine was tested by using diesel, MB25, MB25AONP, MB25+20%EGR, MB25AONP+20% EGR fuels at different loads from (0-100 %) with a step of 25% (0 , 25%, 50%, 75%, 100%) and the results were discussed.

Mb25anop

Figure. 4 describes the variation in BTE for mixed fuel samples under varying load. The BTE increases as the load increases. Diesel fuel has a higher heating value than MB25, resulting enhancement in BTE for diesel. The BTE of MB25 fuel is lower compared to diesel because of its lower heating value. However, BTE is found to be more for MB25 + Alumina nanoparticles in comparison to diesel fuel and MB25 fuel [7]. This increase can be explained by the higher availability of oxygen due to the inclusion of NP’s into the MB25 blend. Specifically, related to the BTE of MB25 fuel, the BTE of MB25 fuel with 20% EGR was decreased by 7.9%. This decrease leads to less brake thermal efficiency due to less oxygen content in the air resulting from the EGR. The BTE of MB25AONP + 20% EGR fuel decreased by 7.23% and 2.7% than MB25AONP blend and Diesel fuels, respectively.

Figure 5. Change in Brake Specific fuel consumption (BSFC) with changing load %

Mb25aonp

MB25AONP fuel respectively, and a percentage reduction of 5.3% for MB25 + 20% EGR fuel, with respect to MB25AONP + 20% EGR fuel.

Figure 6. Change in cylinder pressure with changing crank angle (deg)

Mb25aonp

Figure 7. Change in heat release rate with changing crank angle (deg)

Mb25aonp

4.3.3. Nox emissions Figure 10 shows the changes of NOx emissions under change of loads for test fuel samples. The results confirm that the NOx pollutants for the MB25 sample were greater than that of diesel owing to the higher oxygen content and this increase in the amount of oxygen [22] increased the flame temperature. NOx emission was increased by 4.6% when alumina nanoparticles (Al2O3) were added to the MB25 biodiesel blend because of higher catalytic chemical reaction of the nanoparticles [20]. The NOx emissions reduction was achieved with the EGR addition by 13.6% in comparison to MB25 fuel, which is due to the lesser improvement in the combustion chamber temperature, which results from the raised temperature of EGR compared to fresh air. Notably, NOx emissions further decreased considerably for the MB25AONP + 20% EGR combination. The NOx emissions were decreased by 10.9% and 14.8% compared to MB25 and MB25AONP, respectively. However they are increased by 3.1% compared to MB25 + 20% EGR

5. Conclusion

To upgrade the performance of the compressed ignition diesel engine with nonedible, abundantly available mahua biodiesel with alumina nano additive by recirculating 20% exhaust gas various tests were conducted. The end results achieved from the experiments conducted on the Kirloskar TV1 engine and were concluded that • • •

4.3.4. Smoke opacity Figure 11 describes the changes in smoke opacity for different fuels. Increasing the load causes more quantity of fuel burned leads to increase in smoke for all blends than low load conditions. The occurrence of oxygen (O2) biodiesel and its more cetane index, promotes better combustion and reduces the smoke opacity [23]. The appendage of AONP results a 6.5% decrease in smoke opacity than MB25 fuel. The existence of NP’s in the fuel improved combustion by reducing the delay in the first phase of combustion and enhancing the formation of a better air-fuel mixture. Smoke emissions increased by 4.2% when exhaust gas recirculation (EGR) modification was applied to MB25 fuel. Smoke emissions with MB25AONP +20% EGR are increased by 2.7% compared to MB25 fuel, by 7.5% compared to MB25 with 20% EGR, and by 9.1% compared to MB25AONP fuel without EGR.

MB25AONP fuel exhibited a 5.4% and 7.6% increase in BTE compared to MB25 fuel and MB25AONP with 20% EGR, respectively. BSFC for MB25AONP fuel showed a 6.25% decrease compared to MB25 fuel, but a 4.1% increase compared to MB25AONP with 20% EGR. The pressure in the cylinder increased by 1.23% and 5.1% for MB25AONP fuel compared to MB25 fuel blend and MB25AONP with 20% EGR fuel, respectively With EGR modification, the HRR for the fuels decreased compared to fuels without EGR modification. MB25AONP fuel blend showed lower CO, HC, and NOx pollutants in comparison to the MB25 fuel. The modification of EGR to MB25AONP fuel further reduced NOx emissions but increased smoke opacity compared to MB25 fuel.

In future work, multi-cylinder engine studies will be conducted under transient operating modes to assess real-time performance and emissions behavior. A broader range of alumina concentrations and EGR percentages will be explored to identify optimal combinations through RSM or ML based optimization. Integrating after-treatment systems like SCR and particulate filters with biodiesel-EGR-nano additive strategies could also be investigated to mitigate the secondary increase in HC, CO, and smoke emissions.

Authorship contributions

G. Jamuna Rani: conceptualization, validation, writing original draft, visualization; M. Sumalatha: supervision, review & editing; Sajja Nikhil Teja: Co-supervision, investigation, Data analysis; An-

chupogu. Praveen: manuscript preparation, investigation, project administration; R .L.Krupakaran: Review and Editing, Discussion, Validation.

Data availability statement

The authors confirm that the data that supports the findings of this study are available within the article. Raw data that support the finding of this study are available from the corresponding author, upon reasonable request.

Conflict of interest

The author declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Ethics

There are no ethical issues with the publication of this manuscript.

Statement on the use of artificial intelligence Artificial intelligence was not used in the preparation of the article.

Copyright and permission statement All figures included in this manuscript are the authors’ original work.

Mb25aonp MFB

25% of Mahua Bio-diesel + 75% of Diesel MB25+ 100ppmAluminum Oxide Nano Particles Mass Fraction of Burned fuel Exhaust Gas Recirculation X- ray Diffractometer Brake Thermal Efficiency Scanning Electron Microscopy Heat Release Rate Cylinder Pressure Hydro Carbons Brake Specific Fuel Consumption Carbon Monoxide Parts per million Nitrogen Oxides

Panwar, N. L., Shrirame, H. Y., Rathore, N. S., Jindal, S., & Kurchania, A. K. (2010).Performance evaluation of a diesel engine fueled with methyl ester of castor seed oil. Applied Thermal Engineering, 30(2-3), 245-249.

Krupakaran, R. L., Hari prasasd, T., Gopala krishna, A., & Babu, P. (2016). The performance and exhaust emissions investigation of a diesel engine using γ-Al2O3 nanoparticle additives to biodiesel. Carbon Management, 7(3-4), 233-241. Ashraful, A. M., Masjuki, H. H., Kalam, M. A., Fattah, I. R., Imtenan, S., Shahir, S. A., & Mobarak, H. M. (2014). Production and comparison of fuel properties, engine performance, and emission characteristics of biodiesel from various non-edible vegetable oils: Areview. Energy Conversion and Management, 80, 202-228. Ugare, V., Mahandule, R., & Pawar, S. (2015). Experimental Investigation of Single Cylinder Four Stroke Diesel Engine Using Mahua Oil Biodiesel. Journal of Automobile Engineering and Applications, 2(1), 31-40. Pradhan, D., Singh, R. K., Bendu, H., & Mund, R. (2016). Pyrolysis of Mahua seed (Madhuca indica)–Production of biofuel and its characterization. Energy conversion and management, 108, 529-538. Mahalingam, A., Devarajan, Y., Radhakrishnan, S., Vellaiyan, S., & Nagappan, B. (2018).Emissions analysis on mahua oil biodiesel and higher alcohol blends in diesel engine. Alexandria Engineering Journal, 57(4), 2627-2631. Saraee, H. S., Jafarmadar, S., Taghavifar, H., & Ashrafi, S. J. (2015). Reduction of emissions and fuel consumption in a compression ignition engine using nano particles. International journal of environmental science and technology, 12(7), 2245-2252. Prabu, A., & Anand, R. B. (2016). Emission control strategy by adding alumina and cerium oxide nano particle in biodiesel. Journal of the Energy Institute, 89(3), 366-372. Prasad, G. V. L., & Gupta, A. V. S. S. K. S. (2016). Role of nano additive blended Karanja biodiesel emulsion fuel on performance and emission characteristics of diesel engine (No.201628-0165). SAE Technical Paper Anchupogu, P., Rao, L. N., & Banavathu, B. (2018). Effect of alumina nano additives into biodiesel-diesel blends on the combustion performance and emission characteristics of a diesel engine with exhaust gas recirculation. Environmental Science and Pollution Research, 25(23), 23294-23306. Gumus, S., Ozcan, H., Ozbey, M. Topaloglu, B. (2016). Aluminum oxide and copper oxide nano diesel fuel properties and usage in a compression ignition engine. Fuel, 163, 80-87. Sajith V, Sobhan CB, Peterson GP. Experimental Investigations on the Effects of Cerium Oxide Nanoparticle Fuel Additives on Biodiesel. Advances in Mechanical Engineering. 2010;2. doi:10.1155/2010/581407. Vijay Kumar, M., A. Veeresh Babu, and P. Ravi Kumar. “Experimental investigation on mahua methyl ester blended with diesel fuel in a compression ignition diesel engine.” International Journal of Ambient Energy 40, no. 3 (2019): 304-316

Ahmad, Aqueel, Ashok Kumar Yadav, and Achhaibar Singh. “Biodiesel production from mahua oil: characterisation, optimisation, and modelling with a hybrid statistical approach.” International Journal of Ambient Energy 44, no. 1 (2023): 2600-2609 Venu, H., & Madhavan, V. (2016). Effect of Al2O3 nanoparticles in biodiesel-diesel-ethanol blends at various injection strategies: Performance, combustion and emission characteristics. Fuel, 186, 176-189. Anchupogu, P., Krupakaran, R., Ganipineni, J., and Petla, R., ““Performance Emission Parameters Behavior of a DI Diesel Engine Using Al 2 O 3 and TiO 2 Nano Additive Biodiesel Blends”,” SAE Technical Paper 2023-28-0127, 2023 Jamuna Rani, G., YV Hanumantha Rao, B. Balakrishna. “Fuel injection timing impact on diesel engine performance, combustion and emission characteristics of nano additive biodiesel blends.” International Journal of Ambient Energy 43, no. 1 (2022): 2078-2085. Jamuna Rani, G., Y. V. Hanumantha Rao, B. Balakrishna. “Investigation of fuel injection pressure impact on ci engine performance and emissions using biodiesel blend with alumina nano additives 2018 International Journal of Mechanical Engineering and Technology, Volume 9, Issue 6, June 2018, pp. 922–928.” 922-92. Krupakaran, R. L., Gangula, V. R., Tarigonda, H., Sachuthananthan, B., Balasubramanian, D., Anchupogu, P. Veerasamy, S. (2023). The influence of thermal barrier coating (TBC) on diesel engine performance powered by using Mimusops elengi methyl ester with TiO2 nanoadditive. International Journal of Ambient Energy, 44(1), 2250–2261. Praveen A, Rao G, Balakrishna B, Rao KS. Comparative analysis of the performance and emission characteristics of a diesel engine by using canola and sesame biodiesel-diesel blends. AIP Conf Proceed. 2019; 2161(1). Fasogbon, S. K., & Oyedepo, S. (2025). Nano-additive blends examination of performance and emission profile of CI engines fuelled with waste cooking oil based-biodiesel. Journal of Thermal Engineering, 11(1), 1-15 Prasad, Arunprasad, Rajkumar Sivanraju, Aklilu Teklemariam, Dawit Tafesse, Mebratu Tufa, and Bovas Herbert Bejaxhin. “Influence of nano additives on performance and emissions characteristics of a diesel engine fueled with watermelon methyl ester.” Journal of Thermal Engineering 9, no. 2 (2023): 395-400 Chitradevi, V., and Balu Pandian. “An experimental study on performance, emissions, and combustion characteristics of a CI engine running on Citrullus Colocynthis biodiesel blends.” Journal of Thermal Engineering 10, no. 4 (2024): 954-960
