Performance analysis of a diesel engine within a multi-dimensional framework

Abstract

Keywords: Diesel Engine; CFD; Emission; Performance

Introduction

Internal combustion engines are widely used as the source of power in many fields. But, they have several disadvantages like difficult combustion control, high particulate matter, NOx emission, unburned hydrocarbons (HC) and carbon monoxide (CO) emissions. In the automotive industry, the new combustion processes which focus on clean diesel combustion are being investigated for minimum particulate and NOx emission potential. CFD methods are very useful tools to investigate the flow on complex and nonsymmetrical geometries generally for moving boundaries. Many studies were investigated using multidimensional modeling and obtained results are compared with the experimental results [1-7]. The significant feature of the diesel engine is the use of liquid fuels. The liquid fuel injected through the injector breaks up, atomizes and evaporates in a high temperature chamber and burns as being mixed with air. Cyril investigated that during the break-up, fuel spray, atomization and vaporization mainly depend on the air entrainment with a higher velocity and the higher temperature inside the engine cylinder [8]. Benajes et al. investigated the potential of the piston geometry to improve the results provided by the Reactivity Controlled Compression Ignition (RCCI) concept in terms of combustion efficiency and emissions [9]. Recently, CFD is gaining reliability in predicting emissions and combustion characteristics by using properly calibrated and validated models. Moreover, CFD modeling is a very efficient alternative method compared to the experimental approach especially for the optimization of the engine hardware due to its lower requirements in terms of time and resources. Thus, it is worth to develop an optimization methodology based on CFD modeling suitable for not only defining the optimum engine settings configuration, but also to identify the most relevant effects of the variables (inputs) to be optimized. Different researchers such as Yu and Strålin have been carried out using methods with really encouraging results related to optimum geometries [10-11]. In this study, it was aimed to simulate cold flow process appropriately in order to find the in-cylinder flow characteristics of single-cylinder, 5lt CI engine. Also injecting fuel, engine performance and emission were investigated. Fully intake, compression strokes as well as fuel injection at the end of the compression stroke and emission simulated in 3D. Both naturally aspirated and turbocharged operations have been studied. 5 liter singlecylinder diesel engine was modeled with the actual engine geometry, including the exhaust and intake manifold. In multidimensional modeling, simulations were expanded to obtain appropriate boundary conditions for valve lifts for intake and exhaust ports. The fine gratings were tested at 2.500.000. The fine grill results are presented on paper. Typical application time with thin cage for 720 CAD takes approximately 5 days on a 16-processor workstation running in parallel operation. As seen in the literature, the most general method for solving fluid This paper was recommended for publication in revised form by Editor Regional Editor Tolga Taner 1 Department of Mechanical Engineering, Istanbul Medeniyet University, Istanbul, TURKEY *E-mail: hasan.koten@medeniyet.edu.tr Manuscript Received 13 December 2017, Accepted 19 Ocak 2018

Journal of Thermal Engineering, Research Article, Vol. 4, No. 4, Special Issue 8, pp. 20752082, June, 2018 flow is based on modeling Navier-Stokes equations. This methodology includes the continuity equation, the Navier-Stokes equations of momentum and the discretization of the energy equation to solve a specific fluid problem that is limited in space and divided into multiple computational cells [12-14]. Relevant equations continuity, momentum and energy equations were given below [12].     Y  ( Y )  ( Y U i )  D   r   s t xi x j  x j 

 j 2 U k i     UiU j    xpi  x j    U xj xi 3 xk ij  

  p    T     q  Q ρ E   ρ EU j    ijU j  g s t x j  t x j x j  x j 

In cold flow studies, generally the simplest standard k- model is widely used [15]. In spray modelling, there are numerous additional models for spray injection, spray breakup, droplet collision, evaporation, wall impingement etc [16, 17]. In atomization model, Huh’s model was used as an atomization model in the simulations [18]. The break-up model of Reitz and Diwakar was also used to simulation of droplet break up [19]. O’Rourke model was used for collisions in the model. And also it was improved with a speed-up algorithm of Schmidt and Rutland [20, 21]. Moreover, this model includes a coalescence timescale highlighted by Aamir and Watkins [22]. Bai’s Spray impingement model was used in the simulations as a wall-interaction model for discrete phase. This model was formulated within the framework of the Lagrangian model, which is based on literature findings and mass, momentum and energy conservation constraints [23].

Computational GRID And Boundary Conditions

In combustion modelling, Wiebe function for 1D approximation and ECFM for 3D CFD solution are used [25]. It is simultaneously described in terms of mixing and progress of reaction as schematically represented in Figure 1. For emission simulation, the 3-step Zeldovich model was used for NOx and three options are provided for soot.

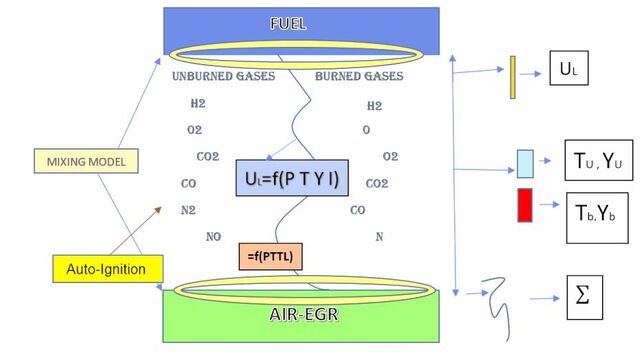

Figure 1. Schematic of the ECFM3Z model computational cell. The engine modeled is a real single-cylinder 5lt heavy-duty diesel engine. The geometrical specifications of the engine, as well as the engine's original valve timings are summarized before chapter. The computational grid is shown in Figure 2. It consists of about 1.800.000 cells at TDC.

Journal of Thermal Engineering, Research Article, Vol. 4, No. 4, Special Issue 8, pp. 20752082, June, 2018

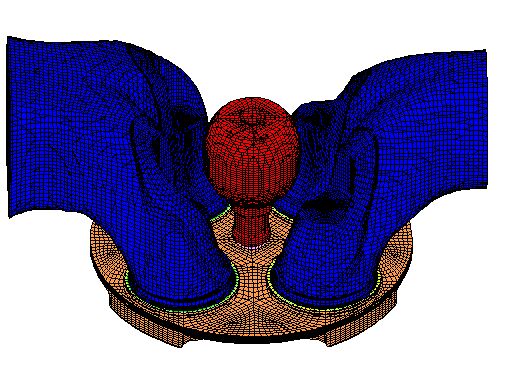

Figure 2. Engine mesh structure. All the calculations were performed by means of the CFD code. The moving mesh (i.e. piston and intake valves regions) is provided by CFD code’s tool designed to facilitate transient analyses of internal combustion engines. CFD solver pre-processor creates the fixed mesh (intake and exhaust ports). The computational grid is made up of cells of mainly hexahedral shape, whose number ranges from approximately 1.800.000 at TDC up to over 2.500.000 at BDC for fine mesh. In this study, single cylinder diesel engine was analysed and properties of engine was given in Table1. All the walls were treated with the turbulent law-of-thewall. The heat fluxes to the walls are calculated using constant temperatures near walls. The boundary condition at the inlet of the intake port is that of "pressure inflow", while that at the outlet of the exhaust port is "pressure outflow". Table 1. Engine properties. Bore / Stroke 0.86 Piston Pin Offset (mm) 0.00 Displacement/Cylinder (cc) 5000 Total Displacement (liter) 1 Number of Cylinders 1 Compression Ratio 13

Multidimensional Modeling

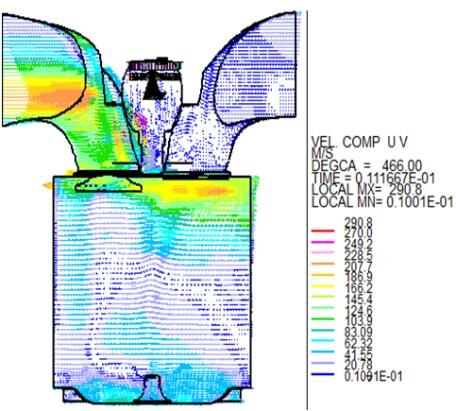

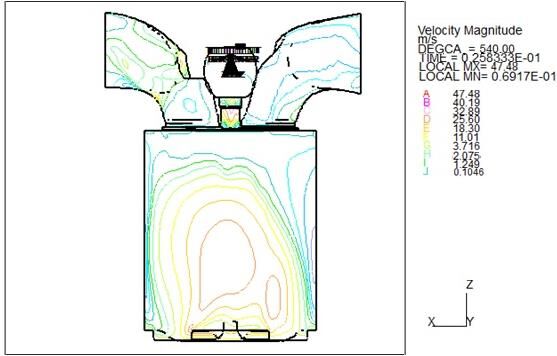

Moving mesh feature was used to analyse the flow structure [26], combustion and emission inside the cylinder. The vector field shows less large structures and larger vortices can be seen Figure 3. While piston goes from BDC to TDC, level of the swirl structure decreases during the end of the stroke. The velocity vectors during the compression stroke decreases due to friction causes less intensity on the flow structure. The maximum air flow velocity was obtained around the maximum valve lift. After maximum valve lift, velocity vectors gradually decrease during the intake stroke and compression stroke. Turbulence and air velocities generated purely during the compression stroke are much smaller than those generated during the intake stroke and can therefore be neglected [27]. Contours of the velocity were shown in Figure 4 to analyse parallel flow to the cylinder axis. It is seen in Figure 4 that about half of the maximum kinetic energy at TDC is increased as compared to the BDC when velocity magnitudes are considered. Velocity magnitude inside the cylinder was shown in Figure 5. This also will provide high kinetic energy levels. Several calculations for the flow in the engine cylinders have been previously carried out and established on the literature [27-35].

Results And Discussion

1D engine code was used to simulate engine performance and exhaust emissions such as CO and NOx gases. The combustion pressure and in-cylinder temperature were evaluated under engine geometry conditions in 2077

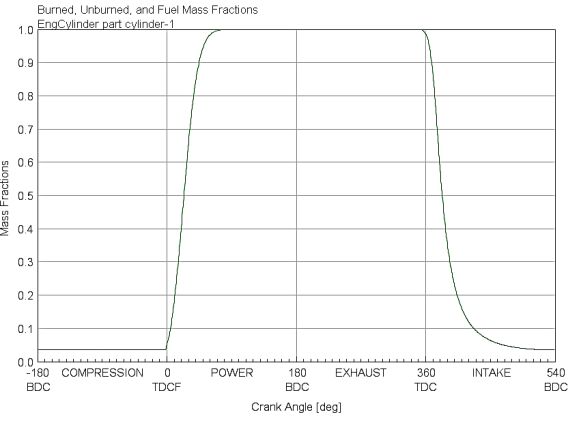

Journal of Thermal Engineering, Research Article, Vol. 4, No. 4, Special Issue 8, pp. 20752082, June, 2018 order to verify 3D results. Wiebe function for 1D approximation and Extended Coherent Flame Model (ECFM) for 3D CFD solution were used to carry out the analysis of combustion. 3D engine code was used to find out flow structure in-cylinder and behaviour of the mixture combustion. Results reported in this section the engine operating conditions of 1000 rpm and diesel fuel consumption with 14 g/kWh. In Figure 6 fuel injection and oxygen mass fraction were shown. The detailed operating conditions are listed in Table 2. Engine performance was given in Figure 7.

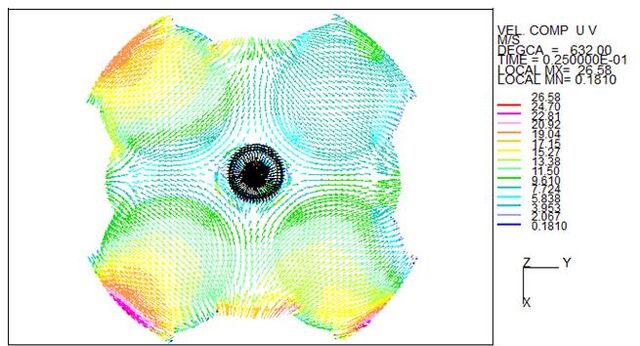

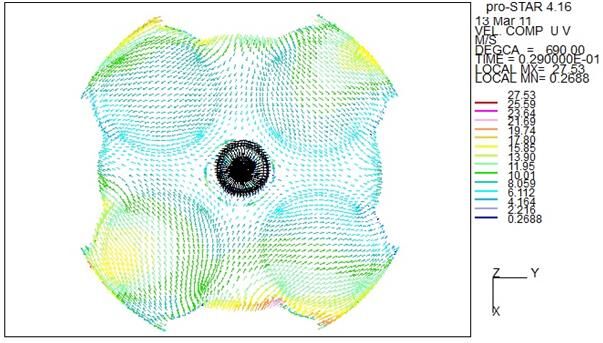

(b) 540 CAD Figure 3. Velocity vectors in different views [26].

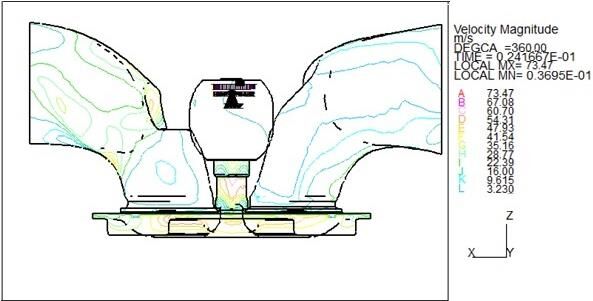

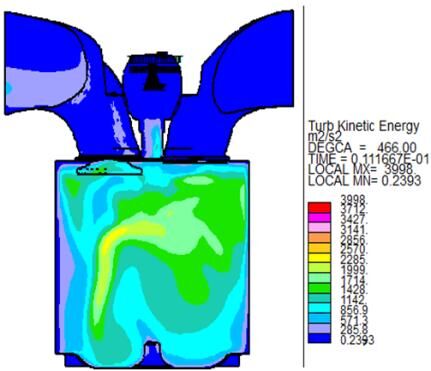

Figure 4. Contours of velocity and TKE at different crank angles during the compression stroke [26].

Journal of Thermal Engineering, Research Article, Vol. 4, No. 4, Special Issue 8, pp. 20752082, June, 2018 Table1. Operating conditions. Engine speed 1000 rpm Fuel consumption 14 g/kWhr Intake pressure

Conclusions

In this study, advanced combustion model ECFM-3Z [27-41] has been employed successfully to get more information about the in-cylinder physical events. In addition, calculation on an engine configuration with compression, spray injection, combustion and emission in a Diesel engine were accomplished. Effect of incylinder design parameters on cold flow structure and performance in a DI diesel engine were investigated and presented. It is seen that results are widely in agreement with previous studies in literature. Pressure and temperature distributions were also in the expected ranges according to validation results. 1D and 3D analyses results illustrated that turbulence is driven by combustion effect. 1D and 3D results have little difference due to dimensional differences. At the end of this study combustion and emission results were evaluated and compared for 1D and 3D calculations. According to combustion and emission results in Figure 8 and 9, NOx concentrations, pressure and temperature graphs were showed similar patterns expectedly. This precombustion chamber geometry is carefully modeled to provide adequate mixing of the fuel with the heated air. Increased pressure provides very good mixture of the air and fuel. The results show that the main combustion is achieved in the main cylinder. In addition, it is seen that the precombustion structure vaporized fuel droplets by means of high temperature and ensured controlled combustion and emission.

Abbreviations

aBDC After bottom dead center aTDC After top dead center BDC Bottom Dead Center BMEP Brake Mean Effective Pressure Bsfc Brake specific fuel consumption (g/kWh) CAD Crank Angle Degree CO Carbon monoxide CR Compression Ratio HCCI Homogeneous Charge Compression Ignition NOx Oxides of nitrogen PCCI Premixed Charge Compression Ignition PM Particulate Matter PPCI Partially Premixed-Charge Compression Ignition ROHR Rate of Heat Release

Simple

Semi-Implicit Method for Pressure-Linked Equations SOC Start of Combustion SOI Start of Injection TDC Top Dead Center UHC Total Unburned Hydro Carbon 2080
