Thermo-environmental analysis and multi-objective optimization of performance of ericsson engine imp

Abstract

Keywords: Evolutionary Algorithms; Decision Making; Thermodynamic Analysis; Multi Objective Optimization; Entropy Generation; Ericsson Engine

Introduction

One of the simplest types of external-combustion engines is the Ericsson engine which employs a compressible fluid as a working fluid. At Carnot efficiency, the Stirling and Ericsson engines can supposedly be an effective engine to convert heat into mechanical work. Little research has been done on the Ericsson engine and more research is related to the Stirling engine. The material employed for Stirling engine and Ericsson engine construction effects on the thermal boundary for the operation of this engine. In most cases, the engines work with a cooler and heater temperature of 338 and 923 K, correspondingly [1]. The range of efficiency in Stirling engines vary from 30 to 40% which yielded by normal operating speed varies from 2000 to 4000 rpm, and a usual temperature changes from 923 to 1073 K [2]. Several scholars propose isothermal models like Schmidt’s original work (for instance, Urieli and Berchowitz [3], Reader [4] and Hargreaves [5]). Carlson and colleagues [6] improve an ideal approach with nonisothermal heat exchange. These type of approaches propose a development on the isothermal approach as they exclude unfeasibly slow engine speed accompanying with isothermal working spaces and the requirement for infinite heat transfer. Urieli and Kushnir [7] depicted that this analysis can be employed for the purpose of examining the different practical impacts of heat exchangers, non-ideal regenerators, comprising pressure losses and heat transfer. Martaj and colleagues [8] worked on the steady-state operation and illustrated a thermodynamic analysis of a low-temperature Stirling engine, and entropy, energy and exergy balances were reported at each principal component of the engine. The main aims of the Stirling engine inventors can be This paper was recommended for publication in revised form by Regional Editor Alibakhsh Kasaeian 1 Faculty of Mechanical Engineering, Shahrood University of Technology, Shahrood, Iran 2 Department of Renewable Energies and Environmental, Faculty of New Sciences and Tech., University of Tehran, Tehran, Iran *E-mail address: mohammadhosein.ahmadi@gmail.com, mhosein.ahmadi@shahroodut.ac.ir Orcid id: 0000-0002-0097-2534, 0000-0001-6297-9603, 0000-0002-0991-7646 Manuscript Received 2 August 2017, Accepted 1 October 2017

Journal of Thermal Engineering, Research Article, Vol. 5, No. 4, pp. 319-340, July, 2019 categorized into three main groups: maximum power; maximum efficiency; minimum expenses. Markman and colleagues [9] investigated the mechanical-power losses and thermal-flux of a 200W beta-configuration of the Stirling engine to improve and intensify the efficiency of engine. A small Stirling engine with 4 watt output power in 900 rpm rotation speed and 0.1 MPa pressure was investigated and constructed by Kagawa and colleagues [10]. Brandhorst and Chapman [11] established a 5 kW engine for usage as a power generator in space usages. Ataer [12] used the Lagrangian approach to analyze the regenerators of Stirling cycle engines. Nakajima and colleagues [13] established a 10 g micro Stirling machine with an approximately 0.05 cm3 piston swept volume. At 10 Hz, the output power of the engine was 10 mW. Aramtummaphon [14] evaluated an open cycle Stirling engines by employing steam heated from producer gas. The first engine at a maximum speed of 950 rpm produced a specified power of about 1.36 kW, whereas the second engine, amended from the first one, at a maximum speed of 2200 rpm generated a specified power of about 2.92 kW. Takashi Fukui and colleagues [15] invented and built a micro-engine, and its experimental evaluation was implemented; though, the performance of the micro-engine cannot be scaled to the real one. Iwamoto and colleagues [16] compared the efficiency of high temperature and low-temperature Stirling engines with other types of Stirling engines. They investigations depicted that the LTD Stirling efficiency is about 50% of Carnot efficiency with a similar condition. Wu and colleagues [17] depicted the impacts of regeneration time, heat transfer, and inadequate regeneration on the efficiency of the irreversible Stirling engine cycle. Erbay and Yavuz [18] studied the practical Stirling heat machine for maximum power output circumstances by employing polytropic progressions. They also specified the compression ratio and efficiency at maximum power density and determined the thermal design constraints. Ahmadi and colleagues [19] studied the effects of the Solar Collector Design variables on the Efficiency of Solar Stirling Engine. Ahmadi and colleagues [20-23] proposed a grey-box method to predict the power of Stirling heat engine via machine learning methods. Investigation of thermodynamic irreversibility in systems acquired significance after the oil crisis in the 1970s to achieve higher efficiencies. The novel approach was entitled as Finite- Time-Thermodynamics (FTT). Primary studies in this field focused on endoreversible power cycle. This engine, named Curzon-AhlbornNovikov (CAN), is reversible internally and irreversible externally [24,25]. Compared with Carnot cycle, which works completely irreversible, Can engine yield more realistic results. Moreover, several studies were conducted on the maximum extractable work from irreversible systems [26–28]. For instance, Angulo-Brown established a standard known as ecological function (ECF) [29]. Yan suggested using ambient temperature (T0 ) instead of heat sink temperature in Carnot efficiency [30]. Various studies are represented in the literature which has worked on ecological optimization [31–62]. ECOP is another thermo-ecological criterion which is defined and utilized in different thermodynamic cycles [63–72]. A performance coefficient, called exergetic performance criteria (EPC), is another criterion established to find out the relationship between exergy and exergy destruction of a [73–77]. Some studies [78–89] work on obtaining an approach for exergy application in finite time thermodynamic (FTT). Several studies presented mathematical methods to calculate the overall thermal efficiency of solar powered high-temperature differential dish Stirling engine with regenerator irreversibility and finite heat transfer. Afterwards, the thermal efficiency and absorber working temperature were optimized. [90-92]. Tlili investigated the effects of regenerator effectiveness and internal irreversibility on the thermal efficiency of an endoreversible Stirling heat engine at maximum power condition [93]. Kaushik et al [94-97] studied effects of regeneration and heat transfer of the heat sink and sources on exergy destruction of Stirling and Ericsson engines. Evolutionary algorithms (EA) were originally used throughout the mid-eighties in an effort to unravel the puzzle of this general category [98]. A practical answer to a multi-objective puzzle is to determine a group of answers, each of which fulfills the objectives at a satisfactory degree without being overshadowed by any other answer[99]. Multi-objective optimization issues generally serve a feasibly innumerable group of answers that is to say as Pareto frontier, where examined vectors denote the preeminent probable trade-offs in the objective function area. In this regard, multi-objective optimization of various energy cycles was investigated by numerous nowadays [100-140]. Ahmadi and colleagues [103,105] employed NSGAII to optimize the economic and thermodynamic of a solar-dish Stirling heat engine. They presented another model to evaluate the cooling load of Stirling cryogenic refrigerator cycle as well [113]. Sayyaadi et al. [117] used NSGAII in order to optimize the design elements of a Solar-Driven Heat Engine. Ahmadi and colleagues [121] used MOEA and thermodynamic analysis to optimize an irreversible three-heat-source absorption heat pump. Sadatsakkak et al. [124,125] used thermoeconomic analysis and MOEA to optimize an irreversible regenerative closed Brayton cycle and an endoreversible Braysson cycle. 320

Journal of Thermal Engineering, Research Article, Vol. 5, No. 4, pp. 319-340, July, 2019 In this study, an irreversible Ericsson engine is thermodynamically investigated in order to optimize its performance. In addition, three scenarios are considered in optimization and obtained results are evaluated. The first strategy is proposed to maximize the Ecological function, the thermal efficiency and the Exergetic performance criteria. Furthermore, the second strategy is suggested to maximize the Ecological function, the thermal efficiency and ECOP. The third strategy is proposed to maximize the Ecological function and the thermal efficiency and Dimensionless ecological based thermo-environmental function. MOEAs jointed with NSGA-II approach was executed in this paper. Decision parameters involved in this paper including the regenerator’s effectiveness, the high-temperature heat exchanger’s effectiveness, the low-temperature heat exchanger’s effectiveness, the working fluid temperature in the low-temperature isothermal process and the working fluid temperature in the high-temperature isothermal process. Moreover, Pareto optimal frontier was achieved and an ultimate optimum answer was chosen via three competent decision makers comprising the LINMAP, fuzzy Bellman-Zadeh, and TOPSIS approaches.

System Description

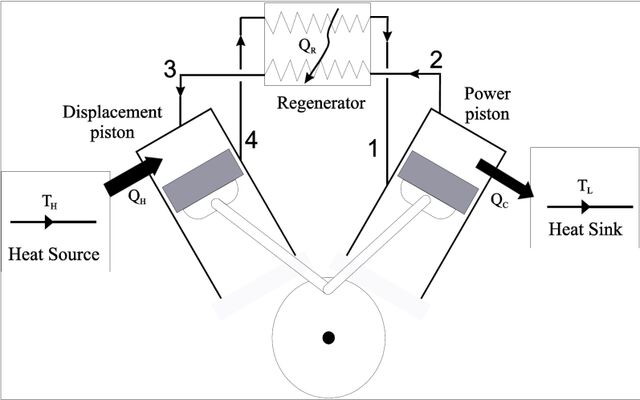

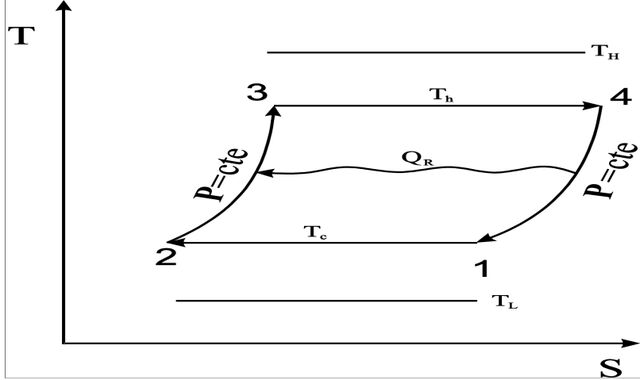

Figure 1 depicts a graphical illustration of an Ericsson heat engine cycle with regenerative heat losses and finite-time heat transfer. As illustrated in Figure 2, ideal Ericsson cycle comprises of 4 progressions containing two isobaric progressions (2–3 and 4–1) in the regenerator and two isothermal (1–2 and 3–4). In a real cycle, it is unfeasible to have an ideal heat transfer in the regenerator, in which the complete amount of absorbed heat (in the process 4–1) is transmitted to the working fluid in the isobaric heating progression (process 2–3). Consequently, a heat transfer loss happens in the regenerator.

Journal of Thermal Engineering, Research Article, Vol. 5, No. 4, pp. 319-340, July, 2019

Thermodynamic Analysis Of The System

It is worth to stress that the finite heat transfer in the regenerative heat transfer ( Q r ) can be calculated by following expression [20,91,92]

Q r stands for the heat loss throughout the two regenerative progressions in the cycle and can be determined via the below equation [20, 91,92]:

Cp represents the working fluid’s specific heat capacity in the regenerative progressions (mole), n stands for the mass of the working fluid in terms of mole,  r denotes the regenerator’s effectiveness, Th and Tc stand for the working fluid temperatures in the cold space and hot space, correspondingly. It is not reasonable to pay no attention to the time of two regeneration progressions when compared with two constant temperature progressions included in the suggested approach. So, via the below equation the regeneration time calculated [94-97]:

The heat absorbed between the heat sink and working fluid ( Q L ) and the heat released between working fluid and heat source ( QH ), are calculated via the below equations

p1 p 4 is Ratio of pressure throughout the regenerative progressions. Consequently, we have: = p 2 p3

in which C L and C H denote the external fluids heat capacitance rate in the heat sink and heat source, correspondingly.

in which  H and  L stand for the high and low temperature heat exchangers effectiveness, correspondingly and NL =

CH represent the cyclic period. Using Eqs. (3)- (9), we get that the cyclic period

Journal of Thermal Engineering, Research Article, Vol. 5, No. 4, pp. 319-340, July, 2019

nRTh Ln+ nCp 1− R ( Th −Tc ) nRTc Ln+ nCp 1− R ( Th −Tc ) + + 2 ( Th −Tc ) 4 4 CL ( Tc −TL ) CH H ( TH −Th )+CH H TH −Th L

Take into account the cyclic period of the Ericsson engine, the thermal efficiency, the output power, and entropy production of the engine can be determined as following as:

Exergy destruction is the measurement of the irreversibilities or lost work in the system and it is equal to environment temperature (T0, K) multiply entropy generation rate (kW/K). The rate of Exergy destruction (kW) is written as following:

The ECOP and exergetic performance criteria are calculated as following as:

Reversible work per unit time of the system (kW) is the difference of exergy input of the system and exergy output from the system and it is described as following:

Journal of Thermal Engineering, Research Article, Vol. 5, No. 4, pp. 319-340, July, 2019 where m is the total mass, b1 is environmental impact of the components (mPts/kg), b2 is the environmental impact of the fuel (mPts/ MJ), b3 is the environmental impact of the lost work (mPts/MJ), and b4 (mPts/MJ), is the environmental impact of the mechanical work. Similarly, the ecological based thermo-environmental function is defined as:

The dimensionless ecological based thermo-environmental function is defined as:

Substituting Eqs. (3)- (10) intoEqs. (11) and (12) we have, P=

nR(Th −Tc )Ln nRTh Ln+ nCp 1− ( Th −Tc ) nRTcLn+ nCp 1− ( Th −Tc ) R R + + 2( Th −Tc ) 4 4 C  T − T ( L c L) CH ( TH −Th )+CH TH −Th L H H

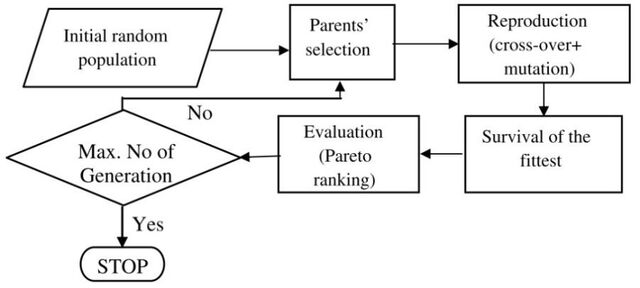

Multi-Objective Optimization With Evolutionary Algorithms Optimization VIA EA

Genetic Algorithms were firstly proposed by Prof. Holland (1960) by inspiring the concept of natural evolution and Darwinian theorem for optimization purposes [101]. The evolution typically commences from a population of accidentally created individuals and takes place in creations. In each creation, the fitness value of each individual in the population is examined; multiple individuals are stochastically chosen from the present population, and improved to create a fresh population. The fresh population is then employed in the following iteration of the GA. Usually, the GA stops when either an acceptable fitness level was achieved for the population or a maximum number of generations were created. More details of GA can be found in previous works [99, 102]. Also, MOEAs were evolved throughout the past years by frequent examinations on multipart mathematical puzzles and on practical engineering issues and have depicted that they can exclude the complications of conventional approaches [99, 102]. The construction of the MOEA employed in this paper is depicted through Figure 3 [101]. It is worth to highlight that the real values of decision parameters were employed rather than their binary codes.

Journal of Thermal Engineering, Research Article, Vol. 5, No. 4, pp. 319-340, July, 2019

Nsga-Ii Approach

NSGA-II approach was employed in this paper with the purpose of determining the Pareto frontier by running GA. In this regard, NSGA-II organized the answers based on the Pareto theory and arranging nondominated answers into non-dominated layers as illustrated in Figure 4. Put it in another way, if Np stands for the population number, it is classified into N L layers in which juncture of each two random chosen layers is blank assortment and combination of all layers represents Np assortment.

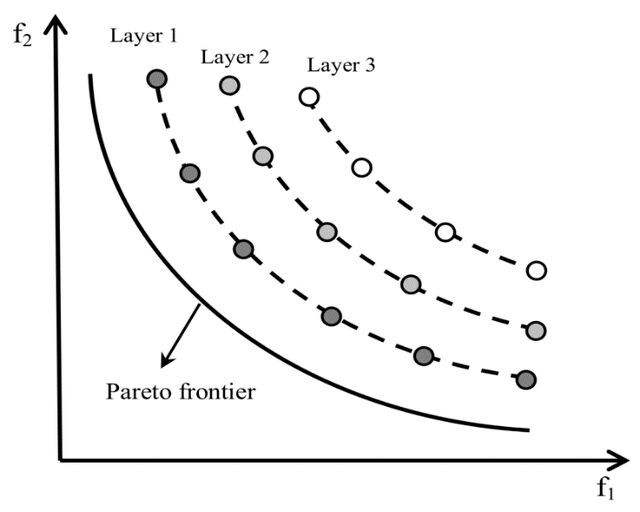

Figure 4. NSGA-II solution layering The virtual fitness of each answer is equivalent to its layer. Tournament selection was employed for cross over operating in parent choosing between two random chosen layers. So, answer placed on the layer 1, have more opportunity to be chosen for the next creation. Uniform distribution of answers along layers is regulated via an index called “index of crowding distance” for each answer. This criterion is defined as a ratio of detraction of objective functions for two neighbor answers nearby the present answer to the detraction of the minimum and maximum values of that objective. Consequently, for k th objective of jth answer, following expression can be used.

For margin answers are allocated an infinite distance index. The summation of individual distance values conforming to each objective stands for the overall crowding distance value as follows: M

in which j represents the individual index and M stands for the number of objectives. Figure 5 depicts a graphical illustration of examination of distance index. In this approach, two variables are determined for each answer: 1) Dominant (Layer) number, NL, namely the number of answers which control the present answer. Description and definitions of domination were described well in Ref. [98, 100]. Dominant number, for nondominated answers of the present population is equal to 0, consequently, these answers are located in layer 1. Non-dominated answers for an assortment of the answers not including the layer 1 members are located in layer 2. For M objectives issue with N populations, the number of assessments is equal to MN 2. This process persisted with the purpose of accommodating all answers in their suitable layers. Furthermore, i rank index for each answer is allocated as its layer number, NL.

Journal of Thermal Engineering, Research Article, Vol. 5, No. 4, pp. 319-340, July, 2019 2) Crowded comparison operator, n≺, defined as following as:

It reveals that for two answers with dissimilar layers, the answer with the lower layer is desired. Else, for two answers of the same layer, the answer located in the area with a lower concentration of answers is chosen.

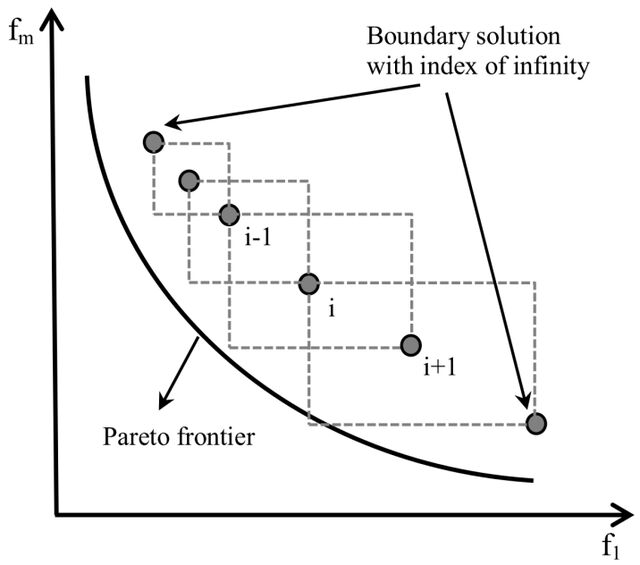

Figure 5. Schematic of distance indexing of individuals in NSGA-II algorithm.Distance indexing of components in NSGA-II algorithms

Objective Function, Restraints And Decision Parameters

The thermal efficiency, the Ecological function and the Exergetic performance criteria three objective functions for the first scenario, which are evaluated via Eqs. (12 and 16 and 18). The Ecological function, the thermal efficiency, and ECOP three objective functions for the second scenario, which are evaluated via Eqs. (12 and 16 and 17). The Ecological function, the thermal efficiency, and Dimensionless ecological based thermoenvironmental function three objective functions for the third scenario, which are evaluated via Eqs. (12 and 16 and 21). Throughout all scenarios proposed in the present paper the below design parameters were employed:

 R : Regenerator’s effectiveness  L : The low-temperature heat exchanger effectiveness

 H : The high-temperature heat exchanger effectiveness Th : The working fluid temperature in the high-temperature isothermal process 3-4 Tc : The working fluid temperature in the low-temperature isothermal process 1-2 Following limitations were included in the optimization process:

Results And Discussion

Results of First Scenario Via running multi-objective optimization approach the thermal efficiency, the Ecological function and the Exergetic performance criteria are maximized concurrently. The objective functions in the applied optimization, and the restrictions that were employed, are formulated by Eqs. (12 and 16 and 18) and Eqs. (2731), respectively. Design variables in optimization process are the low-temperature heat exchanger’s effectiveness, regenerator’s effectiveness, the working fluid temperature in the high-temperature isothermal process 3-4, the high-temperature heat exchanger’s effectiveness, the working fluid temperature in the low-temperature isothermal process 1-2. Following specifications have been considered for Ericson cycle [91,94]: - 1 - 1 - 1 - 1 n = 1 , C v = 15J.mol .K , R = 4.3J.mol .K , TH = 1300K , TL = 300K , T0 = 285 K ,

CL = CH = 1000 WK −1 , x = 2 ´ 10- 10 , l = 2 , a = 10- 5 s / K . Pareto optimal frontier for three objective functions, the objective function associated with the thermal efficiency, the Ecological function and the Exergetic performance criteria of the irreversible Ericsson engine are represented in Figure 6.

d + = (t − t,n ) 2 + (ECF − ECFn ) 2 + (EPC − EPCn ) 2 d − = (t − t,n,non −ideal ) 2 + (ECF − ECFn,non −ideal ) 2 + (EPC − EPCn,non −ideal ) 2 327

Journal of Thermal Engineering, Research Article, Vol. 5, No. 4, pp. 319-340, July, 2019

t,n , ECFn and EPC n denote Euclidian the thermal efficiency, the Ecological function and the Exergetic performance criteria. Furthermore, Table 2 comprises the deviation index (d) for the outcome of each decision maker.

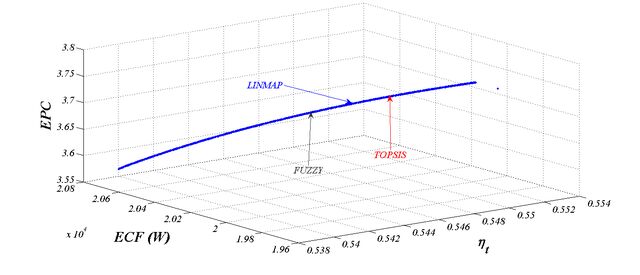

Figure 6. Pareto optimal frontier in the objectives’ space of first scenario Table 2 depicts the optimal outputs achieved for objective functions and decision parameters by executing LINMAP, Fuzzy and TOPSIS approaches for the first scenario. To determine deviations of the results from an ideal and non-ideal solution, following equations were employed. As reported through Table 2, the deviation indexes for TOPSIS, LINMAP and Fuzzy are 0.036, 0.031 and 0.026, respectively. As clear be seen from this Table, it can conclude that the FUZZY decision-maker has a lower deviation index; consequently the answer which was chosen via the FUZZY decision-maker was selected as a final optimal answer of the multi-objective optimization for the irreversible Ericsson cycle. Table 2. Outcomes of the decision makers for the first scenario Decision variables

Linmap

To examine the accuracy of the decision maker’s analysis of error was performed. Table 3 demonstrates MAPE (Mean Absolute Percentage Error) and MAAE (Maximum Absolute Percentage Error) for results achieved by the decision makers.

Journal of Thermal Engineering, Research Article, Vol. 5, No. 4, pp. 319-340, July, 2019 Table 3. Analysis of Error for the results of the first scenario Decision Making

Linmap

Results of Second Scenario Three objective functions are considered for optimization which contain the thermal efficiency, the Ecological function and ECOP (should be maximized) which formulated via Eqs. (12 and 16 and 17), correspondingly. Objective functions in this scenario are expressed by Eqs. (12 and 16 and 17) and design variables are formulated with Eqs. (27)-(31). Design variables in optimization process are the same as the first scenario. Following specifications have been considered for Ericson cycle [91,94]: - 1 - 1 - 1 - 1 n = 1 , C v = 15J.mol .K , R = 4.3J.mol .K , TH = 1300K , TL = 300K , T0 = 285 K ,

CL = CH = 1000 WK −1 , x = 2 ´ 10- 10 , l = 2 , a = 10- 5 s / K . Figure 7 depicts the Pareto frontier in the suggested objectives’ space achieved in the optimization scenario. Three ultimate answers were chosen by the LINMAP, Fuzzy Bellman-Zadeh, and TOPSIS decision makers which are highlighted in this figure. According to Figure 7, the obtained points by LINMAP and TOPSIS are approached towards each other. Also, it was shown that the optimal value of the thermal efficiency varied from 53.467% to 54.844% and the optimal value of the Ecological function was between 19.972 (kW) and 20.850 (kW) and the optimal value of the ECOP was between 2.400 and 2.615.

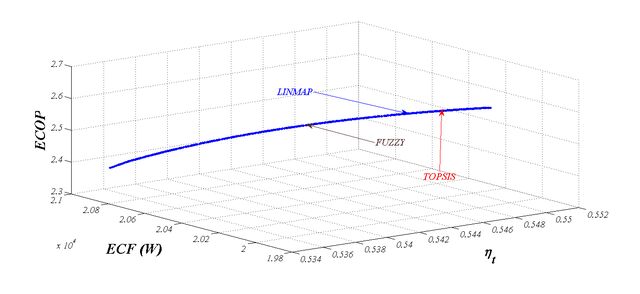

Figure 7. Pareto optimal frontier in the objectives’ space of second scenario Table 4 reports the optimal outputs achieved for objective functions and decision parameters via running TOPSIS, Fuzzy and LINMAP approaches for second scenario. To determine deviations of the results from an ideal and non-ideal solution, following equations were employed.

d + = (t − t,n ) 2 + (ECF − ECFn ) 2 + (ECOP − ECOPn ) 2 (35)

Journal of Thermal Engineering, Research Article, Vol. 5, No. 4, pp. 319-340, July, 2019

d − = (t − t,n,non −ideal ) 2 + (ECF − ECFn,non −ideal ) 2 + (ECOP − ECOPn,non −ideal ) 2

t ,n , ECFn and ECOPn denote Euclidian the thermal efficiency, the Ecological function and the ECOP. Furthermore, Table 4 comprises the deviation index (d) for the outcome of each decision maker. As reported in Table 4, the deviation indexes for TOPSIS, LINMAP and Fuzzy are 0.035, 0.030 and 0.017, respectively. As clear be seen from this Table, it can conclude that the FUZZY decision-maker has a lower deviation index; consequently the answer which was chosen via the FUZZY decision-maker was selected as a final optimal answer of the multi-objective optimization for the irreversible Ericsson cycle. Table 4. Outcomes of the decision makers for the second scenario Decision variables Decision Making

Linmap

Finally, deviations of the final answers gained by each decision maker and ideal answer are assessed. Table 5 demonstrates MAPE and MAAE of results obtained via the aforesaid decision makers. Table 5. Analysis of error for the results of the second scenario Decision Making Method

Linmap

Results of Third Scenario Throughout this scenario we attempted to maximize the thermal efficiency, the Ecological function and Dimensionless ecological based thermo-environmental function at the same time. The objective functions, and the limitations which were employed, are expressed by Eqs. (12 and 16 and 21) and Eqs. (27-31), respectively. Design variables in optimization process are the same as the first scenario. Following specifications have been considered for Ericson cycle [91, 94]: - 1 - 1 - 1 - 1 n = 1 , C v = 15J.mol .K , R = 4.3J.mol .K , TH = 1300K , TL = 300K , T0 = 285 K ,

CL = CH = 1000 WK −1 , x = 2 ´ 10- 10 , l = 2 , a = 10- 5 s / K . Pareto optimal frontier for three objective functions, the objective function associated with the Ecological function, the thermal efficiency, and Dimensionless ecological based thermo-environmental function of the irreversible Ericsson engine are represented in Figure 8.

Journal of Thermal Engineering, Research Article, Vol. 5, No. 4, pp. 319-340, July, 2019

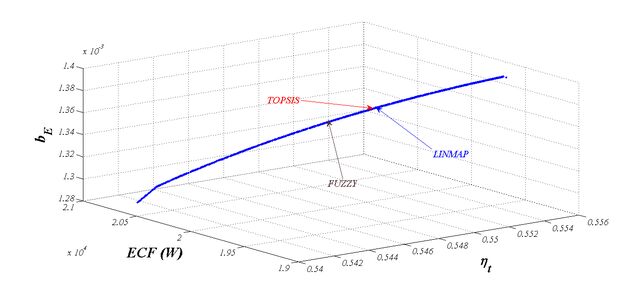

Figure 8. Pareto optimal frontier in the objectives’ space of third scenario Table 6 reports the optimal outputs achieved for objective functions and decision parameters via running TOPSIS, Fuzzy and LINMAP approaches for third scenario. To determine deviations of the results from an ideal and non-ideal solution, following equations were employed.

d − = (t − t,n,non −ideal ) 2 + (ECF − ECFn,non −ideal ) 2 + (b E − b E,n,non −ideal ) 2 𝑑=

t,n , ECFn and b E,n denote Euclidian the thermal efficiency, the Ecological function and the Dimensionless ecological based thermo-environmental function. Furthermore, Table 6 comprises the deviation index (d) for the outcome of each decision maker. As reported through Table 6, the deviation indexes for TOPSIS, LINMAP and Fuzzy are 0.052, 0.043 and 0.035, respectively. As clear be seen from this Table, it can conclude that the FUZZY decision-maker has a lower deviation index; consequently the answer which was chosen via the FUZZY decision-maker was selected as a final optimal answer of the multi-objective optimization for the irreversible Ericsson cycle. Table 6. Outcomes of the decision makers for the third scenario Decision variables

Linmap

Journal of Thermal Engineering, Research Article, Vol. 5, No. 4, pp. 319-340, July, 2019 Finally, deviations of the final answers gained by each decision maker and ideal answer are assessed. Table 7 explicates MAAE and MAPE of results obtained via the aforesaid decision makers. Table 7. Analysis of error analysis for the results of the third scenario Decision Making

Linmap

Figure 9 depicts the comparison between thermal efficiency gained from three scenarios. As clear be seen from Figure 9, the third scenario has the highest value of thermal efficiency compared to other scenarios. Moreover, the lowest value of thermal efficiency is for the second scenario. It should be noted that thermal efficiency was an objective function for all the scenarios.

Figure 9. Comparison of thermal efficiency between different optimization scenarios Figure 10 depicts the comparison between ECF gained from three scenarios. As clear be seen from Figure 10, the second scenario has the highest value of ECF compared to other scenarios. Moreover, the lowest value of ECF is for the third scenario. It should be noted that ECF was an objective function for all the scenarios.

Figure 10. Comparison of ECF between different optimization scenarios 332

Journal of Thermal Engineering, Research Article, Vol. 5, No. 4, pp. 319-340, July, 2019 Figure 11 depicts the comparison between EPC gained from three scenarios. As clear be seen from Figure 11, the third scenario has the highest value of EPC compared to other scenarios. Moreover, the lowest value of EPC is for the second scenario. It should be noted that EPC was an objective function just for the first scenario and the values of EPC in other scenarios were calculated at optimum conditions gained from optimization process.

Figure 11. Comparison of EPC between different optimization scenarios Figure 12 depicts the comparison between ECOP gained from three scenarios. As clear be seen from Figure 12, the third scenario has the highest value of ECOP compared to other scenarios. Moreover, the lowest value of ECOP is for the second scenario. It should be noted that ECOP was an objective function just for the second scenario and the values of ECOP in other scenarios were calculated at optimum conditions gained from optimization process.

Figure 12. Comparison of ECOP between different optimization scenarios Figure 13 depicts the comparison between Dimensionless ecological based thermo-environmental function gained from three scenarios. As clear be seen from Figure 13, the third scenario has the highest value of Dimensionless ecological based thermo-environmental function compared to other scenarios. Moreover, the lowest value of dimensionless ecological based thermo-environmental function is for the second scenario. It should be noted that dimensionless ecological based thermo-environmental function was an objective function

Journal of Thermal Engineering, Research Article, Vol. 5, No. 4, pp. 319-340, July, 2019 just for the third scenario and the values of dimensionless ecological based thermo-environmental function in other scenarios were calculated at optimum conditions gained from optimization process.

Figure13. Comparison of dimensionless ecological based thermo-environmental function between different optimization scenarios Finally, as it is clearly seen from Figures 9 through 13, it can conclude that the third scenario was the best scenario in comparison other proposed scenarios. This is main due to the condition when bE is maximum the values of ECOP, EPC and thermal efficiency are maximum. In other words, maximizing bE results in gaining maximum values of ECOP, EPC and thermal efficiency.

Conclusions

This paper made attempt to illustrate multi-objective optimization of Ericson system based on finitetime thermodynamics analysis. In this regard, the optimum values of the Ecological function, the thermal efficiency, Exergetic performance criteria, the ECOP, and dimensionless ecological based thermo-environmental function of the Ericsson engine have been determined. The thermal efficiency, output power, and entropy generation rate throughout the engine have been chosen as parallel objective functions in the optimization process. Furthermore, the low temperature heat exchanger’s effectiveness (  L ),the regenerator’s effectiveness (

 R ), the working fluid temperature in the high temperature isothermal process( Th ), the high temperature heat exchanger’s effectiveness (  H ), and working fluid temperature in the low temperature isothermal process( Tc ) have been chosen as design variables with definite limitations in optimization process. MOEA based on NSGAII approach was applied to the aforementioned system for calculating the optimum values of decision variables. Moreover, Pareto optimal frontier was achieved and an ultimate optimum answer was chosen via three competent decision makers comprising the LINMAP, fuzzy Bellman-Zadeh, and TOPSIS approaches. If the main goal is ECF, the results of the second scenario are the best. Also, If the main goals are thermal efficiency, ECOP, EPC and Dimensionless ecological based thermo-environmental function the results of the third scenario are the best.

Nomeclature

Area,[m2] Heat capacitance rate,[W/K] Specific heat capacity,[Jmol-1K-1] heat transfer coefficient[Wm-2K-1] Number of mole[-]

Journal of Thermal Engineering, Research Article, Vol. 5, No. 4, pp. 319-340, July, 2019

Thermal efficiency[-] Effectiveness and emissivity factor[-] Ratio of pressure during the regenerative processes [-] Stefan’s constant [Wm-2K-4] Entropy production [W/K]
