Damage detection in simulated space frames using genetic algorithms

Abstract

Keywords: FEM; genetic algorithm; dynamic analysis; damage detection.

1. Introduction

Structures can have damages due to manufacturing faults or external impacts such as earthquakes etc. Also some damages that can not be visible from outside are not idendified directly. Therefore, damage detection is very important for public safety and this subject has been studied by many researches. Mares [1] focused on an application of genetic algorithms to identify damage in elastic structures. Chou and Ghaboussi [2] examined genetic algorithm in structural damage detection. Dutta and Talukdar [3] investigated damage detection in bridges using accurate modal parameters. They studied a simulated simply supported bridge. Ananda Rao et al. [4] focused on damage detection by using genetic algorithms. They studied plane systems such as plane truss, cantilever beam and portal frame systems with damaged cases. Jaishi and Ren [5] examined damage detection by finite element model updating using modal flexibility residual. They performed a simulated simply supported beam. Perera and Torres [6] researched structural damage detection based on the changes in frequencies and mode shapes of vibration of a structural system. They used GA and performed a simply supported beam used for the simulation with various damage scenarios. Gomes and Silva [7] performed a comperative study for damage detection on structures using GAs and modal sensitivity method. They simulated some damage cases for simple supported beam and portal plane frame systems. Esfandiari et al. [8] focused on a method using the frequency response function (FRF) and natural frequencies data for finite element model updating. They used simulated data of a plane truss system with damage cases. Liu et al. [9] examined structural damage detection with multi-objective function using GAs. They simulated a simple beam with various damage cases numerically by MATLAB software to obtain experimental dynamic data. Sim et al. [10] investigated a multimetric approach based on the damage locating vector method and studied numerical simulations to verify the efficiency of the proposed approach. Khoshnoudian and Esfandiari [11] investigated structural damage diagnosis using modal data. They studied numerical examples such as planer truss and frame systems with simulated damage cases. Nejad et al.[12] investigated damage detection of skeletal structures using particle swarm optimizer with passive congregation (PSOPC) algorithm via incomplete modal data. They studied some numerical simulations such as a cantilever beam, four-bay plane truss and two-bay two-story plane frame with different scenarios. Majumdar et al.[13] focused on damage assessment of truss structures from changes in natural frequencies using ant colony optimization. Asnaashari and Sinha [14] studied crack detection in structures using deviation from normal distribution of measured vibration responses. They simulated some examples such as cantilever beam and simply supported beam systems. Tang and Xie [15] studied a virtual flexibility matrix(VFM) technique based on changes in structural frequencies and mode shapes to detect damage locations and severity. They focused on simulated plane truss and simply supported beam models with various damages scenarios. They used simulated data obtained from the finite element method (FEM) package ANSYS and numerical results obtained from routines developed in the MATLAB. Numerical model is updated countinuously to approach simulated damaged model by reducing elastic modulus of structural elements. Thus, the location and severity of simulated damage is predicted by GA minimization based finite element model updating. In this study, four different examples are examined by using natural frequencies. The natural frequencies data of simulated damaged model in example 1 is taken from literature and also verified by MATLAB [16] and SAP2000 [17] softwares. The natural frequencies data of the other simulated examples are obtained from SAP2000 software. In the last example, simulated damaged data with noise are used in GA. Most of the studies in the literature focused on the damage detection in truss and plane frame systems. The aim of this study is to determine the damage detection in simulated space frames using GAs based finite element model updating.

Objective

Several numerical optimization methods such as genetic algorithm, harmony search algorithm, ant colony optimization algorithm, particle swarm optimization (PSO) and virtual flexibility matrix algorithm etc., have been implemented by many researchers in literature. Genetic Algorithm (GA) one of these methods was proposed by Goldberg and Holland [18] and conducts natural biological procedures such as reproduction, crossover and mutation. Determination of damages are carried out by using reduction factors in GA analyses. Each reduction factors are represented by codes. In this study, binary encoding system is used in Genetic Algorithm. The code chain length in GA depends on the number of reduction factors for elastic modulus and the number of structural members. Table 1 shows four different reduction factors and their binary encoding in GA. For example, each individual in a population is occured from 40(20*2)-digit code chain for a 20-bar structural system. A reduction factor indicates damage severity in structural element. For example, reduction factors such as 0.25, 0.50, 0.75 and 1.00 (shown in Table 1) refer to 0.75, 0.50, 0.25 and 0 (undamaged), respectively. Table 1. Reduction factors and binary encoding in GA Reduction factors

Natural frequencies of simulated damaged model, reduction factors and geometric and material properties of the structural systems are entered as input data. GA analysis is then started with random initial population. The code chains of individuals in population are solved and suitable reduction factors are assigned to elastic modulus of elements in structure. Local stiffness (k), mass (m) and transformation (T) matrices of each element are determined. Thus, global stiffness (K) and mass (M) of structural system are defined and natural frequencies of numerical model are calculated from Eqs. (1) and (2) [19, 20].

where K and M are the global stiffness and mass matrices, respectively. i is angular

vibration frequency of structure (rad/s), i is eigenvector (mode shape), i is eigenvalue and n is total number of mode shapes. fi is vibration per second (Hz). In the next step, the objective function value of each individual in population (generation) for each ith mode is calculated from Eqs. (3) and Eq. (4) [19, 21];

The values of Ffrequencies,i for i th mode are between 0 and 1, so the total objective function value, Ft,i changes between 0 and 1 * m. All steps of GA are repeated until the total objective function value is equal to zero. When the total objective function value is equal to zero, the difference between updated numerical model and simulated damaged model is minimized by GA and thus, these two models are the same. In the nex step, GA operators (reproduction, double-point crossover and mutation) are applied to generation [22-25]. In the reproduction operator, the individuals having the best values (close to zero) of the objective fuction remain in the population and the individuals with the worst value are removed from population and then, the best individuals are copied instead of the worst individuals. Thus, the number of individulas in the population remains the same. After crossover operator applied to the population, mutation operator are applied to all individuals with a prescribed probability. Randomly selected individual codes are changed from 0 to 1 or from 1 to 0. Finally, next population is obtained as better than previous population. All steps of GA are repeated until the objective function value is equal to zero. In this study, a computer program is coded in MATLAB to use GA based FEM updating. Accordingly, Fig. 1 shows the flowchart of GA optimization. Start

Enter dynamic data of damaged model and Input data of structural system and then Assign randomly reduction factors to E and create the initial generation Generation= 1 Calculate value of total objective function of each individual in generation

No Create the matching pool Create next generation with reproduction, crossover, mutation Figure 1. GA flowchart

Matlab

As it is observed from Table 3 that the results of natural frequncies in damaged and undamaged cases are very close to the results obtained by Aktaşoğlu [27]. Aktaşoğlu [27] defines damage definition as a percentage reduction of elastic modulus of an element in the 15-element beam. Also Aktaşoğlu [27] tried some different damage severities in FEM which are from 10% to 70% by %10 increments. Namely, 7 different damage severities on 15 element cantilever beam are applied in many damage scenarios in the algorithm based FEM to find real damaged element. Figs. 4 and 5 present the results for one damaged case. The first six natural frequencies are sufficient to define one damaged case. As seen from Fig. 4, the total objective function is equal to zero after 40th iteration. It means that the difference between updated numerical model and simulated damaged model is minimized by GA optimization. Fig. 5 shows the reduction factors according to element number and individual number in the last population. In this figure, it is observed that the reduction factor of element number 3 in the individual no. 1 is 0.60 and it refers the element has 40% damage. The reduction factors of the other elements in this individual are 1.00. So, they are undamaged elements. This situation is also valid for the most of other individuals as shown in Fig. 5.

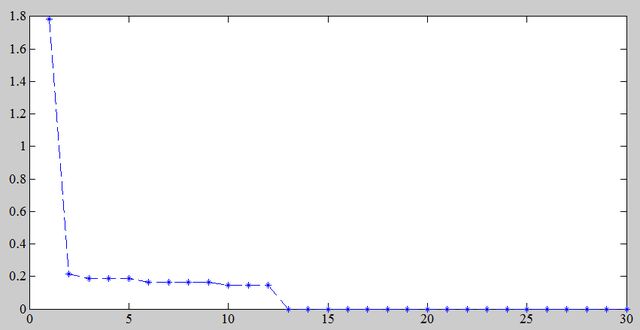

Figure 4. The variation of the total objective function with iterations for one damaged case

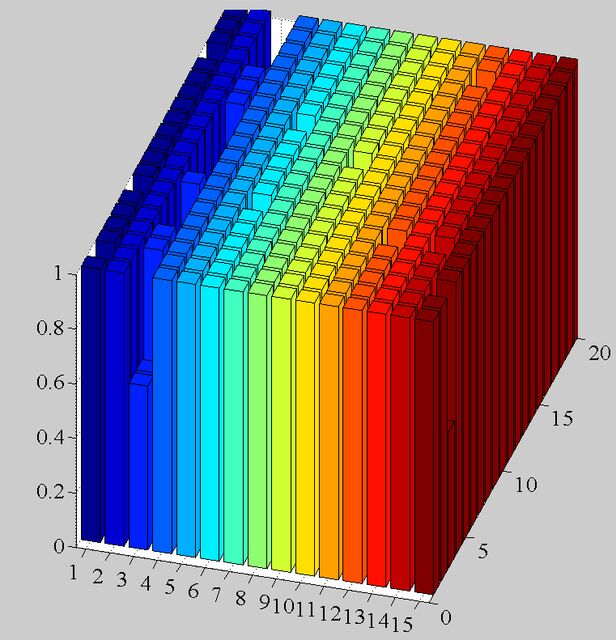

Figure 5. Reduction factors according to element number and individual number in the last population for the damaged case 3.2.2. 8-Bar Space Frame System An 8-bar space frame system is shown in Fig. 6. The design parameters are the elastic modulus E=21000 kN/cm2, shear modulus G=8100 kN/cm2 and material density ρ= 7.85 ton/m3. Tube cross section shown in Fig. 6 is selected for all members and its parameters are A=64*10-4 m2, Iz=7.253*10-6 m4, Iy= 7.253*10-6 m4 and torsional constant J=1.024*10-5 m4. Four reduction factors such as 0.25, 0.50, 0.75 and 1.00 are taken into account in GA analysis. Three different damage scenarios are performed. The element number 6 has 75% damage in Case 1. In Case 2, the element numbers 2 and 6 have 25% and 75% damages, respectively. In Case 3, the element

numbers 1, 2 and 6 have 50%, 25% and 75% damages, respectively. The population size is 30, crossover probability is taken as 0.90 and 0.05 is used for mutation in GA. Table 4 shows the values of the first eight natural frequencies obtained from MATLAB and SAP2000 softwares. As seen in Table 4, the frequency results of MATLAB are quite close to the frequency results of SAP2000 for undamaged case. The required values of the damaged natural frequencies are obtained from SAP2000 software for each damaged case. 51

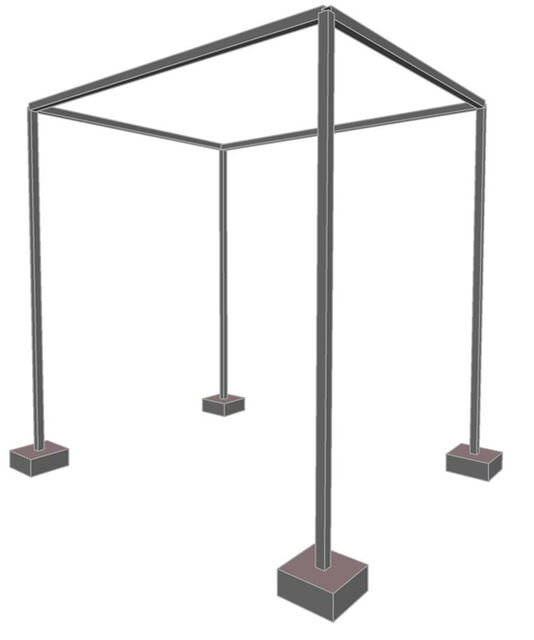

Figure 6. 8-bar space frame system Table 4. Natural frequencies (Hz) obtanined from SAP2000 and MATLAB softwares SAP2000 One Two damaged damaged case (Hz) case (Hz)

Matlab

Figs. 7 and 8 present the results for one damaged case. The first six natural frequencies are sufficient to define one damaged case. As seen from Fig. 7, the total objective function is equal to zero at the 13th iteration. It means that the difference between updated numerical model and simulated damaged model is minimized by GA optimization. Fig. 8 shows the reduction factors according to element number and individual number in the last population. In this figure, it is observed that the reduction factor of element number 6 in the individual No. 30 is 0.25 and it refers the element has 75% damage. The reduction factors of the other elements in this individual are 1.00. So, they are undamaged elements. This situation is also valid for the most of other individuals as shown in Fig. 8.

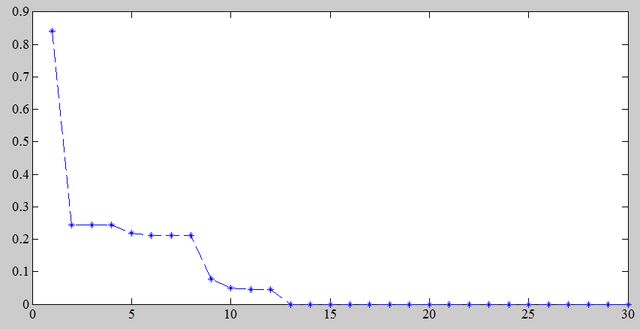

Figure 7. The variation of the total objective function with iterations for one damaged case

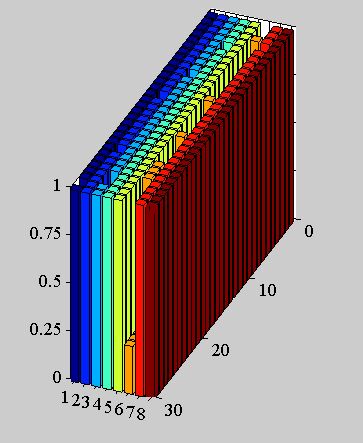

Figure 8. Reduction factors according to element number and individual number in the last population for one damaged case

The total objective function is equal to zero at the 13th iteration as seen from Fig. 9. It indicates that the damages are probably predicted by the updated numerical model. Fig. 10 shows the reduction factors in the last population. It is observed in this figure that the reduction factors of element numbers 2 and 6 in the individual No. 1 are 0.75 and 0.25, and therefore the elements have 25% and 75% damages, respectively. The reduction factors of the other elements in this individual are 1.00 which refer undamaged elements. Also, as shown in Fig. 10 this situation is valid for the most of other individuals.

Figure 9. The variation of the total objective function with iterations for two damaged case

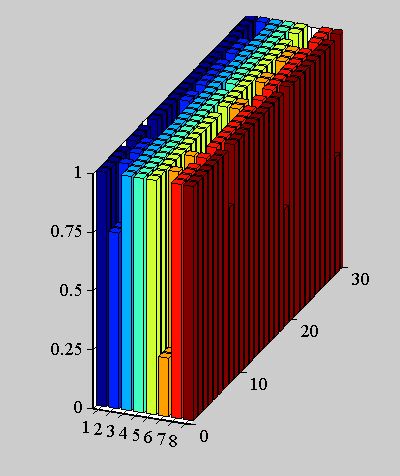

Figure 10. Reduction factors according to element number and individual number in the last population for two damaged case

It is observed from Fig. 11 that three damages cause an increase in the number of iterations and the total objective function is equal to zero at the 88th iteration. In this iteration, the difference between updated numerical model and simulated damaged model is minimized by GA optimization. As seen from Fig. 12, the reduction factors of element numbers 1, 2 and 6 in the individual No. 1 are 0. 50, 0.75 and 0.25, respectively. It means that these elements have 50%, 25% and 75% damages, respectively. This situation is also valid for the most of other individuals shown in the figure.

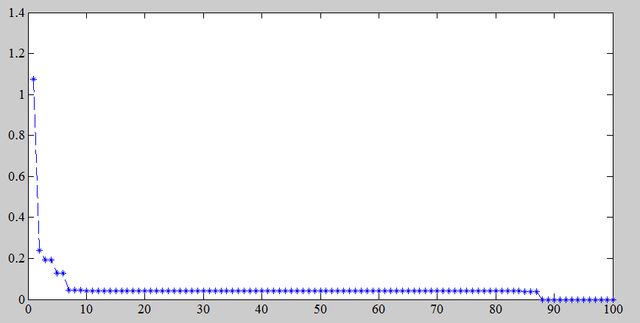

Iterations Figure 11. The variation of the total objective function with iterations for three damaged case

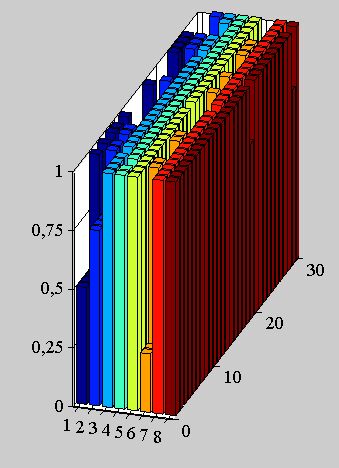

Element number Figure 12. Reduction factors according to element number and individual number in the last population for three damaged case 3.2.2. 24-Bar Space Frame System A 24-bar space frame system is shown in Fig. 13. The section and material properties are the same as the 8-bar space frame system and four reduction factors such as 0.25, 0.50, 0.75 and 1.00 are taken into account in GA analysis. Three different damage scenarios are performed. In Case 1, the element number 11 has 75% damage. In Case 2, the element numbers 5 and 11 have 50% and 75% damages, respectively. In Case 3, the element numbers 5, 11 and 17 have 50%, 75% and 50% damages, respectively. Crossover probability is taken as 0.90 and 0.05 is used for mutationwith a population size of 30 (for Case 1 and Case 2) and 50 (for Case3). Table 5 shows the values of the first eight natural frequencies obtained from MATLAB and SAP2000 softwares. As seen in Table 5, the frequency results of MATLAB are confirmed by the frequency results of SAP2000 for undamaged case. Also, there are the natural frequcies of the damaged cases simulated by SAP2000.

Table 5. Natural frequencies (Hz) obtanined from SAP2000 and MATLAB softwares SAP2000

Matlab

3.2.2.1. One Damaged Case The number of iterations increases according to the previous example and the total objective function is equal to zero at the 24th iteration as seen from Fig. 14. The damage is determined by the updated numerical model. Fig. 15 shows the reduction factors according to element number and individual number in the last population. It is observed in this figure that the reduction factors of element number 11 in the individual No. 1 is 0.25, and therefore the element has 75% damage. The reduction factors of the other elements in this individual are 1.00 representing undamaged elements. This situation is also valid for the most of other individuals shown in Fig. 15.

Iterations Figure 14. The variation of the total objective function with iterations for one damaged case

Element number Figure 15. Reduction factors according to element number and individual number in the last population for one damaged case 3.2.2.2. Two Damaged Case The total objective function is equal to zero at the 60th iteration as shown in Fig. 16, and the time required increases accordingly. the difference between updated numerical model and simulated damaged model is minimized by GA optimization after 60 iteration. As seen from Fig. 17, the reduction factors of element numbers 5 and 11 in the individual No. 1 are 0. 50 and 0.25, respectively. It indicates that these elements have 50% and 75% damages like most of other individuals as shown in this Fig. 17.

Figure 16. The variation of the total objective function with iterations for two damaged case

Figure 17. Reduction factors according to element number and individual number in the last population for two damaged case 3.2.2.3. Three Damaged Case Although the number of individuals in the generation is 50, three damaged elements in the 24-bar space frame cause a significant increase in the number of iterations as seen from Fig. 18. Therefore, the total objective function is equal to zero after 180 iterations. The damage detection is performed succesfully. As seen from Fig. 19, the reduction factors of element numbers 5, 11 and 17 in the individual No. 1 are 0. 50, 0.25 and 0.50, respectively. It indicates that these

elements have 50%, 75% and 50% damages, respectively, which is also valid for the most of other individuals as shown in Fig. 19.

Figure 18. The variation of the total objective function with iterations for three damaged case

Figure 19. Reduction factors according to element number and individual number in the last population for three damaged case

Matlab

Undamaged case (Hz) (b) 1.601 1.900 2.078 3.450 5.180 5.624 7.196 7.474

Relative error % │(a-b)/a│*100 0.87 1.48 2.02 0.38 0.51 0.61 2.27 1.86

It is observed from Fig. 21 that a large number of iterations are needed for identification of three damaged case with noise in the 32-bar space frame system. The convergence is obtained after 440 iterations and the difference between updated numerical model and simulated damaged model is minimized by GA. As seen from Fig. 22, the reduction factors of element numbers 1, 5 and 9 in the individual No. 30 are 0.50, 0.25 and 0.75, respectively. It means that these elements have 50%, 75% and 25% damages, respectively. This situation is also valid for most of other individuals shown in this figure.

Figure 21. The variation of the total objective function with iterations

Figure 22. Reduction factors according to element number and individual number in the last population

4. Conclusions

Finite element model updating is used in Genetic Algorithm process to investigate the determination of simulated damages of space frames. In order to present the suitability of this method, various examples from simple to complex are carried out for several damaged cases. Also, the noise effect is taken into consideration. The results of Genetic Algorithm analyses are shown in two and three dimensional graphical formats. The results obtained from this study which show genetic algorithm method based finite element model updating is an appropriate method to determine damage location and severity, are briefly summarized below:

 The natural frequencies of a 30-element simulated continuous beam are determined by MATLAB and SAP2000 softwares. The results obtained from this study are verified by the results avaliable in literature.  A cantilever beam studied by Aktaşoğlu [27] previously is researched for one damaged case. Damaged element in 15-element beam are succesfully detected at 40th iteration. Also, natural frequencies for damaged and undamaged cases in this study are very close to the results obtained by Aktaşoğlu [27].  While one damage detection in the 8-bar space frame system is carried out with 13th iteration, three damage detection is obtained after 88 iterations. This situation is also observed in the other examples.  In the last example, noise effect is considered and it is added to natural frequencies of the simulated space frame. So, determination of damages is carried out after 440 iterations. REFERENCES / KAYNAKLAR [1] [2] [3] [4] [5] [6] [7] [8] [9] [10] [11] [12]

C. Mares, C. Surace, An application of genetic algorithms to identify damage in elastic structures, J. Sound Vib. 195, 195-215, 1996. J.-H. Chou, J. Ghaboussi, Genetic algorithm in structural damage detection, Comput. Struct. 79, 1335-1353, 2001. A. Dutta, S. Talukdar, Damage detection in bridges using accurate modal parameters, Finite Elem. Anal. Des. 40, 287–304, 2004. M. A. Rao, J. Srinivas, B.S.N. Murthy, Damage detection in vibrating bodies using genetic algorithms, Comput. Struct. 82, 963–968, 2004. B. Jaishi, W.-Xin Ren, Damage detection by finite element model updating using modal flexibility residual, J. Sound Vib. 290, 369–387, 2006. R. Perera, R. Torres, Structural damage detection via modal data with genetic algorithms, J. Struct. Eng. ASCE 132, 1491–1501, 2006. H.M. Gomes, N.R.S. Silva, Some comparisons for damage detection on structures using genetic algorithms and modal sensitivity method, Appl. Math. Model. 32,2216–2232, 2008. A. Esfandiari, F. Bakhtiari-Nejad, A. Rahai, M. Sanayei, Structural model updating using frequency response function and quasi-linear sensitivity equation, J.Sound Vib. 326,557– 573, 2009. H. Liu, K. Xin, Q. Qi, Study of structural damage detection with multi-objective function genetic algorithms, Procedia Engineering 12,80–86, 2011. S. H. Sim, B. F. Spencer Jr., T. Nagayama, Multimetric sensing for structural damage detection, J. Eng. Mech.ASCE 137, 22-30, 2011. F. Khoshnoudian, A. Esfandiari, Structural damage diagnosis using modal data, Scientia Iranica A 18, 853–860, 2011. S.M. Pourhoseini Nejad, Gh. R. Ghodrati Amiri, A. Asadi, E. Afshari, Z. Tabrizian, Damage detection of skeletal structures using particle swarm optimizer with passive congregation (PSOPC) algorithm via incomplete modal data, Comp. Meth. Civil Eng. 3, 1-13, 2012. A. Majumdar, D. K. Maiti, D. Maity, Damage assessment of truss structures from changes in natural frequencies using ant colony optimization, Appl. Math. Comput. 218, 9759–9772, 2012. E. Asnaashari, J. K. Sinha, Crack detection in structures using deviation from normal distribution of measured vibration responses, J. Sound Vib. 333, 4139–4151, 2014. T. Tang, X. Xie, Structural damage identification using virtual flexibility matrix I: simulation verification, Solids and Structures (SAS), 3, 1-8, 2014.

Damage Detection in Simulated Space Frames Using … [16] [17] [18] [19] [20] [21] [22] [23] [24] [25] [26] [27]

MATLAB, The language of technical computing, The Mathworks Inc., Natick, USA, 2009. SAP2000, Integrated software for structural analysis and design, Computers and Structures Inc., Berkeley, CA, USA, 2008. D. E. Goldberg, J. H. Holland, Genetic algorithms and machine learning, Kluwer Academic Publishers, Machine Learning 3, 95-99, 1988. Y.S. Erdogan, Damage detection and parameter identification by finite element model updating using genetic algorithms, Master Thesis, Istanbul Technical University, Istanbul, 2007. A. Topcu, Computer aided numerical analysis lecture notes, Eskişehir Osmangazi University, 2013. B.A. Zarate, J.M. Caicedo, Finite element model updating: Multiple alternatives, Eng. Struct. 30, 3724-3730, 2008. M. Armutçu, Optimum design of plane frames using genetic algorithm, Master Thesis, Karadeniz Technical University, Trabzon, 1997. Z. Aydın, Minimum weighted optimization of plane trusses with genetic algorithm, Graduation Thesis, Karadeniz Technical University, Trabzon, 1997. A. Daloğlu, Z.Aydın, Optimum design of trusses for practical applications, Pamukkale University Journal of Engineering Sciences 5, 951-957, 1999. S. Bekiroğlu, Optimum design of steel frame with genetic algorithm, Master Thesis, Karadeniz Technical University, Trabzon, 2003. W.-X. Ren, G. D. Roeck, Structural damage identification using modal data. I: Simulation Verification, J. Struct. Eng. ASCE 128,87-95, 2002. S. Aktaşoğlu, Damage detection in beam-like structures via combined genetic algorithm and non-linear optimisation, Master Thesis, Middle East Technical University, Ankara,2012.
