Simulation of shrinkage effect in drying of food products in hot-air dryer
* Author to whom correspondence should be addressed.
Sigma Journal of Engineering and Natural Sciences 2020, Vol. 38, Issue 2, pp. 527-544; doi.org/10.62051/ytu.sigma-journal-of-engineering-and-natural-sciences-simulation-of-shrinkage-effect-in-drying-of-food-products-in-hot-air-dryer
Abstract
Keywords: Food drying; numerical and experimental investigation; shrinkage; thin drying models; hot-air drying.
1. Introduction
The carrot contains vitamins B1, B2, B6 and B12 is a rich nutritious food product. It also contains carotene and carotenoids. Carrot has a good taste and must be consumed fresh [1, 2]. The eggplant is grown in North America, Asia, and the Mediterranean region. It is important to keep the eggplant fresh for a long time in terms of shelf life. Drying is required to provide more stable food products and to ensure their use all year round [3]. Water that fruits and vegetables contain causes chemical degradation. Therefore, the drying process is used for the long-term conservation of agricultural products. With the drying process, the long-term healthy storage of seasonally produced foods is ensured without losing their vitamin value. Thus, the economic waste is prevented, and a long-term quality product is presented to the consumer [4]. Therefore, it is vital *
Corresponding Author: e-mail: burakt@uludag.edu.tr, tel: (224) 294 07 45
to minimize the moisture content. It is difficult to determine how much moisture remains at any point in the food during drying, experimentally. Therefore, the numerical analysis of the drying process is very important. By using the numerical method, the temperature and moisture distribution of the food can be easily estimated depending on the time. During the drying time, shrinkage is observed due to the evaporation of moisture from the product. The shrinkage effect occurring in food products has an observable strong impact on the structure of the dried food and the drying rate [5].

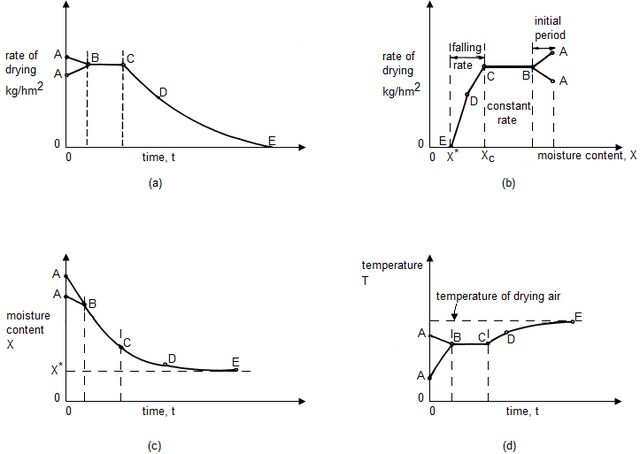

Figure 1. a) Change of drying rate over time b) Change of drying rate with moisture content c) Change of moisture content over time d) Change of temperature over time In the drying process, hot air flow is sent over the material, which leads to heat convection and removes water from the food material. This process depends on the relative moisture and temperature of the air and continues until the moisture in the product reaches equilibrium. The mass of water, which transfers via evaporation as a function of the unit area and time, determines the drying rate. When a moist product, which has a surface covered with a water film, begins to dry, the drying rate is equal to the evaporation rate. The drying rate does not change as long as the air velocity, temperature and moisture remain constant. The moisture that starts to disappear from the water film on the surface is referred as the first critical moisture. The constant velocity period is called the ongoing drying period until the critical moisture is reached. The changing character of the drying process is described in terms of four experimentally determined graphs, as shown in Figure 1. AB : Process of heating or cooling moist product before equilibrium BC : The constant evaporation of liquid in constant-rate period C : The first critical point where dry spots begin to form on the surface of the moist product CD : First falling-rate period D : The second critical point where the surface is completely dry DE : Second falling-rate period
The moisture of the product continuously decreases over time in different periods. Because the external conditions (air velocity, moisture, and temperature) are constant, by controlling the drying air, the surface temperature is fixed in the range of BC to achieve uniform evaporation of liquid. The heat transfer is balanced by the mass transfer in the BC area. In the constant-rate period, the surface temperature of the material is equal to the wet-bulb temperature of drying air. Then, the amount of moisture in the material begins to decrease due to increased resistance, i.e., the moisture transfer from the interior to the surface of the material becomes more difficult. The drying rate does not remain constant due to the ongoing drying process of the solid product, and the water film starts to disappear at the first critical moisture point C. After a while, the water film on the surface completely disappears. After this point, a continuous decrease in mass transfer is observed. This period is called the falling-rate period. Point D is the second critical moisture point. While the drying depends on the movement rate of the water through the material to the surface, the drying rate continues to decrease. The moisture in the product is reduced to equilibrium with the relative moisture of drying air. As a result of the drying of the surface of the product and the increase in the surface temperature during the falling rate period, structure and quality defects appeared in the product. Hygroscopic moisture loss occurs as a consequence of exceeding the critical moisture value. Thus, the drying process is preferred in BC area where the critical moisture value is not exceeded. The surface is completely dry at the second critical point. The heat that is transferred to the surface in falling rate period exceeds the energy required for evaporation. The surface temperature increases to the dry bulb temperature. As a result, mass transfer decreases, and moisture equilibrium is reached [6]. Fick’s law of diffusion is used for defining the dehydration kinetics. The thin-layer drying models obtained by using this law are frequently encountered in the literature. The Lewis model [7], Henderson and Pabis model [8], Two Term model [9], Wang and Singh model [10], Midilli model [11] can be given as examples of these models. Many studies on drying have been done in the literature. Vega et al. [12] investigated the maximum temperature value of the fruit and vegetables on the product surface. They dried the apple slices experimentally in the automatic control unit. In the simulation model, they defined the optimal control with experimental data. Bezerra et al. [13] calculated the moisture diffusivity and mass transfer coefficients using the analytical model in the literature for drying the food. Experimental and correlated results were obtained. Udayraj et al. [14] have developed a numerical model for estimating the moisture content of a food product. In the study of Kaya et al. [15] used a convective dryer to study the drying behavior of the cucurbit. Lemus-Mondaca et al. [16] studied the drying of a solid food product using different drying air temperatures from 40°C to 80°C both numerically and experimentally. Kumar et al. [17] developed a mathematical model of simultaneous heat and mass transfer during forced drying with forced convection. Darıcı and Sen [18] studied kiwi drying experimentally. In the literature, there are studies of drying of many different food products using convective drying method; okra [19]; prunes [20]; red pepper [21]; carrot [22]; peach [23]; tomatoes [24]; kiwi [25], apple [26]. In literature, drying kinetics of food products were significantly examined. However, it was not found that the shrinkage effect was examined by Arbitrary Lagrangian Eulerian method for different food products (carrot, cucumber and eggplant). In this study, it was aimed to obtain the drying features of carrot, cucumber, and eggplant. For this purpose, the characteristics were obtained experimentally, and the drying conditions were modeled and compared with the numerical study, including the shrinkage effect. Five drying models were used to provide the closest result of the experimental data. Finally, the compatibility of the results obtained with the drying models in the literature was investigated.
2. Materials And Methods
Carrot, eggplant, and cucumber were used in the experiments. Drying processes were accomplished using a convective tunnel-type dryer (Ogen, Turkey). The experimental schematic diagram was presented in Figure 2. Balance
Figure 2. Experimental set up of tunnel type convective dryer Carrot, eggplant, and cucumber slices weighing 93±0.05 g were placed in a dryer to determine the initial moisture and dried at an air temperature of 60±0.3°C for 24 hours. Drying was continued until the difference between the last two values fell below 1%. The average initial moisture content on a wet basis of the foodstuff (carrot, eggplant, and cucumber) was found to be 79.51%, 92.3%, and 88.56%, respectively. The air temperature of 60±0.3°C and the air velocity of 0.7 m/s were used. Carrot, eggplant, and cucumber were sliced to 1 cm thickness and 2.5 cm in diameter. The change in the weight of the foods was registered with a digital scale (Kern, Germany) with a sensitivity of 0.05 g. Air velocity were measured in an anemometer (±0.1), while air temperature measurement (±0.3) was performed with a thermometer in the experimental set up. The food surface temperature was made non-contact with infrared temperature meter (TESTO 845) with ± 0.1 °C sensitivity.
2.1. Calculation of Moisture Content
Eq.1 and Eq.2 define dry and wet basis expressions as follows: 𝑊
where W is the primary weight (g) of the product, Ww is the mass (g) of the water in the food, and Wdr is the mass (g) of the dry product [27]. The moisture ratio (MR) is related to moisture content as follows: MR =
where Me [g water /(g dry matter)] is the equilibrium moisture content at the end of drying, and Mi [g water /(g dry matter)] is the initial moisture content.
2.2. Mathematical Modeling for the Numerical Analysis
The energy conservation equation in solids can be given as follows; 𝜕𝑇
where 𝑐𝑝 is specific heat of food [J /(kg K)], k is the thermal conductivity of food [W /(mK)], ρ is the density of food [kg /m3] and the mass conservation equation in solids can be given as follows [28]: 𝜕𝑀 𝜕𝑡
where Deff is the effective diffusion coefficient (m /s) and M is the moisture content (g water /g material). 2.2.1. First and Boundary Conditions The first moisture content of the carrot, eggplant, and cucumber was obtained to be 79.51%, 92.3%, and 88.56%, respectively and the initial temperature of the food was 15 °C. 2.2.2. Heat Transfer Boundary Conditions The surface boundary condition for heat transfer is given below: −n(−𝑘∇𝑇) = ℎ𝑡 (𝑇 − 𝑇𝑠 )
where ℎ𝑡 is the heat transfer coefficient [W /(m2K)] and 𝑇𝑠 is the drying air temperature (°C). The symmetry boundary condition for heat transfer is presented below: n(𝑘∇𝑇) = 0
2.2.3. Mass Transfer Boundary Conditions The surface boundary condition for mass transfer is given below: −n( 𝐷∇𝑀) = ℎ𝑚 (𝑀 − 𝑀𝑠 )
where ℎ𝑚 is the mass transfer coefficient (m/s), and 𝑀𝑠 is the equilibrium moisture content (g water/g material). The symmetry boundary condition for mass transfer is presented below: n(𝐷∇𝑀) = 0
2.3. Heat and Mass Transfer Coefficients
Heat transfer coefficients can be calculated with well-known correlations in the literature [29]. Nu =
The Reynolds number ranges from 922.99 to 1292.19. Thus, the expression given in Eq. 11 and 12 is suitable since it is a laminar flow.
2.4. Data Analysis
Five different experimental, semi-experimental, and thin layer drying models (the Lewis model, Henderson and Pabis model, Two Term model, Wang and Singh model, and Midilli model) used in the literature were applied. (see Table 1)
Table 1. Constants and coefficients of the drying models Model No Name of Model Model Reference 1 Lewis MR=exp(-kt) [7] 2 Henderson and Pabis MR=aexp(-kt) [8] 3 Two Term MR=aexp(-k0t)+bexp(-k1t) [9] 4 Wang and Singh MR=1+at+bt2 [10] 5 Midilli MR=aexp(-ktn)+bt [11] MR: moisture ratio, k, k0, k1: drying constant (min-1), a, b: coefficient, n: drying constant Statistical parameters were calculated using the Sigma Plot program. The drying coefficients (a, b, k, k0, k1, n) and the coefficients of determination (R2), standard error of estimate (SEE), and chi-square (x2) expressions, which are statistical parameters, were calculated as follows [30]: 2
where MRexperimental is experimental moisture ratio, MRpredicted is the predicted moisture ratio, N is the number of experimental data points, and z is the number of parameters in the model. It is difficult to figure out the shrinkage effect experimentally. The shrinkage rate at any point of the food is defined as follows: 𝑢(𝑥) = 𝑢(𝑏)
The shrinkage rate value on the surface is given in Eq. (15). 𝑢(𝑏) =
where, b (old) is the half-thickness of the food at the next time step, and b is the initial halfthickness [31]. In order to figure out the half-thickness of the food at any time, the following expression obtained depending on the moisture content of the food at that time is used. 𝜌 +𝑀𝜌𝑠
2.5. Uncertainty Analysis
It is necessary to determine the total error by performing the uncertainty analysis of the measurement results. The overall uncertainty can be estimated using the following expressions: 𝑊𝑟 = [( 𝑒=
where, R (x1,x2,x3….xn) is a function of independent variables, Wr is the overall uncertainty, w1,w2,w3….wn are error values of the independent variables and e is the relative uncertainty [32]. Uncertainty analysis of moisture content was performed using Eqs. 18-19. The relative uncertainties for cucumber, eggplant, and carrot were obtained to be ± 0.5%, 0.7%, and 0.3%, respectively. Sensitivity values and total uncertainty values of the measuring devices are given in Table 2.
Table 2. Total uncertainty values of the measuring devices used in the drying test Parameter
3. Results And Discussion
3.1.Experimental Drying Kinetics Figure 3 shows the drying behaviour of different foodstuffs under the same air velocity (0.7 m/s) and air temperature (60°C). As shown in Figure 3a, at the end of the 180 minute drying period, the moisture content of each foodstuff (cucumber, carrot, and eggplant) is obtained as 2.95 [g/g dry], 1.28 [g/g dry] and 2.01 [g/g dry], respectively. The change in moisture content of each foodstuff is calculated as 61%, 66%, and 83%. The surface temperatures are also shown in Figure 3b. The measured surface temperature values increased from 14.5°C to about 57°C. The surface temperature values for cucumber are higher than those for carrot and eggplant. The surface temperature values for cucumber, carrot, and eggplant are calculated to be 55.6°C, 52.5°C, and 47°C at the end of the 3 hour drying process. Since the moisture content in the product decreases throughout the drying process, the obtained data are also compatible with the conclusions of some studies in the literature [9, 31, 33, 34, 35]. 60
Figure 3. (a) Moisture content, (b) temperature versus drying time for different foodstuffs (carrot, cucumber and eggplant) at a drying temperature of 60°C and an air velocity of 0.7 m/s
The experimental data on moisture content obtained at a drying air temperature of 60°C for five well-known semi-empirical models are given in Table 1. Table 3. Statistical parameter values and coefficients obtained for carrot, cucumber and eggplant Carrot Constants and coefficients Model 1 2 3 4 5 1 2 3 4 5
R2 SEE x2 0.99 0.0149 0.0002 0.99 0.0148 0.0002 0.99 0.0191 0.0004 0.99 0.0054 2.95×10-5 0.99 0.0061 3.71×10-5 k=0.0058 k=0.0059 a=1.0123 a=0.47 b=0.85 k0=0.0059 k1=0.0059 a=-0.005 b=7.23×10-6 a=0.99 b=-0.0007 n=0.97 k=0.0049
Cucumber Constants and coefficients R2 0.97 0.98 0.98 0.99 0.99 k=0.0047 k=0.0050 a=0.49 k0=0.0050 a=-0.0035 a=0.99 n=1.22
Eggplant Constants and coefficients R2 SEE x2 0.98 0.0320 0.0010 0.98 0.0347 0.0012 0.98 0.0448 0.0020 0.99 0.0230 0.0005 0.99 0.0169 0.0003 k=0.0086 k=0.0087 a=1.0099 a=0.49 b=0.51 k0=0.0087 k1=0.0087 a=-0.0069 b=1.26×10-5 a=0.99 b=-0.0025 n=0.59 k=0.0224
R2 , the coefficient of determination; SEE, standard error of estimate; x2, chi-square; k, k0, k1, drying constant (min-1); a ,b, coefficients; n, drying constant The statistical results (a, b, k, k0, k1, n, R2, SEE, and x2) obtained from these models’ coefficients were presented collectively in Table 3. To describe the most appropriate model using the dimensionless moisture content obtained from the experiment, the R2 value should be close to 1, and the SEE and x2 values should be close to 0 [35]. In accordance with these results (Table 3), the largest R2 and the smallest SEE and x2 values for cucumber and eggplant were obtained in Midilli model. However, the best model for carrot was obtained in the Wang and Singh model. It is possible to say that the Midilli model gives better predictions among the other models and is the most appropriate model for cucumber and eggplant. Using the SigmaPlot software, predicted moisture ratio values for the Midilli Model are calculated for each food. The verification of the Midilli model was assessed by equating the computed moisture ratio with the observed moisture ratio. The results for foodstuffs are shown in Figure 4. The regression coefficients (R2) for each foodstuff (carrot, cucumber, and eggplant) were obtained to be 0.9997, 0.9994, and 0.9984, respectively. A 45° straight line between the experimental and predicted ratios points out that the Midilli model is a good predictor. It is possible that the estimated data obtained for the experimental and Midilli model are close to each other in the direction of y = x (R2 = 1). In order to achieve this equation, the values in the x and y axis must be on the 45° straight line.
0,1 0,2 0,3 0,4 0,5 0,6 0,7 0,8 0,9 Predicted moisture ratio [MR]
Figure 4. The correlation between the experimental moisture ratio and predicted moisture ratio for different foodstuffs (a-carrot, b-cucumber, c-eggplant)
3.2. Numerical Study and Verification
A two-dimensional axisymmetric model was used to describe the heat and mass transfer equations in the hot air convection dehydration process. Due to the axial symmetry of the food slabs, only a quarter of the planing intersection was taken into account in the numerical method. It is observed in the literature that this model approach has been preferred in some numerical drying studies [17, 31].
Figure 5. The model used in analyses and mesh structure The assumptions made for the simulation are as follows; •There is no heat production inside the food. •The heat transfer in the food was take place by conduction (Fourier’s law), and mass transfer was considered to take place by diffusion (Fick’s law). •The shrinkage effect was considered during the drying period. •The thermophysical properties of the air and food were constant. •The temperature and velocity of the drier air were constant. Food materials were modelled for numerical simulation. Different mesh structures were applied to foods (Figure 5). The mesh independence study of moisture content was carried out, and the maximum difference was found to be 1%. What is important in mesh independence studies is that there is an acceptable difference (1%) between the results obtained for different mesh numbers. In addition, analysis time should be taken into consideration in determining the
number of mesh [36]. Finally, for the accurate solution, a grid structure consisting of 8000 quadrilateral elements, 360 edge elements, and 4 vertex elements was selected. The nonlinear PDEs (partial differential equations) were solved using Comsol Multiphysics 5.3 [37] with the relative tolerance of 0.001. The parameters and thermophysical properties used in the analyses are presented in Table 4. The deformed mesh was used to consider the volume change due to the fluid transfer. Therefore, the Arbitrary Lagrange Eulerian (ALE) method was applied in Comsol Multiphysics 5.3. The ALE method is used as an application between the Lagrangian and Eulerian approaches that allow the identification of moving boundaries. The Laplace smoothing type was defined as the deformed mesh. Figure 6 indicates the variation in the moisture content of carrot under the shrinkage effect with time. The increasing shrinkage effect was obtained during drying. Initially all foods has a radius of 1.25 cm and a thickness of 1 cm. After 1, 2, and 3 hours, the amount of decrease in the volume of the carrot was determined to be 22.8% (radius 1.15 cm, thickness 0.91 cm), 42% (radius 1.05 cm, thickness 0.82 cm), and 55.7% (radius 0.98 cm, thickness 0.72 cm). Similarly, the shrinkage effect in cucumber during drying is given in Figure 7. After 1, 2, and 3 hours, the percentage change in the product volume was calculated to be 21.6% (radius 1.16 cm, thickness 0.91 cm), 41% (radius 1.06 cm, thickness 0.82 cm), and 55.7% (radius 0.98 cm, thickness 0.72 cm). Table 4. Thermophysical properties and experimental drying conditions of the carrot, cucumber, and eggplant Parameter Air velocity (m/s) Food temperature (°C) Food density (kg/m3) Air temperature (°C) Food moisture content (% w.b.) Air relative moisture (%) Thermal conductivity of food (W/mK) Specific heat (J/kgK) Heat of vaporization (kJ/kg) Water density (kg/m3) Heat transfer coefficient (W/m2K) Mass transfer coefficient (m/s) Shrinkage velocity (m/s) ×107 Moisture diffusivity (m2/s) ×1010
Value 0.7 15 1029-950-571 60 79-88-92 79 0.569-0.62-0.356 3849-4030-3900 2466 999.1 20.33 0.0190 2.481-2.527-3.370 9.374-8-9.6883

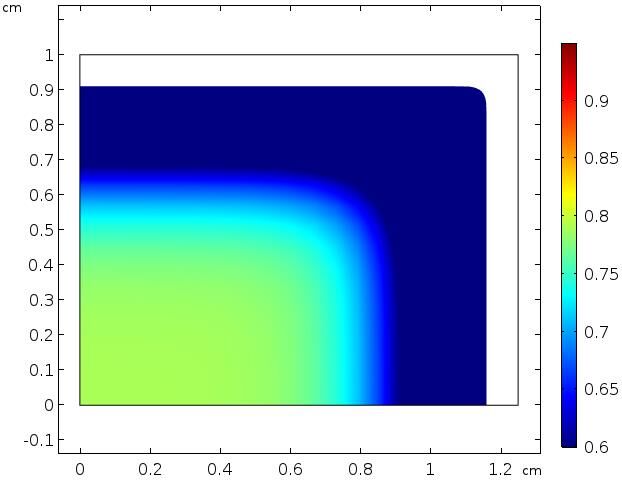

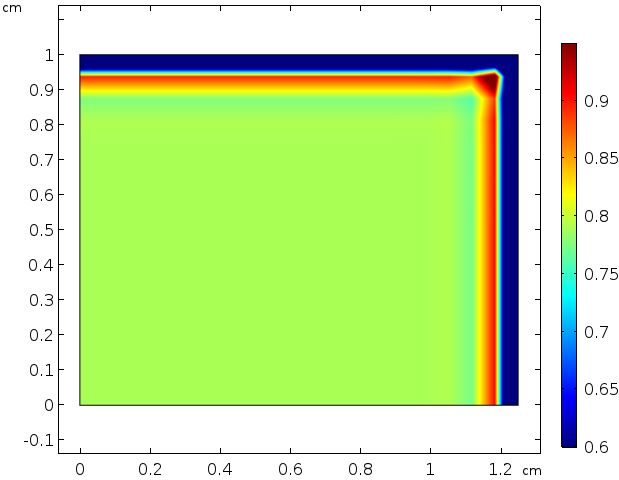

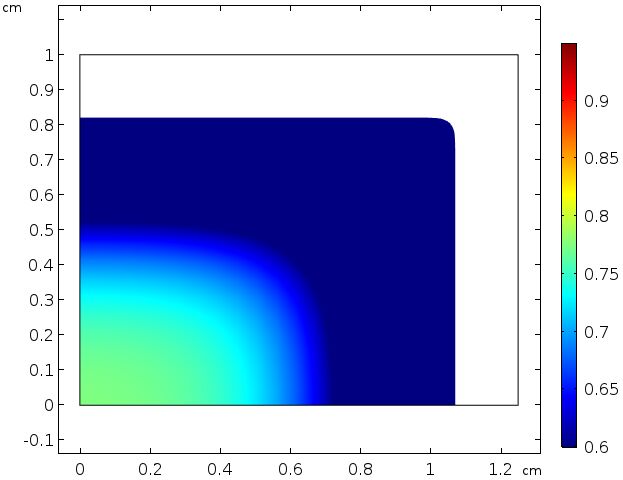

Figure 6. Evolution in the moisture content of the carrot over time during the drying process considering the shrinkage effect (a-Start of drying, b-1.h , c- 2.h, d- 3.h)

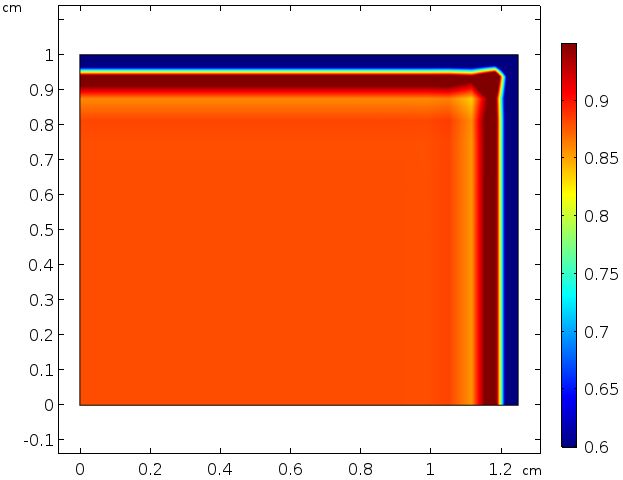

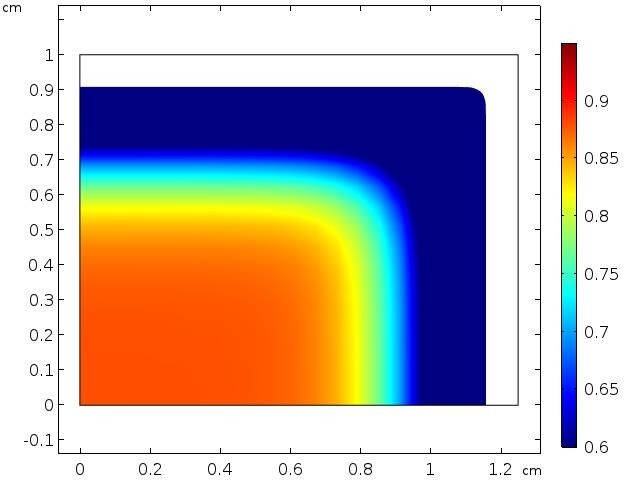

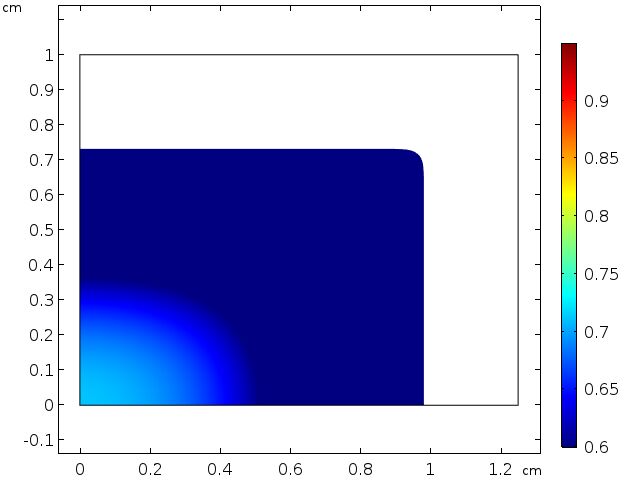

Figure 7. Evolution in the moisture content of the cucumber over time during the drying process considering the shrinkage effect (a-Start of drying, b-1.h , c- 2.h, d- 3.h)

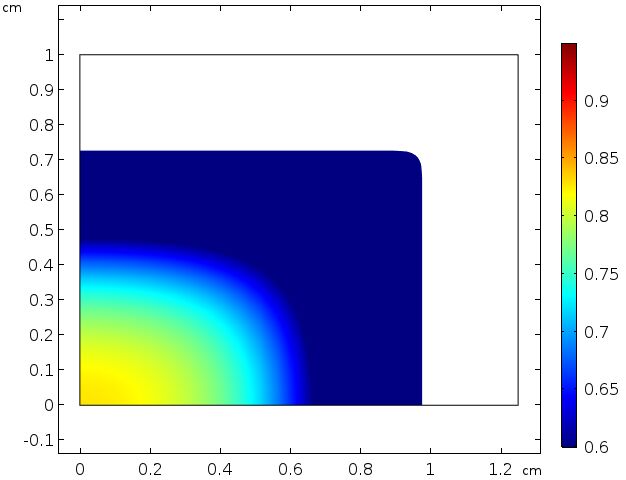

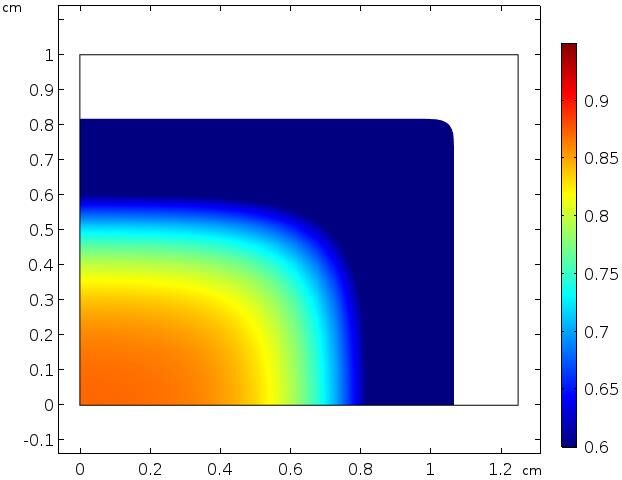

Figure 8. Evolution in the moisture content of the eggplant over time during the drying process considering the shrinkage effect (a-Start of drying, b-1.h , c- 2.h, d- 3.h) The percentage change in the volume of eggplant was obtained to be 37.8% (radius 1.05 cm, thickness 0.88 cm), 51.4% (radius 1 cm, thickness 0.76 cm) and 68.7% (radius 0.88 cm, thickness 0.63 cm) respectively, at the end of the 1st, 2nd, and 3rd hours of drying. At the end of 3 hours, the volume of carrot and cucumber was 2.17 ×10 -6 m3 while the volume of eggplant was calculated to be 1.53 ×10-6 m3. According to the results obtained from Figure 6, 7, 8, it can be said that the effect of shrinkage appeared most in the eggplant. The volume changes of carrot and cucumber are very close to each other. The numerical model was verified by comparing the moisture content and temperature values obtained from experiments. Figure 9 (a-b-c) indicates the changing of the moisture content values obtained from the experiments with the average moisture content values derived from the analysis of different foodstuffs. A difference of approximately 2.7%, 2.4%, and 0.8% was found between the values derived from the experiments and analyses for carrot, cucumber, and eggplant. The temperature values of the product center were experimentally measured and numerically calculated during drying. As a result, a very good fit between the numerical and experimental results was found. Since the moisture distribution inside food is variable, it is difficult to calculate moisture content experimentally. However, the moisture distribution in the food can be estimated by using simulation. The amount of evaporation from the food surface is higher when compared to the center. If the dry state cannot be provided, liquid remaining inside food causes to form microorganisms in the food [29]. Therefore, it is important
Experimental
to accurately determine the moisture content distribution in the food and the drying time by simulation. Drying is a complex, dynamic, non-linear process that simultaneously depends on many parameters. Therefore, the determination of drying processes is important for both academic and industrial users. In order to determine the optimum conditions in drying processes, the test process is costly and time consuming. Therefore, simulations are performed to reduce time and reduce costs. In this way, optimum drying conditions can be determined. In this study, the experimental study is also modeled numerically and results are found to be close to each other. Furthermore, the storage and transportation of dried foods are important in terms of cost. Therefore, the volume changes of the products should also be considered. Determination of volume change can be done numerically as seen in this study. In experimental processes, the average moisture content of the product is calculated by measuring weight changes. However, the moisture content distribution in the product is not equal. Simulations provide us with a numerical solution to detect this situation. Thus, after drying, it can be determined which parts of the product have a high amount of moisture, and this knowledge will allow for a more efficient and healthier drying process.
Experimental
(c) Figure 9. Variation numerical model with shrinkage and experimental study (a- carrot, bcucumber, c-eggplant)
4. Conclusion
In this study, the dehydration kinetics of carrot, cucumber and eggplant were studied experimentally. Five different thin film drying models have been used in the literature to find the optimal model for the data from the experiment. Models considering the shrinkage effect were developed in order to define the drying characteristics. The volumetric shrinkage rates of food products were examined. Finally, the numerical results were matched with the empirical results. The numerical results were found to be in considerable compromise with the empirical results. The results can be summarized as follows: As a result of the nonlinear regression analysis, it can be said that the best model for defining the drying kinetics of cucumber, and eggplant is the Midilli model. However, Wang and Singh model is the best model for carrot. According to the obtained results, at the air temperature of 60°C and air velocity of 0.7 [m/s], the fastest drying was determined in the eggplant. Therefore, eggplant should be preferred to carry out a faster-drying process. The shrinkage effect was calculated for the change in the product volume, and the maximum volumetric change was realized for eggplant with 68.7%. The moisture values obtained from the experimental study were compared with numerical analysis and found to be compatible. According to the results, the mathematical model (including the shrinkage effect) expressing simultaneous heat and mass transfer can be used to estimate the moisture and temperature distribution in the product during drying. Thus, it is possible to discuss how drying can be done in advance. The aim is to obtain a homogeneous moisture distribution throughout the product after drying. In this way, better quality products can be obtained by preventing the deterioration of the product.
Nomenclature
cp specific heat (kJ/kgK) Deff effective moisture diffusivity (m2/s) D0 coefficient hm mass transfer coefficient (m/s) ht heat transfer coefficient (W/m2K) k thermal conductivity of food (W/mK) L lenght (m) 𝑀𝑅 moisture ratio 𝑁 number of experimental data points Nu Nusselt number = hTL/k Pr Prandtl number = / Re Reynolds number = uL/ R2 coefficient of determination 𝑆𝑏 shrinkage coefficient (%) Sc Schmidt number = /DAB Sh Sherwood number = hmL/DAB 𝑆𝐸𝐸 standard error of estimate t drying time (min) T temperature (K) u air velocity (m/s) V volume (m3) 𝑥2 chi-square ρ density (kg/m3) viscosity (m2/s)
Subcripts b, o initial, reference e equilibrium h air DB dry basis s solid, surface t time, moment w water WB wet basis
